110 2nd row middle seat belt!

Milky1190 · Sep 19, 2012

Hi,
i have been looking for a safer option for the lap seat belt in the rear centre seat of a 110.
I have read a few Posts on this but I have an issue.
I have found these...

http://www.brookwell.co.uk/item/4848/3-point-floor-mounted-seat-belt

Or

http://exmoortrim.devon4x4.com/inde...category_id=79&option=com_virtuemart&Itemid=3

Both are exmoor trim and both can be bought via brookwell.

I contacted both brookwell and exmoor trim with a view to getting a solid answer from them direct. How suitable are these seatbelts for a Defender 110? (both websites state they are suitable, I wanted more info on fitting).

To my supprise...Exmoor trim would not suggest retro fitting seatbelts and brookwell would not reccomend either of these products! Neither could suggest an alternative apart from a new forward facing seat in the rear!

Well done to both companies for being honest and not trying to flog me something for the sake of it though.

Both stated that the load area would be used up as both products required mounting brackets at a 45 degree angle for the shoulder harness.

However....this still does not help me with a safer seatbelt option.

Has anyone fitted these to the original seats and do you have pictures? Does it take up the rear area?
Any other suggestions for the middle seat option?

Thanks

timtheenchanteruk · Sep 19, 2012

Mines has an inertia reel fitted to the middle rear, doesn't take up any room with the seats up, but obviously if you fold the seats down, you then have an inertia reel sat in the middle of the load bay rather than just the lap belt.

not looked closly at the mounting angle, Ill get back to you later on that!!

Milky1190 · Sep 19, 2012

Picture would be great. Was it exmoor trim? I take it from mot point of view you've had no problems?

timtheenchanteruk · Sep 19, 2012

Ive not MOT'd it myself yet, but have no reason to believe its been an issue, the centre front seat has have a 3 point put on it too.

Milky1190 · Sep 19, 2012

Defender2 - View topic - Fitted 07 Defender Middle Row Seats to my 03 110 XS

Found this on the tinterweb! Puma seats in 110 but it seems far too much tinkering for my liking!

Milky1190 · Sep 19, 2012

As a thought....what about internal rollcage in rear section with the 4 point harness attached to roll bar on roof lining? Would still be able to keep bench seats either side...

Milky1190 · Sep 19, 2012

..the roll cage senario seemed expensive but having looked on the web there are companies that produce 'harness bars' like in a rally car. The 4 point harnes would fit a few inches behind the rear seats. This would allow the rear load area to still have the bench seats. I have emailed a number of companies to find out who can produce one to fit Defender 110 and ill post if I get a reply.

e.g

Subaru WRX Interior Rear Seats Photo 5

timtheenchanteruk · Sep 20, 2012

didnt get chance to get any photos last night, will try again this evening (should be home before 9.30!)
the harness bars would be ok, if you never needed to fold the seats down, wouldnt work for me, one of my hobbies is sound engineering, I need the full loadspace for that!

Milky1190 · Sep 27, 2012

any update on the picture.

mikegsxr · Sep 27, 2012

Hi,

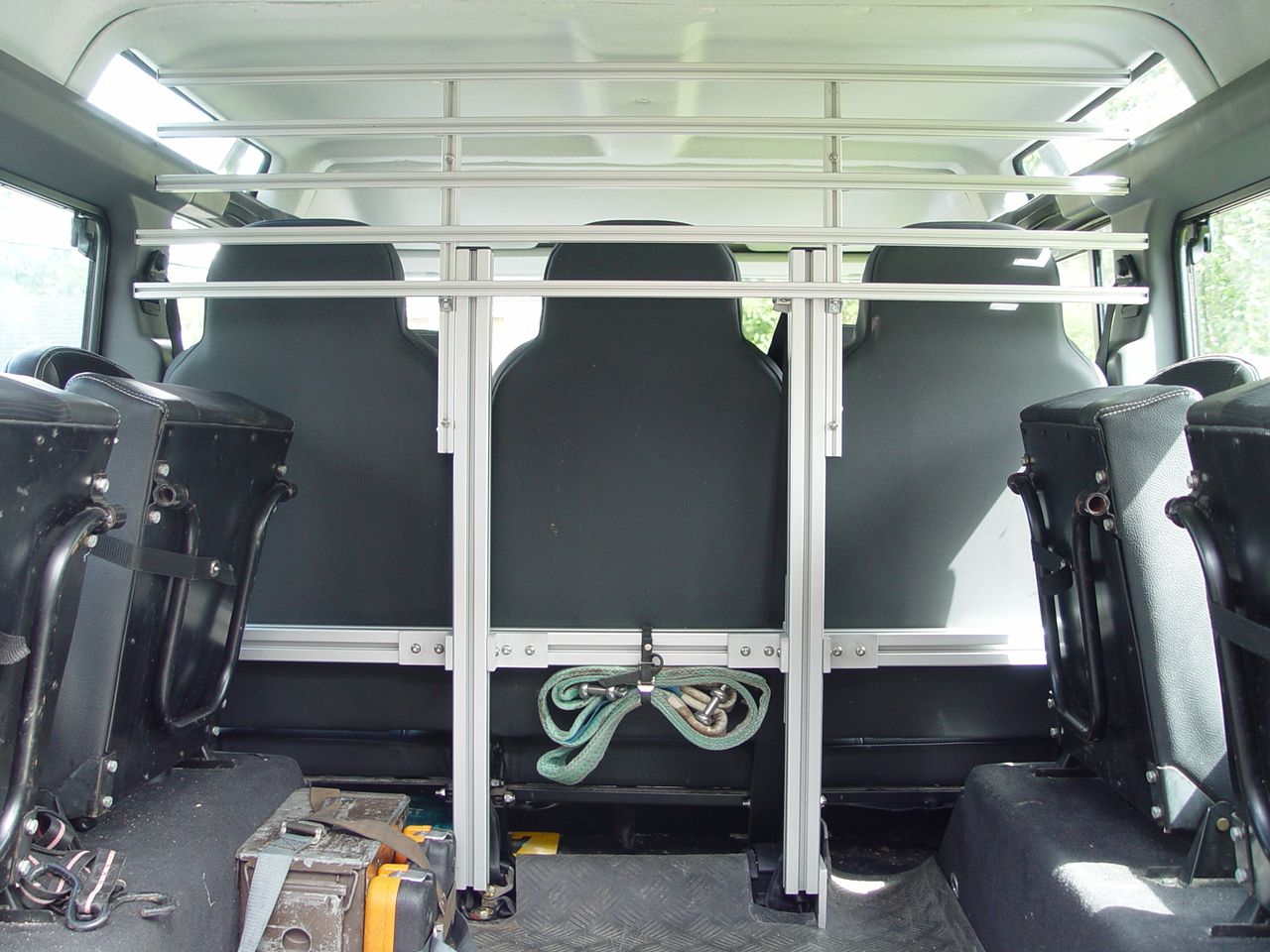

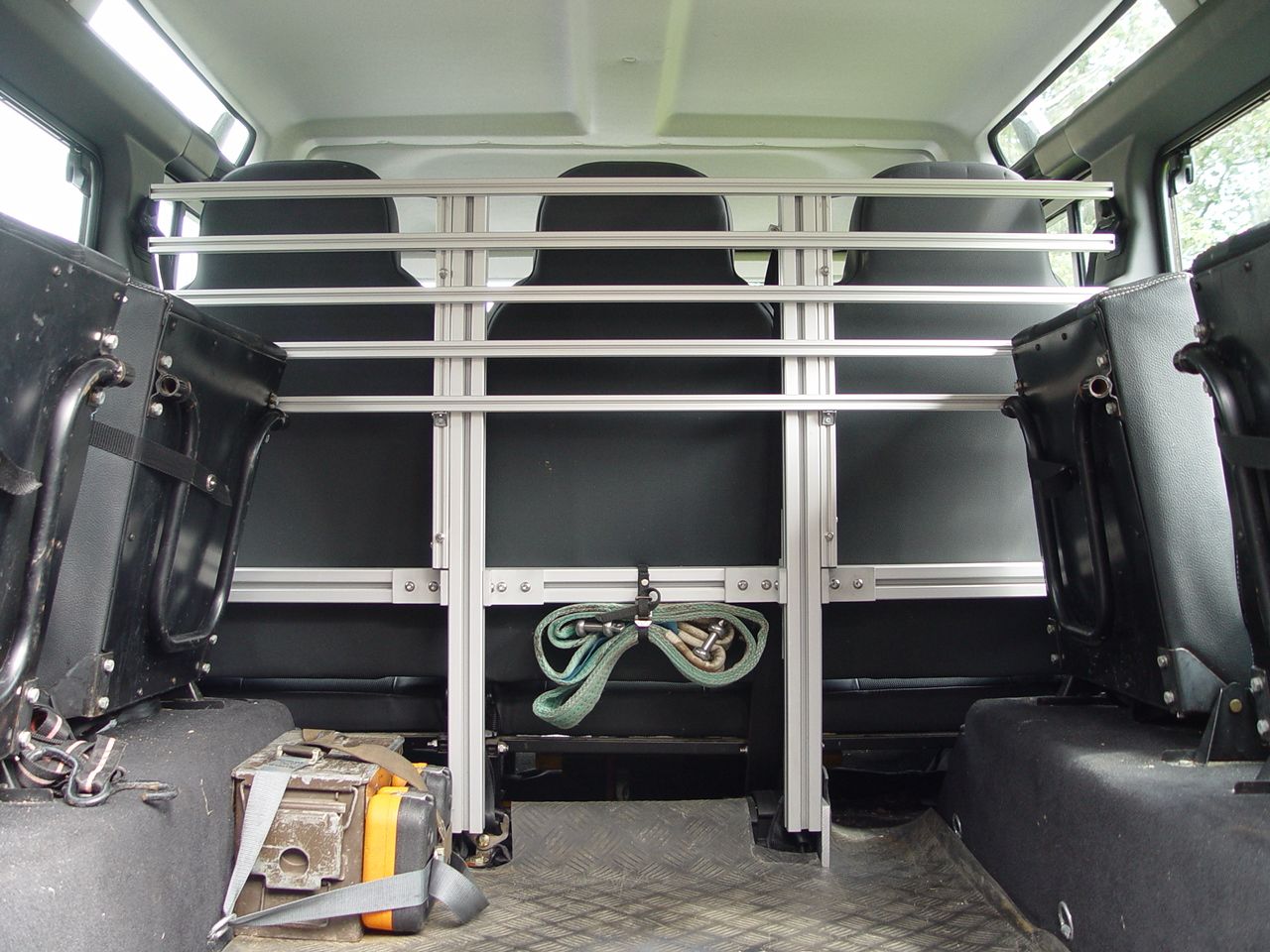

I had the same problem in my 110. I bought an Exmoor trim 3 point seat belt for the middle seat. The problem is preventing the shoulder belt from sliding off your shoulder. I made a frame to prevent a load sliding into the back of the seats, and also a dog guard that can be slid up and down the two heavy duty uprights. On one of these uprights I have mounted an angled roller for the shoulder belt to run in. Pics attached....
Works well for me.

Milky1190 · Sep 28, 2012

That's great, thanks.

pdennis30 · Oct 3, 2012

Hi I have the same problem with the front middle seat belt and had the same response from exmoor trim , and I am not sure how to over come it, I like the use of the roller on mikegsxr landy but I wonder how strong it would be in case of an accident.

I, Like you want to keep the rear standard and not have to put folding forward facing seats in, Does anyone have any pics of the correct postion for the inertia reel mounted in the rear?

I also wondered if it would be possible to fit a seat in the middle that already has an integral seatbelt fitted , such as a mini bus type. Even then I do wonder as to how safe it would be and if I would trust strapping my kids into any modified seat.

Please keep me informed of your findings , as much as I love my defender I am starting to wonder if a Discovery would of been a much more practical option.
Regards
Paul

Milky1190 · Jun 10, 2013

I have had the seats recovered since the photo but there is a 4 point harness fitted in the centre seat. Bolted through the floor - 2 under the seat and 2 behind the seat. The harness prevents the seat from tipping forward as well. This passed a recent MOT test and I'm more than happy putting my kids in it.
