05 L322 Rear Discs

Lezley · Dec 11, 2021

Hello all,

This is probably a stupid question but.....

My hand brake shoes fell to pieces making a nasty rubbing noise, so set about changing rear discs pads and hand brake shoes.

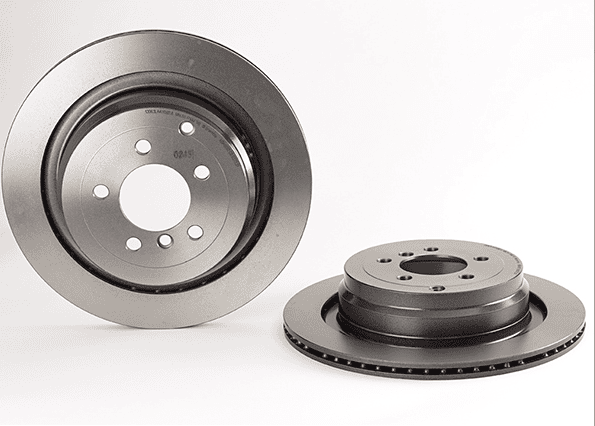

New Brembo disc supplied by Euro are 12mm thick solids, the ones I took off are 22mm externally vented. This just doesn't seem right. Holes ect are all right but they seem very thin and the pads seem to have an awful lot of travel on them. Part number is 08.8554.21 and say Landover on them.

I looked at a few sites and they all seem to state 12mm thick is right.

Anybody else think they are wrong?

Thanks

backinblack · Dec 11, 2021

Check your VIN my 05 plate is solid disc to VIN 5A999999, vented is from 6A000001. It's on Eurocrapparts but no pic for the solid disc.

from 6A000001

marjon · Dec 11, 2021

Don’t sound right.
Ours are vented but that’s 2011.
Some adds say up to 05 vented/solid so was obviously either a crossover in design or model type.
You don’t say what model you have.

I would send them back and get vented 1s.

J

Lezley · Dec 11, 2021

Thanks Guys,

Vin is 6A2 so should be vented.

I'll get them swapped

freelance · Dec 11, 2021

Make sure your pistons are clean, before you push them back in !

Lezley · Dec 11, 2021

Thanks Freelance,

Was looking at that whilst pondering today, they have rubber gaters on them, do they come off easily and is there likely to be crap behind them?

freelance · Dec 11, 2021

They need checking, as they have extended further than usual because of thin disc

Lezley · Dec 12, 2021

Thanks Freelance

To be fair the pads weren't that bad nor the discs, just thought as I was stripping it all down would replace everything.

Nodge68 · Dec 12, 2021

Lezley said:
Thanks Freelance

To be fair the pads weren't that bad nor the discs, just thought as I was stripping it all down would replace everything.

It's a 15 year old vehicle, so the pistons will be corroded.
Me I'd simply replace the calipers, and the flexy hoses at the same time. Brakes is one thing you don't want to do on a budget.

tomcat59alan · Dec 13, 2021

Lezley said:
Thanks Freelance

To be fair the pads weren't that bad nor the discs, just thought as I was stripping it all down would replace everything.

I think @Saint.V8 did a how to have a look in the Technical archive. Knowing Eurocrap parts the discs are probably for a Fiat Punto.The son in law stopped using them after he had a ramp blocked for a whole day after wrong parts being sent FIVE times in a day.

Saint.V8 · Dec 16, 2021

Sure did...

https://www.landyzone.co.uk/land-ro...brake-shoe-replacement-and-adjustment.283420/
