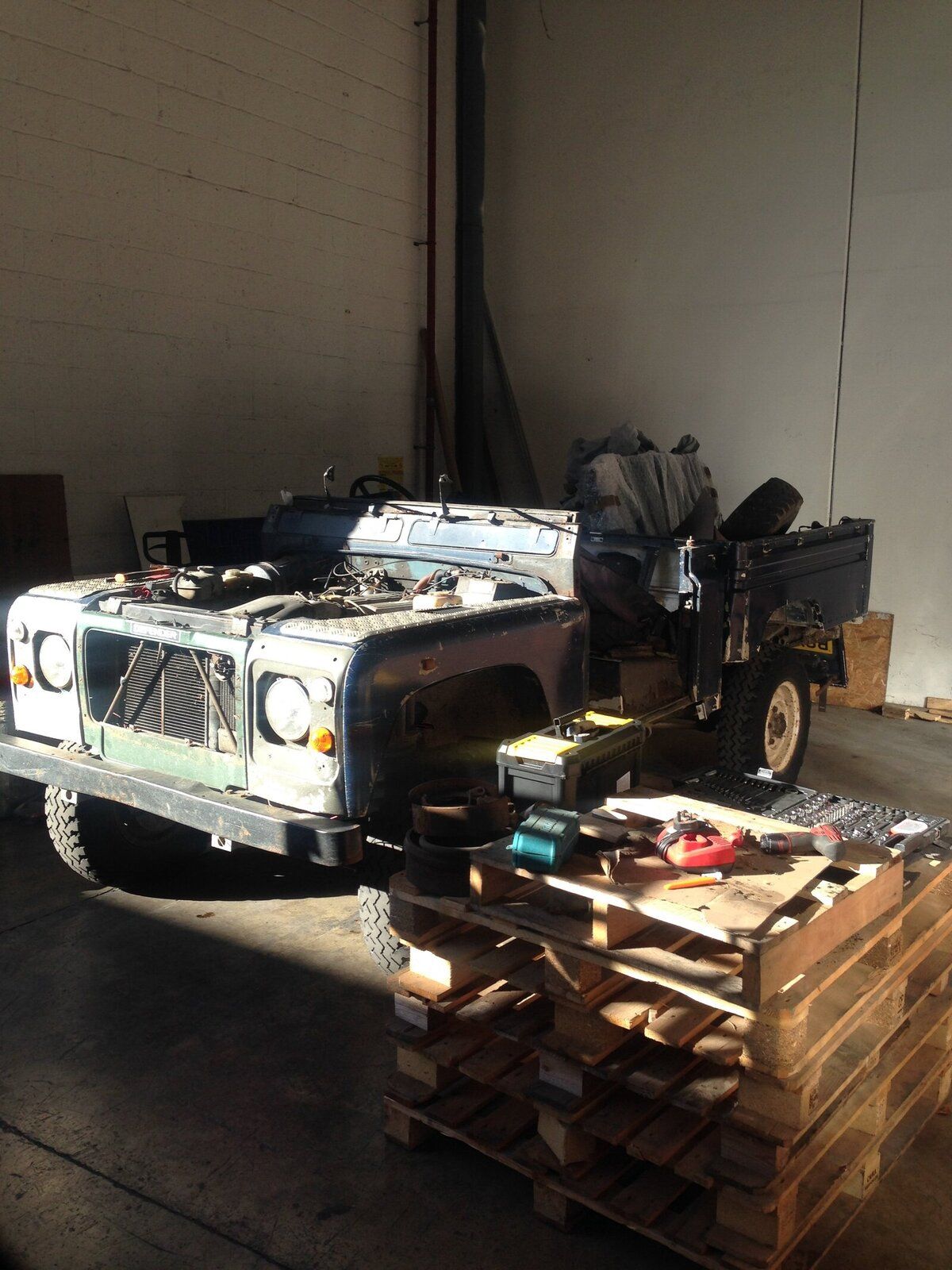

Emptied some parts out the house to put on the landy in the next few weeks. Great having a Lwb it fits with plenty of room for the

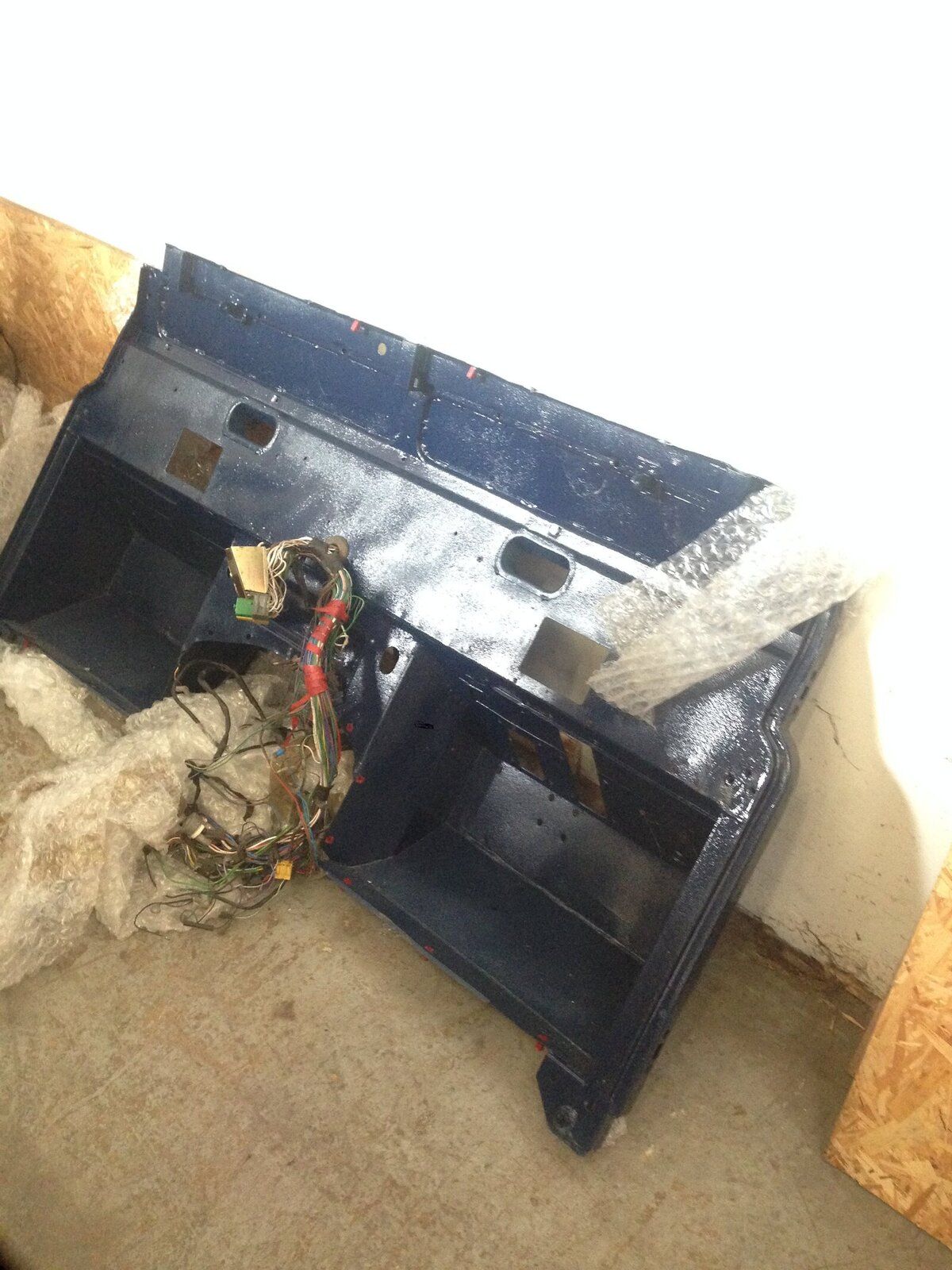

Bulkhead
Doors
Lights

Something to do in my down time.

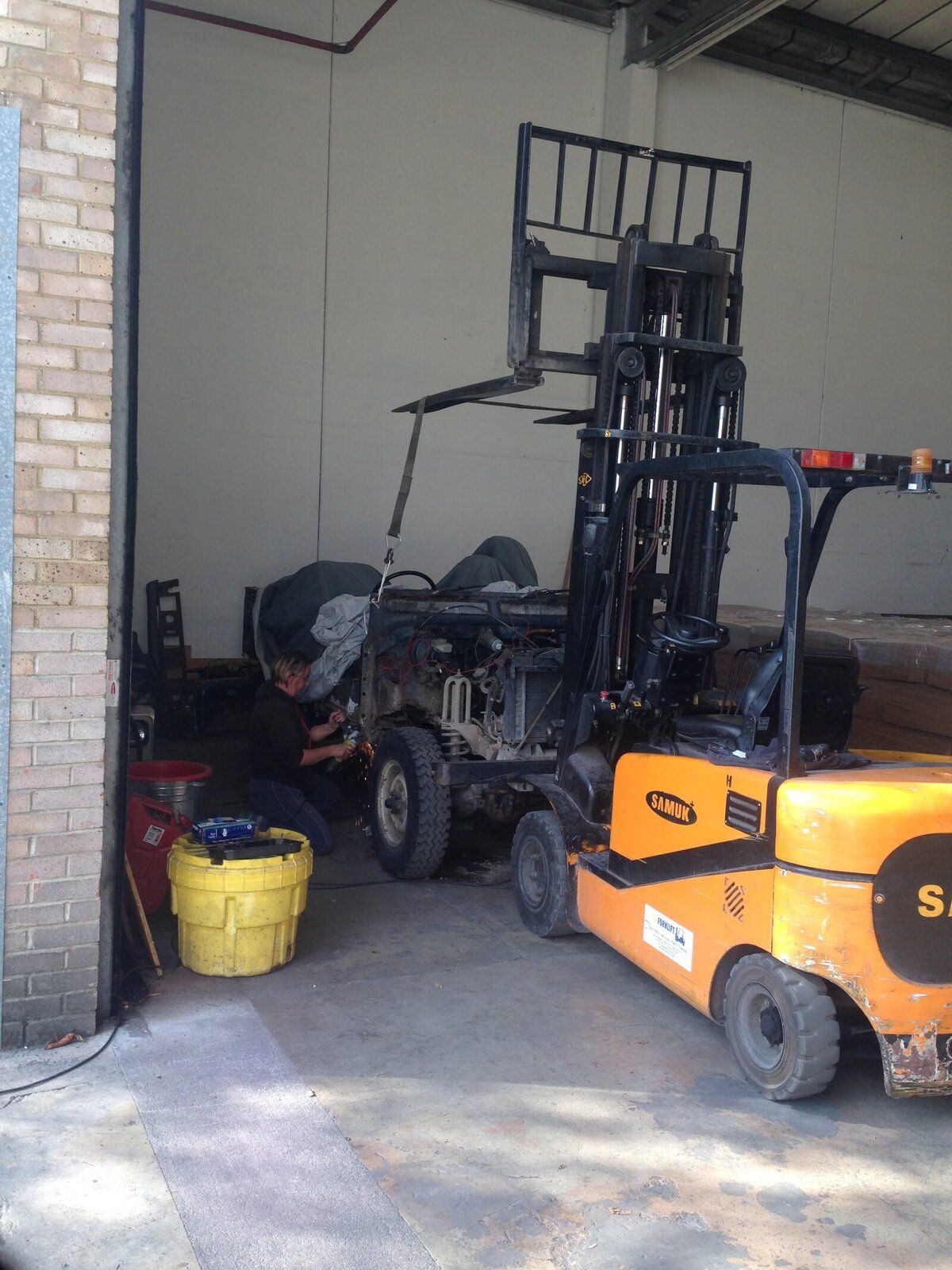

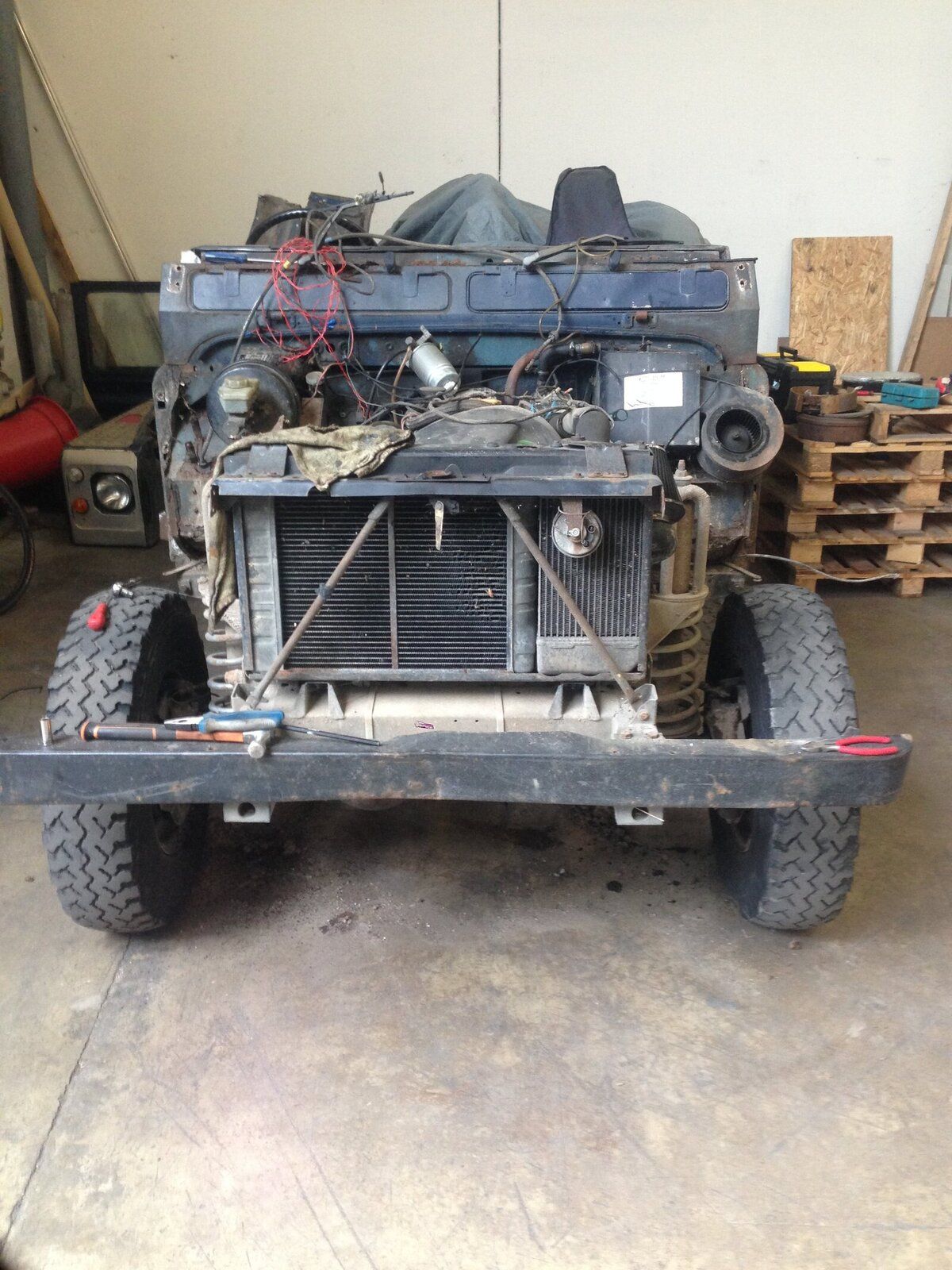

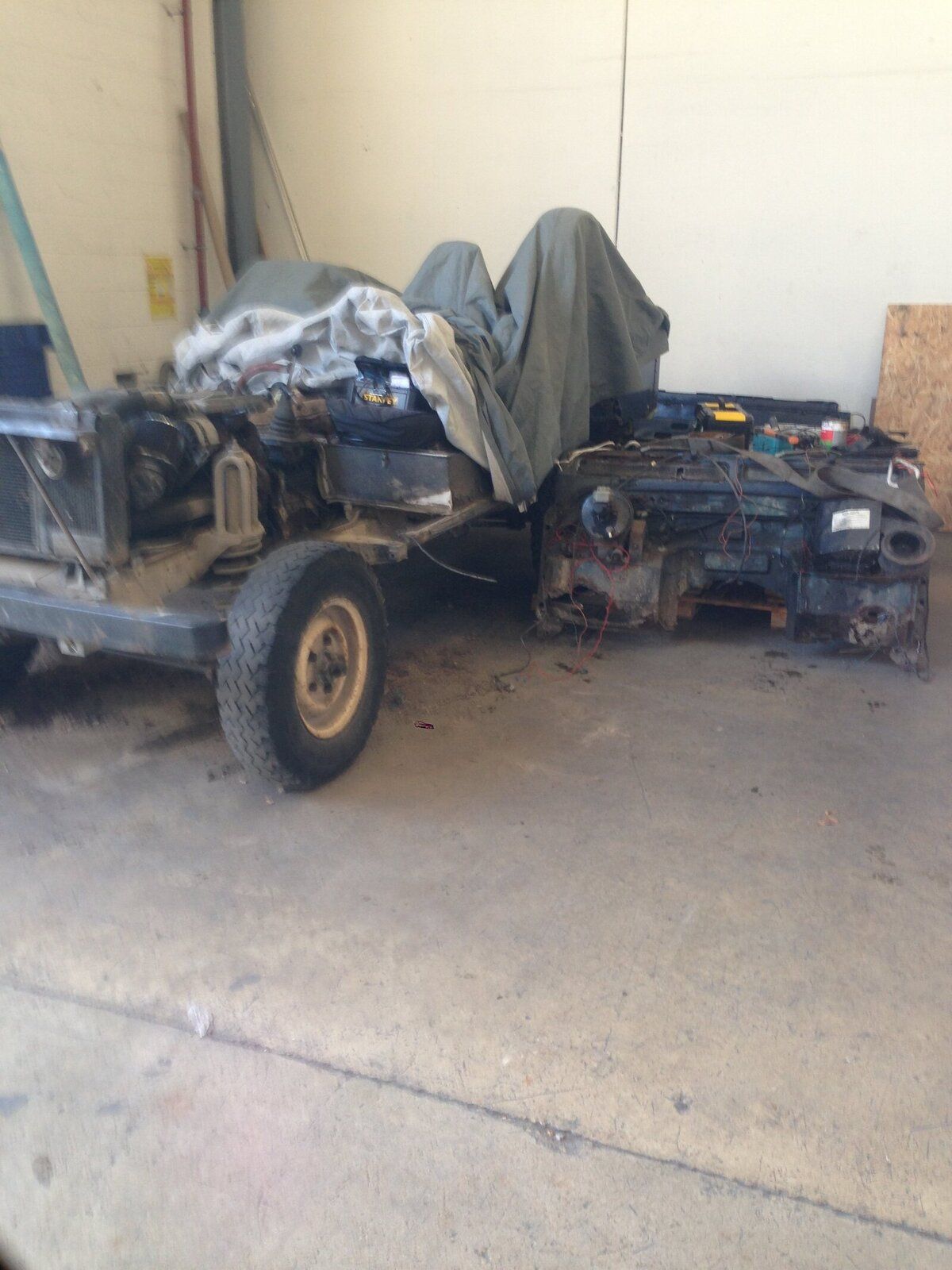

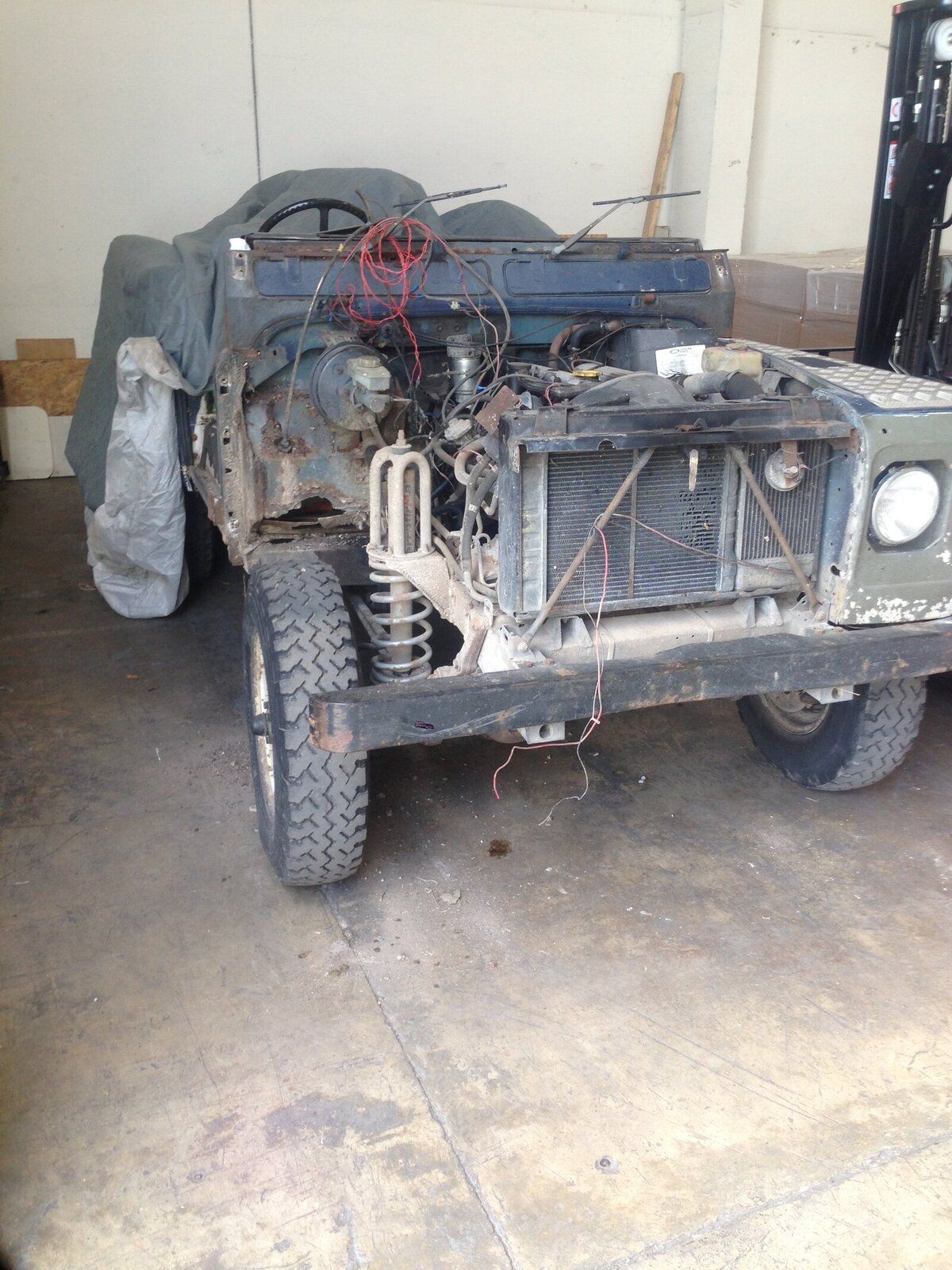

That's it for today. Wing off and all bar 4 bolts off the bulkhead. Ready for removal.
Need grinder little things have gone rusty. Also found my clutch pipe has been rubbing on the exhaust.
Making a small shopping list.

Busy doing day job :mad:

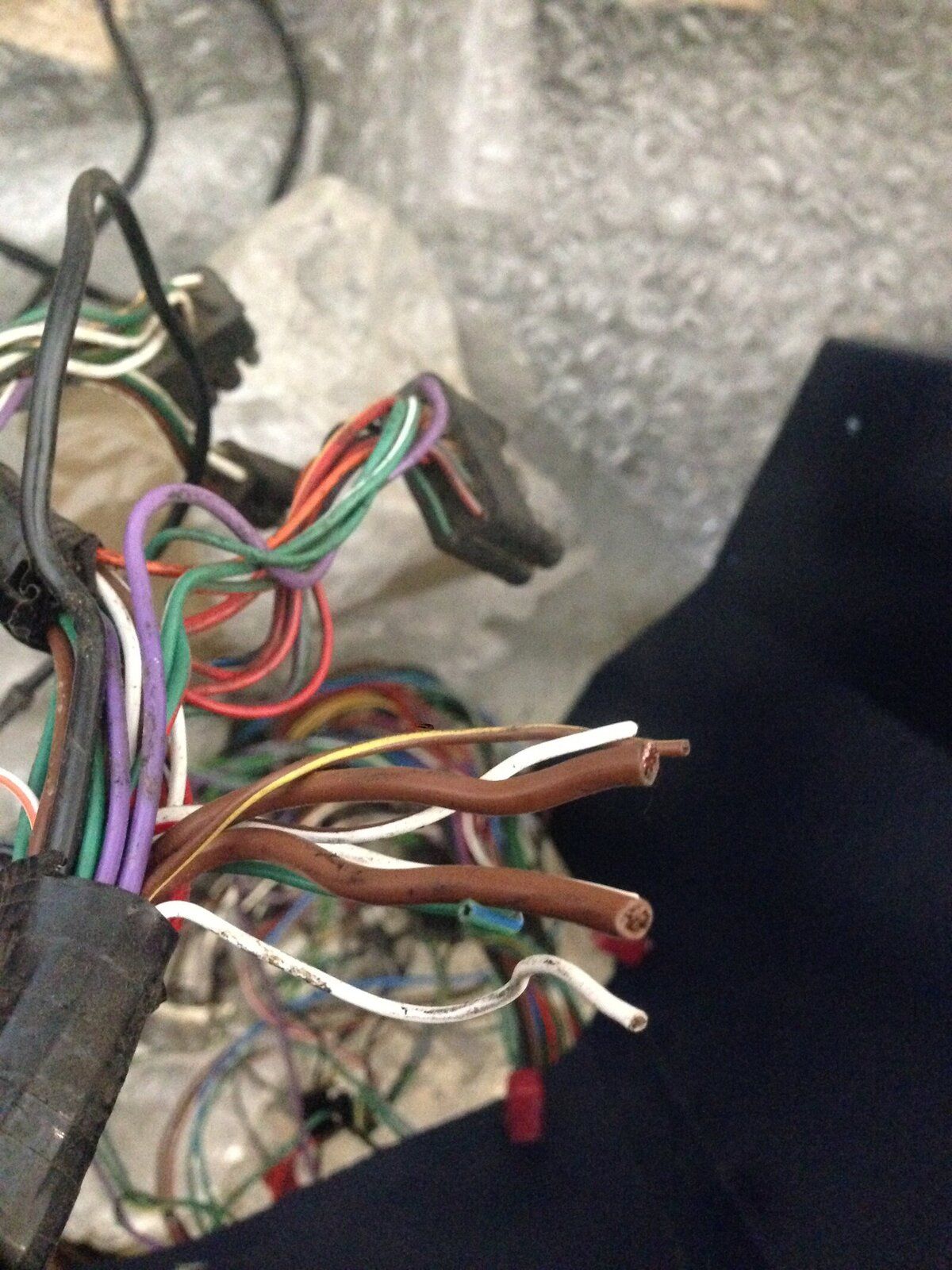

Loom installed figured out some one has cut the engine connector in the loom. Easy fix remove it from old glass fuse loom.
Found Second plug cut :mad:

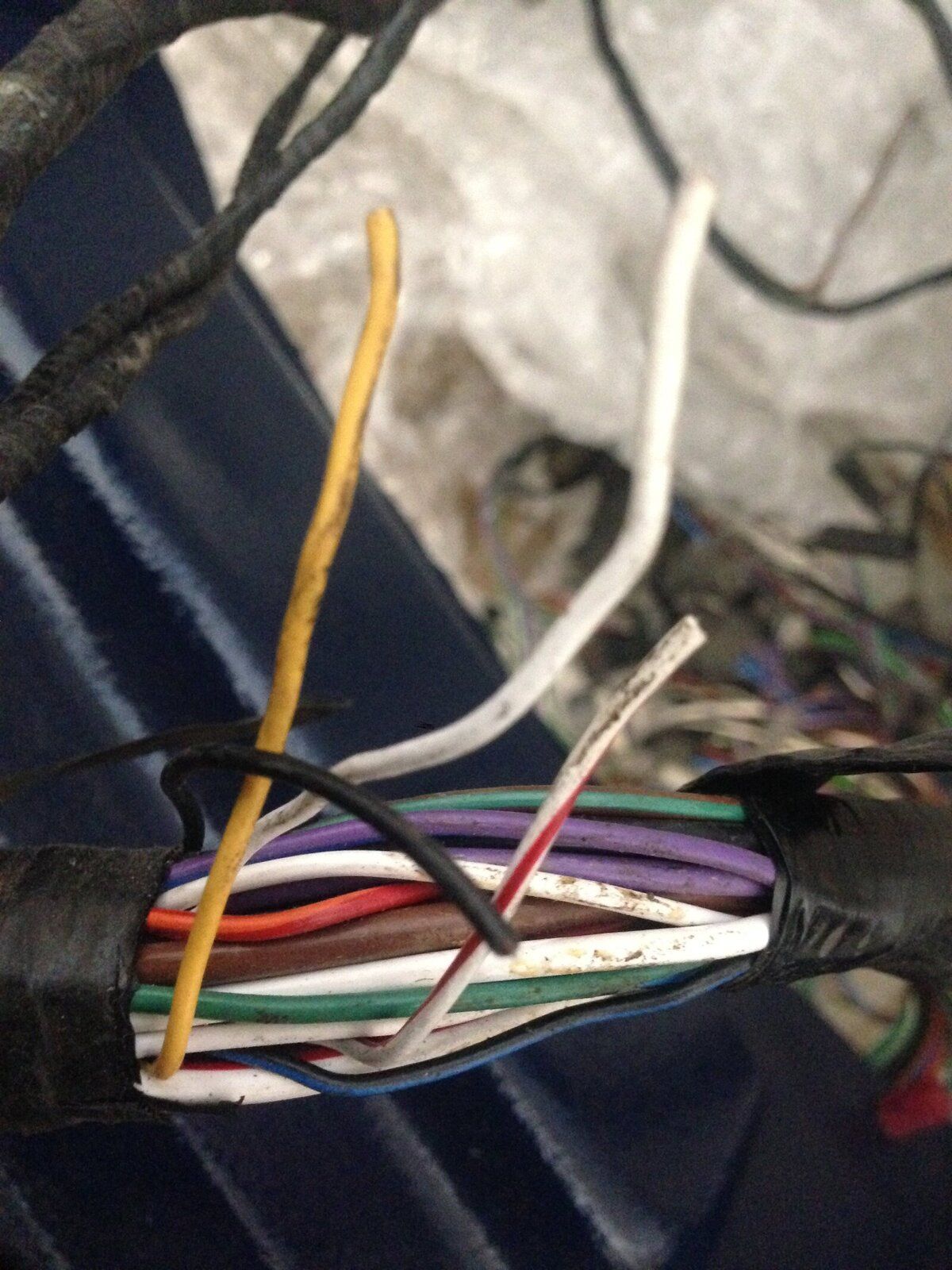

Just have to trace this yellow red/white any ideas?



something tells me that could be the glow plug wires. Please take this with a pinch of salt though.

Loom is looking more of a challenge. May just solder/replace glass fuses to blades. Think its easier. Looks like a few more cables sniped & pulled back.
No wonder it's been sat in the shed for years.

  • Like
Reactions: 8ha
Loom is looking more of a challenge. May just solder/replace glass fuses to blades. Think its easier. Looks like a few more cables sniped & pulled back.
No wonder it's been sat in the shed for years.
can yu buzz it back to a connector/fuse box and identify it that way?
shirley Rave has a wiring colour diagram?
