wammers · May 27, 2019

marjon said:
Caused by?

As I say it’s not a problem it’s just something I am aware will need doing. Would rather do it before it dumps me on the stops

Thanks

J

When the height settings are done it is important to get the front within two bits side to side. As the car slows to 1 mph or stops both front valves open to equalise pressure across the axle. If one side has more pressure in it than the other the nose drops slightly then rises back to the sensor settings. If you have your foot on the brake suspension will not rise until brake is released or two minutes elapses. So as you stop start it gives the impression the front is dancing.

RangeRoller dt · May 27, 2019

marjon said:
He don’t need it .

He will probably just chuck it in a box of “useful bits”

J

It will go back together once I have an actual complete exploded view for people to see instead of a sh*te Haynes illustration of little significance. Rings seem fine since they’ve just stood there protected away, little grease might help them sit back tidy?

then on to the next part

So many people ask about EAS, biggest cost to original owner of my vehicle, I want them to see for themselves that someone never seen one can do it with patience. May give them answers or the confidence to try themselves.
Honestly anyone that has put a Lego set together for a 6yr old at Xmas could do this with a few warnings and principles of not mixing things up

- other possibility is I completely ruin it and put them off, but atleast they can see what is talked about in tech section is not over technical

I’ve read things in search bar about nose dancing and bobbing in traffic, can’t remember where I’m afraid, was never particularly relevant to me

marjon · May 27, 2019

Thanks @wammers.

I guess as I have no reason to believe the whole system is not all original,and never been touched,
It will need a good look at over the whole system.

J

Datatek · May 27, 2019

RangeRoller dt said:
???

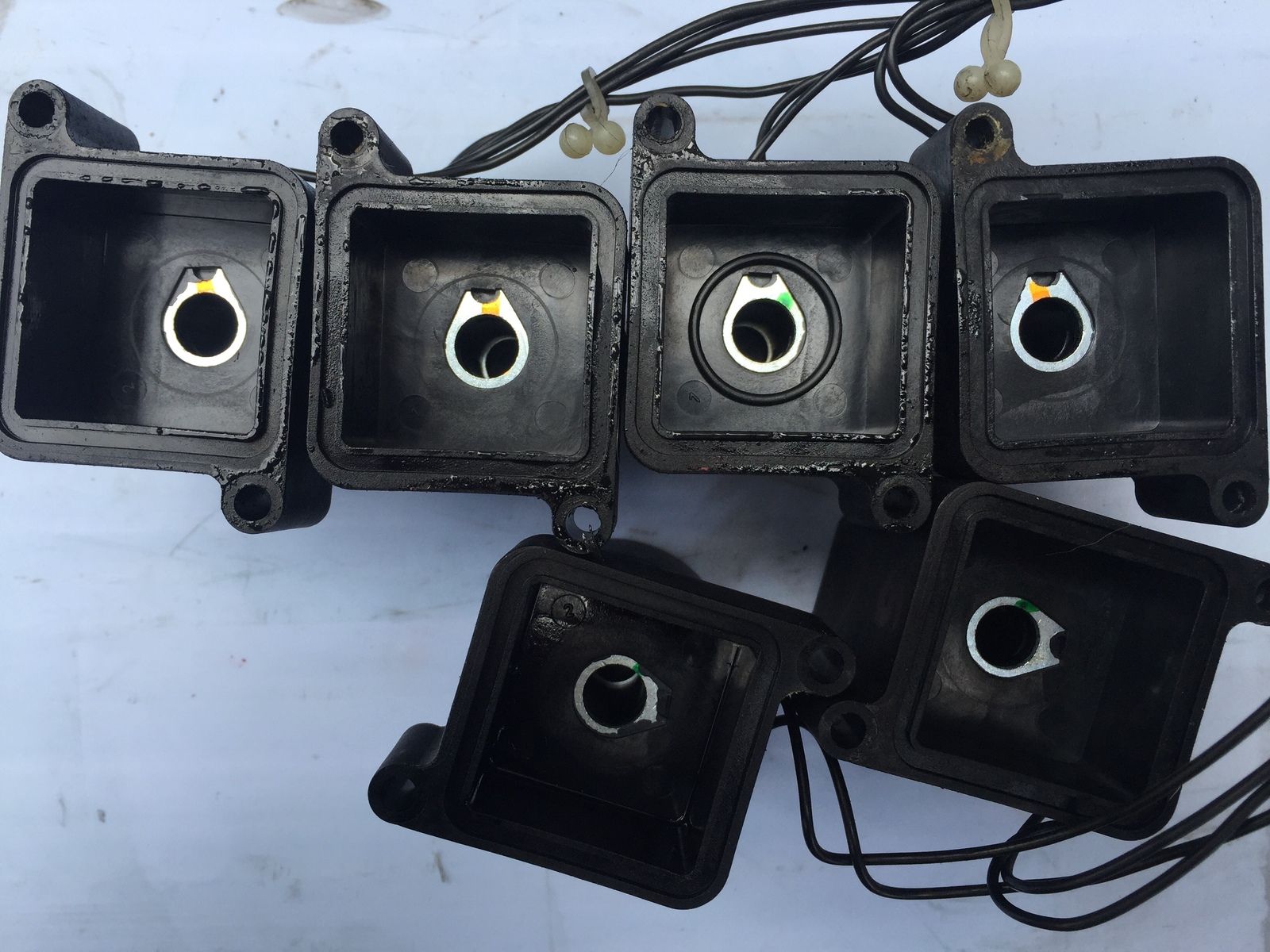

The electrical contacts in the case that supply the voltage -
View attachment 179128

Any idea what the orange/green/purple dots on the tops and inner casings are for?

There are no contacts, they are electromagnets, the valve stem is the armature.

RangeRoller dt · May 27, 2019

Datatek said:
There are no contacts, they are electromagnets, the valve stem is the armature.

I see, there must be a coil in there somewhere.
people may need to change them so we will pull one apart show them as there’s a fiddly bit get the wire out if they need to swap one over

Datatek · May 27, 2019

RangeRoller dt said:
I see, there must be a coil in there somewhere.
people may need to change them so we will pull one apart show them as there’s a fiddly bit get the wire out if they need to swap one over

The coil is in the cover where the wires go in, the coil cannot be removed, you change the whole cover if needs be.

al-one-arm · May 27, 2019

you test it with a DVM. if its open circuit, its broke

RangeRoller dt · May 27, 2019

I think you need to use existing wires if you change the cover, you could just cut/solder but I think there is a way get them out whole. I can cut them up for us to see if they want anyhow

Datatek · May 27, 2019

RangeRoller dt said:
I think you need to use existing wires if you change the cover, you could just cut/solder but I think there is a way get them out whole. I can cut them up for us to see if they want anyhow

A new cover comes with the wires attached, they do need fitting to the connector though. They rarely fail.

RangeRoller dt · May 27, 2019

I’m guessing these little bits I’m putting together add €€€ up !

Datatek · May 27, 2019

RangeRoller dt said:
I’m guessing these little bits I’m putting together add €€€ up !

I'm inclined to think you are wasting your time messing with the coil assemblies, they do not often fail and second hand ones are freely available.

RangeRoller dt · May 27, 2019

For you possibly, you know all this - and I don’t actually have an issue (yet

).
As mentioned in post #1 tis just bit of fun and It’s my time to waste ; feel free to do whatever you want on your bankholiday

Marjon is working on the ‘why’

, he’s like my LZ therapist

You are correct , the wires come out of the connector other end you need a tiny tool to release them

RangeRoller dt · Jun 1, 2019

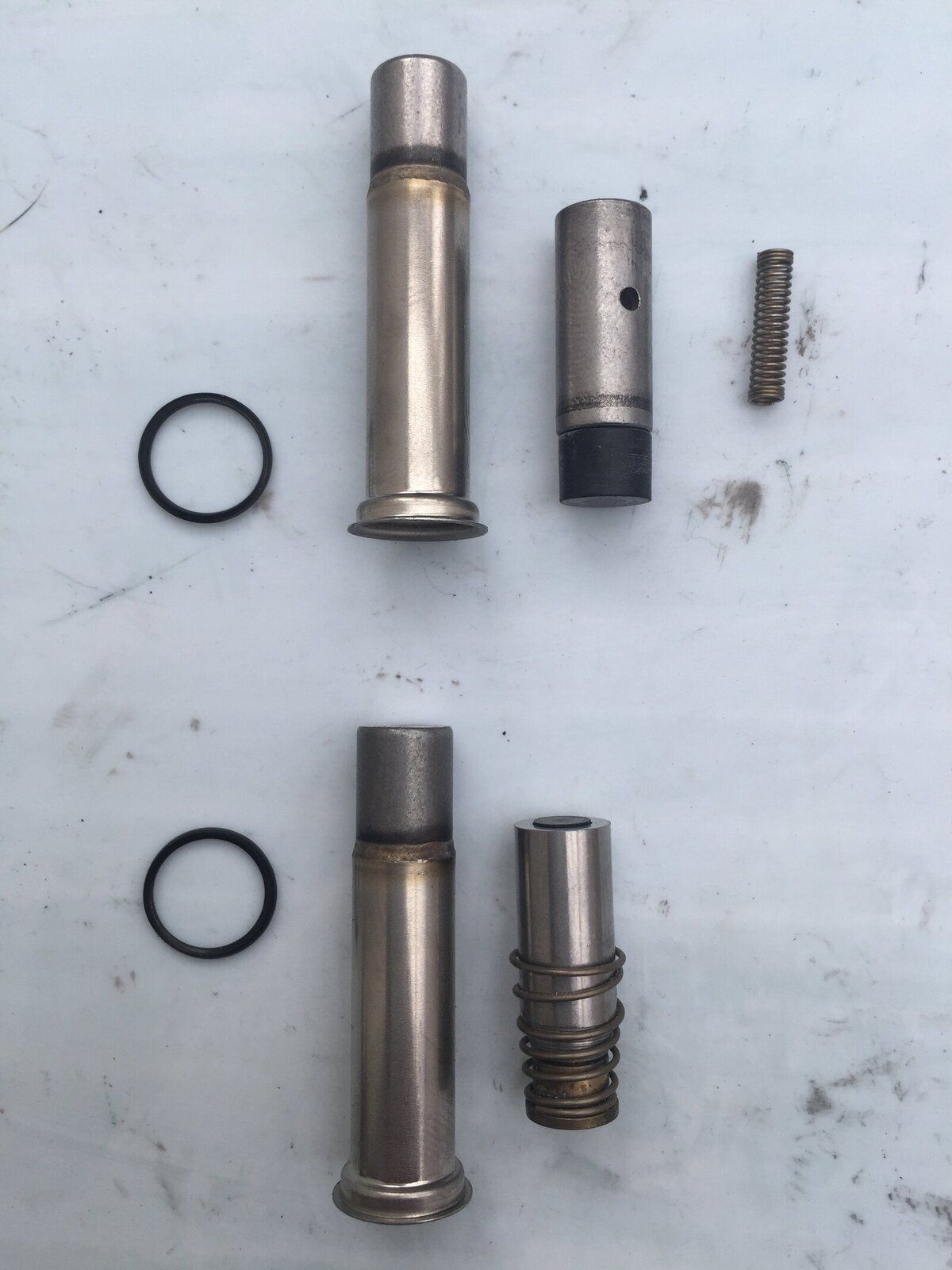

So there are two types. Two have rubber end with spring inside top, the others have a Spring bottom. The top spacer comes off then twist gently to remove. There was a bit of muck and scale in there

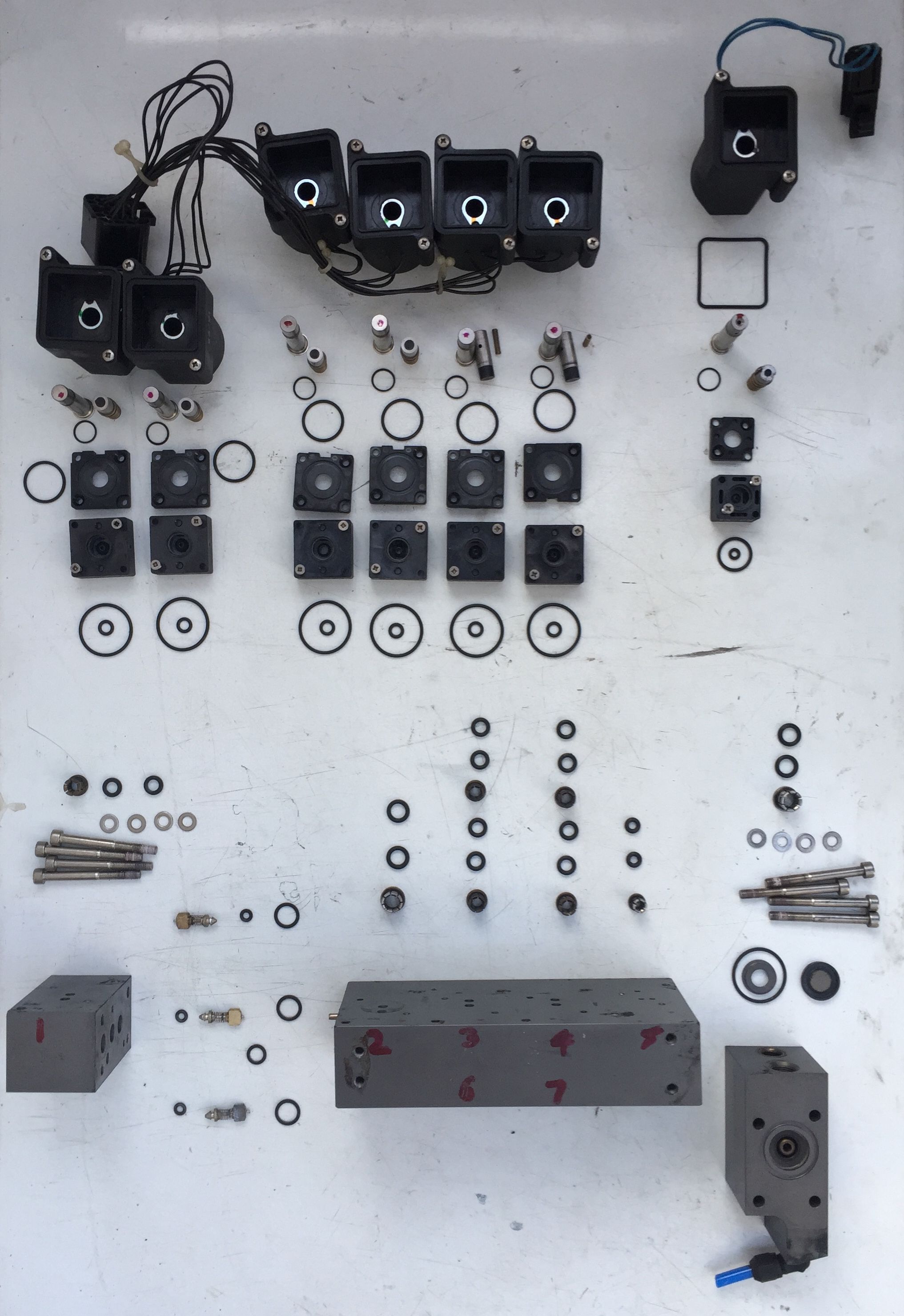

So this is how it looks. You can zoom in

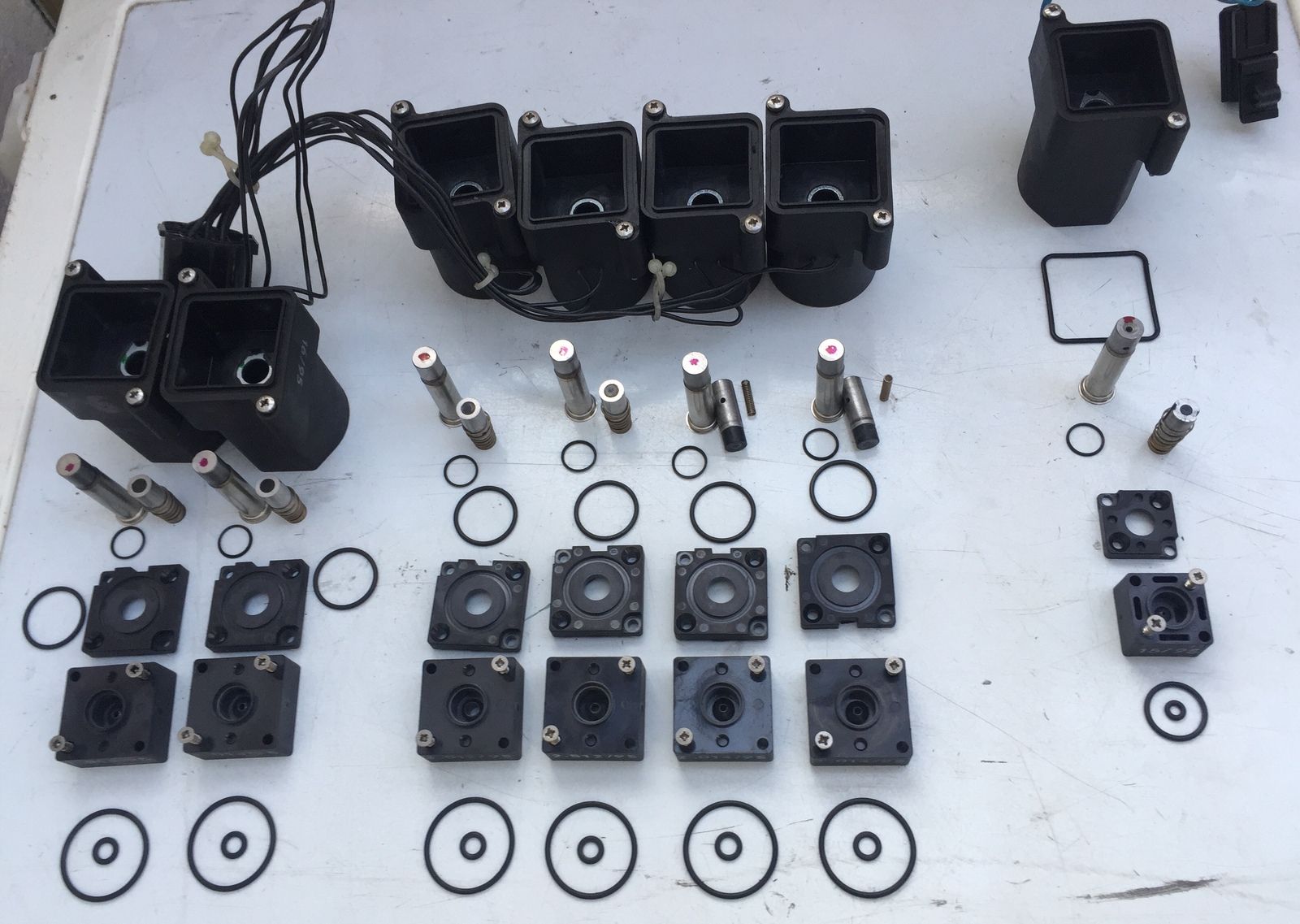

You have the solenoids which must remain in order of type

They bolt onto the block with their assortment of rings.

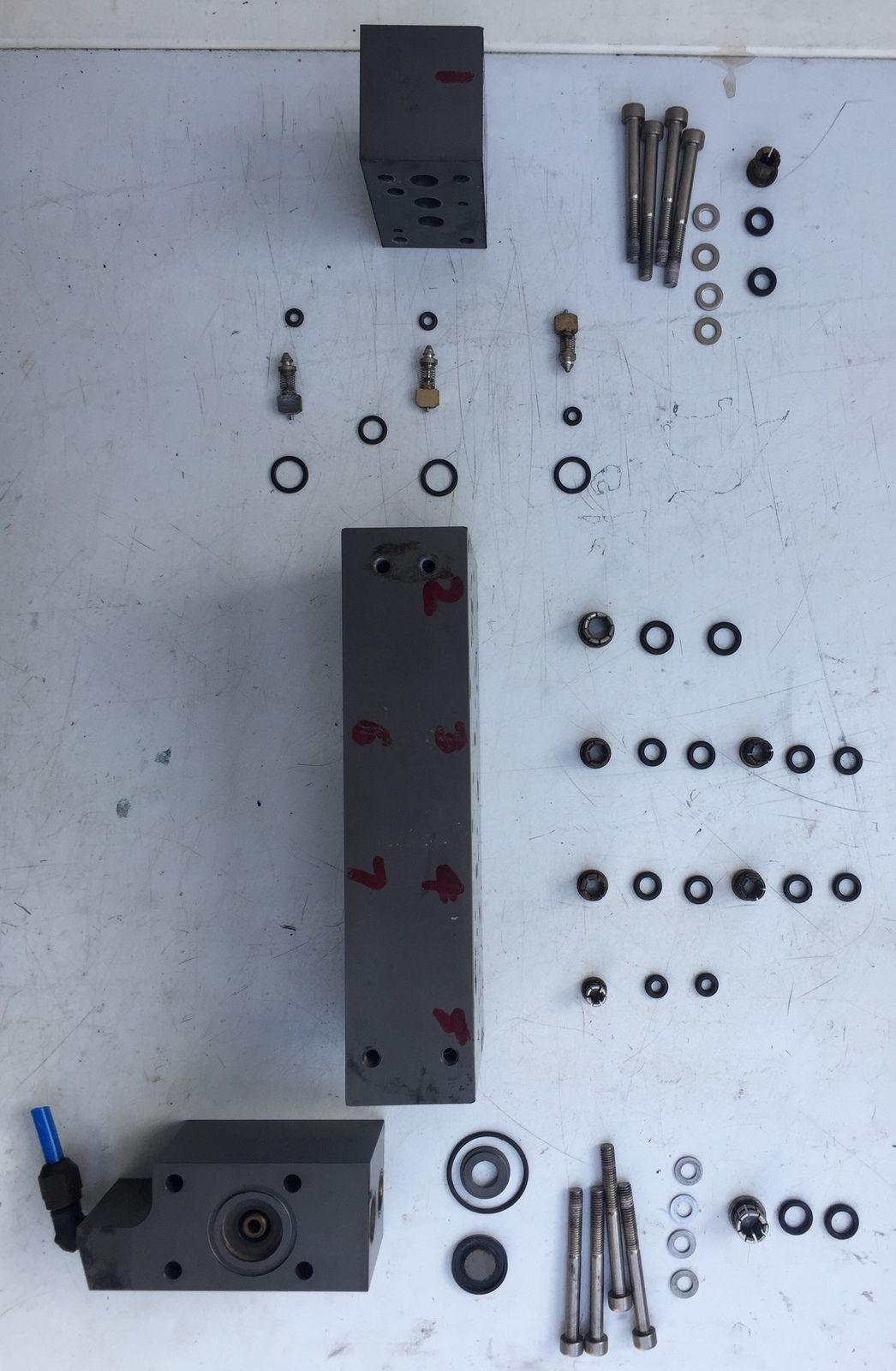

The block bolts together only one way with a few internal valves&rings plus the pipe connections&rings in the back. Hard to go wrong they only fit where they are supposed to be.

Datatek · Jun 2, 2019

RangeRoller dt said:
So there are two types. Two have rubber end with spring inside top, the others have a Spring bottom. The top spacer comes off then twist gently to remove. There was a bit of muck and scale in there
View attachment 179685

So this is how it looks. You can zoom in
View attachment 179688

You have the solenoids which must remain in order of type
View attachment 179691
They bolt onto the block with their assortment of rings.
The block bolts together only one way with a few internal valves&rings plus the pipe connections&rings in the back. Hard to go wrong they only fit where they are supposed to be.
View attachment 179695

The valves and the coils can be transposed if you are not careful.

RangeRoller dt · Jun 2, 2019

I’m not wearing gloves, I’m not a golfist

* a glove

wammers · Jun 2, 2019

We now enter the world of the old mechanics maxim. Anybody can take something apart.

RangeRoller dt · Jun 2, 2019

Total of 51 o-rings, diaphragm seal and 1 square-ring. 28screws (14 of both types), 8 Allen bolts with washer each, 8 pipe connectors in the rear with 2 o-rings each.

One of the internal NRVs is in opposite direction to the other two as pictured.

How do I put it back together?

RangeRoller dt · Jun 2, 2019

Only joking

Refit is reverse of removal obviously as found in RAVE.
I just need to RTFM

RangeRoller dt · Jun 2, 2019

I don’t have a picture of the bucket of oily rags and grit that came from this. Itl go back better.

If you do an NVQ - you will be professionally qualified to do this.
If you do this instead - you won’t need the NVQ

Horology is another good one apparently. Don’t do this to injectors

wammers · Jun 2, 2019

RangeRoller dt said:
I don’t have a picture of the bucket of oily rags and grit that came from this. Itl go back better.

If you do an NVQ - you will be professionally qualified to do this.
If you do this instead - you won’t need the NVQ

Horology is another good one apparently. Don’t do this to injectors

Qualified and capable are totally different words with totally different meanings.
