Datatek
Well-Known Member
Why the crank bolt? No need to touch the crank to adjust the FIP timing.
Easy to mod the fuse box for the third fuel pump circuit, just a 1N4005 diode needed.
Easy to mod the fuse box for the third fuel pump circuit, just a 1N4005 diode needed.
Grrrrrr
Technician, Bodgit & Scarper Ltd
Grrrrrr
Technician, Bodgit & Scarper Ltd
They don't turn faster, the mapping doesn't accept the engine has started until a slightly higher rpm.
Francesco M.
Member
the RAVE says to change the cam bolt and if I'm not mistaken also the crank bolt, in addition to the 14 head screws. I only have the new cylinder head screws, I couldn't find the one for the cams, and looking at it it's not damaged, so I'll reuse it. it has a pair of "only" 50nm. the head screws on the other hand have a very high load
Grrrrrr
Technician, Bodgit & Scarper Ltd
Rimmer Bros sell the cam bolt. If you search my recent posts on coolant pressure I think I put the part number somewhere.
Francesco M.
Member
Thanks
ovalandrover
Well-Known Member
Island 4x4 are a good source for parts for land rovers
Francesco M.
Member

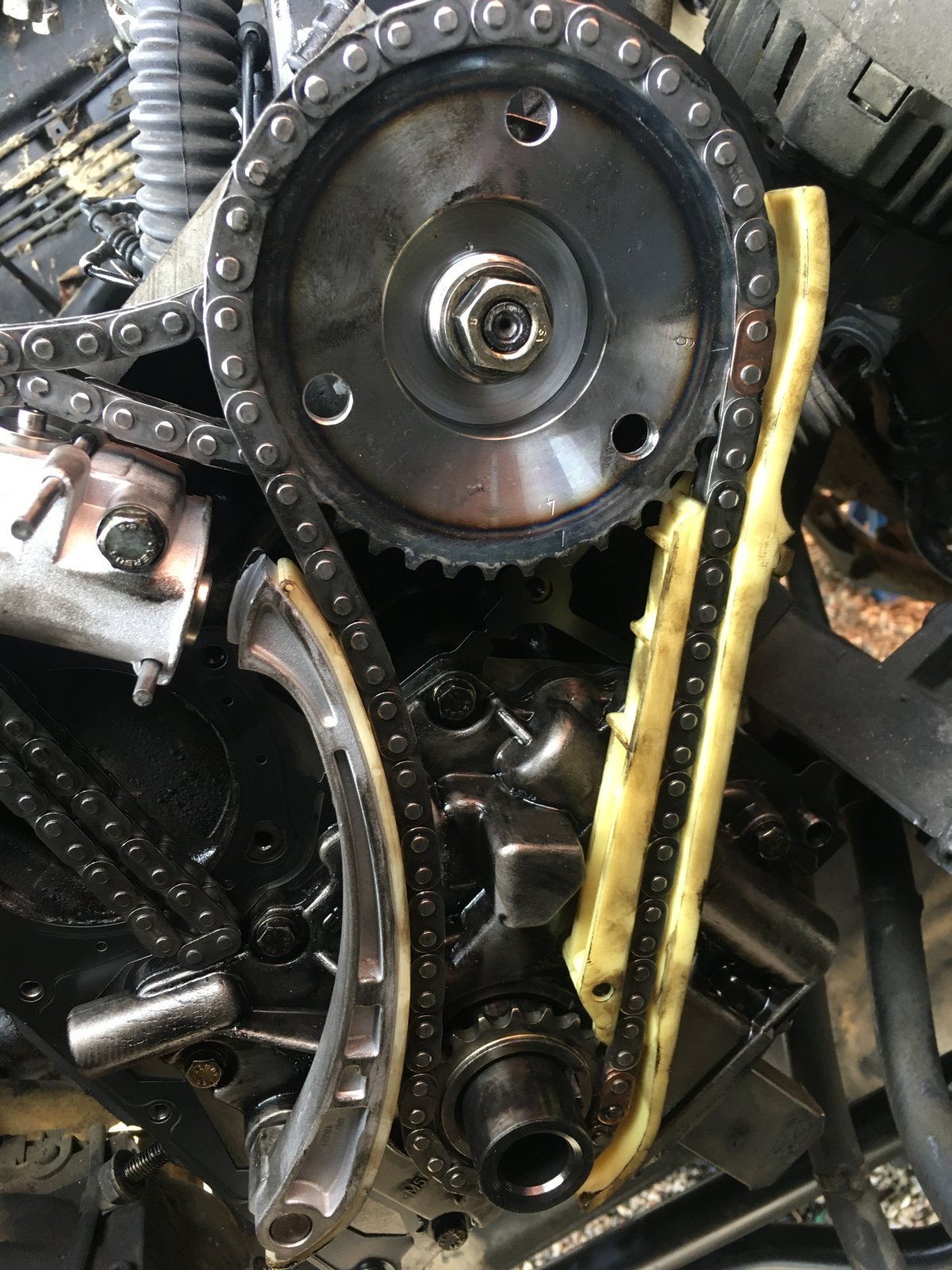

This weekend I continued with the work, after having assembled the sump and the oil pump, I positioned the lower part of the chain and sprockets

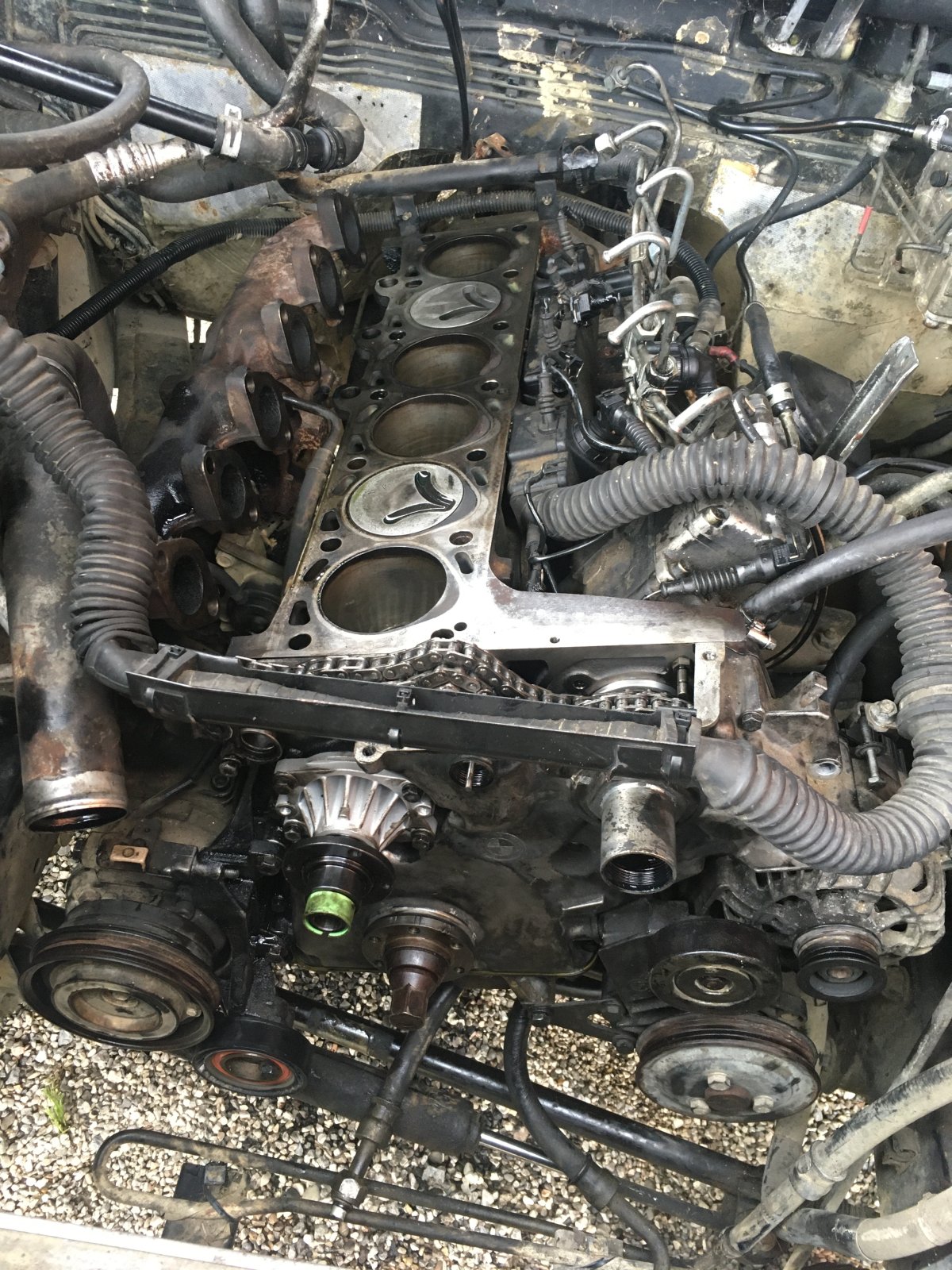

then timing protection casing, I tightened the crankshaft bolt to the expected RAVE brute force, then water pump with metal impeller.

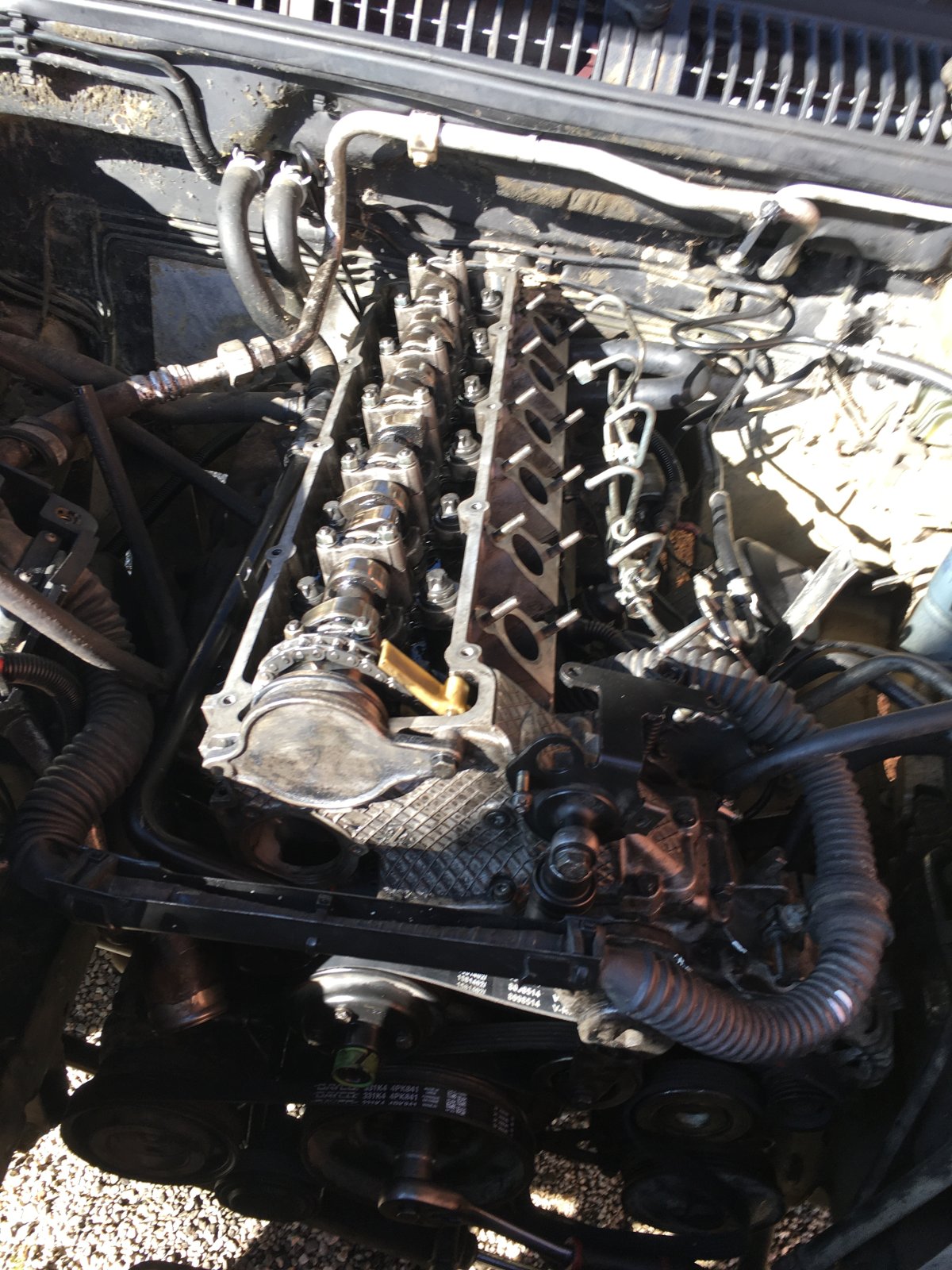

Finally the headboard is put on! In this positioning phase I struggled a lot to center the gasket and the centering bushes. Now the gym begins for the long tightening procedure.
After putting the belts in place, I go to measure the compression and here's the surprise, cylinder 2 and 3 no compression! You should know that I live in Umbria, the land of the Saints, everyone was called to order to solve the problem. Everyone got together and pointed out to me that I would have to dismantle the cylinder head again because when putting it in position with the camshaft mounted, I had clumsily bent two valves. So it's my fault alone, they say so but I have some doubts
The result of the day is
- sore right arm,

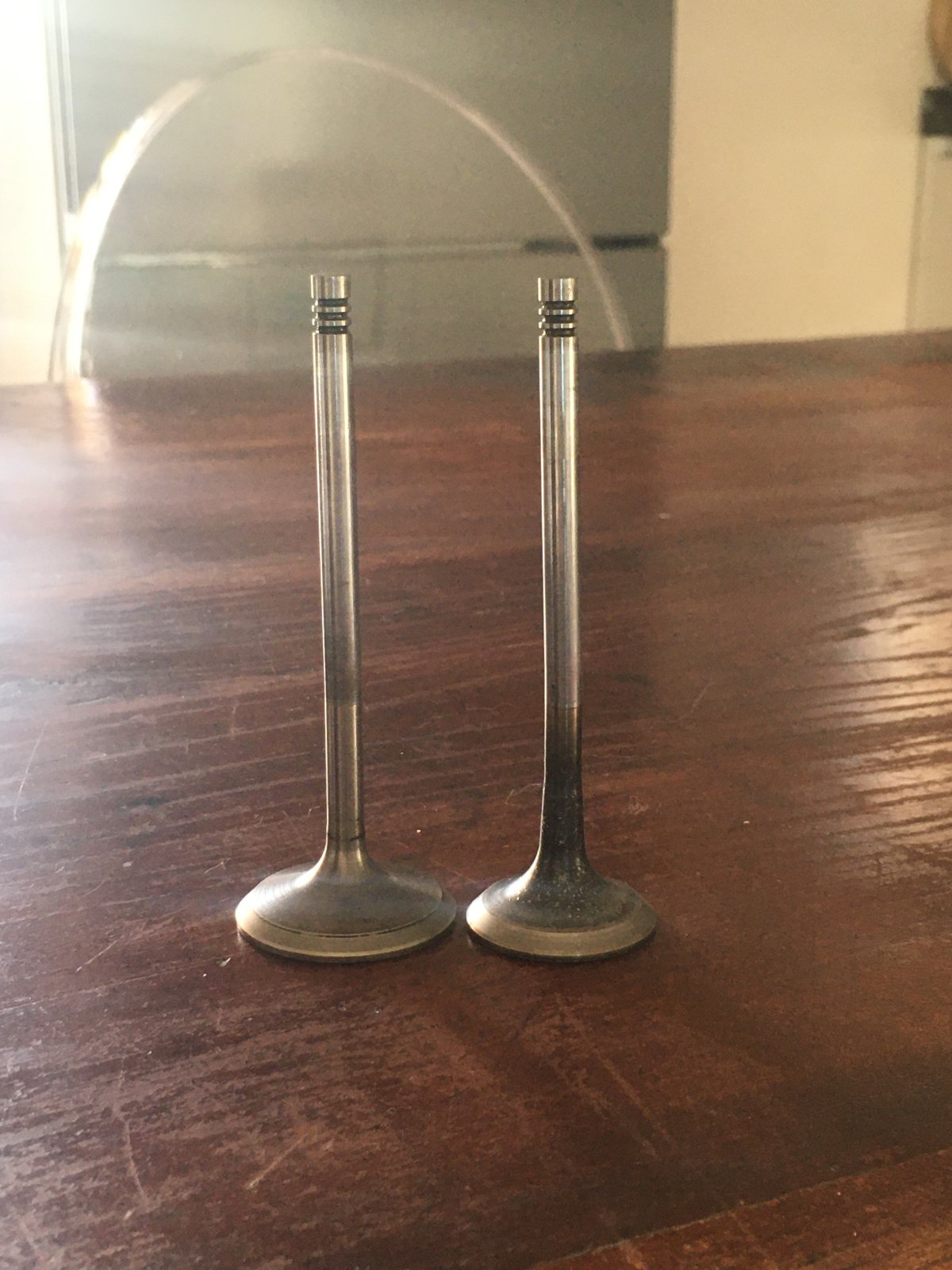

- two bent valves,
- unfinished work,
- canonical warning for foul language.
One way or another we will make it
then timing protection casing, I tightened the crankshaft bolt to the expected RAVE brute force, then water pump with metal impeller.
Finally the headboard is put on! In this positioning phase I struggled a lot to center the gasket and the centering bushes. Now the gym begins for the long tightening procedure.
After putting the belts in place, I go to measure the compression and here's the surprise, cylinder 2 and 3 no compression! You should know that I live in Umbria, the land of the Saints, everyone was called to order to solve the problem. Everyone got together and pointed out to me that I would have to dismantle the cylinder head again because when putting it in position with the camshaft mounted, I had clumsily bent two valves. So it's my fault alone, they say so but I have some doubts
The result of the day is
- sore right arm,
- two bent valves,
- unfinished work,
- canonical warning for foul language.
One way or another we will make it
Is the cylinder head perfectly flat with no distortion?
Francesco M.
Member
yes, the head has been tested with a rectified ruler and has no distortions. Same thing for the base.
aj1954
Well-Known Member
Foul language is par for the course, when working on cars!This weekend I continued with the work, after having assembled the sump and the oil pump, I positioned the lower part of the chain and sprocketsView attachment 335251
then timing protection casing, I tightened the crankshaft bolt to the expected RAVE brute force, then water pump with metal impeller.View attachment 335255
Finally the headboard is put on! In this positioning phase I struggled a lot to center the gasket and the centering bushes. Now the gym begins for the long tightening procedure.View attachment 335257
After putting the belts in place, I go to measure the compression and here's the surprise, cylinder 2 and 3 no compression! You should know that I live in Umbria, the land of the Saints, everyone was called to order to solve the problem. Everyone got together and pointed out to me that I would have to dismantle the cylinder head again because when putting it in position with the camshaft mounted, I had clumsily bent two valves. So it's my fault alone, they say so but I have some doubts
The result of the day is
- sore right arm,
- two bent valves,
- unfinished work,
- canonical warning for foul language.
One way or another we will make it
