owas
Well-Known Member
The bed? the plan at the min is just a basic flat bed with lashing points down the side, seems the most practical option.
I need to think of a good way of attaching it to the chassis though.
The bed? the plan at the min is just a basic flat bed with lashing points down the side, seems the most practical option.
I need to think of a good way of attaching it to the chassis though.
I'd level the chassis up and run two lengths of box along the rails level and weld on vertical uprights front and rear, couple of cross members in it as a basic frame work then build a bed that you can bolt on to that, make it modular and then you can interchange the body later on if you want.
Thinking about it, doing it that way means you could custom build a camper unit with fold down jack legs that you could back under, lift the legs and drive away.
Thinking about it, doing it that way means you could custom build a camper unit with fold down jack legs that you could back under, lift the legs and drive away.
owas
Well-Known Member

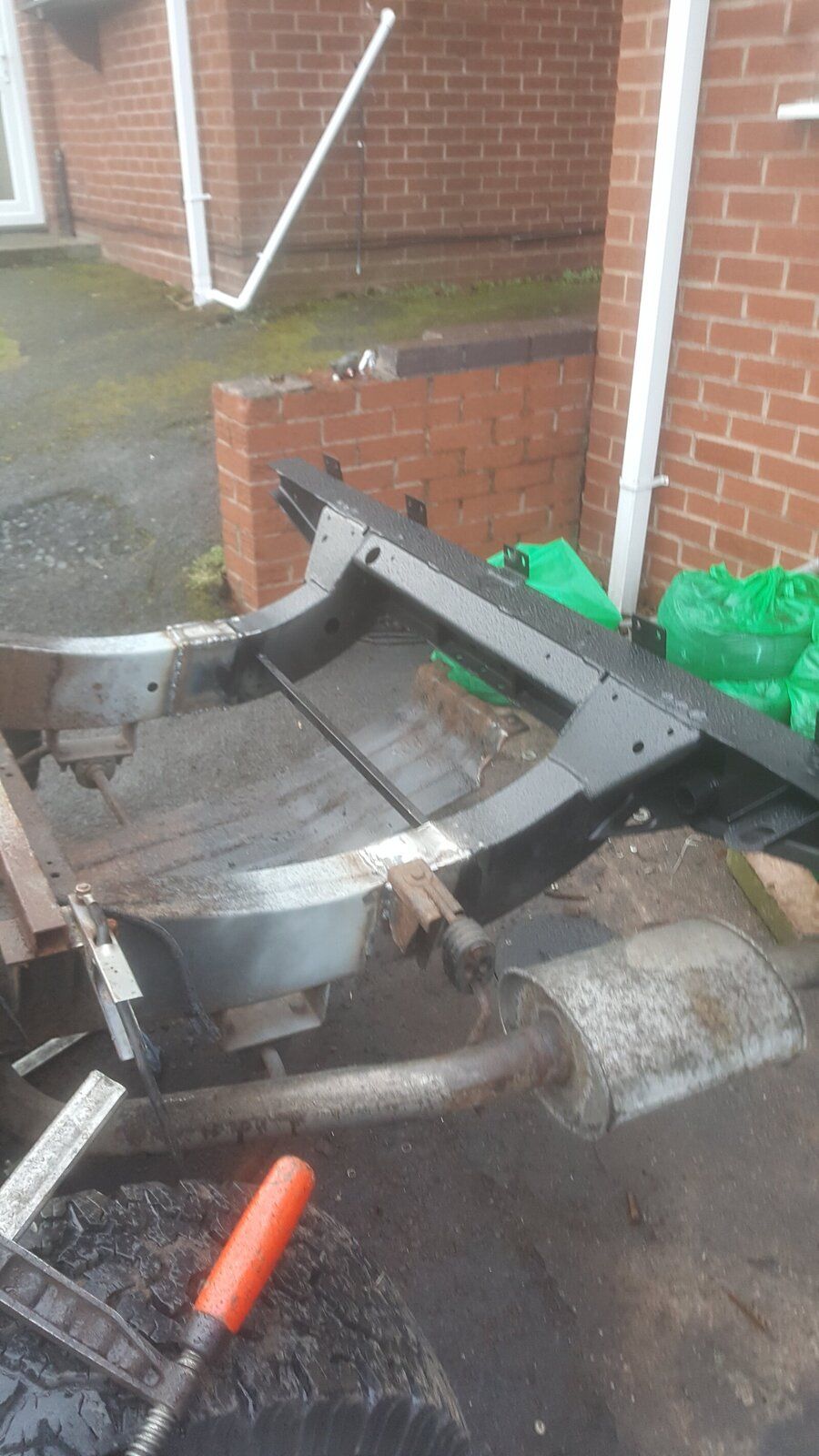

At the finished height sitting on the C channel,

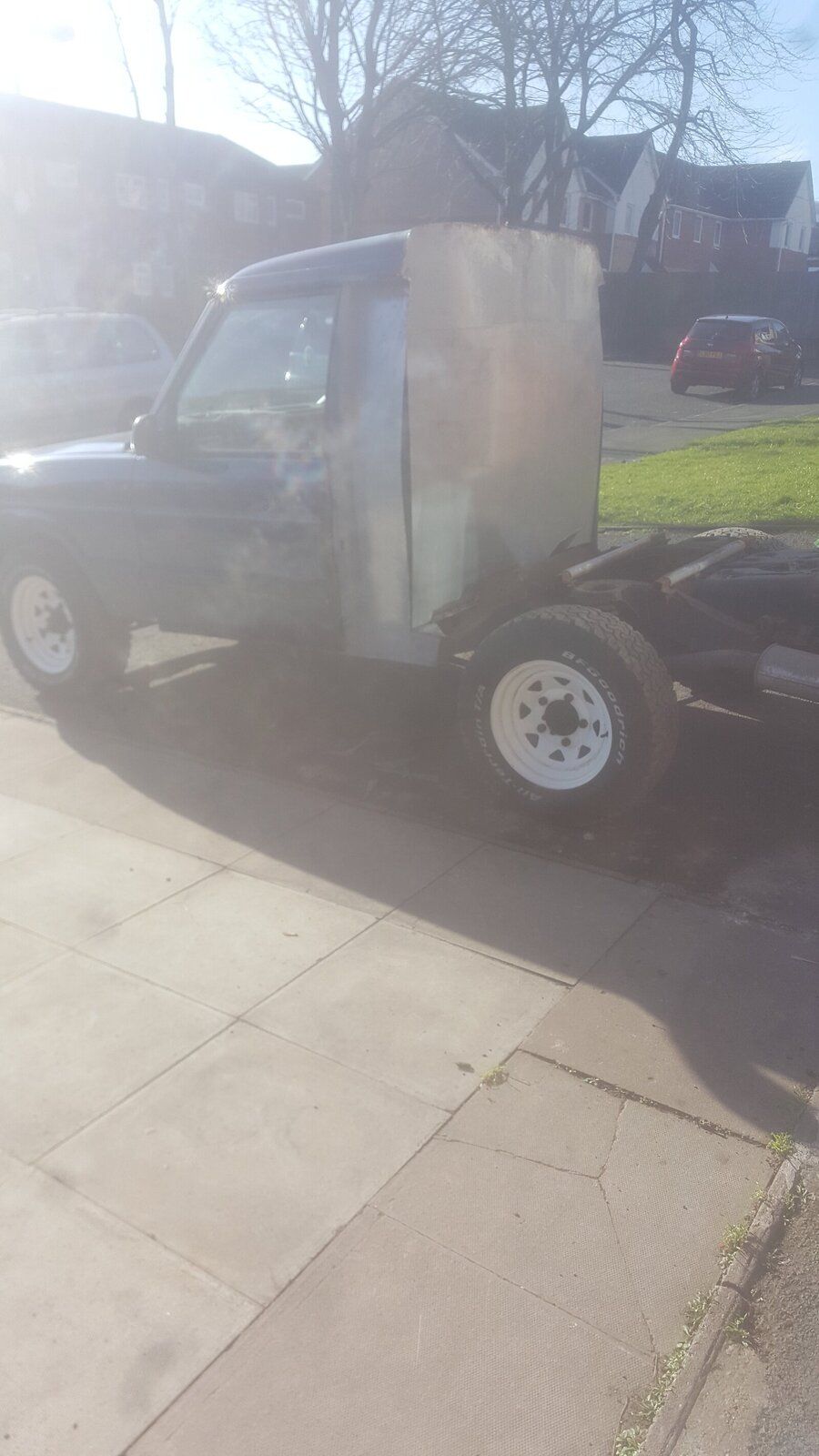

The gaps in the cab are filled now.
I thought it might look odd with the wheels right behind the cab but doesnt look too bad.
Not much left now,
Although i dont really know what will be needed to get through the MOT, could be a fair bit of work yet
The gaps in the cab are filled now.
I thought it might look odd with the wheels right behind the cab but doesnt look too bad.
Not much left now,
Although i dont really know what will be needed to get through the MOT, could be a fair bit of work yet
Attachments
At the finished height sitting on the C channel,
The gaps in the cab are filled now.
I thought it might look odd with the wheels right behind the cab but doesnt look too bad.
Not much left now,
Although i dont really know what will be needed to get through the MOT, could be a fair bit of work yet
Before you get carried away with that bed I would be asking for advice on the rear overhang behind the wheels, that looks a bit too long for the wheelbase.
owas
Well-Known Member
https://www.gov.uk/government/publications/extending-a-vehicles-length-behind-its-rear-axle
Im at 53" behind the axle so i should be ok according to that, i didnt want anything less than 6ft tbh.
I knew there were some rules to be followed, what are your plans with it then?
owas
Well-Known Member

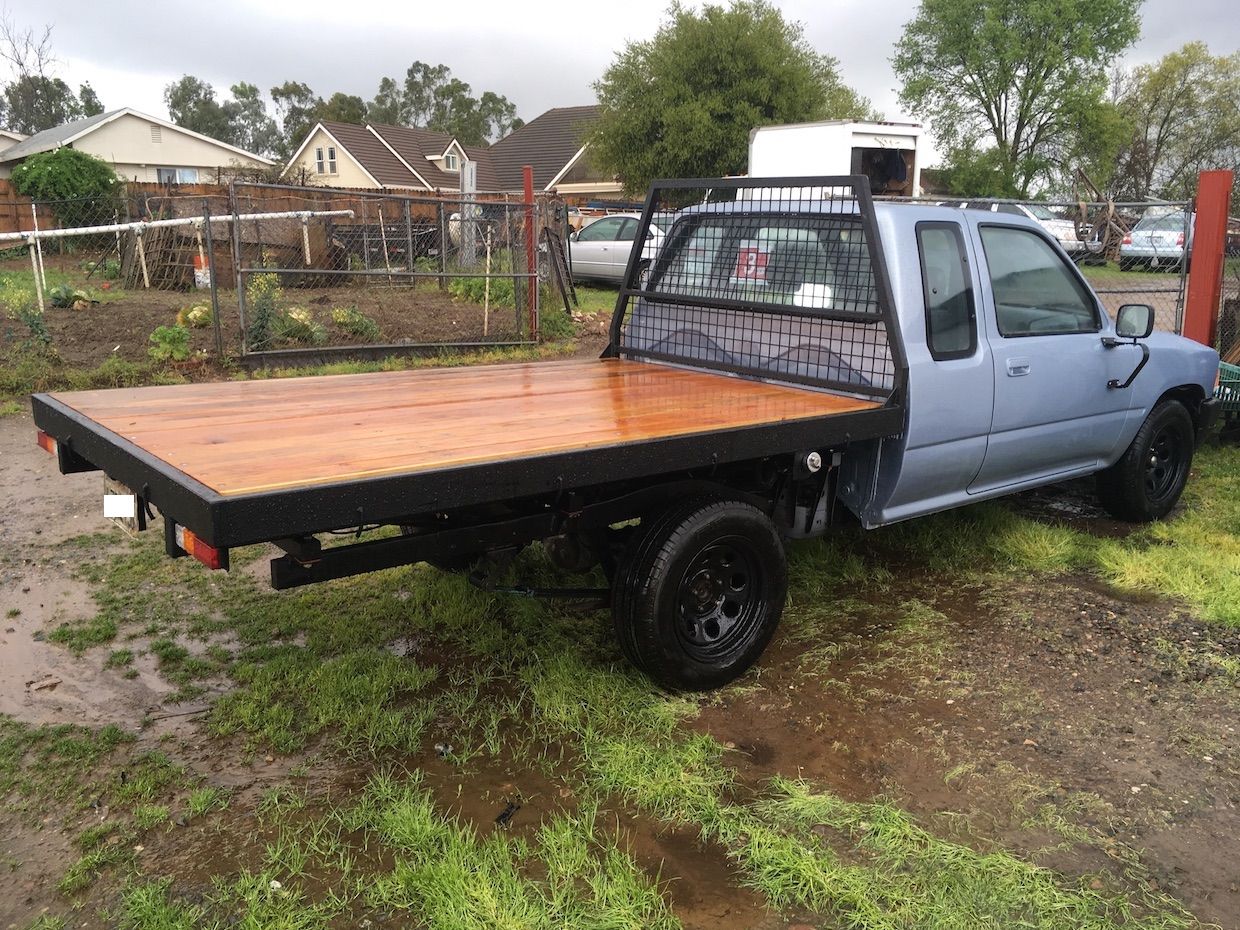

Jusy a basic flat bed like so (i thought my overhang was bad!)
Attachments
Two blokes an a six pack on the end of that and you'll be able to change the front tyres without using a jack lol
owas
Well-Known Member
Two blokes an a six pack on the end of that and you'll be able to change the front tyres without using a jack lol
In all fairness, the post i got the pic off said its just for lightweight but long materials.
Does bring me to think about what sort of weight this thing can safely take.
The bed will weigh less than the rear of the disco body, and is stronger but does around 500kg sound about right?
Ive had much more in the back of my old disco
GVW is 2720kgs, less 300kgs of a 2080kg tare and I'd say a 1000kg payload, just a guesstimate, but any public weighbridge in your area should let you roll over it to see your tare weight.
If you're gonna load it up good then maybe fit RRC air springs on the back to a small electric compressor with a small reservoir, means you can self level, enjoying a soft ride when empty and level ride when loaded heavy, all at the press of 2 rocker switches, just means old bill not looking at you for your saggy arze lol
If you're gonna load it up good then maybe fit RRC air springs on the back to a small electric compressor with a small reservoir, means you can self level, enjoying a soft ride when empty and level ride when loaded heavy, all at the press of 2 rocker switches, just means old bill not looking at you for your saggy arze lol
owas
Well-Known Member
Sounds like a good idea, ill hold off spending any more untill ive got it through an MOT first.
All the bits are readily available on fleabay for not a lot of wedge, I really hope it passes for you, come a long way from you threatening to scrap it
Its snowing again now
Theres not much left to do, just a few finishing bits and patching the sill
Trying to sort out insurance too.
Try NFU mutual for insurance, I know they're farmers but they are quite easy going with modified land rovers and as long as you're honest and upfront they should be fine with pictures of the mods you've done.
They wouldn't insure mine, as I live in a city ... 'the post code isn't covered' was what they said ...
