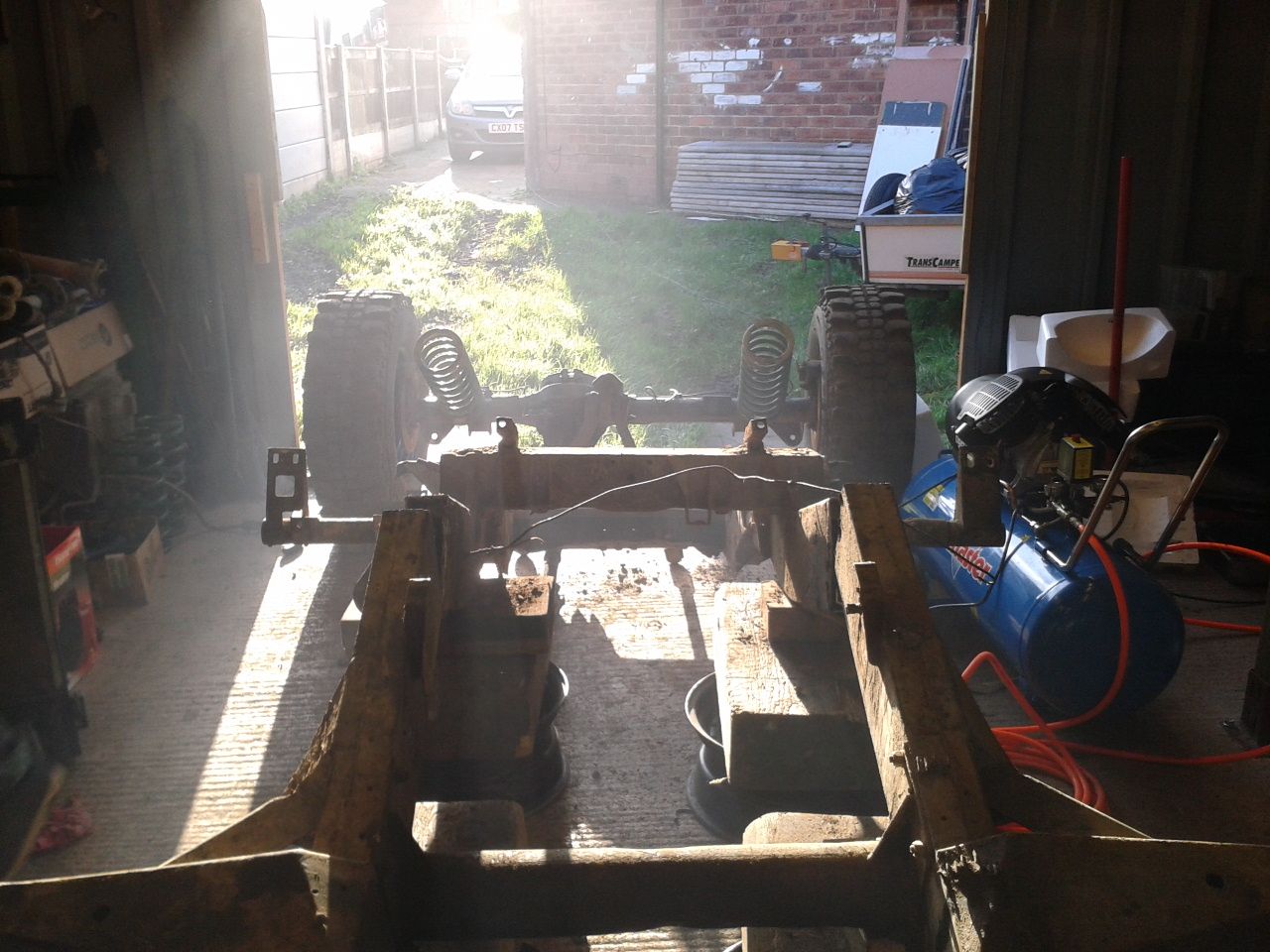

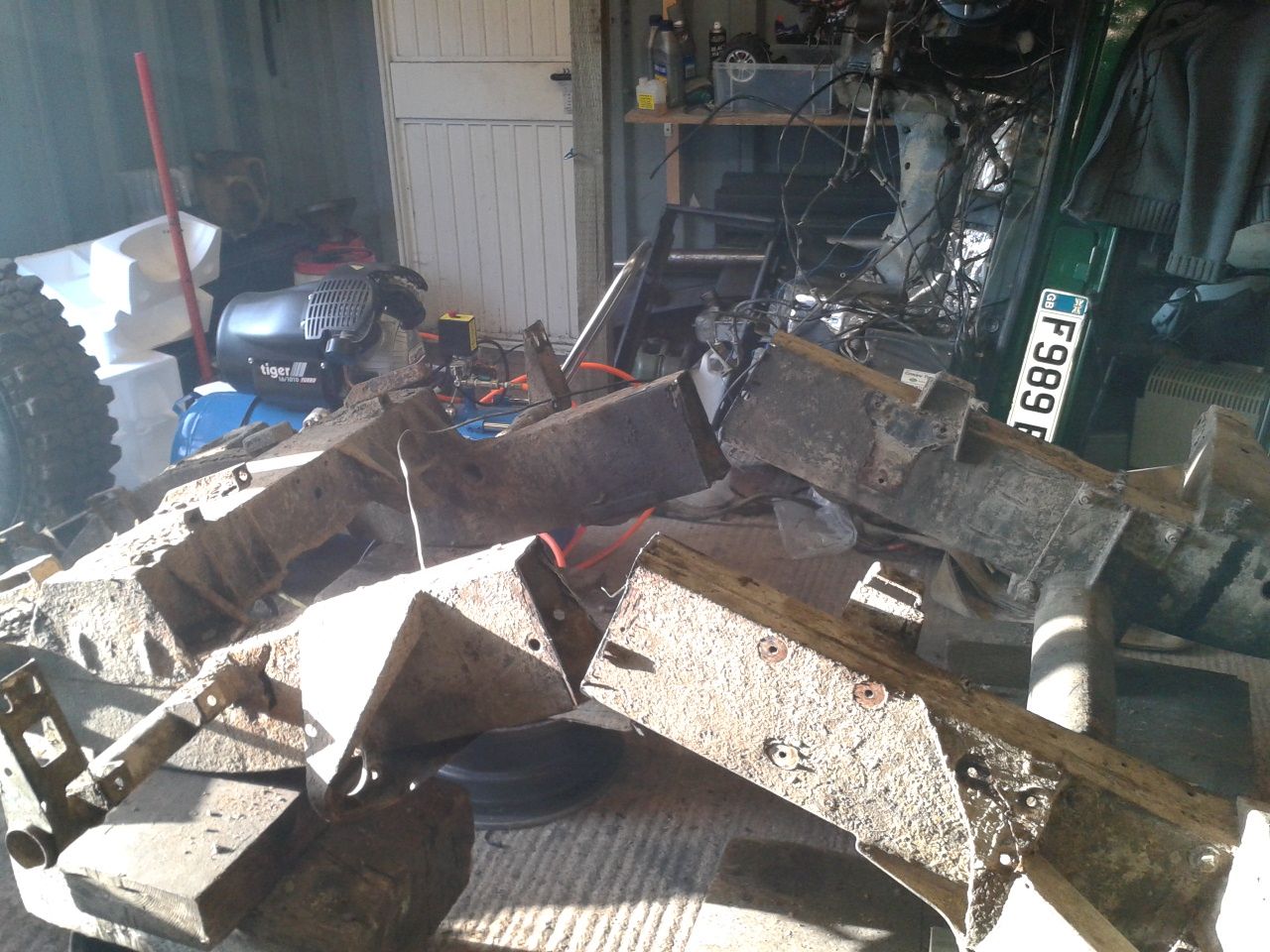

Then we cut the chassis up


Attachments

  • 2015-12-07 12.33.39.jpg
    2015-12-07 12.33.39.jpg
    204.9 KB · Views: 242
  • 2015-12-07 12.33.52.jpg
    2015-12-07 12.33.52.jpg
    168 KB · Views: 183
  • 2015-12-07 12.34.16.jpg
    2015-12-07 12.34.16.jpg
    148.5 KB · Views: 189

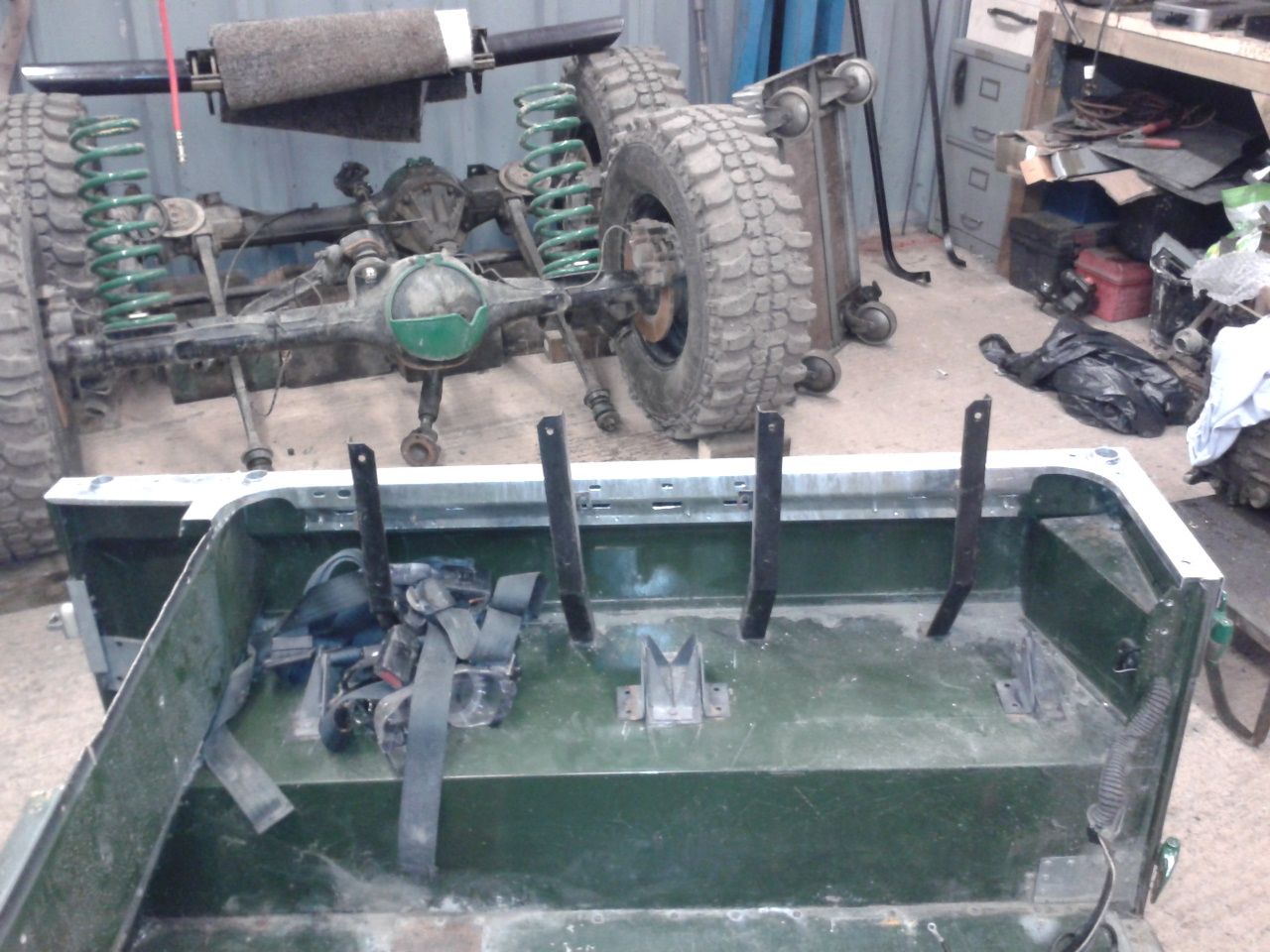

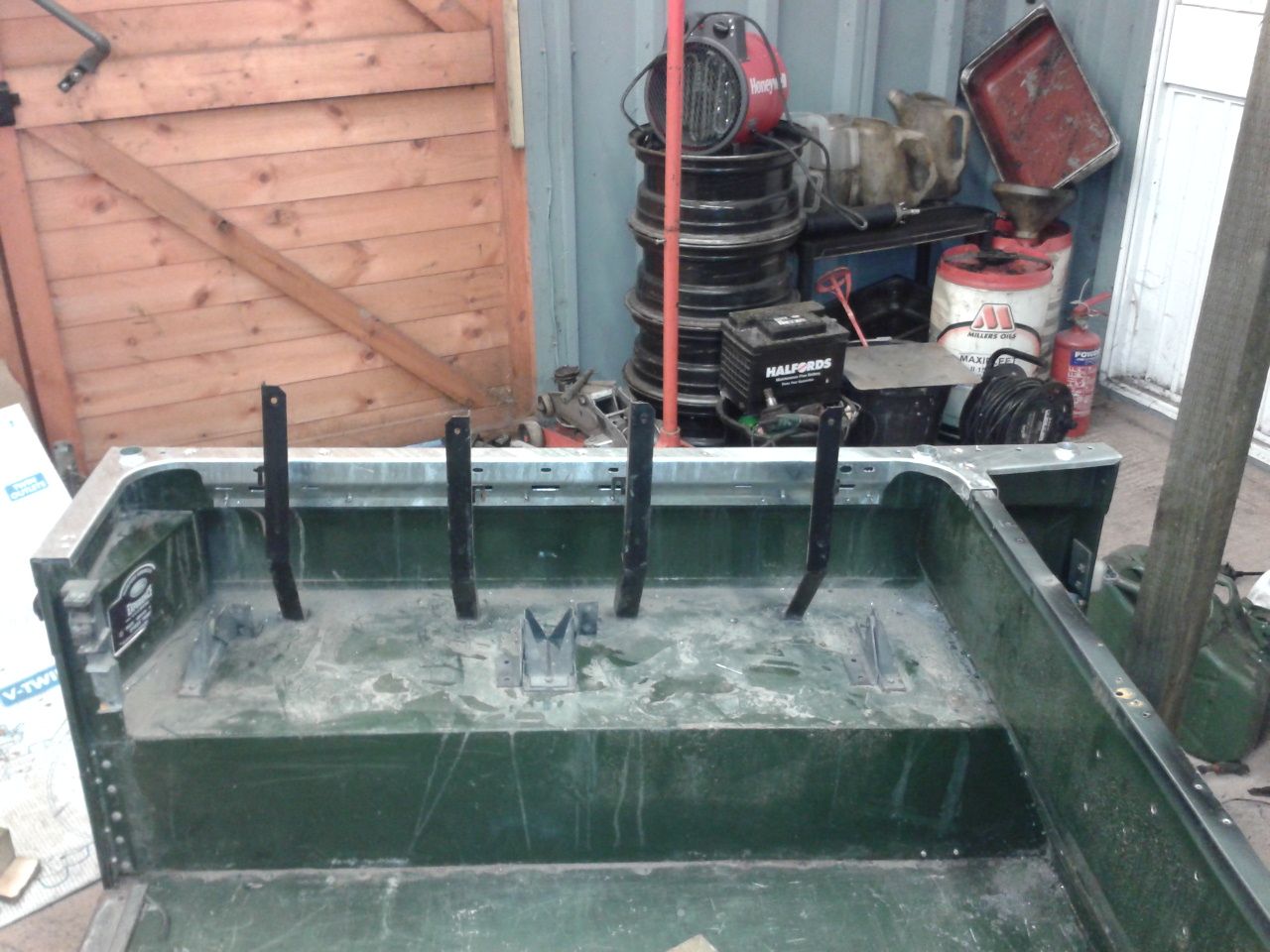

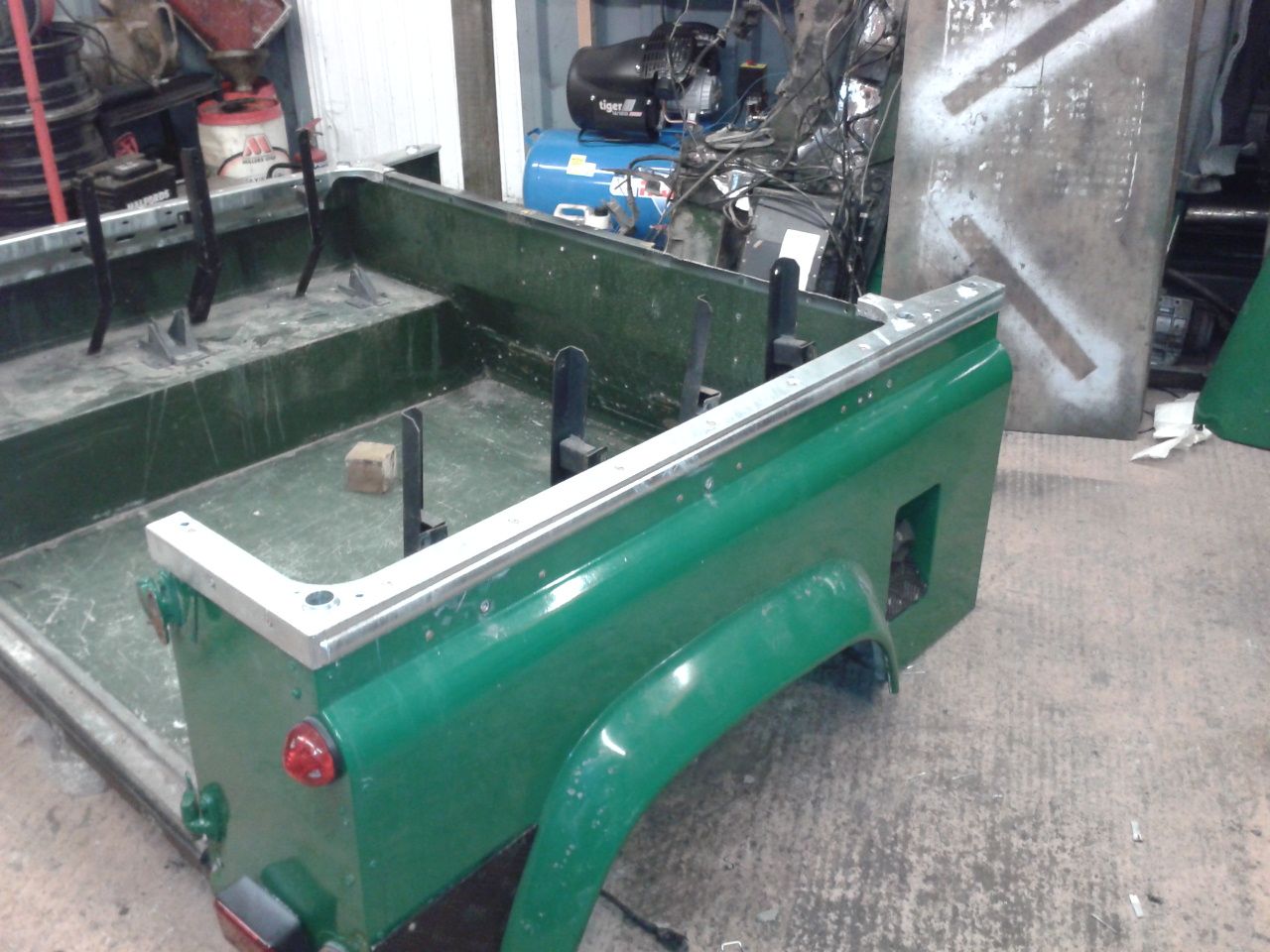

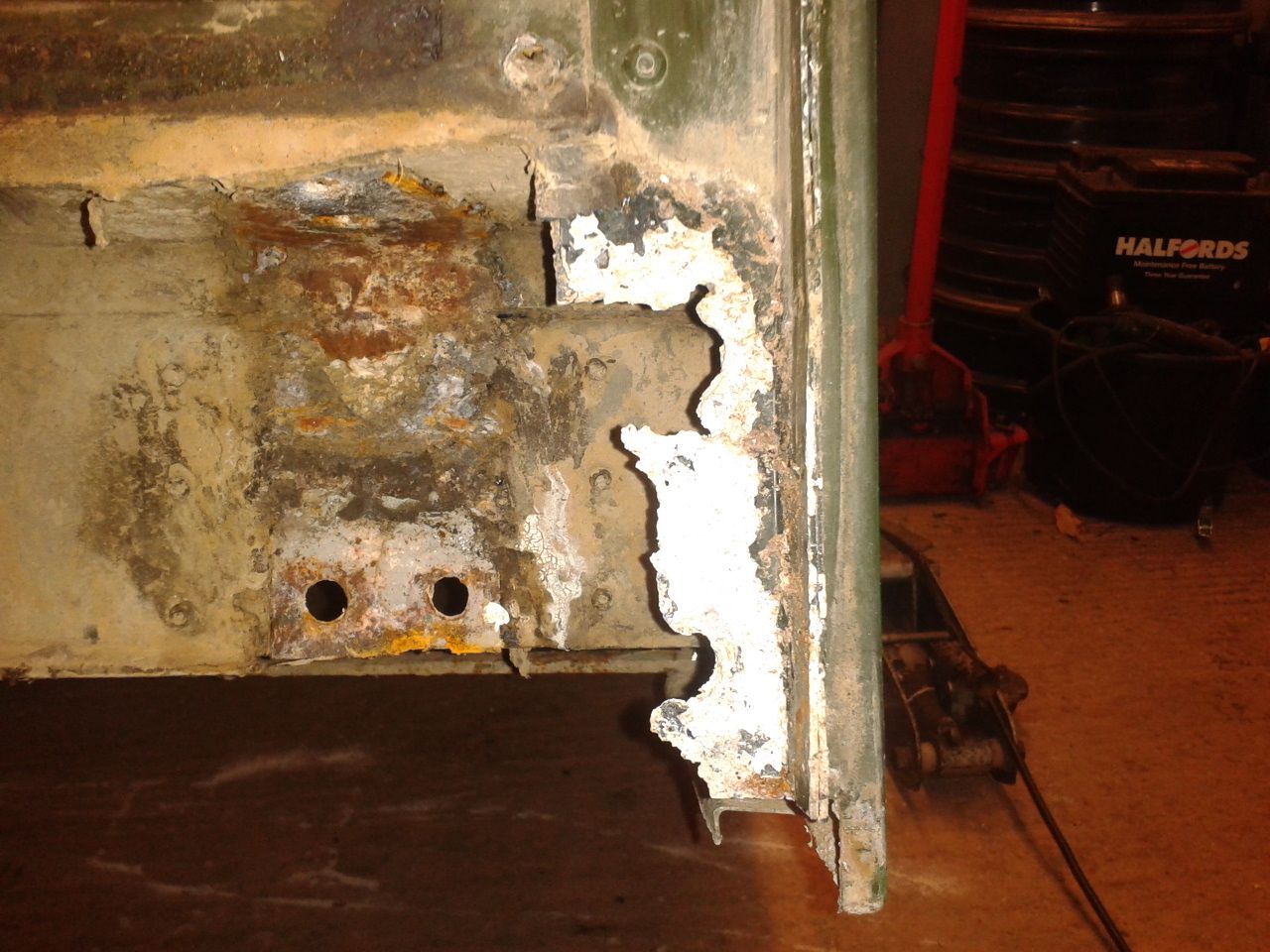

Then we got the tub back in for son to replace the side cappings but forgot to take pic's of stripping them off :oops:


Attachments

  • 2015-12-12 09.53.52.jpg
    2015-12-12 09.53.52.jpg
    163.6 KB · Views: 202
  • 2015-12-12 09.54.04.jpg
    2015-12-12 09.54.04.jpg
    152.6 KB · Views: 210
  • 2015-12-12 09.54.19.jpg
    2015-12-12 09.54.19.jpg
    169.8 KB · Views: 179
  • 2015-12-12 09.54.32.jpg
    2015-12-12 09.54.32.jpg
    160.4 KB · Views: 187

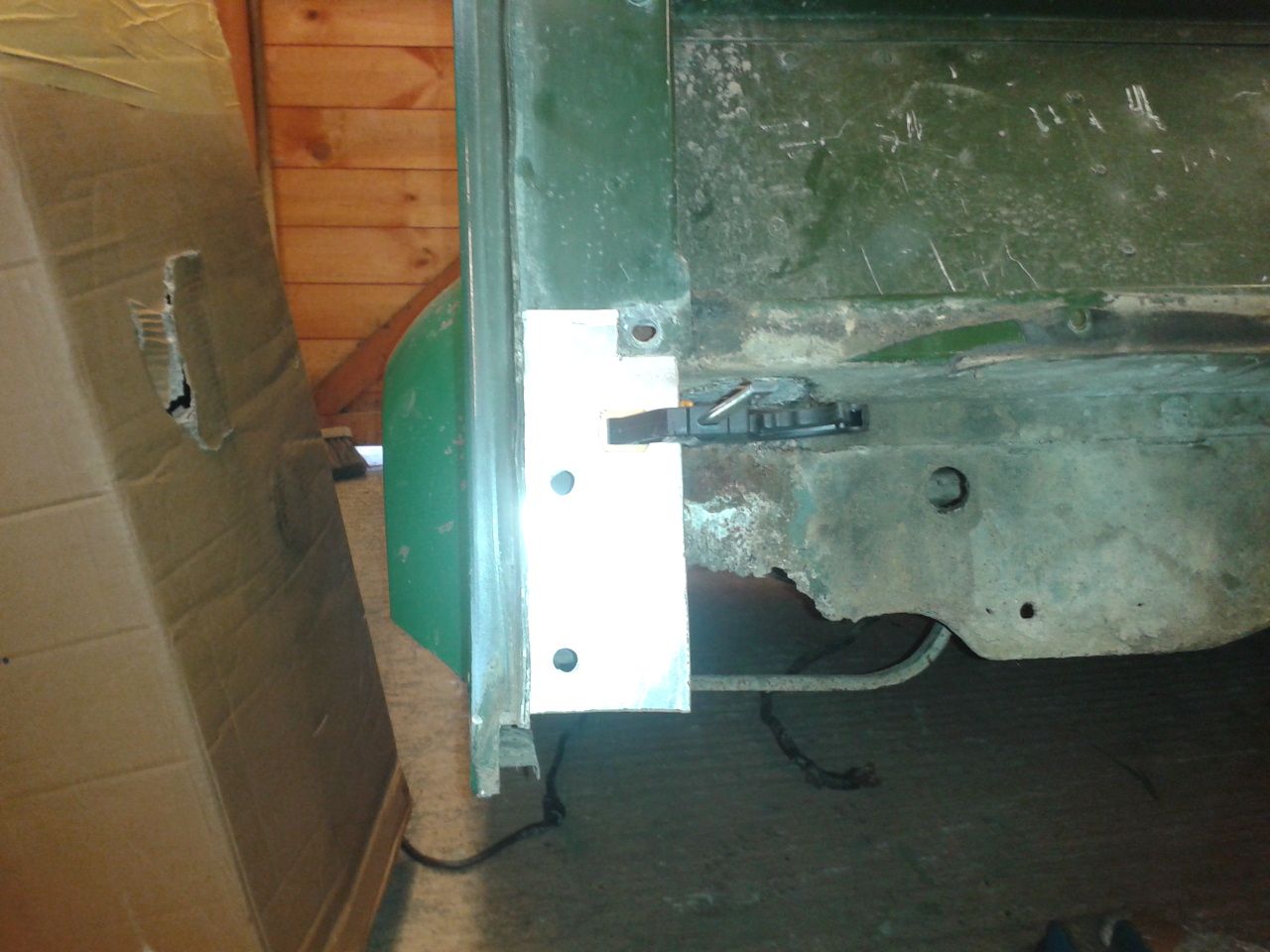

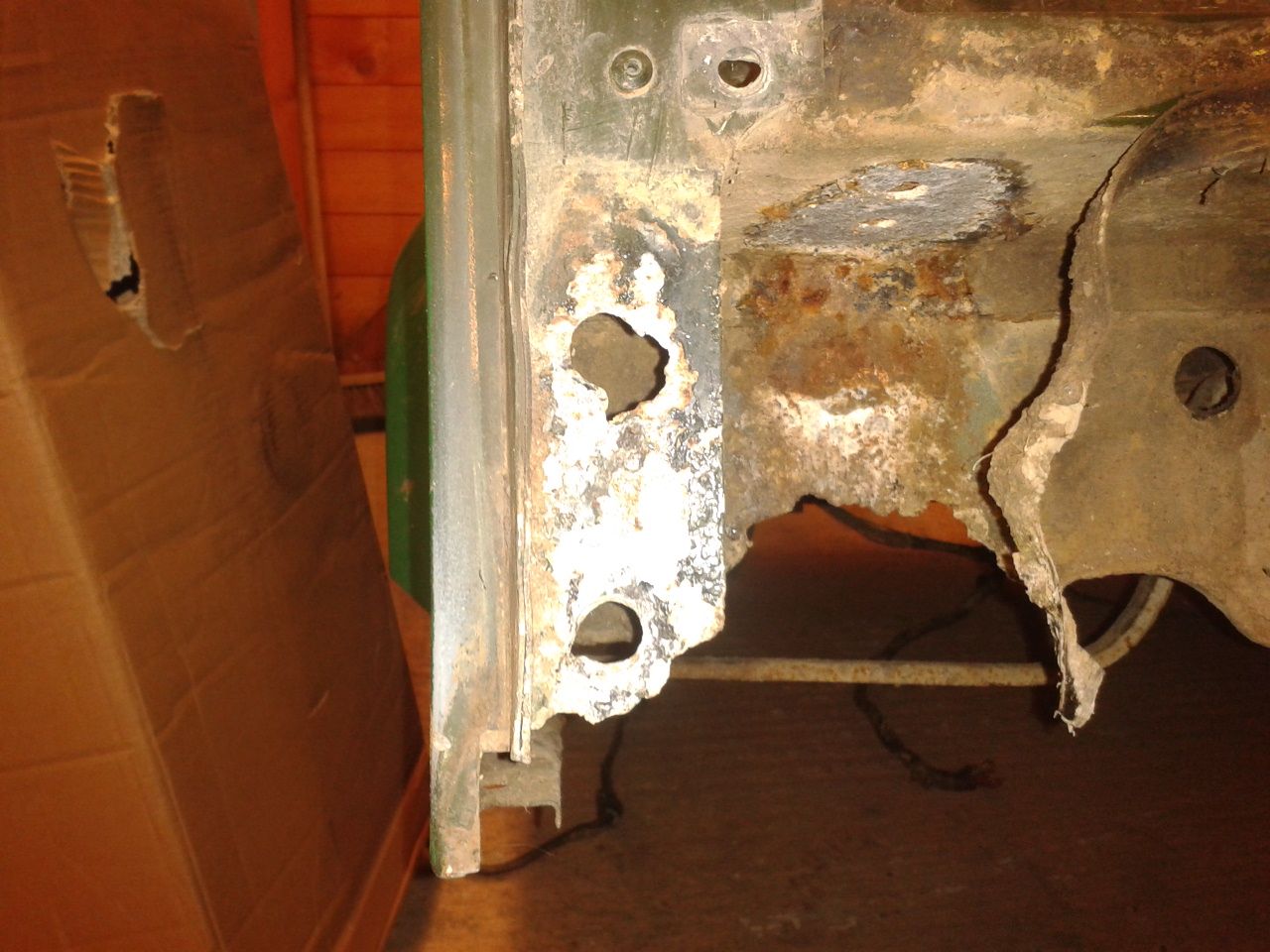

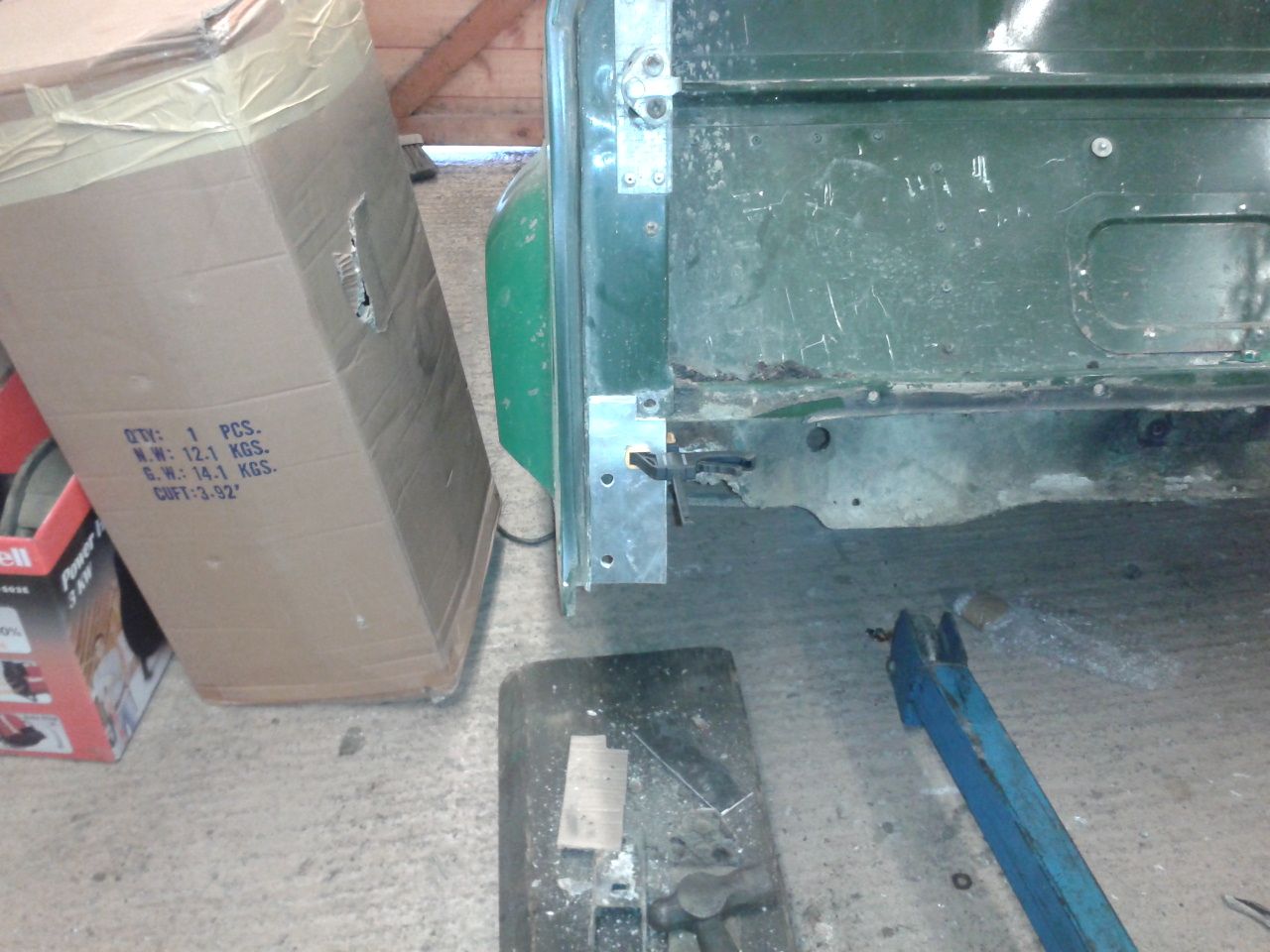

Then i made some plates up ready for when we fit the tub back on


Attachments

  • 2015-12-12 12.00.58.jpg
    2015-12-12 12.00.58.jpg
    159 KB · Views: 193
  • 2015-12-12 12.01.08.jpg
    2015-12-12 12.01.08.jpg
    176.1 KB · Views: 207
  • 2015-12-12 13.47.29.jpg
    2015-12-12 13.47.29.jpg
    126.7 KB · Views: 198
  • 2015-12-12 13.47.36.jpg
    2015-12-12 13.47.36.jpg
    147.4 KB · Views: 177
  • 2015-12-12 16.49.17.jpg
    2015-12-12 16.49.17.jpg
    149.7 KB · Views: 208

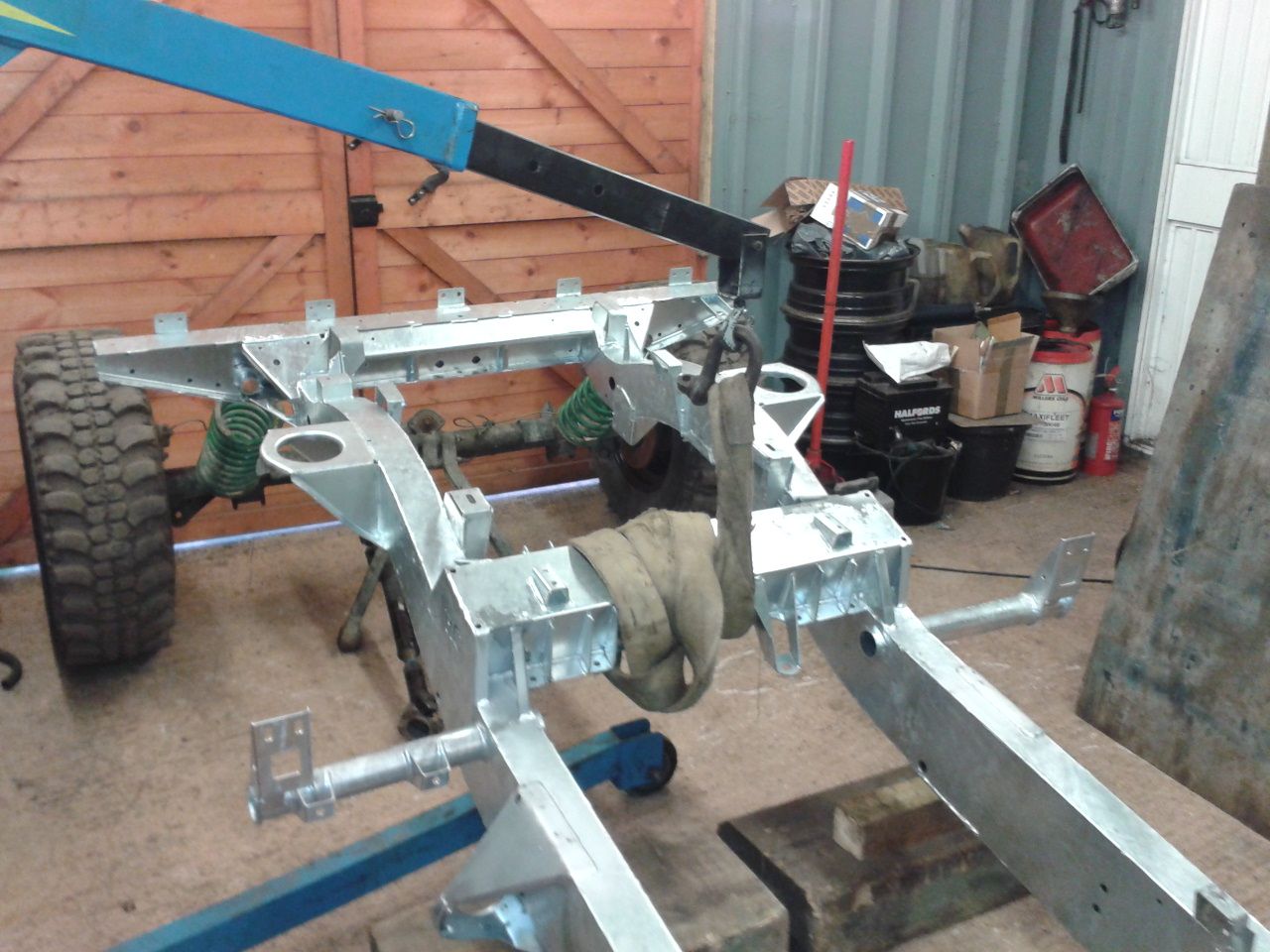

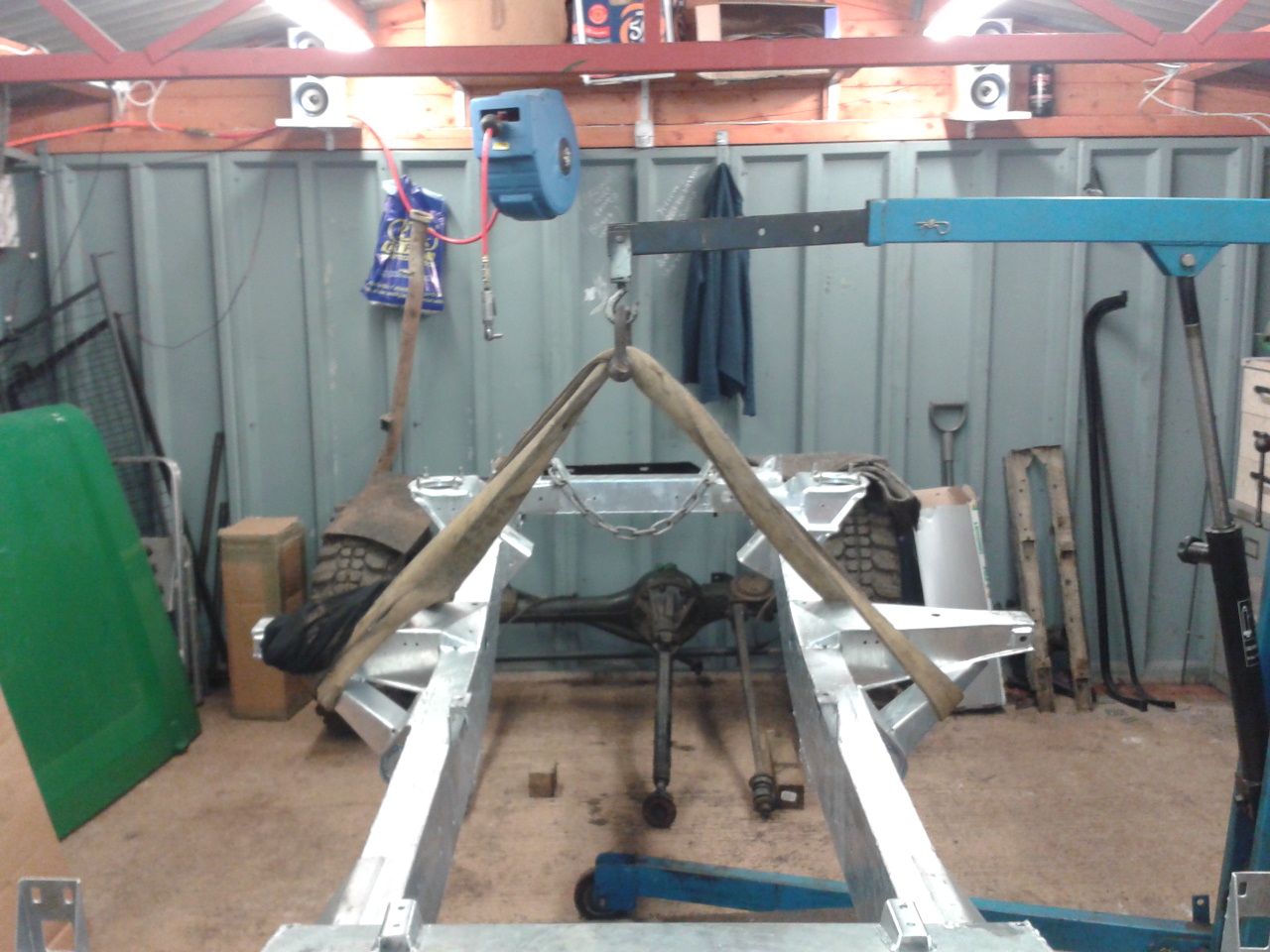

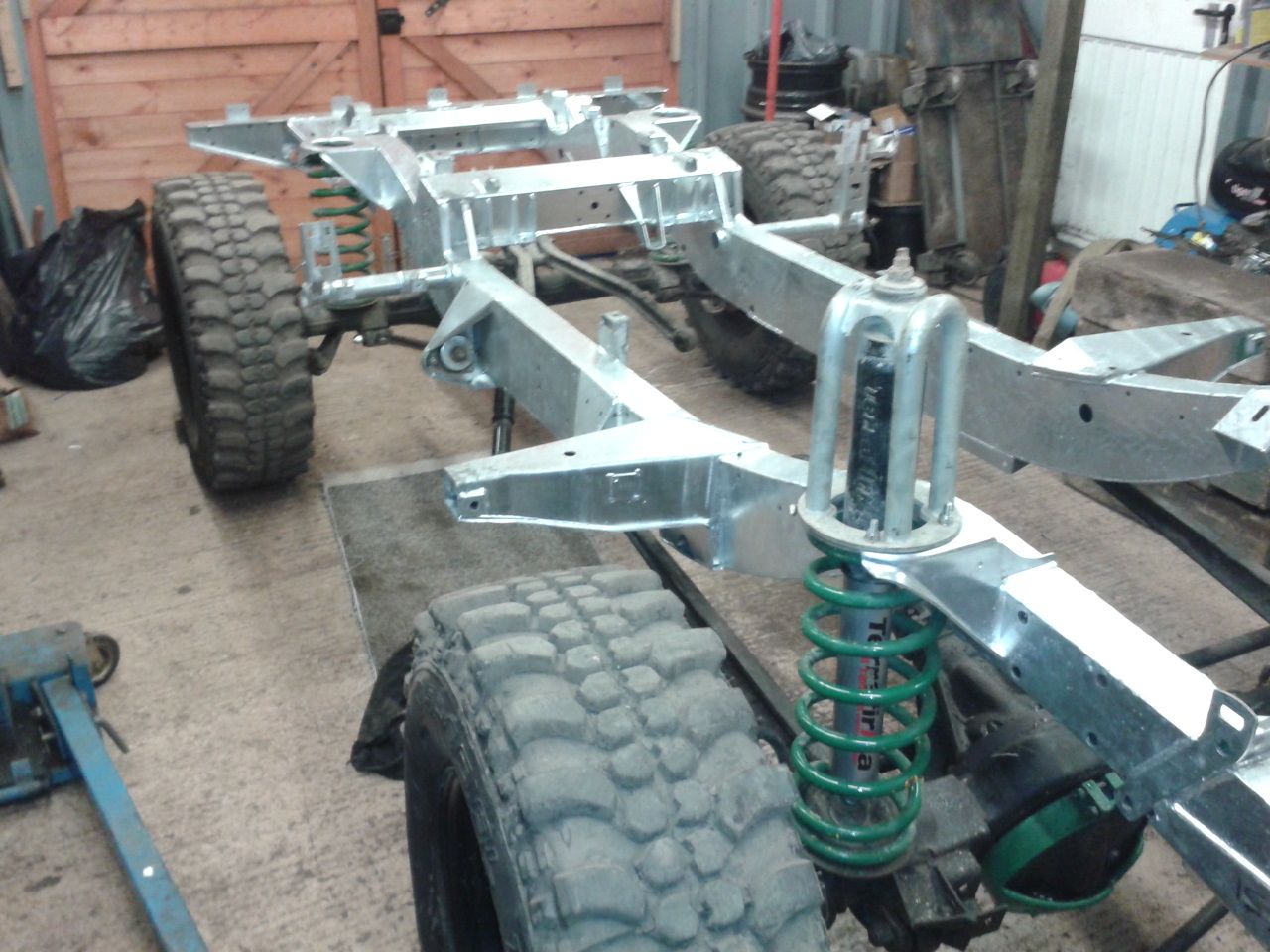

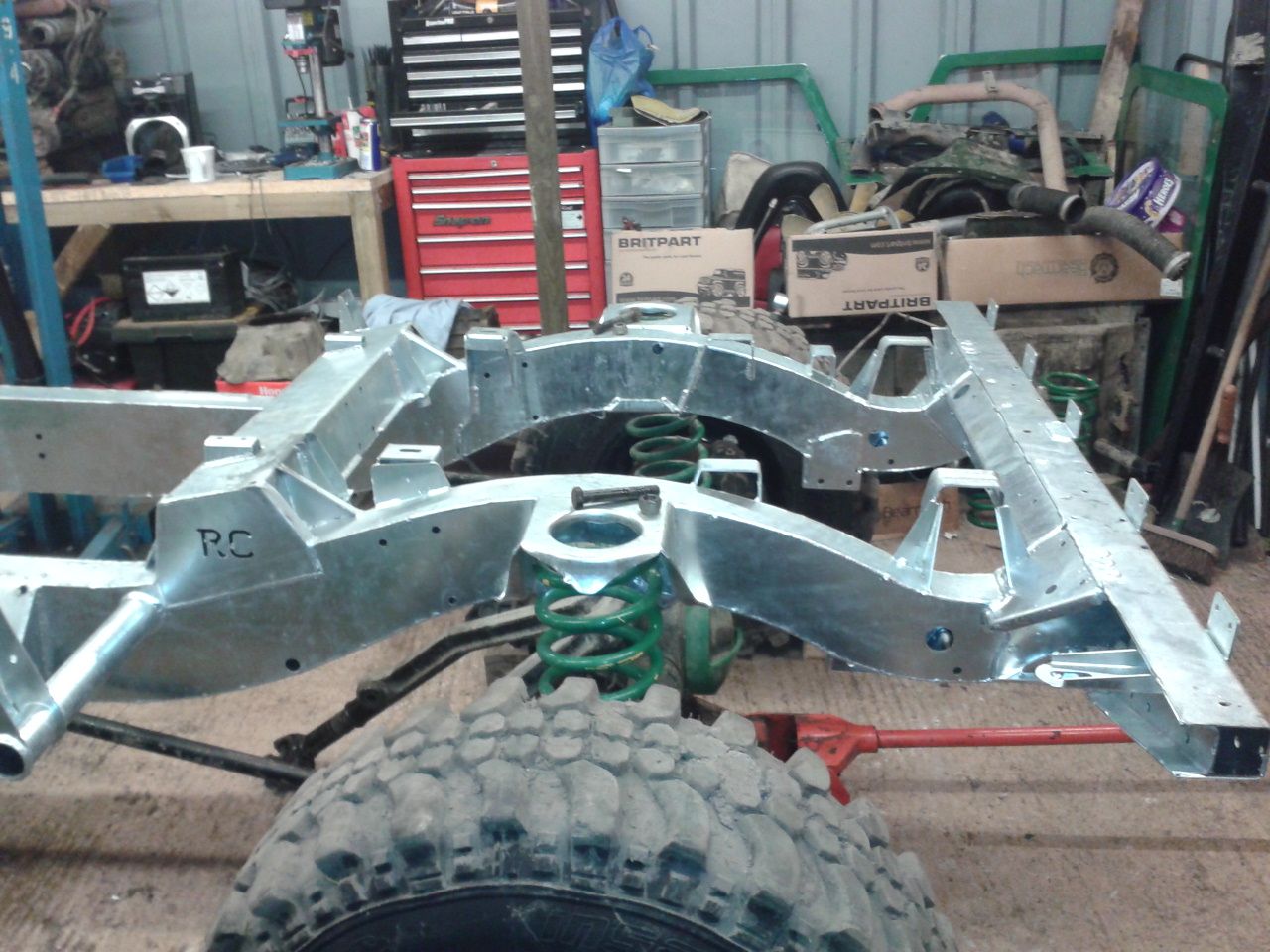

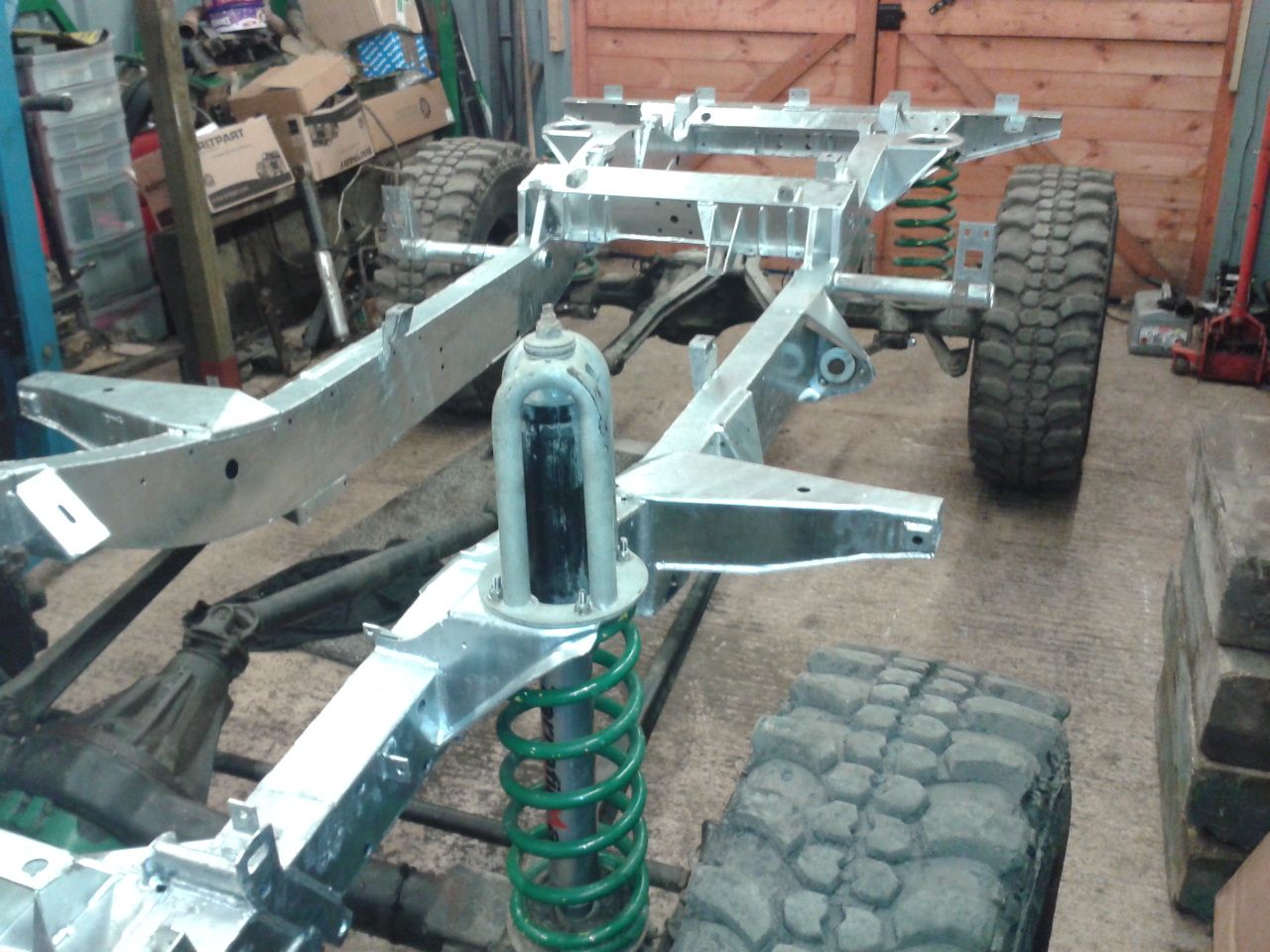

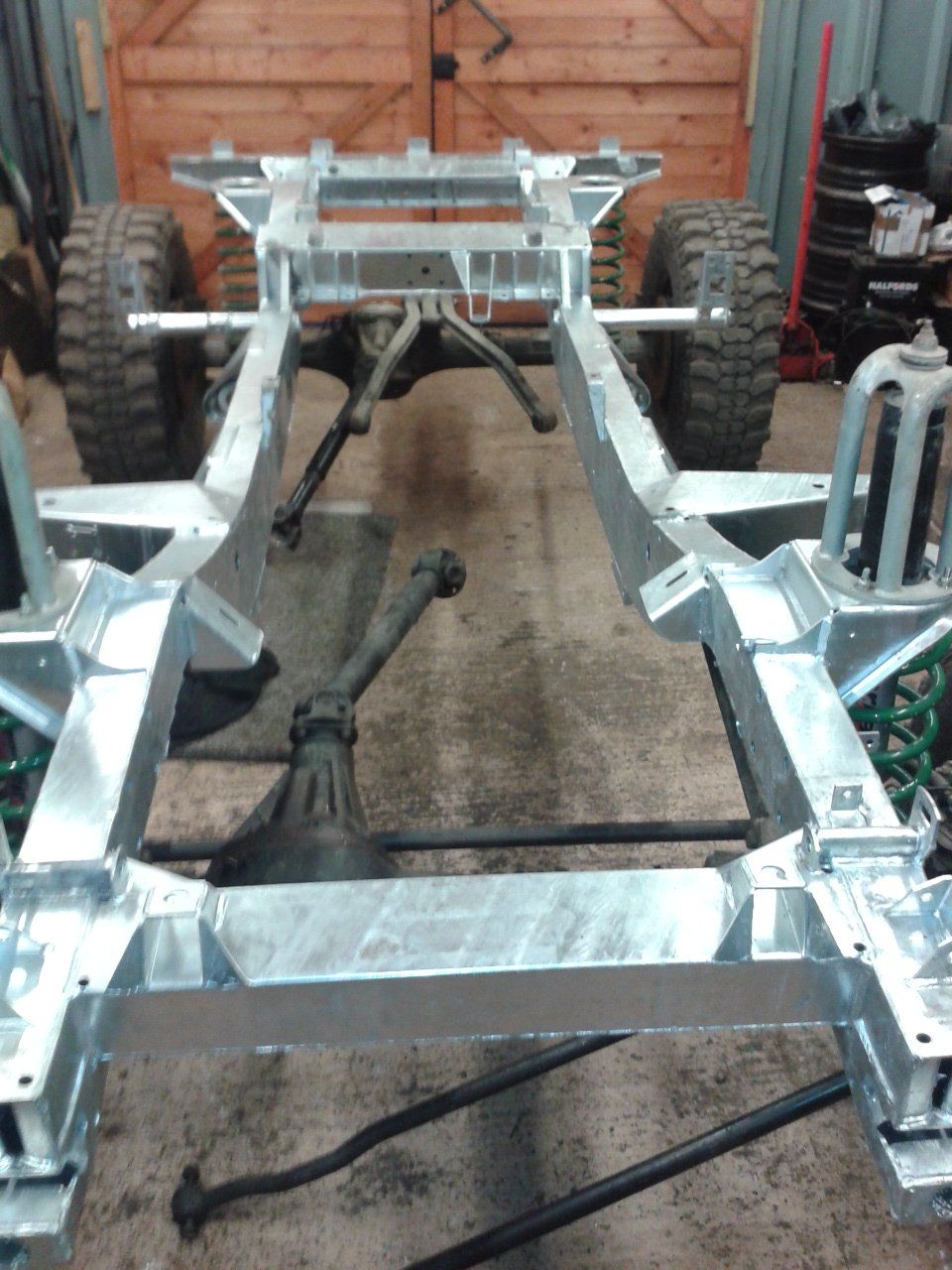

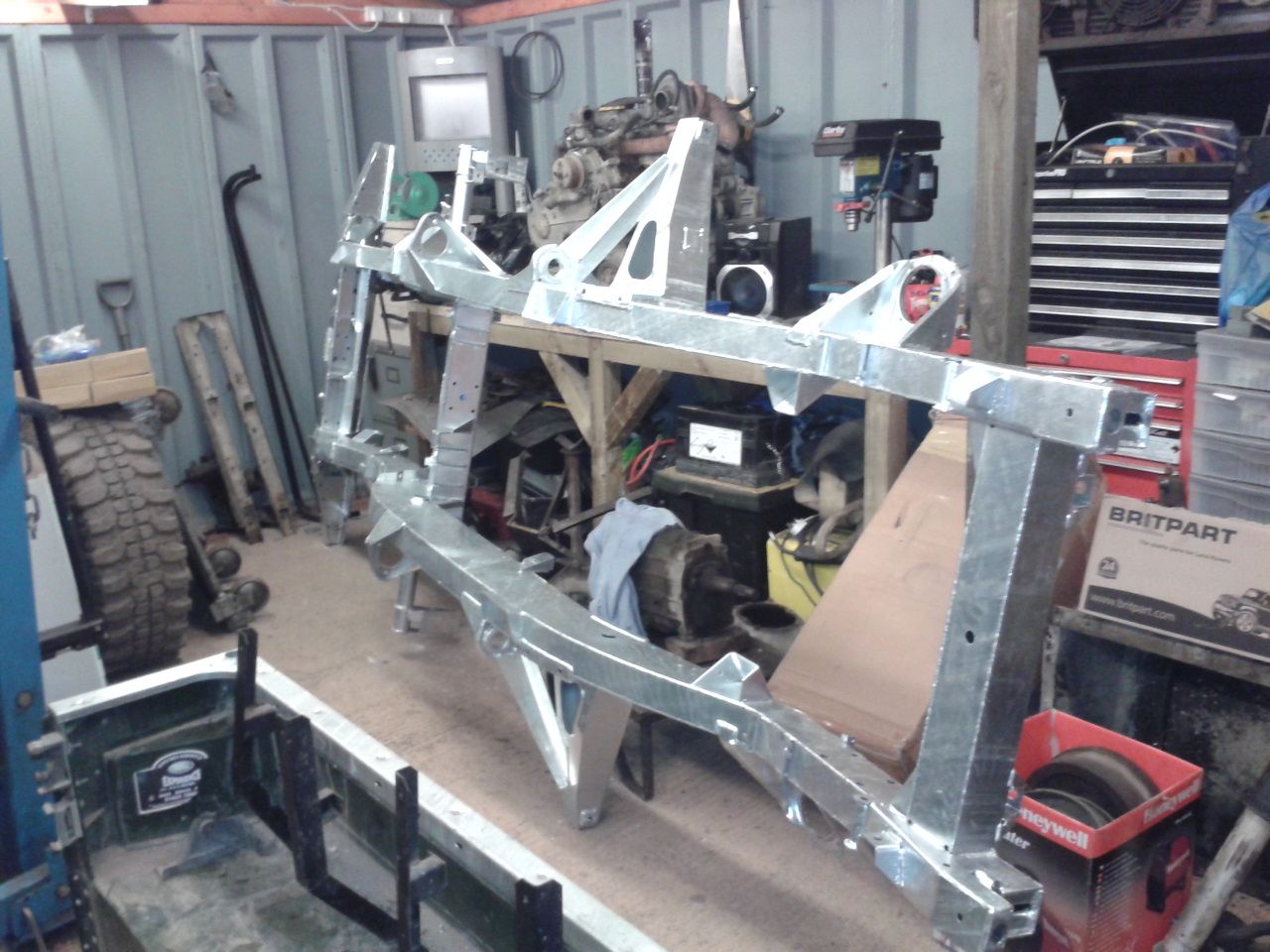

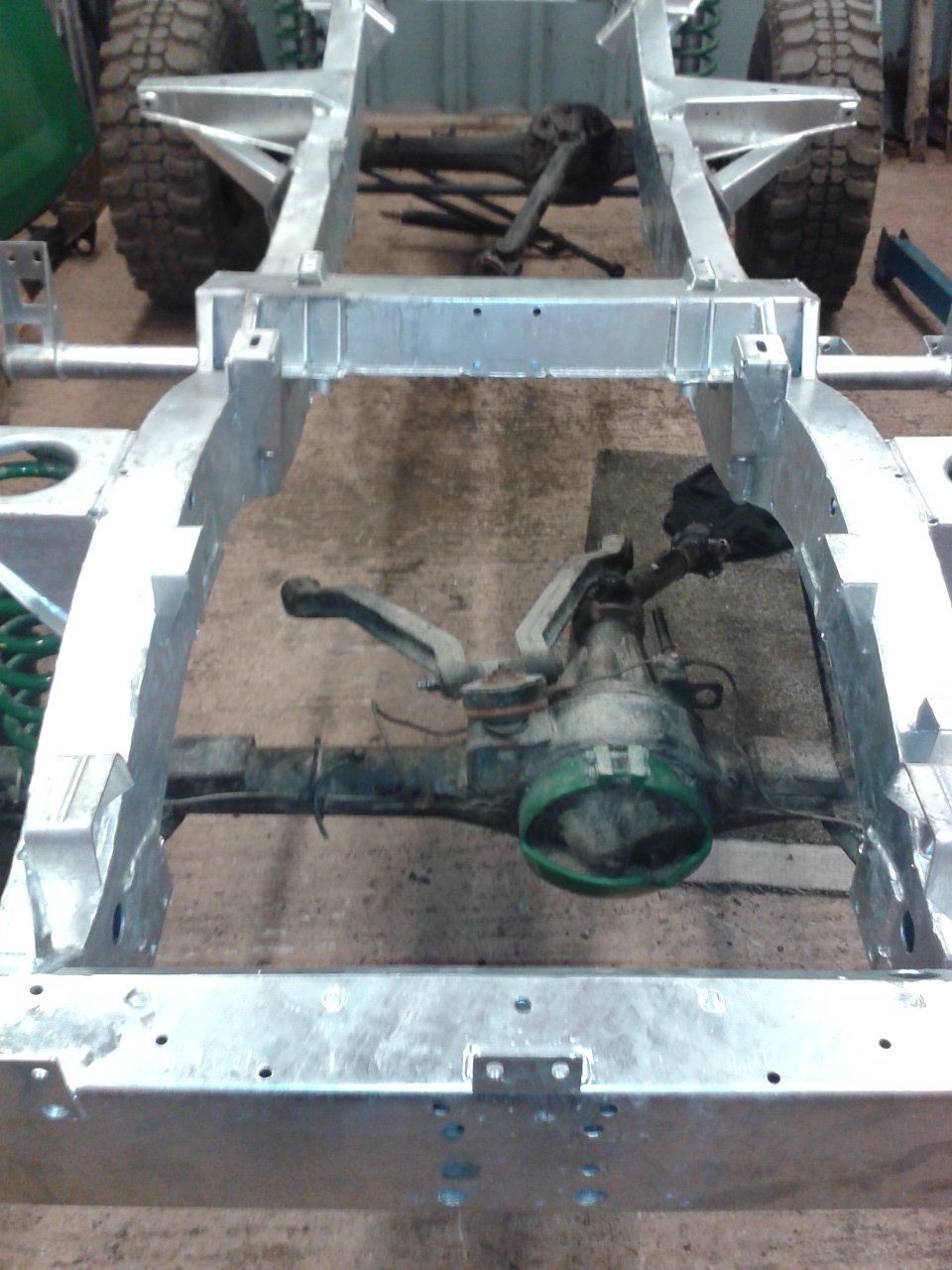

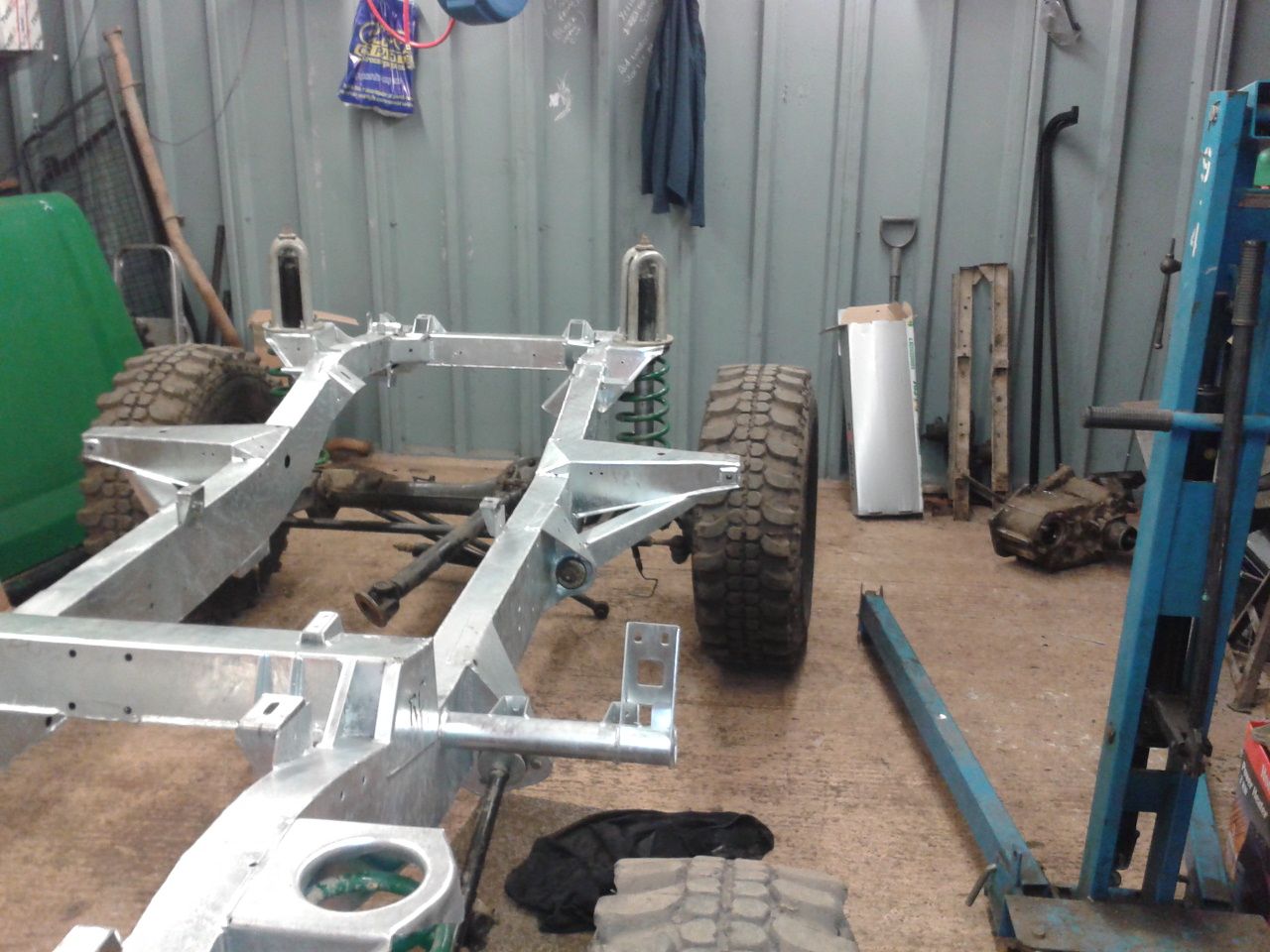

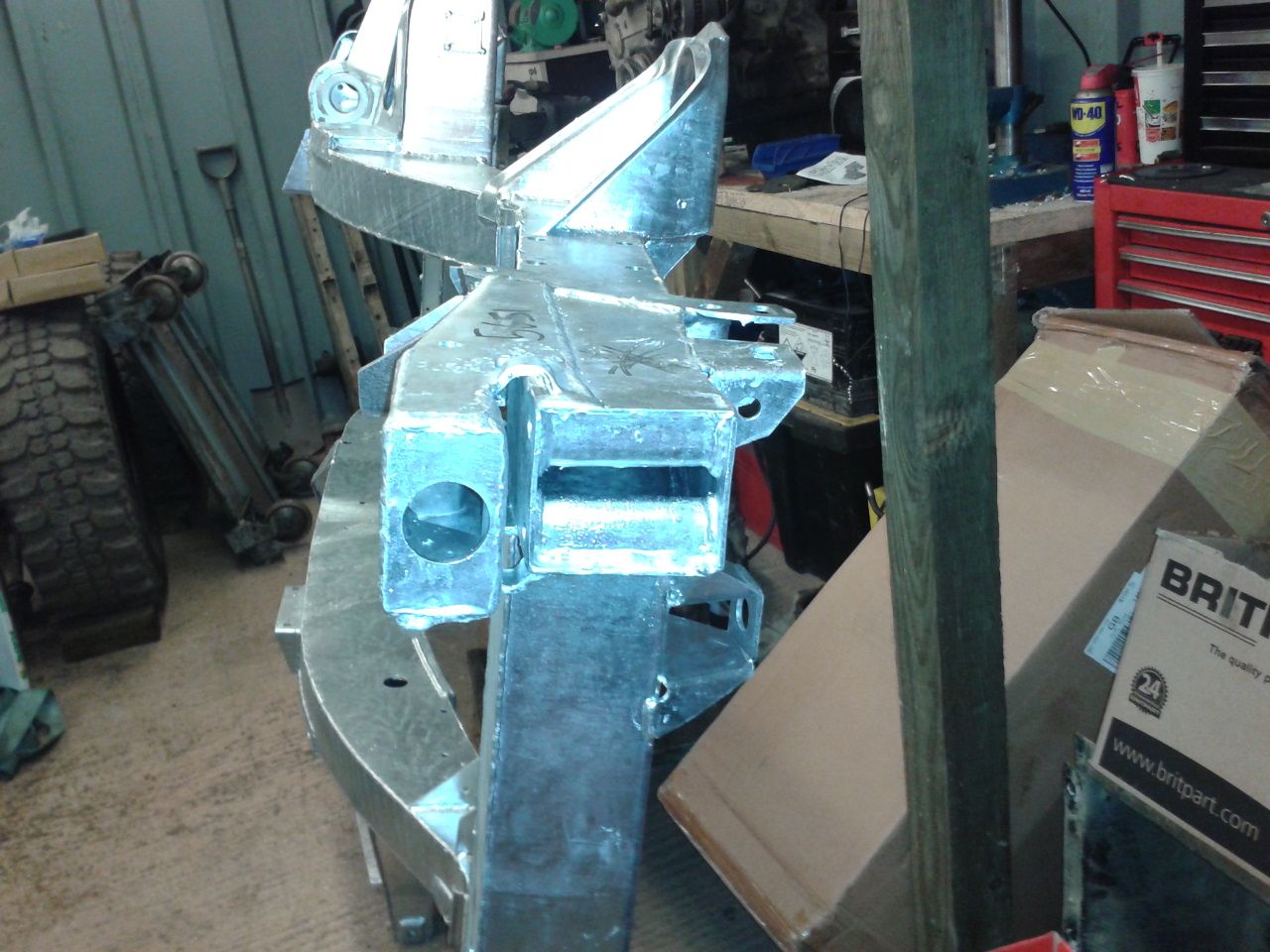

Fitting the axles to the chassis, i struggled a bit fitting the rear axle as with the suspension being + 2" there was loads of tension on the trailing arms so i had to resort to using two ratchet straps one to hold the axle to the chassis ( kept rolling away when i let go ) and the other to pull the chassis down one side at a time to compress the springs to locat the trailing arms into the poly bushes in the chassis but i got there in the end


Attachments

  • 2015-12-19 10.21.37.jpg
    2015-12-19 10.21.37.jpg
    164.7 KB · Views: 219
  • 2015-12-19 11.45.26.jpg
    2015-12-19 11.45.26.jpg
    165.3 KB · Views: 201
  • 2015-12-19 11.45.44.jpg
    2015-12-19 11.45.44.jpg
    184.7 KB · Views: 227
  • 2015-12-19 11.45.55.jpg
    2015-12-19 11.45.55.jpg
    147 KB · Views: 199
  • 2015-12-19 11.46.02.jpg
    2015-12-19 11.46.02.jpg
    152.2 KB · Views: 231
  • 2015-12-19 12.44.23.jpg
    2015-12-19 12.44.23.jpg
    188.9 KB · Views: 214
  • 2015-12-19 16.00.38.jpg
    2015-12-19 16.00.38.jpg
    170.6 KB · Views: 208
  • 2015-12-19 16.00.57.jpg
    2015-12-19 16.00.57.jpg
    191.6 KB · Views: 205
  • 2015-12-19 16.01.09.jpg
    2015-12-19 16.01.09.jpg
    167.2 KB · Views: 227
  • 2015-12-19 16.01.20.jpg
    2015-12-19 16.01.20.jpg
    177.3 KB · Views: 216
  • 2015-12-19 16.01.34.jpg
    2015-12-19 16.01.34.jpg
    154.1 KB · Views: 231
  • 2015-12-19 16.01.44.jpg
    2015-12-19 16.01.44.jpg
    160.7 KB · Views: 234

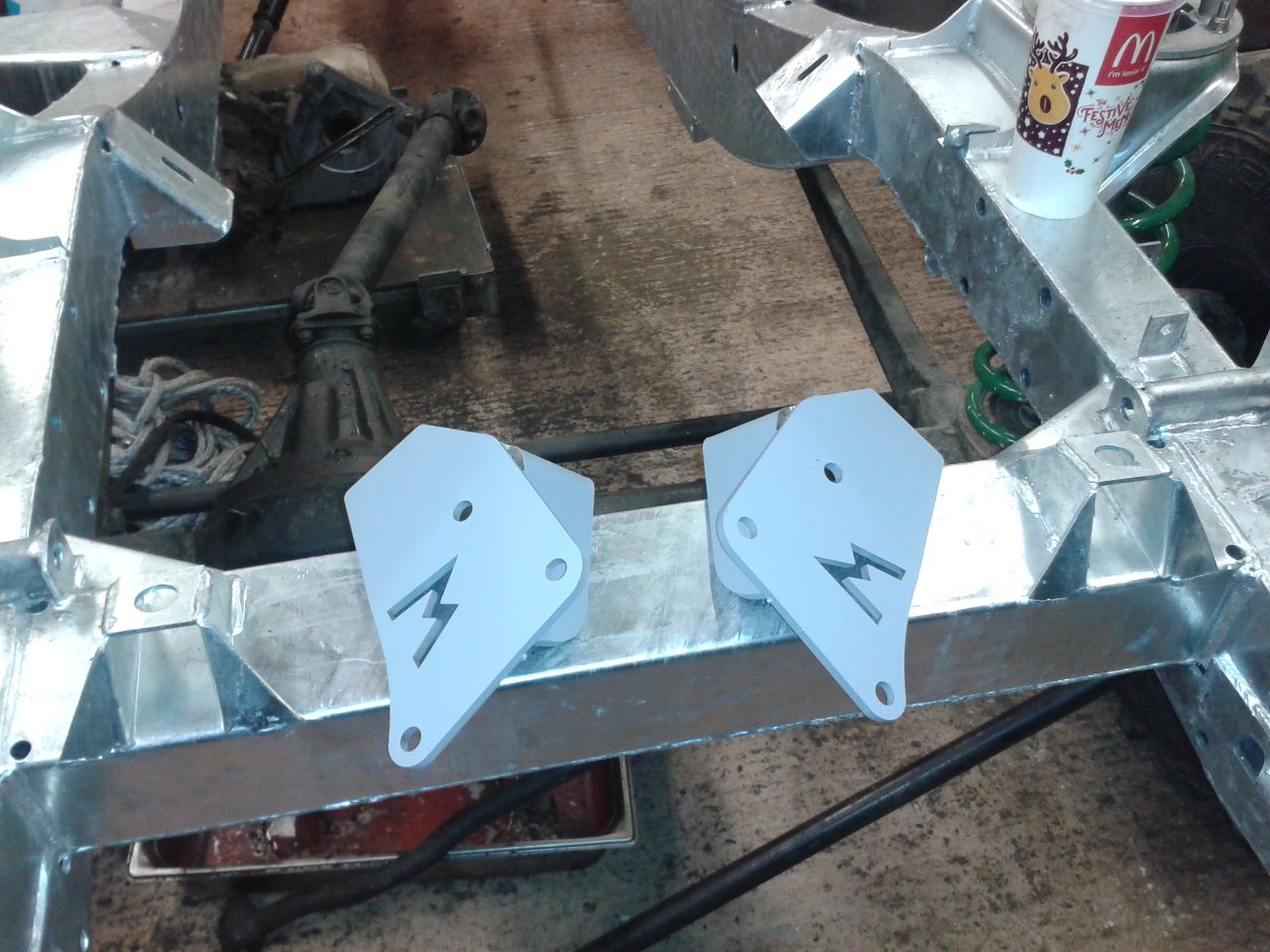

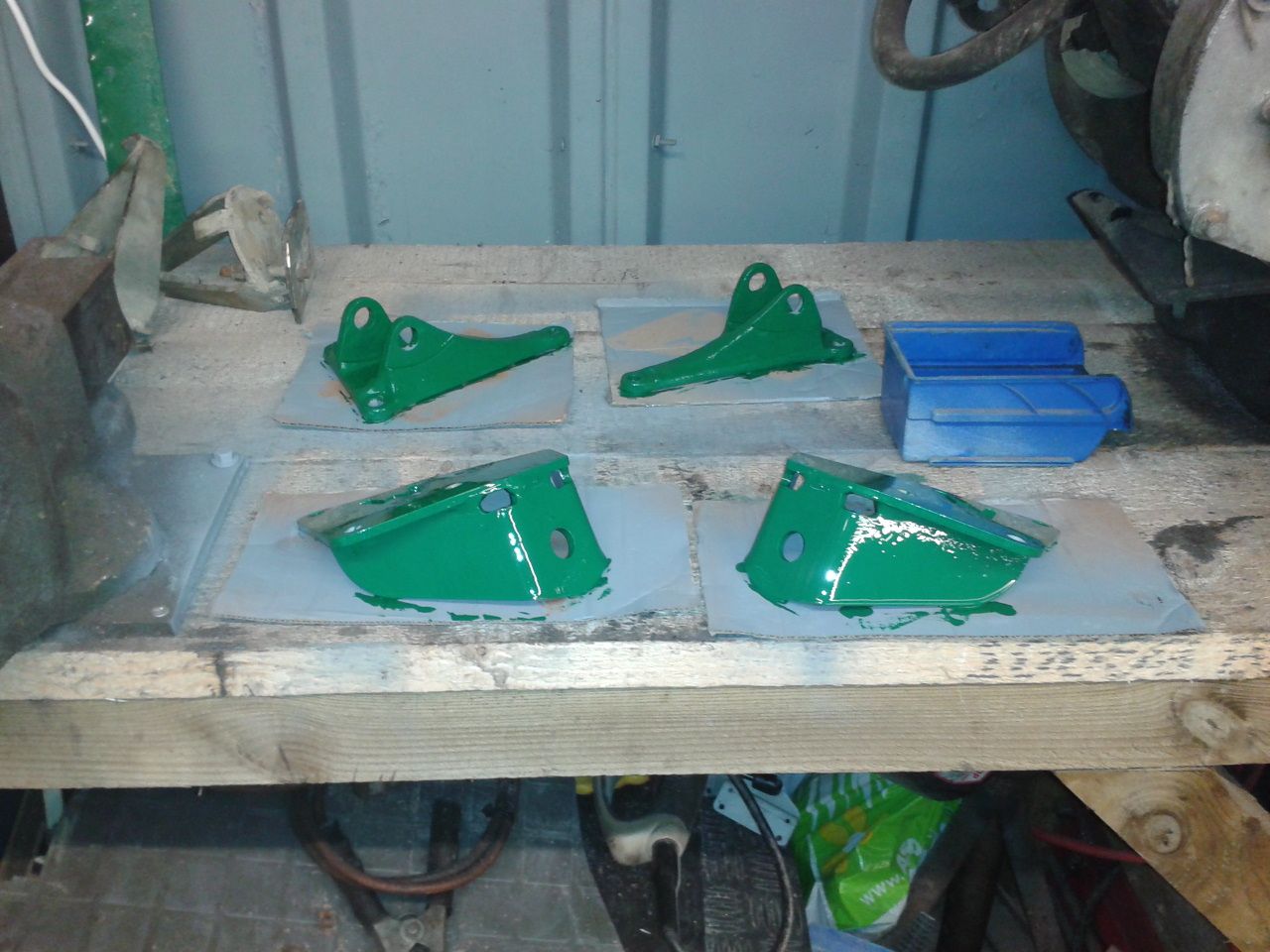

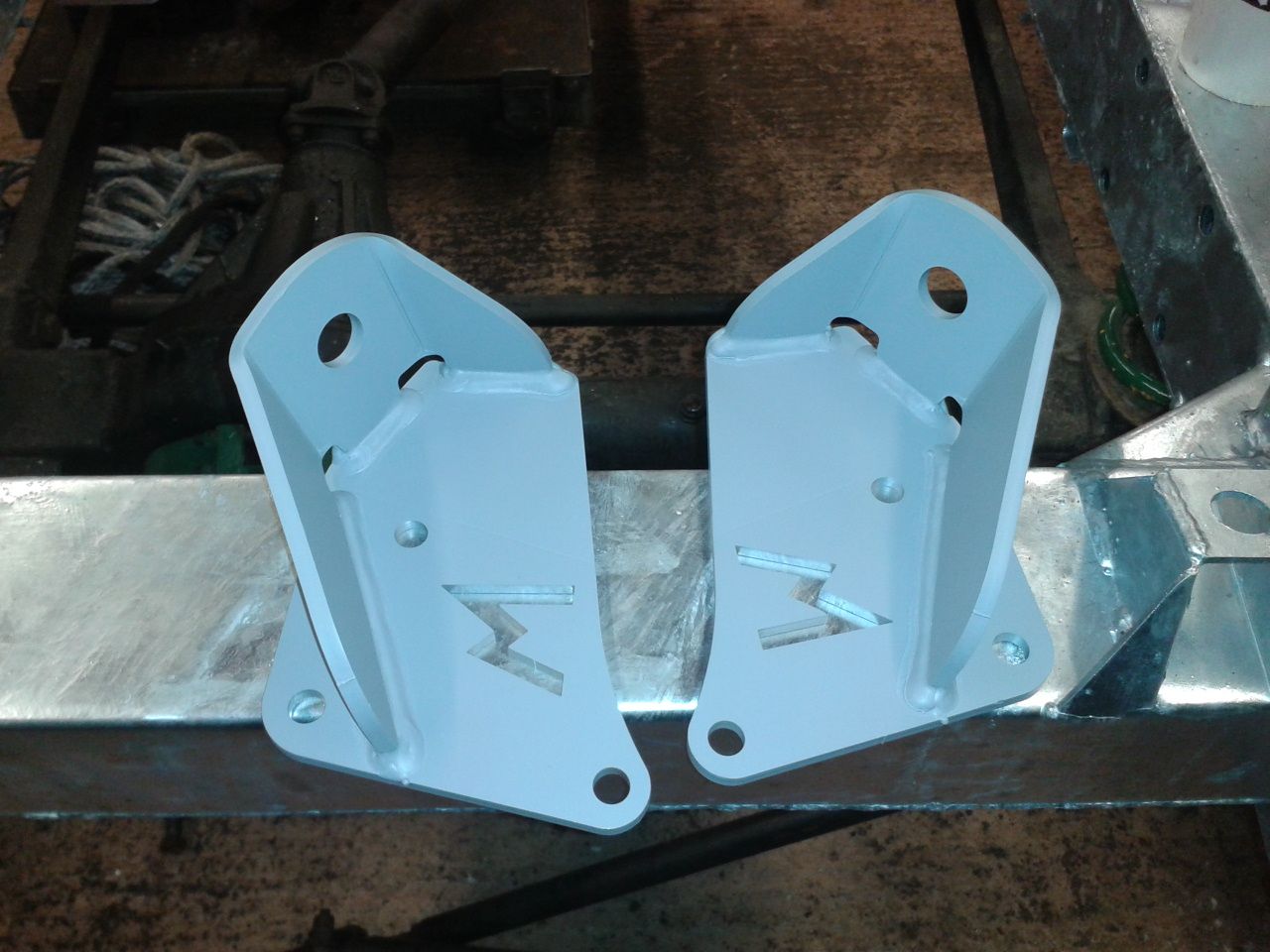

then i painted a few brackets ready for fitting them on monday just gone


Attachments

  • 2015-12-19 18.51.55.jpg
    2015-12-19 18.51.55.jpg
    135.5 KB · Views: 169
  • 2015-12-19 18.52.19.jpg
    2015-12-19 18.52.19.jpg
    176.6 KB · Views: 210
  • 2015-12-19 19.19.39.jpg
    2015-12-19 19.19.39.jpg
    151.7 KB · Views: 208
  • 2015-12-20 09.50.49.jpg
    2015-12-20 09.50.49.jpg
    161.4 KB · Views: 208

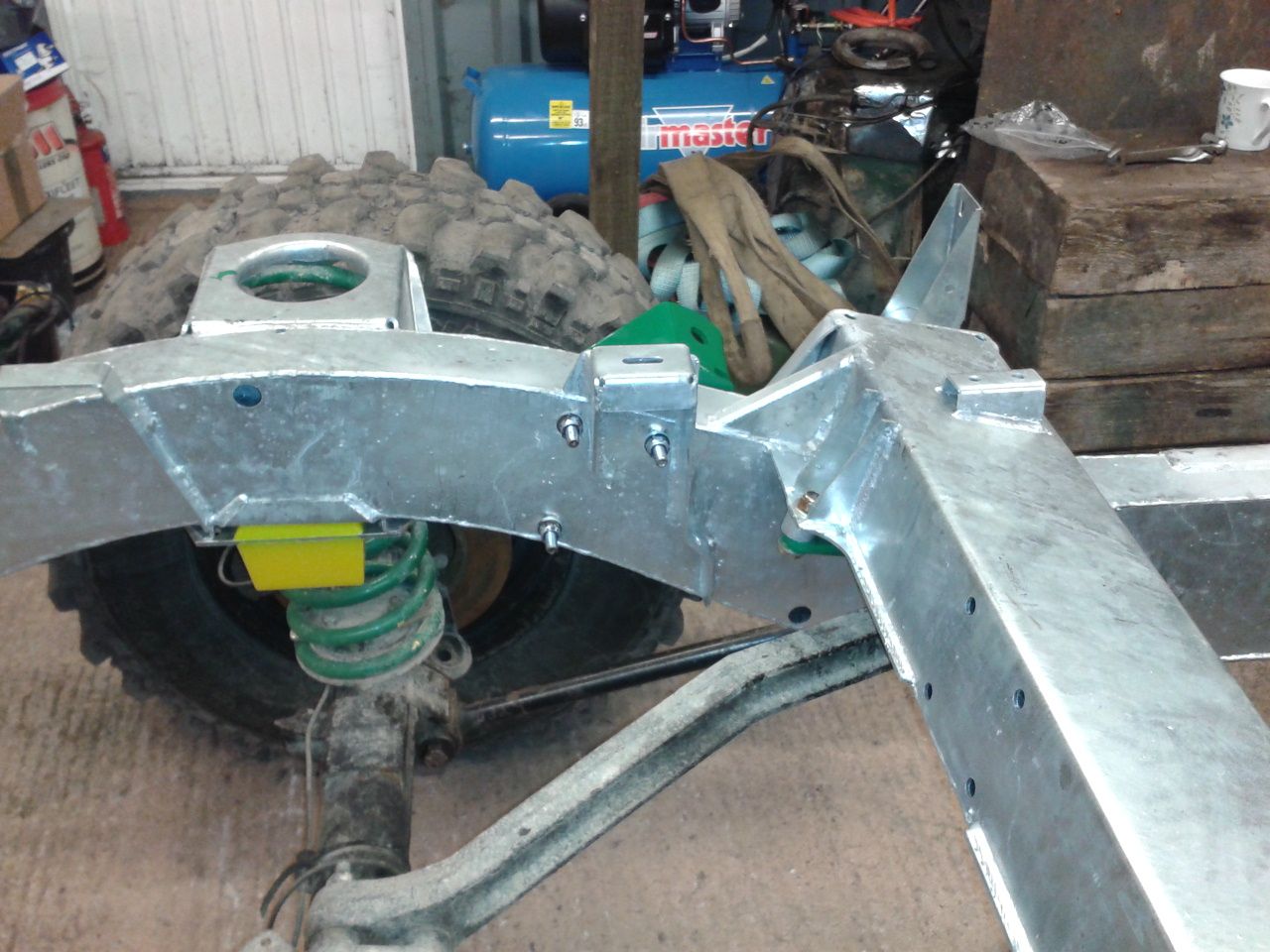

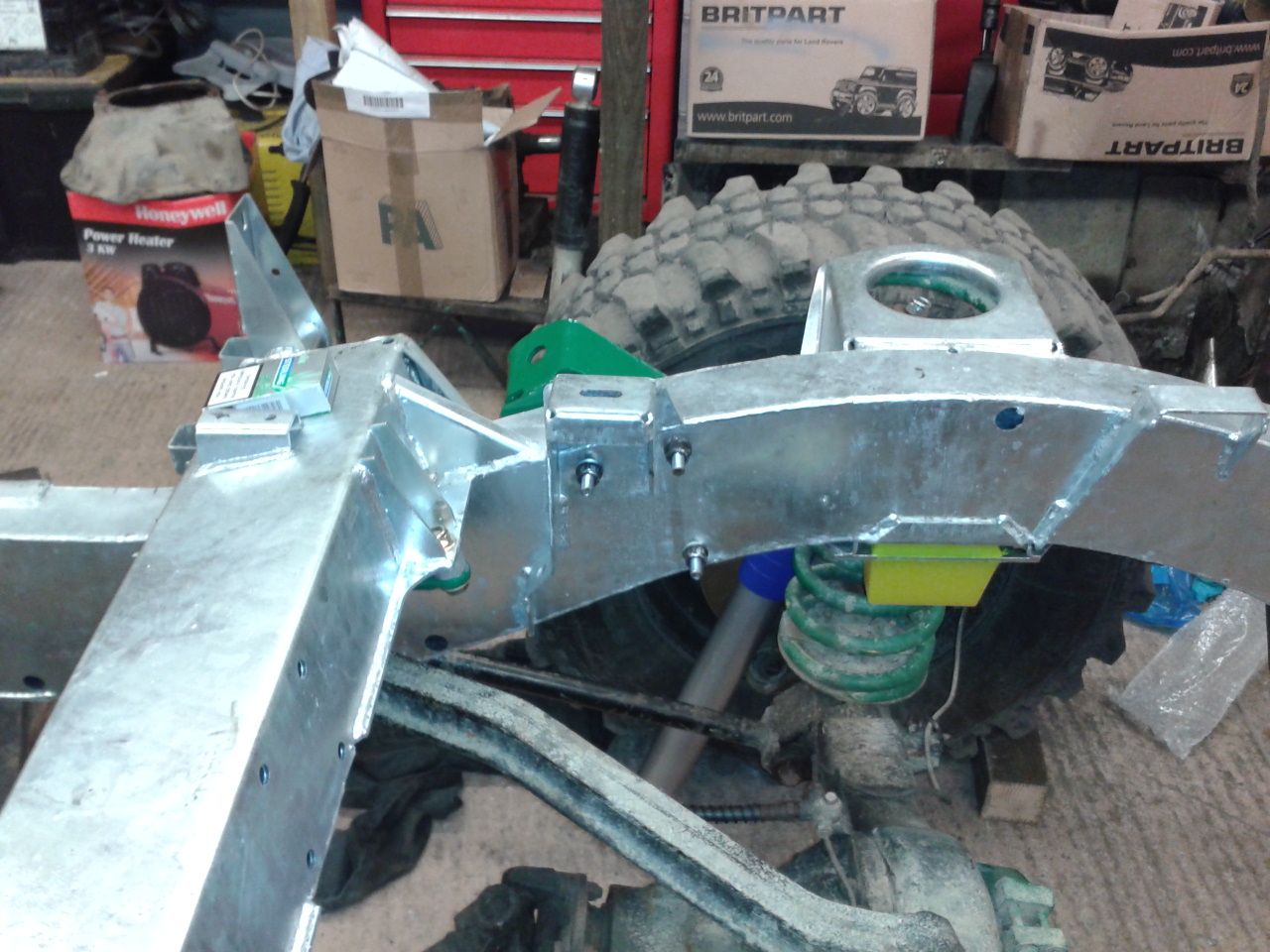

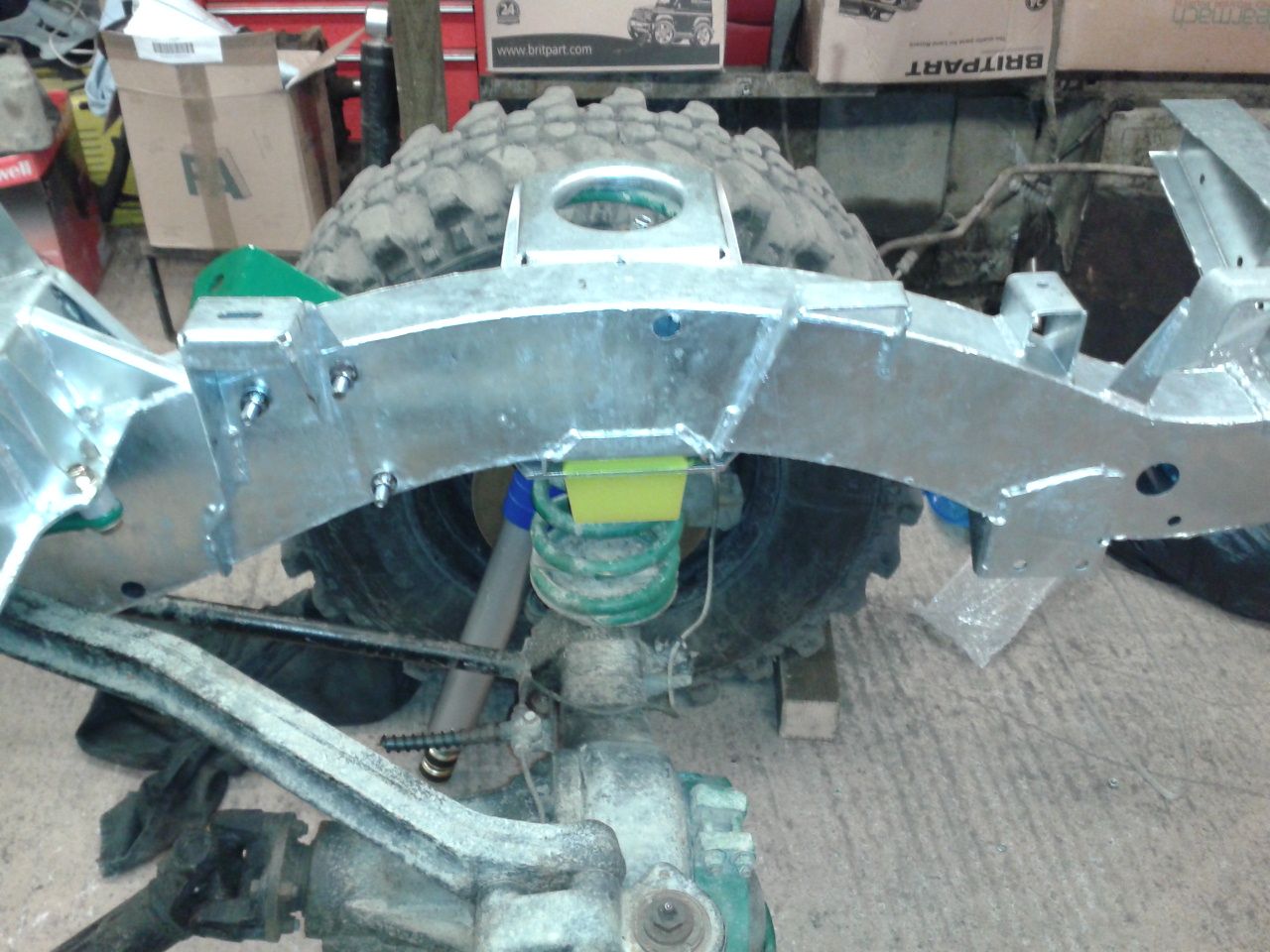

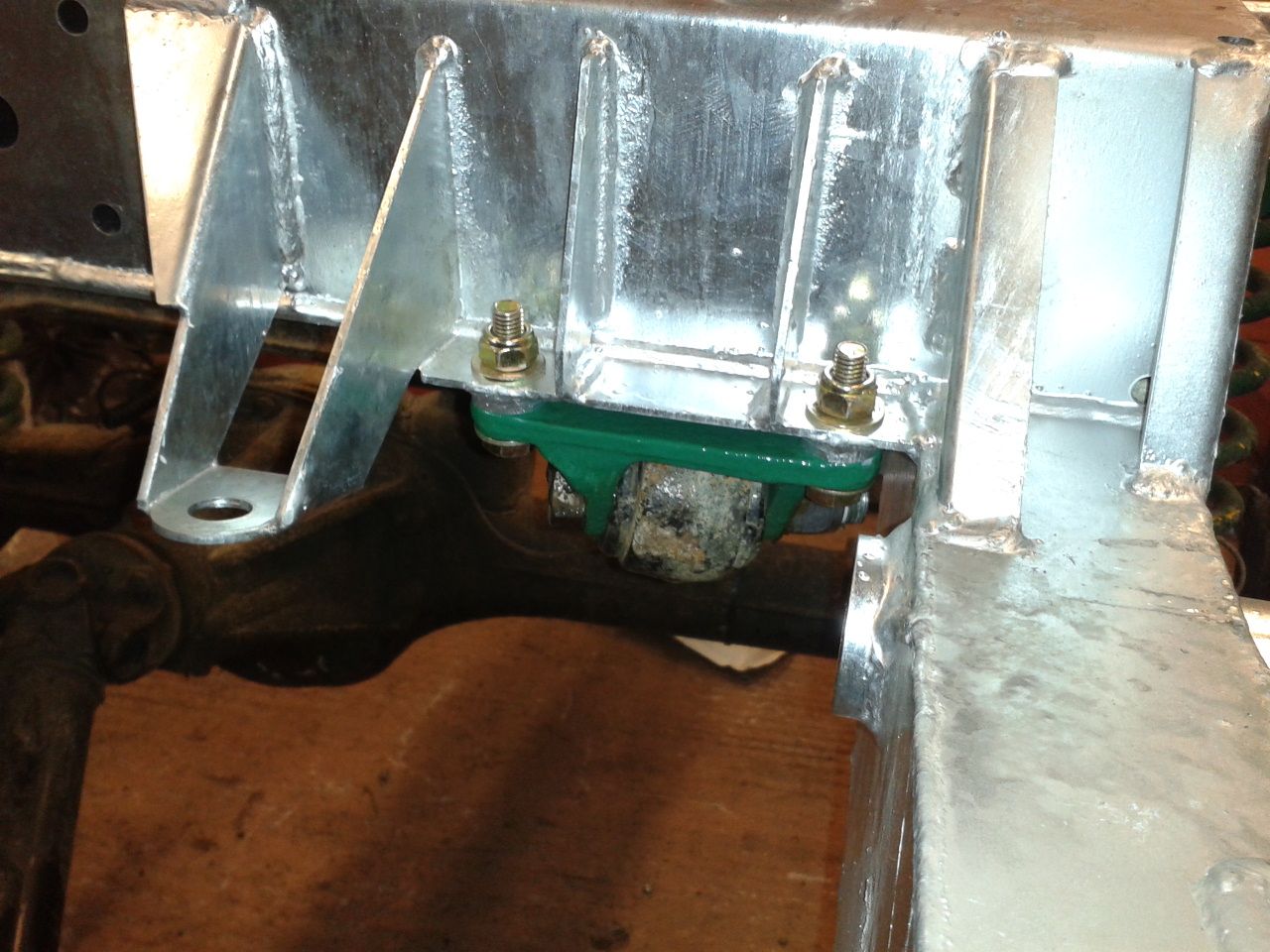

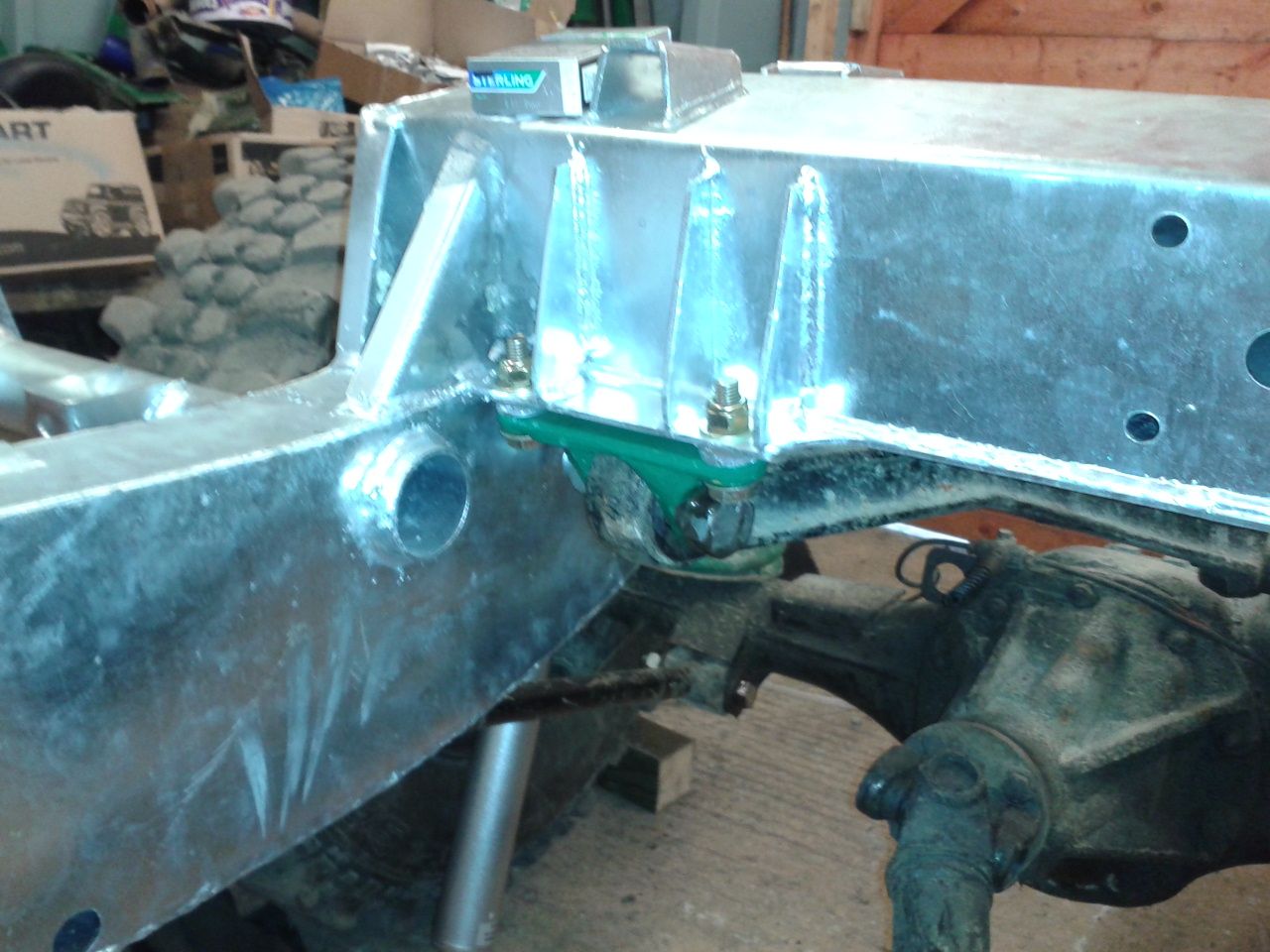

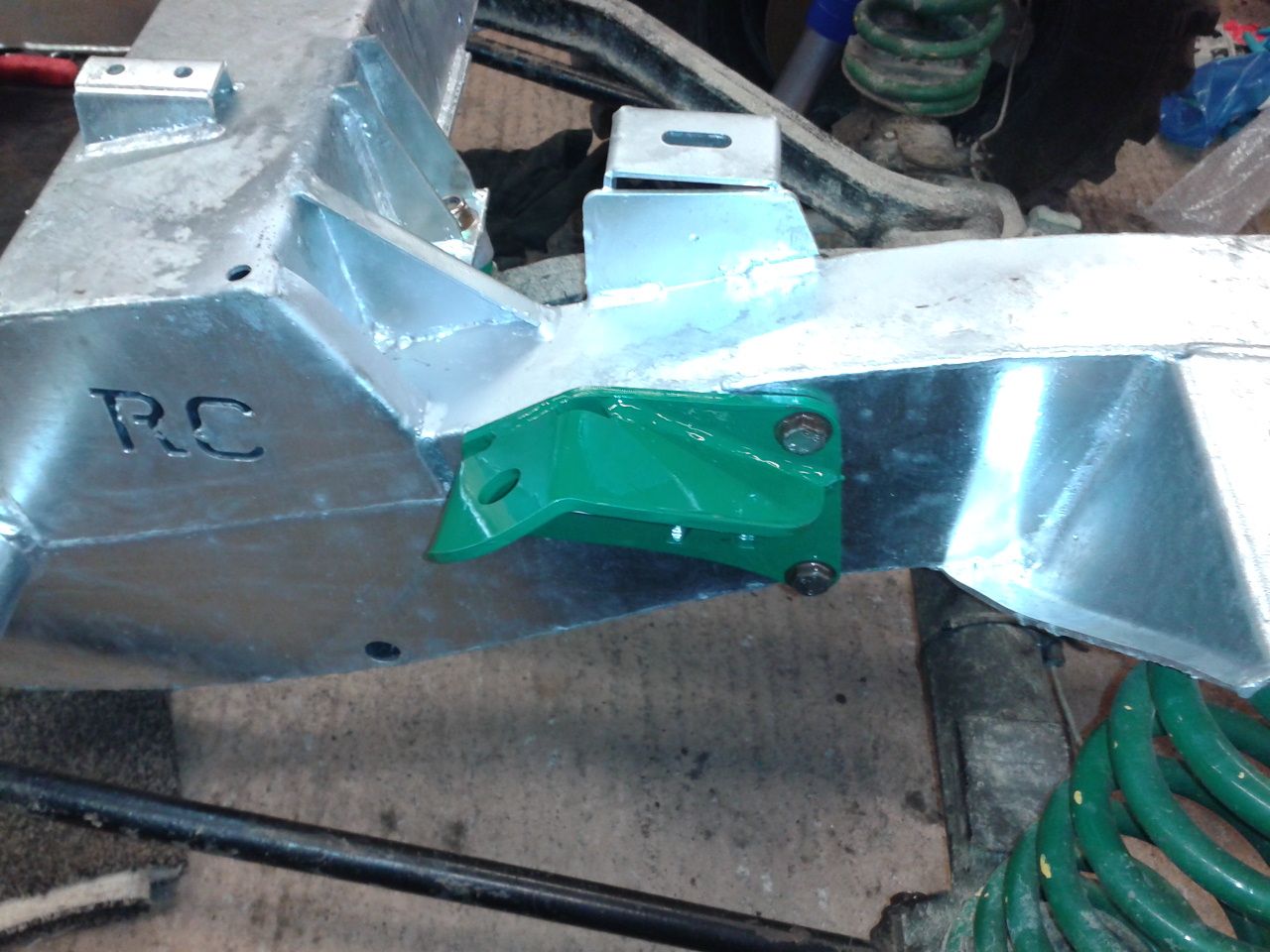

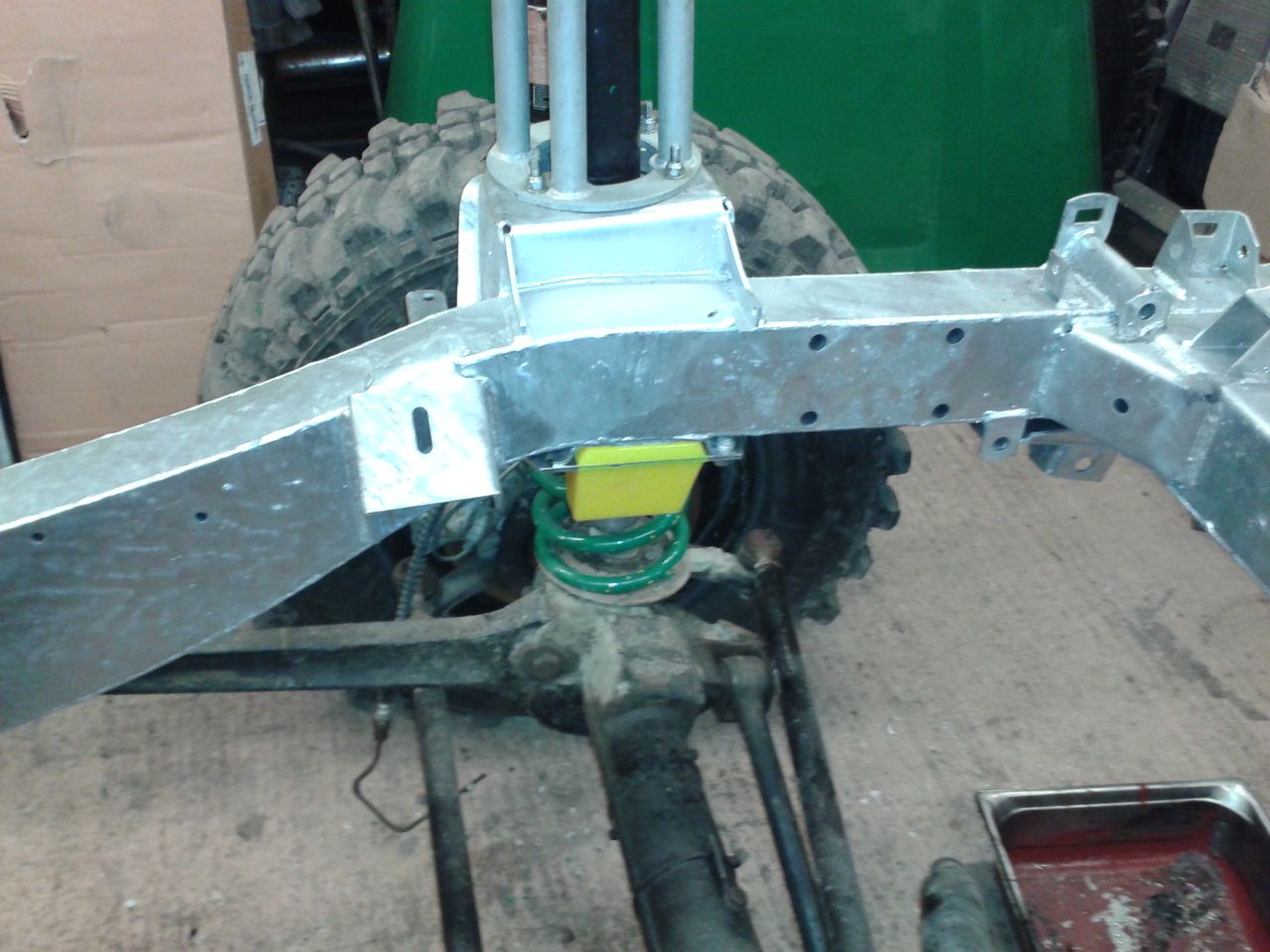

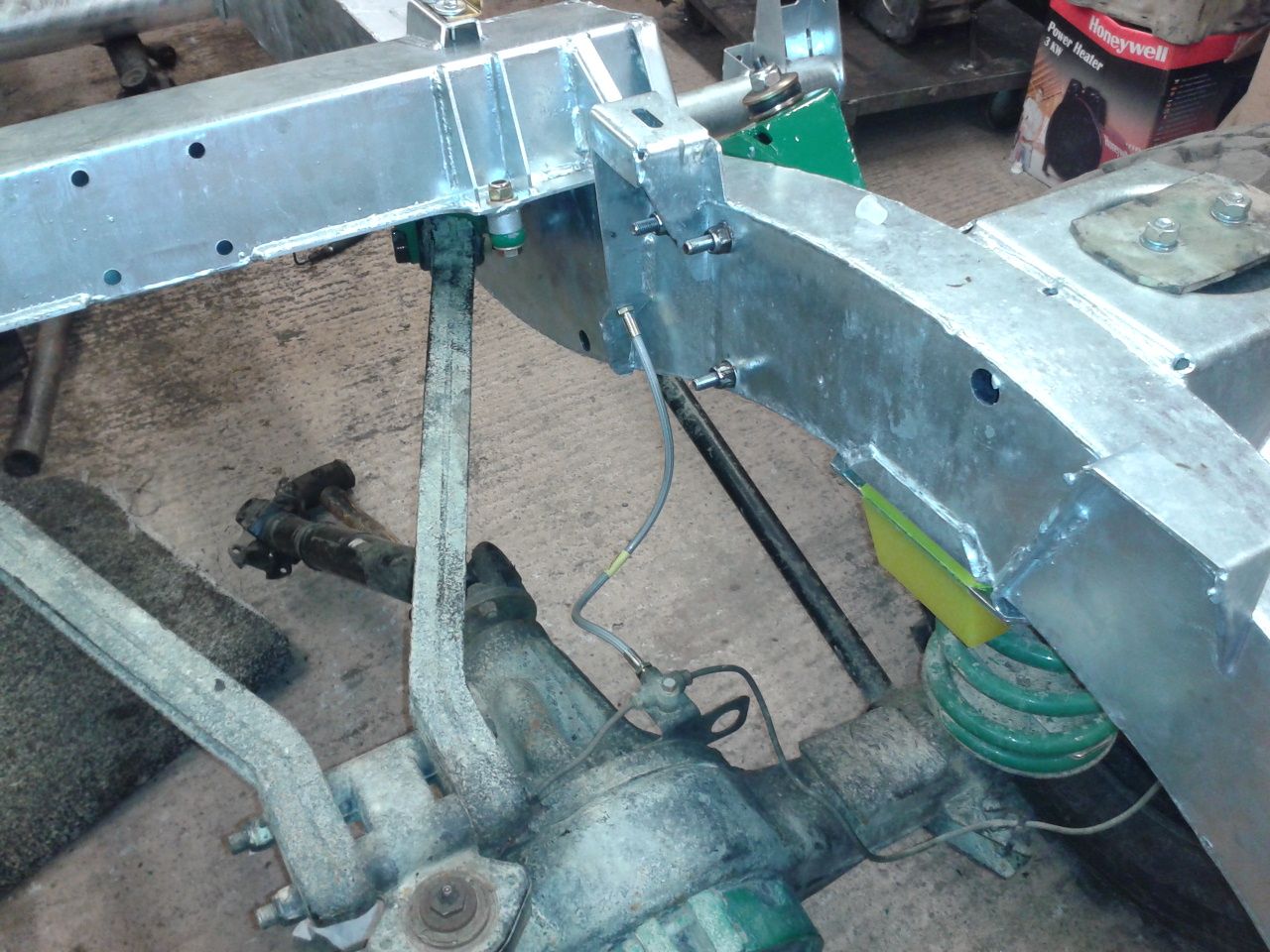

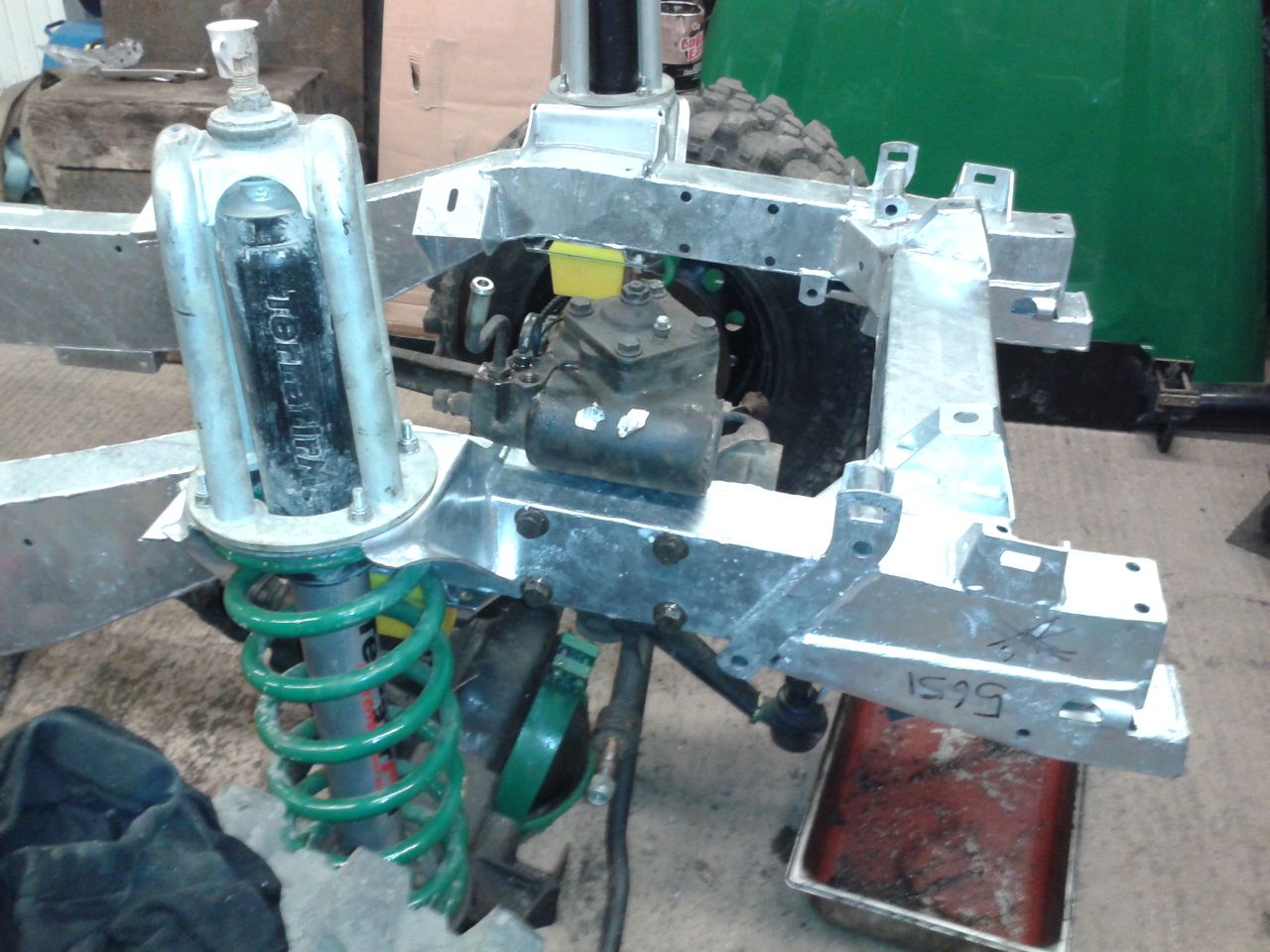

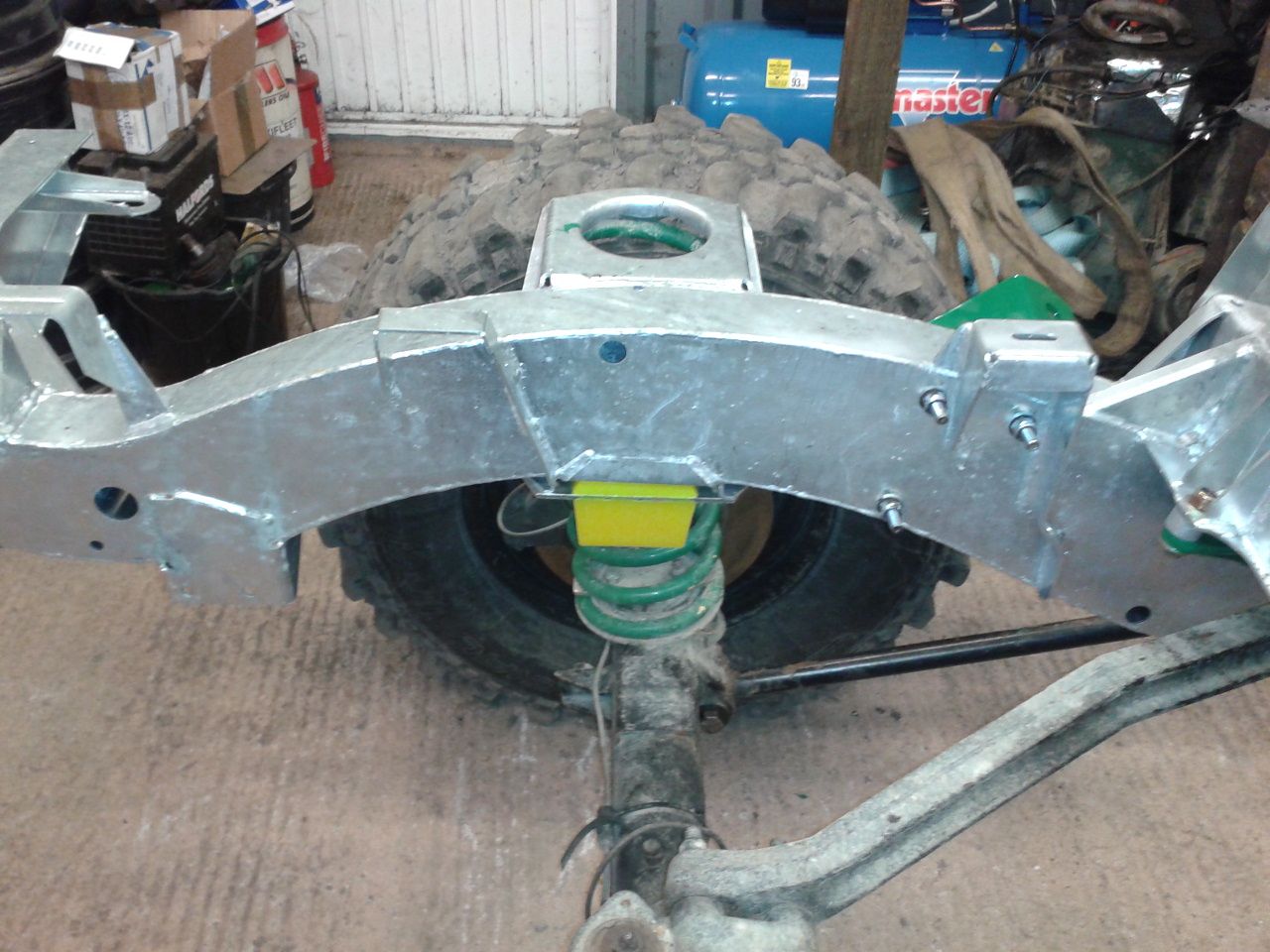

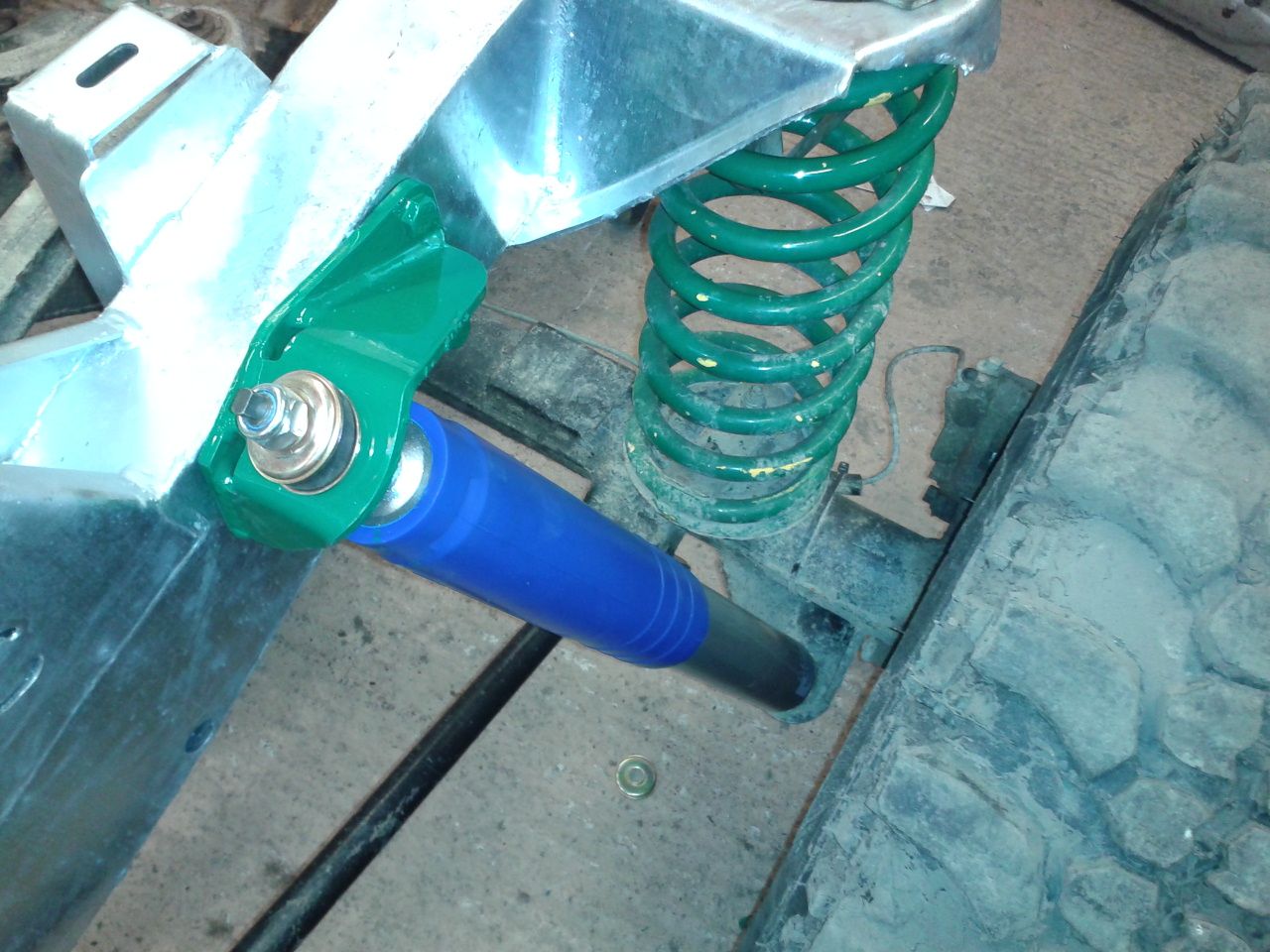

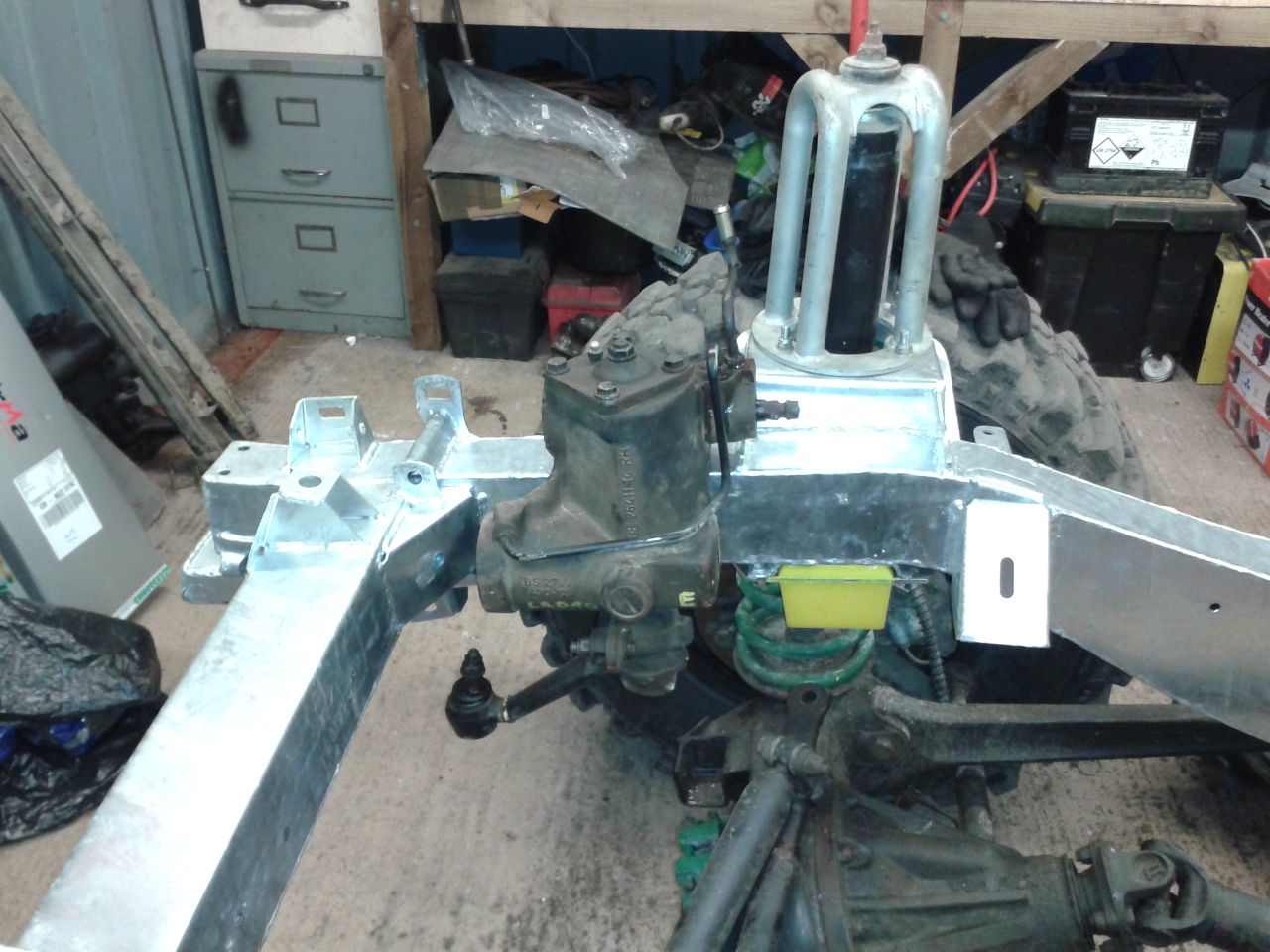

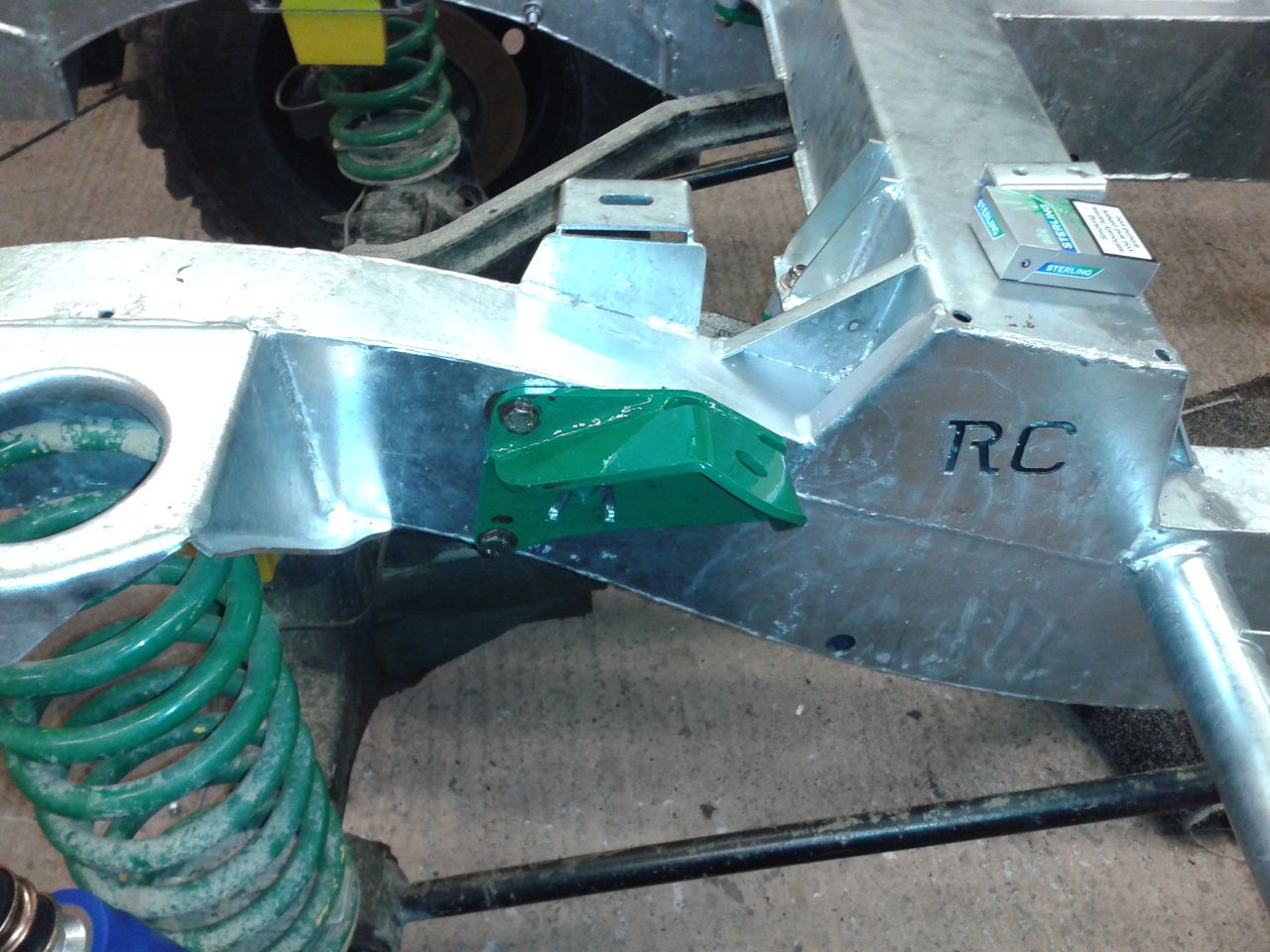

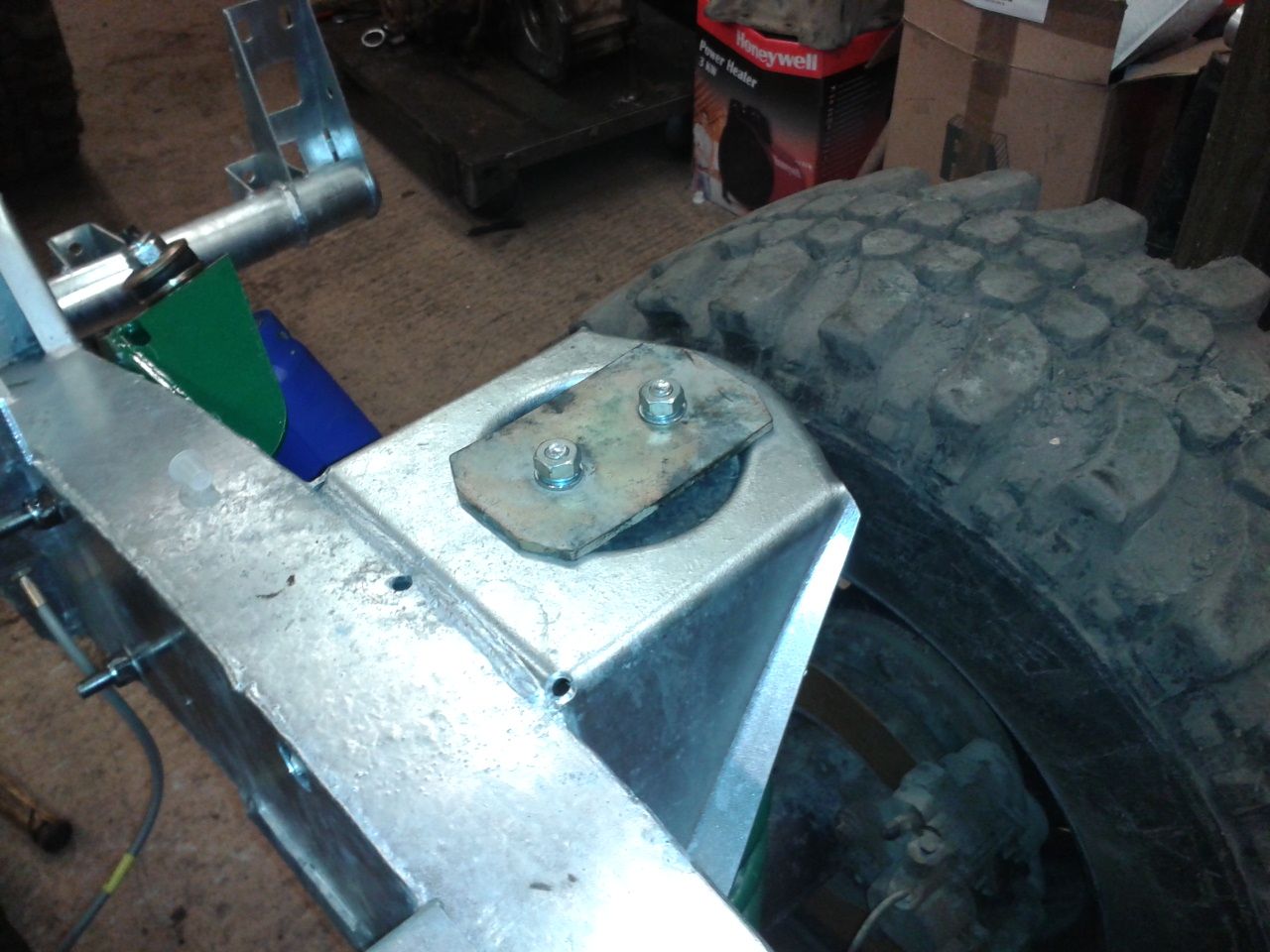

then on monday me and son fitted the painted brackets, A frame to chassis, the new Terrafirma + 5" rear shocks and re-location cones, extended brake pipes, + 2" bump stops and power steer box, then we fitted the tub and called it a day :D


Attachments

  • 2015-12-21 11.55.24.jpg
    2015-12-21 11.55.24.jpg
    168.1 KB · Views: 228
  • 2015-12-21 11.55.34.jpg
    2015-12-21 11.55.34.jpg
    168 KB · Views: 204
  • 2015-12-21 11.55.51.jpg
    2015-12-21 11.55.51.jpg
    142.8 KB · Views: 195
  • 2015-12-21 11.55.59.jpg
    2015-12-21 11.55.59.jpg
    169.8 KB · Views: 238
  • 2015-12-21 11.56.10.jpg
    2015-12-21 11.56.10.jpg
    166.4 KB · Views: 214
  • 2015-12-21 11.56.18.jpg
    2015-12-21 11.56.18.jpg
    152.3 KB · Views: 204
  • 2015-12-21 11.56.29.jpg
    2015-12-21 11.56.29.jpg
    172.8 KB · Views: 229
  • 2015-12-21 11.56.36.jpg
    2015-12-21 11.56.36.jpg
    167 KB · Views: 223
  • 2015-12-21 11.56.48.jpg
    2015-12-21 11.56.48.jpg
    166.2 KB · Views: 198
  • 2015-12-21 11.56.59.jpg
    2015-12-21 11.56.59.jpg
    175.1 KB · Views: 208
  • 2015-12-21 11.57.09.jpg
    2015-12-21 11.57.09.jpg
    151.3 KB · Views: 246
  • 2015-12-21 15.11.37.jpg
    2015-12-21 15.11.37.jpg
    201 KB · Views: 208
  • 2015-12-21 15.11.43.jpg
    2015-12-21 15.11.43.jpg
    146.6 KB · Views: 209
  • 2015-12-21 15.11.48.jpg
    2015-12-21 15.11.48.jpg
    172.2 KB · Views: 228
  • 2015-12-21 15.12.42.jpg
    2015-12-21 15.12.42.jpg
    171.9 KB · Views: 191
  • 2015-12-21 15.12.56.jpg
    2015-12-21 15.12.56.jpg
    176.1 KB · Views: 247
  • 2015-12-21 15.13.09.jpg
    2015-12-21 15.13.09.jpg
    184.5 KB · Views: 241
  • 2015-12-21 15.23.09.jpg
    2015-12-21 15.23.09.jpg
    177.8 KB · Views: 203

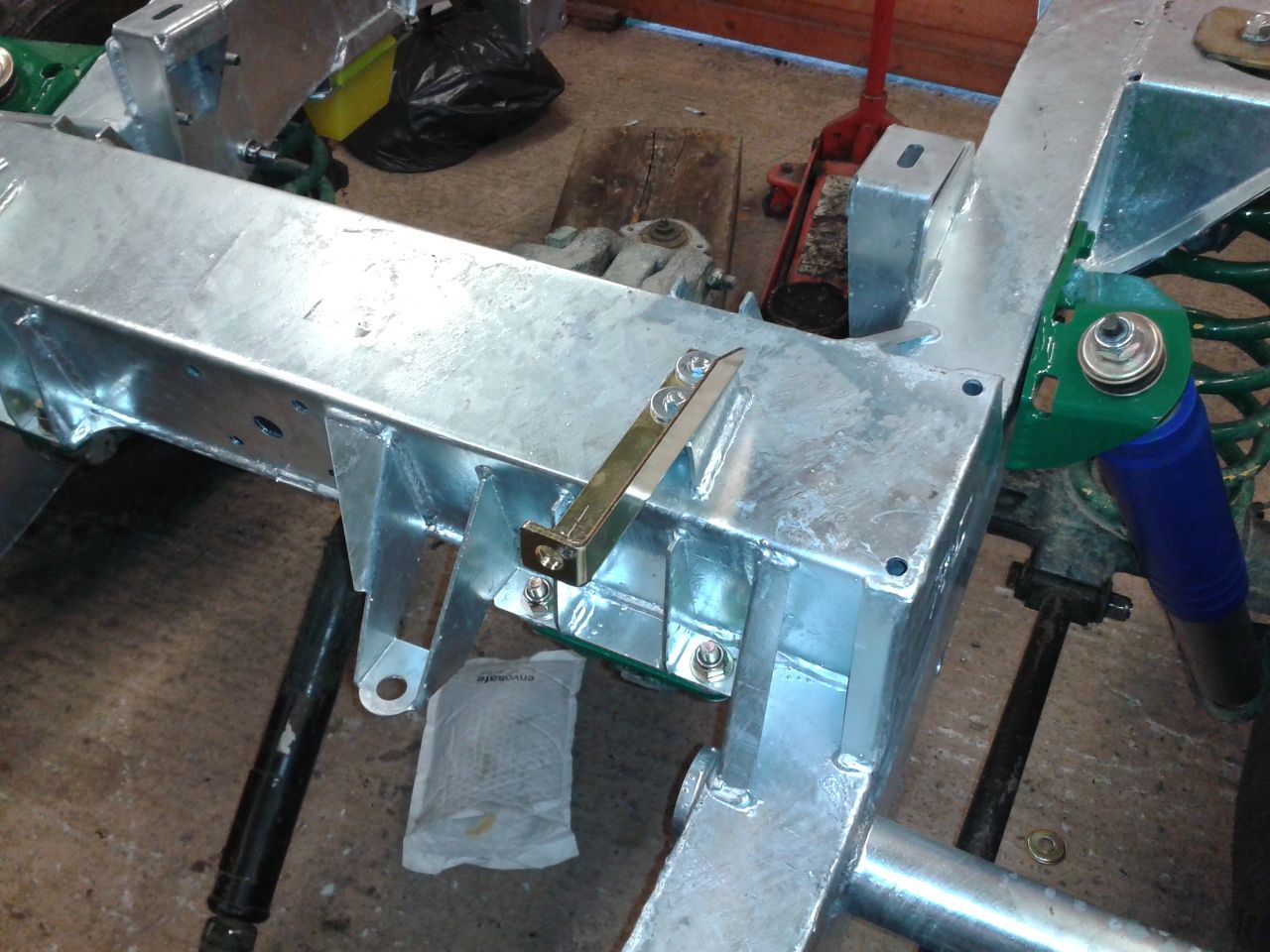

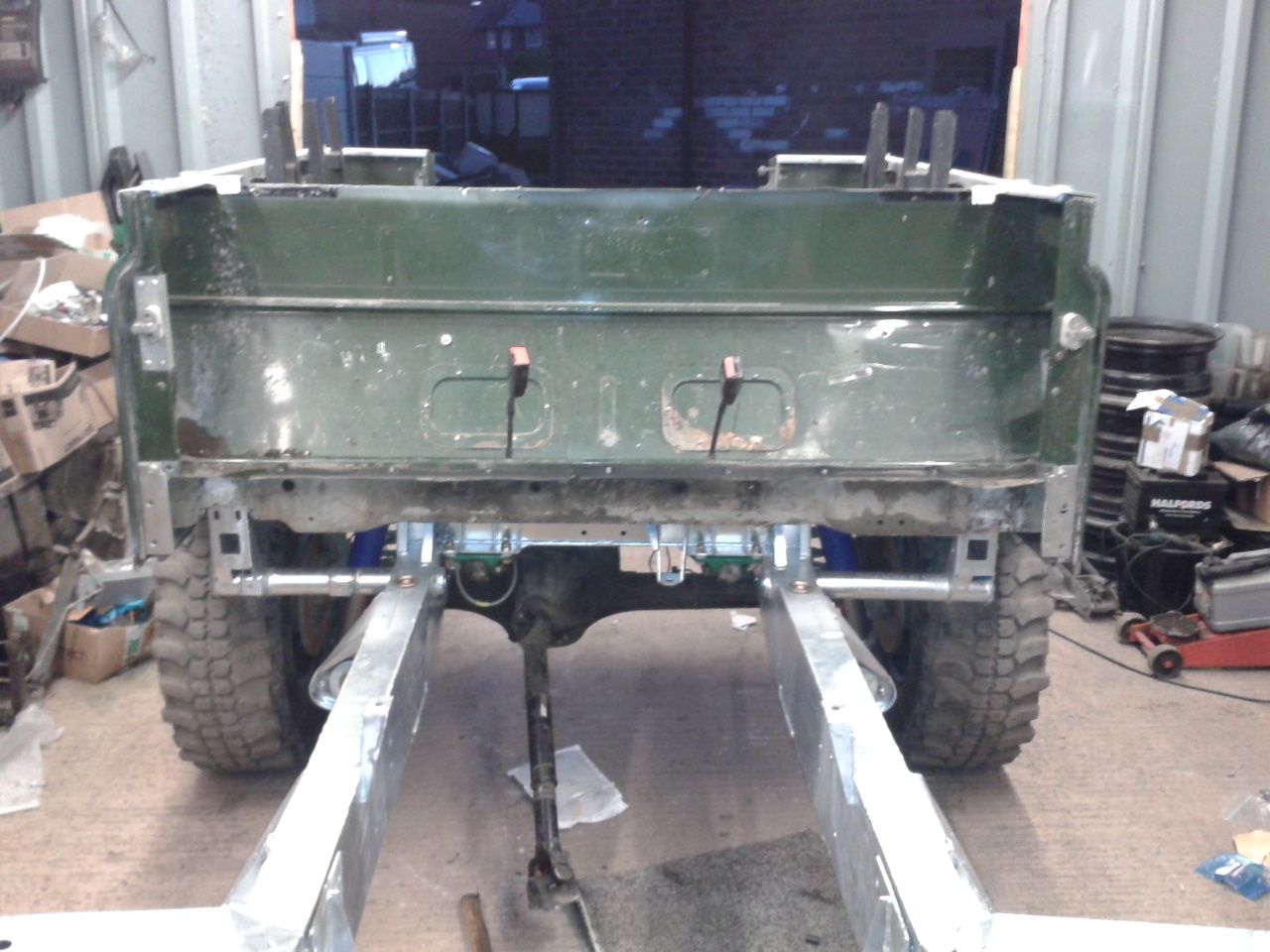

We also fitted a couple of new front of tub to chassis brackets aswell then we fitted the tub and called it a day


Attachments

  • 2015-12-21 15.23.15.jpg
    2015-12-21 15.23.15.jpg
    181.2 KB · Views: 197
  • 2015-12-21 15.23.21.jpg
    2015-12-21 15.23.21.jpg
    176.7 KB · Views: 206
  • 2015-12-21 16.18.48.jpg
    2015-12-21 16.18.48.jpg
    163.3 KB · Views: 183
  • 2015-12-21 16.19.13.jpg
    2015-12-21 16.19.13.jpg
    146 KB · Views: 212

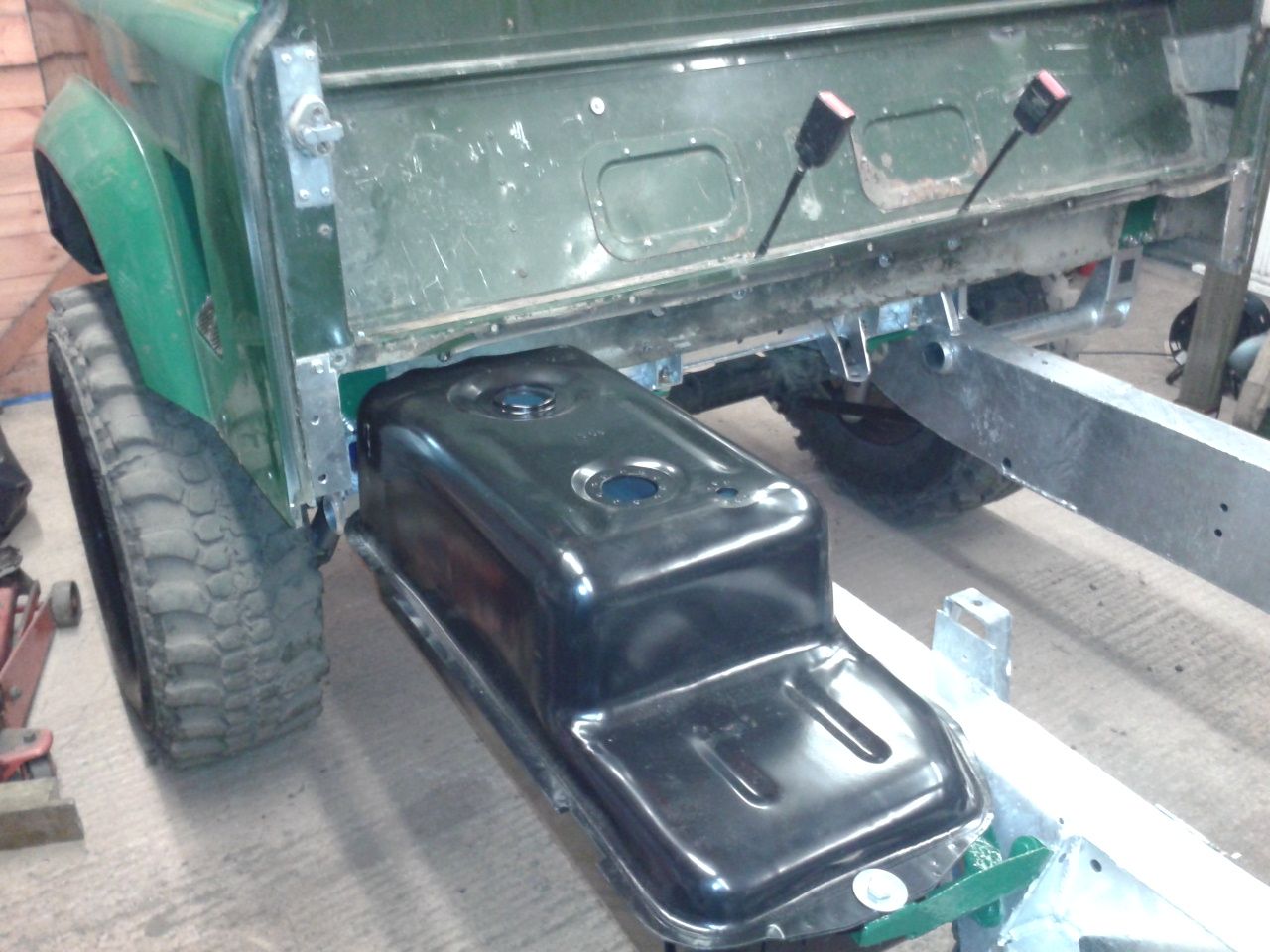

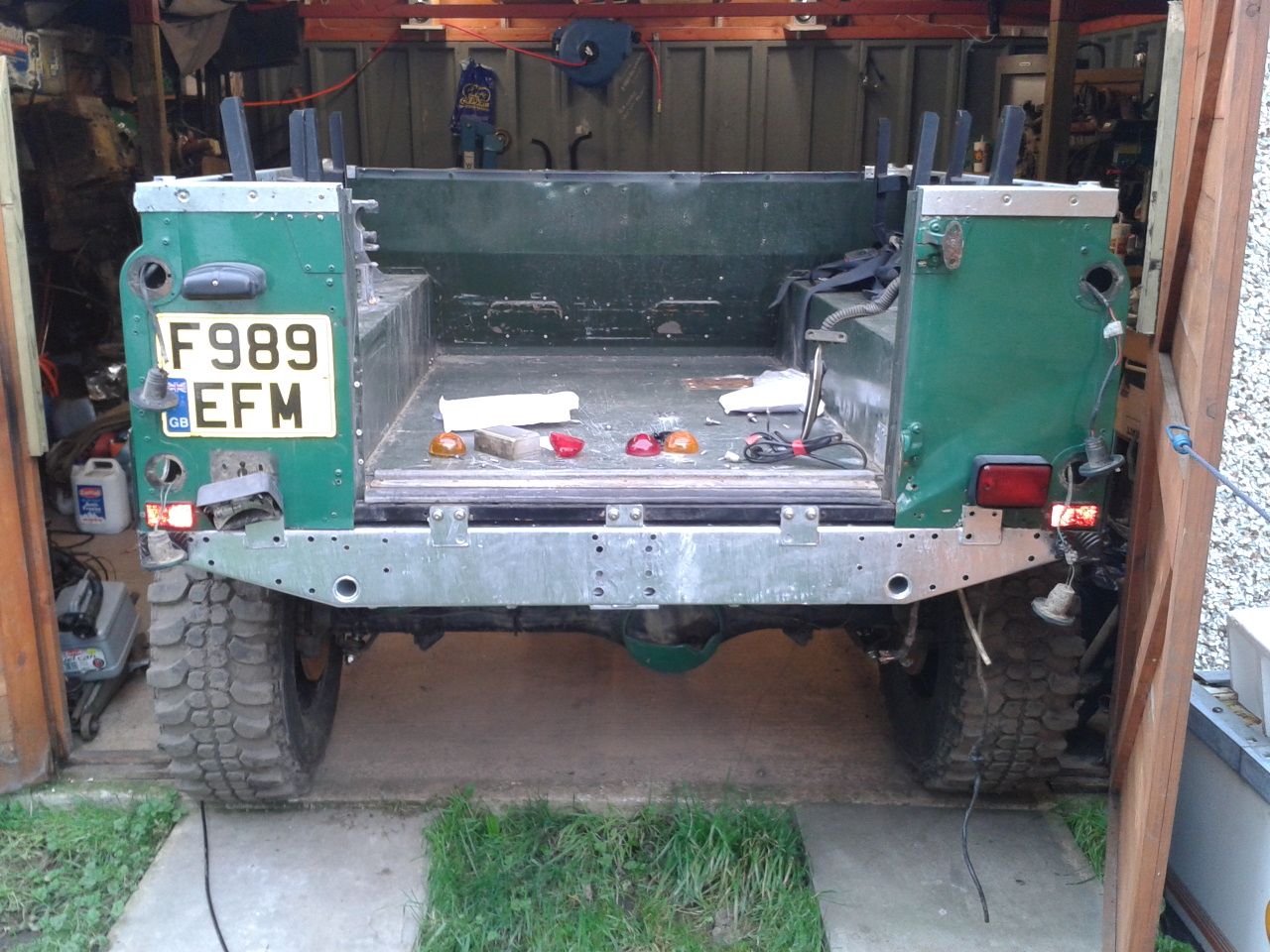

Monday i started the day by pushing the landy out a bit so i could have a good sweep up then i got started on fitting the fuel tank bracket in place after painting it, then i fitted the new tank in place and fitted everything to it inc new filler pipe, breather pipe, sender unit, aswell as all new gaskets.
the tank ( BP ) was slightly shallower than the original tank so i had to cut the return stack pipe down to suit, just hope the new tank is the same size fuel wise as i gave the old tank to the scrap man with the chassis so i couldn't compair :oops:


Attachments

  • 2015-12-28 12.04.30.jpg
    2015-12-28 12.04.30.jpg
    200.5 KB · Views: 254
  • 2015-12-28 16.02.13.jpg
    2015-12-28 16.02.13.jpg
    151.7 KB · Views: 223
  • 2015-12-28 16.02.23.jpg
    2015-12-28 16.02.23.jpg
    152 KB · Views: 206
  • 2015-12-28 16.02.37.jpg
    2015-12-28 16.02.37.jpg
    162.4 KB · Views: 204
Last edited:

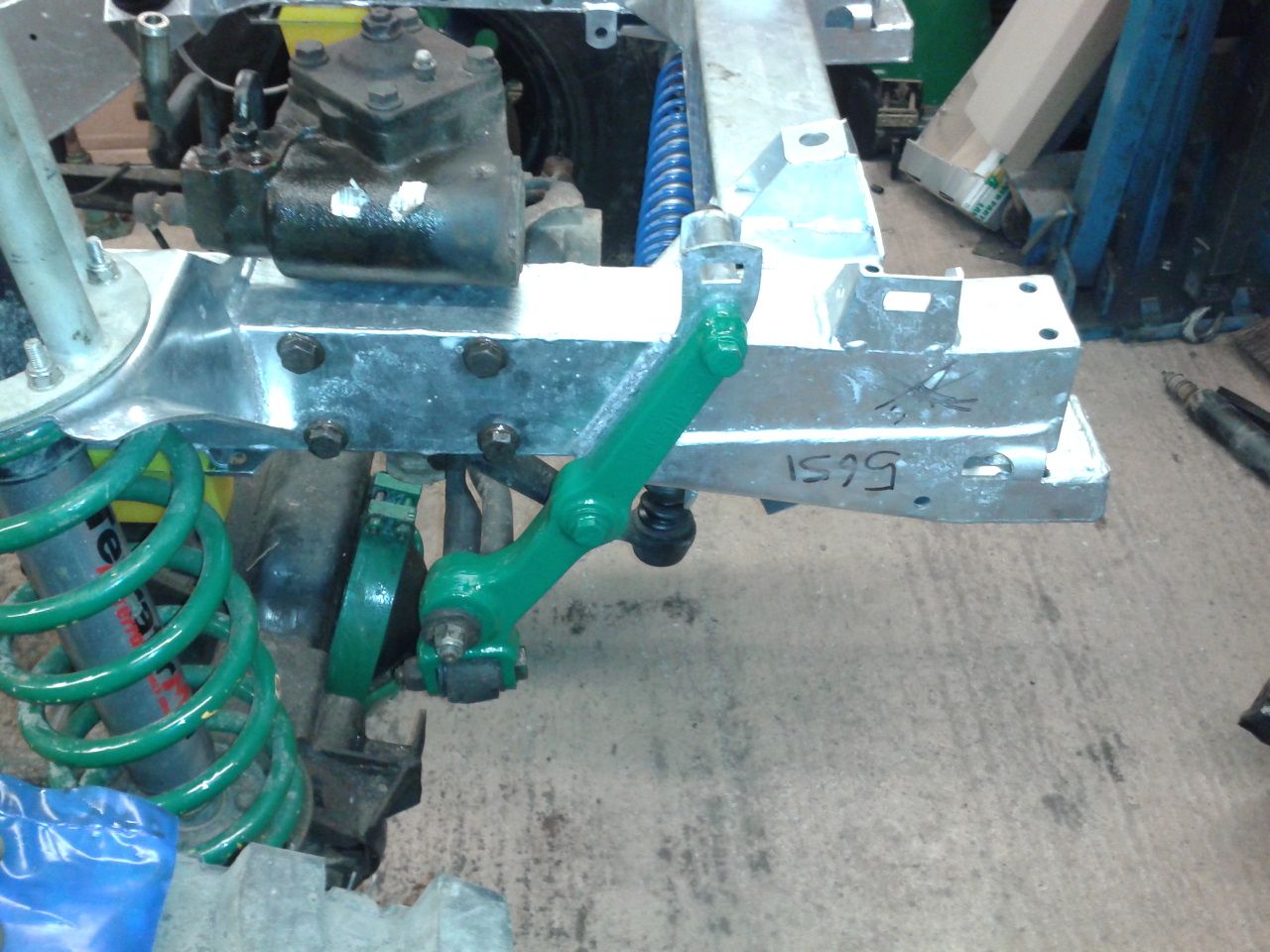

Then i fitted the painted link arm to the chassis and connected the panhard rod :)


Attachments

  • 2015-12-28 16.02.04.jpg
    2015-12-28 16.02.04.jpg
    169.1 KB · Views: 180

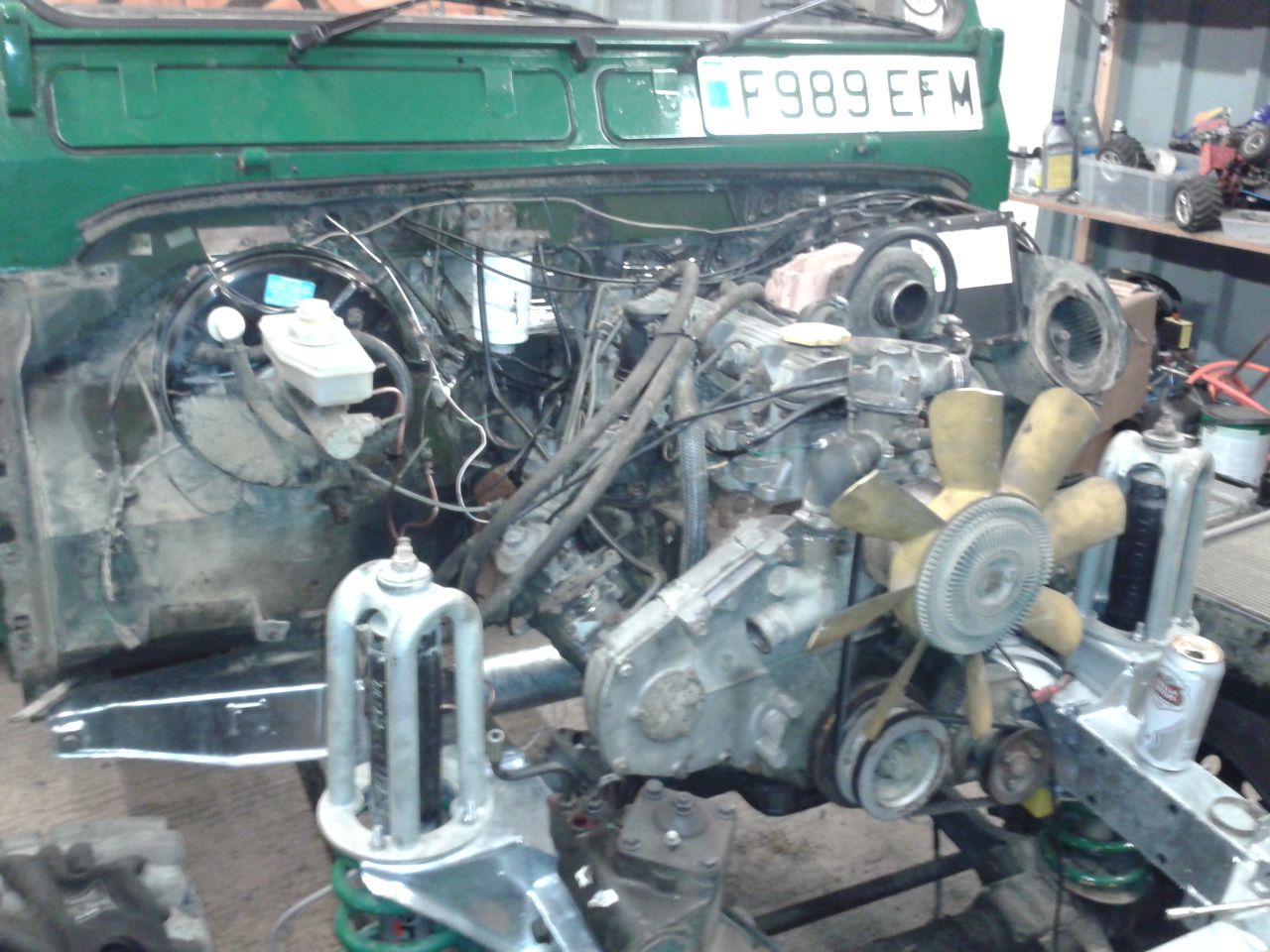

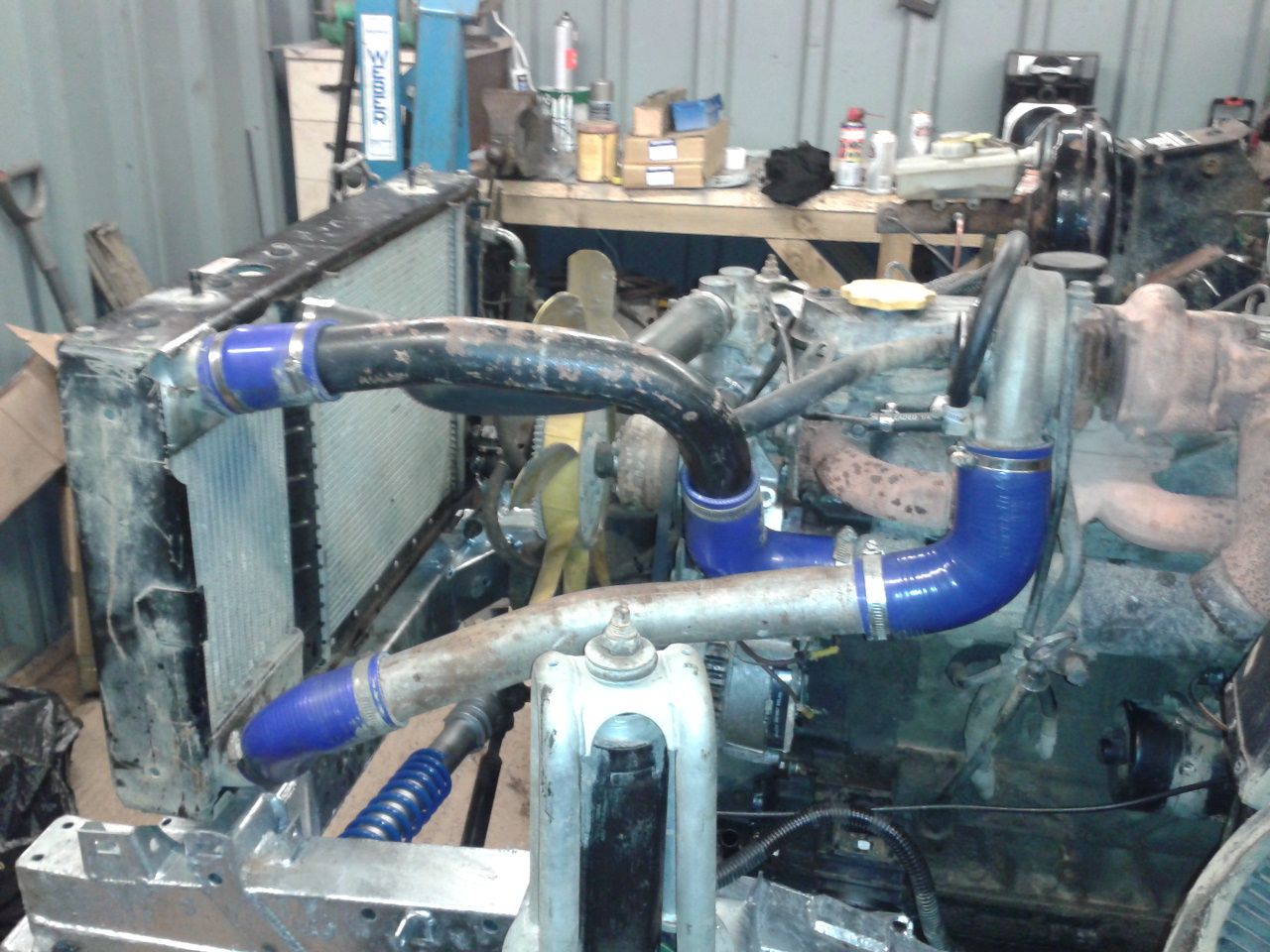

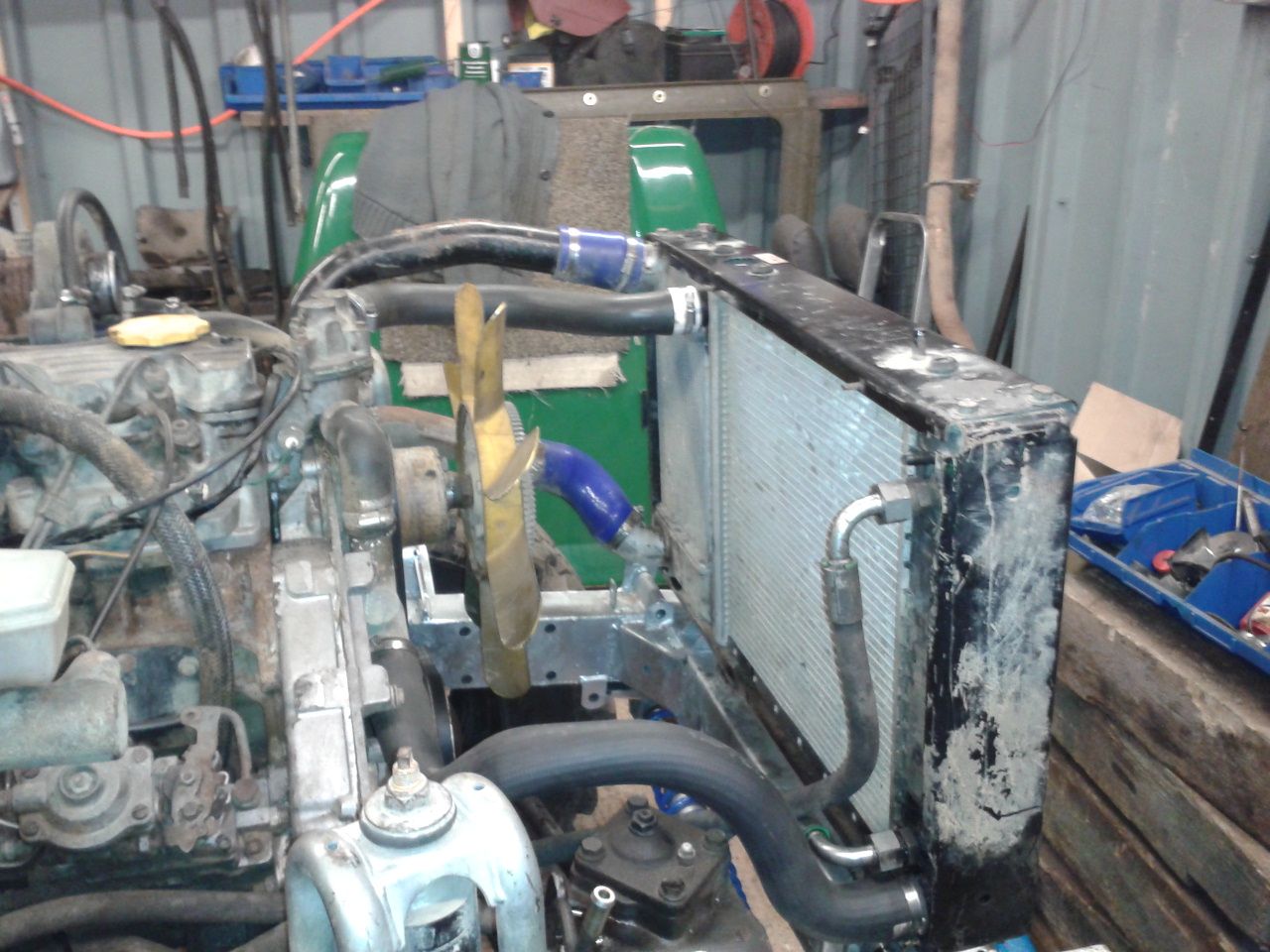

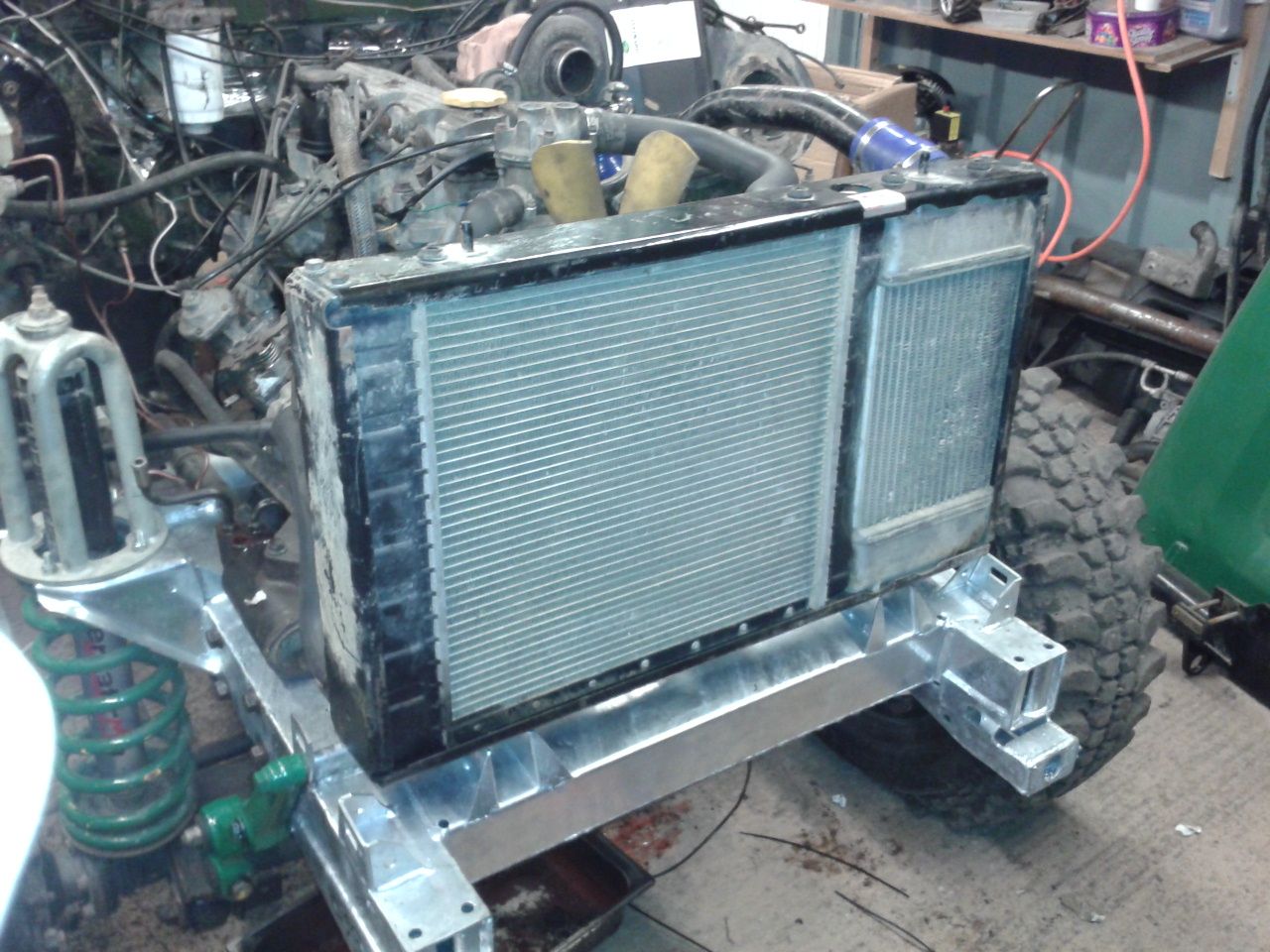

Yesterday me, son and his g/friend fitted the engine and bulkhead in place then son made up a couple of brake master cylinder to compensator valve pipes and one of the front brake pipes, still got to make the N/S/F and the front to rear brake pipes yet and whilst he was doing them his g/griend wired in the new L.E.D. ( coloured ) rear lights, then before they are fitted we will paint where the lights are going then after the 90 is back on the road and the weather gets better we will give it another re-paint in the same colour, anyway some more pic's of the engine and bulkhesd fitted :)


Attachments

  • 2016-01-01 14.57.27.jpg
    2016-01-01 14.57.27.jpg
    178.8 KB · Views: 185
  • 2016-01-01 14.57.37.jpg
    2016-01-01 14.57.37.jpg
    189.5 KB · Views: 179
  • 2016-01-01 14.57.49.jpg
    2016-01-01 14.57.49.jpg
    149.8 KB · Views: 200
  • 2016-01-01 16.26.21.jpg
    2016-01-01 16.26.21.jpg
    175 KB · Views: 224
  • 2016-01-01 16.26.32.jpg
    2016-01-01 16.26.32.jpg
    199.3 KB · Views: 213
  • 2016-01-01 16.26.44.jpg
    2016-01-01 16.26.44.jpg
    181.6 KB · Views: 190

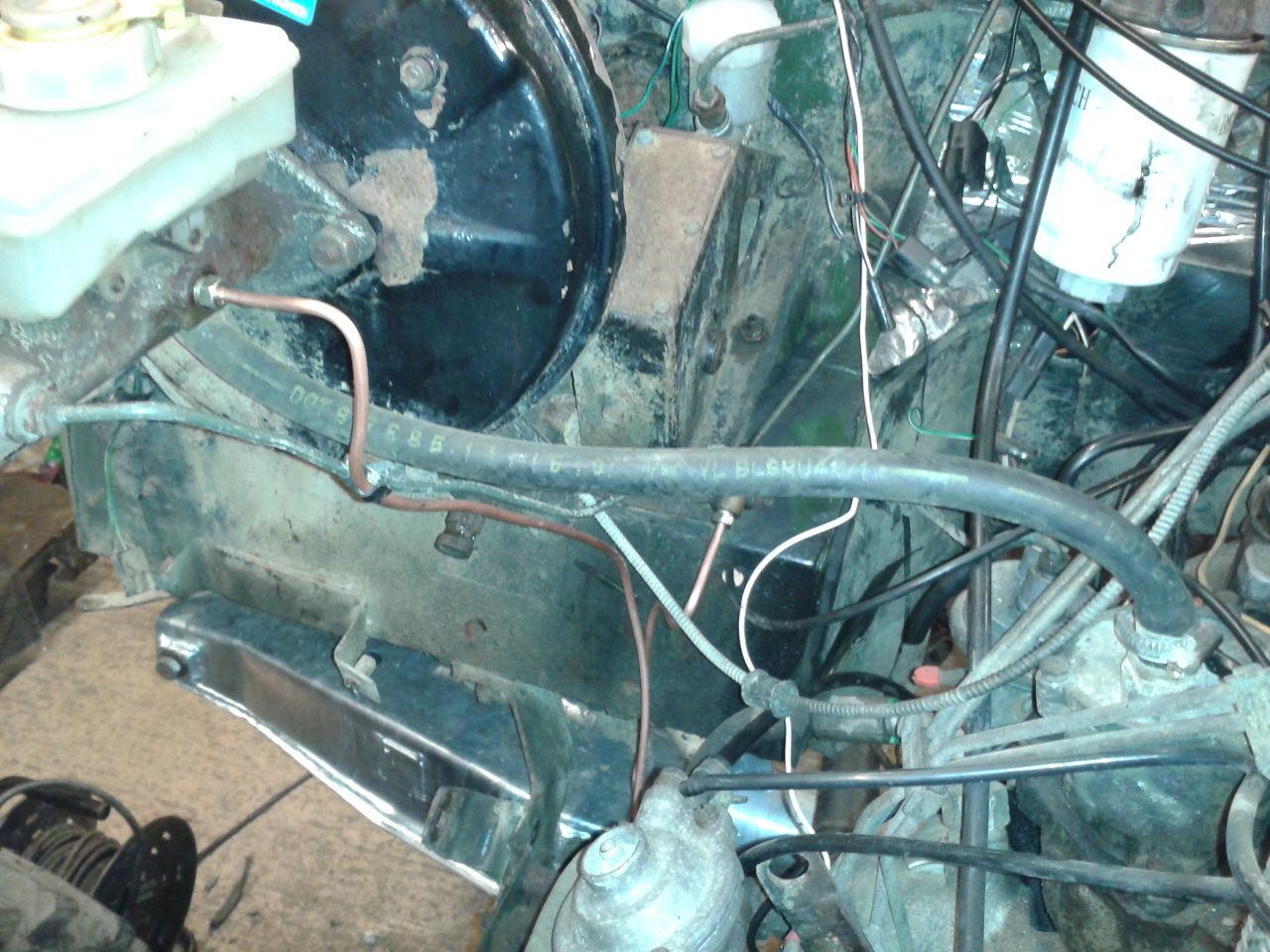

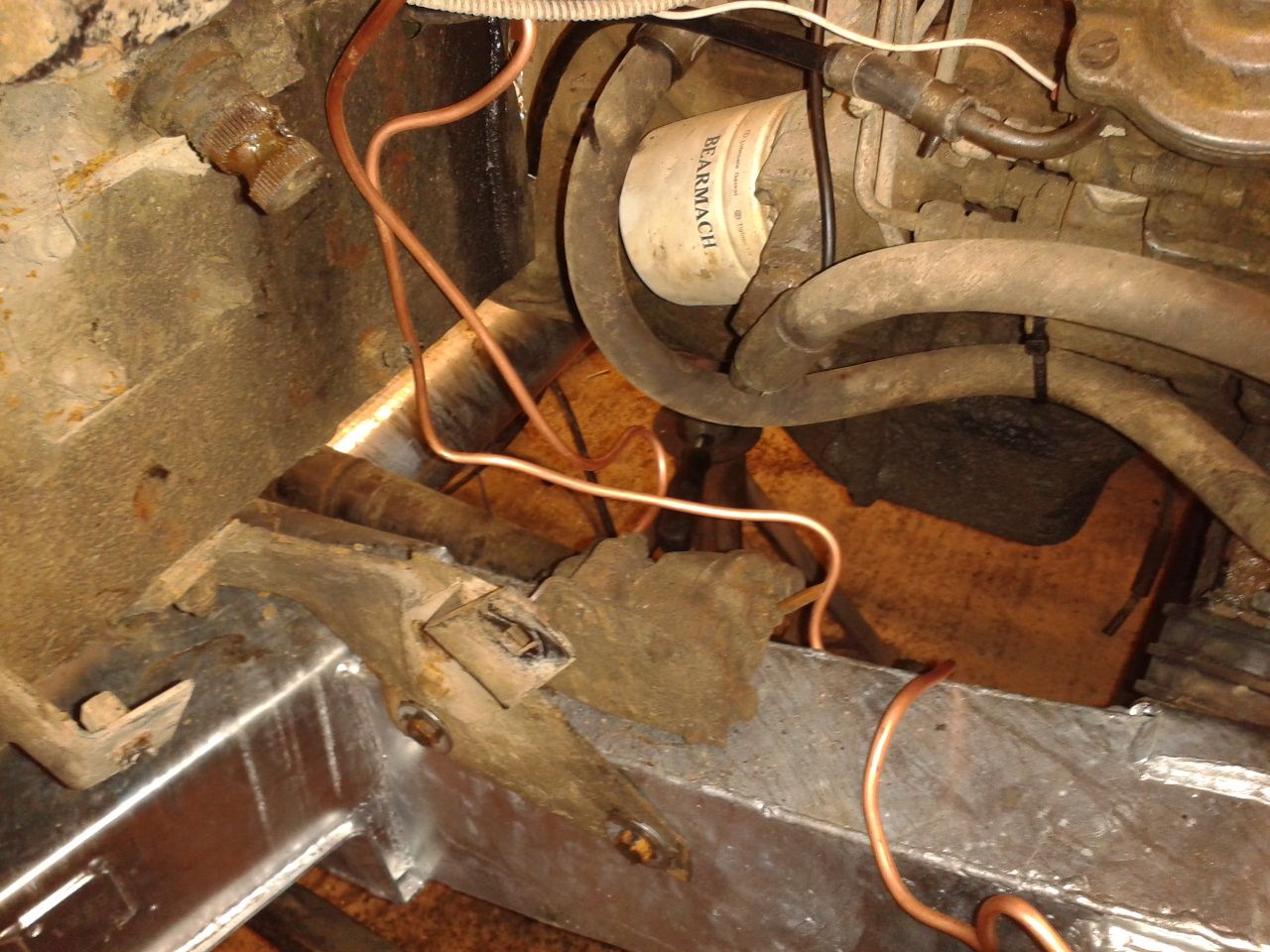

these are of the the brake pipes that have been made and fitted


Attachments

  • 2016-01-01 16.29.06.jpg
    2016-01-01 16.29.06.jpg
    196 KB · Views: 158
  • 2016-01-02 11.40.33.jpg
    2016-01-02 11.40.33.jpg
    200 KB · Views: 178

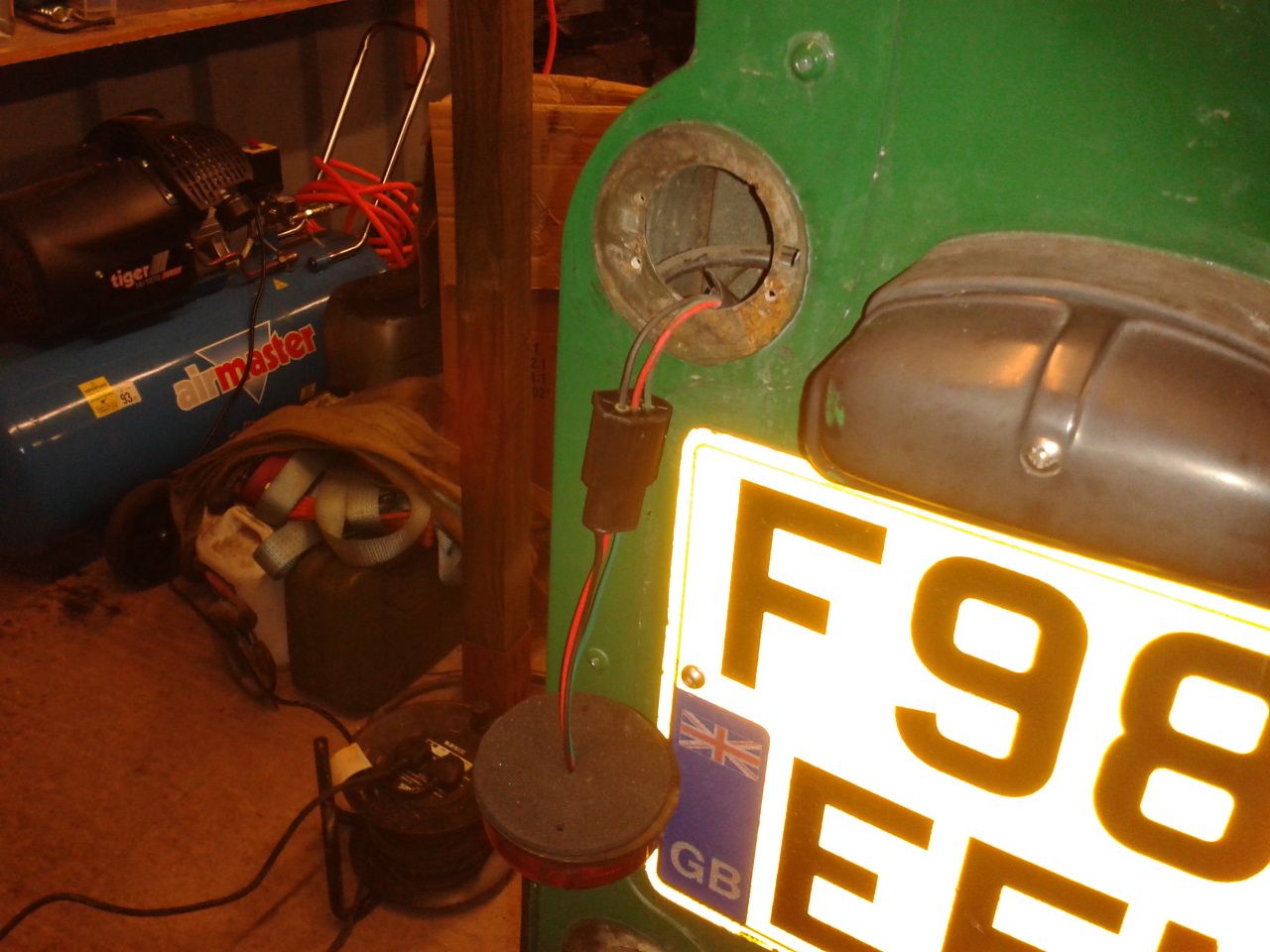

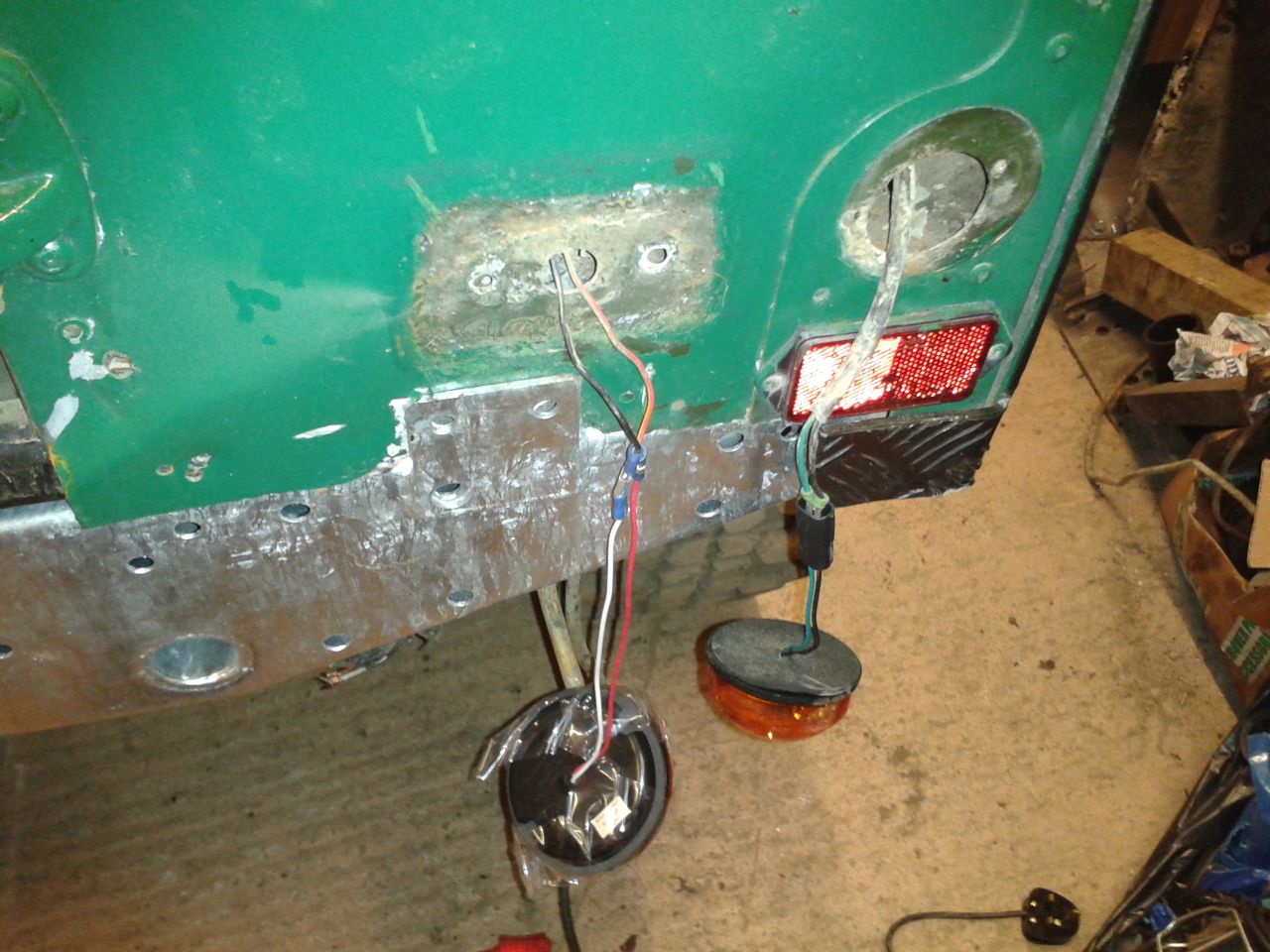

And these are of the rear L.E.D.'s being wired in


Attachments

  • 2016-01-01 14.58.27.jpg
    2016-01-01 14.58.27.jpg
    180.8 KB · Views: 223
  • 2016-01-01 14.58.33.jpg
    2016-01-01 14.58.33.jpg
    149.4 KB · Views: 167
  • 2016-01-01 14.58.40.jpg
    2016-01-01 14.58.40.jpg
    124.6 KB · Views: 213
  • 2016-01-01 14.58.46.jpg
    2016-01-01 14.58.46.jpg
    134.5 KB · Views: 201
Cheer's guys, yeh its mainly because its not a full nut and bolt rebuild and also the fact we don't have the use of a jetwash which would have been great for cleaning everything off from past off roading as our drive is on a slight slope towards the garage and there is muddy grass between the drive and the garage which we need to sort, mite just hardcore it for now then decide wether to stone it or concrete it later not decided yet, where as the series rebuilld will be more of a nut and bolt rebuild which will be stripped pretty quick then slowly rebuilt but yeh its coming along great :)

Painted the bulkhead to tub supports bars today as the galv has all rusted at the tub end then removed the seized screws in the drivers door bottom hinge as when i replaced the hinges a few months ago i couldn't do this one till i armed myself with new clips and screws which i ordered a few weeks ago and have now replaced all the front door screws and clips and copper slipped aswell, then i decided i wasn't happy with the intercooler pipes ( steel ) so i removed them and painted them in gloss black and left them to dry to re-fit tomorrow with the bulkhead to tub bars :)

Last edited:

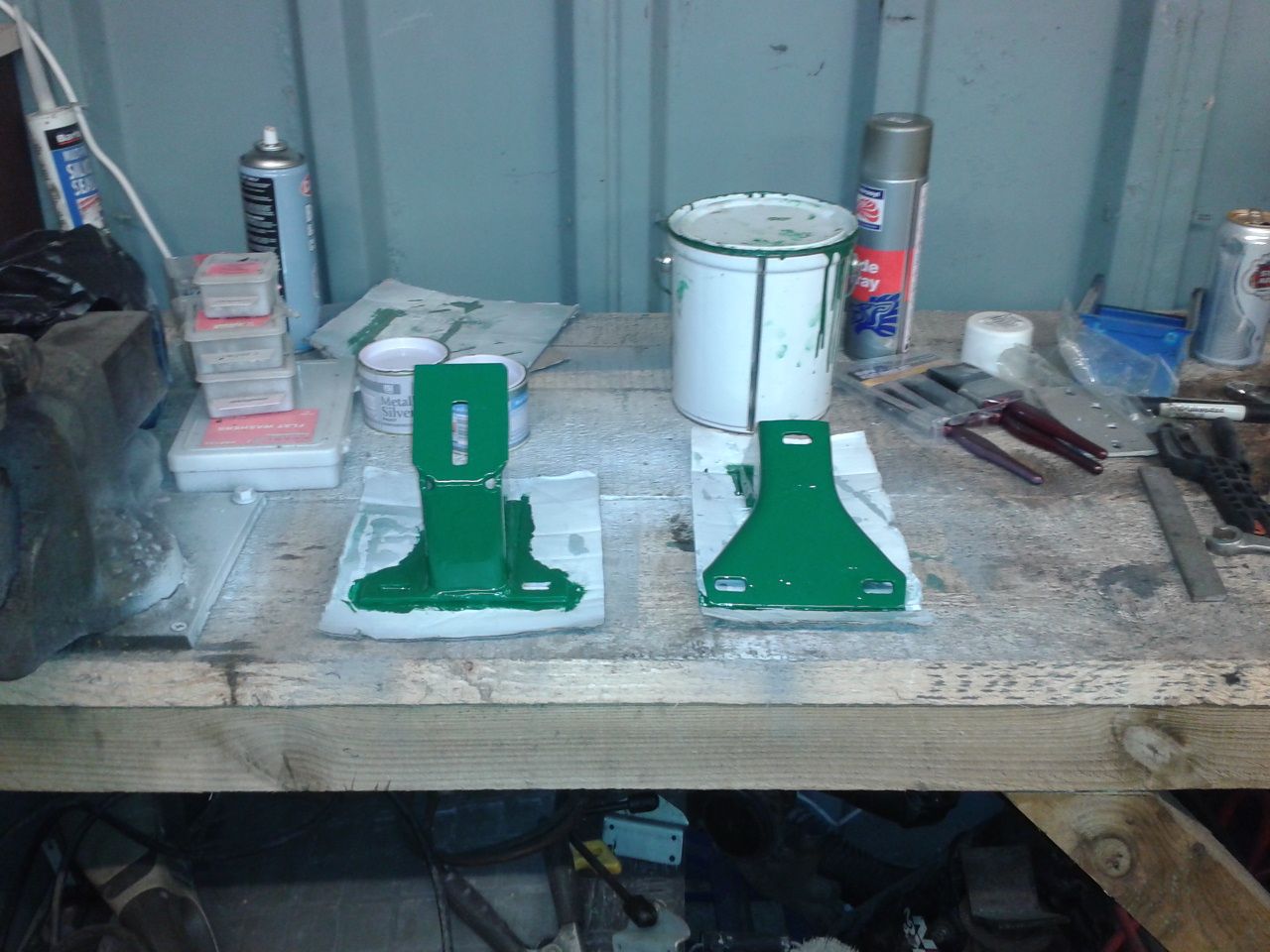

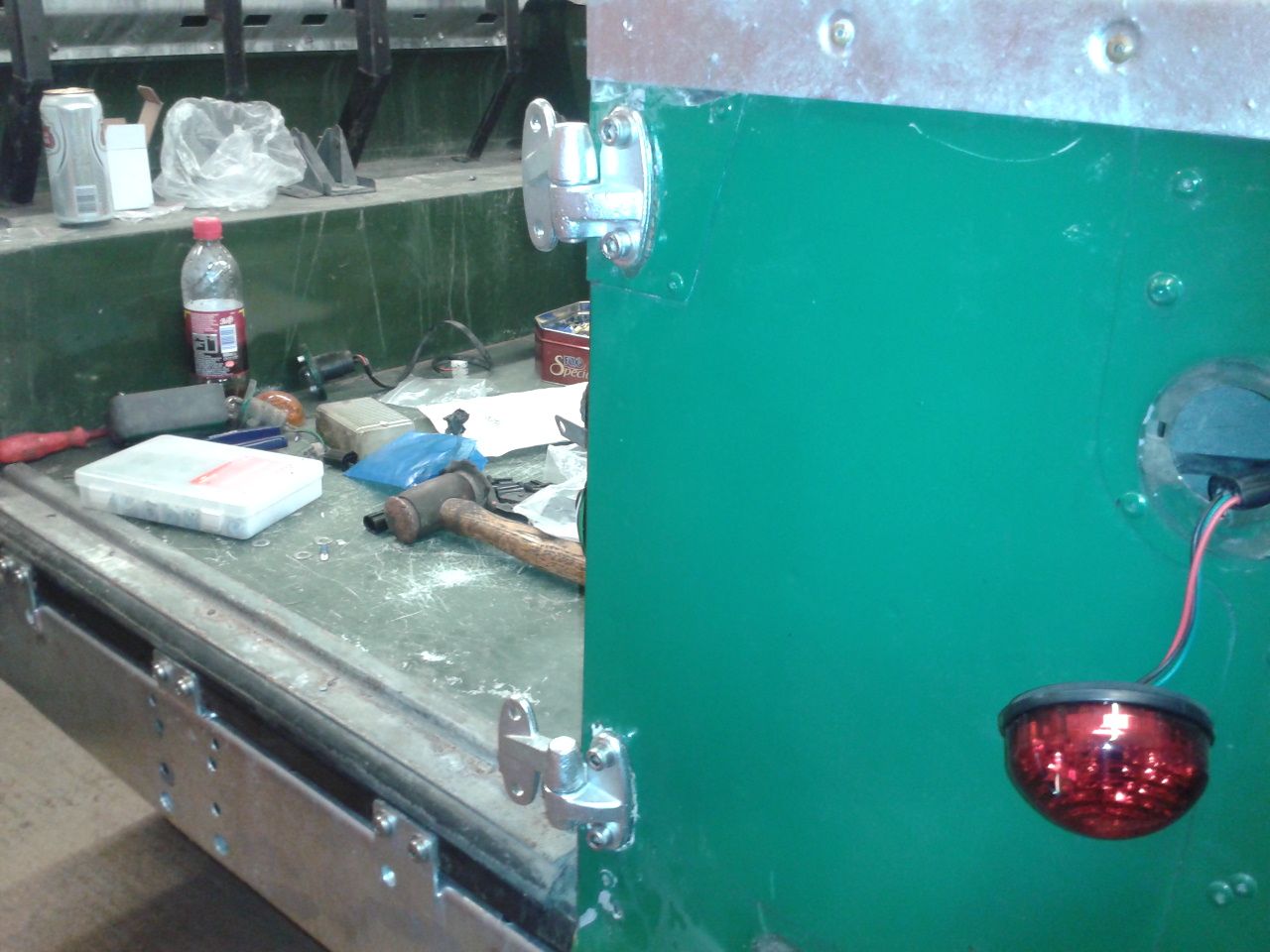

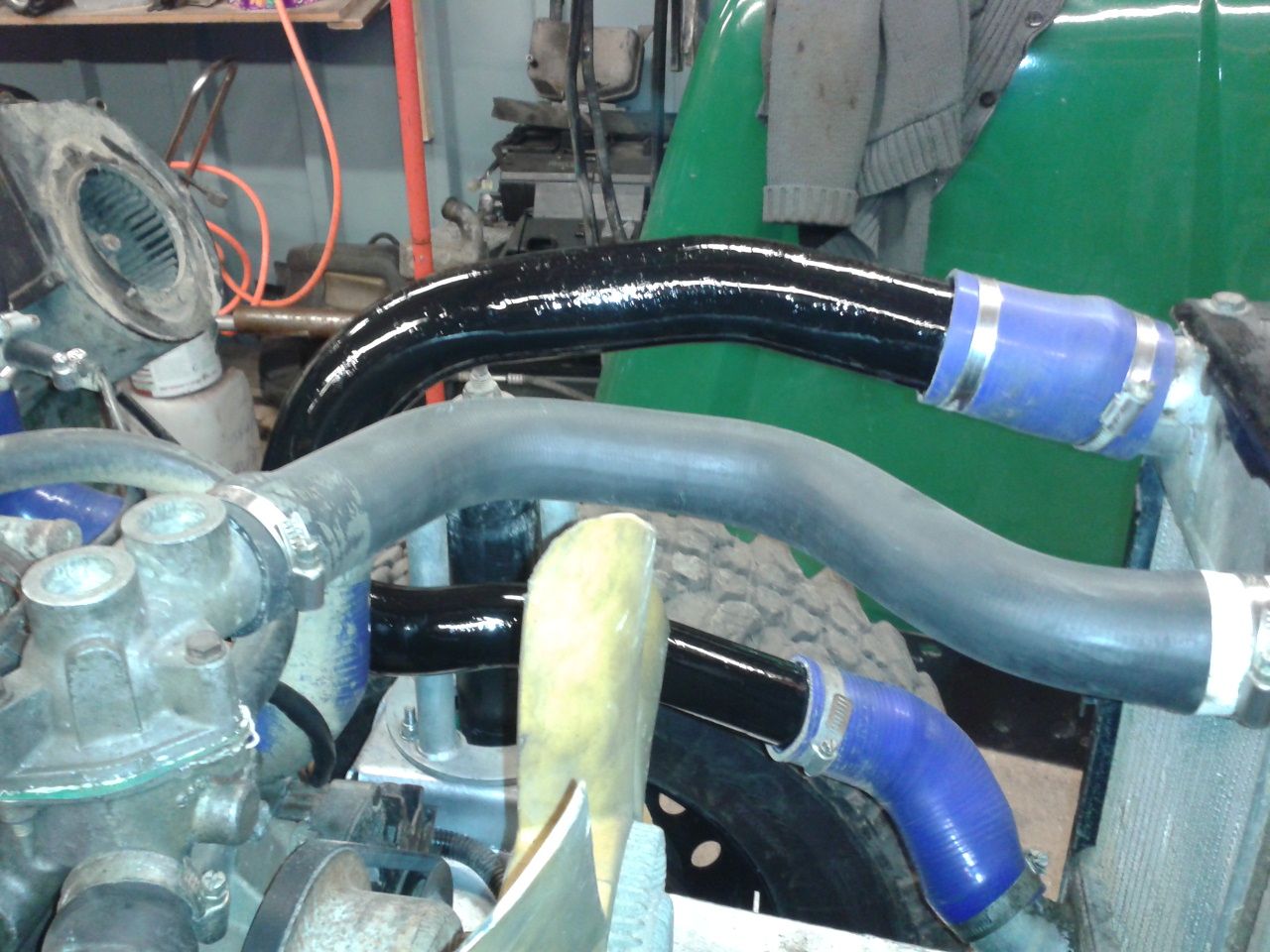

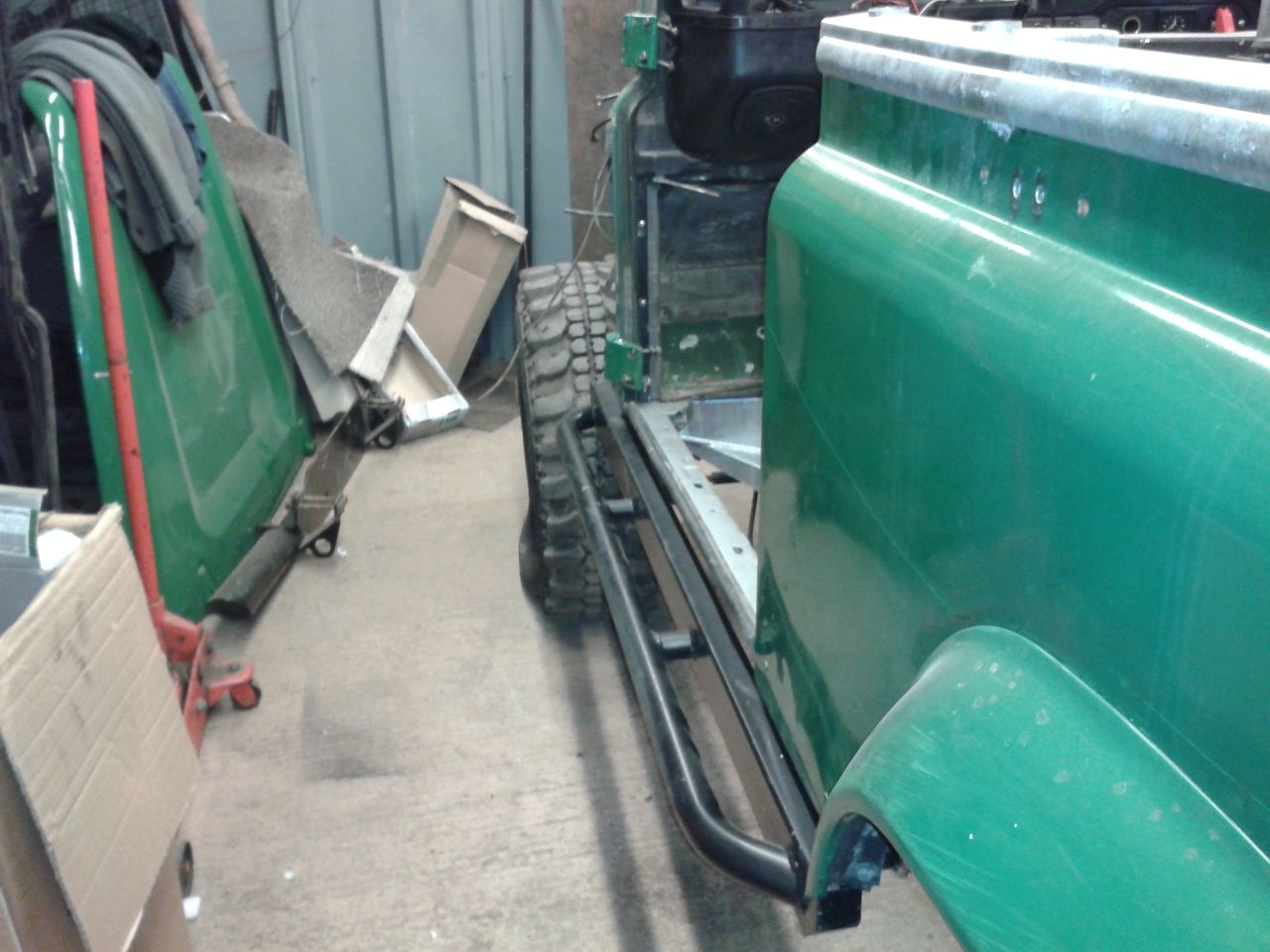

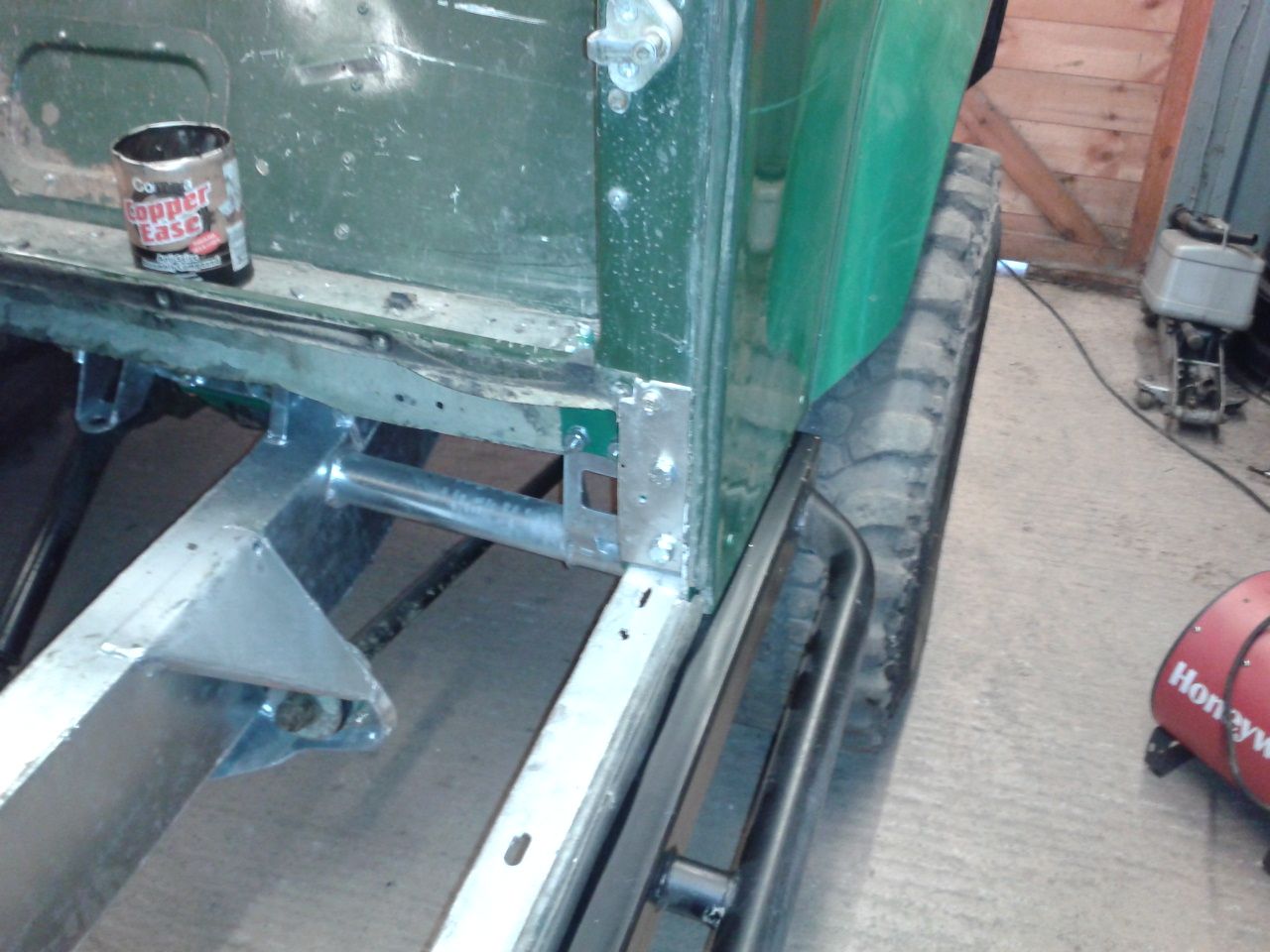

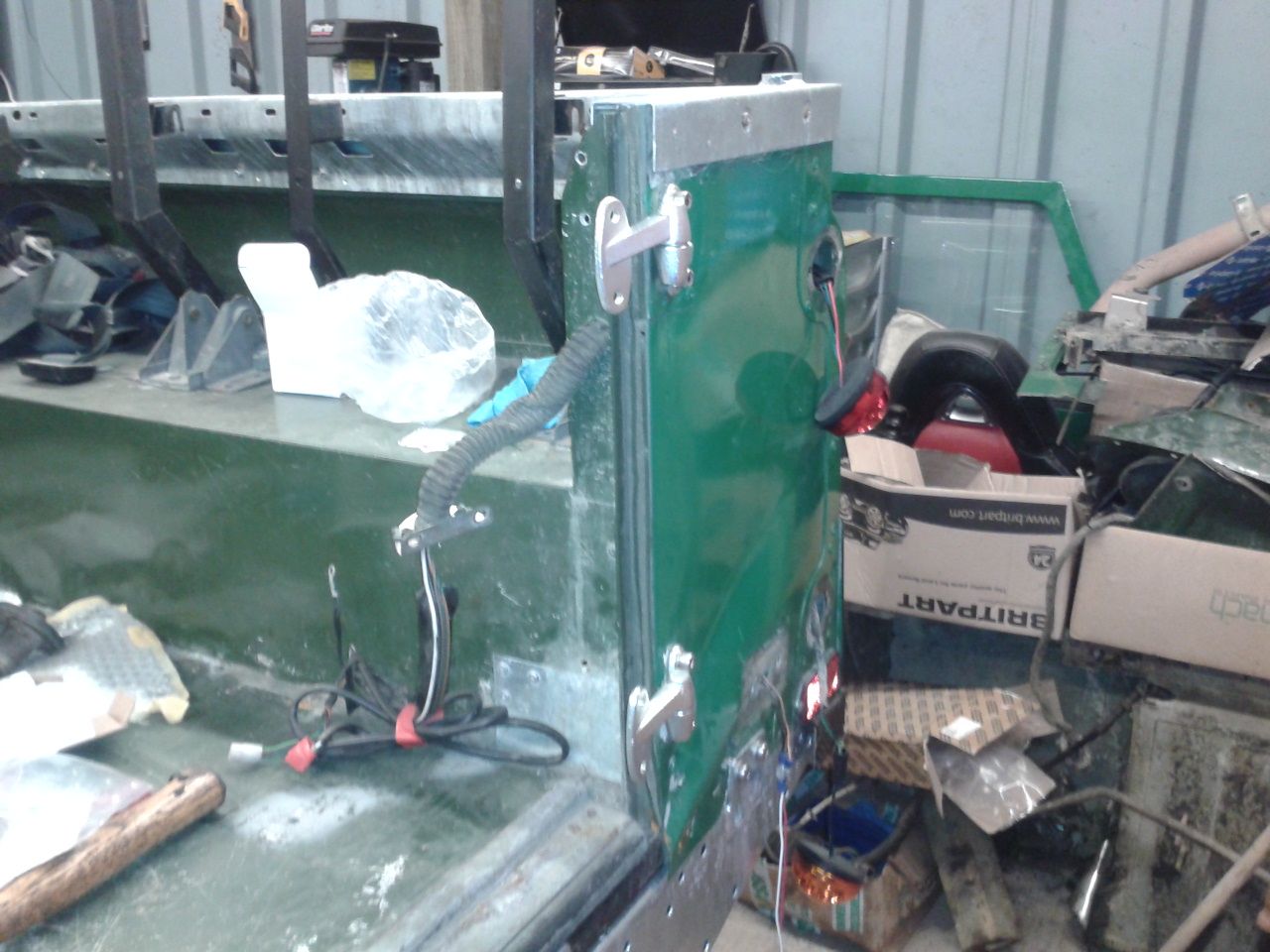

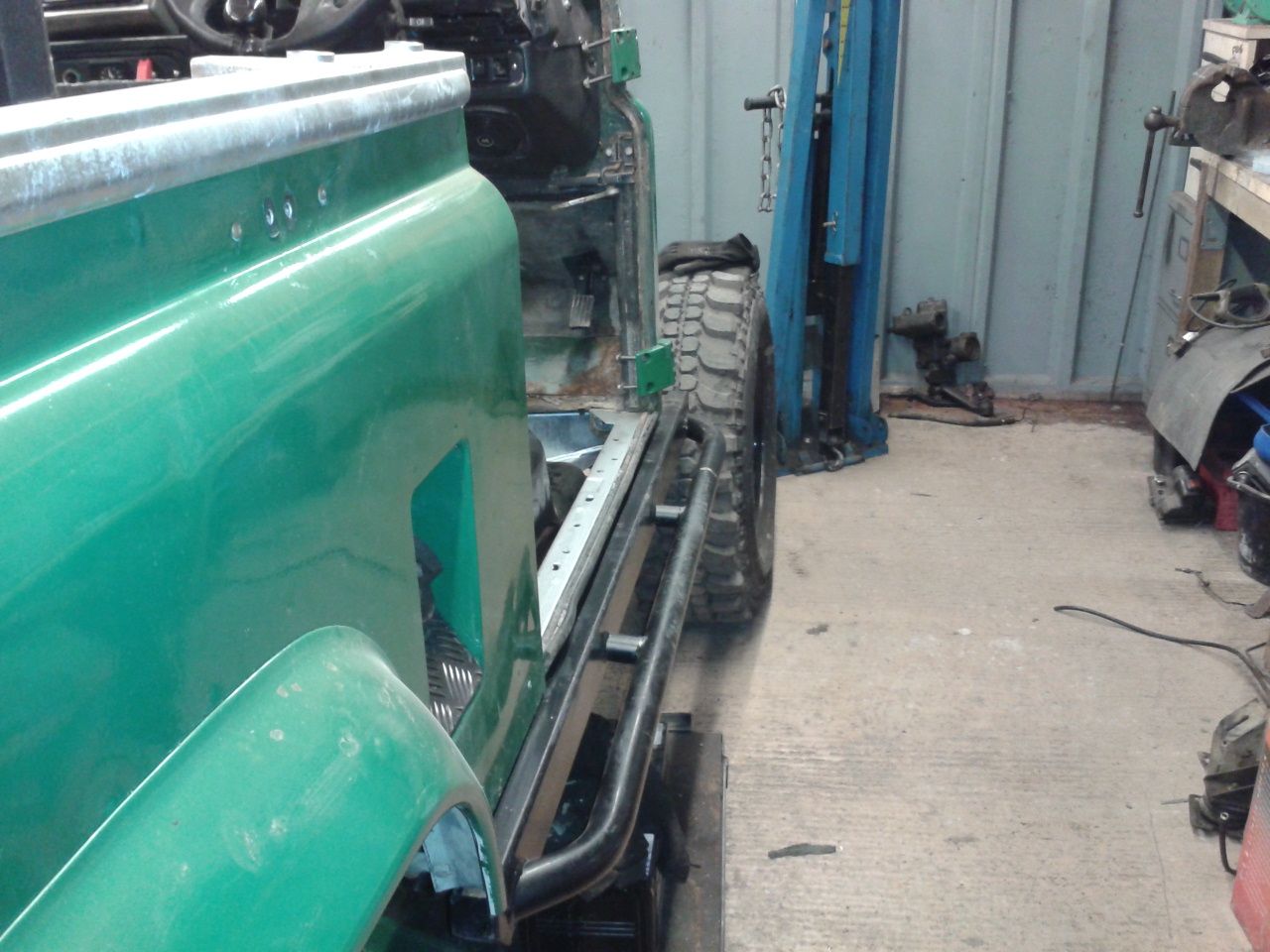

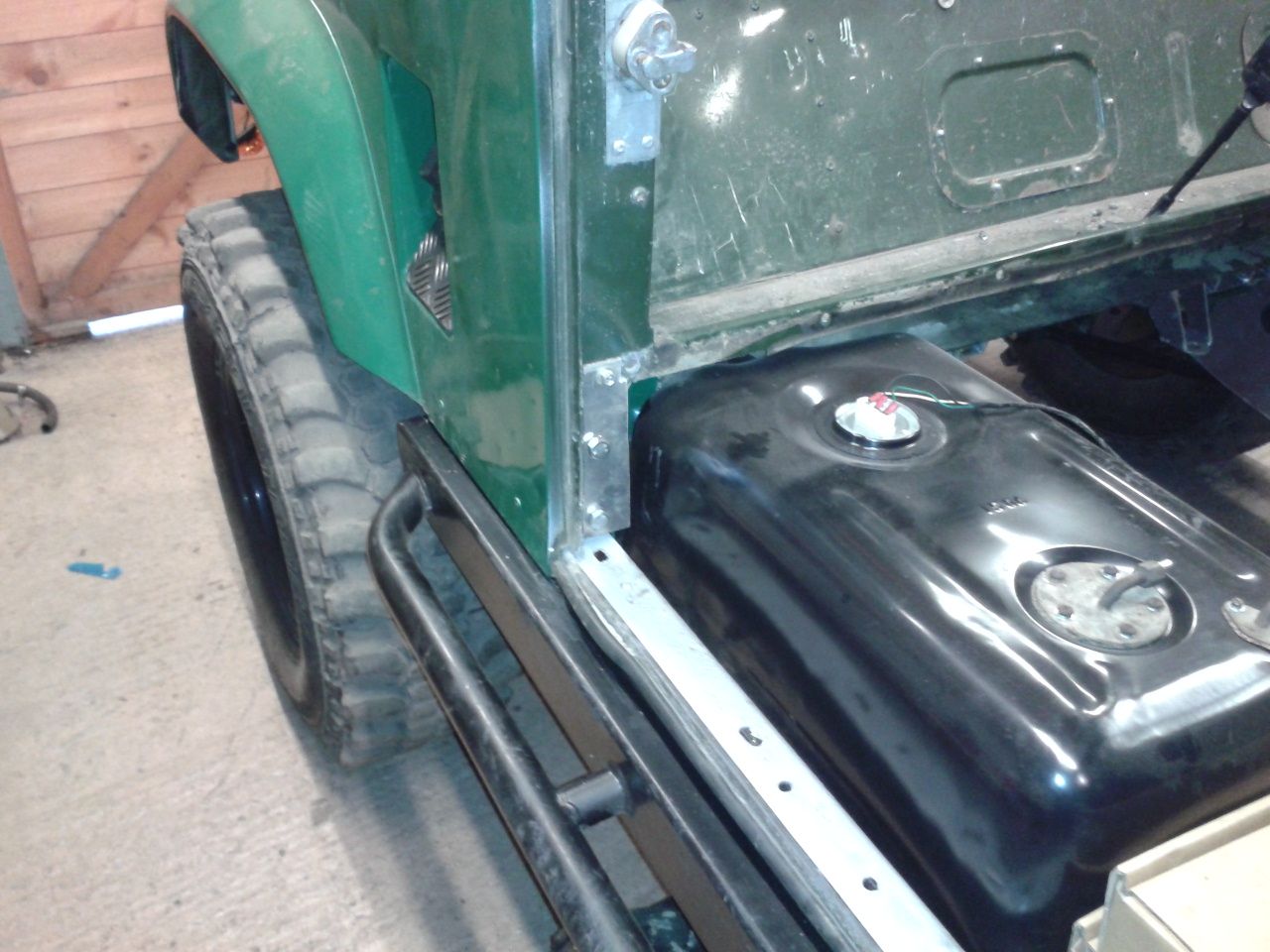

Some more bits went back on today inc tub to bulkhead support bars, rock slider's, painted the intercooler steel pipes, fitted 2 of the 3 rear door hinges to the tub inc new s/steel cap head screws then cleaned up and painted the gearbox mounting brackets ready for when we get the gearbox done as we have to wait till he is back from his 6 weeks hols starting from just before xmas till the end of January :(


Attachments

  • 2016-01-05 13.07.48.jpg
    2016-01-05 13.07.48.jpg
    151.1 KB · Views: 175
  • 2016-01-05 13.08.10.jpg
    2016-01-05 13.08.10.jpg
    148.8 KB · Views: 186
  • 2016-01-05 13.08.20.jpg
    2016-01-05 13.08.20.jpg
    136.3 KB · Views: 186
  • 2016-01-05 13.08.30.jpg
    2016-01-05 13.08.30.jpg
    143.3 KB · Views: 196
  • 2016-01-01 16.26.44.jpg
    2016-01-01 16.26.44.jpg
    181.6 KB · Views: 188
  • 2016-01-05 14.29.06.jpg
    2016-01-05 14.29.06.jpg
    168 KB · Views: 212
  • 2016-01-05 14.29.17.jpg
    2016-01-05 14.29.17.jpg
    196.1 KB · Views: 192
  • 2016-01-05 15.17.46.jpg
    2016-01-05 15.17.46.jpg
    151.3 KB · Views: 187
  • 2016-01-05 16.12.35.jpg
    2016-01-05 16.12.35.jpg
    131 KB · Views: 210
  • 2016-01-05 16.12.44.jpg
    2016-01-05 16.12.44.jpg
    148.5 KB · Views: 177

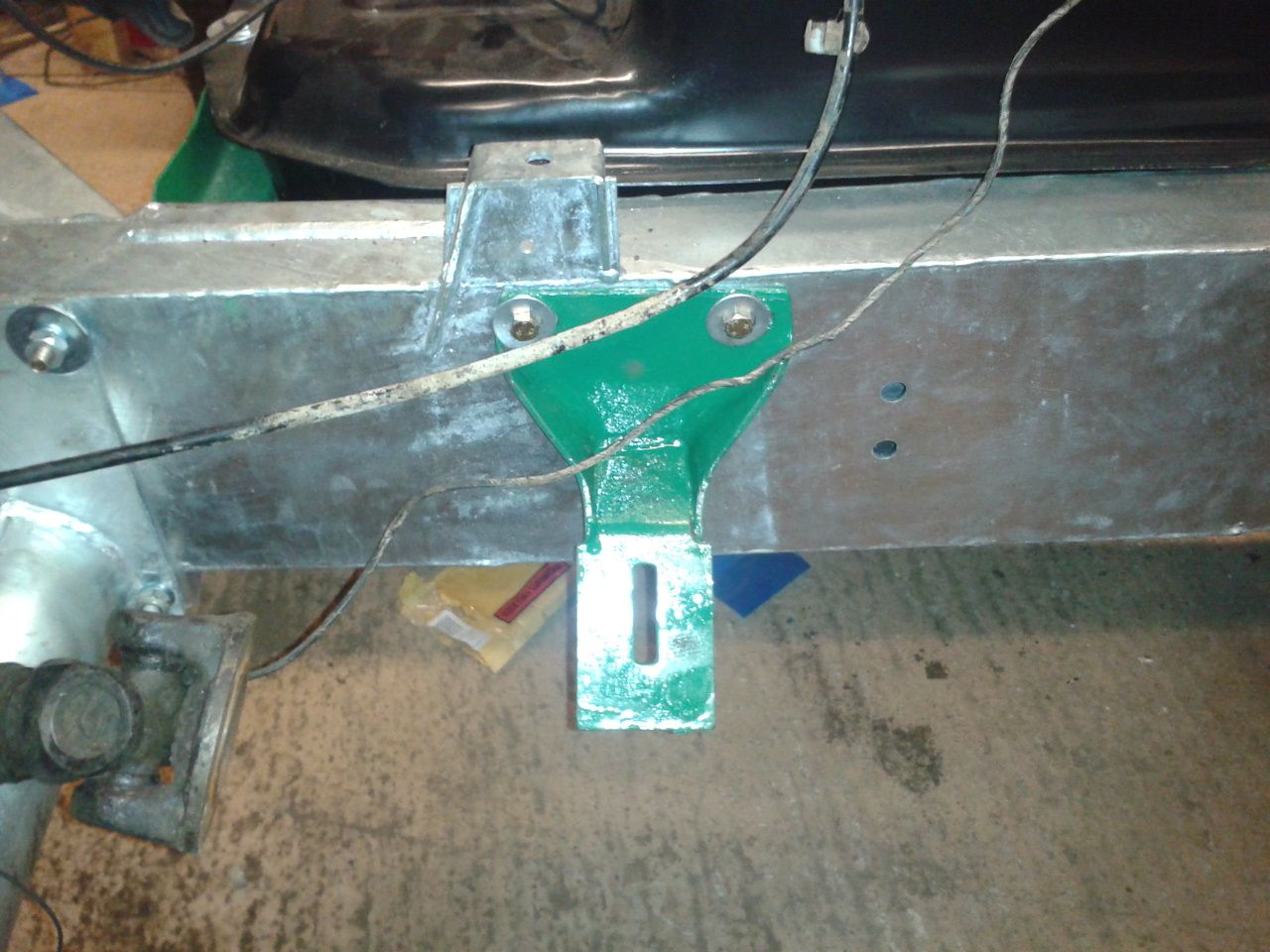

Sorry i didn't get chance to come on yesterday but on Saturday i fitted a few more bits n bobs to the 90 inc the newly painted g/box mounting brackets, bolted the g/box x member in place, fitted a new accelorator cable and tried fitting a new power steer pipe but found that one of the fittings won't fit the pump ( male nut fitted instead of a female nut ) i do have a spare banjo fitting that came with the new pump but need another fitting to fit between the two to connect the pipe to the pump which i will have to get at a later date :(


Attachments

  • 2016-01-09 14.19.15.jpg
    2016-01-09 14.19.15.jpg
    162.1 KB · Views: 157
  • 2016-01-09 14.19.33.jpg
    2016-01-09 14.19.33.jpg
    158.4 KB · Views: 156
  • 2016-01-09 14.20.24.jpg
    2016-01-09 14.20.24.jpg
    173.5 KB · Views: 165
