cornish rattler · Jan 14, 2018

Hi guys

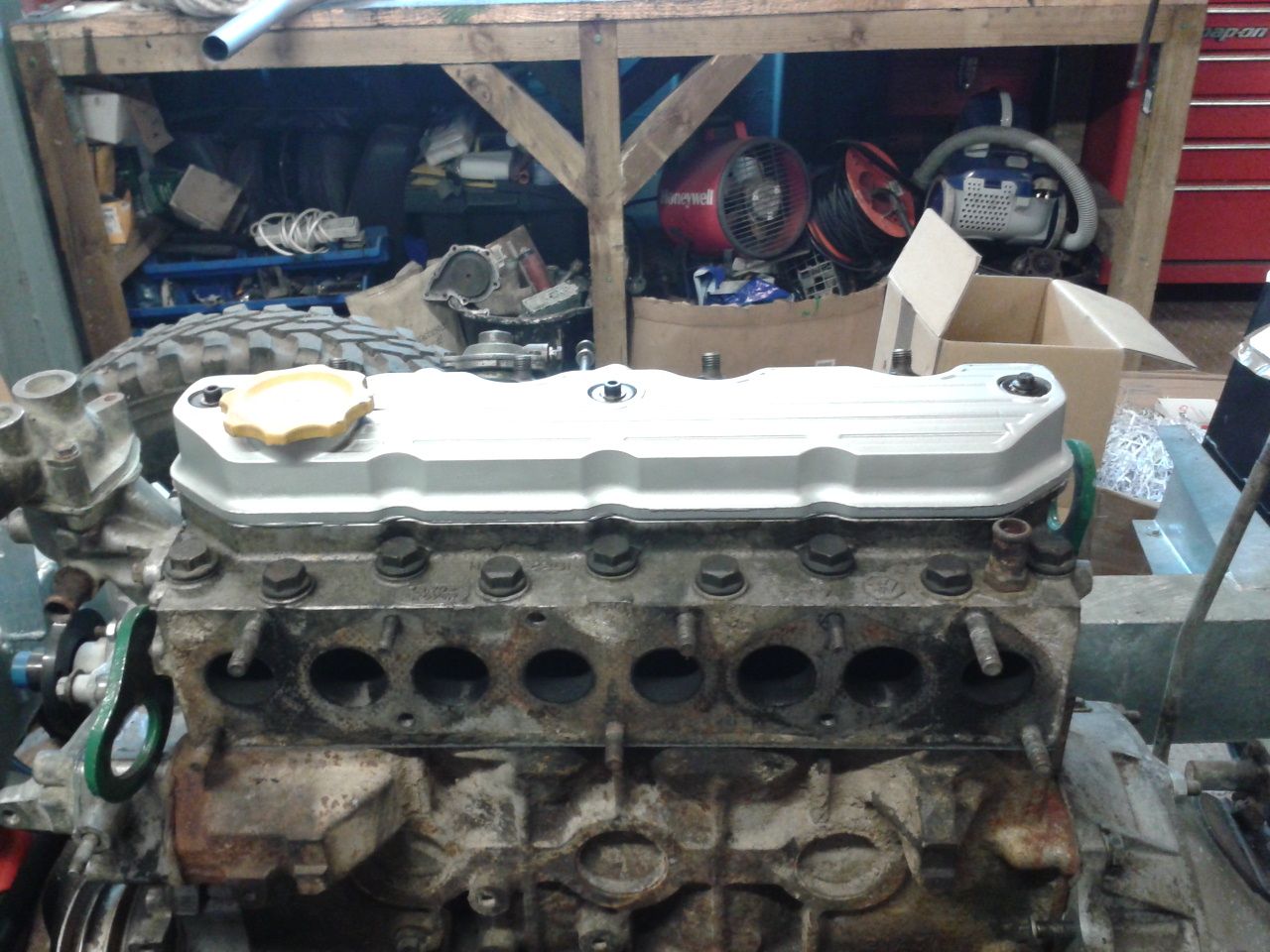

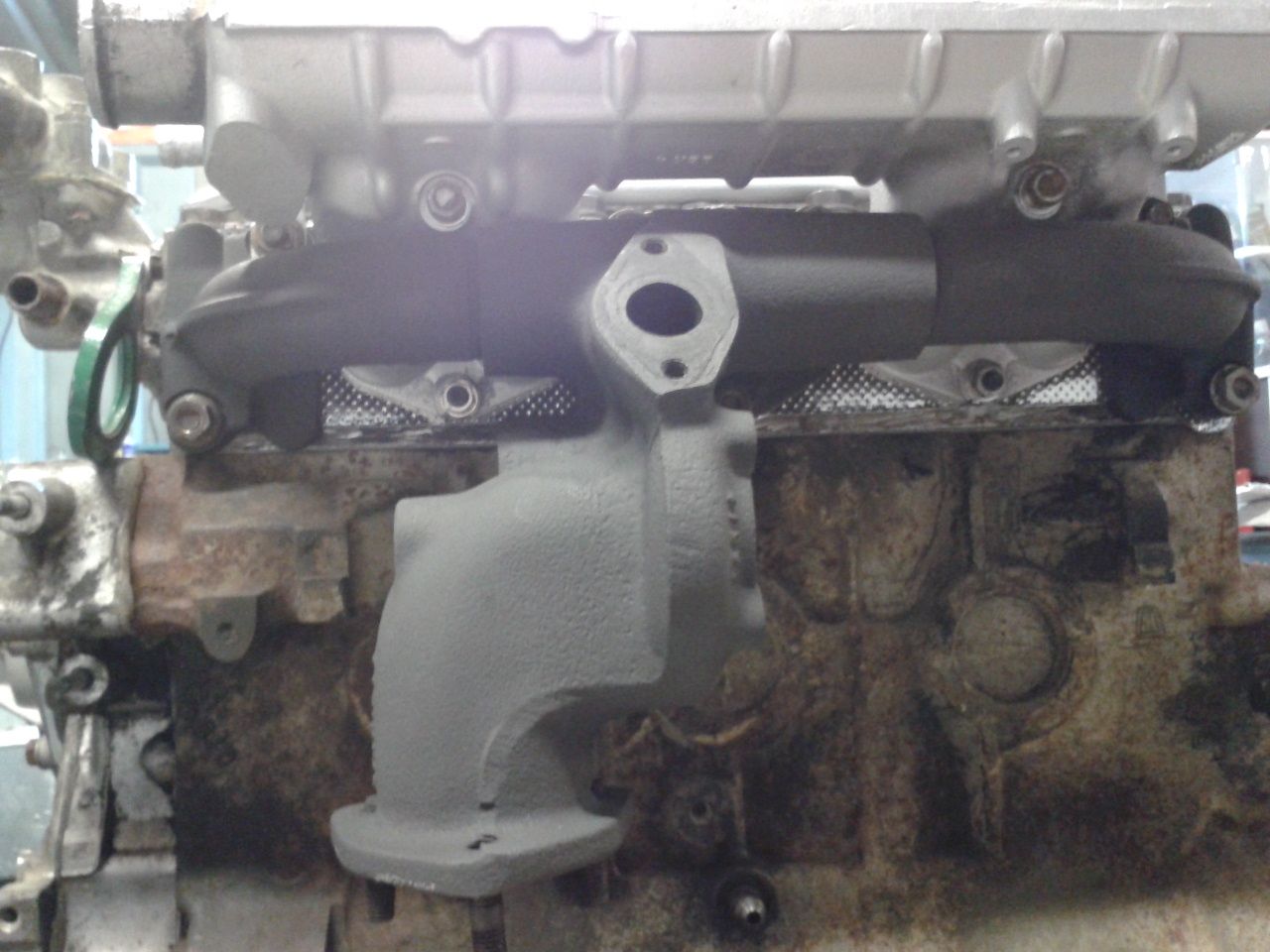

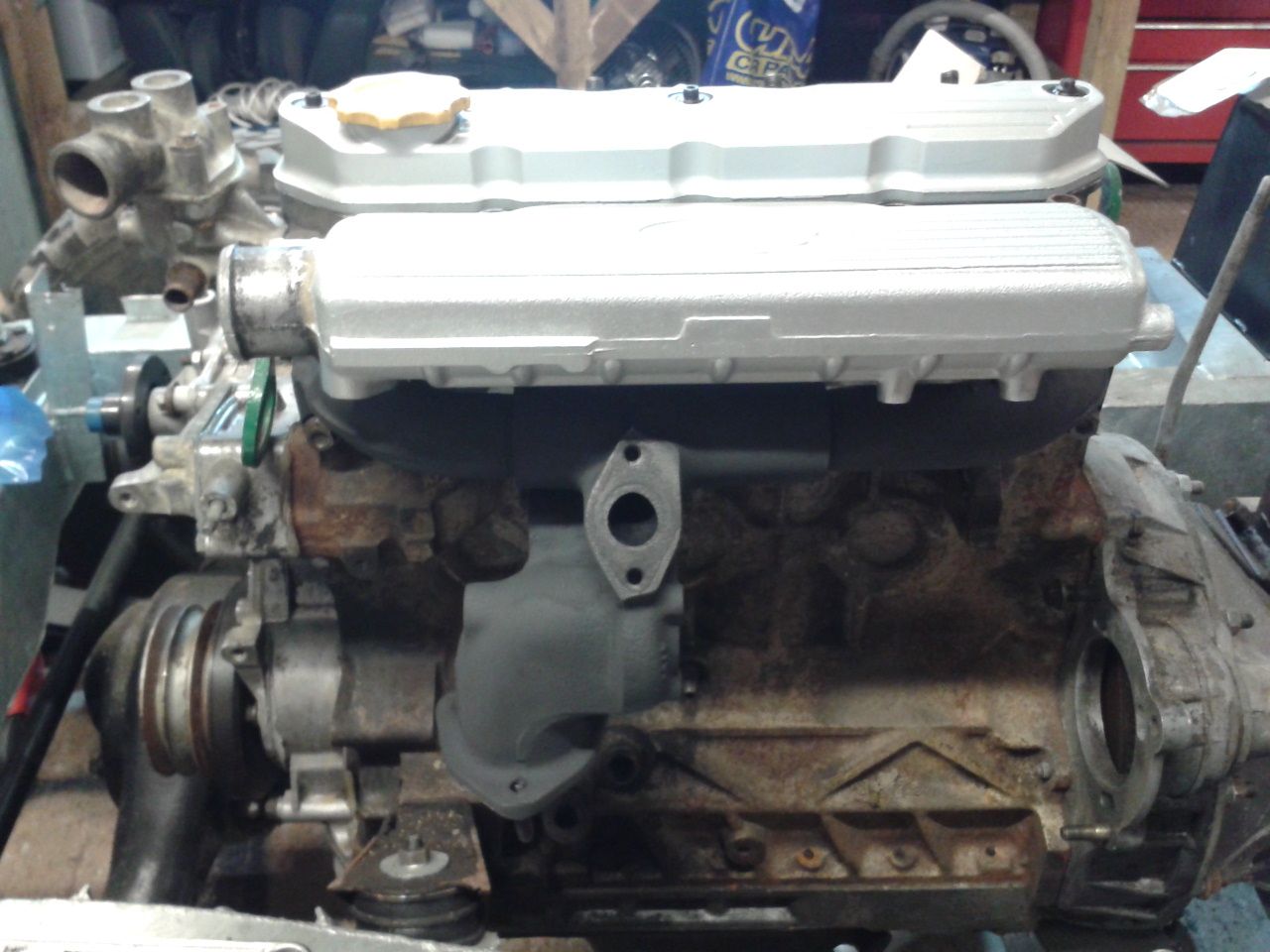

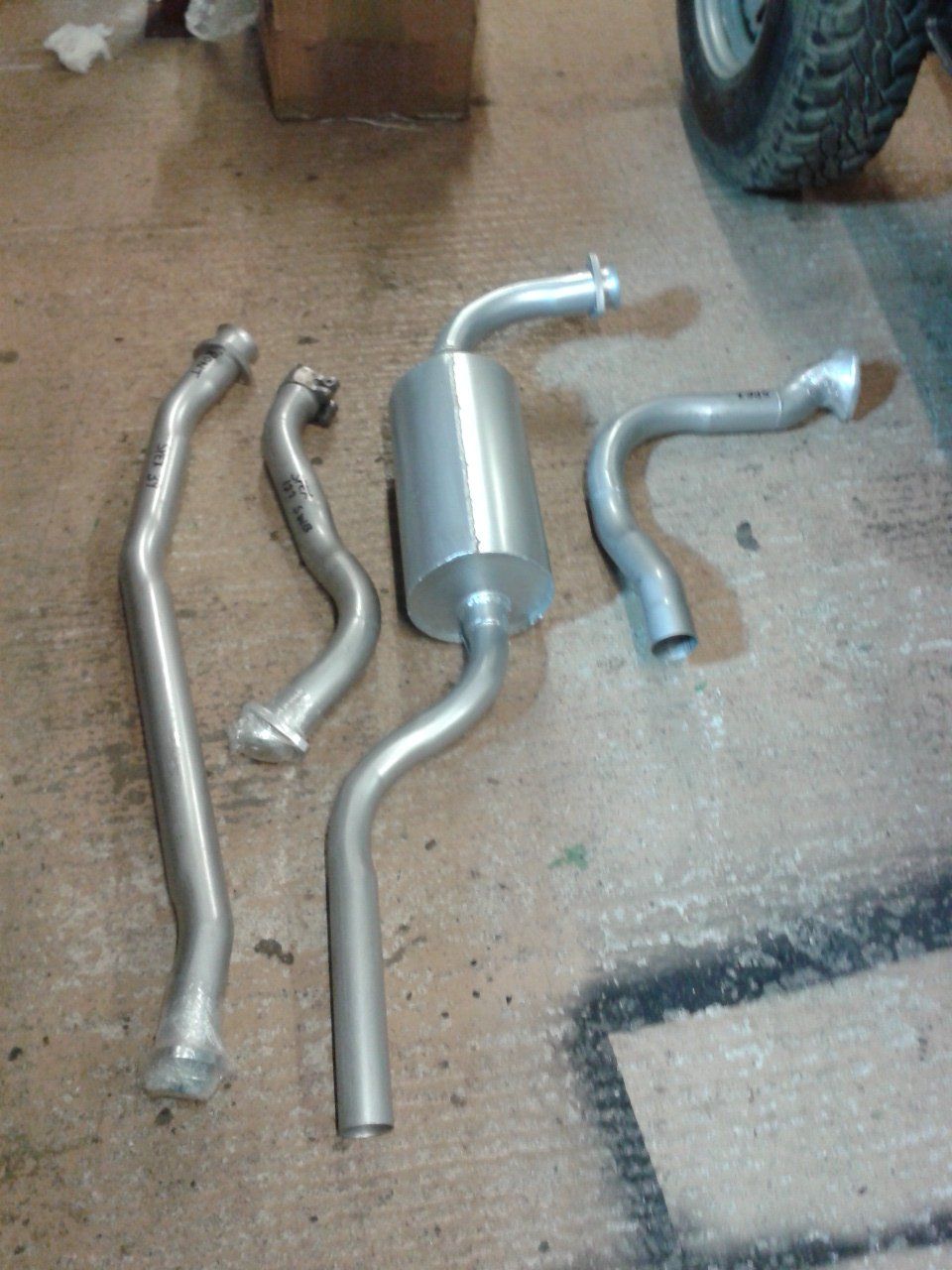

Back on the old 2a again, this weekend it began with cleaning up the rocker cover and inlet manifold ready for painting then once they was done I did the same with the new to me 300tdi exhaust manifold, then once everything was dry I fitted them then today I fitted the new S.P. exhaust system a bit fiddly but got there in the end.

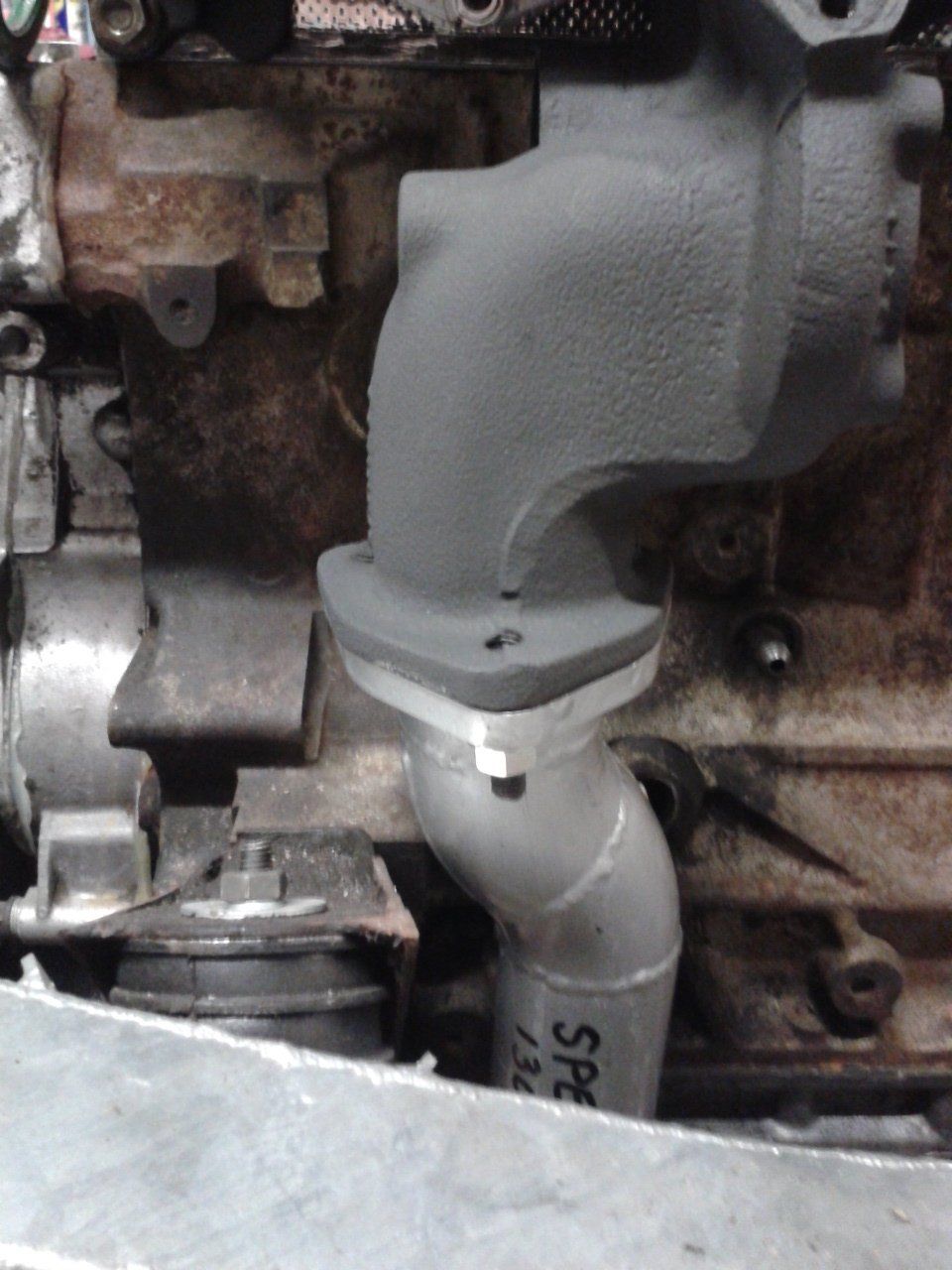

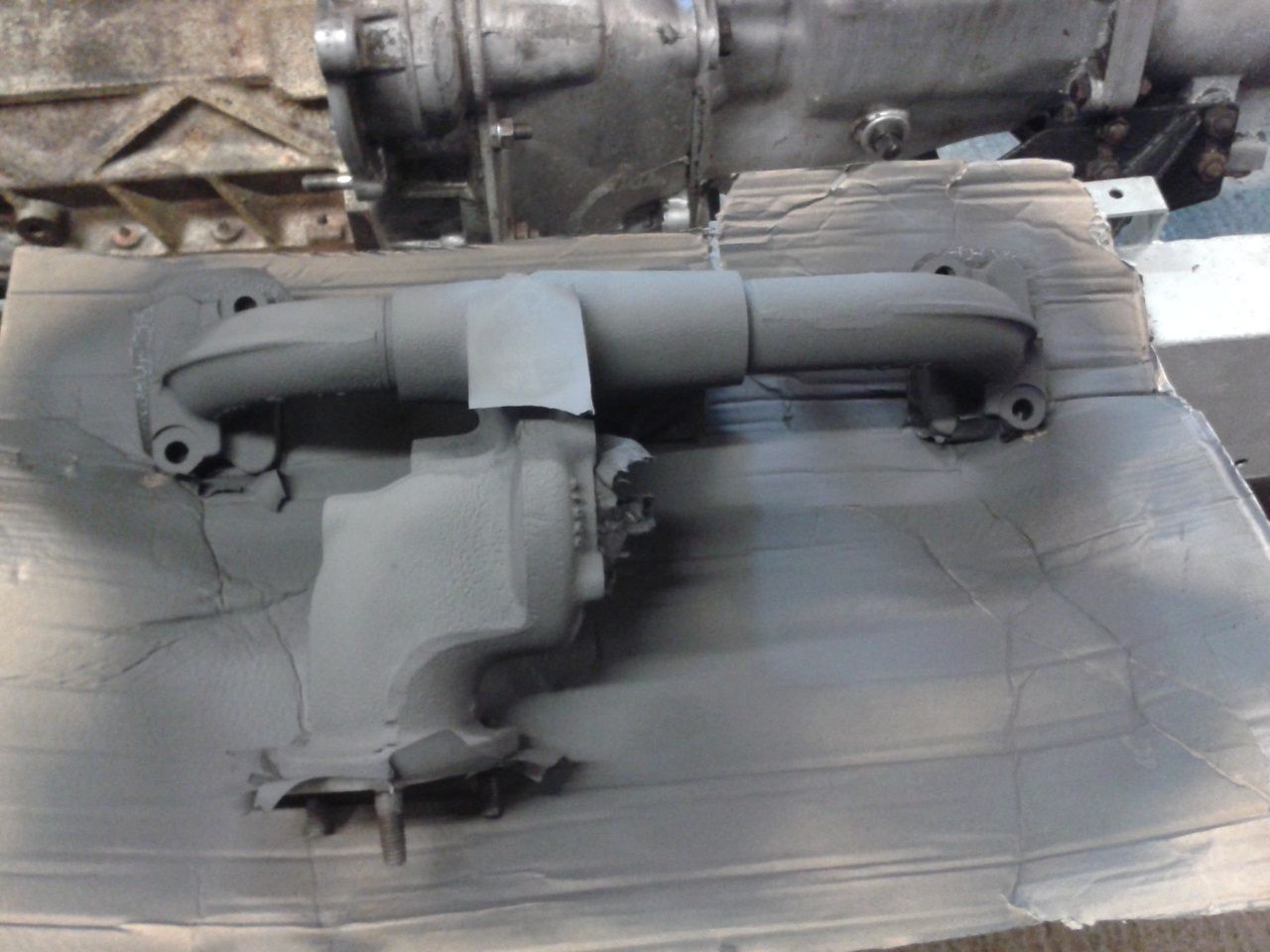

I know its a bit of an a** about face way of doing it but I plan to paint the engine in B.M.C. engine Green but I wanted to get everything fitted and there is still room to get round everything with a brush, anyway here's the pic's of the manifolds being done

cornish rattler · Jan 14, 2018

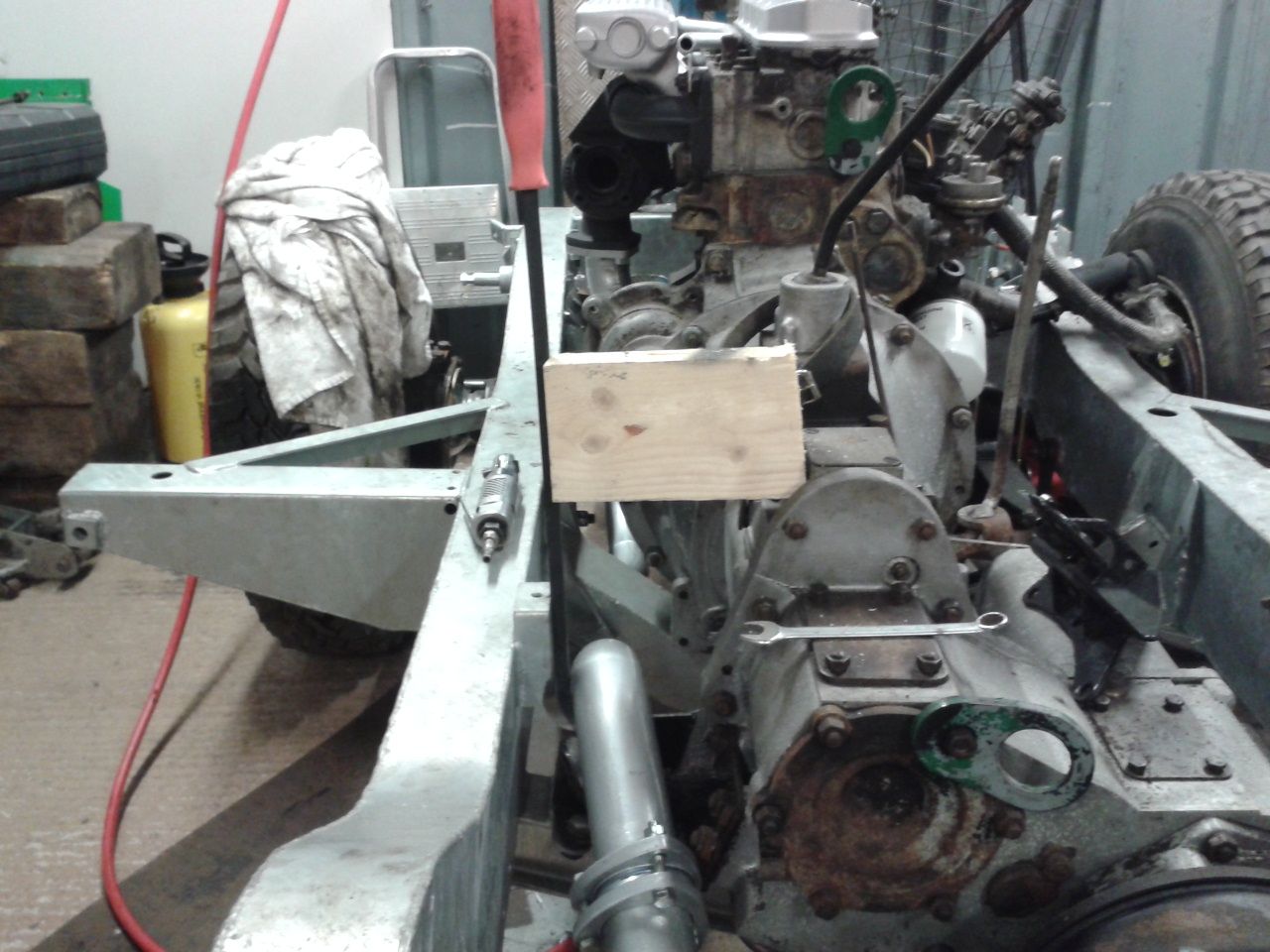

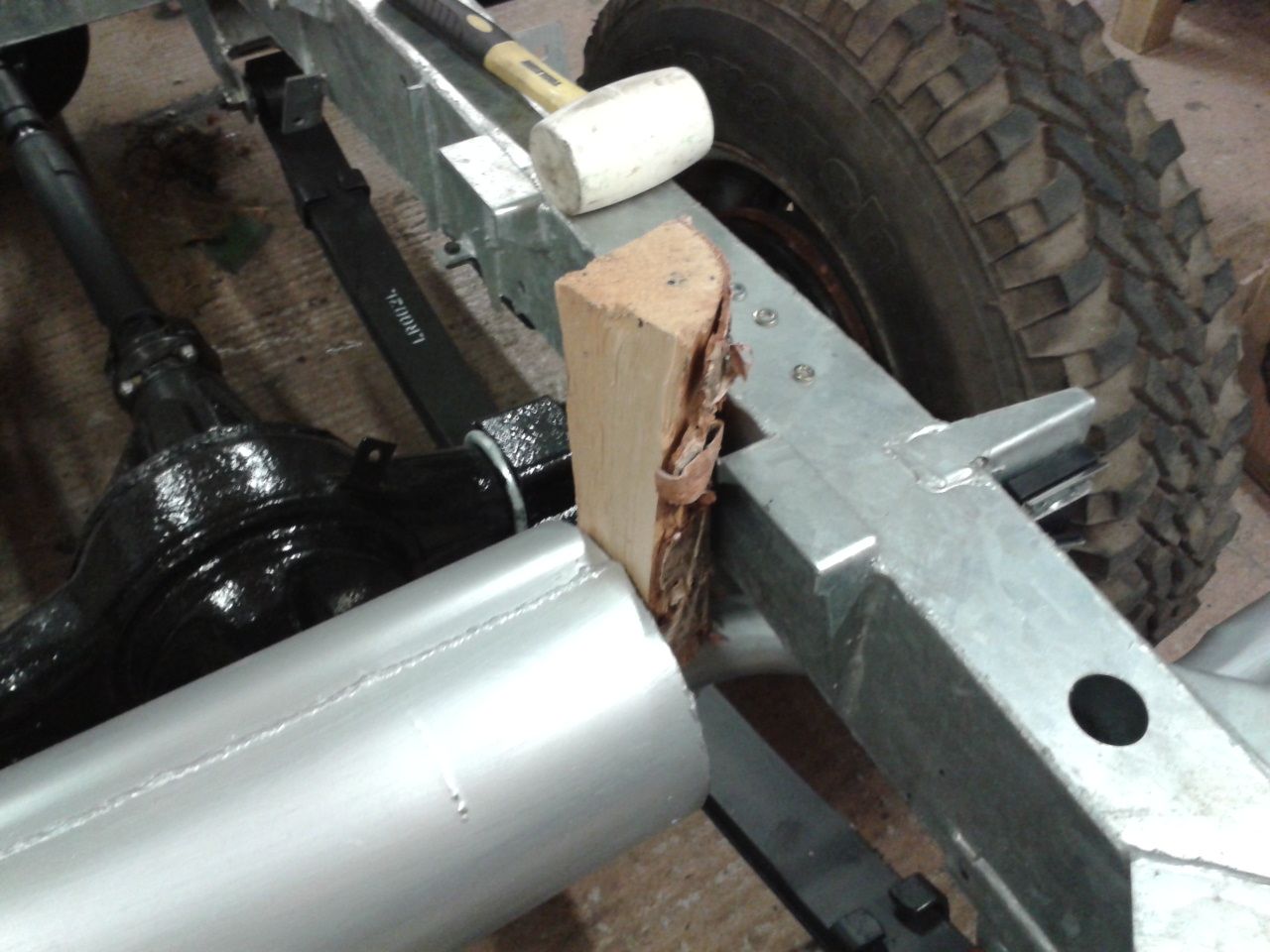

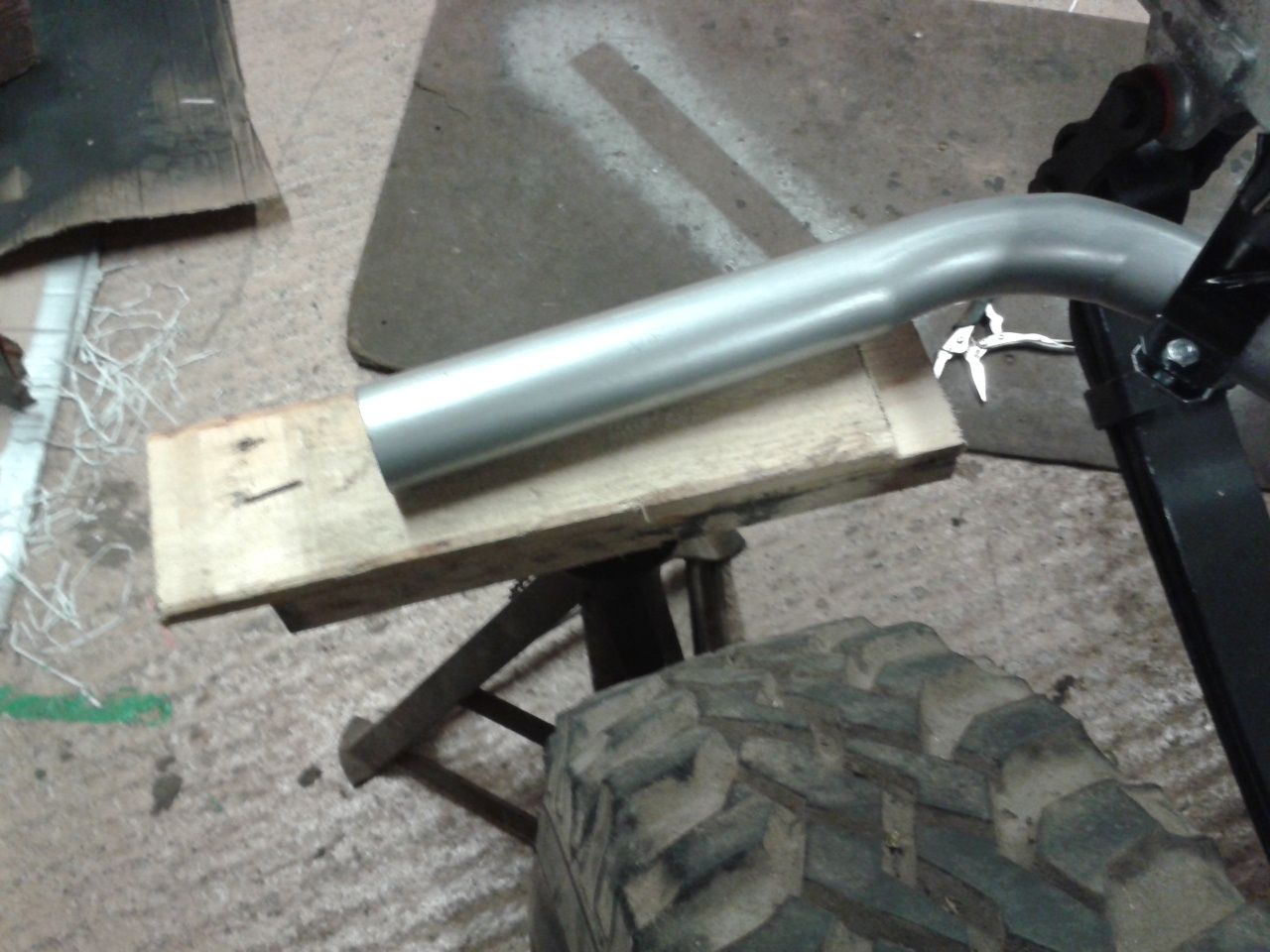

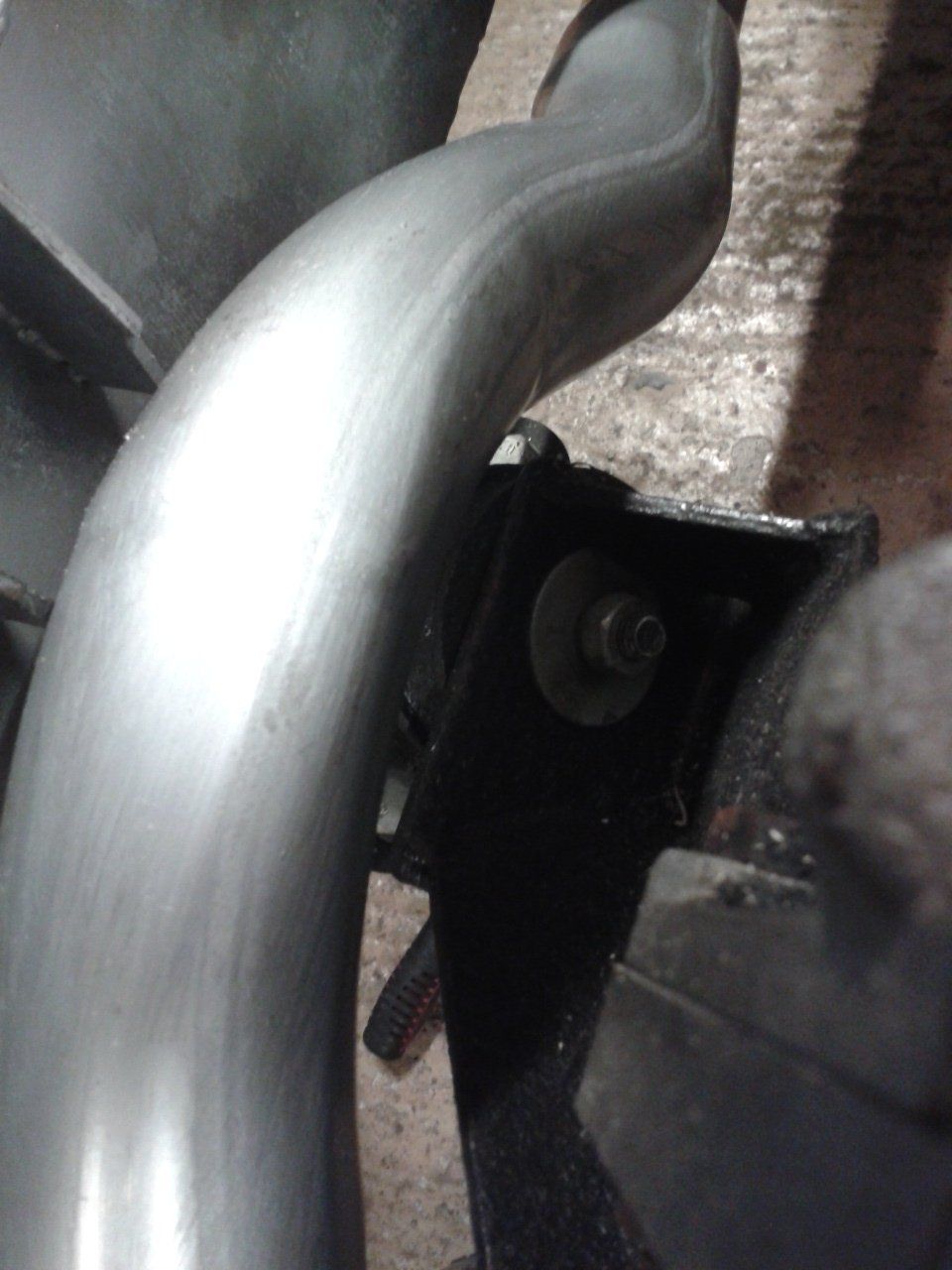

Fitting the exhaust was a bit fiddly as I was on my own so had to resort to getting a of piece of wood to keep the exhaust away from the gearbox mount with the aid of a pry bar and to keep the tail pipe from sticking out to much using a piece of log jammed between the chassis and silencer and some more timber sat on an axle stand to keep it from hanging down for finally tightening everything up

cornish rattler · Jan 14, 2018

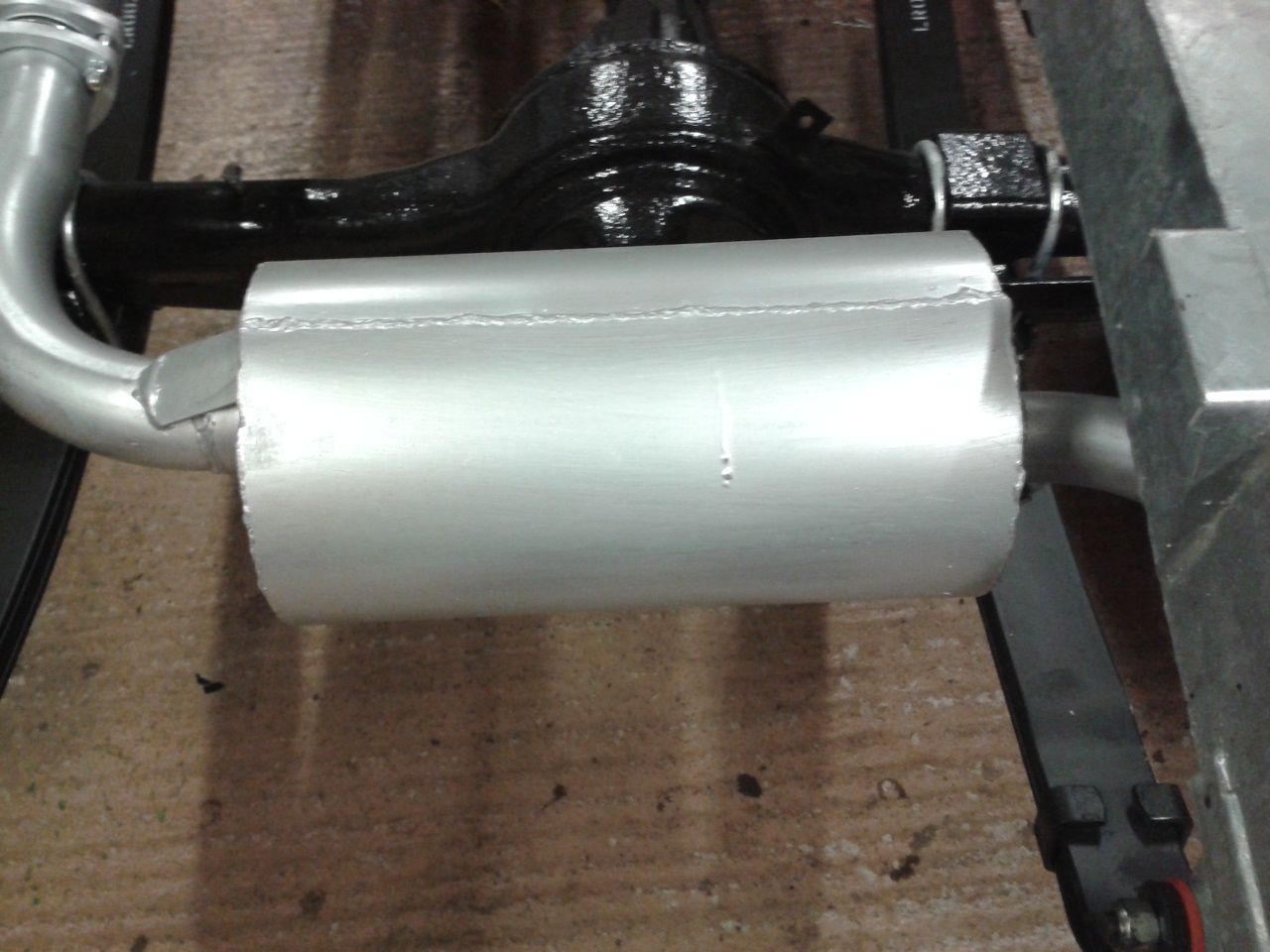

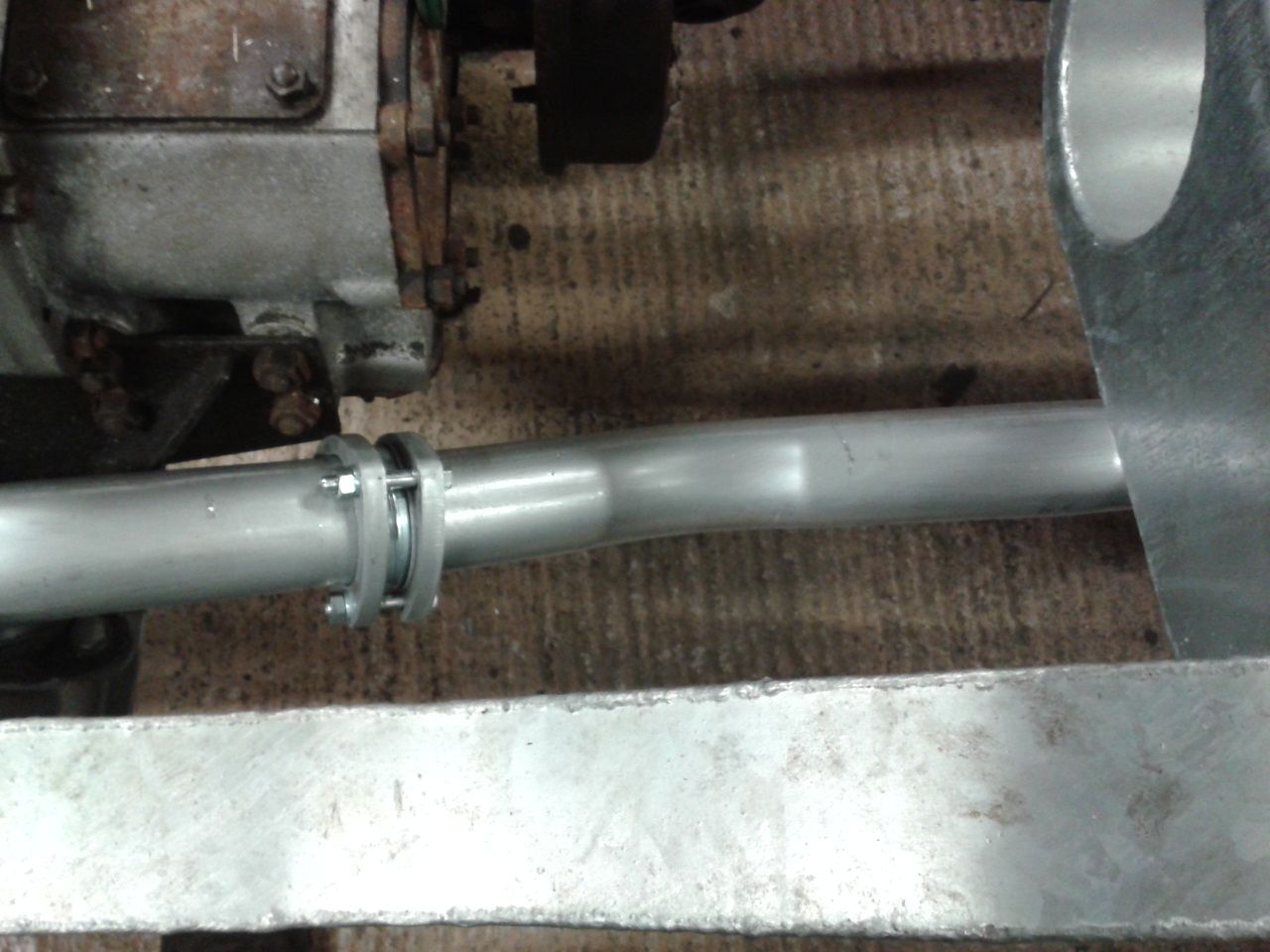

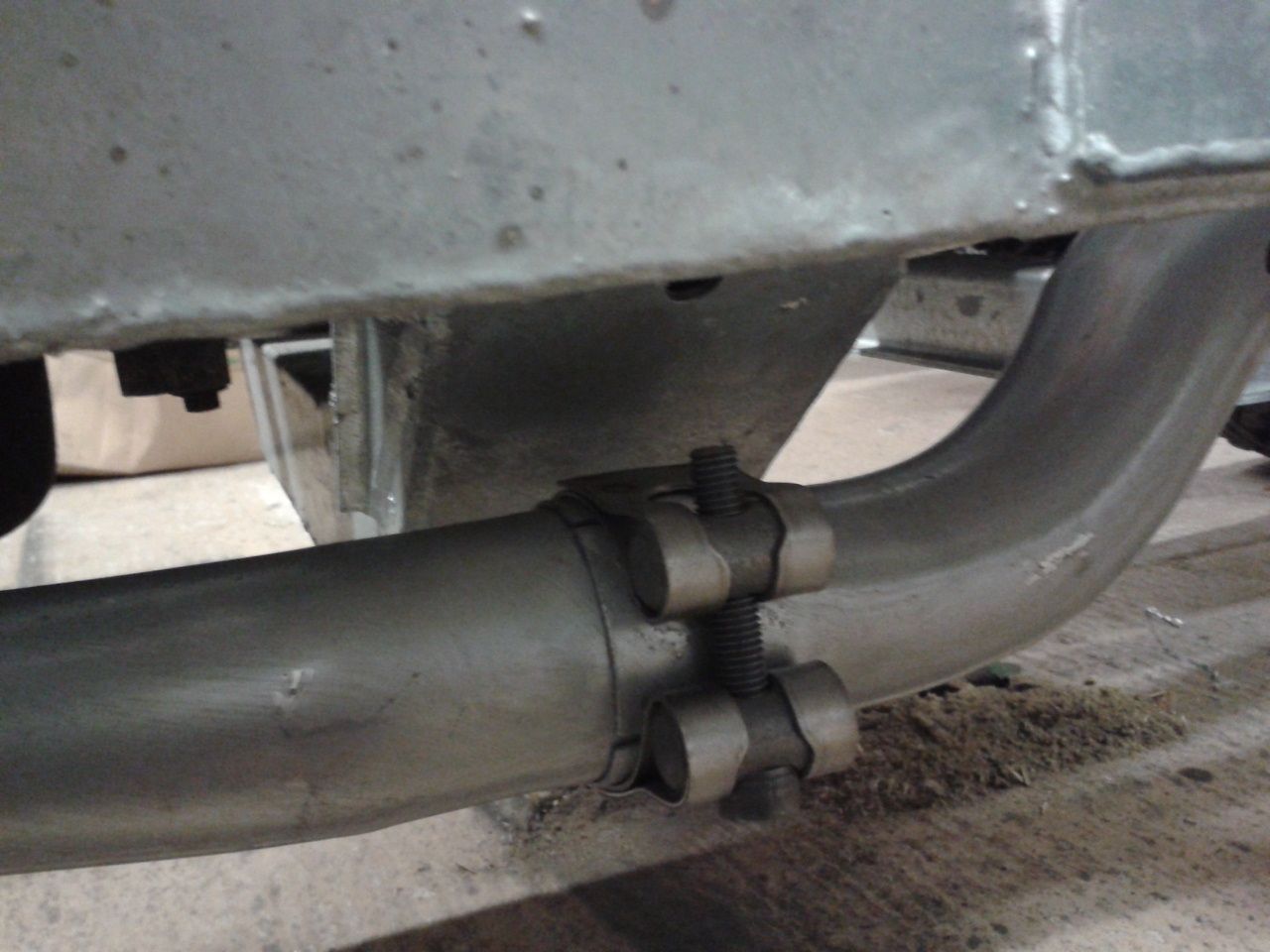

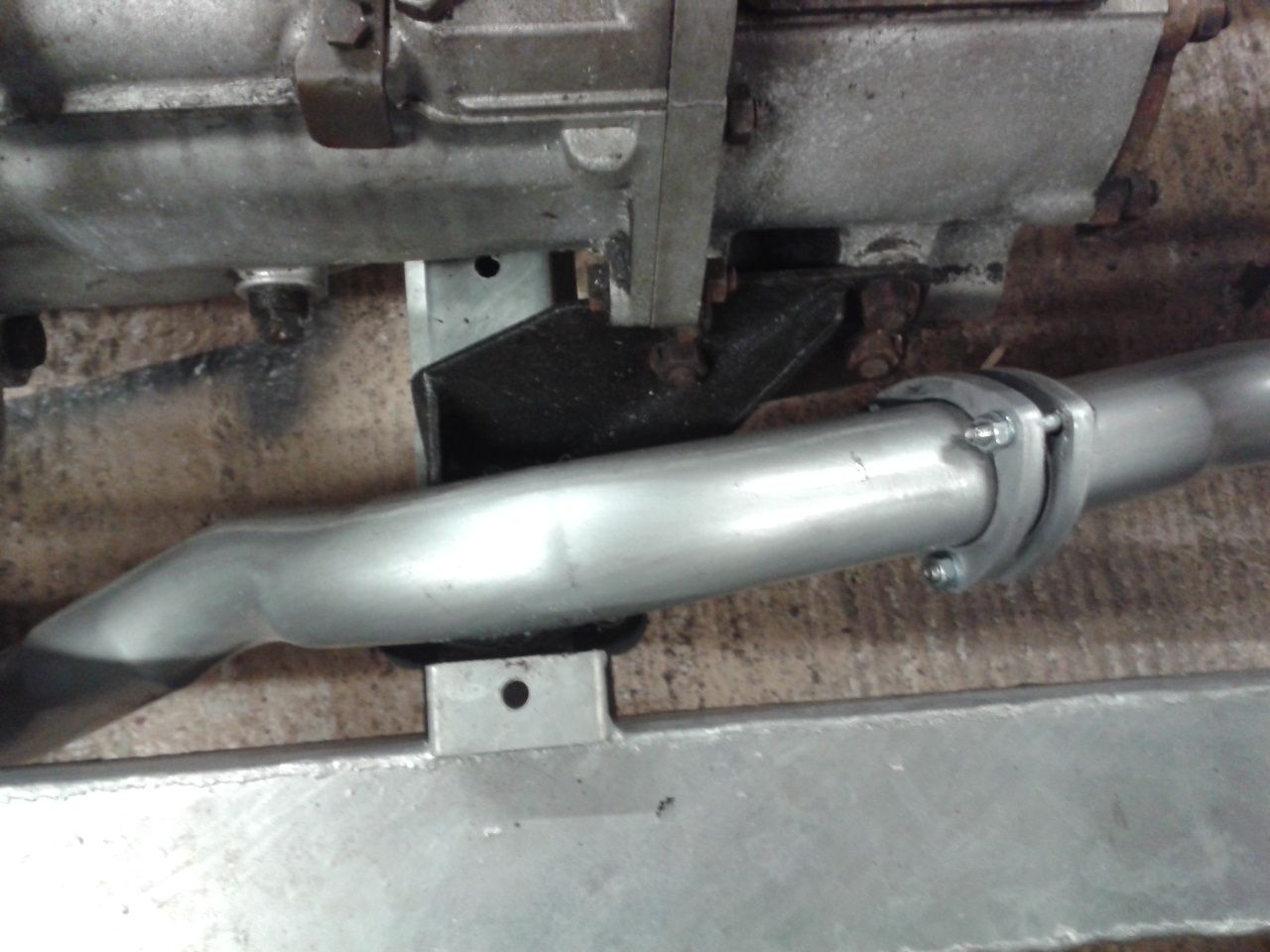

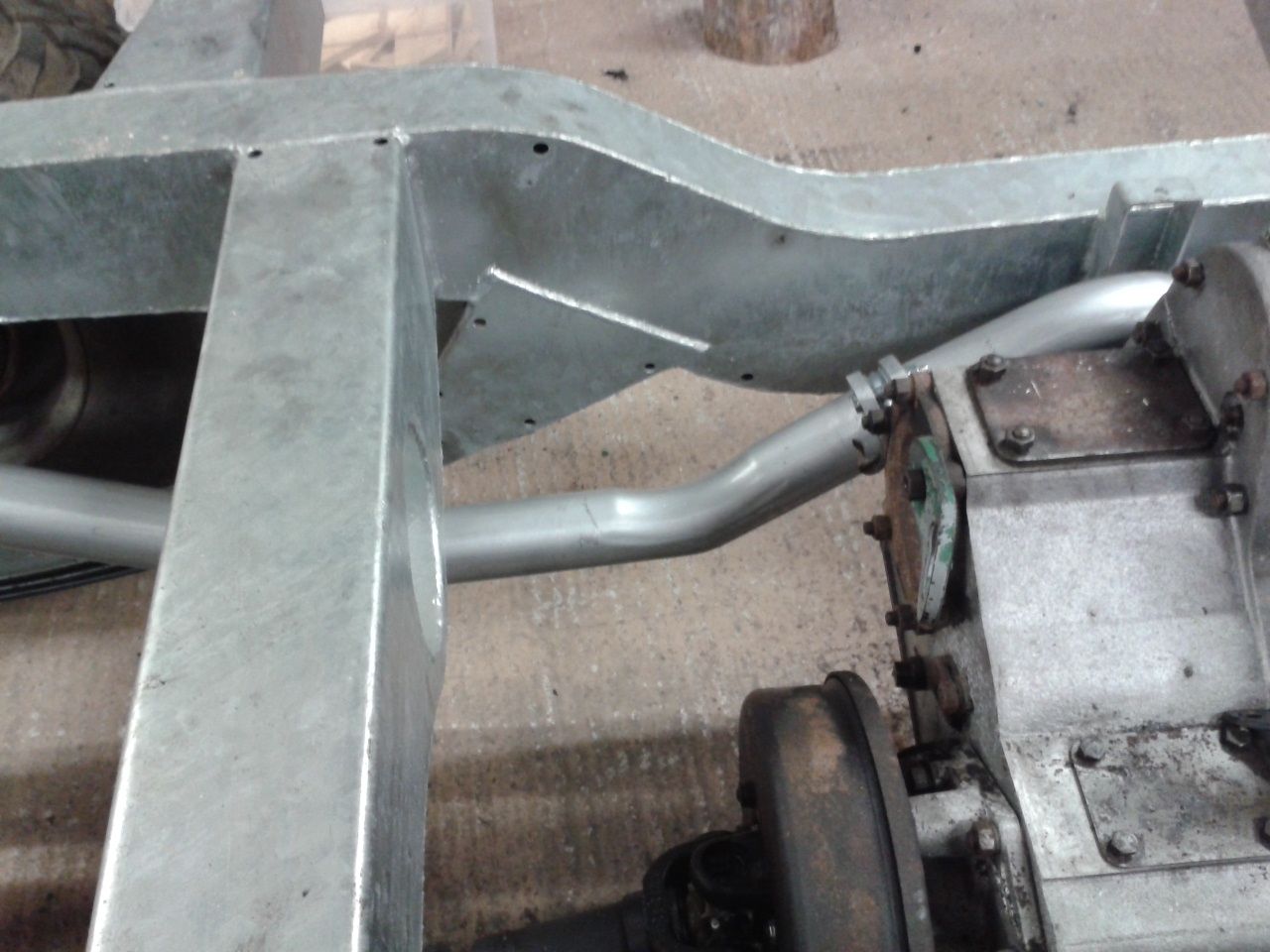

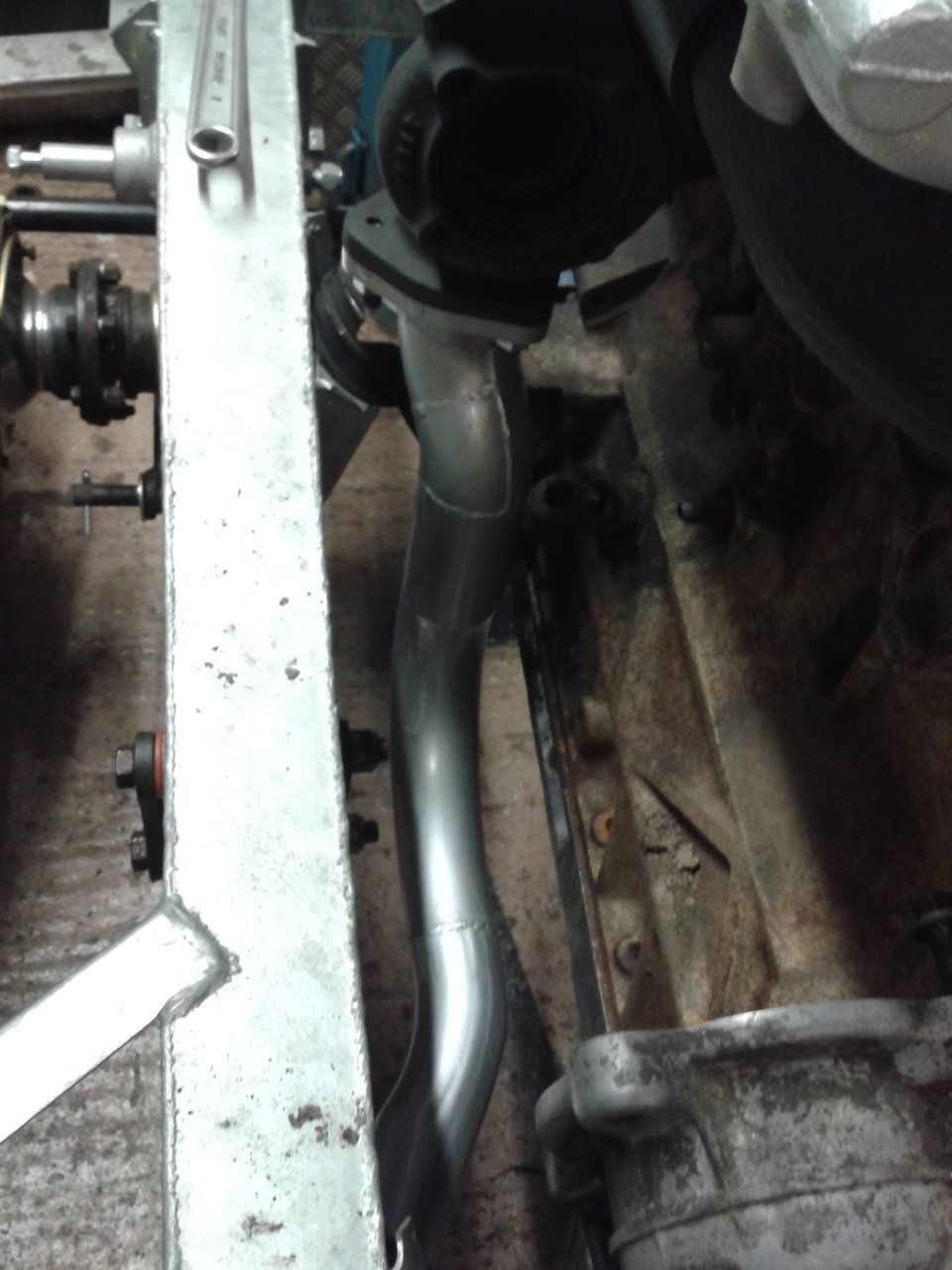

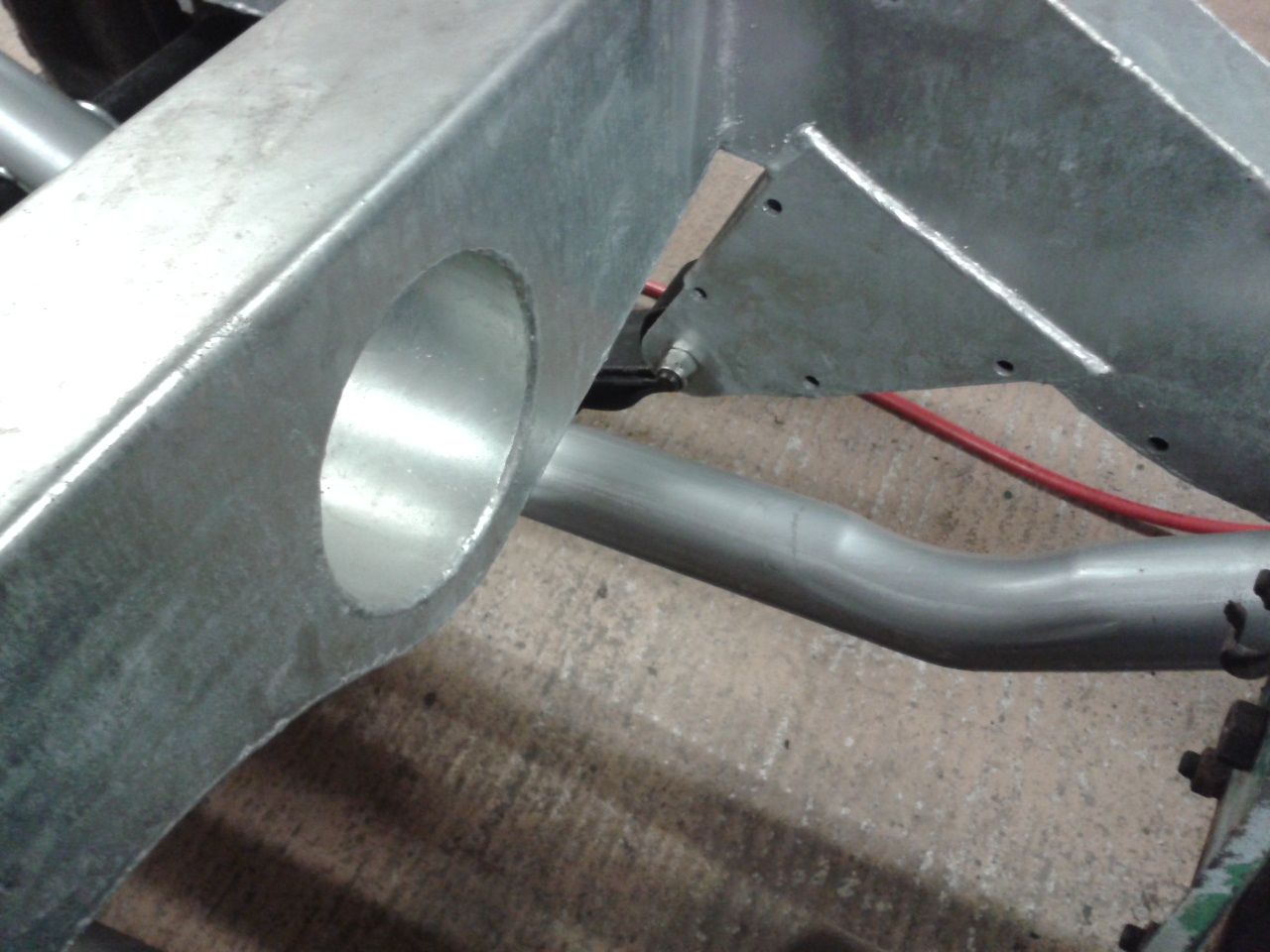

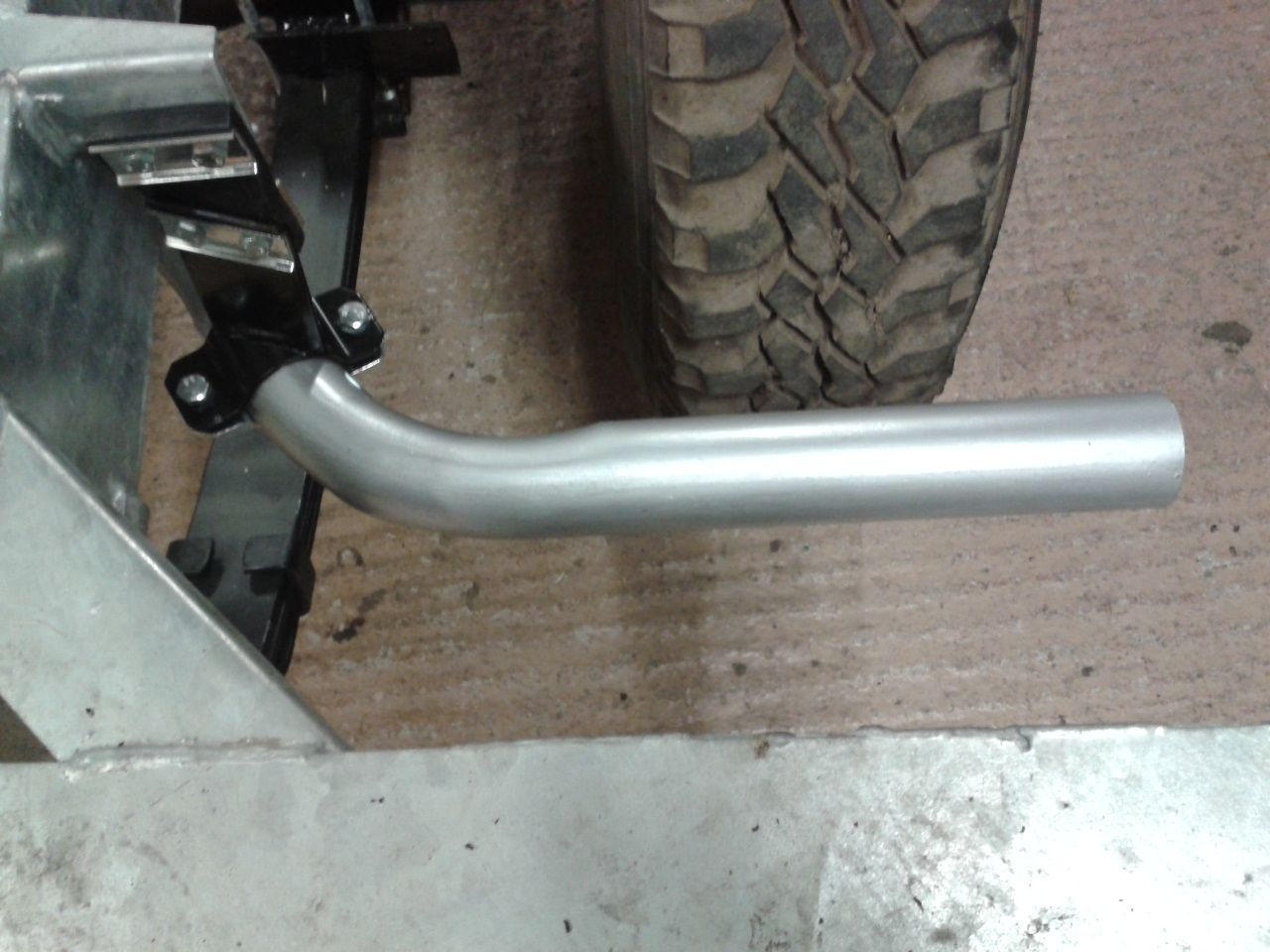

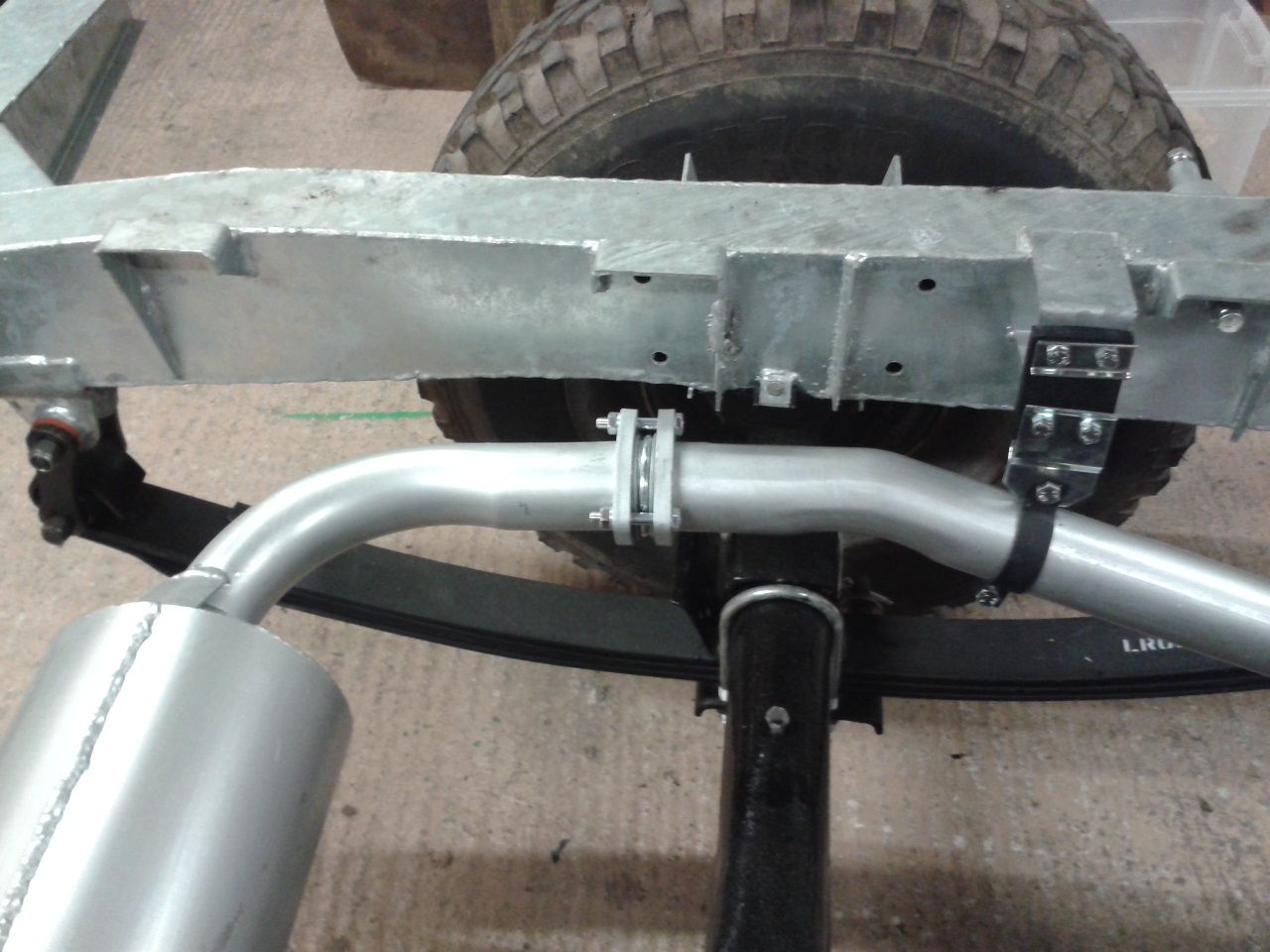

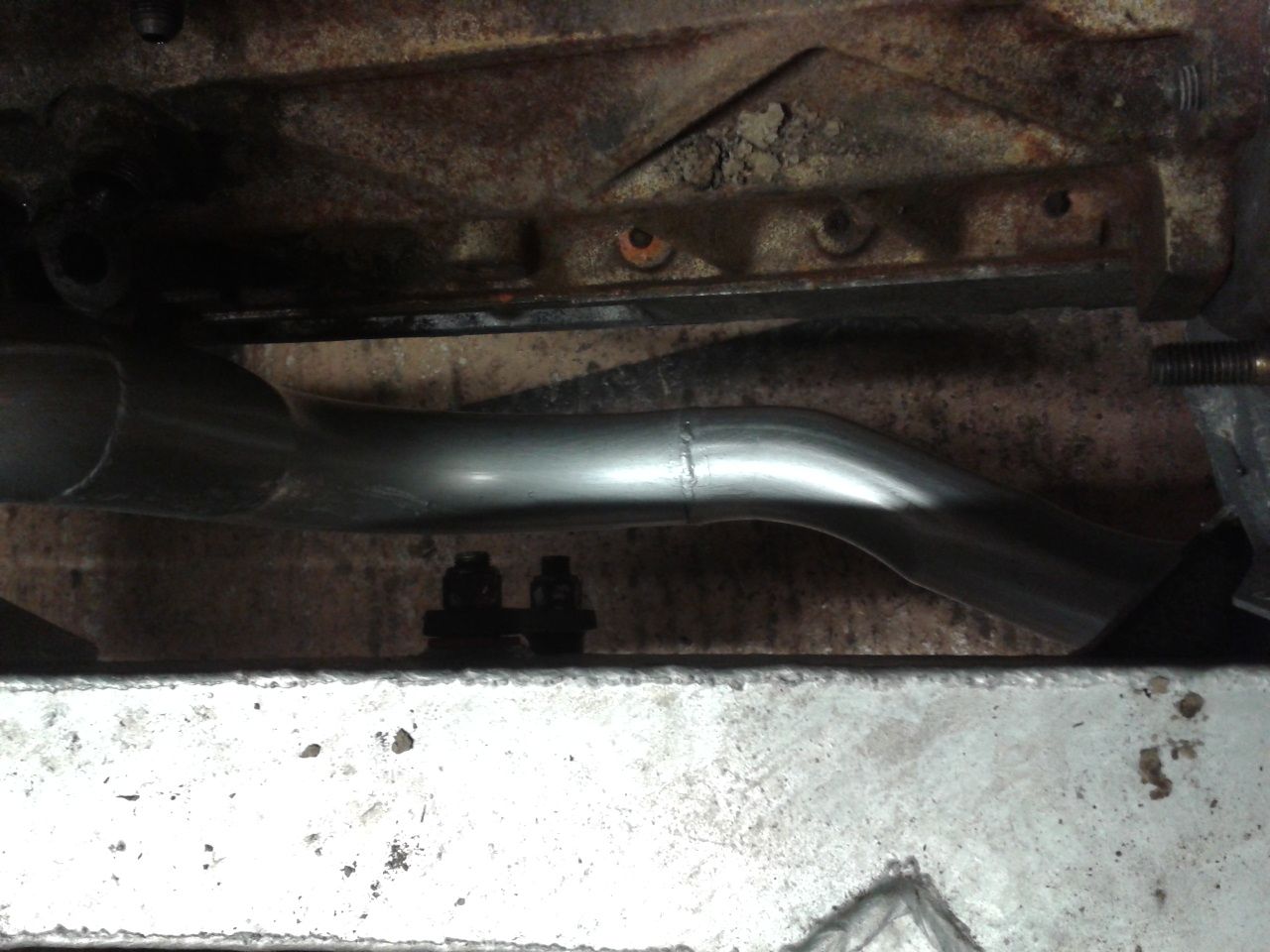

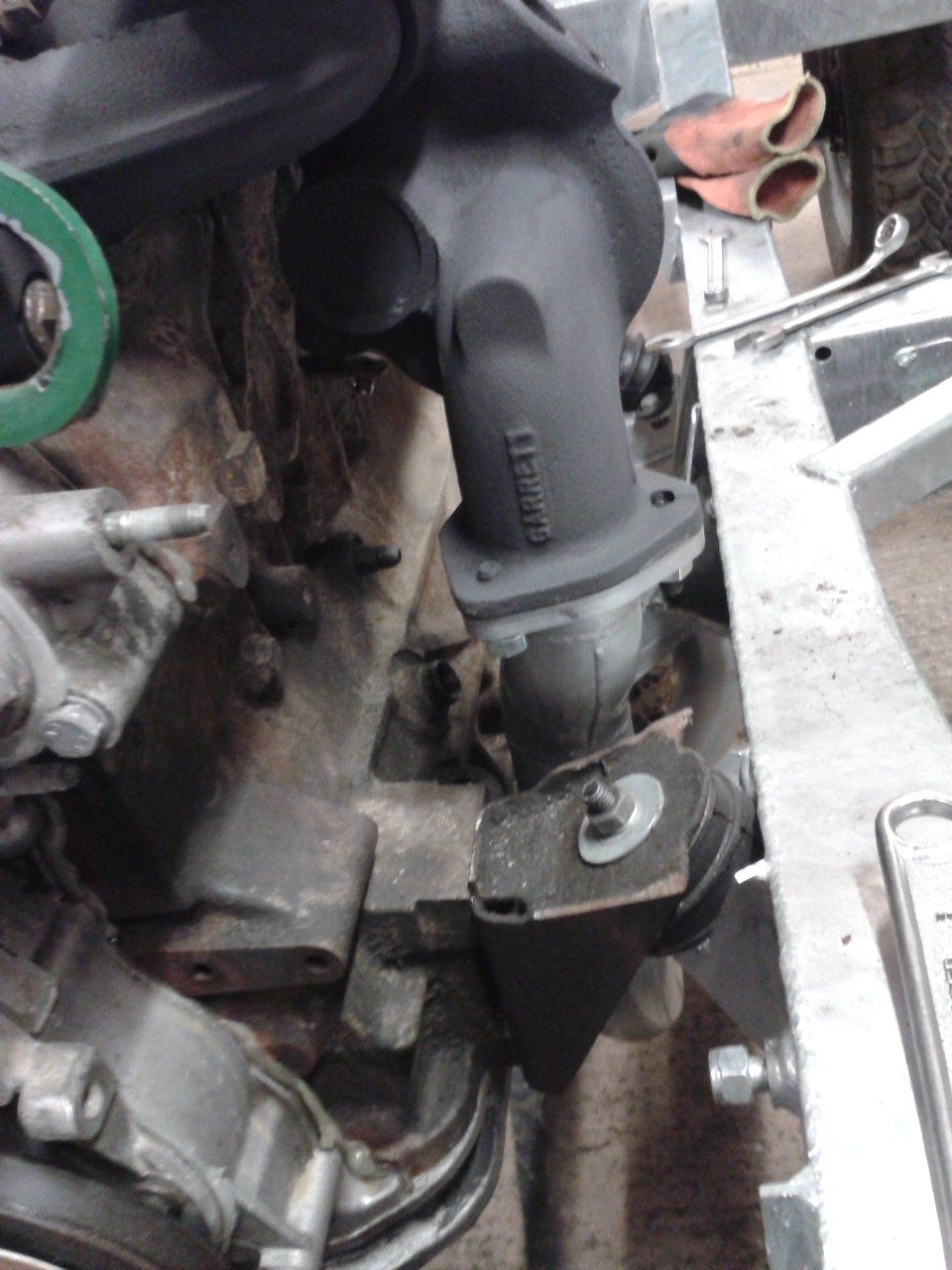

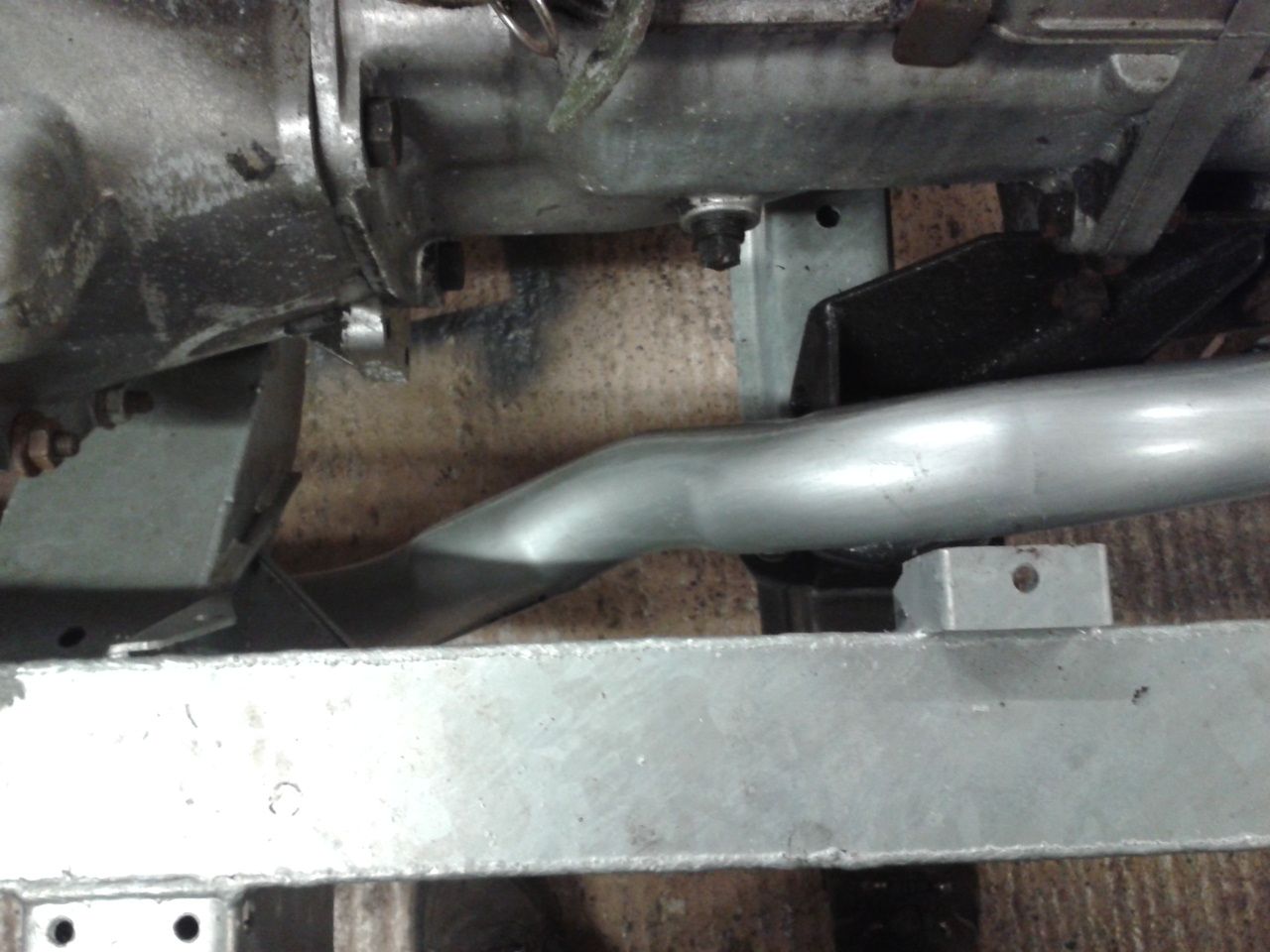

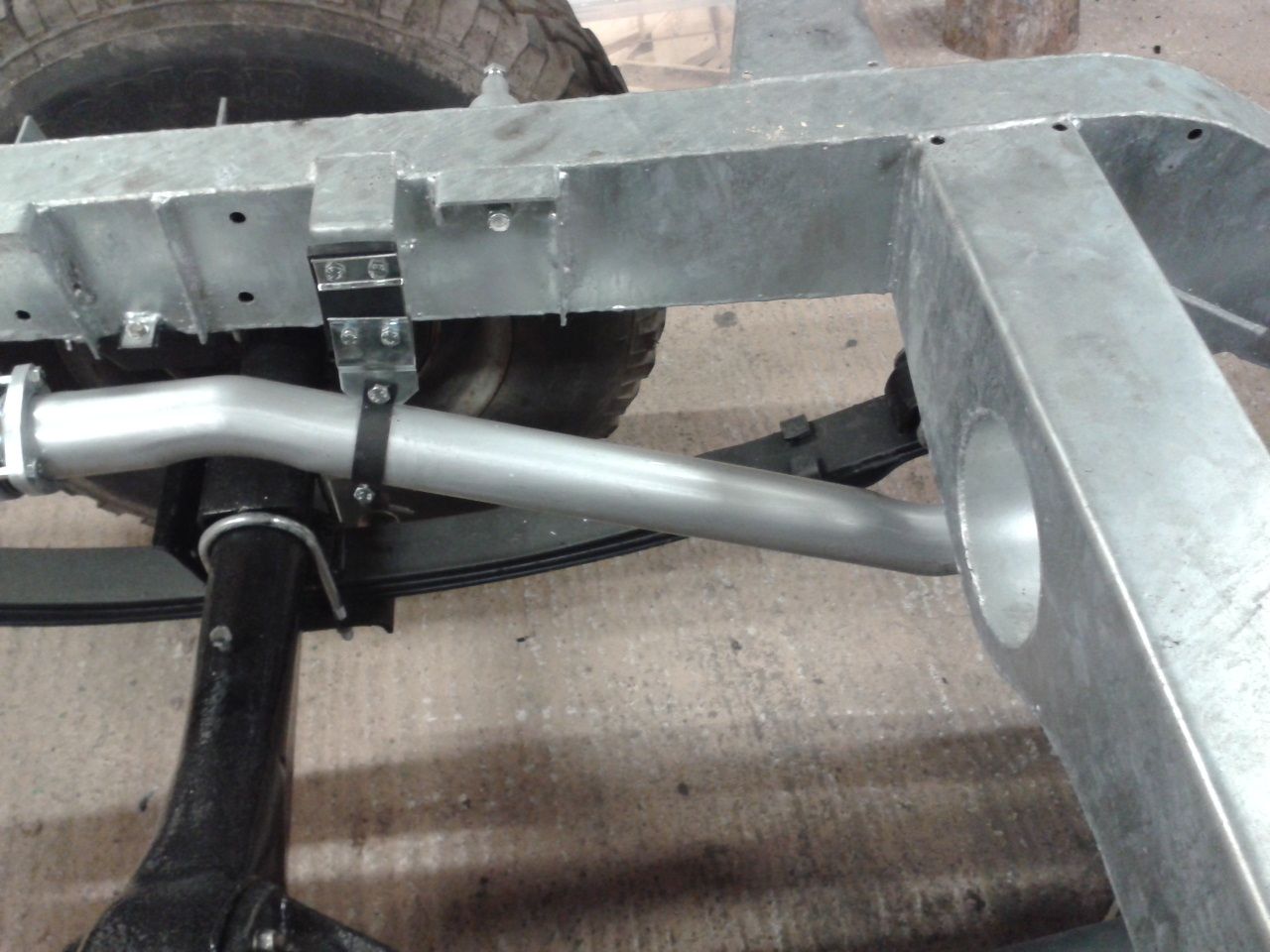

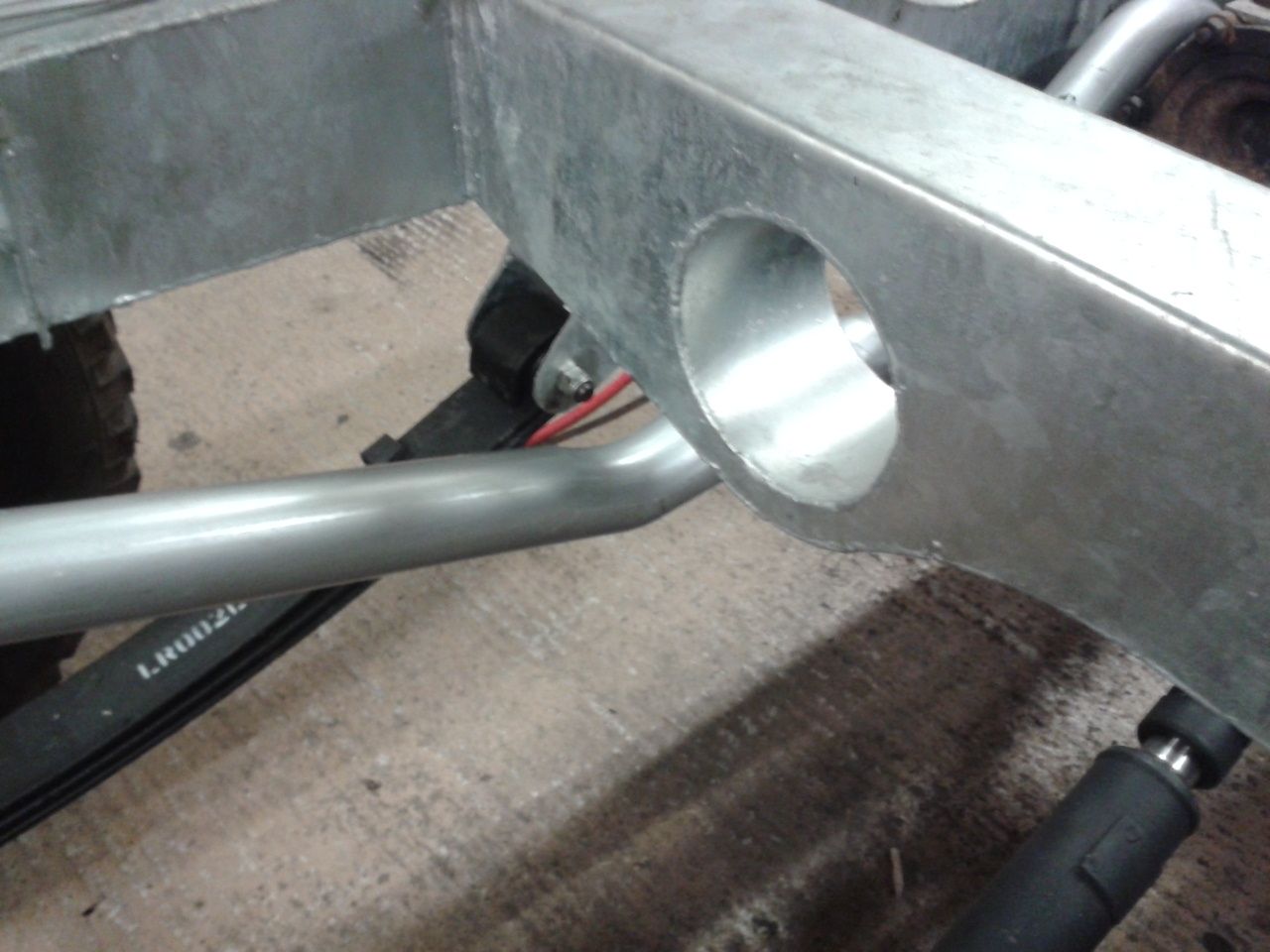

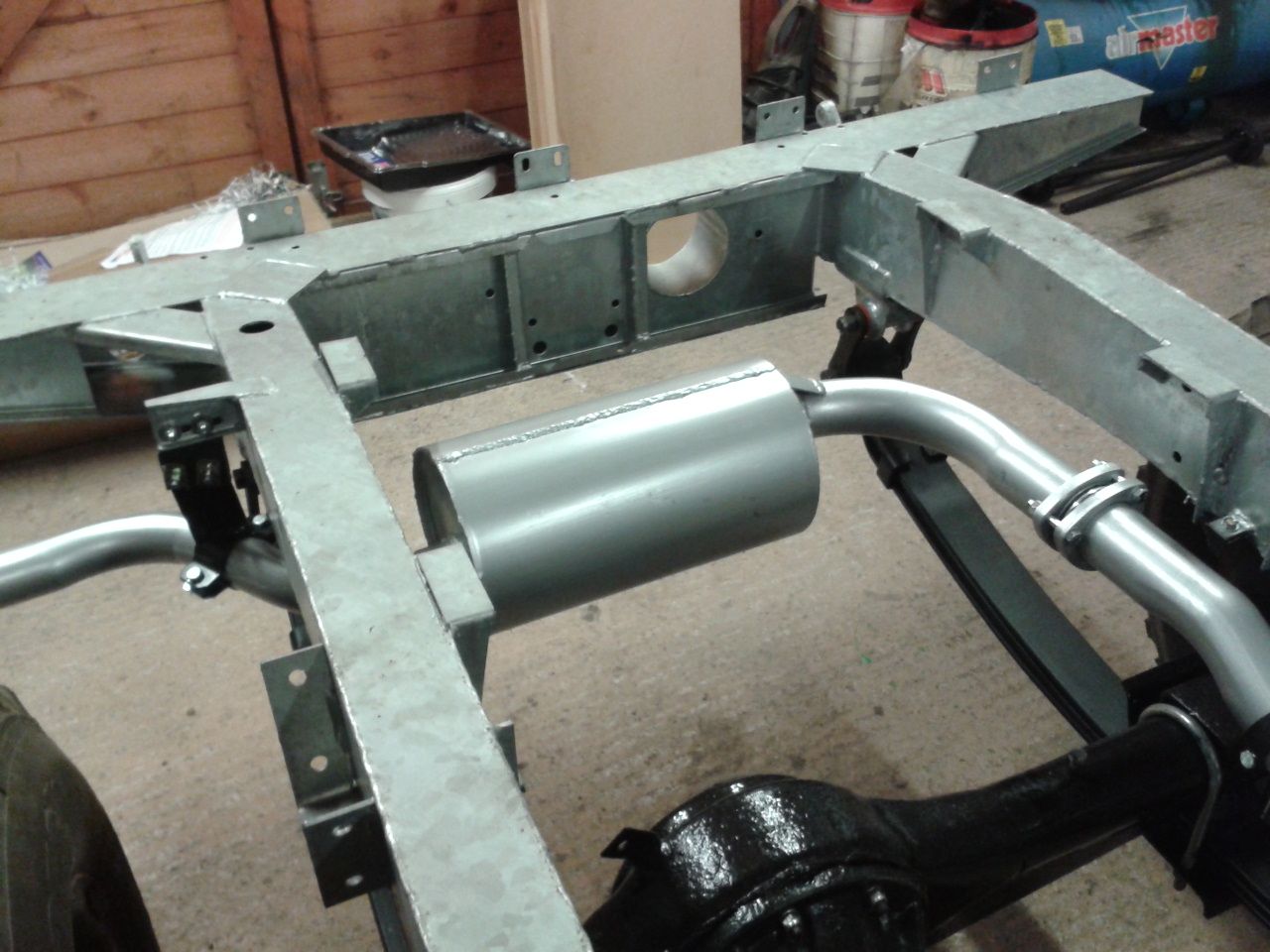

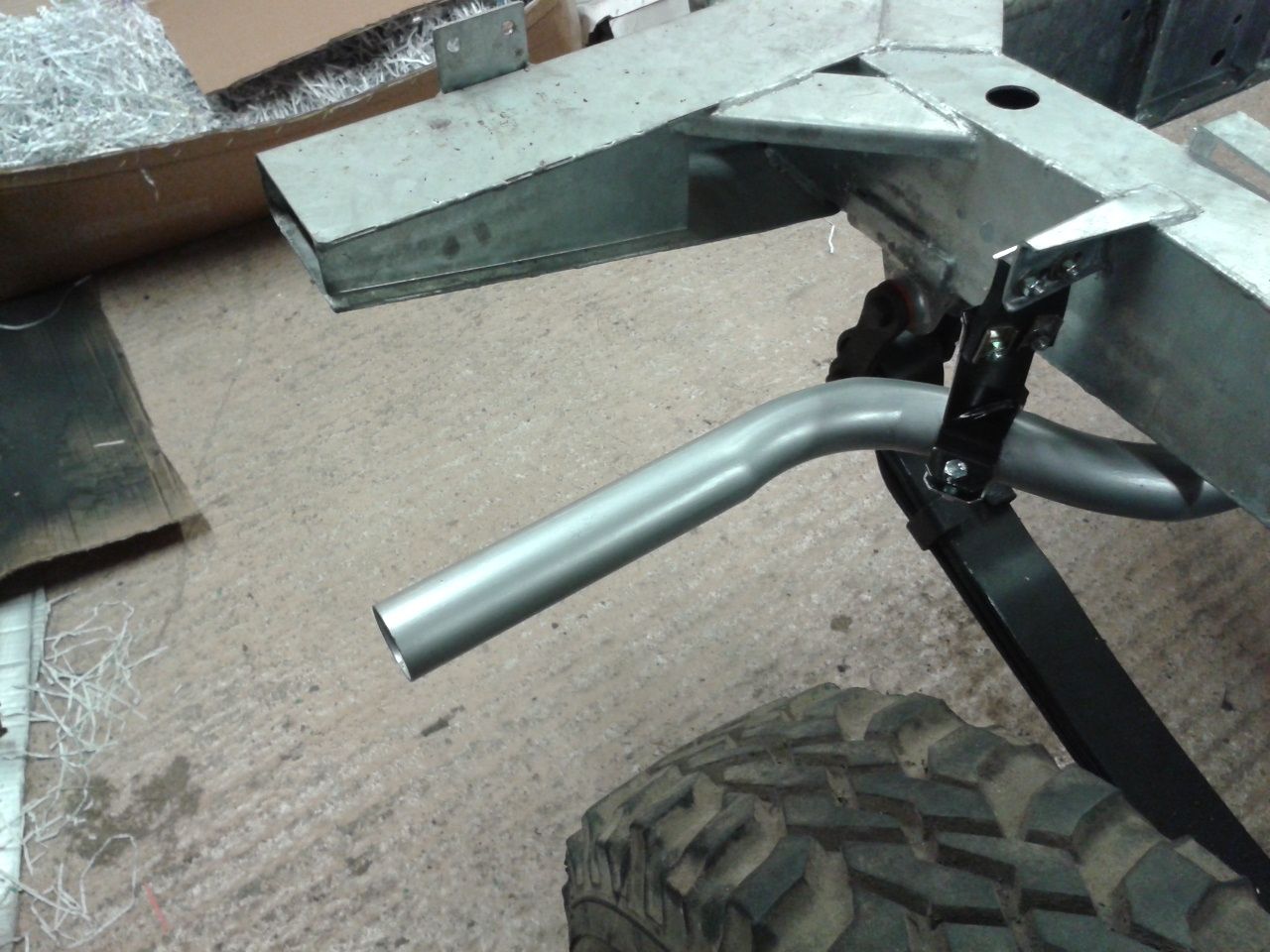

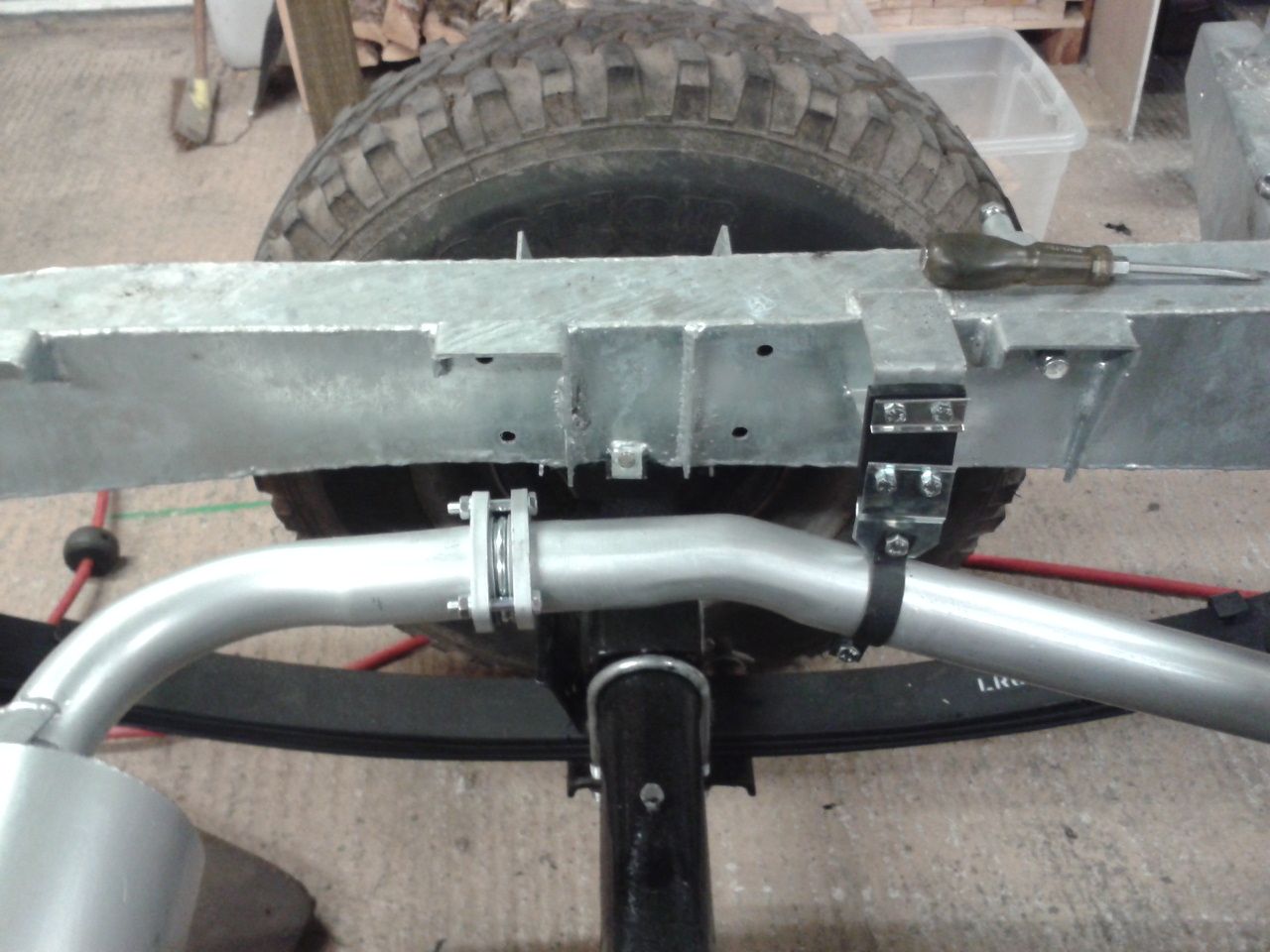

These pics are of the exhaust fitted

cornish rattler · Jan 14, 2018

A few more

cornish rattler · Jan 14, 2018

Some more I didn't realise I took so many

cornish rattler · Jan 14, 2018

The last ones sorry

blueovalcraig · Jan 14, 2018

Looks good

cornish rattler · Jan 14, 2018

Cheer's mate

cornish rattler · Jan 15, 2018

New turbo next month can't wait

Citizen Kane · Jan 15, 2018

Now is as good a time as any to check the front prop clearance where the oil drain tube from the cyclone breather is welded to the sump, I had to re position mine as there was a real danger that on full bump they would clash

cornish rattler · Jan 18, 2018

Sorry for the late reply as I don't get the chance to get on here much at the moment, anyway yeah I've checked the clearance and there is quite a bit or room between them but I will keep an eye on it but don't think there will be a problem as there wasn't with my last 200tdi 2a

cornish rattler · Jan 20, 2018

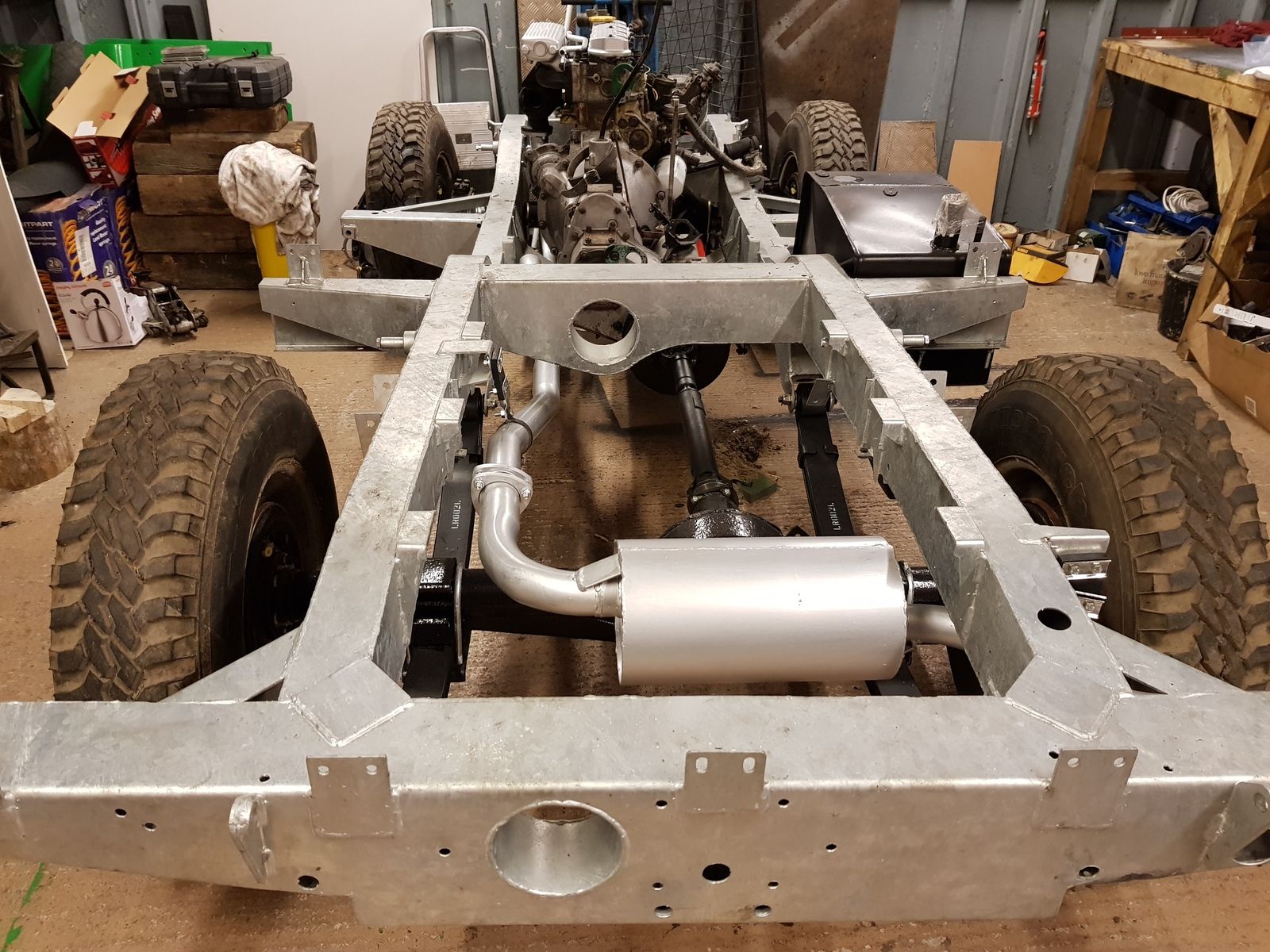

Got myself a new phone today so more and better pc's

cornish rattler · Jan 22, 2018

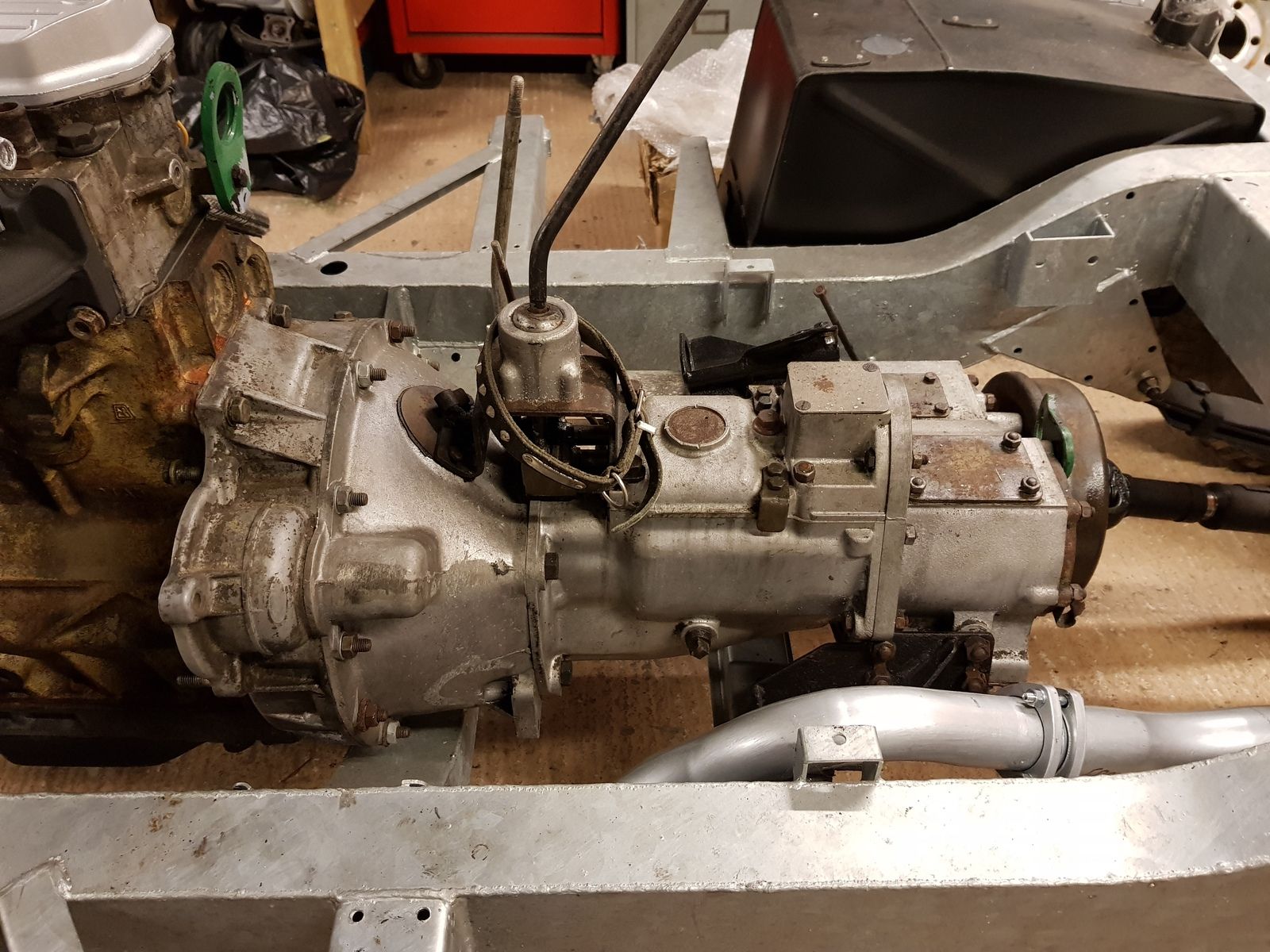

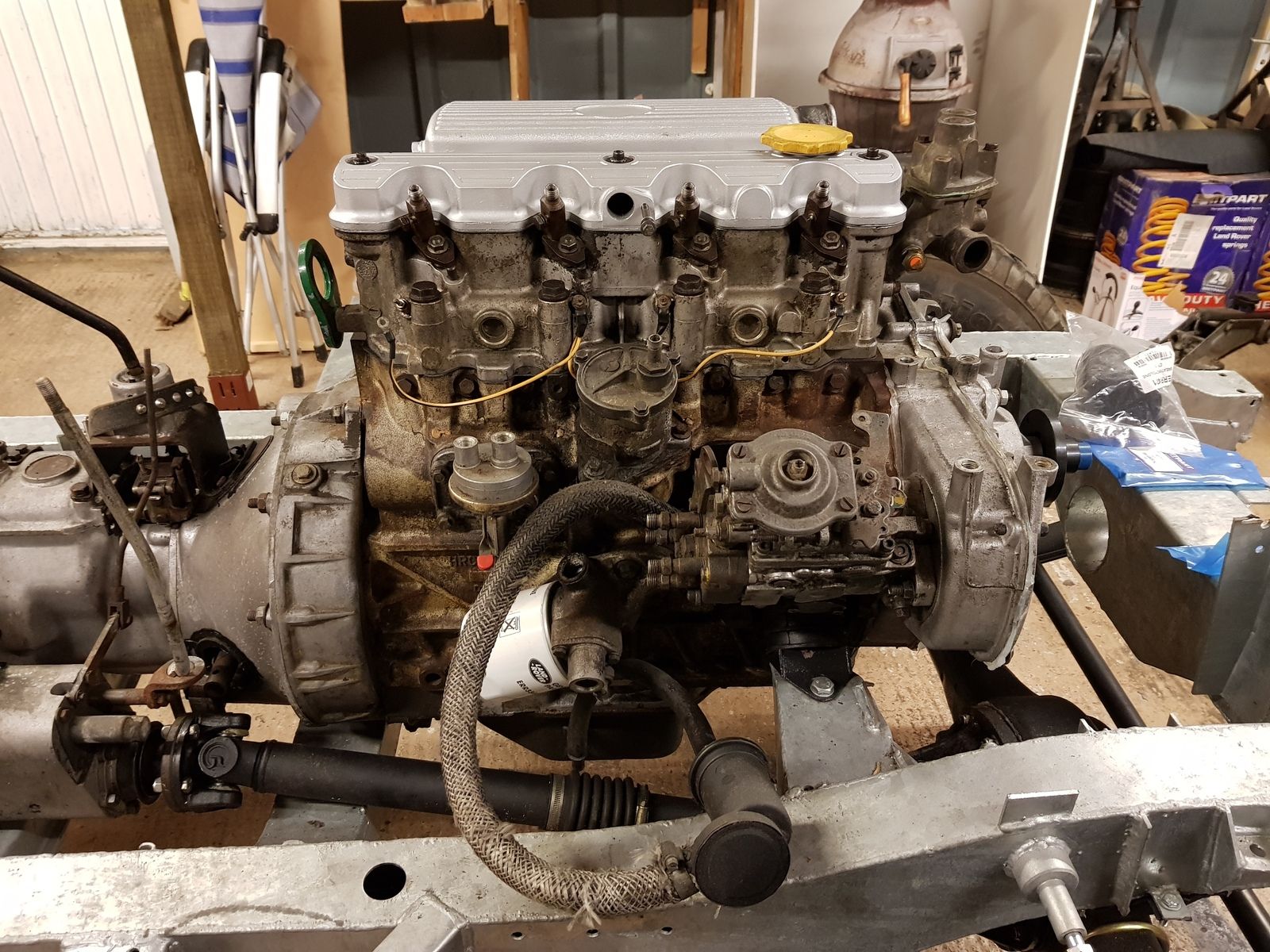

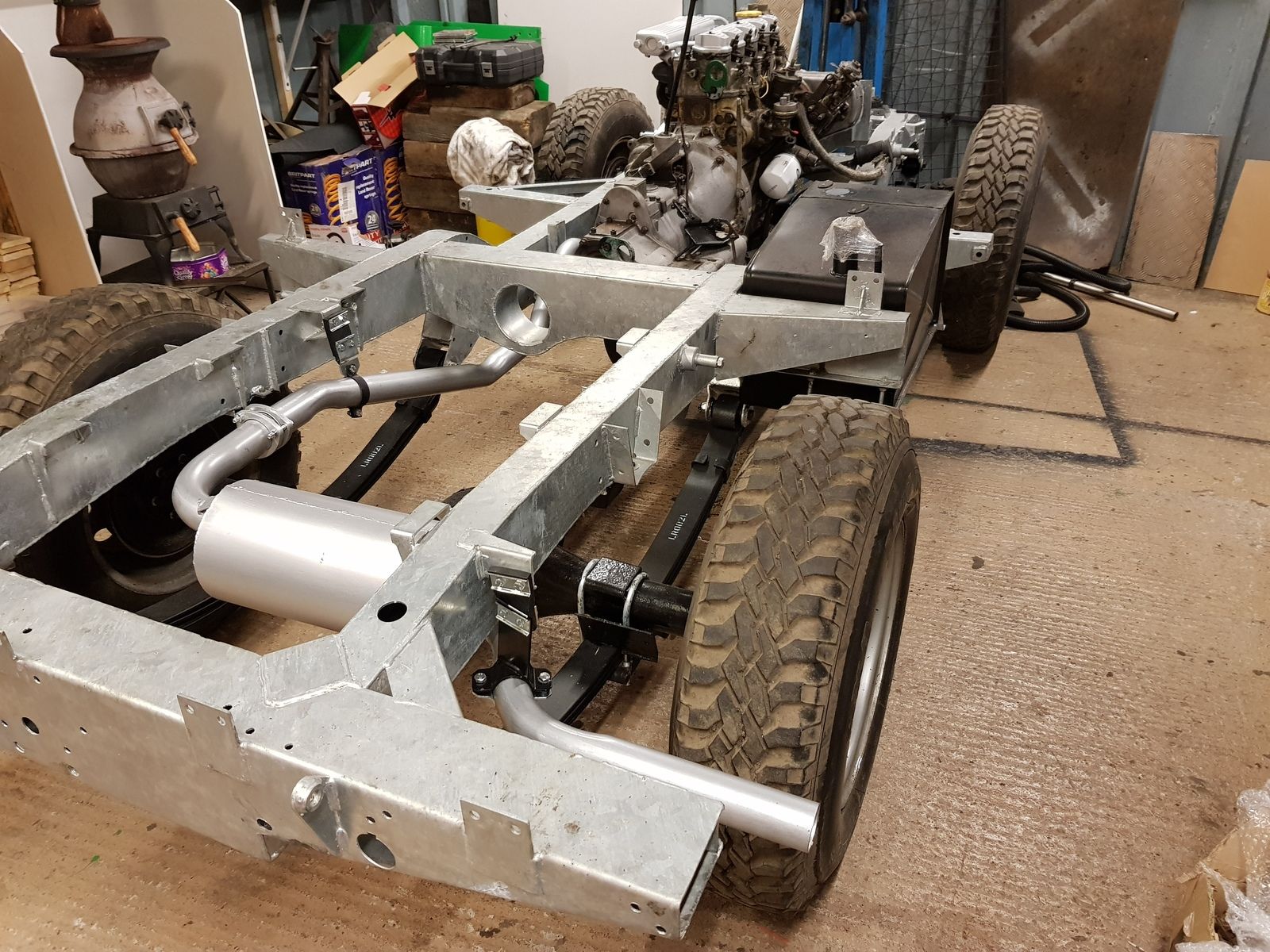

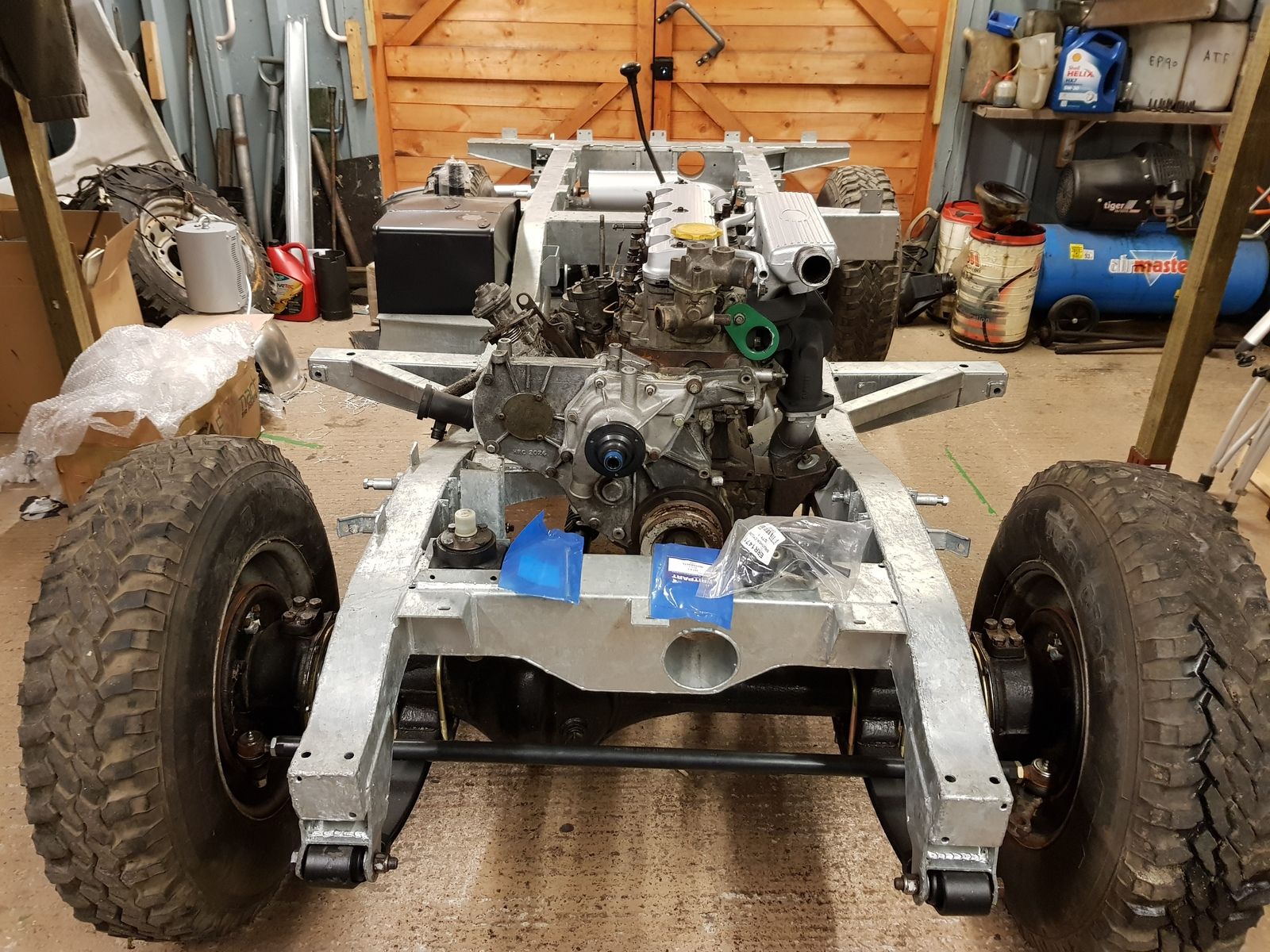

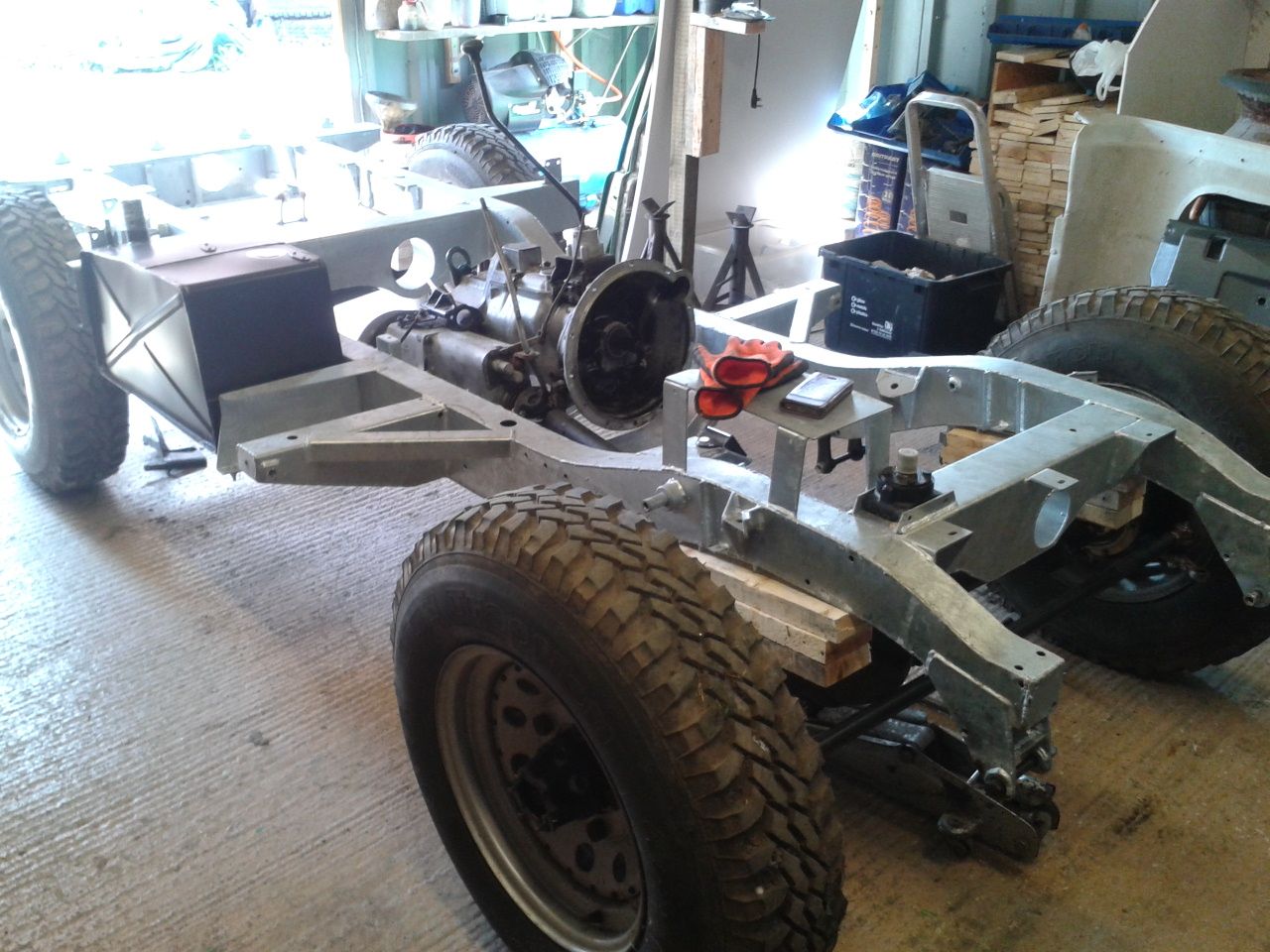

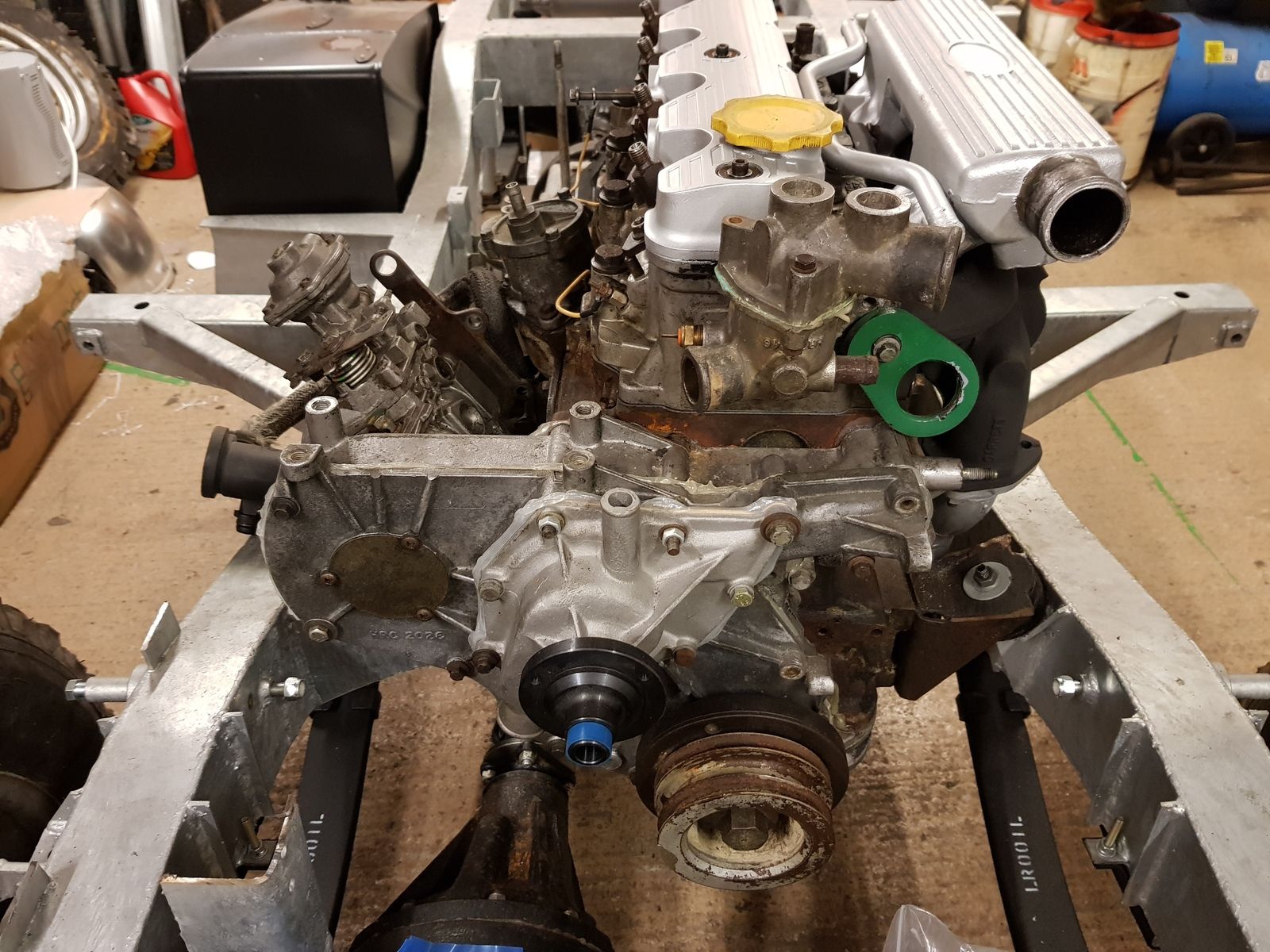

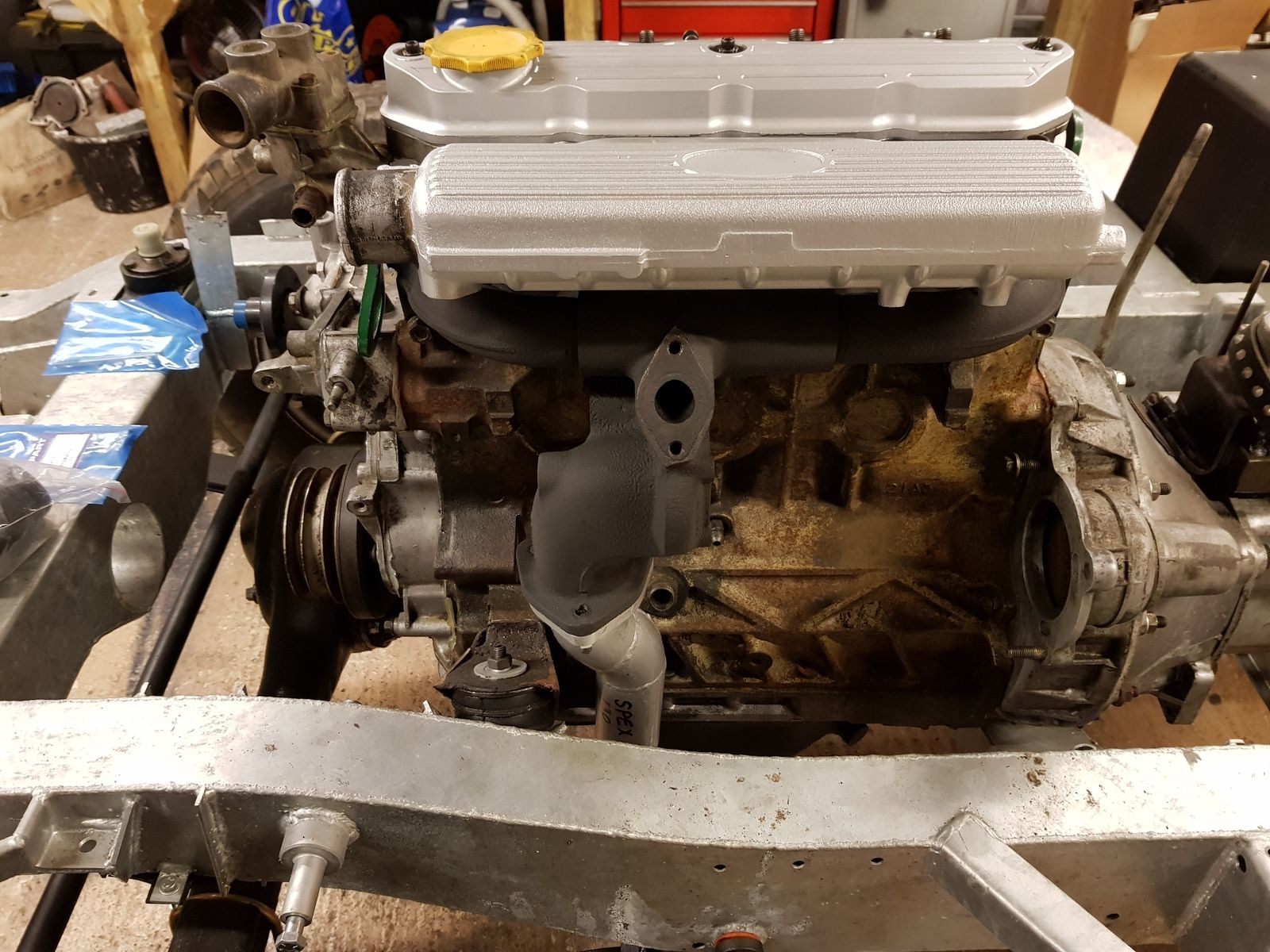

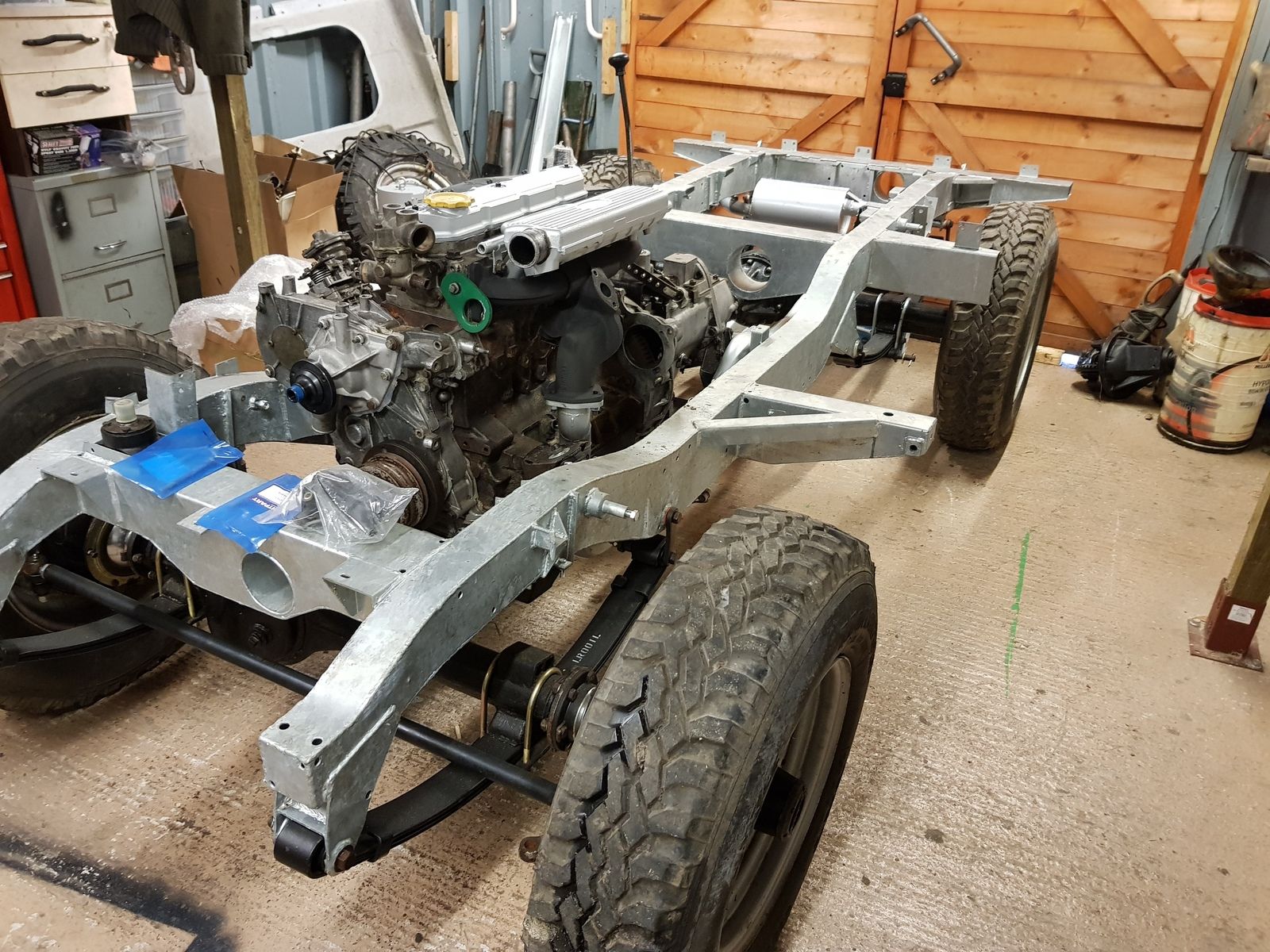

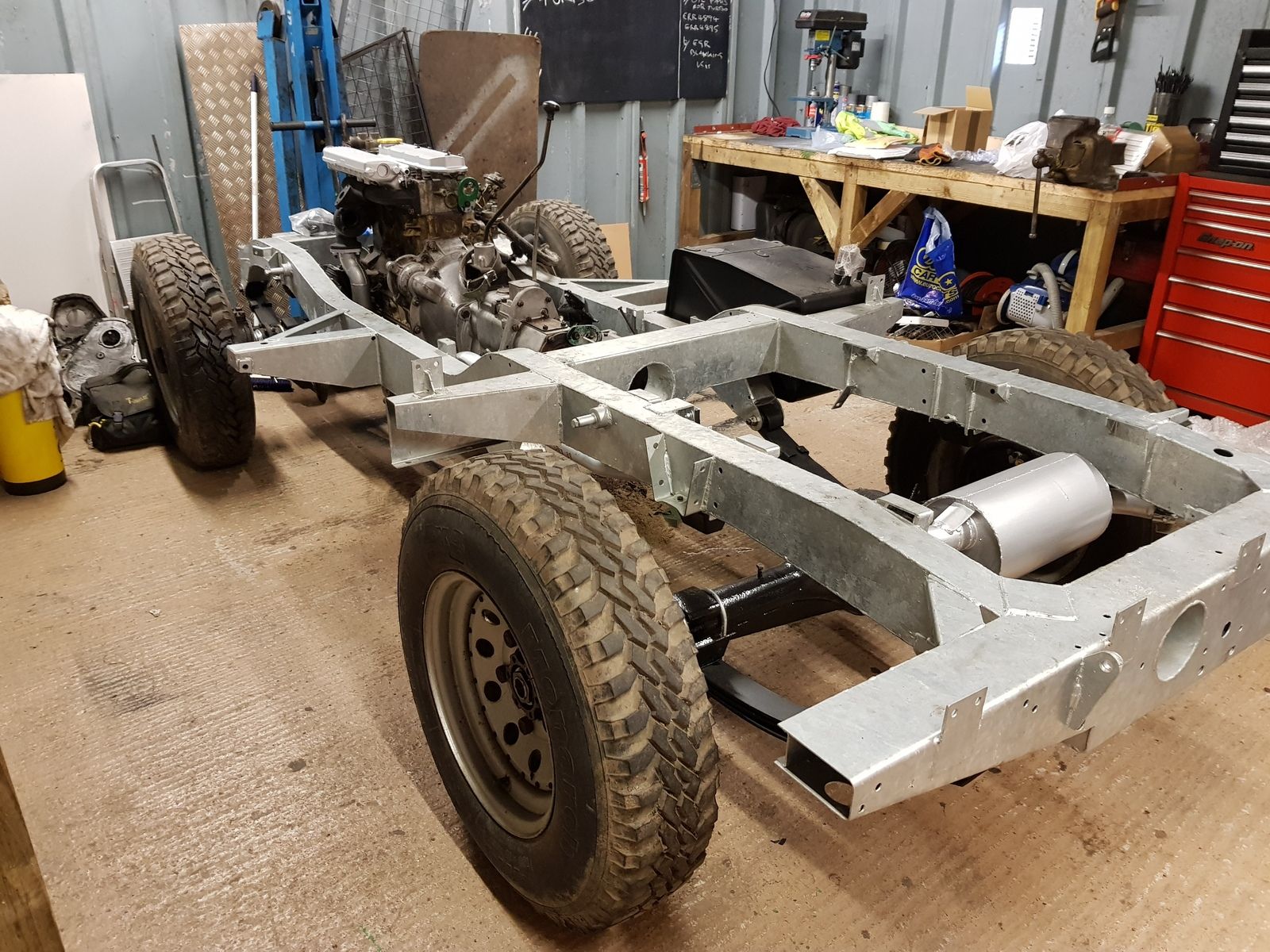

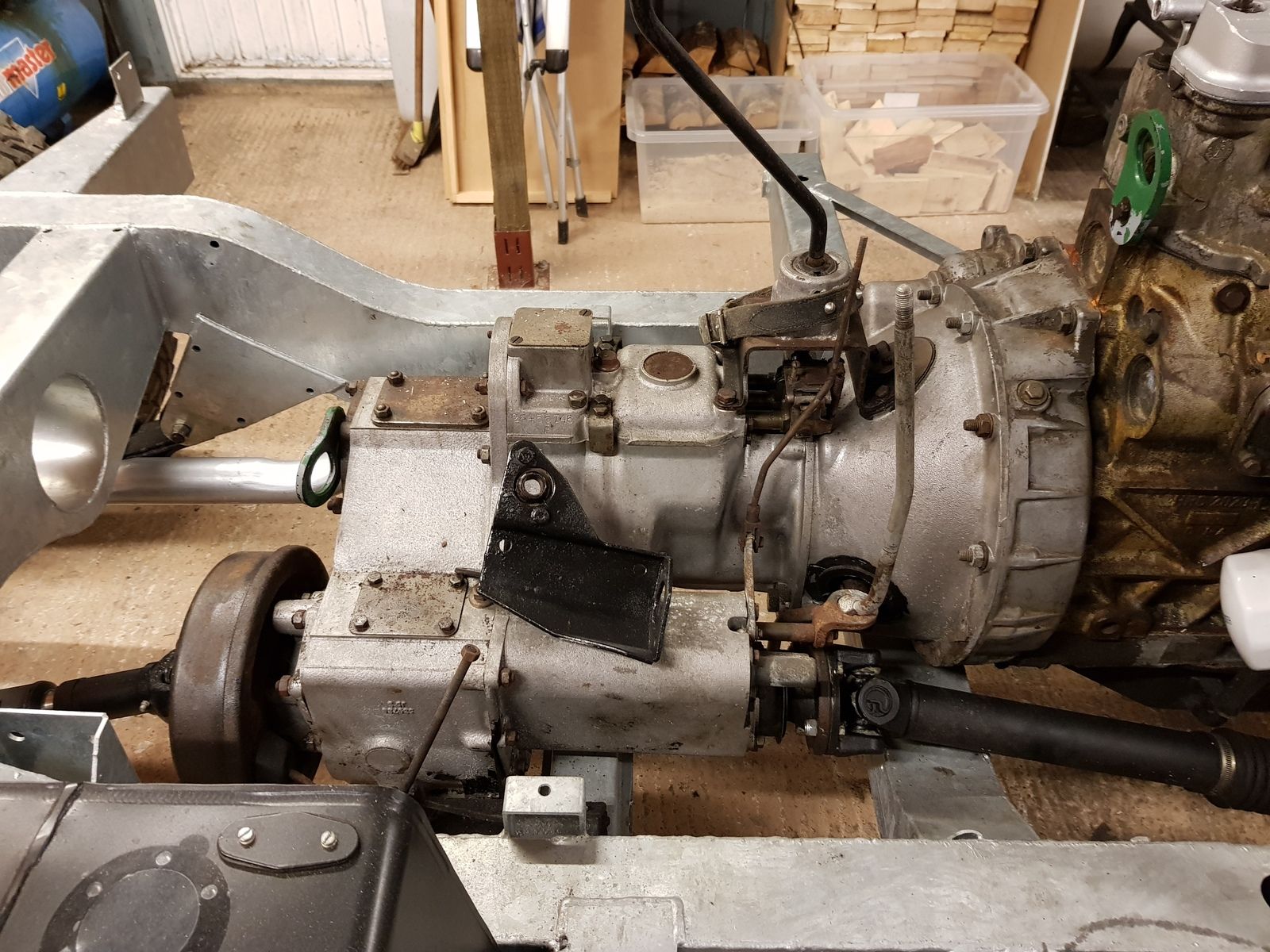

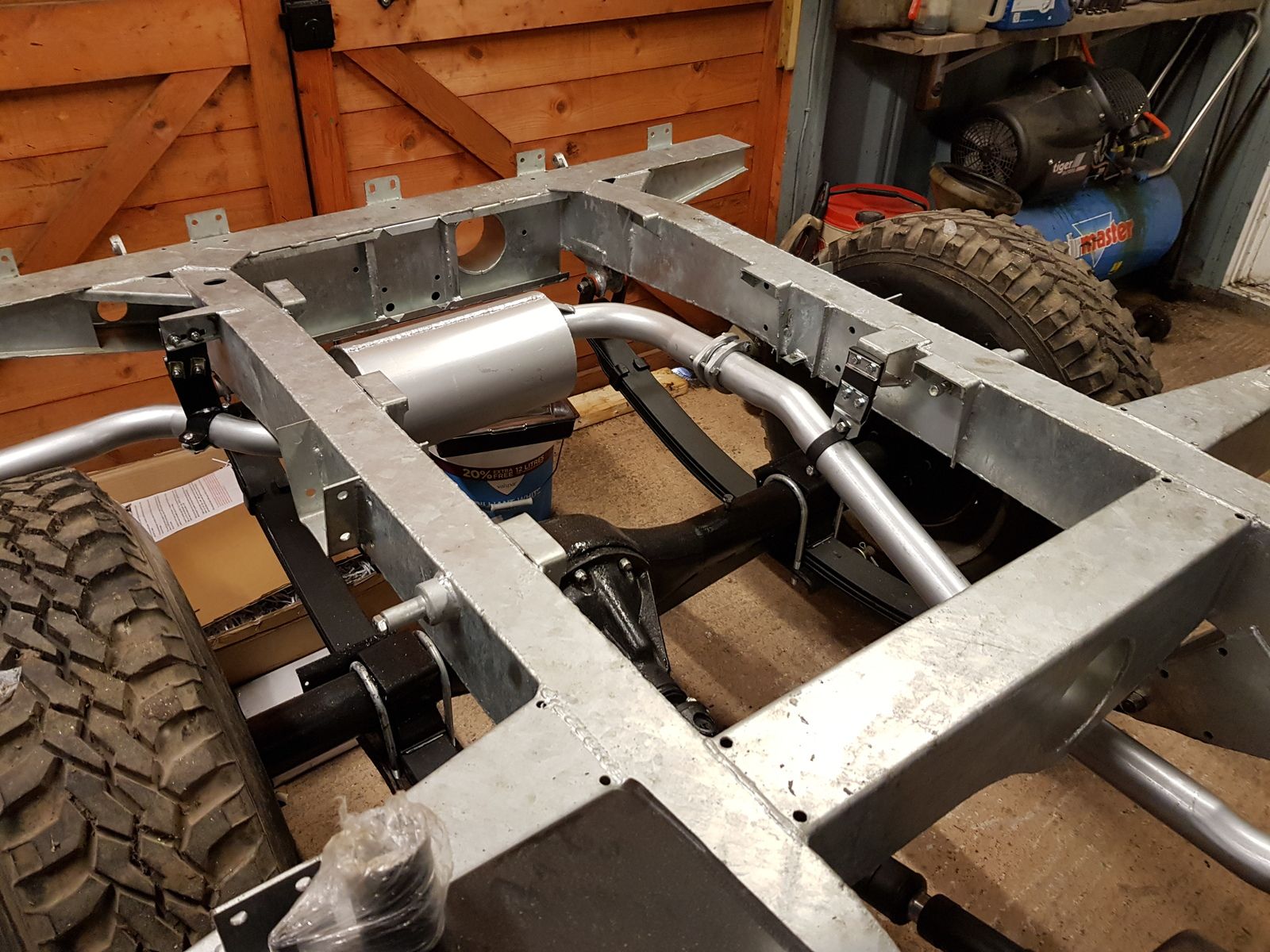

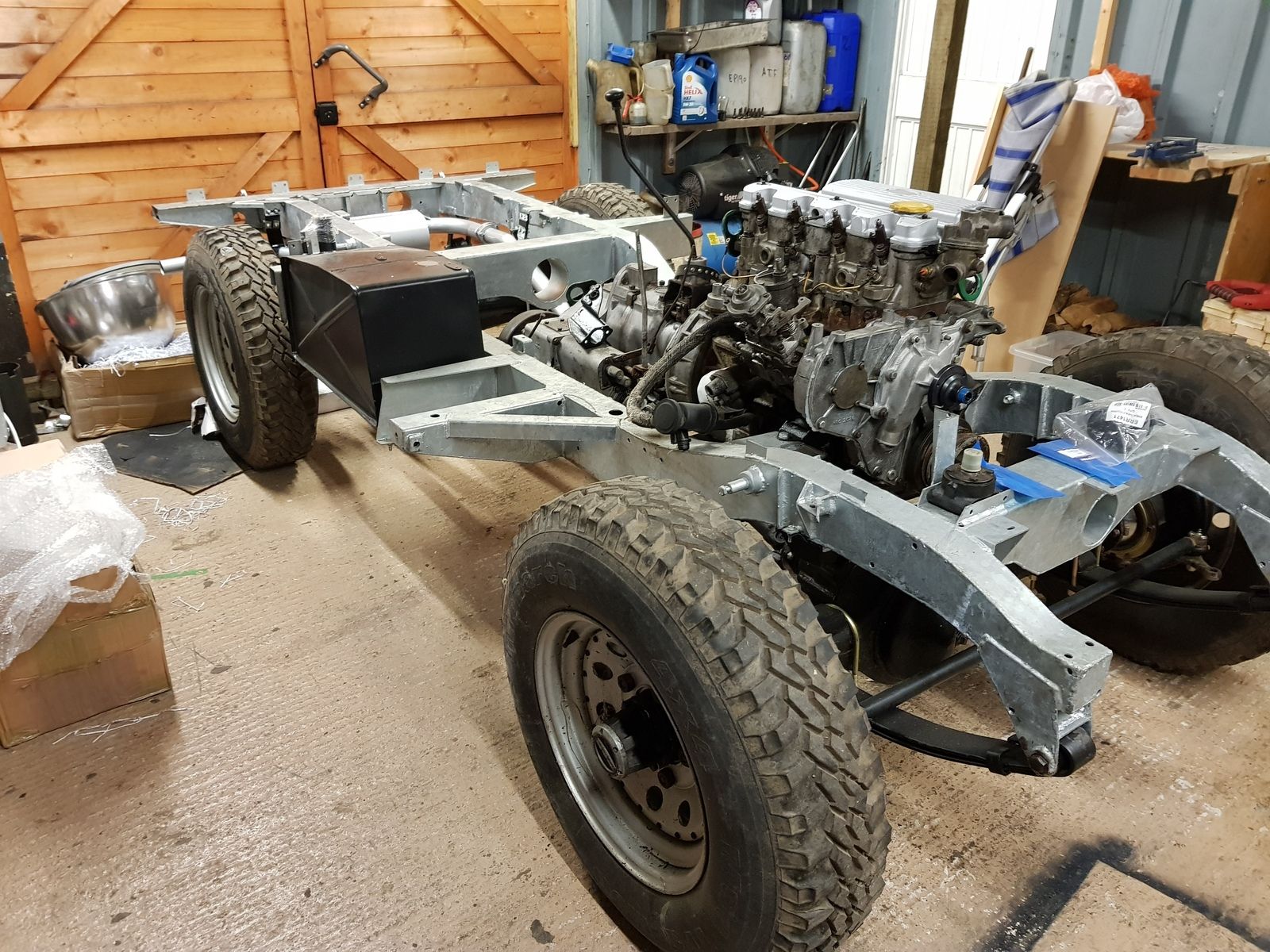

Just trying my new phone camera out

cornish rattler · Jan 22, 2018

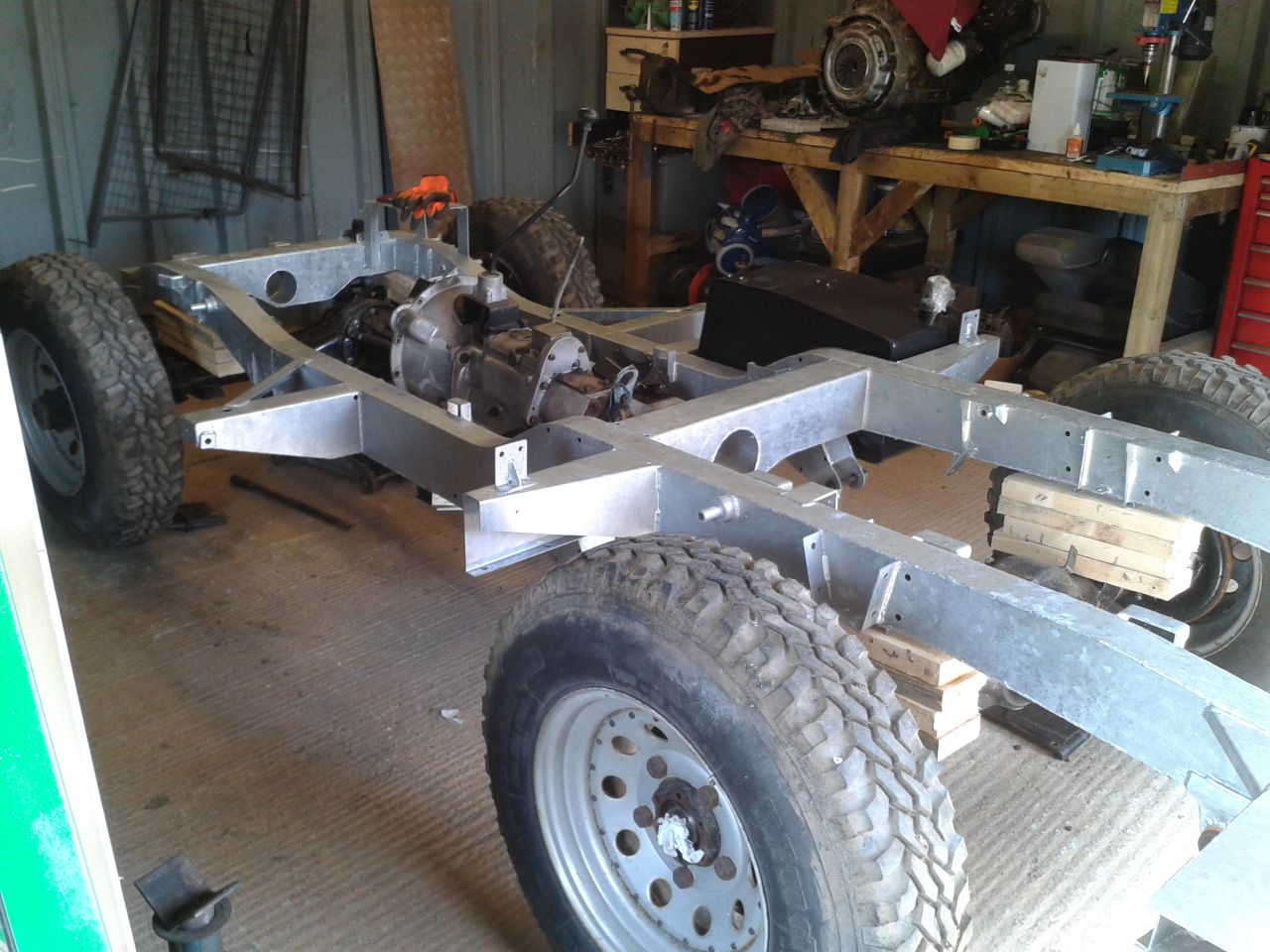

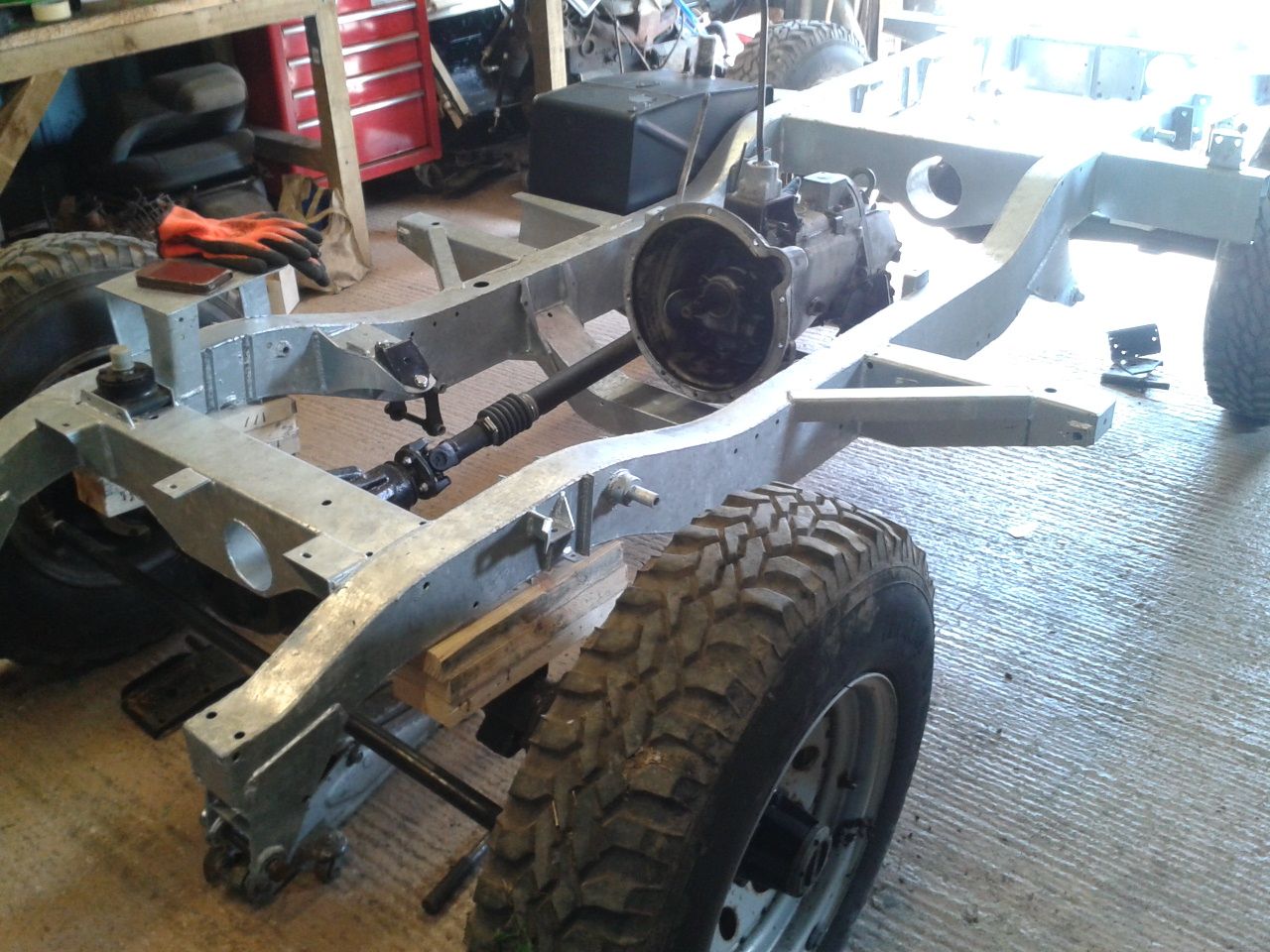

Sorry wrong pic's

LincolnSteve · Jan 23, 2018

That's looking great! Galvanized chassis are beautiful things.
Great pictures too.

cornish rattler · Jan 24, 2018

LincolnSteve said:
That's looking great! Galvanized chassis are beautiful things.
Great pictures too.

Thanks Steve
Yeah I plan to fit a galv bulkhead, galv radiator panel and new galv Capings later in the build

LincolnSteve · Jan 24, 2018

cornish rattler said:
Thanks Steve
Yeah I plan to fit a galv bulkhead, galv radiator panel and new galv Capings later in the build

Excellent. It will out live us all!

cornish rattler · Jan 24, 2018

LincolnSteve said:
Excellent. It will out live us all!

Dead right

Sting Ray · Jan 26, 2018

Porn!!!
