Hello,

not yet not sure which pins power the relay?

I did notice when I jumped the pins 30 and 87 the warning light was still on the dash ?

Hello,

not yet not sure which pins power the relay?

I did notice when I jumped the pins 30 and 87 the warning light was still on the dash ?

The other ones;), The warning will stay on as you are sort of bypassing the “problem”.

You need to look at the ETM to see what prerequisites are needed to trigger the pump. Probably the pressure switch? (Guess)

As said get your meter and the elec diagram:).

Top of me head I don’t know, and don’t have access to ETM at this time.

J

Have a look :).

J


Attachments

  • P38 ABS 2.pdf
    667.8 KB · Views: 151
  • P38 ABS.pdf
    130.3 KB · Views: 124
Thank you for this, are you suggesting I shut the system down? If so how is this done?
Kind regards

Dean

Ok I just used the meter,

pin 87 to pin 30 12.9 volts pin 87 to 26 12.9 volts and pin 87 to 85 0 volts

Is that ref to 26 a typo? should it read 86? if so then I am guessing that you have power to the relay "switch side" . Your test 87 to 85 proves nothing.

You need to test 85 continuity to ground, as you can see it goes through a few connectors and the pressure switch to get to ground. So its a process of working your way along that line to find the break/****ty connection/ or faulty component.


Test for voltage on the correct meter setting then red probe the pin then black probe to earth do this again for 86(26) probably need ignition on to test. Should show battery voltage.
Testing for ground continuity with ignition off, you are testing the state of the line not the voltage.

J



Attachments

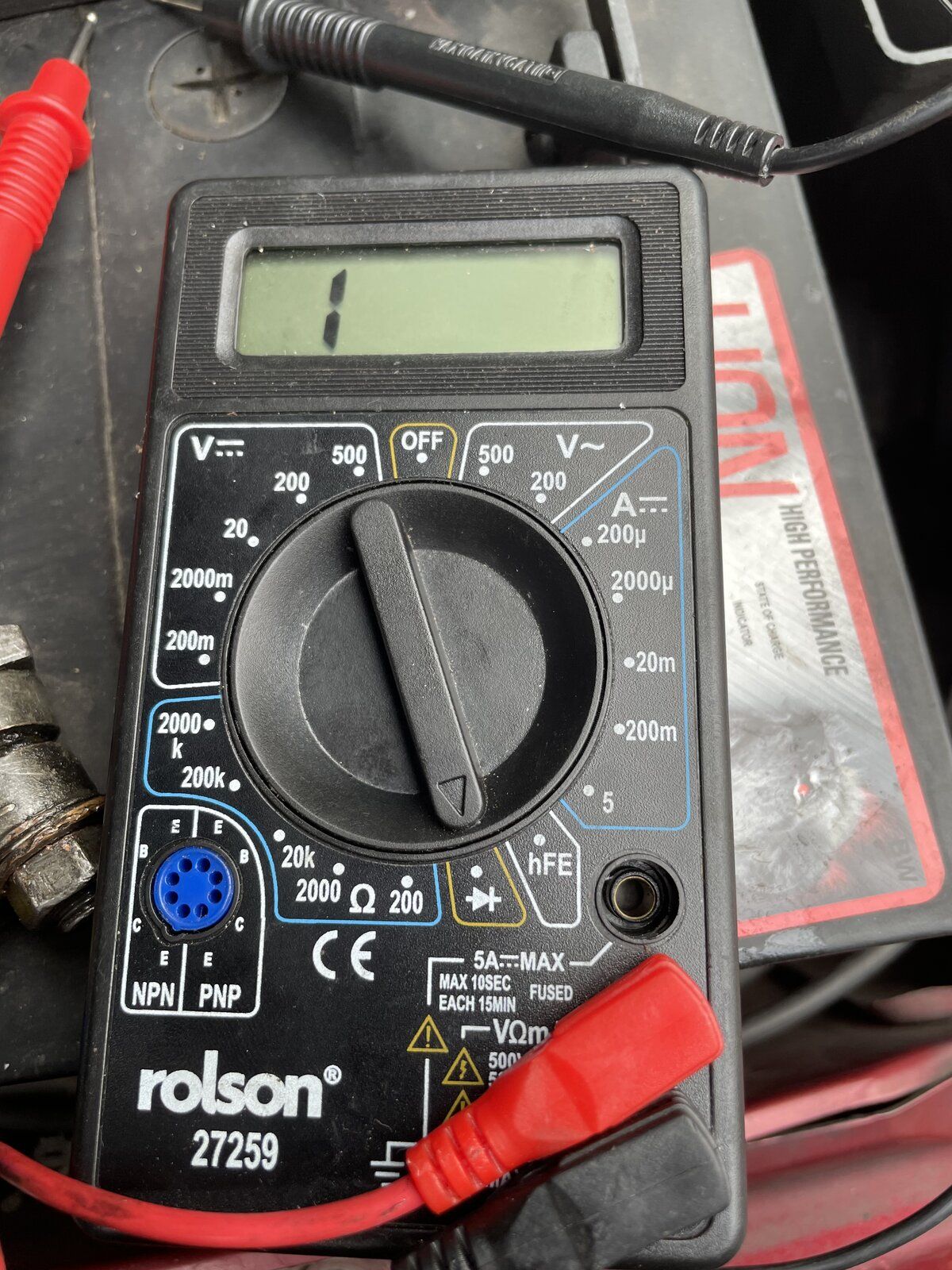

  • 99A7800D-DF01-4FAA-932D-8A0C30FB583A.jpeg
    356.6 KB · Views: 72
If you connect the probes together, the display should read zero, is that what you get?
If that is so, then when you connect from 85 to ground, it should also read zero.
It's likely that the connector for the relay is damaged if the relay smelt of burning
