David Leech
Well-Known Member
.....Looks like I might have been a bit previous with the lower dash
I don't know, if you fit the gauges "backing panel/shroud" first. I'd say you're ok to fit that stiffener bracket then.....
I don't know, if you fit the gauges "backing panel/shroud" first. I'd say you're ok to fit that stiffener bracket then.....
Just when I think I am making progress....Cash kicks back!
Was pretty happy with the way the dash ended up:
Until I started looking at the engine bay wiring:
and yes, I have left 4 wires on the wrong side!
AAARRRGGGGHHHHHH!!!!!
The I found that the new clutch slave is ****ing fluid all down the connecting rod!
And then I moved onto bleeding the brakes - got a surprisingly good pedal...until I worked out that the the rear flexi is blocked solid.
Was pretty happy with the way the dash ended up:
Until I started looking at the engine bay wiring:
and yes, I have left 4 wires on the wrong side!
AAARRRGGGGHHHHHH!!!!!
The I found that the new clutch slave is ****ing fluid all down the connecting rod!
And then I moved onto bleeding the brakes - got a surprisingly good pedal...until I worked out that the the rear flexi is blocked solid.

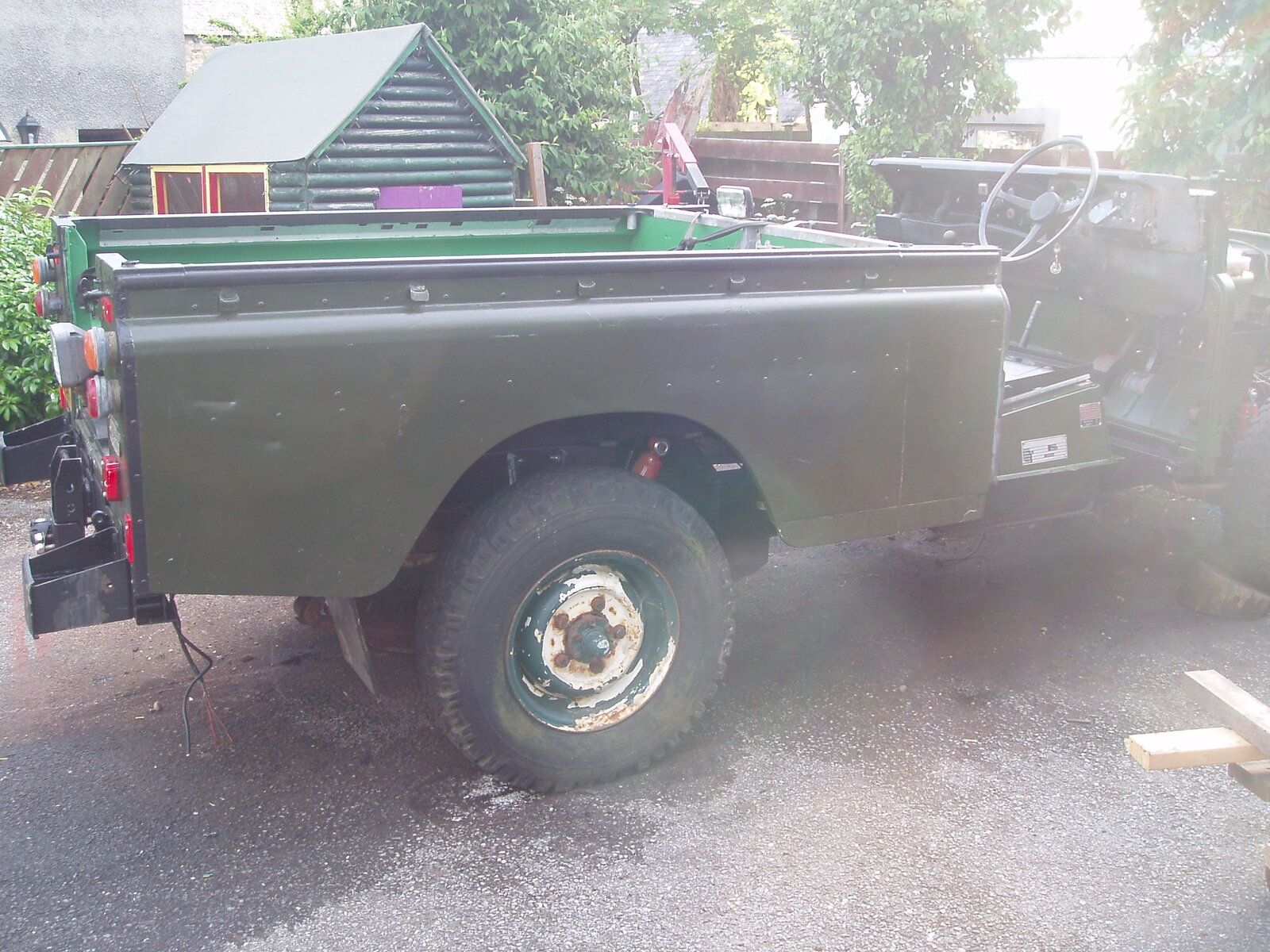

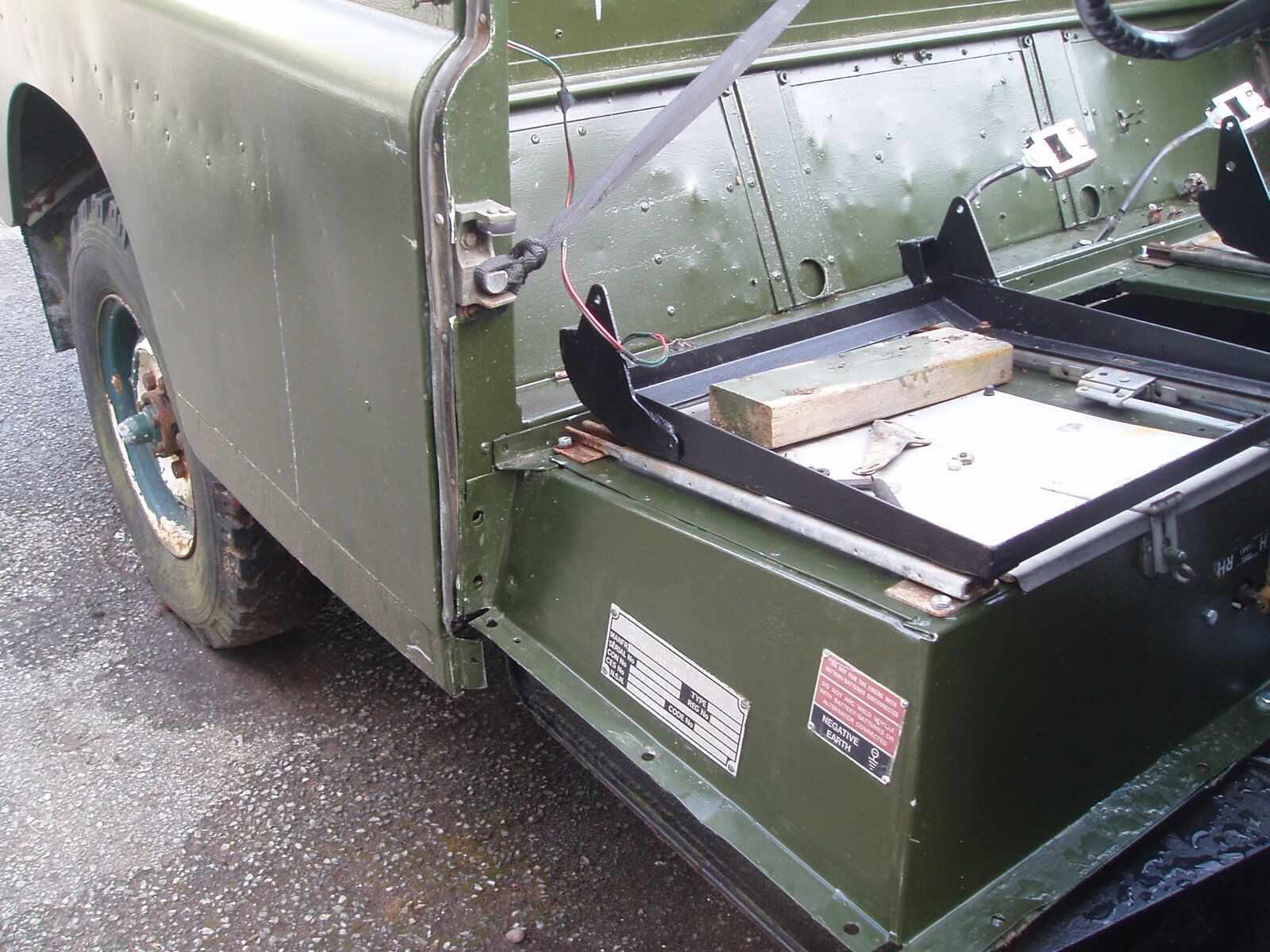

29 nuts, bolts and washers later...tub is attached!
Does anyone put a seal or sealant between the tub and the seatbox? I might revisit this later.

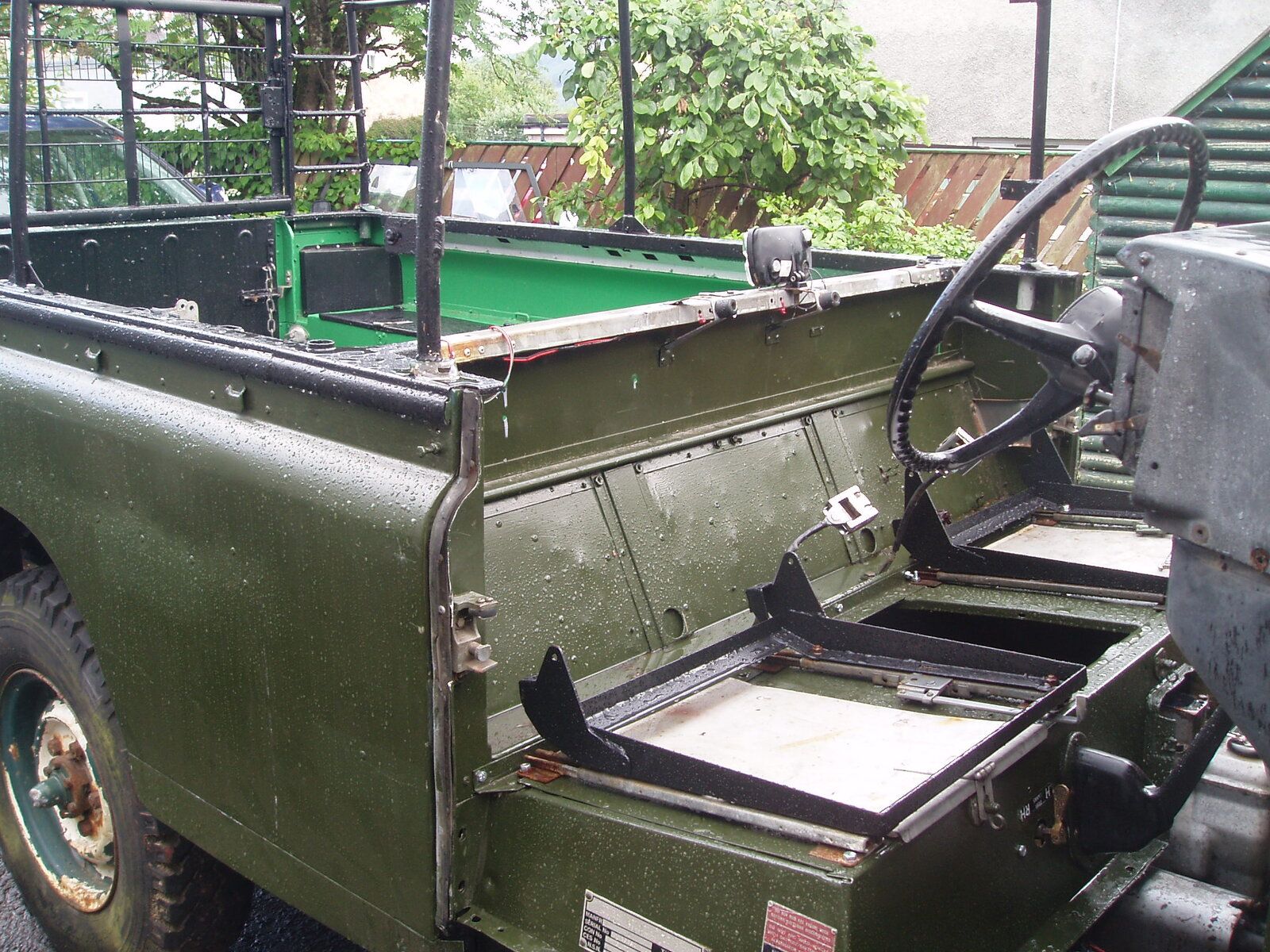

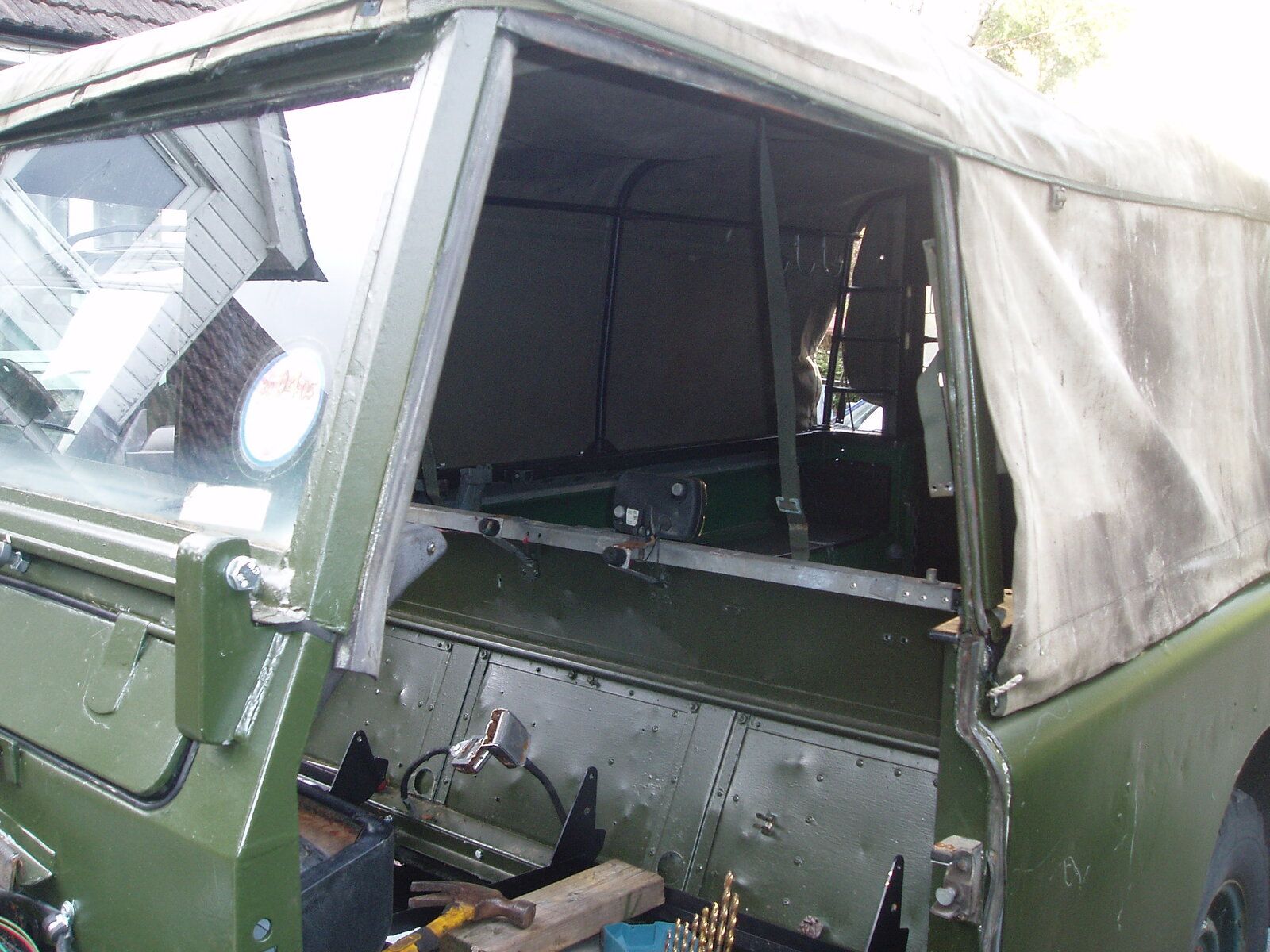

Then on with the hoops:
Heater pipe also fitted:
2 Problem issues:
The hinge bolts for the windscreen - they are listed as 346989 - but these seem a little short?? (Also why do they come as a set of 5 ????)

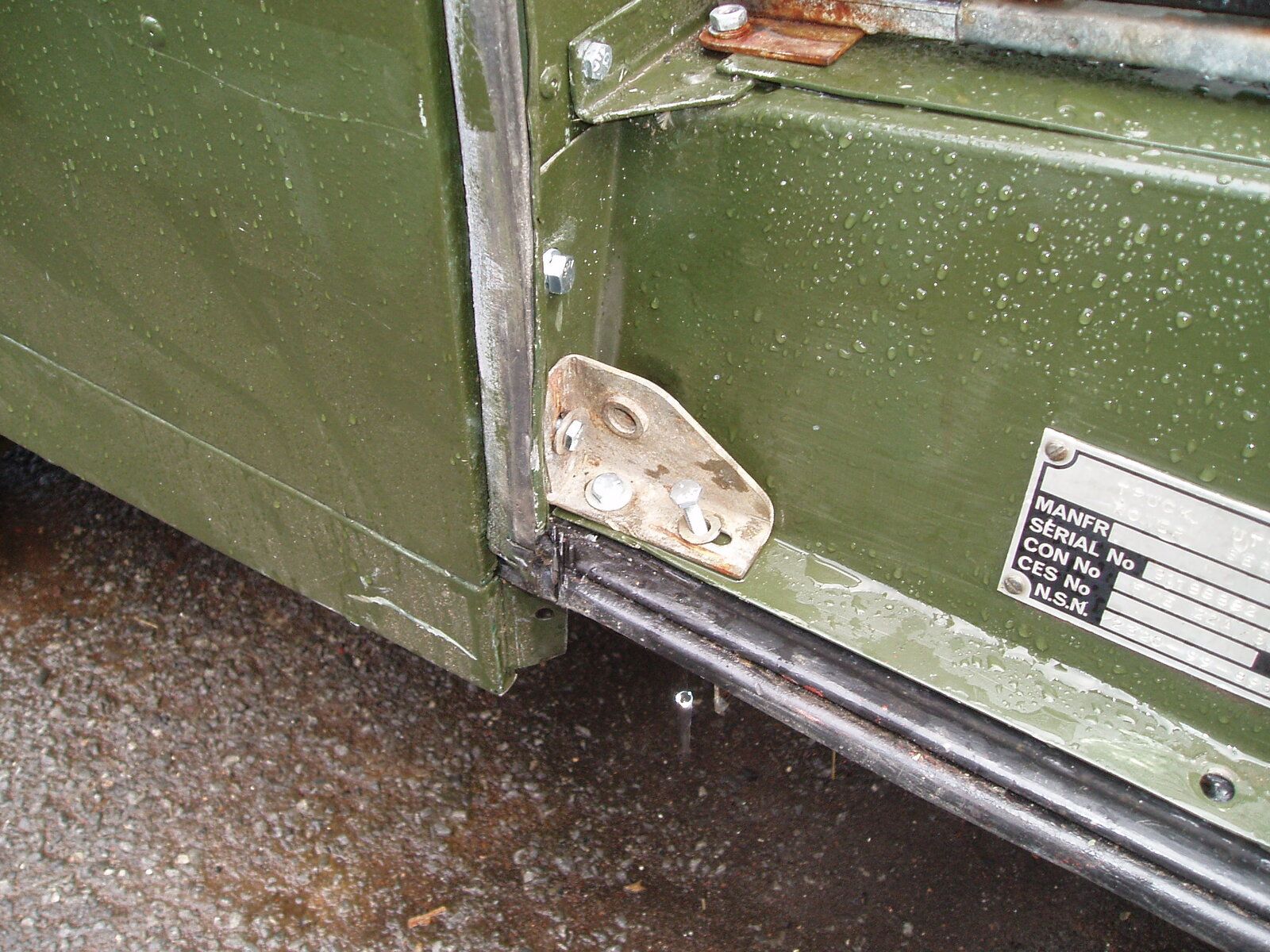

and: guess who has misplaced the Nearside version of this??
and yes, it has rained here most of the day
Does anyone put a seal or sealant between the tub and the seatbox? I might revisit this later.
Then on with the hoops:
Heater pipe also fitted:
2 Problem issues:
The hinge bolts for the windscreen - they are listed as 346989 - but these seem a little short?? (Also why do they come as a set of 5 ????)
and: guess who has misplaced the Nearside version of this??
and yes, it has rained here most of the day

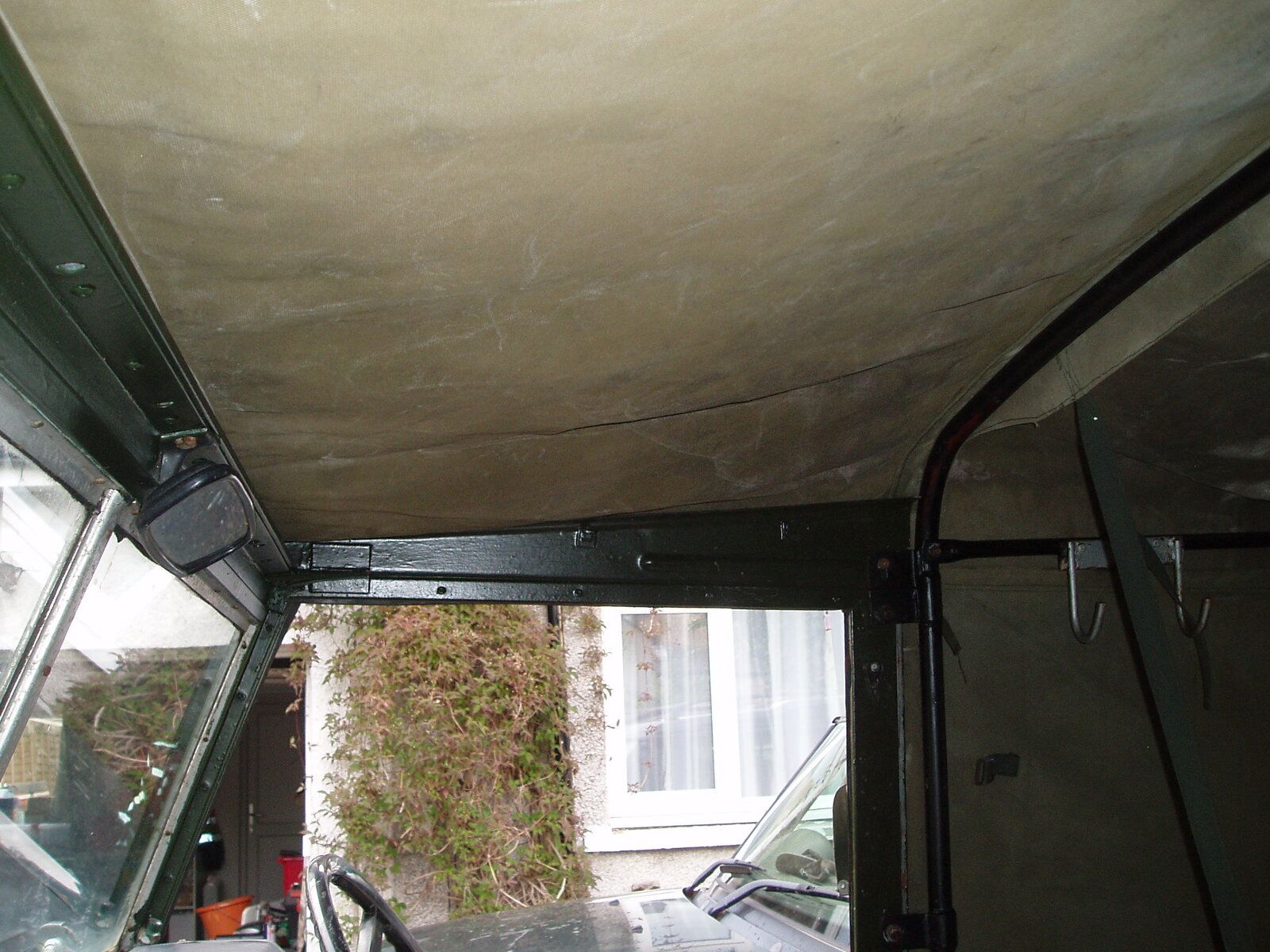

Be able to work out the rain now
Be able to work out the rain now
Well...kinda...sorta....the old canvas is pretty porous. I have a new one, just not got it out of the box yet
Well...kinda...sorta....the old canvas is pretty porous. I have a new one, just not got it out of the box yet
A wise man once told me Rome wasn’t built in a day
A wise man once told me Rome wasn’t built in a day
but I am sure the Opposition claimed that it could have, should have, been
liliana fox
Active Member
Wiring issues!!!

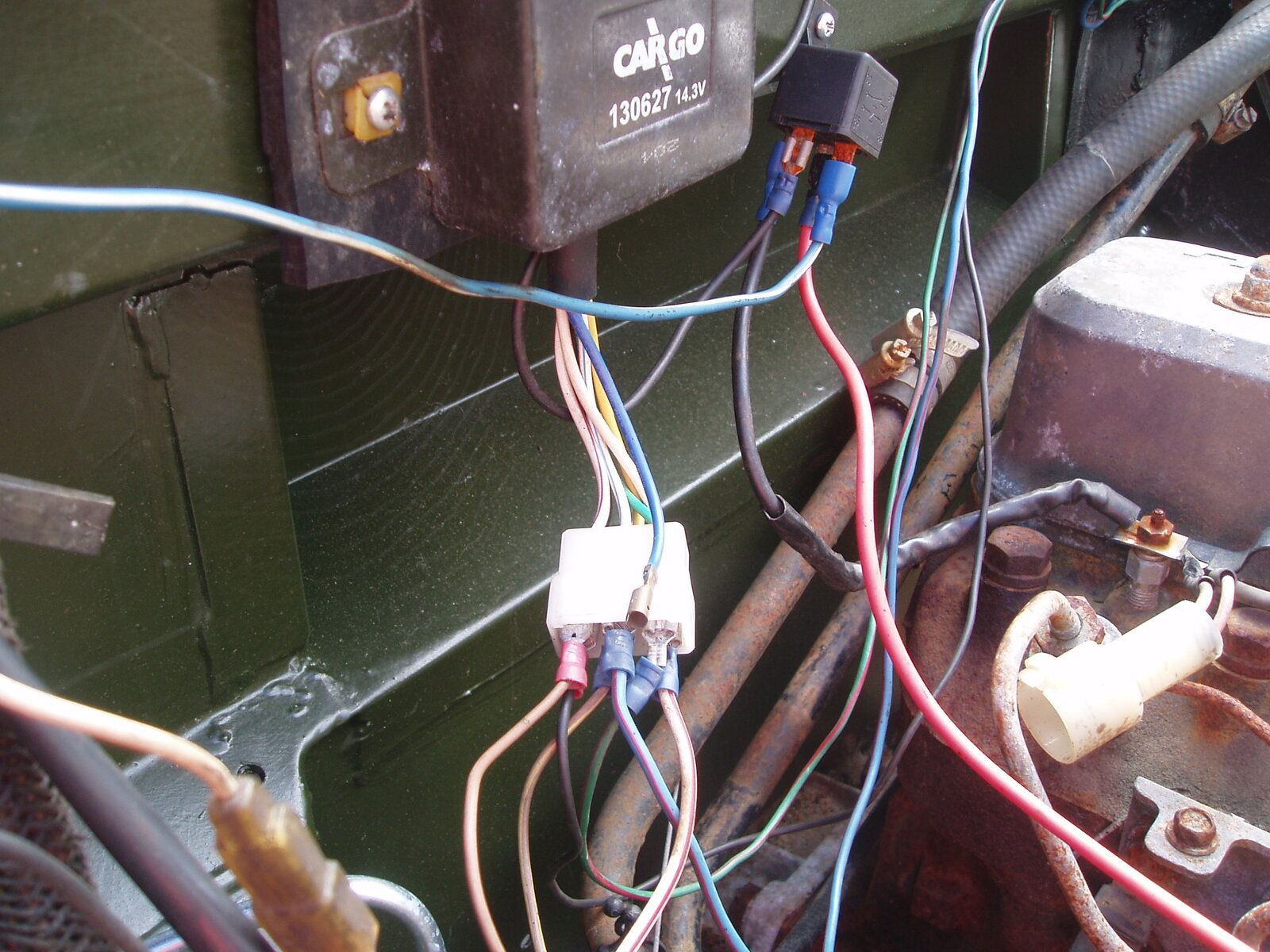

Anyone got any experience with Cargo Regulators?
I seem to have a rogue wire that leaves the regulator but doesn't connect through the connector. Any clues as to what might be missing?
Also...the White cable with red tracer runs through to the fusebox...but wasn't actually connected there. Any clues?
The "official" diags from Cargo list Letters for the outputs, but no key as to what the letters mean
Anyone got any experience with Cargo Regulators?
I seem to have a rogue wire that leaves the regulator but doesn't connect through the connector. Any clues as to what might be missing?
Also...the White cable with red tracer runs through to the fusebox...but wasn't actually connected there. Any clues?
The "official" diags from Cargo list Letters for the outputs, but no key as to what the letters mean
Back injury and silly-season on the roads have meant very little has been done recently (other than the realisation of total pillock-tude by yours truly - yes...I forgot all about the clutch bearing when I mated the gearbox to the engine )
I have been tinkering with the rear lighting however, now that the welding is done and the tub fitted.
So I have 6 wires to play with:
Red/black - tail lights (both sides)
Green/white - Right indicator
Green/red - Left indicator
Red - Brake lights.
Red/yellow - ????
Brown/red - ????
Not sure what else a Military 109 from 1974 would have had?
Even with glasses on I struggle with the wiring diagrams I have been able to find.
So....over to you guys!!!
)I have been tinkering with the rear lighting however, now that the welding is done and the tub fitted.
So I have 6 wires to play with:
Red/black - tail lights (both sides)
Green/white - Right indicator
Green/red - Left indicator
Red - Brake lights.
Red/yellow - ????
Brown/red - ????
Not sure what else a Military 109 from 1974 would have had?
Even with glasses on I struggle with the wiring diagrams I have been able to find.
So....over to you guys!!!
David Leech
Well-Known Member
Red/yellow seems to be Convoy Light and Brown/red is Rear Fog . What about an Earth/ground? Will you take that from chassis?.....
Cheers for that. Wasn't sure that fog lights existed back then but can certainly use it as such....once I work out which switch activates it
Going for overkill with the earth(s) - one at each rear cluster, heavy ones from tub to chassis both sides, another at the junction box where old wiring meets new....
Now lets see if I can find the flasher unit...
Back injury and silly-season on the roads have meant very little has been done recently (other than the realisation of total pillock-tude by yours truly - yes...I forgot all about the clutch bearing when I mated the gearbox to the engine

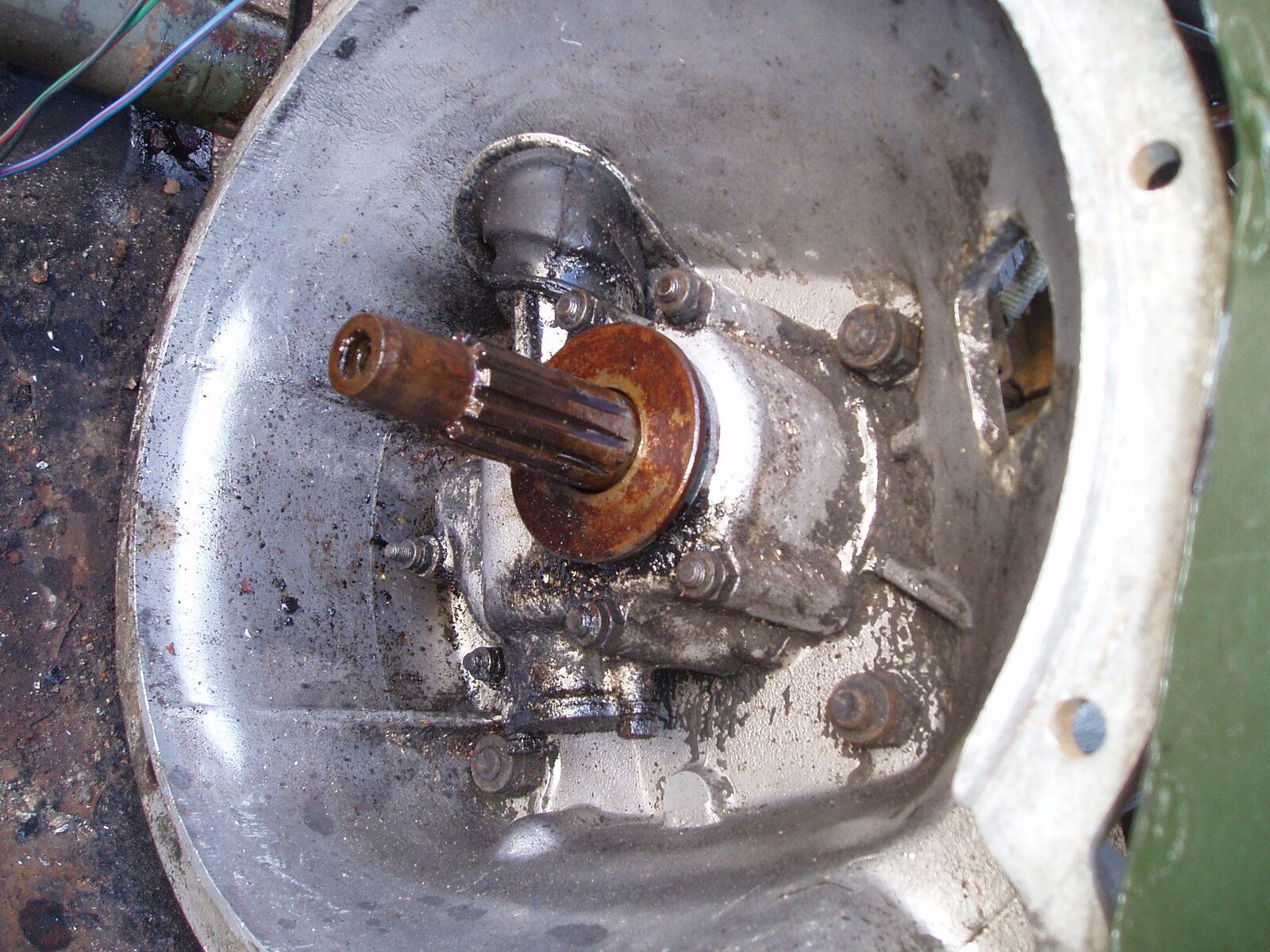

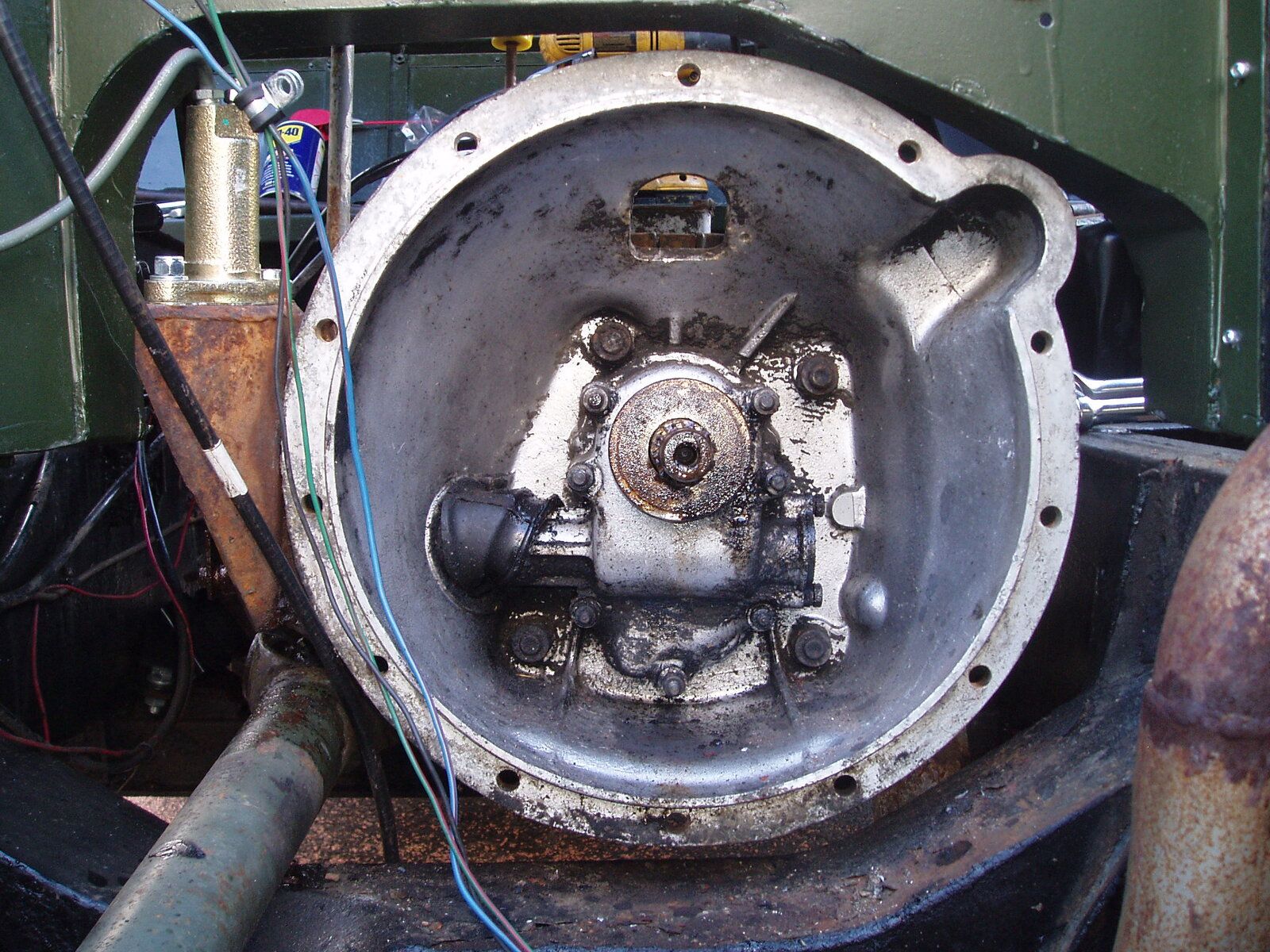

So I have now removed the engine...and revealed the bellhousing.
Now the sharper-eyed amongst us might possibly notice the lack of Fork, heavy duty or otherwise.
Never worked with an internalised clutch fork before.
The joys of the Daihatsu Fourtack. Seems I have a Rocky bellhousing to go with the Rocky engine. For some reason I had thought that the clutch gubbins would have been Landy. Still, every day is a school day so they say.
Daihatsu clutch bearing ordered....

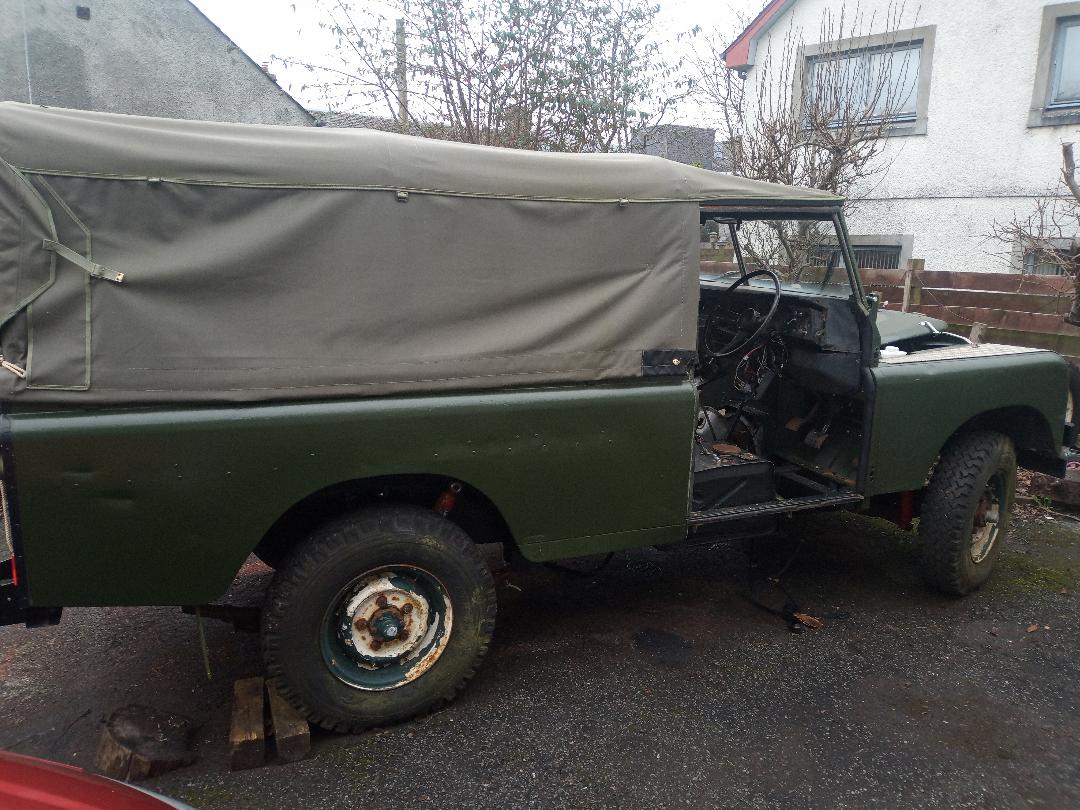

While making use of the slight improvement in the Scottish weather, and clearing some of the undergrowth from around the family estate, I stumbled across one of these:
Seems I left it lying there about 18 months ago. Still looking for the enthusiasm that I lost around that time, cos really, it needs to be finished...or gone....fairly soon.
Seems I left it lying there about 18 months ago. Still looking for the enthusiasm that I lost around that time, cos really, it needs to be finished...or gone....fairly soon.
A whole curly whirly and a full packet of wine gums for you if you can deliverWhile making use of the slight improvement in the Scottish weather, and clearing some of the undergrowth from around the family estate, I stumbled across one of these:
View attachment 314999
Seems I left it lying there about 18 months ago. Still looking for the enthusiasm that I lost around that time, cos really, it needs to be finished...or gone....fairly soon.
