ceffyn · Jul 19, 2017

chris-the-gerbil said:
P gasket. You will unclamp most of the loading force on the P-gasket when you undo the water pump - might pay to have a gasket available just in case.

I'd also have a set of waterpump bolts, especially the long ones in case the buggers prove awkward, and if they stat housing and rad have plastic plugs swap them for brass ones.

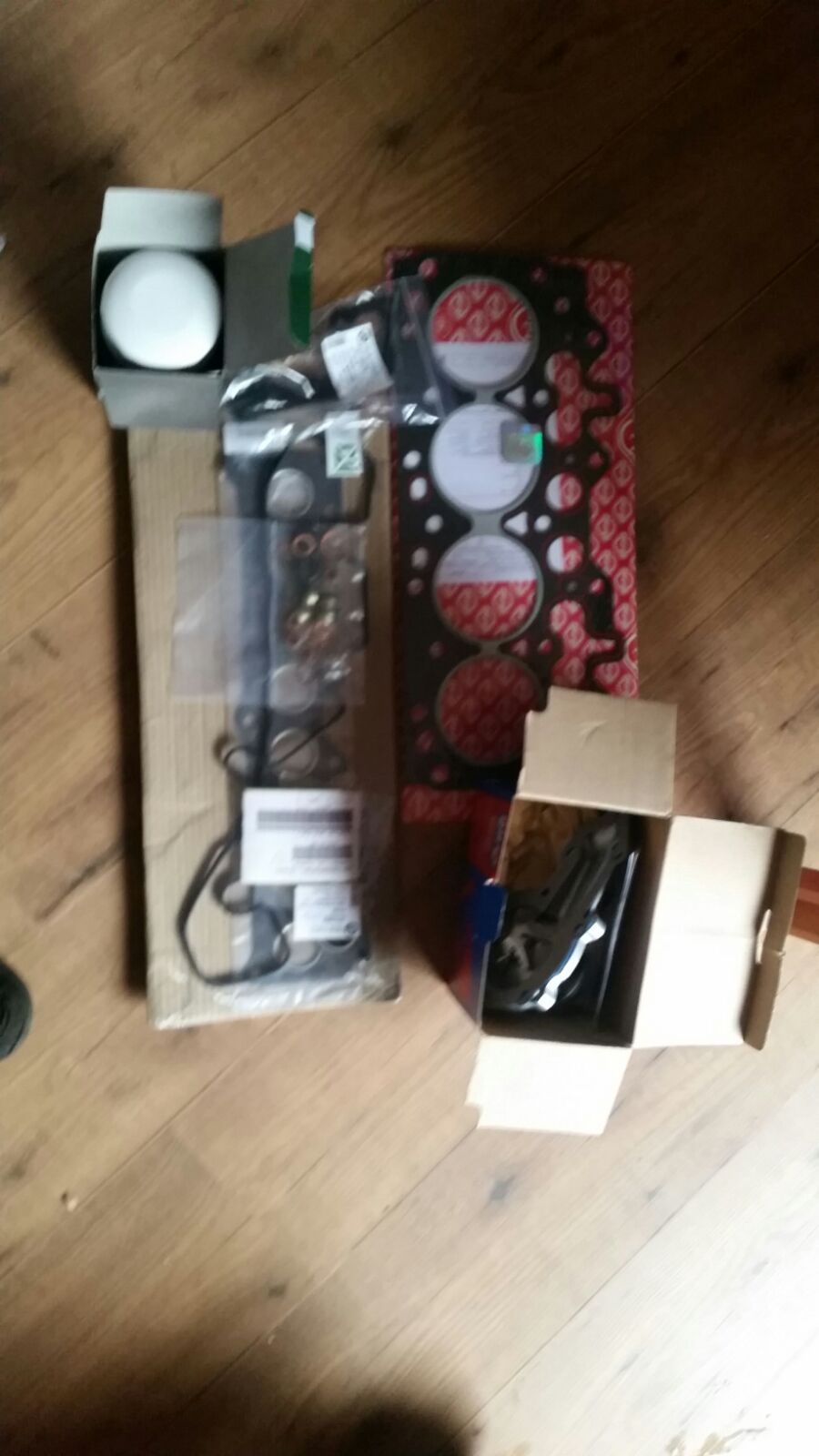

i have all new gaskets and a new water pump. (see pic)
havent got new bolts but they all came out nice and smooth (this time and not long ago when i changed the P-Gasket lol
thinking at this point that my rad was BLOCKED and gasket is letting gasses through due to the lack of cooling but i guess at this point its just keep stripping and see what comes of it. back to one of my previous posts is there a way to check the rads integrity while its all in bits.

as always thanks for all the replys good, bad or irreverent they all help me learn lol

neilly · Jul 19, 2017

ceffyn said:
back to one of my previous posts is there a way to check the rads integrity while its all in bits.

Can you not take it somewhere local for a pressure check?

Cheers

ceffyn · Jul 19, 2017

neilly said:
Can you not take it somewhere local for a pressure check?

Cheers

dont know of anywhere local, got no other vehicle and im already in debt from getting the parts i have so far lol and i still havent got oil and coolant yet

Magicgrotto · Jul 19, 2017

IF you don't wont water in oil then take out the stud between the turbo & alternator under the core plug in the block ! BEFORE you take the head off !

Or it's a

chris-the-gerbil · Jul 19, 2017

Mine overheated a bit eventually swapped the rad. That sorted it. Couldn't tell it was blocked.

Remember the 300TDI rad is "odd" as in the coolant flows across the top half only, down through the tank and then back over the bottom half.

there is also a bypass on the inlet side that goes straight from inlet to return which lets you bypass the rad entirely in case it's frozen solid... so checking a 300 rad for blockages is a bit tricky unless you feel it to check for colder spots...

Magicgrotto · Jul 19, 2017

As for the pipe with the valve in that goes to the rad mines never been fastened to the rad as the bit in the rads broke !

So both ends plugged with NO probs !

ceffyn · Jul 19, 2017

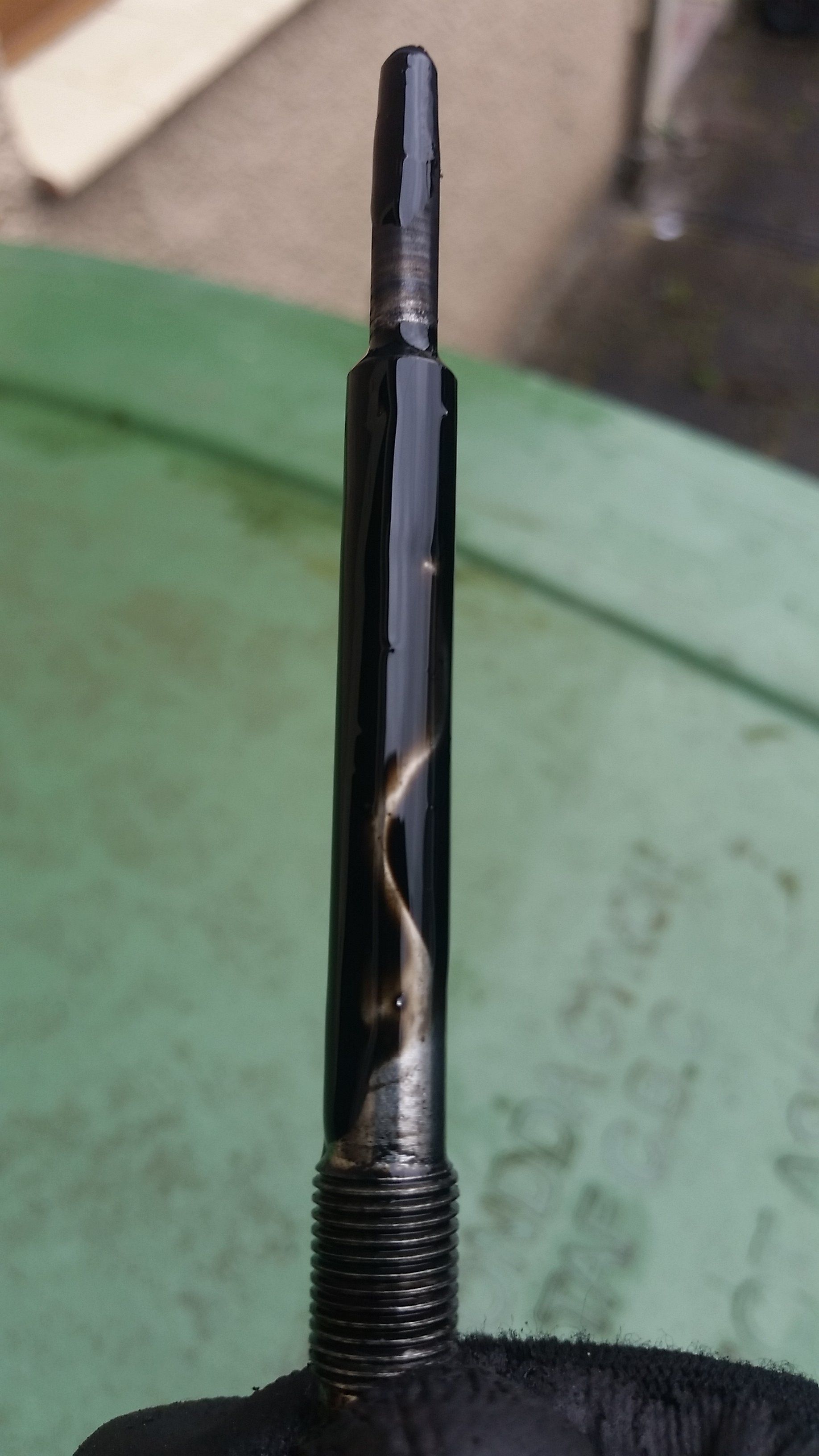

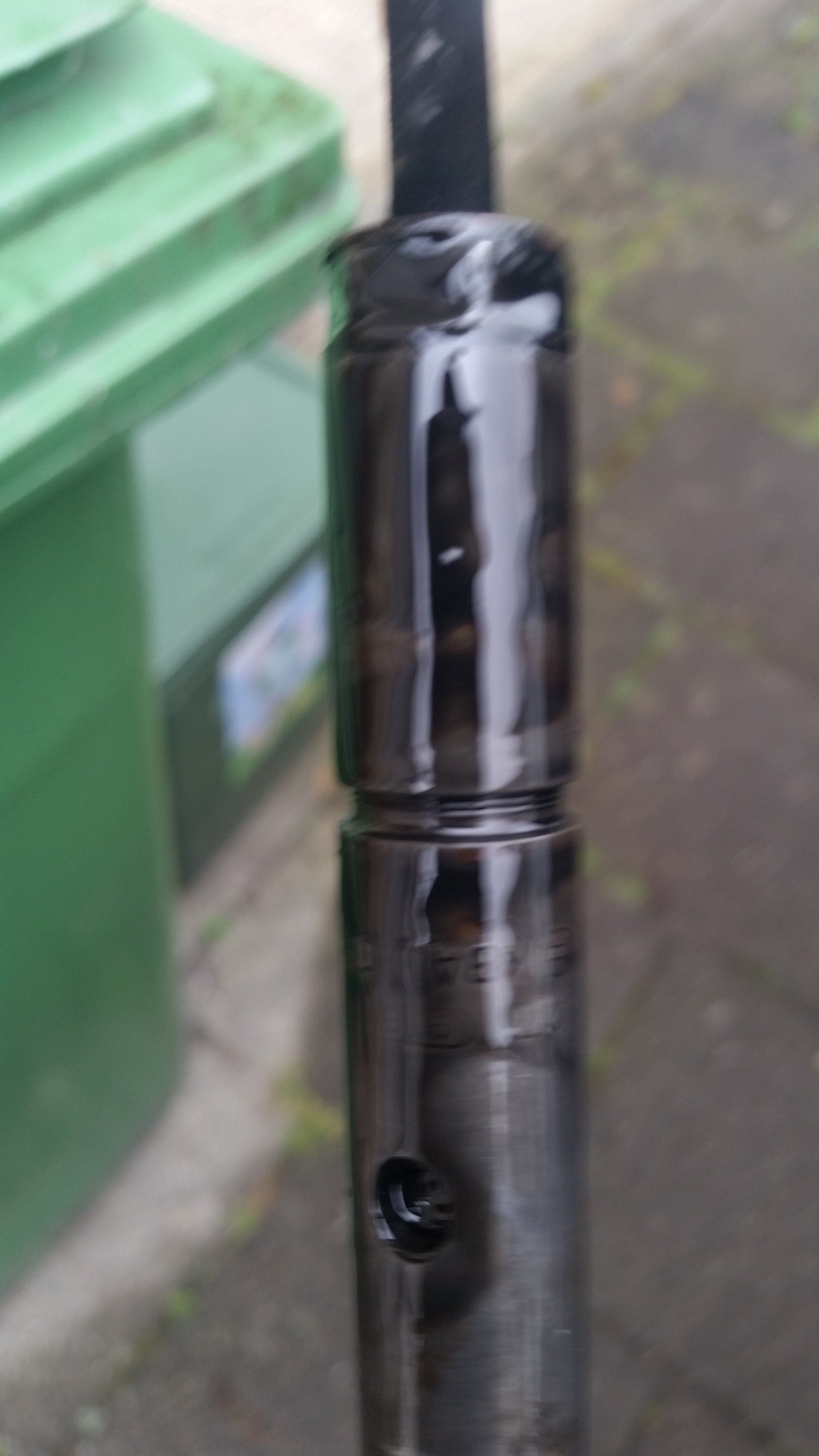

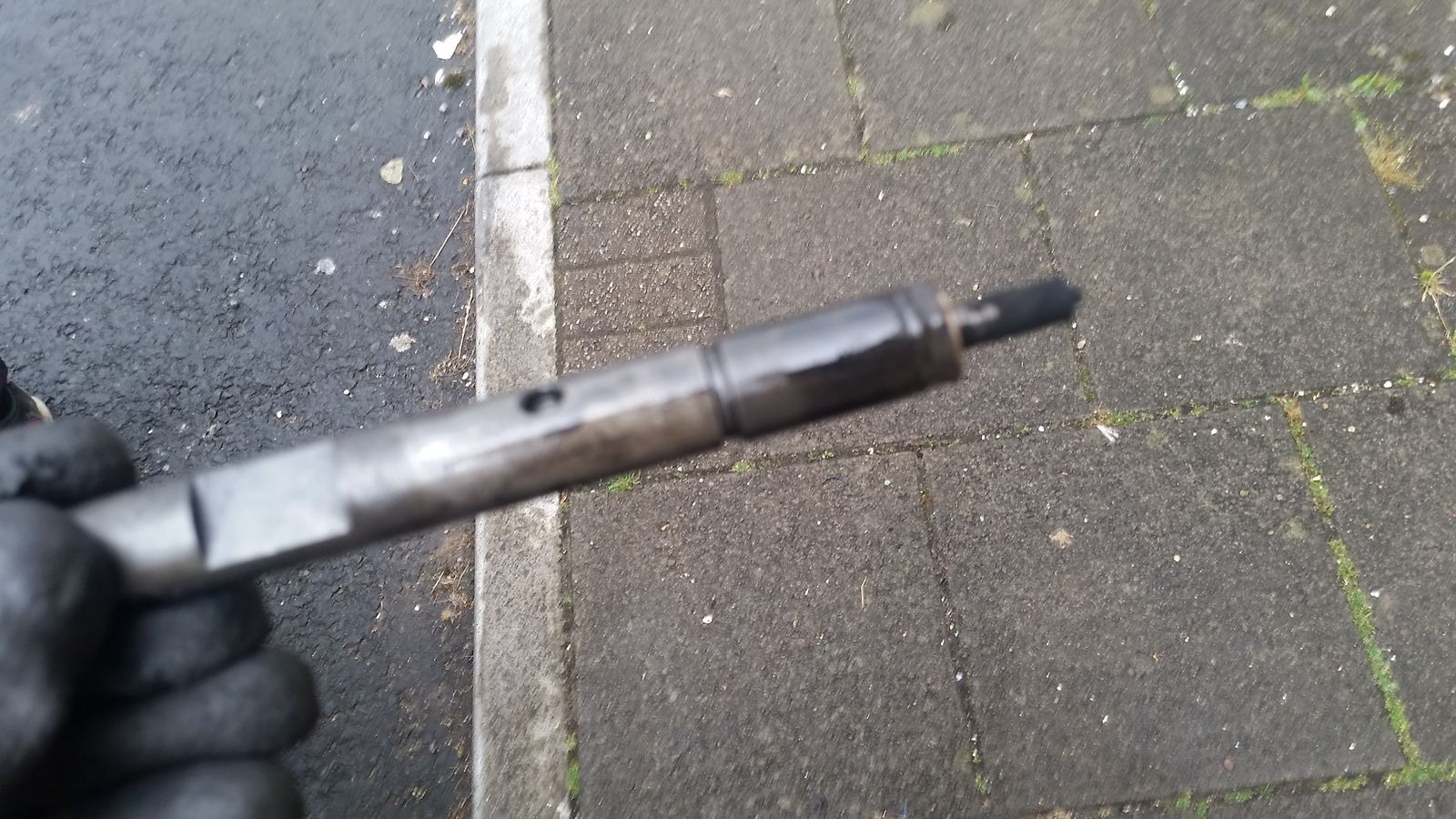

ok little update and there will be pics as soon as i get chance (taken them but there on my phone so need to move them to the pc) 2 or 3 of the glow plugs came out oily and also had some WELL lubed injectors lol starting to think i should have let it cook.... but too much time effort and money in it for me to give up now

ceffyn · Jul 19, 2017

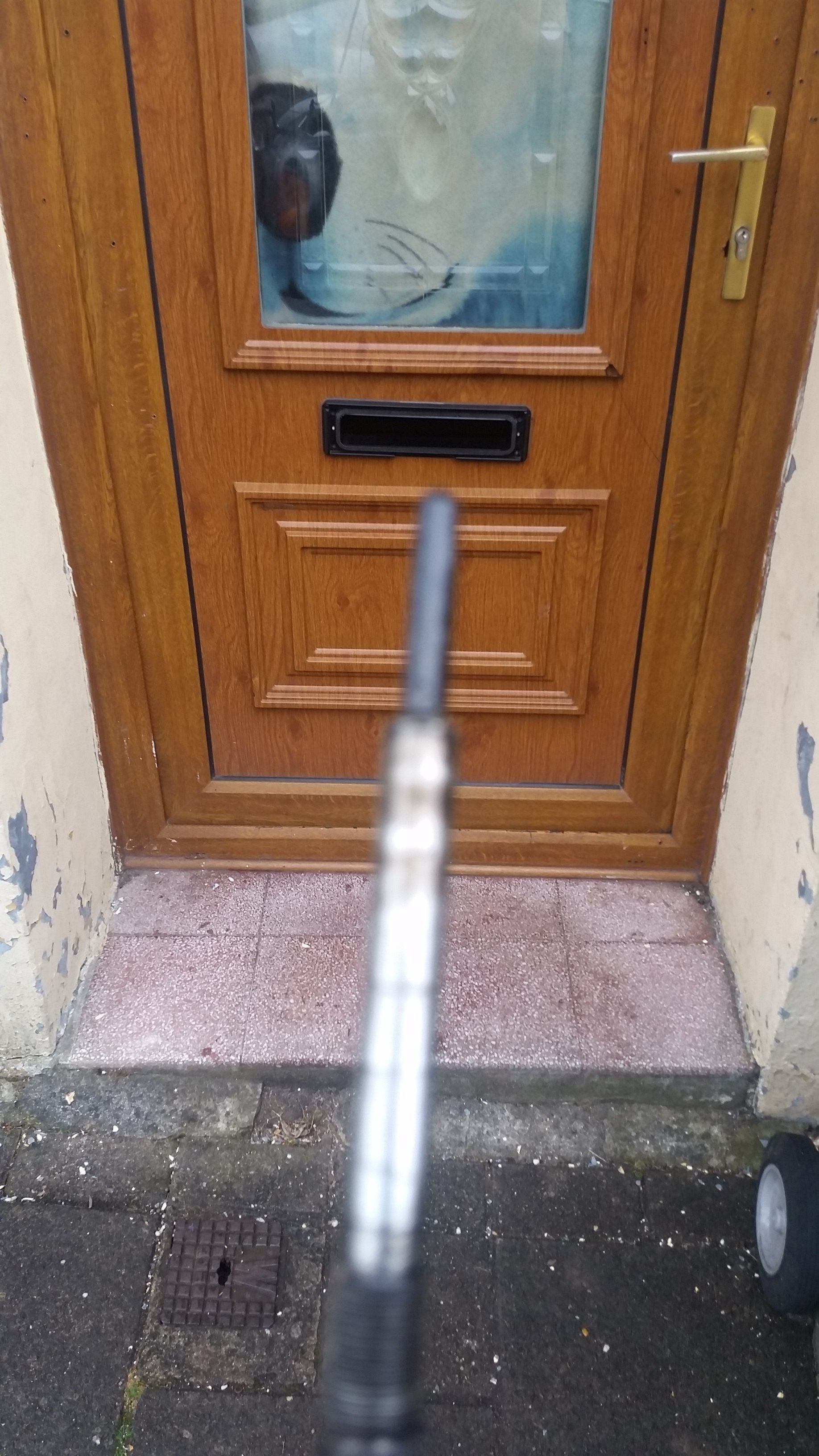

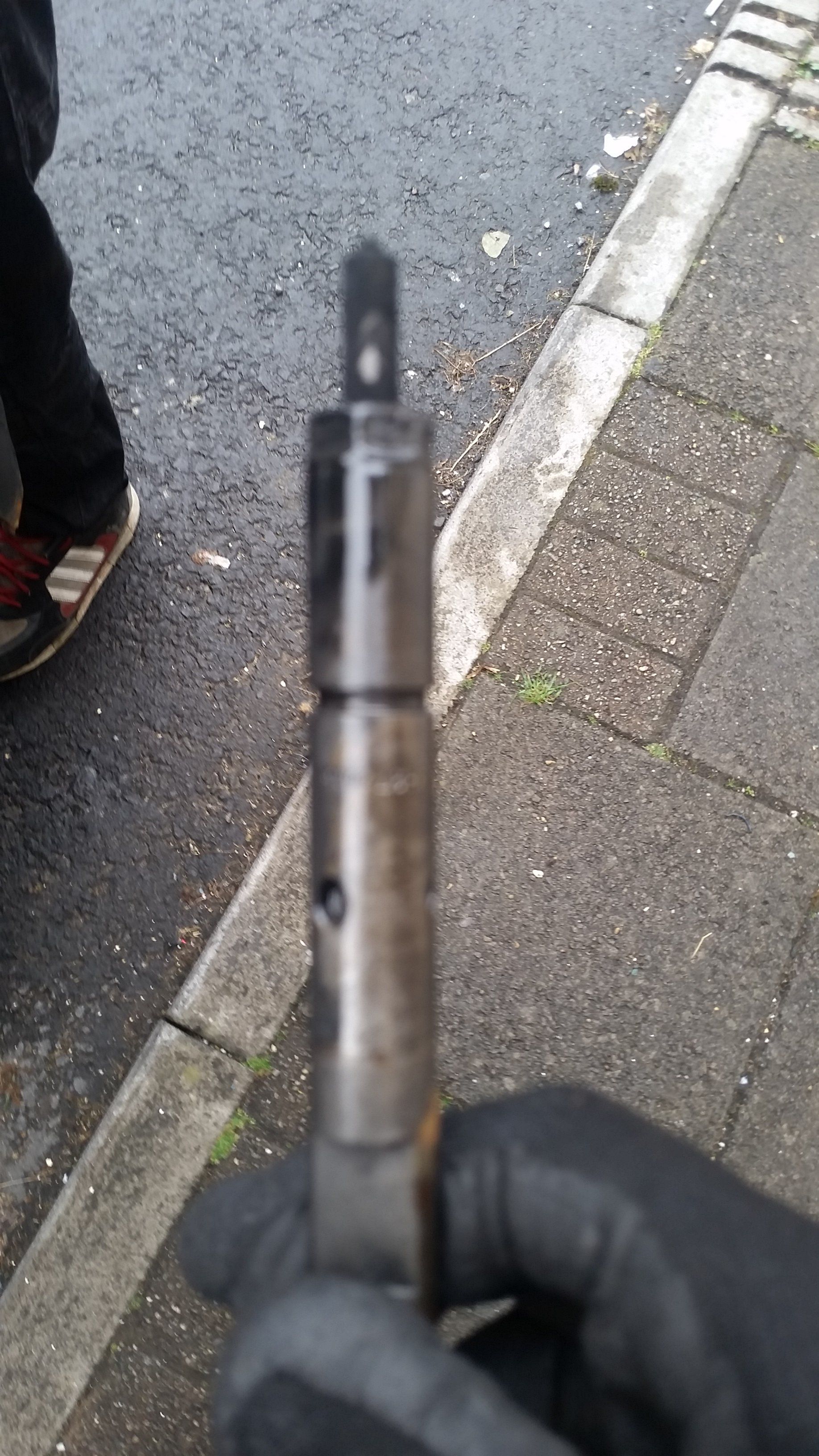

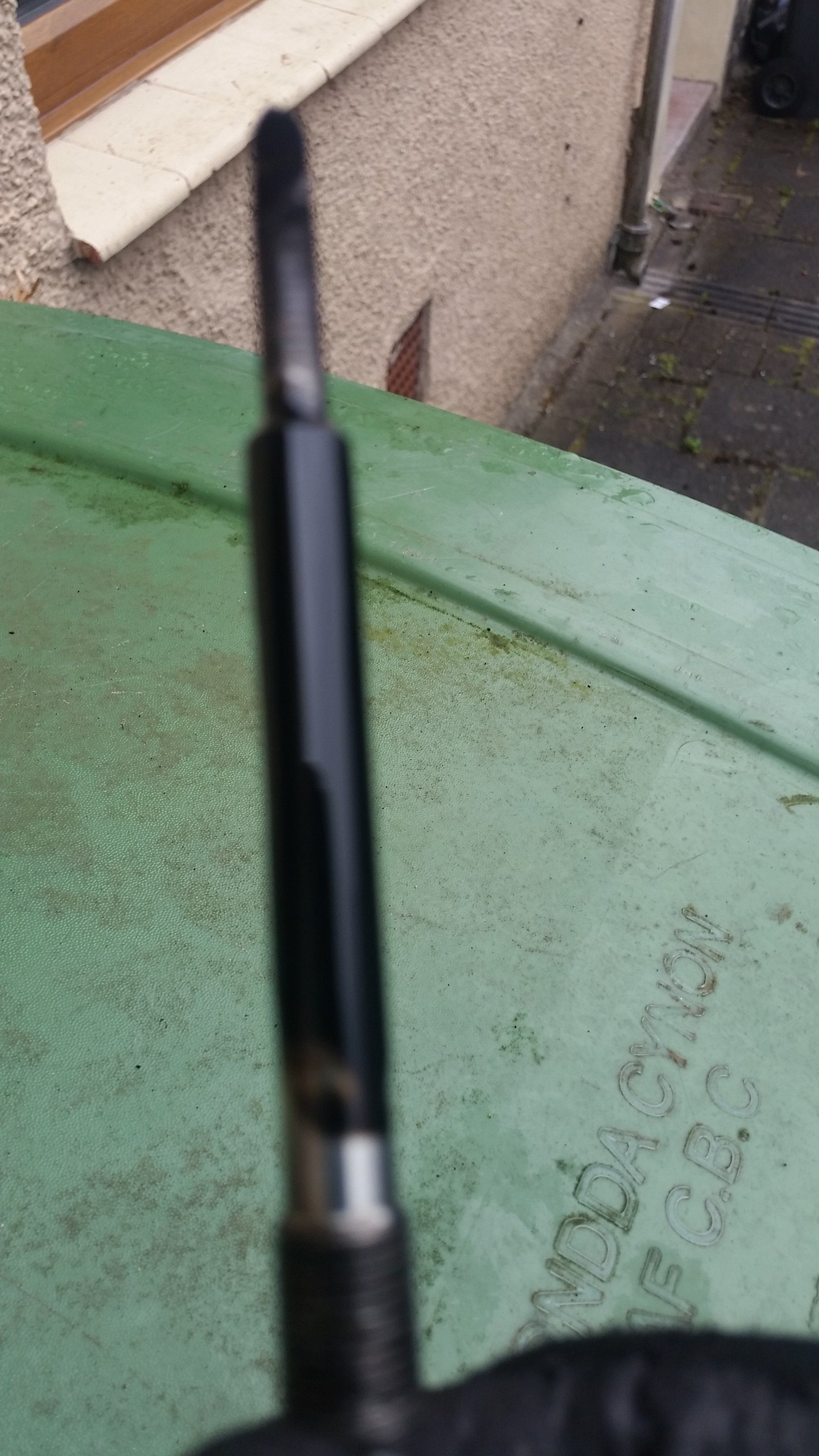

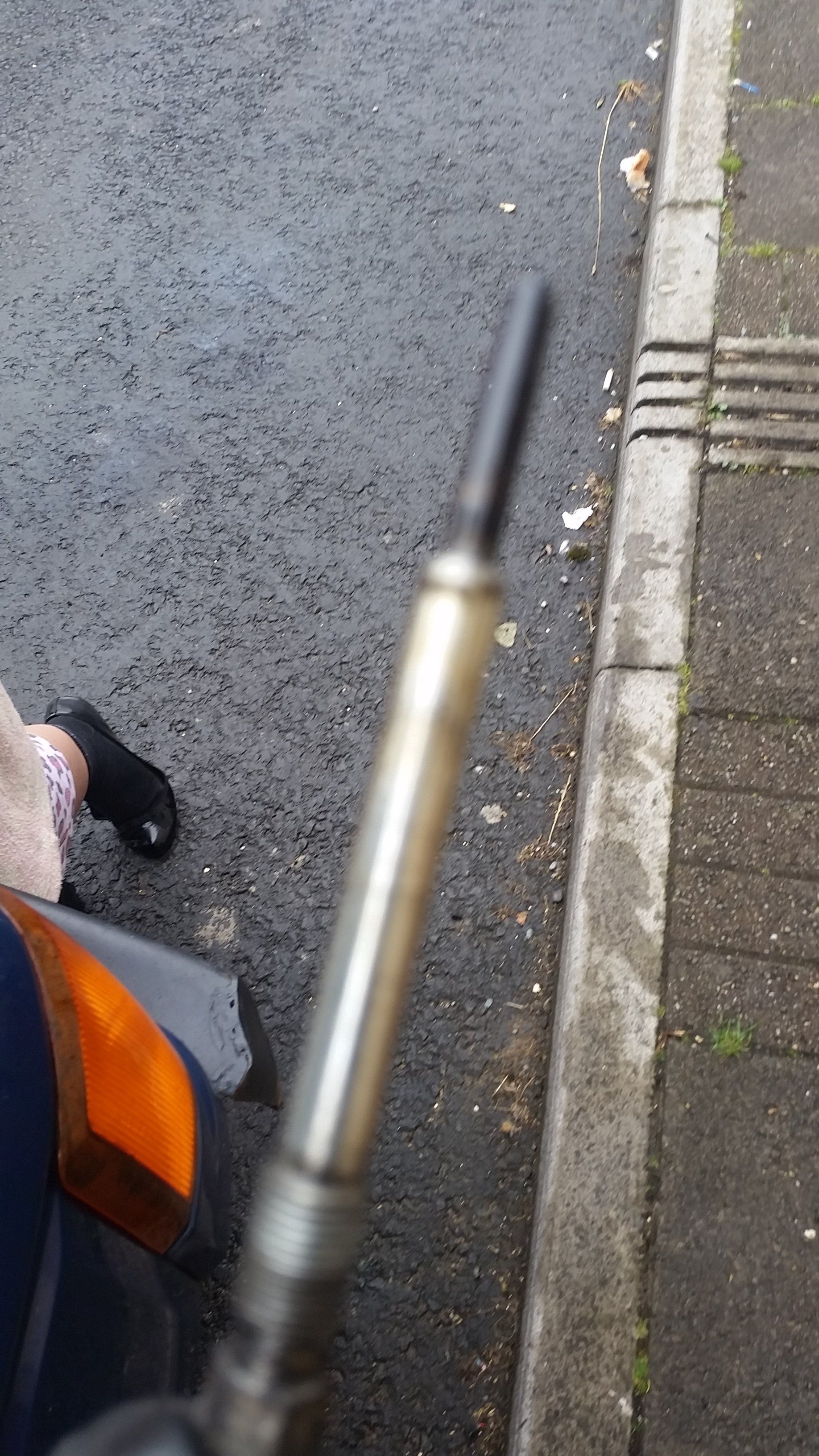

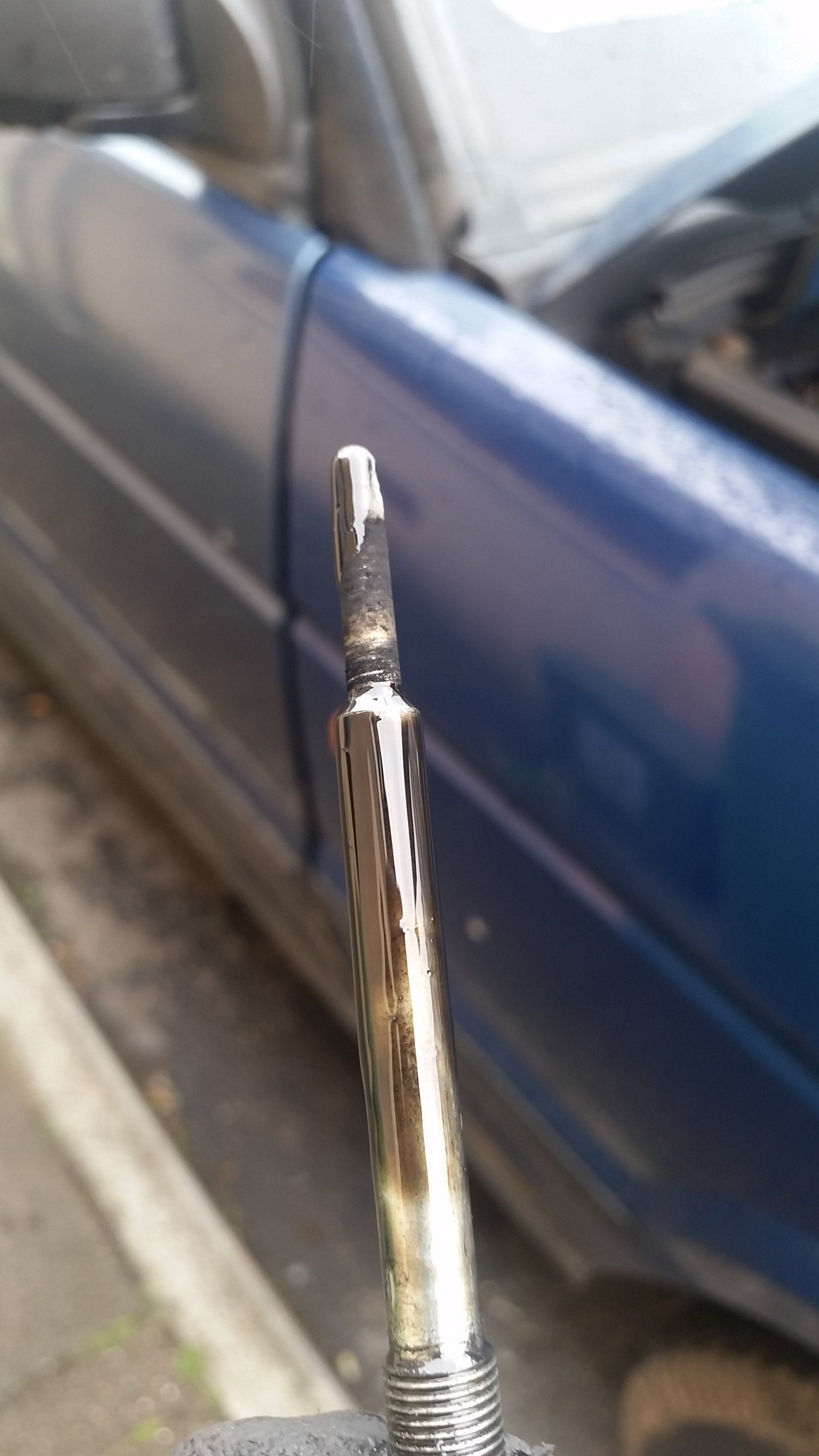

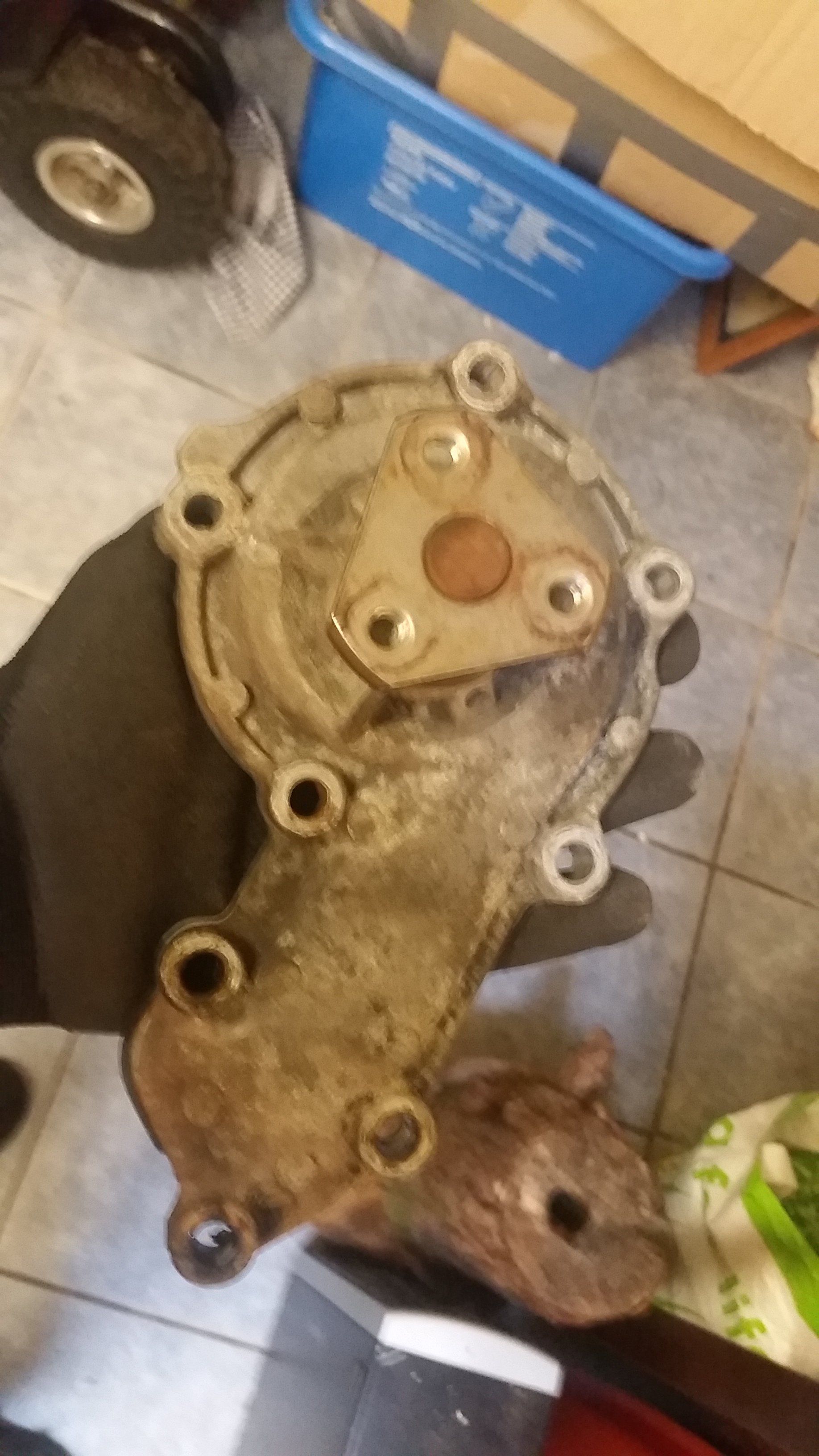

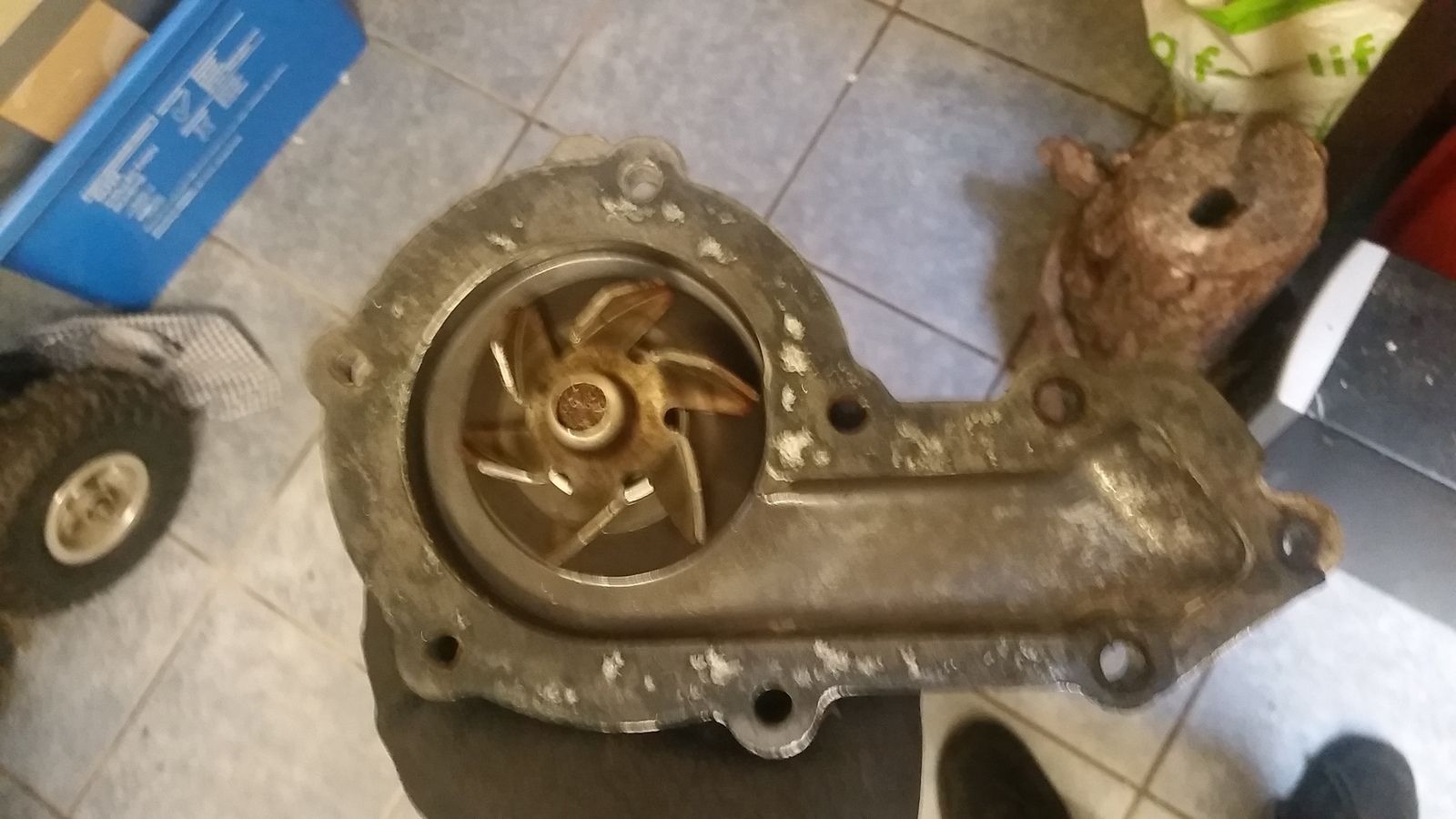

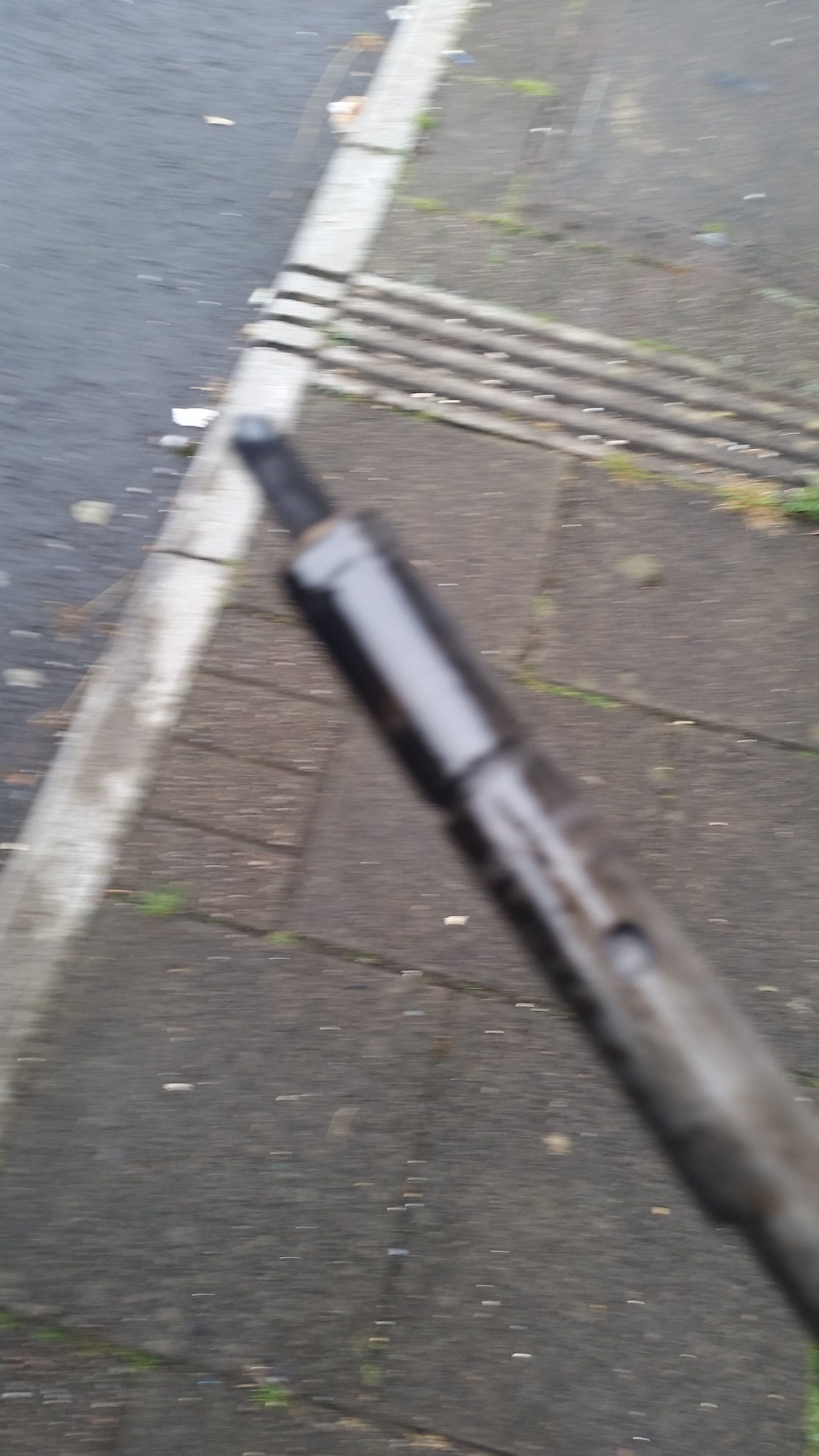

ok first lot of pics glow plugs injectors and the old water pump.

Magicgrotto · Jul 19, 2017

Your skype not working ?

ceffyn · Jul 20, 2017

Magicgrotto said:
Your skype not working ?

its working i've been out lol

ceffyn · Jul 20, 2017

anyone want to run an eyeball over them pics see if you can spot anything

edit: if anyone needs a close of of a certain part if you let me know what part i'll get the image taken

ceffyn · Jul 20, 2017

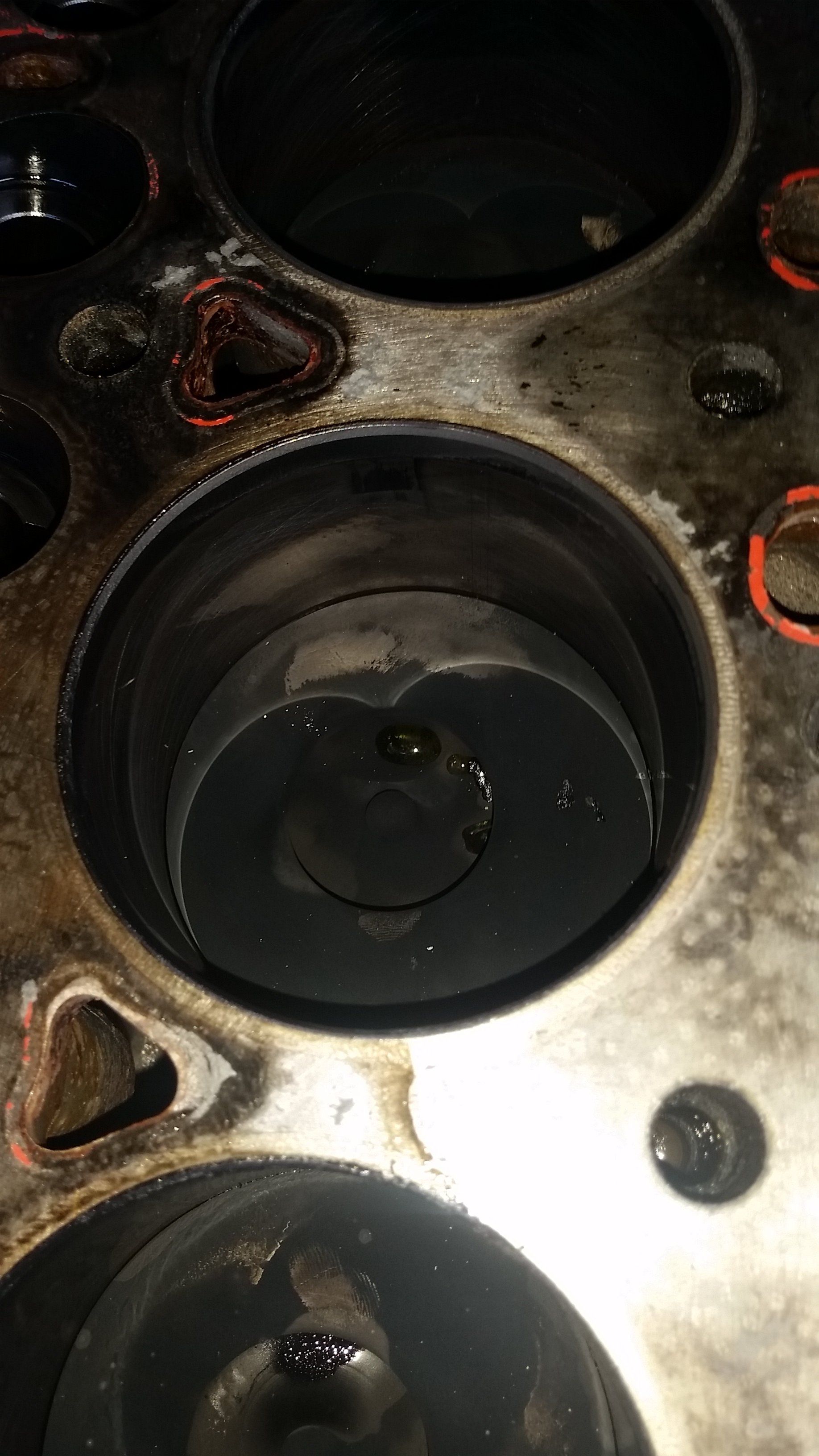

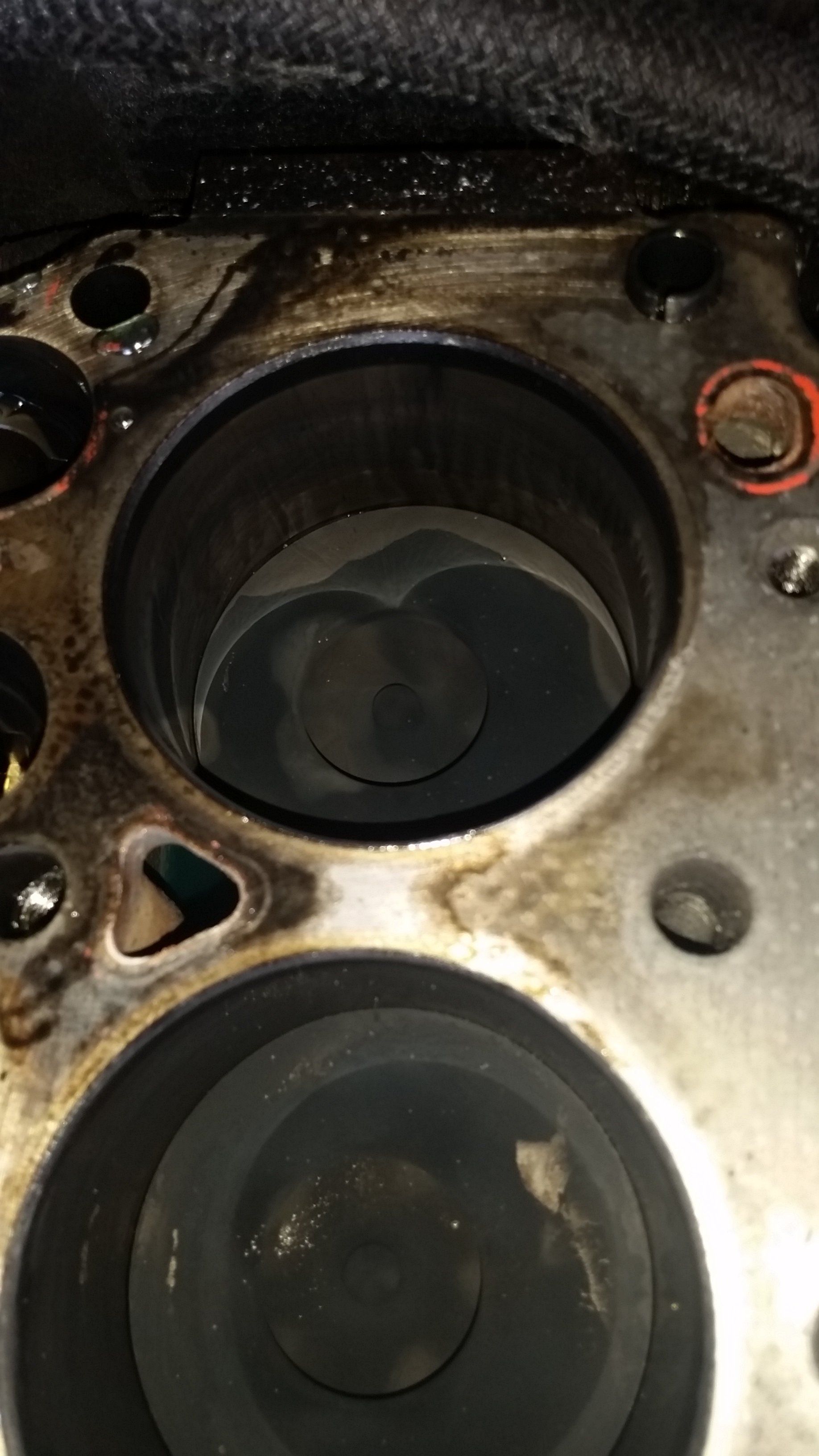

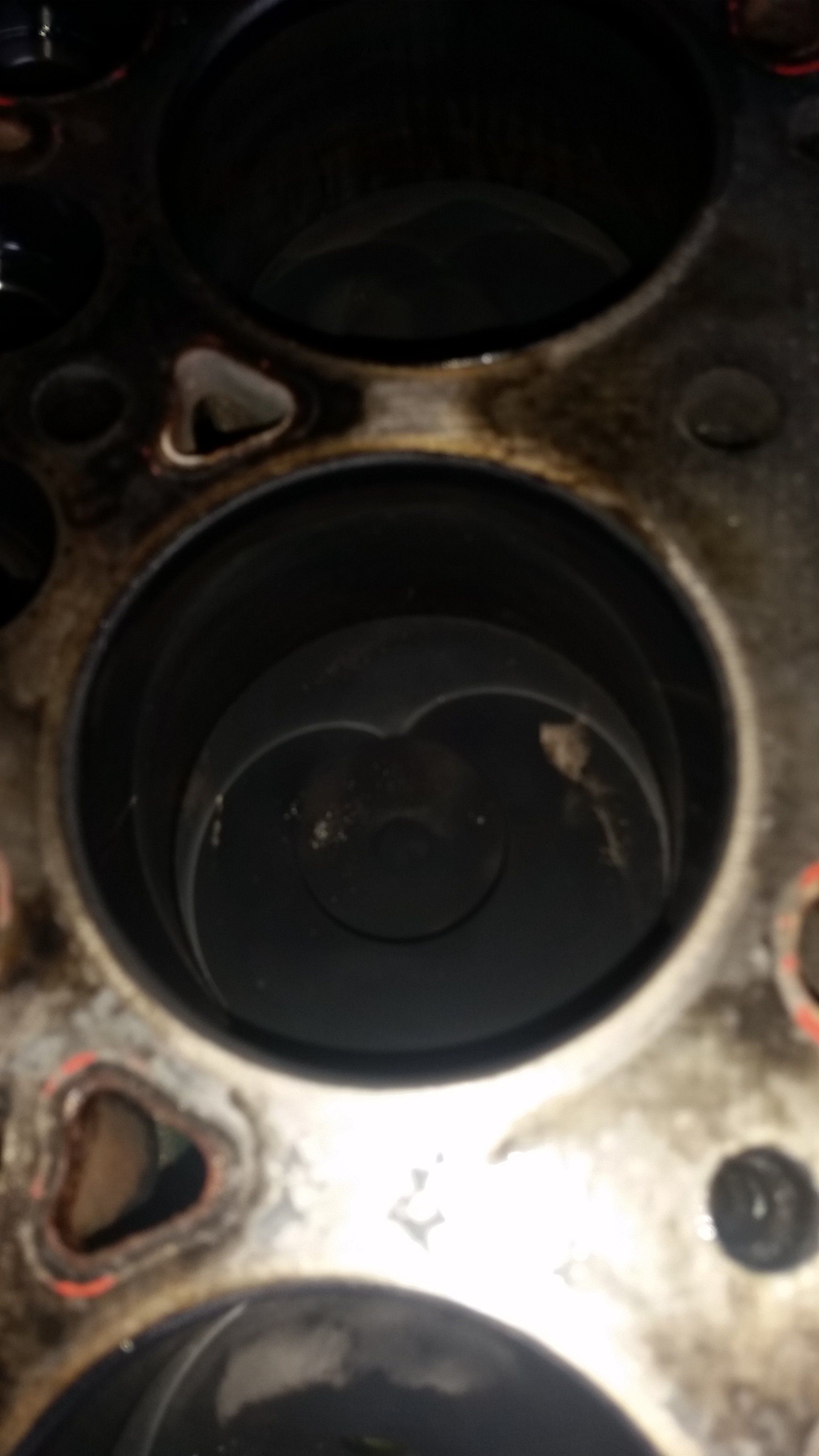

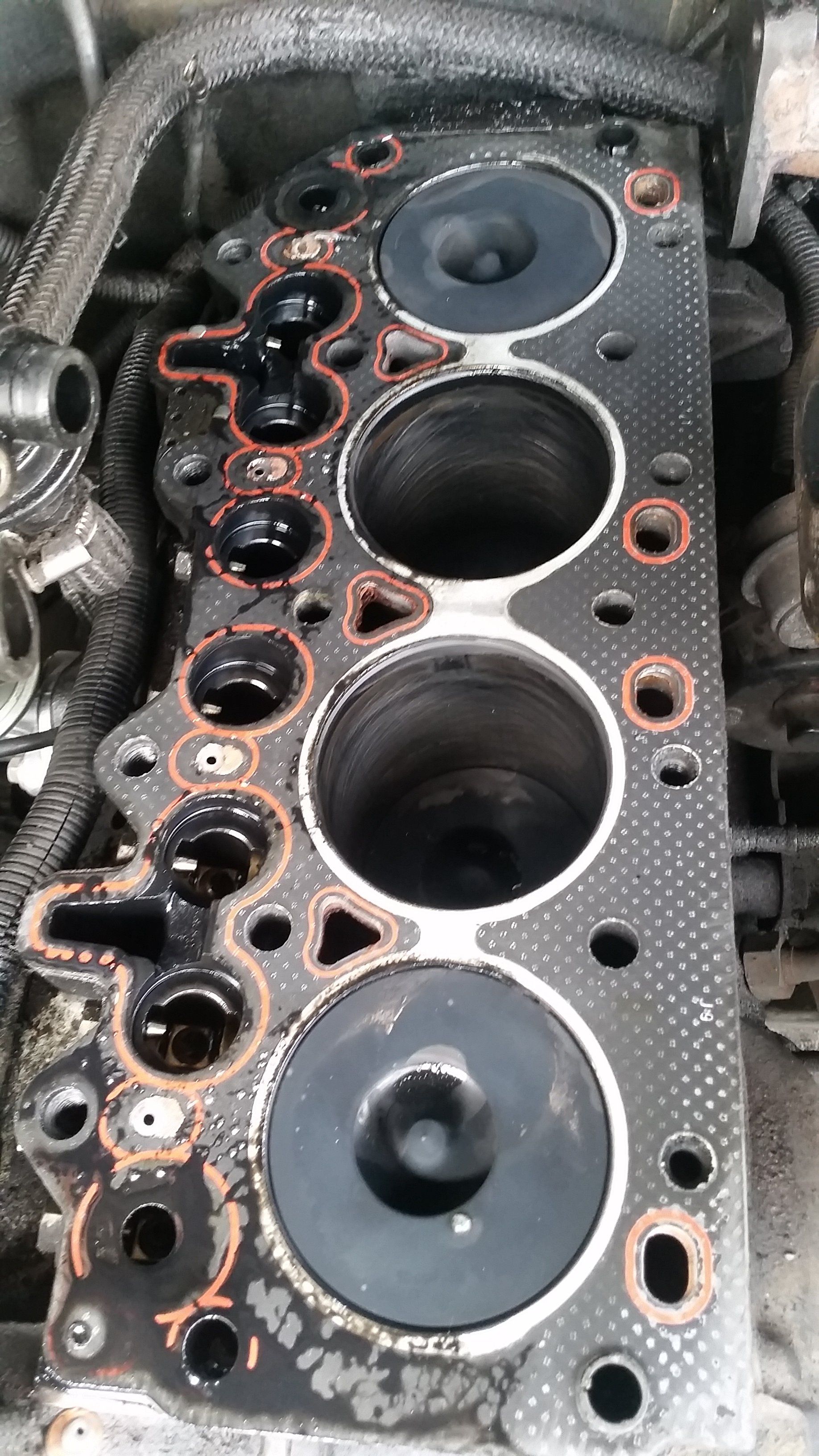

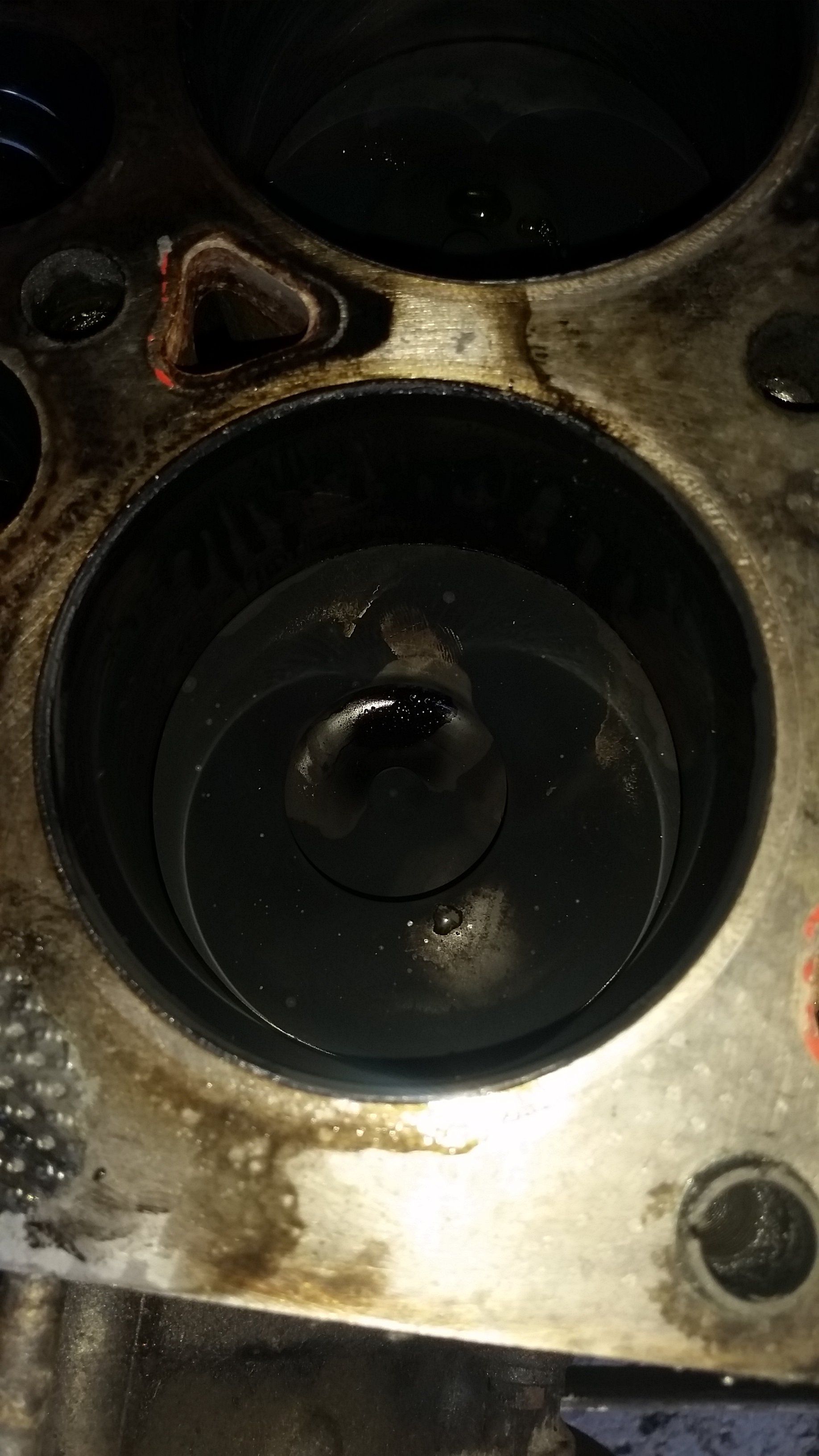

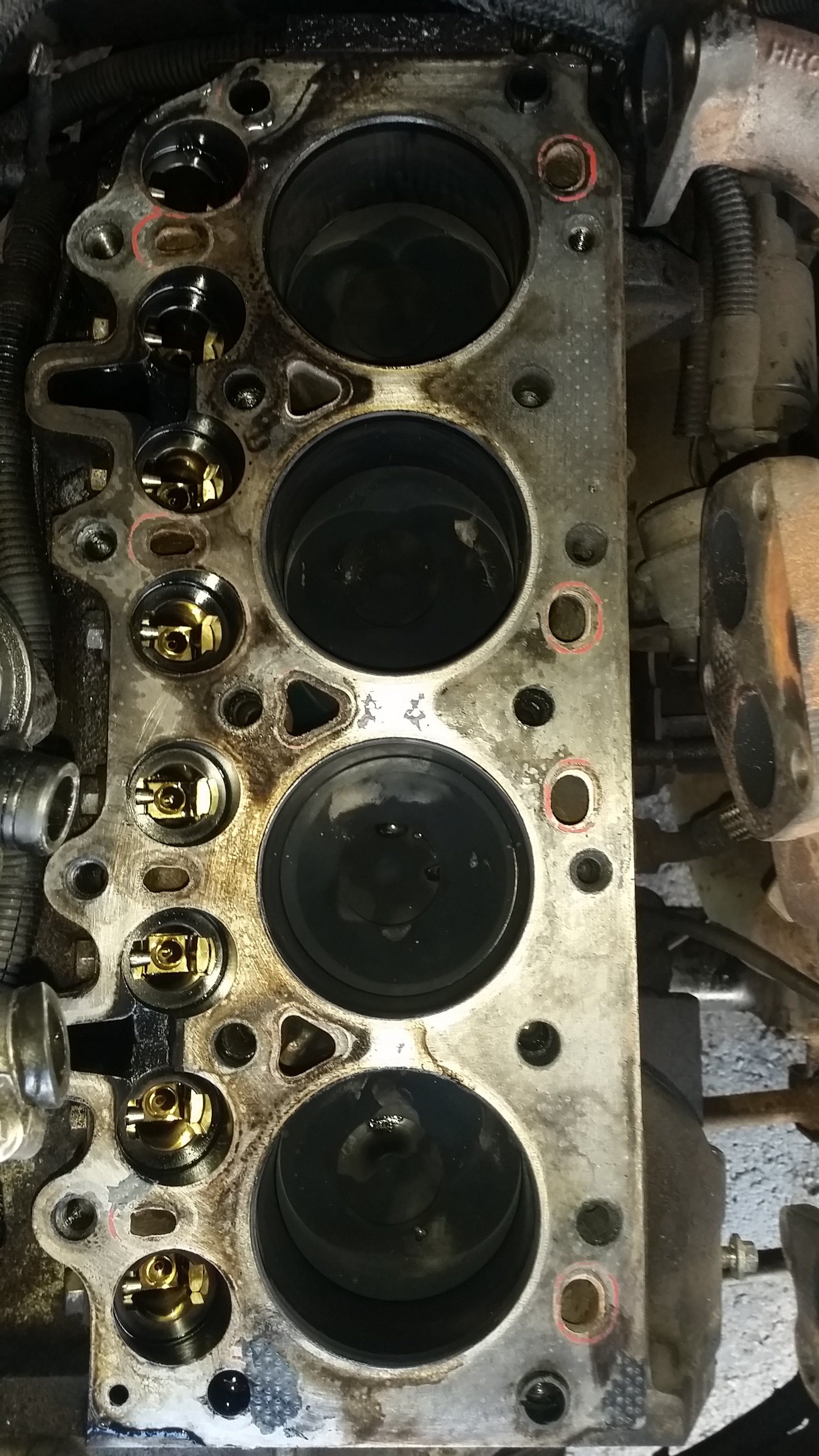

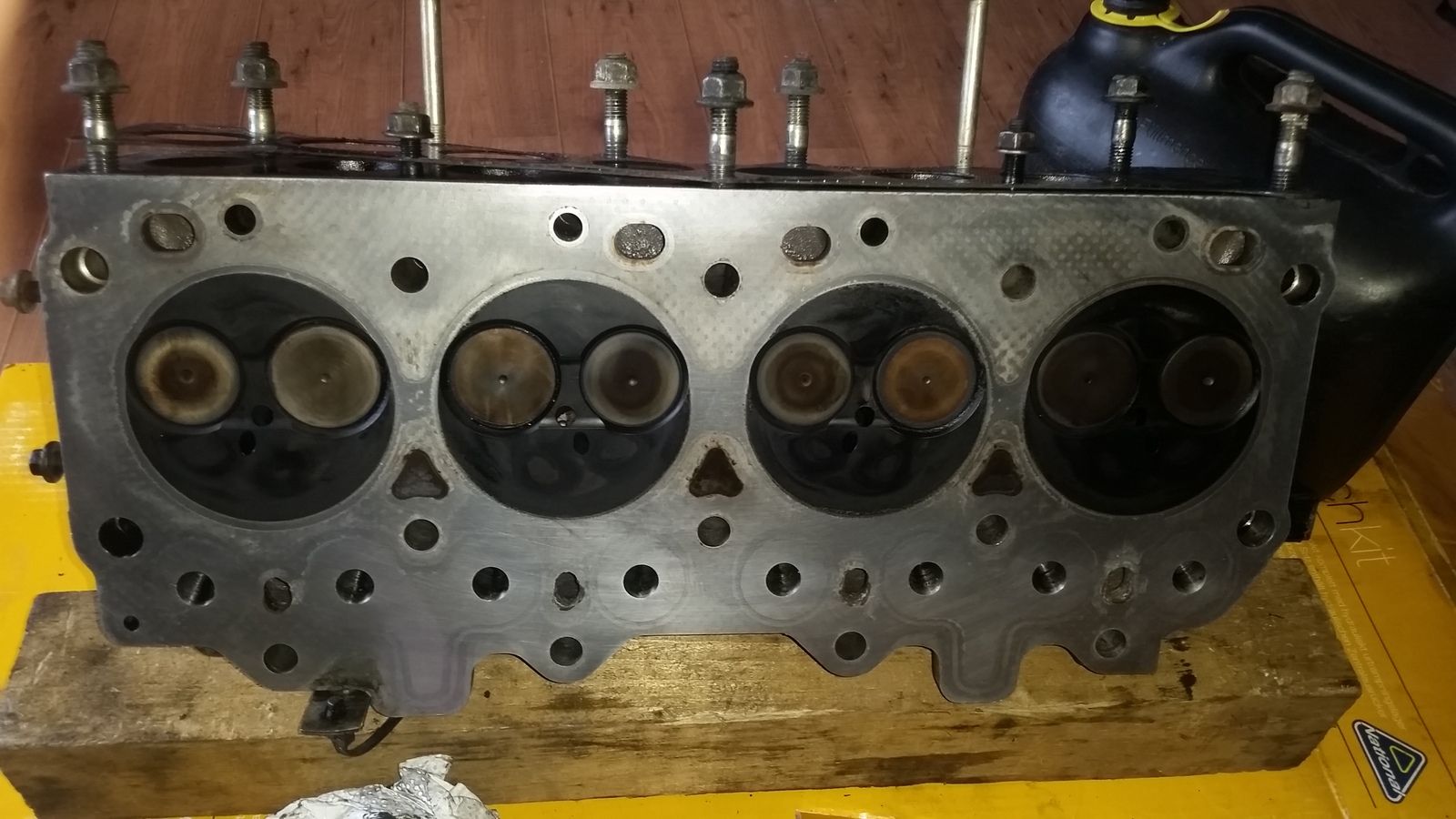

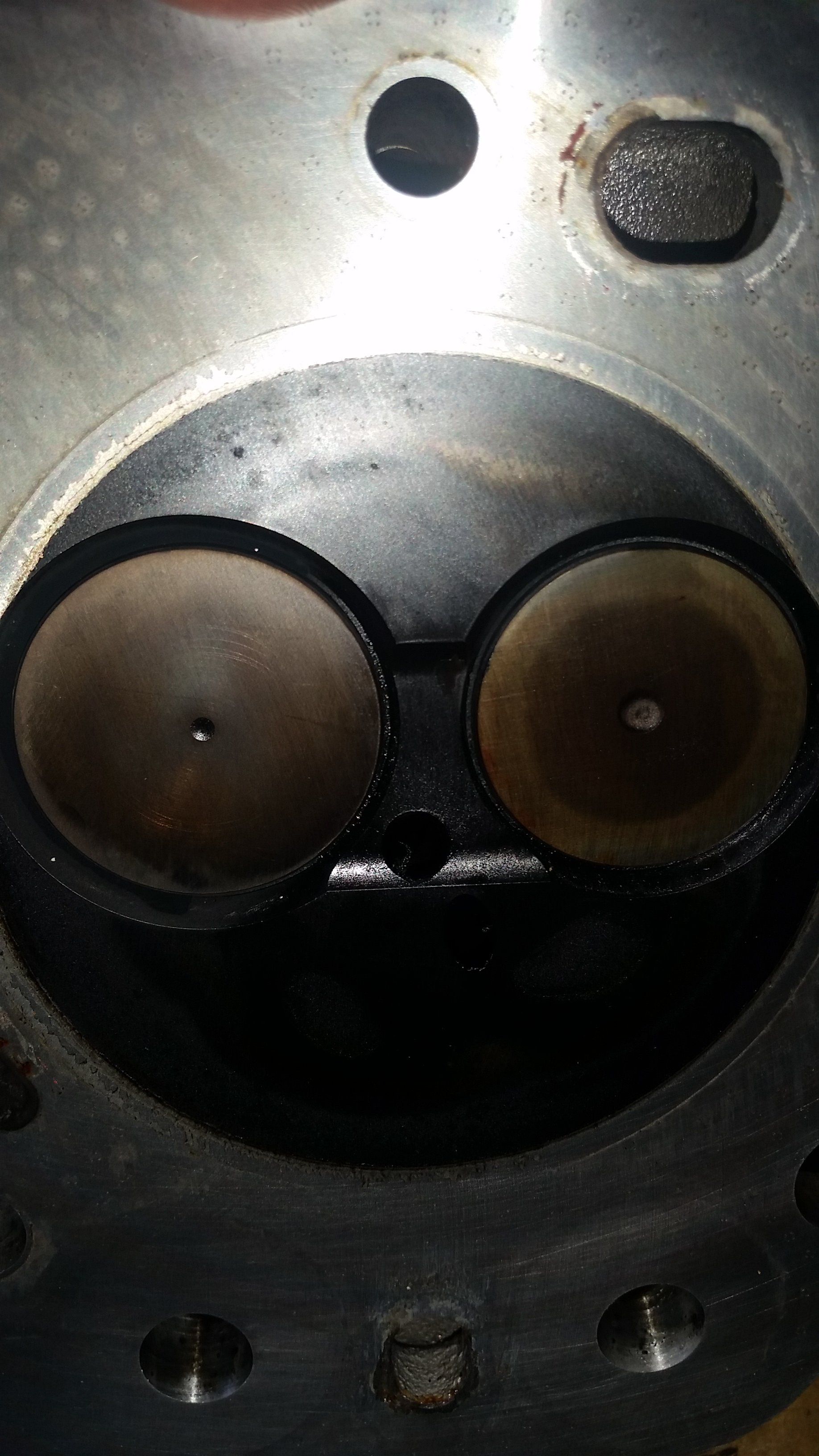

few pics of the cylinders again if someone spots something that needs a better look let me know and i'll get on it and get the more pin pointed picture up on here.

Magicgrotto · Jul 20, 2017

Hi kev which one did the oily injector come out off ? No4 bi chance ???

ceffyn · Jul 20, 2017

Magicgrotto said:
Hi kev which one did the oily injector come out off ? No4 bi chance ???

1 and 4 if i remember right!

Magicgrotto · Jul 20, 2017

Only thing that i can see is the amount of oil around No4 pot at the rear left as you look at it !!!! wish you would get a good camera !!!!!!"

ceffyn · Jul 20, 2017

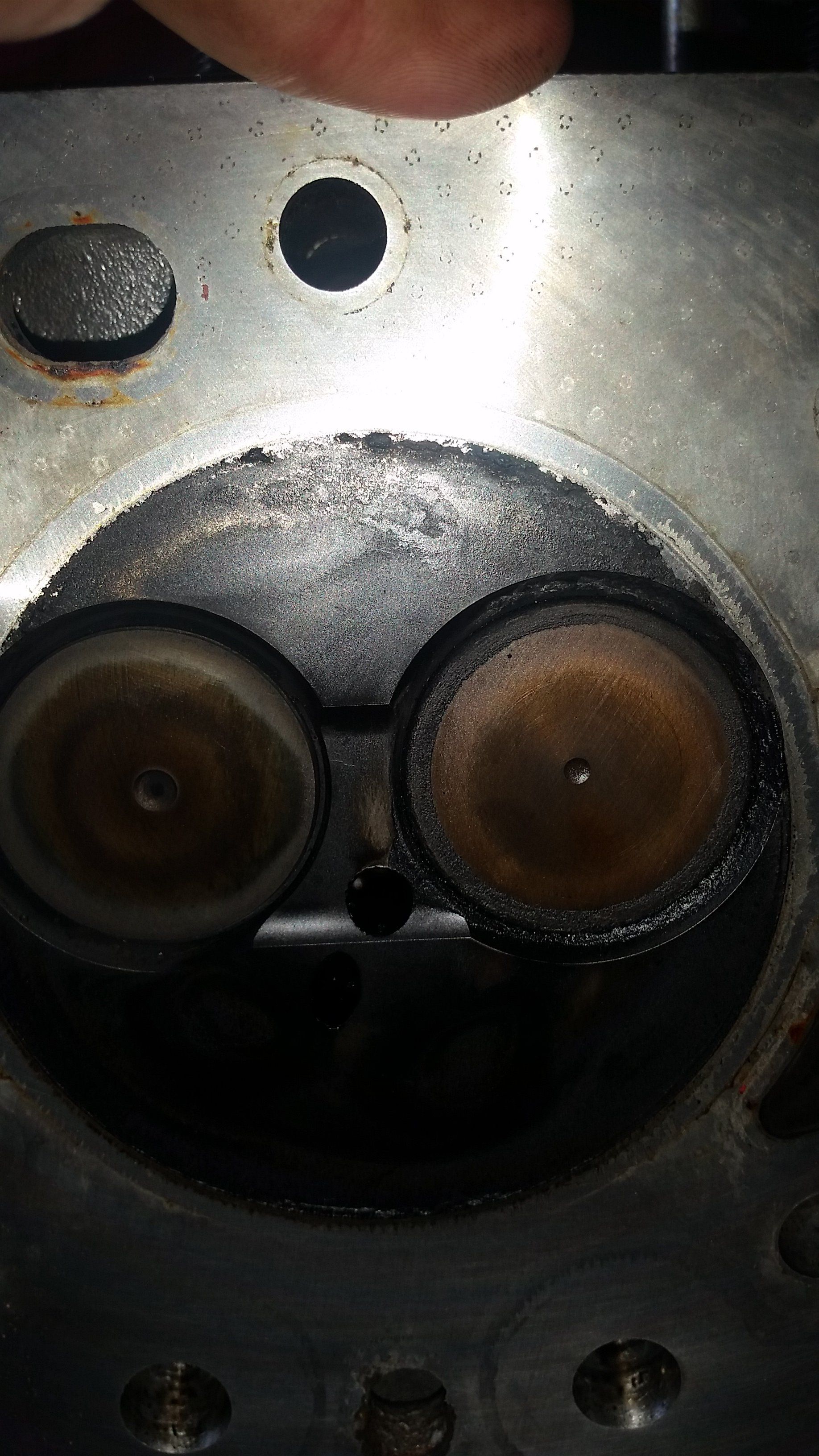

yeah my camera sucks its hard to get it to focus on there. main thing i been concerned about though is between the valves on cylinder 3 looks like theres a small surface crack going about half way between them. heads not warped at all though so thats something.

Magicgrotto · Jul 20, 2017

Summat amiss on No3 ! you can see that bi the state of the valve !

Magicgrotto · Jul 20, 2017

May be worth dropping that valve out !

ceffyn · Jul 20, 2017

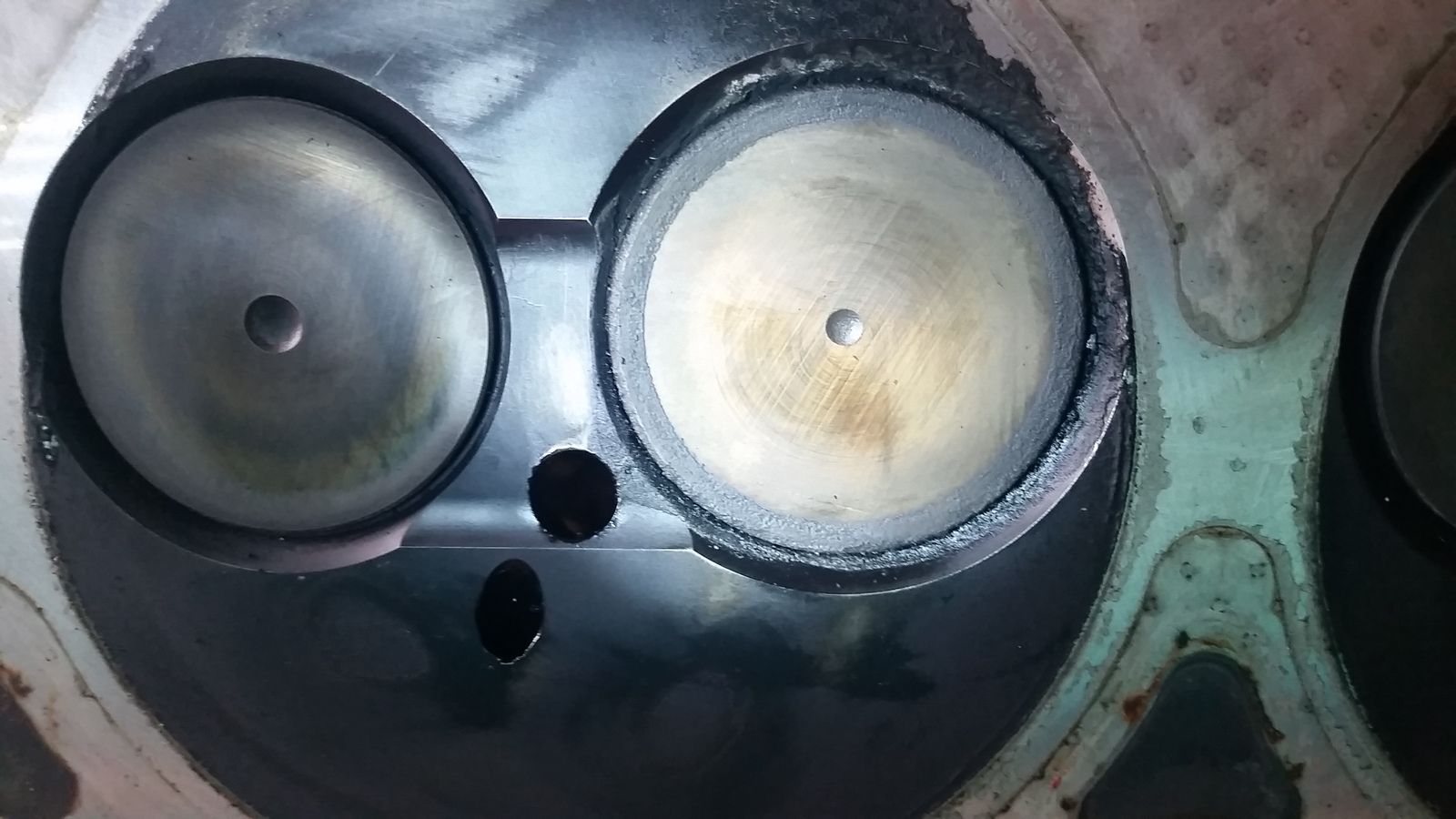

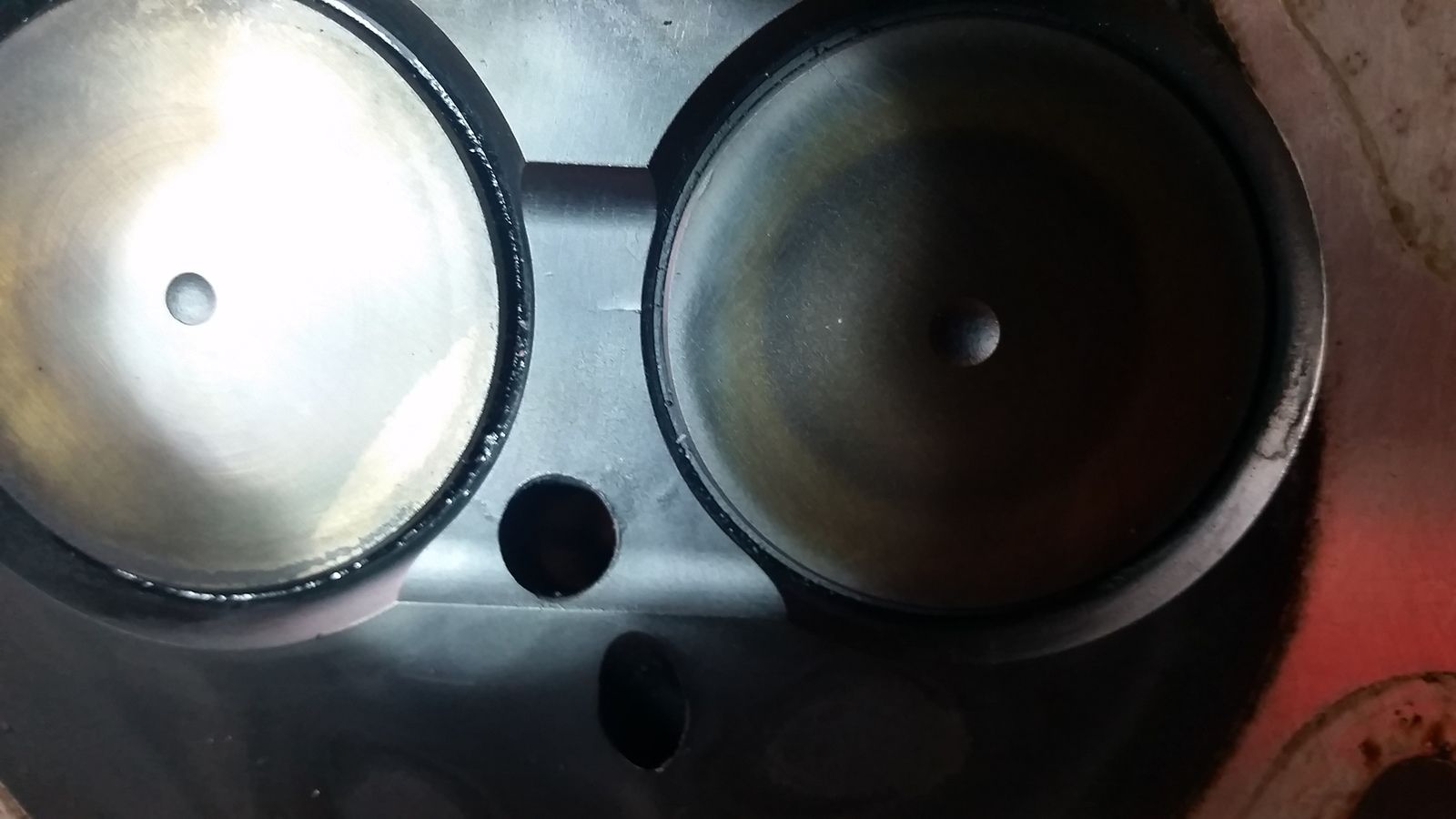

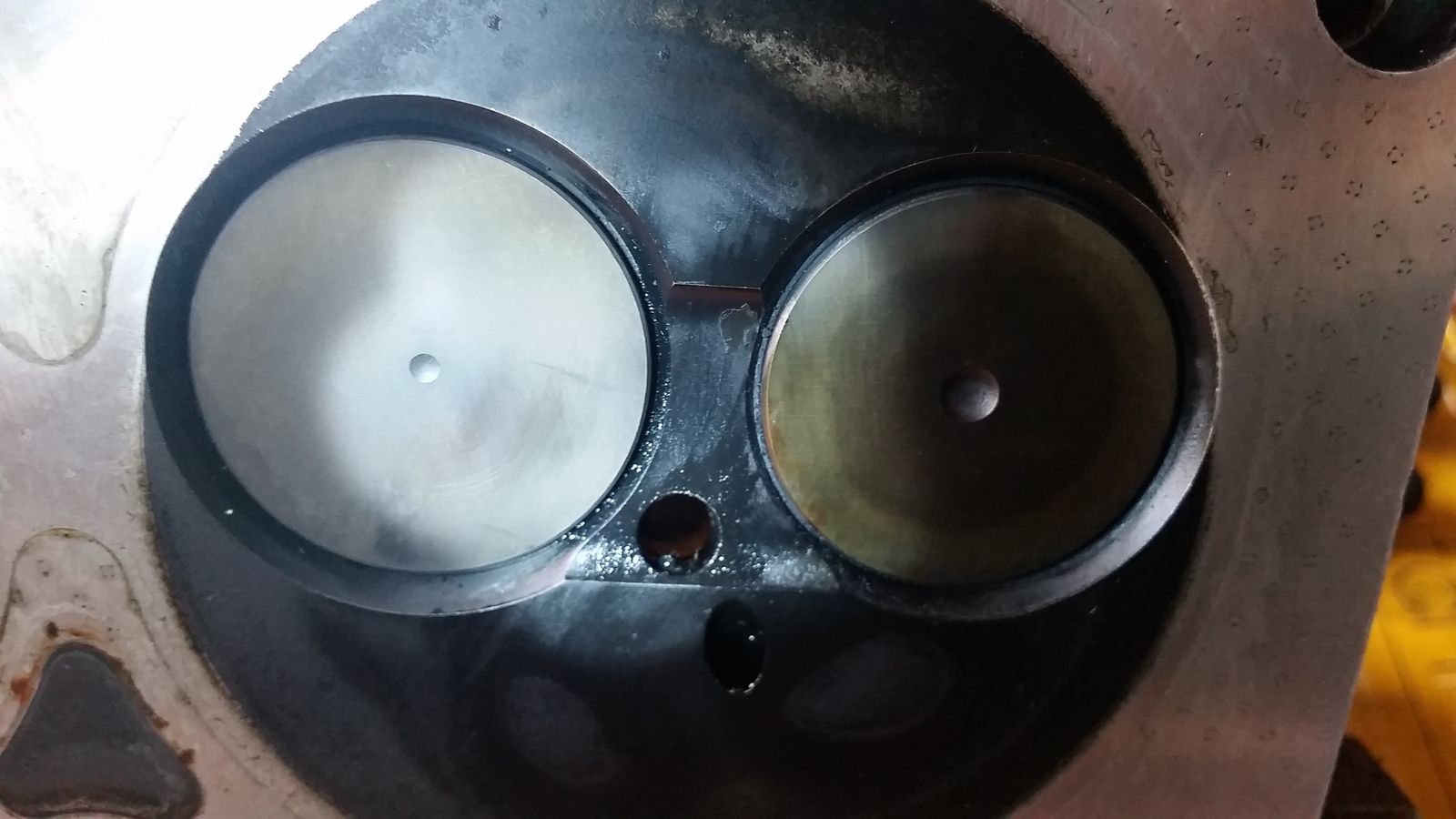

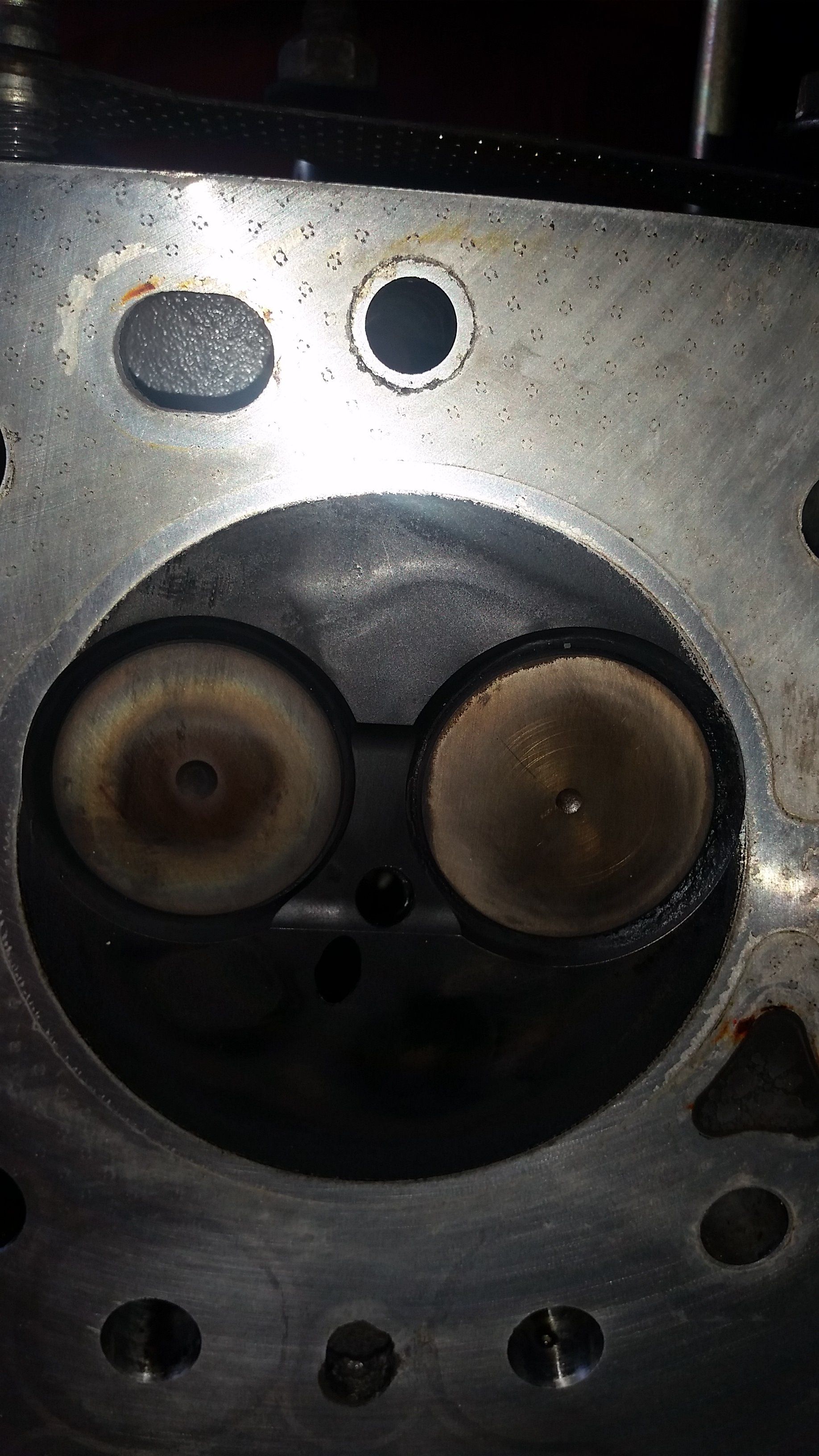

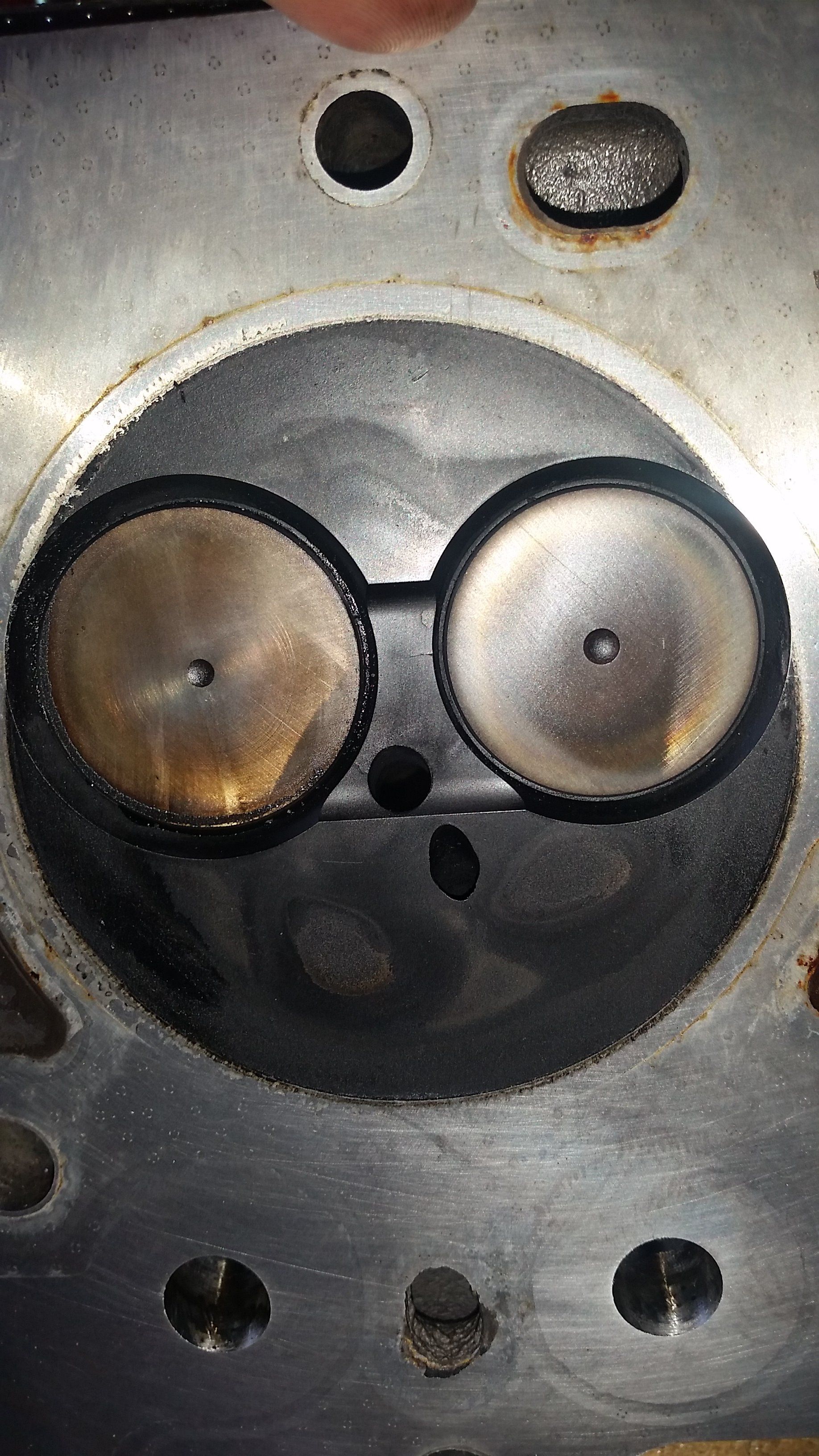

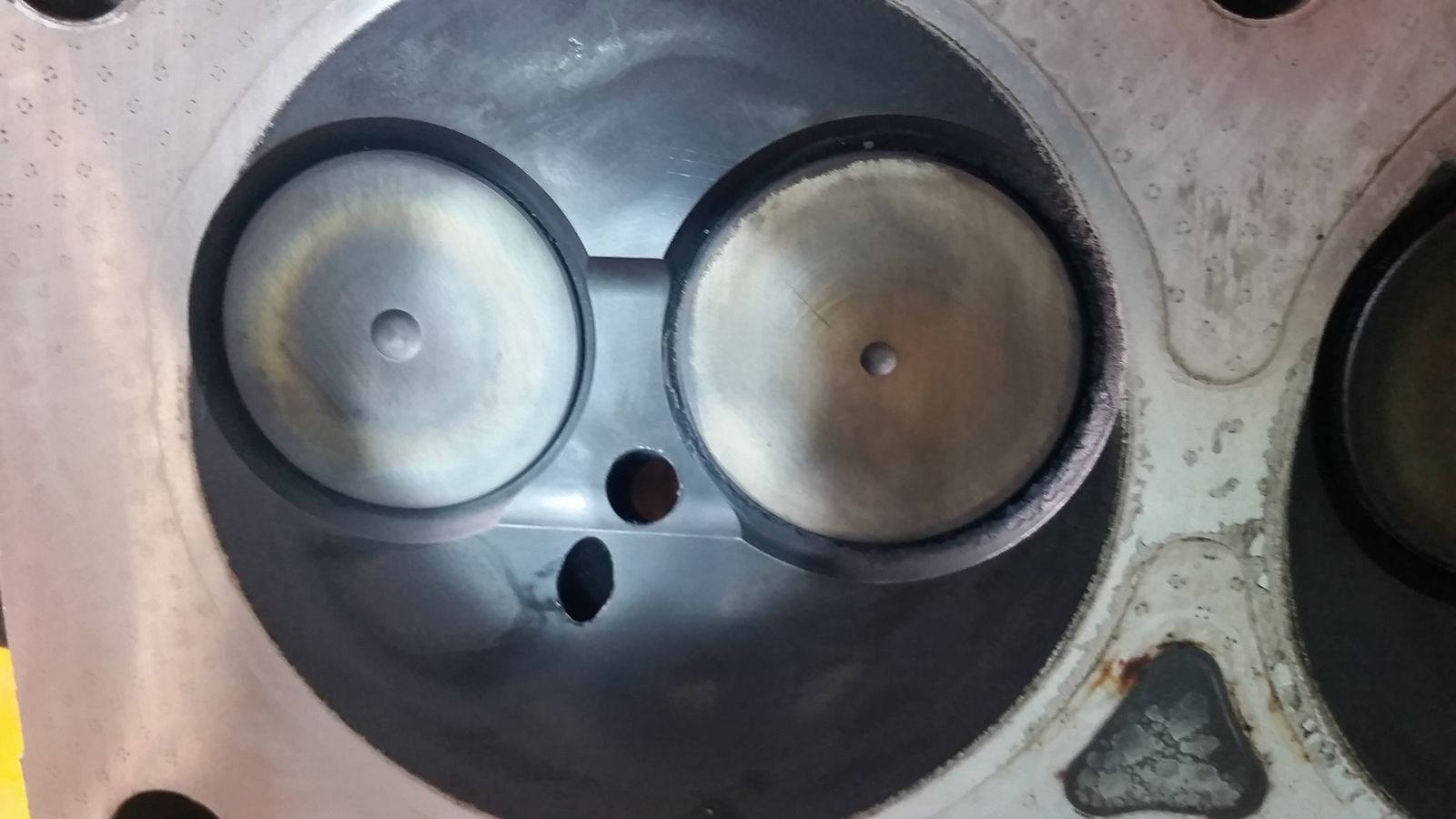

images a little better and after re-looking the crack i was talking about is on 2 not 3 lol

image numbers are wrong 1 and 2 are 2 and 1 3 and 4 are 3 and 4 though lol

Magicgrotto · Jul 20, 2017

Pm me your number & i will phone you !!!
