tomcat59alan · May 21, 2020

8mm socket for the electrical connection nut, 12mm for the plug body.

Sorry just re-read your post,thought you needed socket size, its early for me. Got to use the internet before all the lockdowners start to Skype or Zoom.

Lukas018 · May 21, 2020

wammers said:
First one, brown single pin or blue twin pin with air con, dash gauge sensor. Second one, green ECM temp sensor. Third one, black overheat sensor, fitted 1999 and on.

Thanks

Datatek · May 21, 2020

Glow plugs connection is M4

RangeRoller dt · May 21, 2020

I have a spare brown 1pin if you want it.

RangeRoller dt · May 21, 2020

Grrrrrr said:
Destructive, in both cases.

Henry_b · May 21, 2020

Fixed it yet!!

Don't for get the video eh?!

Lukas018 · May 21, 2020

Datatek said:
Glow plugs connection is M4

Thank you.

Lukas018 · May 21, 2020

RangeRoller dt said:
I have a spare brown 1pin if you want it.

Thanks mate will see how get on tomorrow if it fires up!

Lukas018 · May 21, 2020

Henry_b said:
Fixed it yet!!

Don't for get the video eh?!

Hopefully tomorrow!

RangeRoller dt · May 21, 2020

Is brand new,
mine has blue 2pin instead as I have weird extras on my DT.
Also still have Keith’s Switch hanging out of my dash

wammers · May 22, 2020

RangeRoller dt said:
Is brand new,
mine has blue 2pin instead as I have weird extras on my DT.
Also still have Keith’s Switch hanging out of my dash

Only difference brown 1 pin and blue 2 pin, is that the 1 pin grounds through it's body to the engine and the 2 pin grounds from the second wire. As long as you connect the power wire from the two wire loom to the brown single connector it will work fine.

Mark Piercy · May 22, 2020

Don't let those telly tubbies near your '38

...

Lukas018 · May 22, 2020

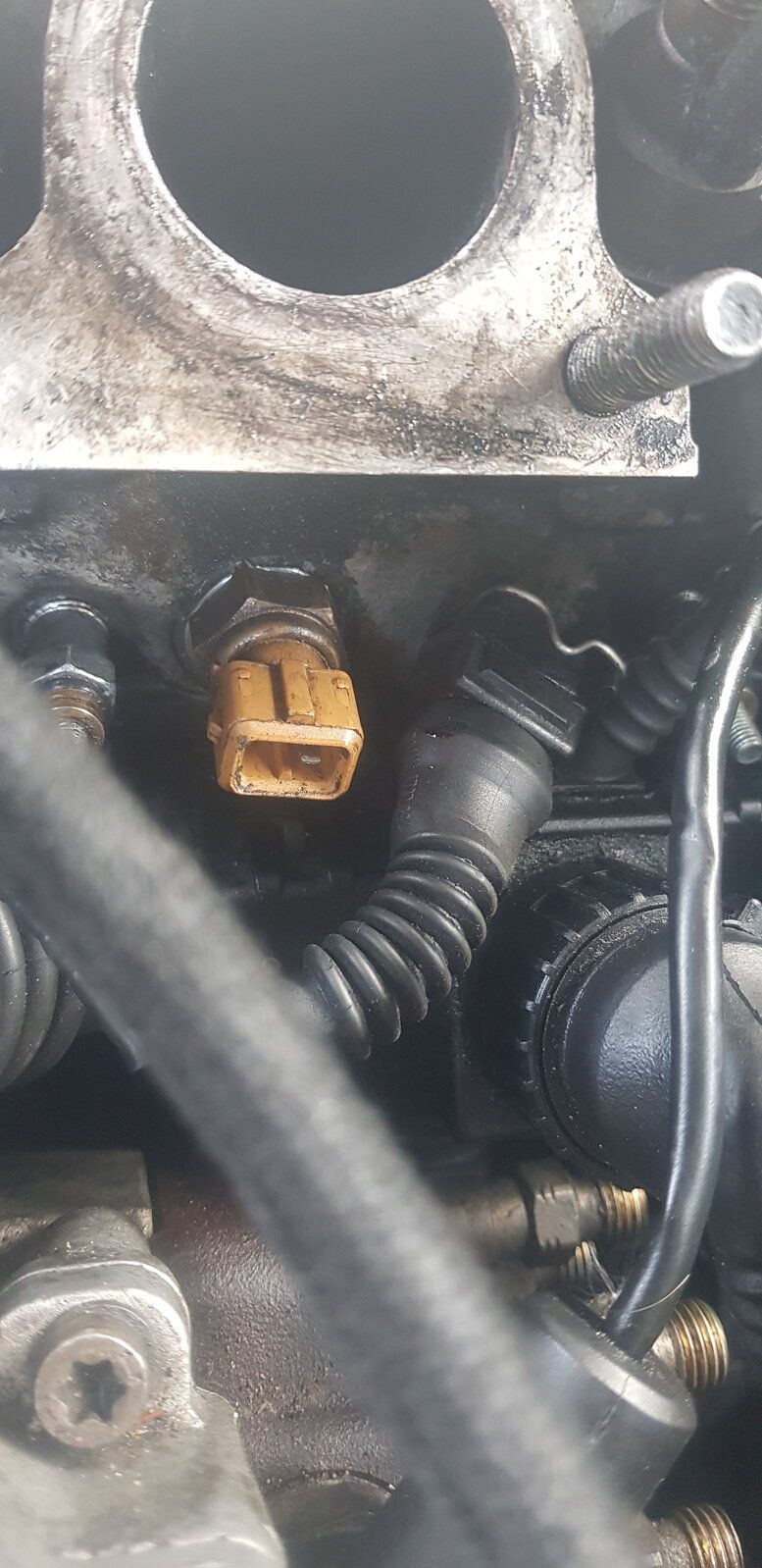

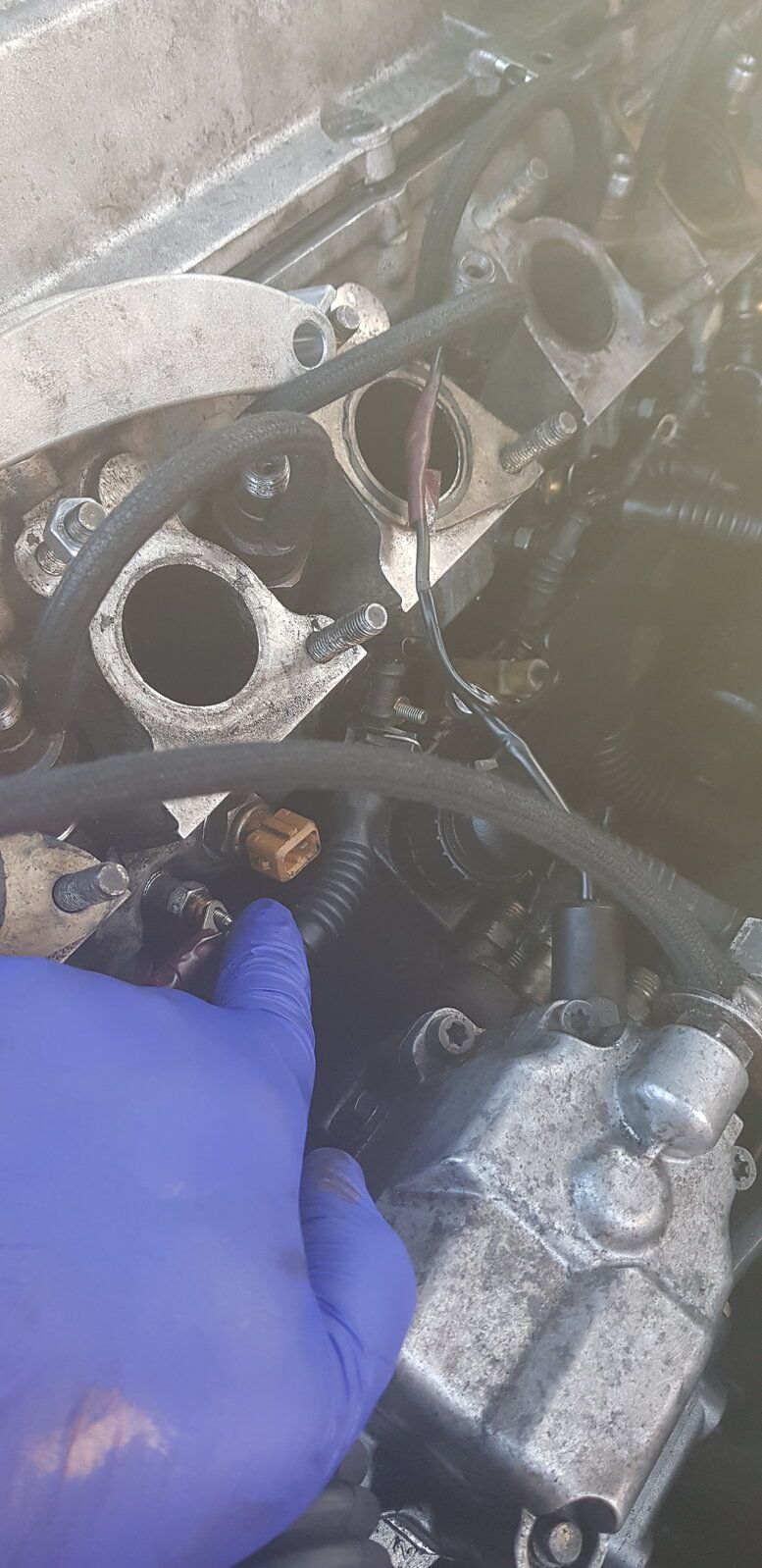

I got the same as @Mark Piercy see photo.

RangeRoller dt · May 22, 2020

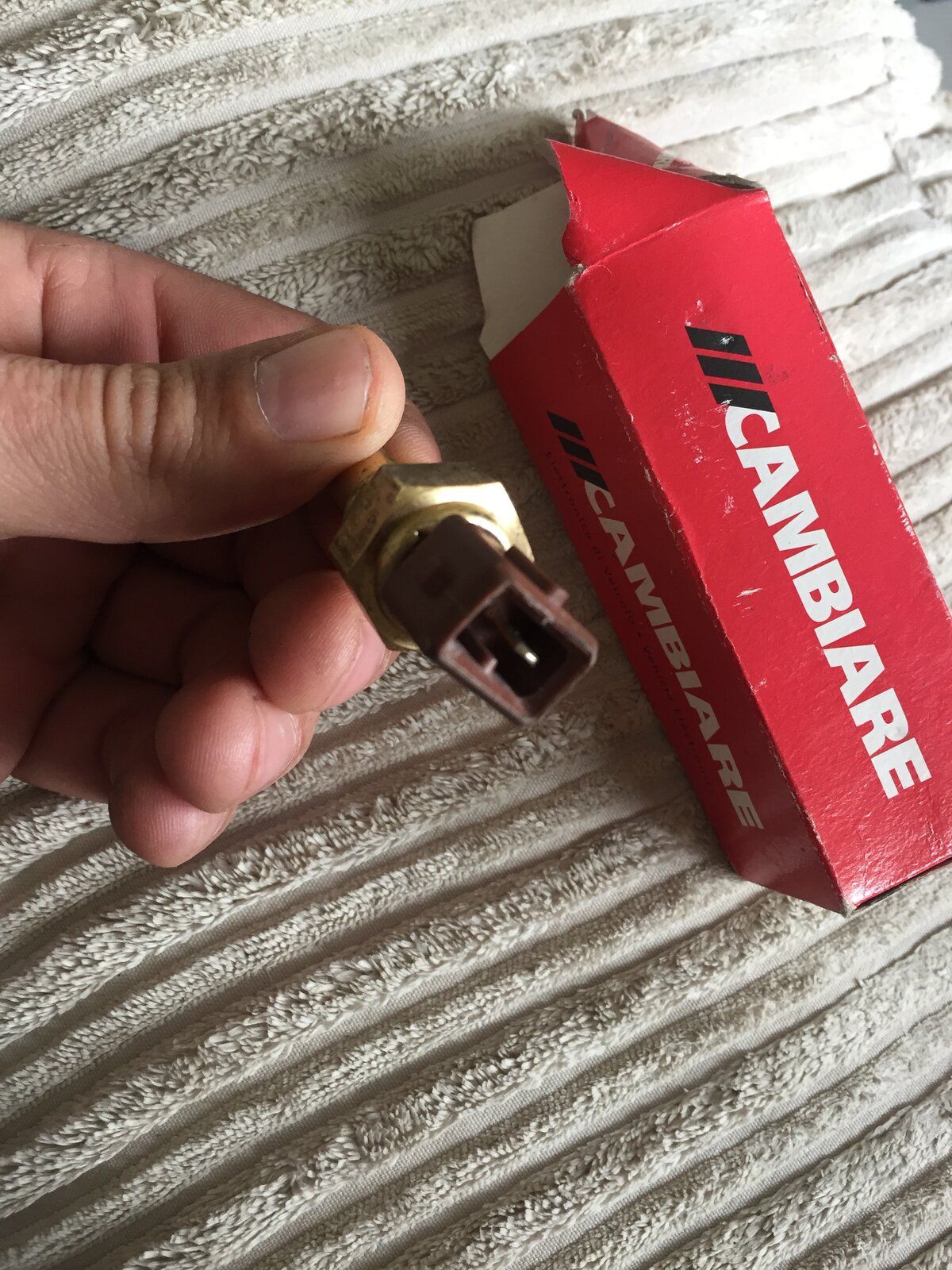

Been in shed year or two, slight discolouring on side and no washer but you can reuse the one on there most likely

Lukas018 · May 22, 2020

RangeRoller dt said:
Been in shed year or two, slight discolouring on side and no washer but you can reuse the one on there most likely
View attachment 209756

Ok mate. Send me a PM?

Lukas018 · May 22, 2020

@wammers had bit of bad luck battery was knakered seems like diesel was not passing through the solenoid bled to pump ok. The solenoid did click but no diesel getting to high pressure pipes. I re-synced it also no issues. You able to help in anyway at all?

Datatek · May 22, 2020

Lukas018 said:
@wammers had bit of bad luck battery was knakered seems like diesel was not passing through the solenoid bled to pump ok. The solenoid did click but no diesel getting to high pressure pipes. I re-synced it also no issues. You able to help in anyway at all?

You need to bleed the air out of at least a couple of the injector pipes by leaving the union loose at the injector while cranking.

Lukas018 · May 22, 2020

Datatek said:
You need to bleed the air out of at least a couple of the injector pipes by leaving the union loose at the injector while cranking.

Yeah but no diesel was getting through to the injectors?

Datatek · May 22, 2020

Lukas018 said:
Yeah but no diesel was getting through to the injectors?

Is the stop valve on the FIP connected properly?
It took a fair bit of cranking to get the diesel through on mine this week after re-timing the FIP, I had to connect a tractor battery with jump leads to get enough power.

Lukas018 · May 22, 2020

Datatek said:
Is the stop valve on the FIP connected properly?
It took a fair bit of cranking to get the diesel through on mine this week after re-timing the FIP, I had to connect a tractor battery with jump leads to get enough power.

Wow blimey yeah that is connected and is getting electrical supply the engine would.crank 5 or 10 times before battery gave out
