RodneyA

Active Member

• Dec 30, 2014

• #1

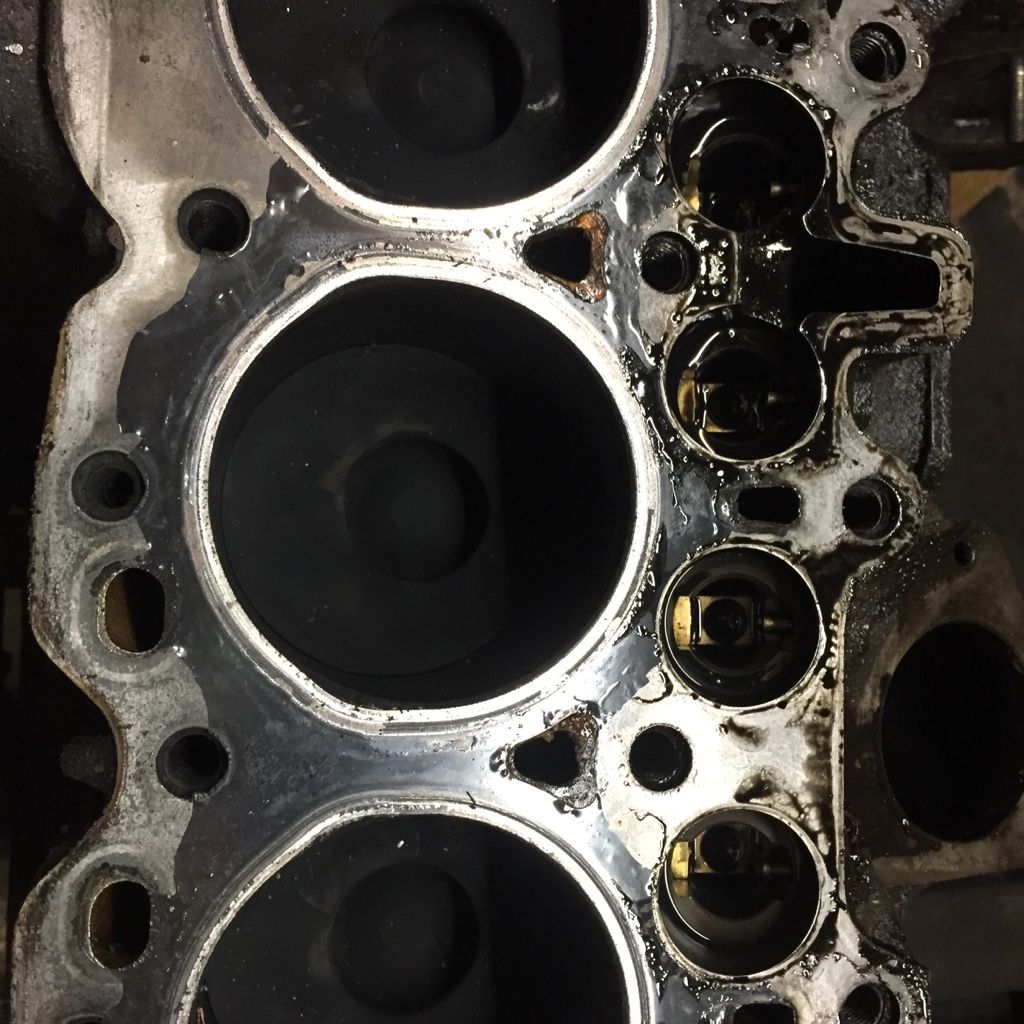

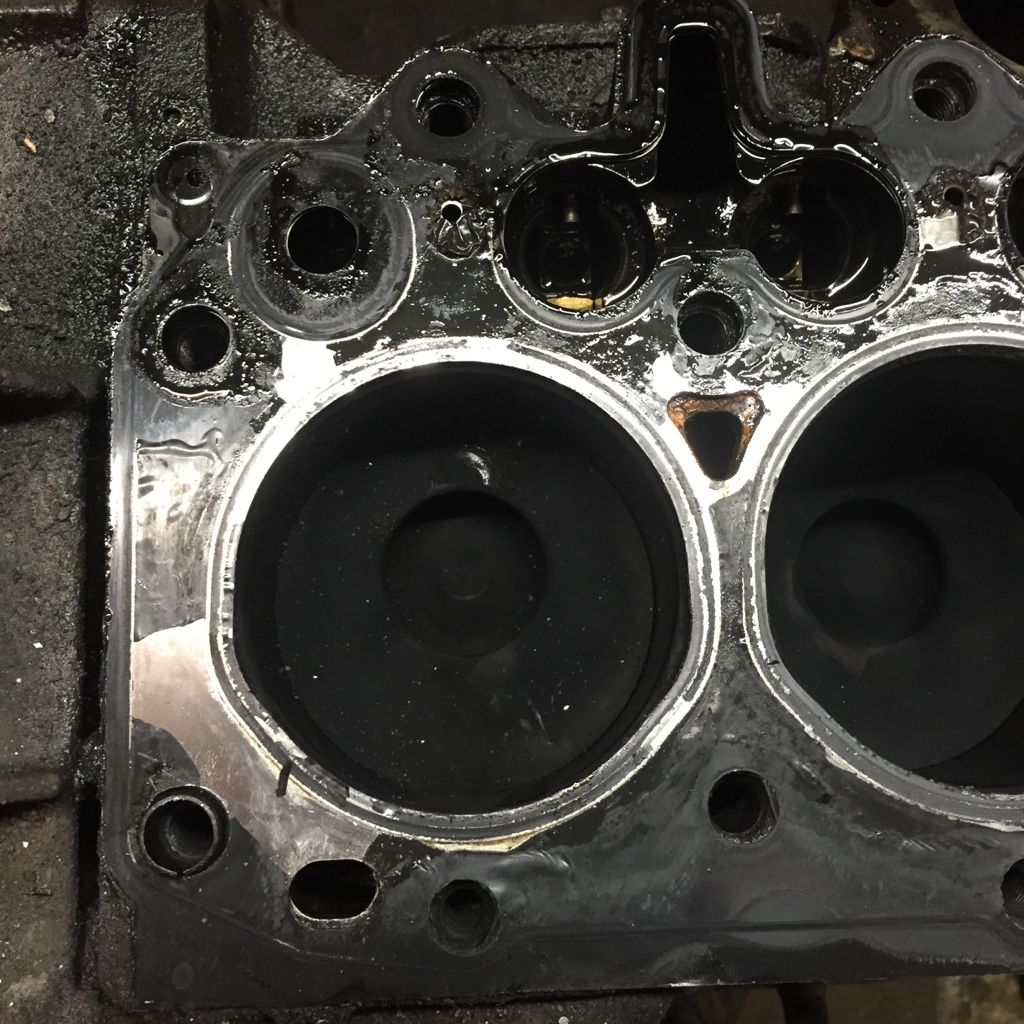

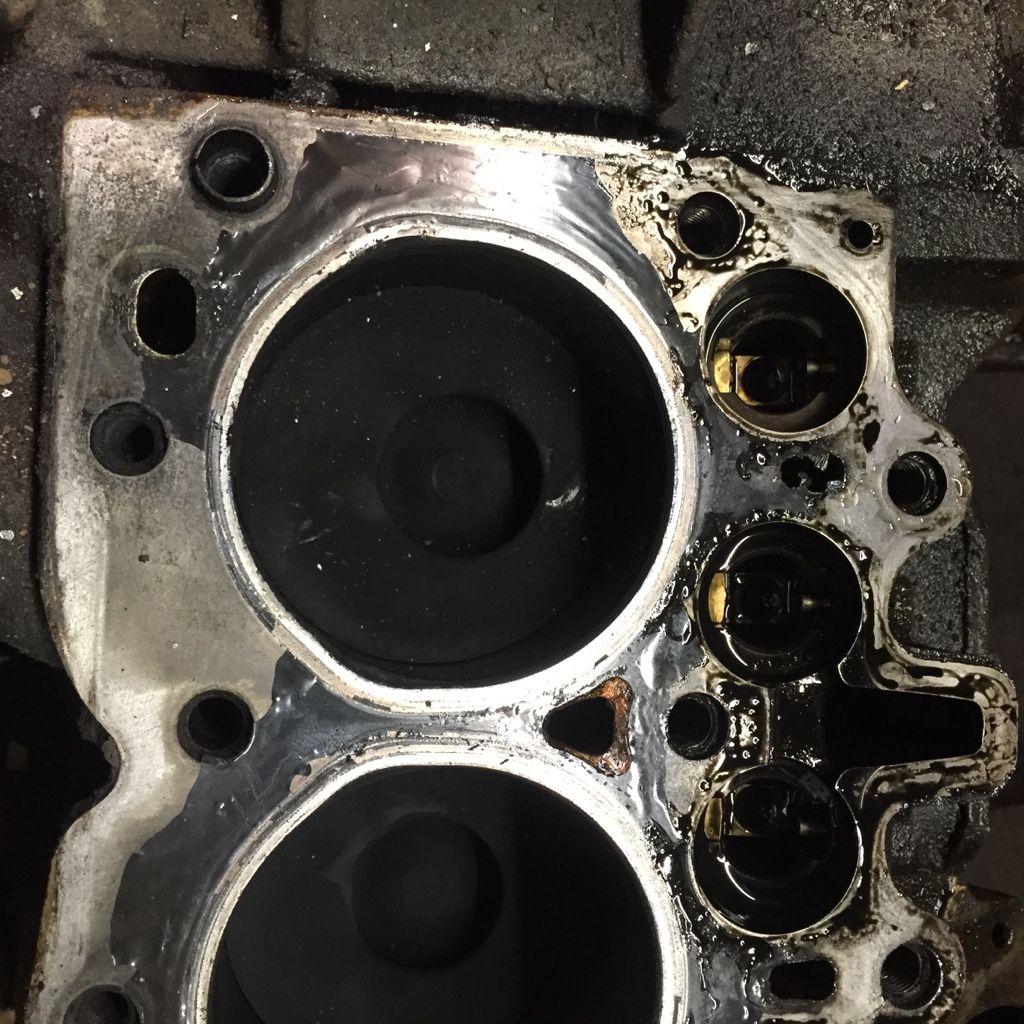

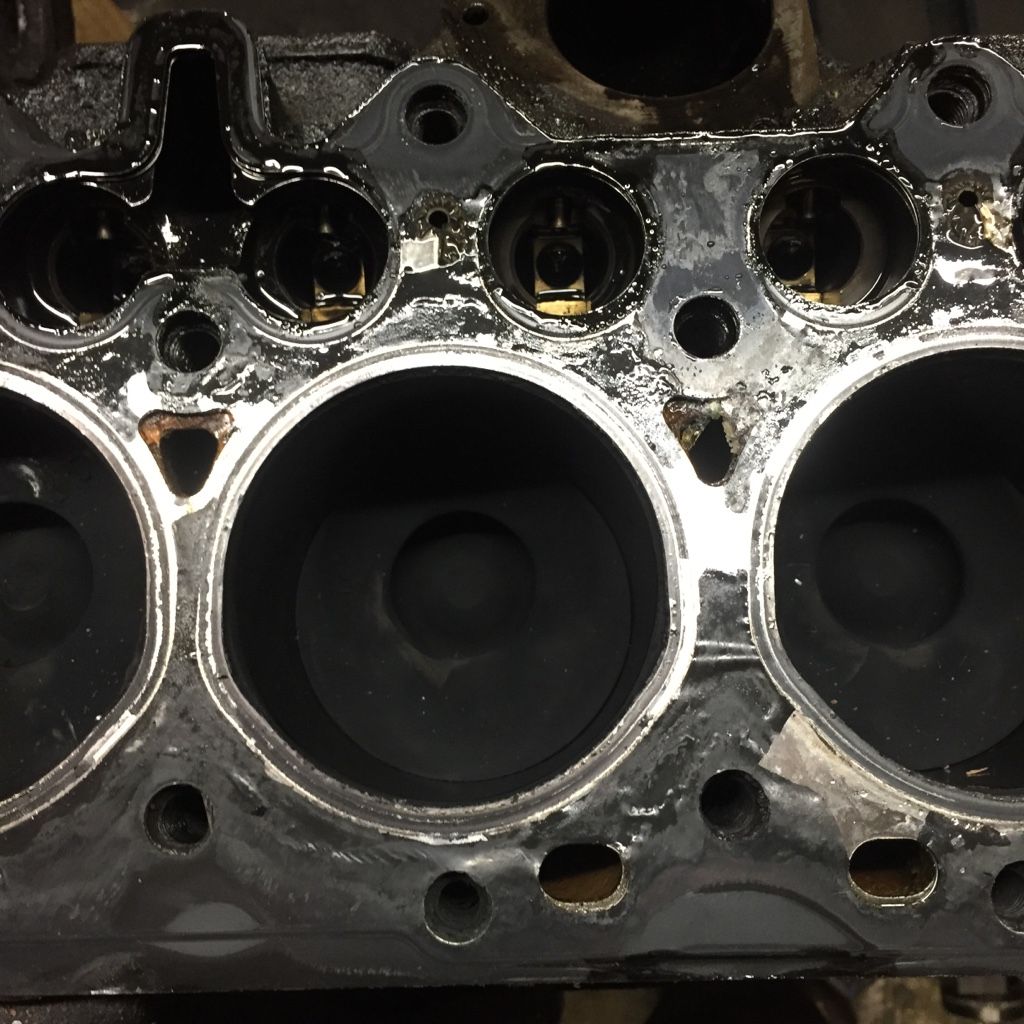

I've taken my head off and was wondering if you can have a peek at the gasket and see if it looks ok

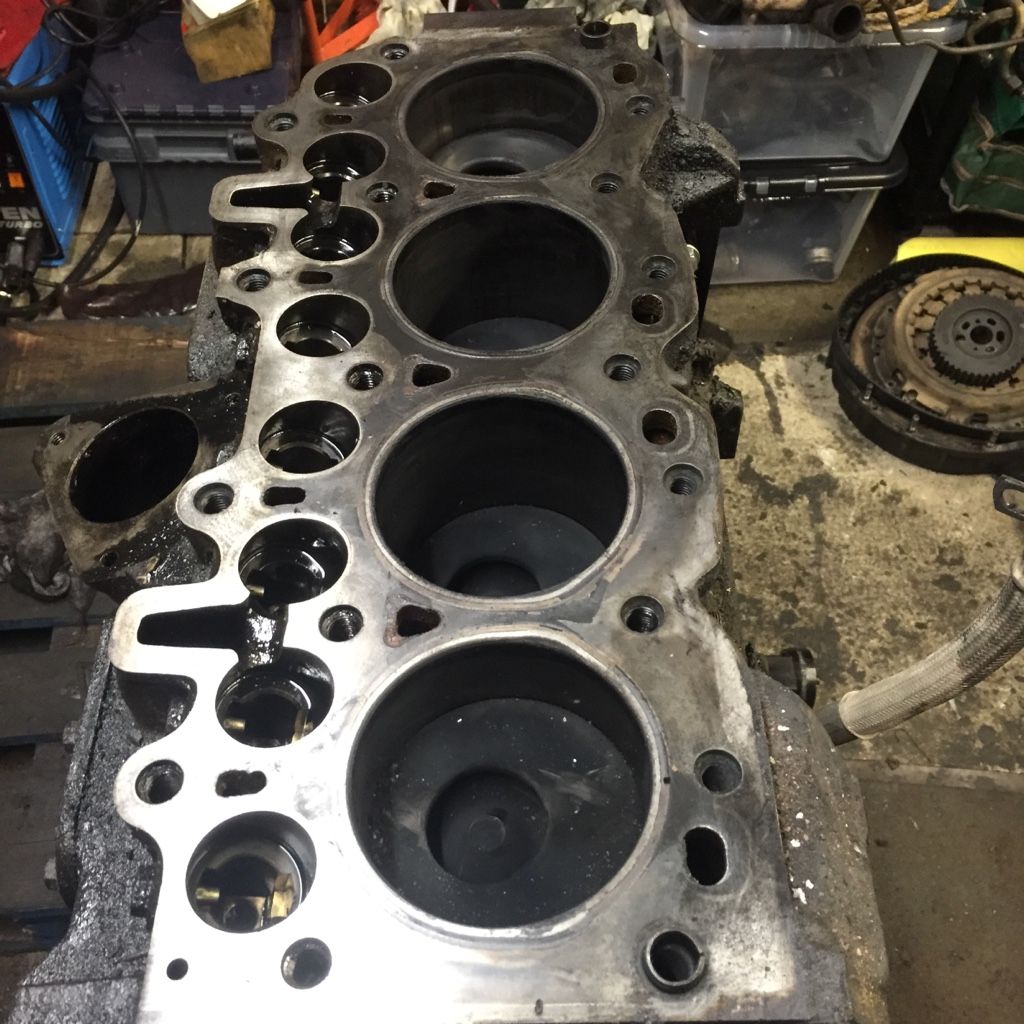

First 4 pictures are the gasket and last 4 are the gasket off.

I also can't seem to see these holes that tell me what thickness of gasket I need.



jamesmartin

Well-Known Member

• Dec 30, 2014

• #2

err5263 composite gasket, also its getting more fuel than air enough to burn it



Last edited: Dec 30, 2014

RodneyA

Active Member

• Dec 30, 2014

• #3

Ah. I meant to say it seems like 2 gaskets when I took it off.



jamesmartin

Well-Known Member

• Dec 30, 2014

• #4

its 1 gasket just not secured together anymore



RodneyA

Active Member

• Dec 30, 2014

• #5

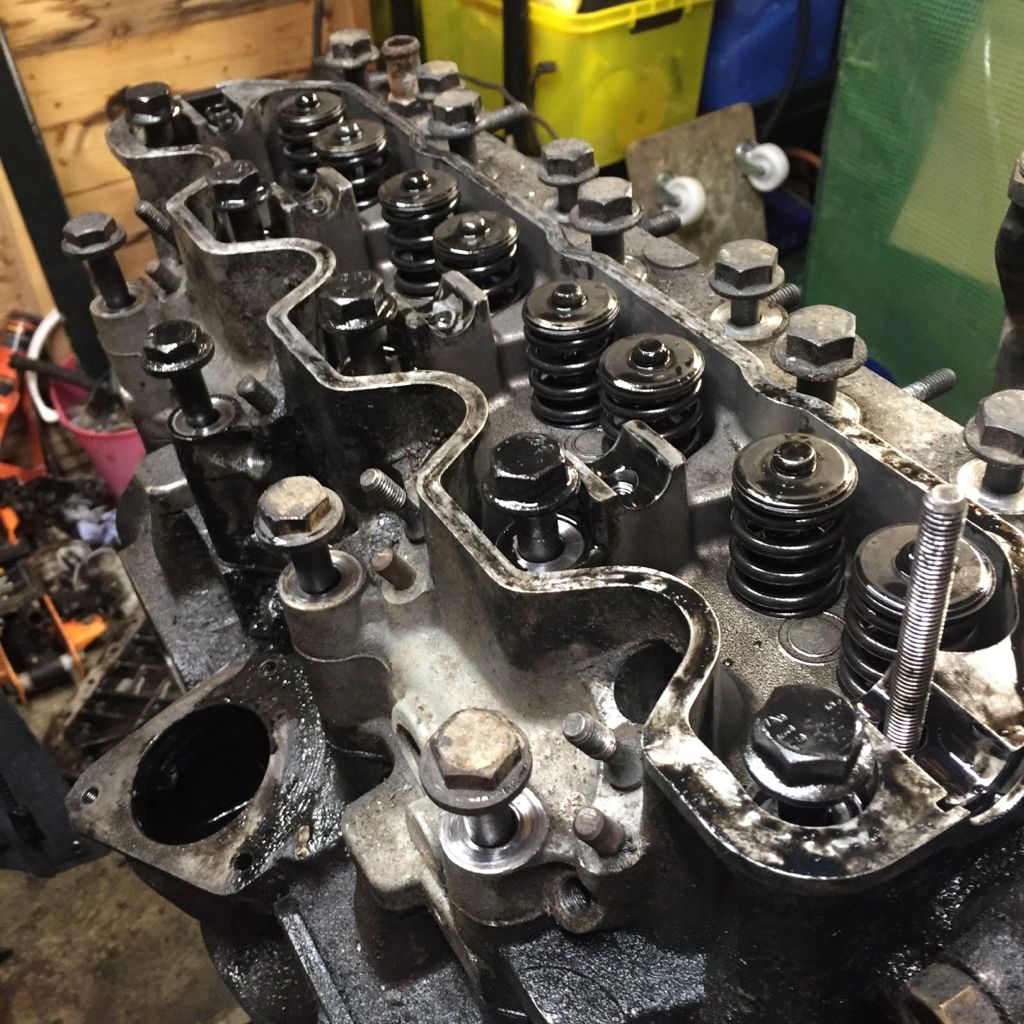

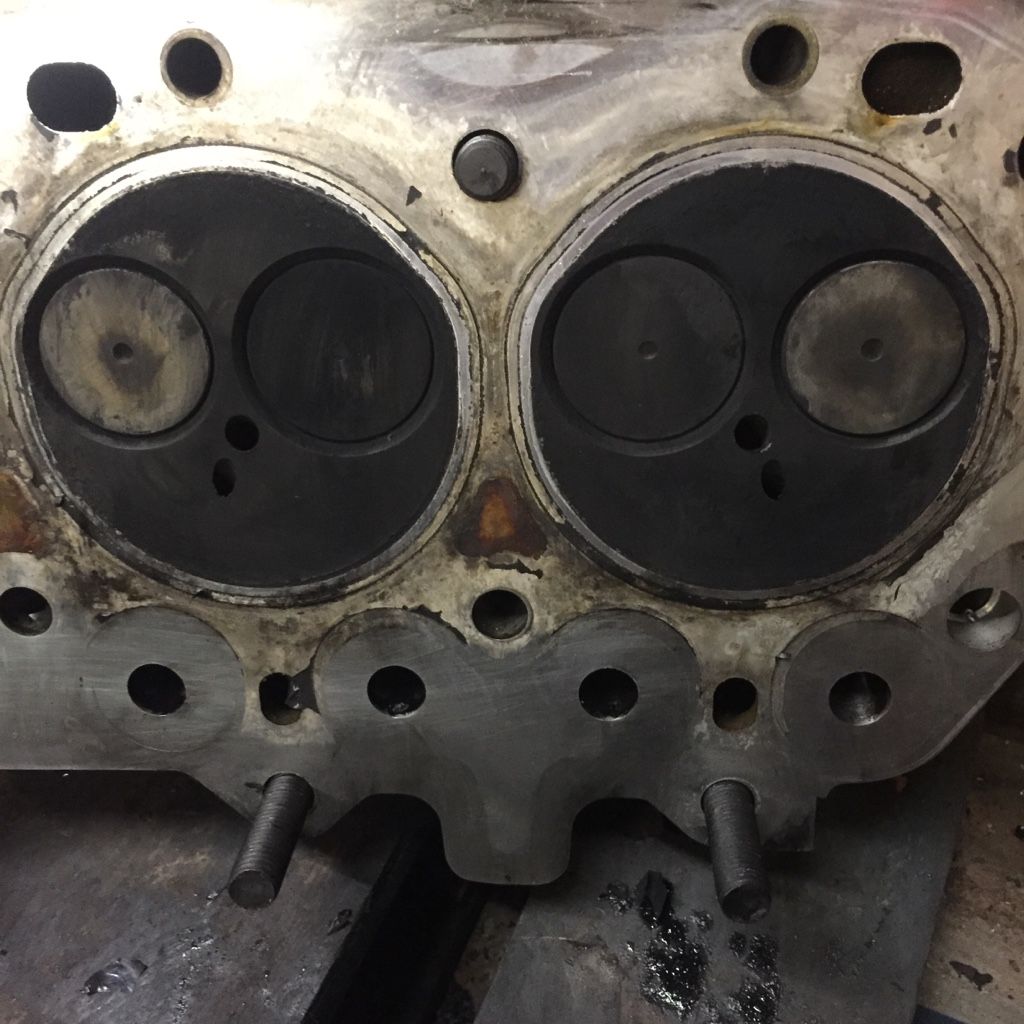

Does the bits seem ok? the bores seem good. Maybe a teeney wee bit rough right at the top but no lip as such. Will pop some pictures of the head on soon.



RodneyA

Active Member

• Dec 30, 2014

• #6



RodneyA

Active Member

• Dec 30, 2014

• #7

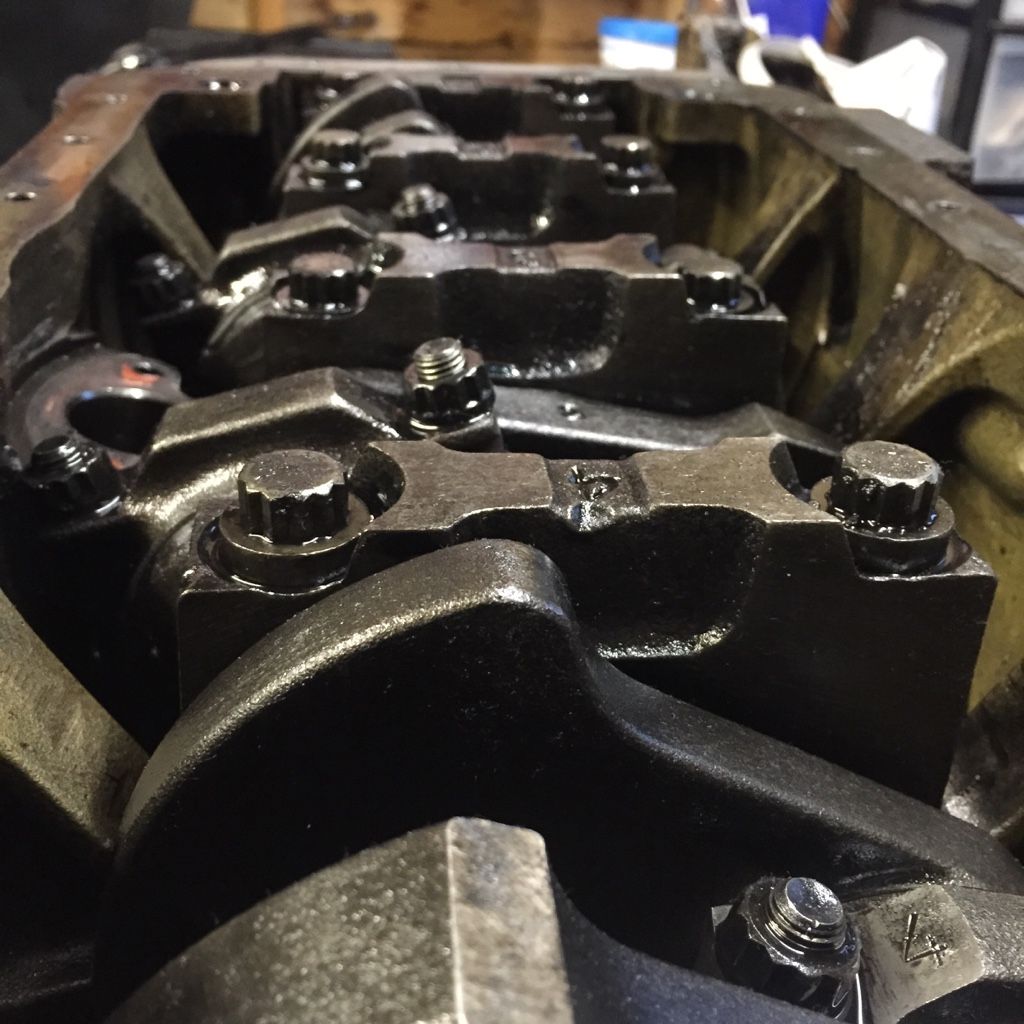

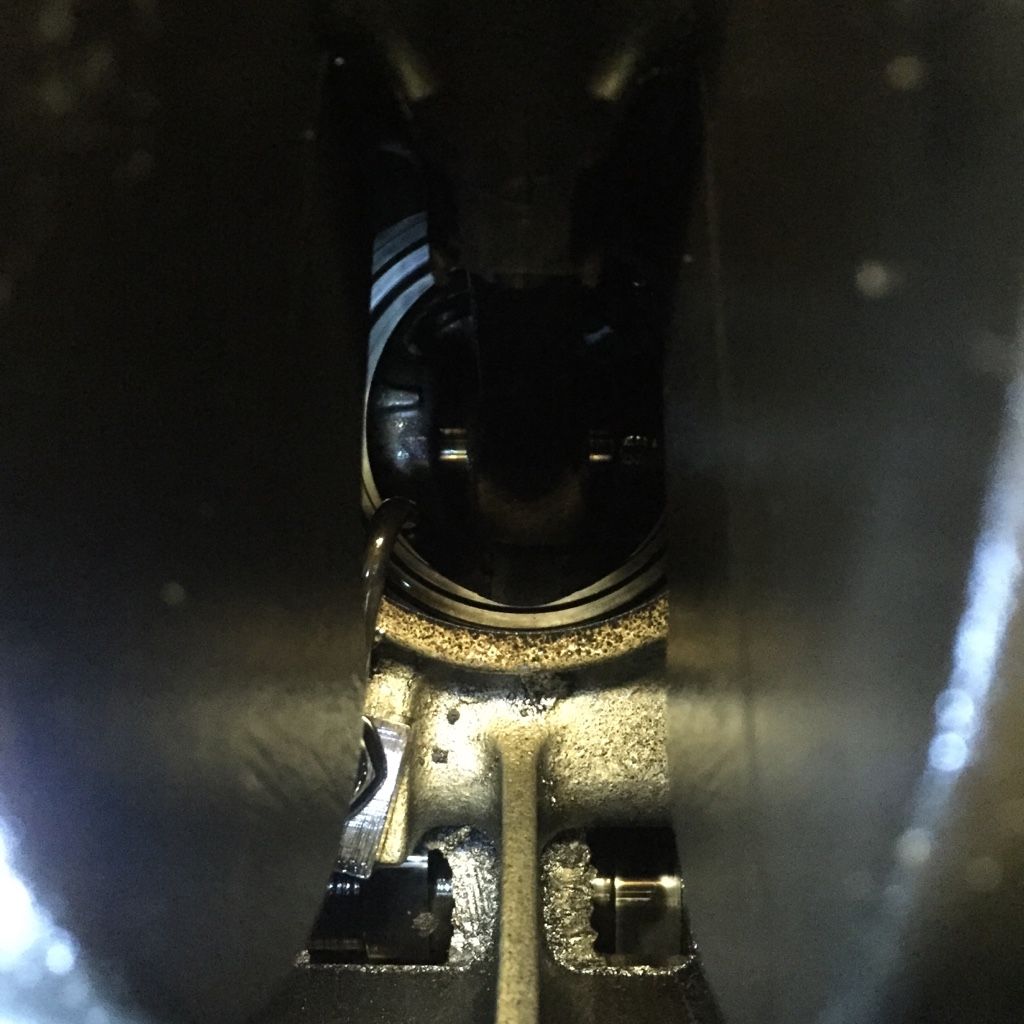

The internals are for somebody else to work on. I'm too scared to touch them

Tho from what I can see they seem in good nick.



jamesmartin

Well-Known Member

• Dec 30, 2014

• #8

check heads flat especially in the center



L

lynall

Well-Known Member

Full Member

• Dec 30, 2014

• #9

Main thing I have personally seen on a few 200 heads is cracking between the valve seats, doesnt seem to effect anything, just looks bad!
