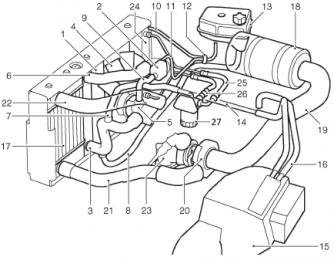

Here you go fella, it's number 12.


Attachments

  • Land-Rover-Defender-Engine-Cooling-System-Schematic-Diagram.jpg
    20.4 KB · Views: 14,017
its a tee piece.
allows air from rad and stat housing to vent to header tank. aids bleeding.
common to check if blocked (and the pipes) if havin trouble getting air out of system.

Got a result back from the machine shop today, heads fooked.

All exhaust ports cracked to injector holes.

New one on it's way now.

yep that'll do it....cracked the lot eh?
did your mech' give any reason why or how this happened....wouldnt want another one to go the same way

Not really given a reason by the machine shop but the cracks are now more evdient. Probably just excessive tempratures.

I have fitted the new head today after building it up along with a new Elring gasket.

I will get the rest of it done tomorrow and fire her up, hopefully all will be well!

All finished today and all seems well.

Taken it out for a good run, well 5 miles or so, and no overheat, red hot heaters and no water leaking anywhere!

WooHoo!

Pay & Play for me this weekend 8)
