Before I pop off down to the Land Rover today I've had a bit of extra time to have a look at the pesky water pump rebuild.
Perhaps this too has been more trouble than it is worth?
Anyway - story so far - the first kit I got seemed to have the wrong seal in the box because when I fitted it the shaft could barely move. I then started a thread here and over on the series 2 club forum to find out if other people had had this trouble before - and specifically if anyone knew how big the gap between the shaft and the seal should be...
...I'm still not 100% sure how it is meant to be so I've decided to crack on and try it again with the new kit.
Putting the water pump back together is very simple - hydraulic press definitely makes it a doddle but with great care and sockets and a hammer you could do it too if you really wanted to (I'm not sure many people would)

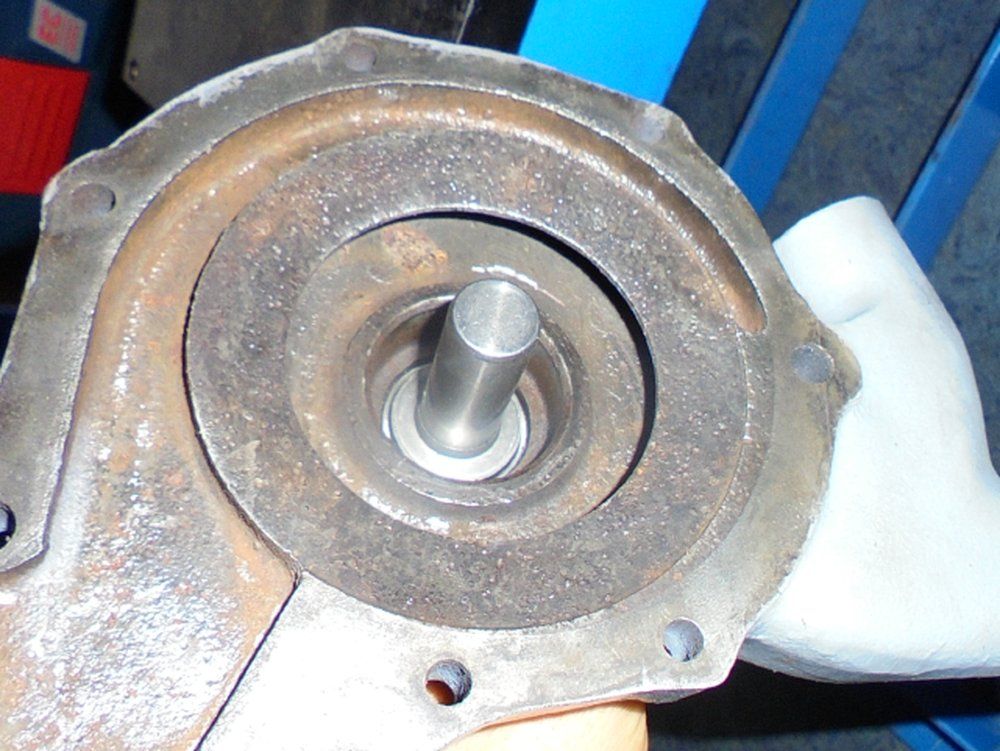

First push the bearing and shaft into the housing - pressure on the outside of the bearing and not on the shaft
Shaft pokes out the bottom so make sure to support the casing over a hole

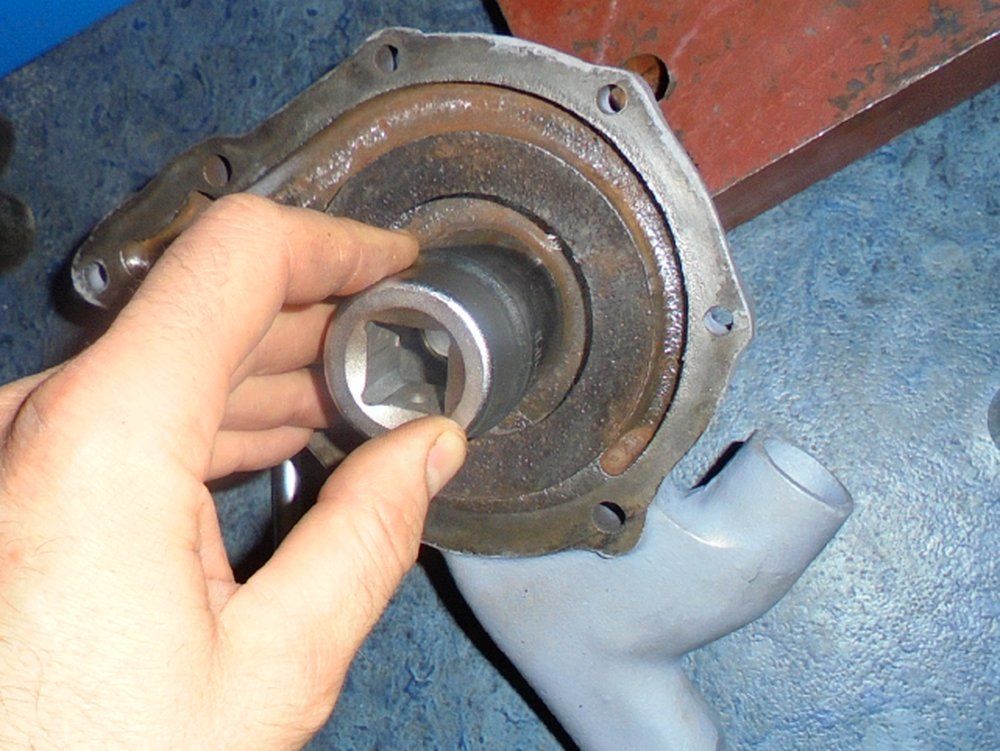

This time the seal fitted on with a firm push by hand - the socket is pushing on the outer edge of the seal and not the springy inner bit

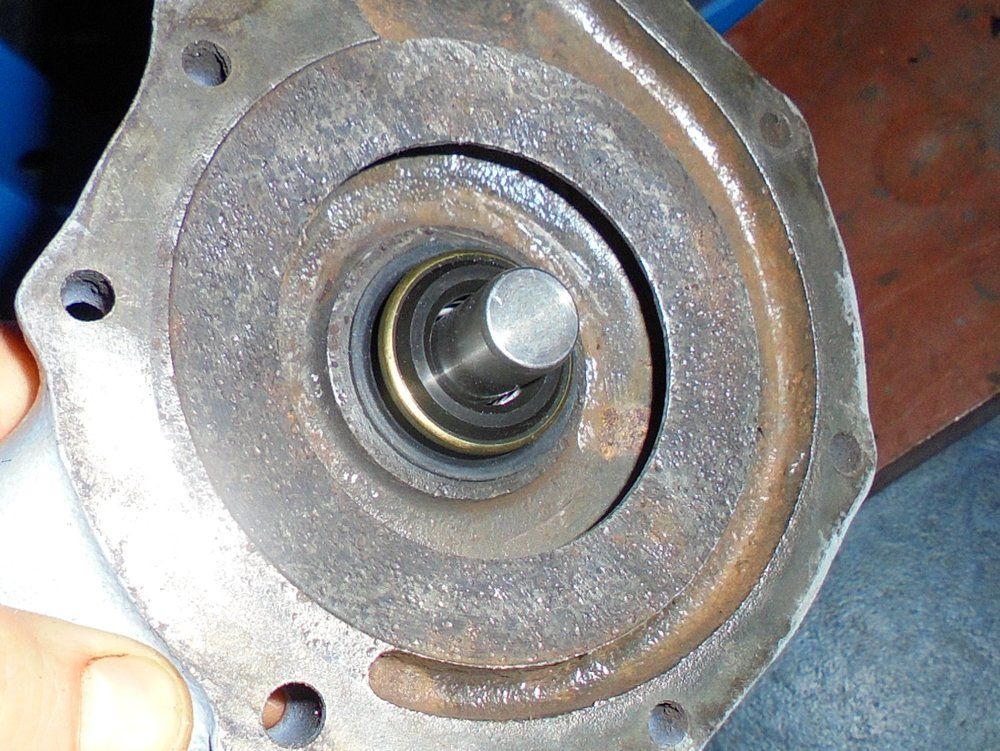

Big gap between the seal and the shaft - fingers crossed the seal is indeed between the end surface of the seal and the impeller
(This was the point where I was wondering if some thick NLGI4 water pump grease would be a good addition - Green book doesn't say to do this but I was thinking belt and braces - probably not done or necessary - probably over thinking it - so didn't do it)
Now the drive flange bit

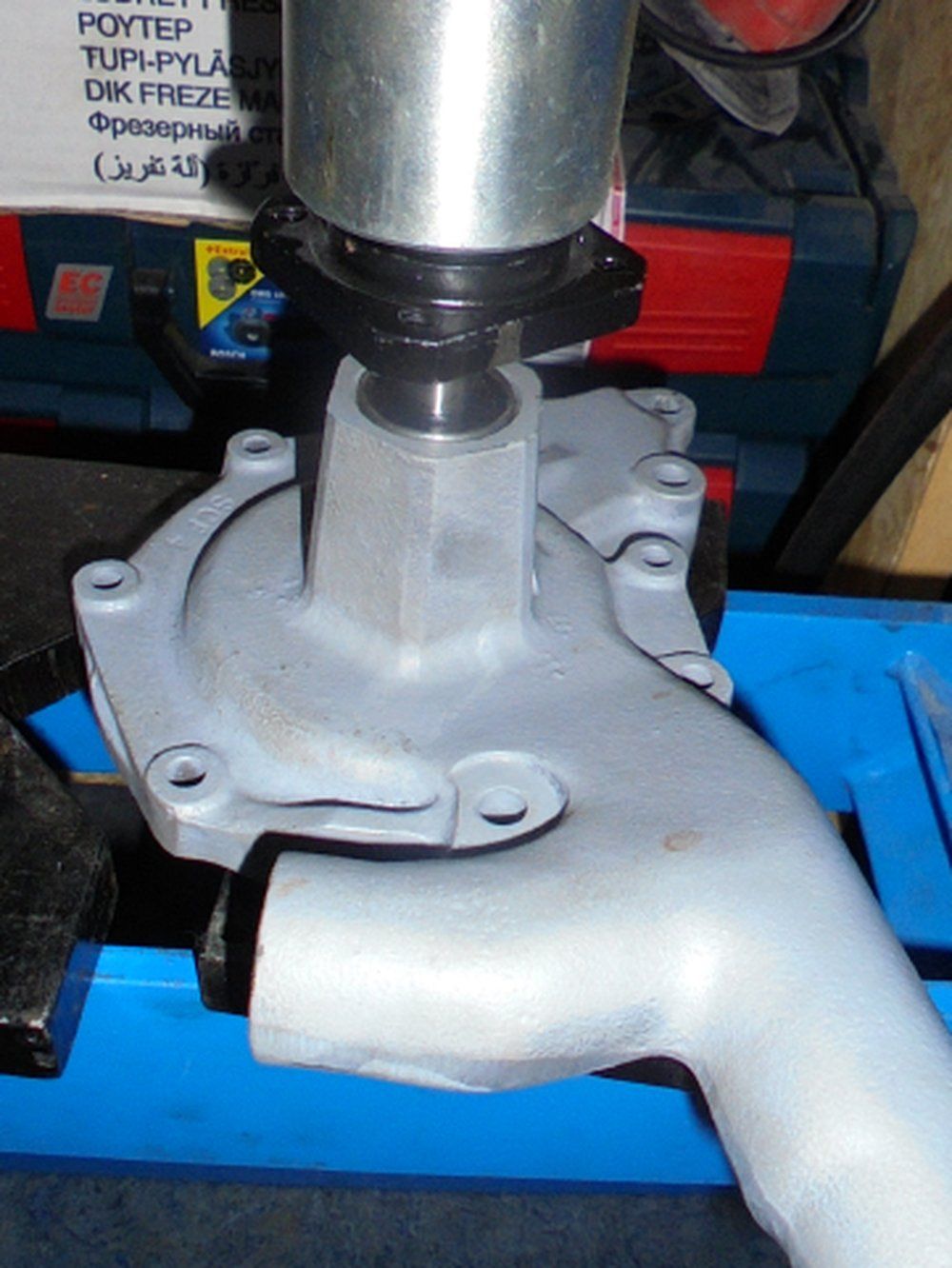

This time the end of the shaft is being supported and I'm pushing the flange onto the shaft - outer bearing and casing is free to spin
The tricky thing is "how far along the shaft does this bit go?"

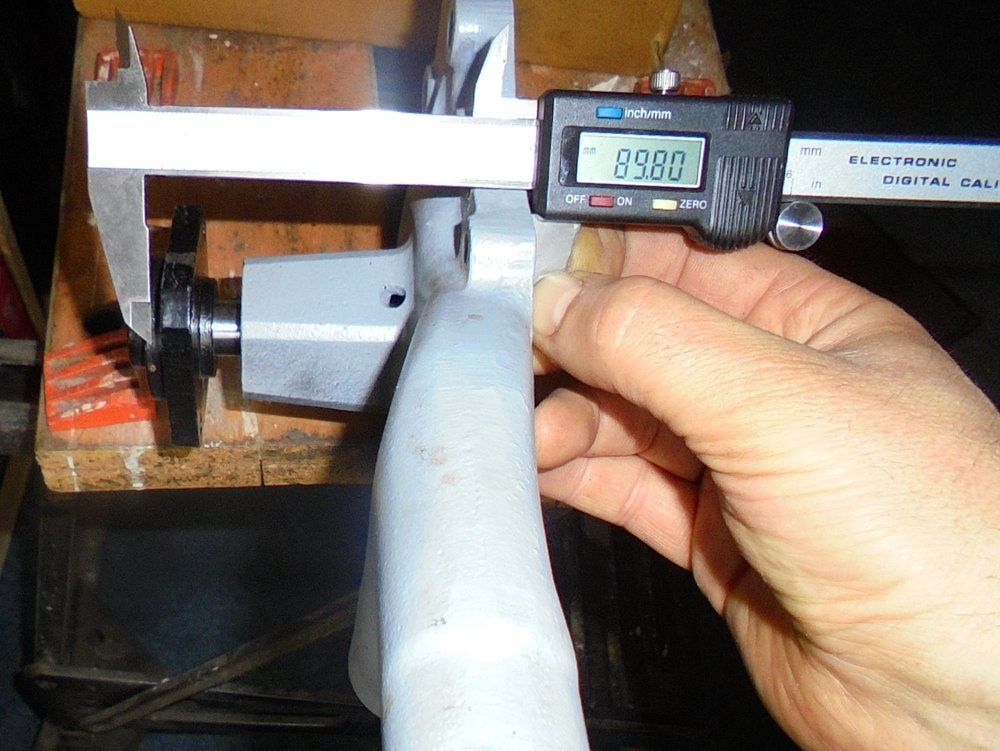

The book specifies a dimension which is a bit smaller than that shown on the vernier in the picture - I've said it before and I'll say it again don't rely on me and my inability to read instructions: Check the book yourself and check the conversions from old money to metric too!
{Dear Santa please may I have a vernier caliper that reaches deeper than this one?}
The green book has another measurement for the position of the water pump pulley when fitted. This will be checked later on once I've got things back together again. I've already come up with several "making sure the pulleys are aligned" tricks...

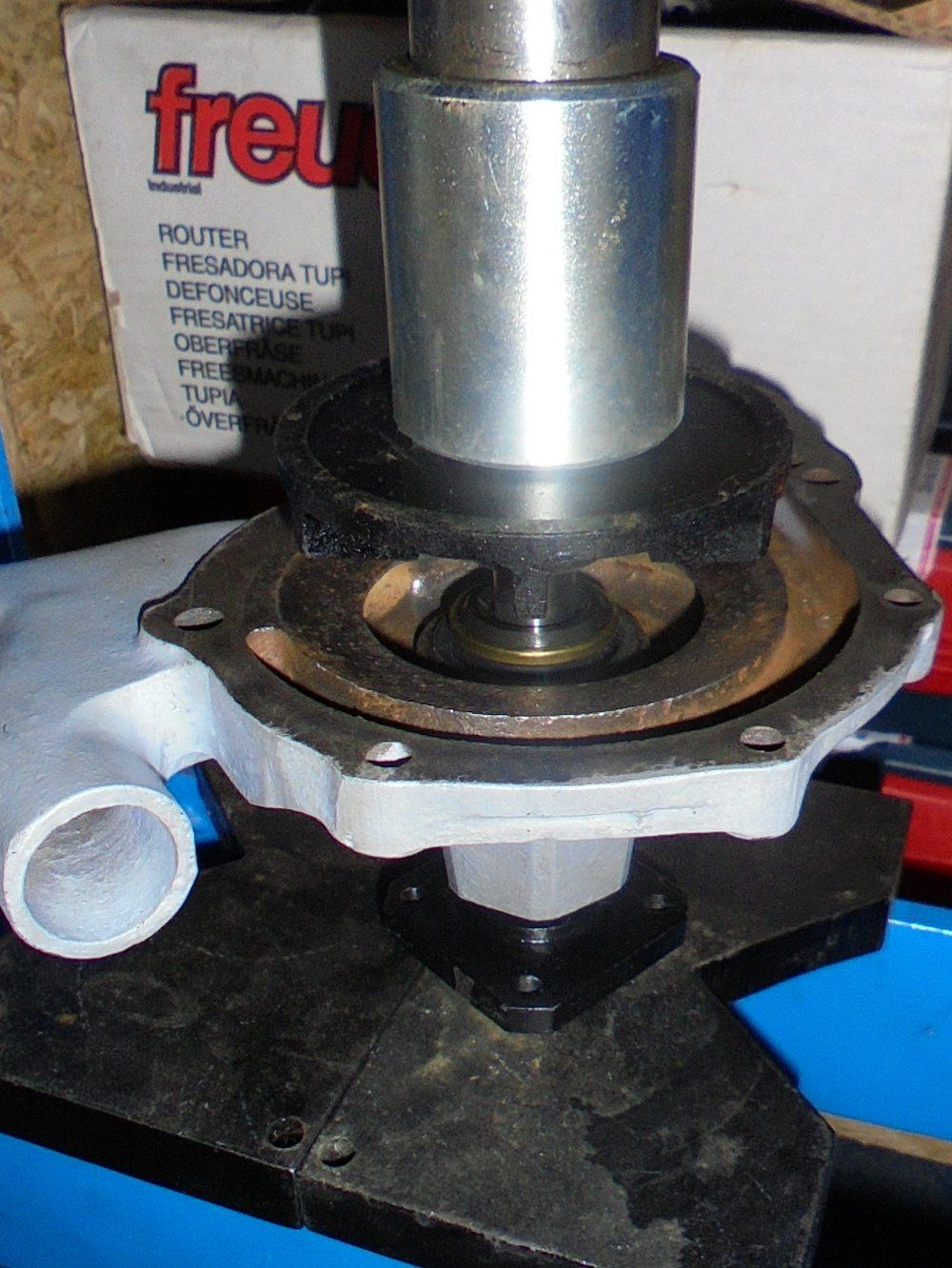

...finally the impeller gets pushed on.
The end of the shaft conveniently poked just past the flange so it was easy to support whilst the impeller was pressed onto the shaft (casing and outer bearing free to spin)

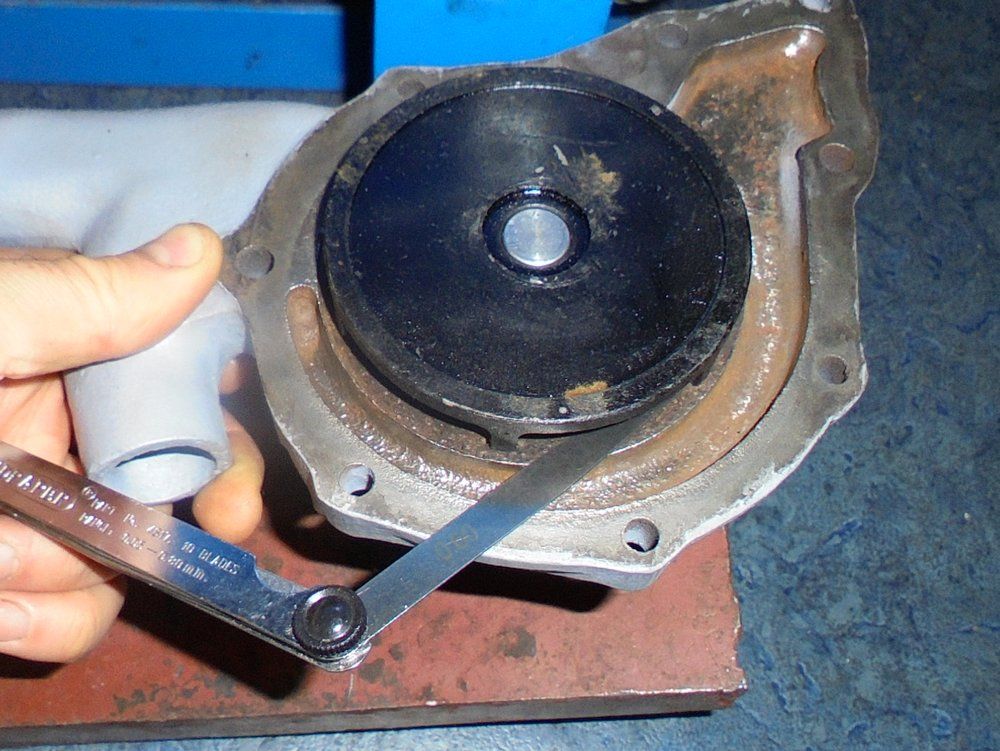

Again the "how far does this bit go on the shaft" specification is important. See the green book for the correct feeler gauge size.
Start with the biggest feeler gauge size and don't go too far. If you make it too tight these crappily cast impellers are easy to break when you try to pull them away from the casing (I know this because I've taken these parts to bits more than once!)
As implied above this ain't over yet - the pulley alignment needs to be checked. This will be done at a later date.
