Where does the fuel gauge sender plug into the wiring loom

payydg · Oct 11, 2021

I hate electrics.

After putting the engine back in I cannot for the life of me work out where fuel send plugs into the main wiring loom.

Any help/pictures would be much appreciated.

payydg · Oct 13, 2021

Anybody? Quick photo of where it plugs into the loom by the bulk head?

v8250 · Oct 13, 2021

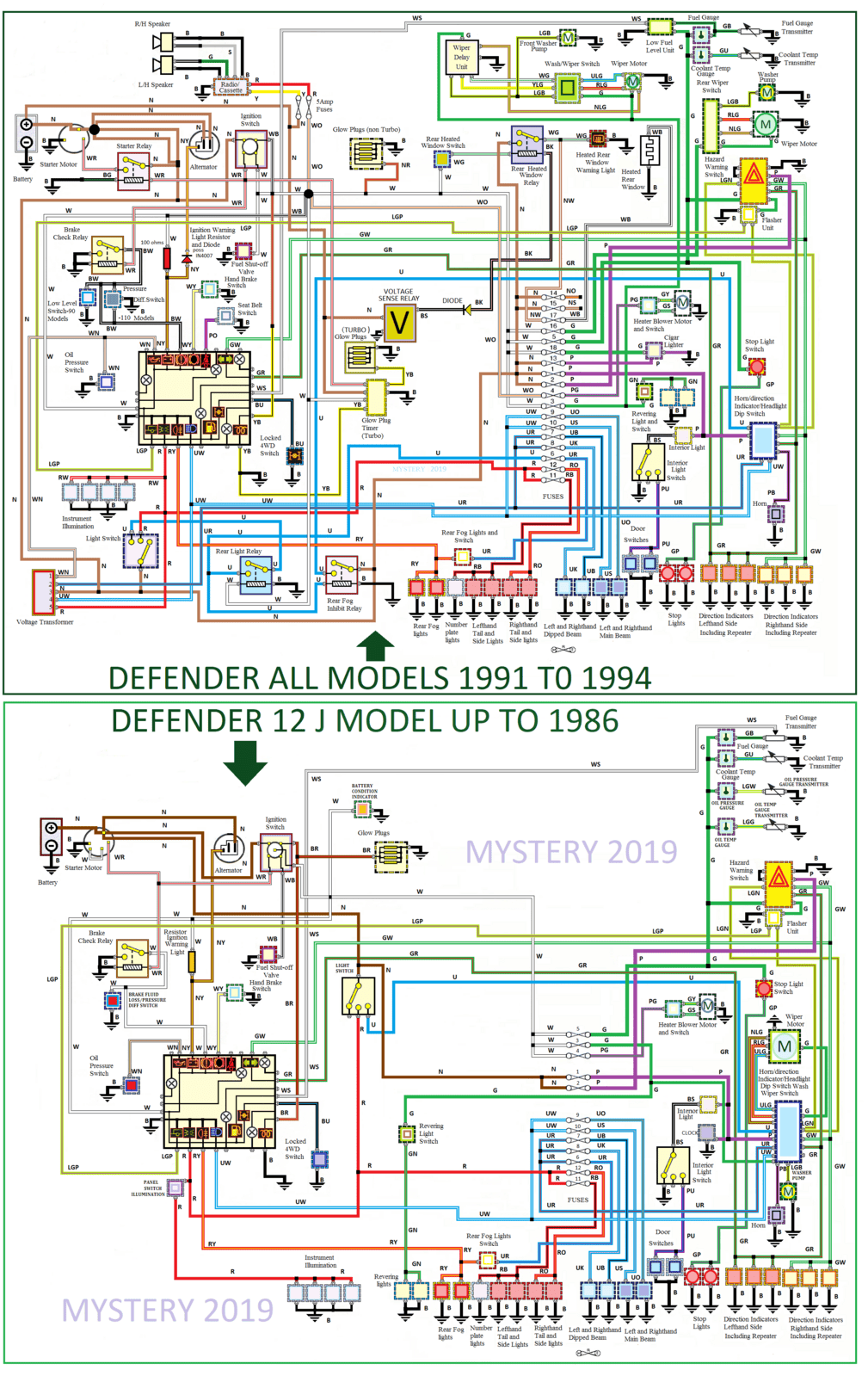

You're looking for a green/black and white/grey wire pair coming from the dash out through bulk head onto a 2pin bullet connector, see diag here

Defender 1991 to 1994 and 1986 12j engine.png

payydg · Oct 14, 2021

v8250 said:
You're looking for a green/black and white/grey wire pair coming from the dash out through bulk head onto a 2pin bullet connector, see diag here

View attachment 250347

thanks. I hate electrics.
