Where do you put your switches?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
S

spurs

Active Member
Posts
249
Location
potters bar, herts
Hi all i have a couple of rear worklights which i need to wire in and was just woundering where you place your switches for them and also where do you buy your switches from?
many thanks
Kyle
Merry christmas

You dont say which year vehicle you have. there are a couple of options. depends how much £££ you want to spend to.

I like Carling switches. Well made and are rated to, i think, 10amps off the top of my head.

G

or get a decent console instead. from Raptor engineering Raptor Engineering

Get the black one though . It's the best one.

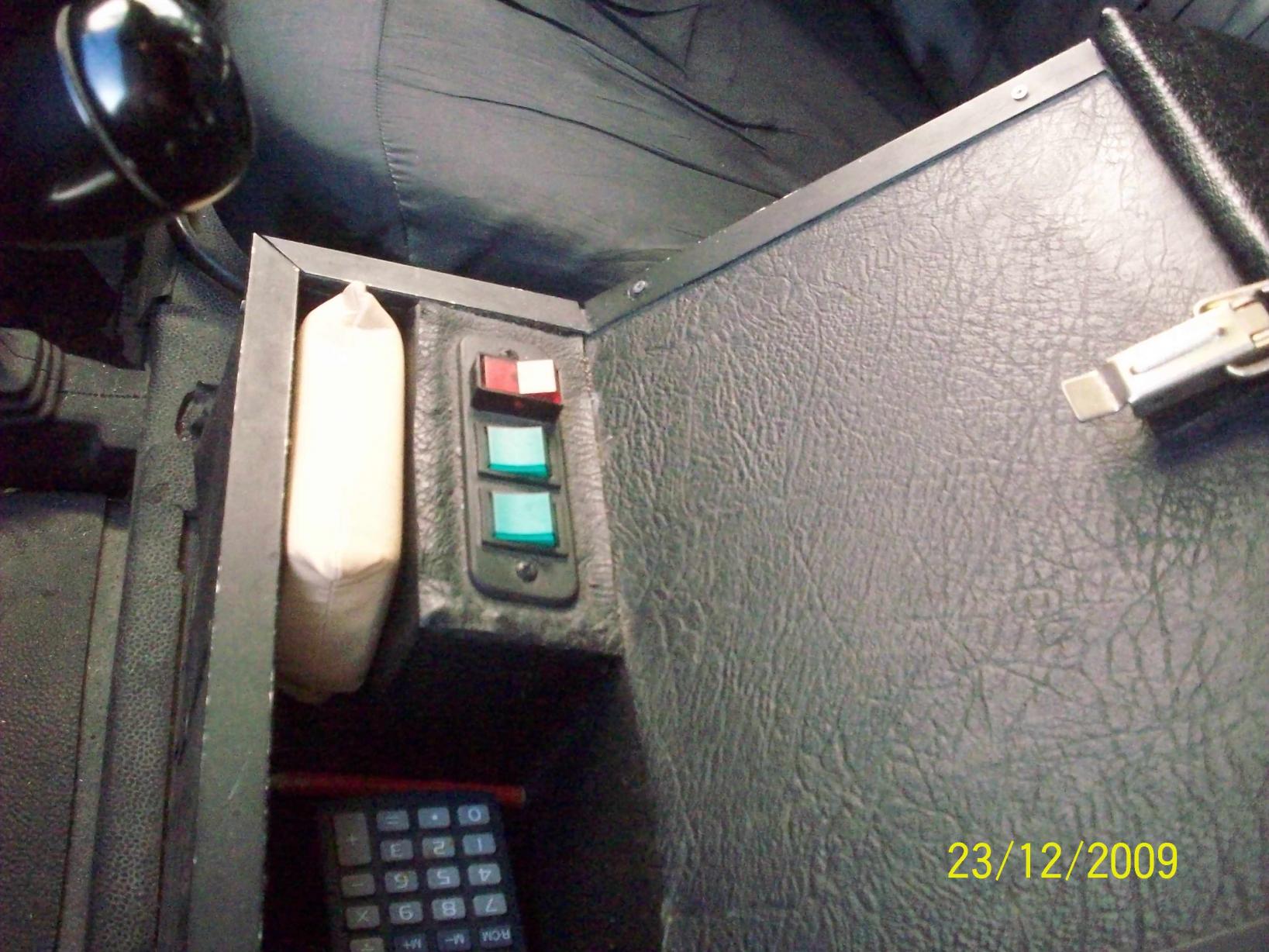

I got the switches in Maplins and the plastic surround off a scraped defender then put them on the cubby box. I wired them direct to the battery the switch also lights up so I dont forget to switch them off.


Attachments

  • 100_0638.jpg
    239.6 KB · Views: 3,778
My 86 2.5TD has a spare hole for a forth switch on the underside of the dash just above the interior light/4x flasher/heated window switches that a standard square switch will push into. As you have a diesel another option is putting a pull/push switch in the choke hole on other side of the wheel from the ignition siwtch (should be a rubber plug in the hole) - just behind the fog light switch



My mudstuff dash with switches (air, fuel, lights, rear wiper, winch) twin LED voltmeter and twin 12v sockets. Now also has the 3 gauges (clock, oil temp, oil pressure).
