wading breather on transfer case?

papae44 · Oct 9, 2012

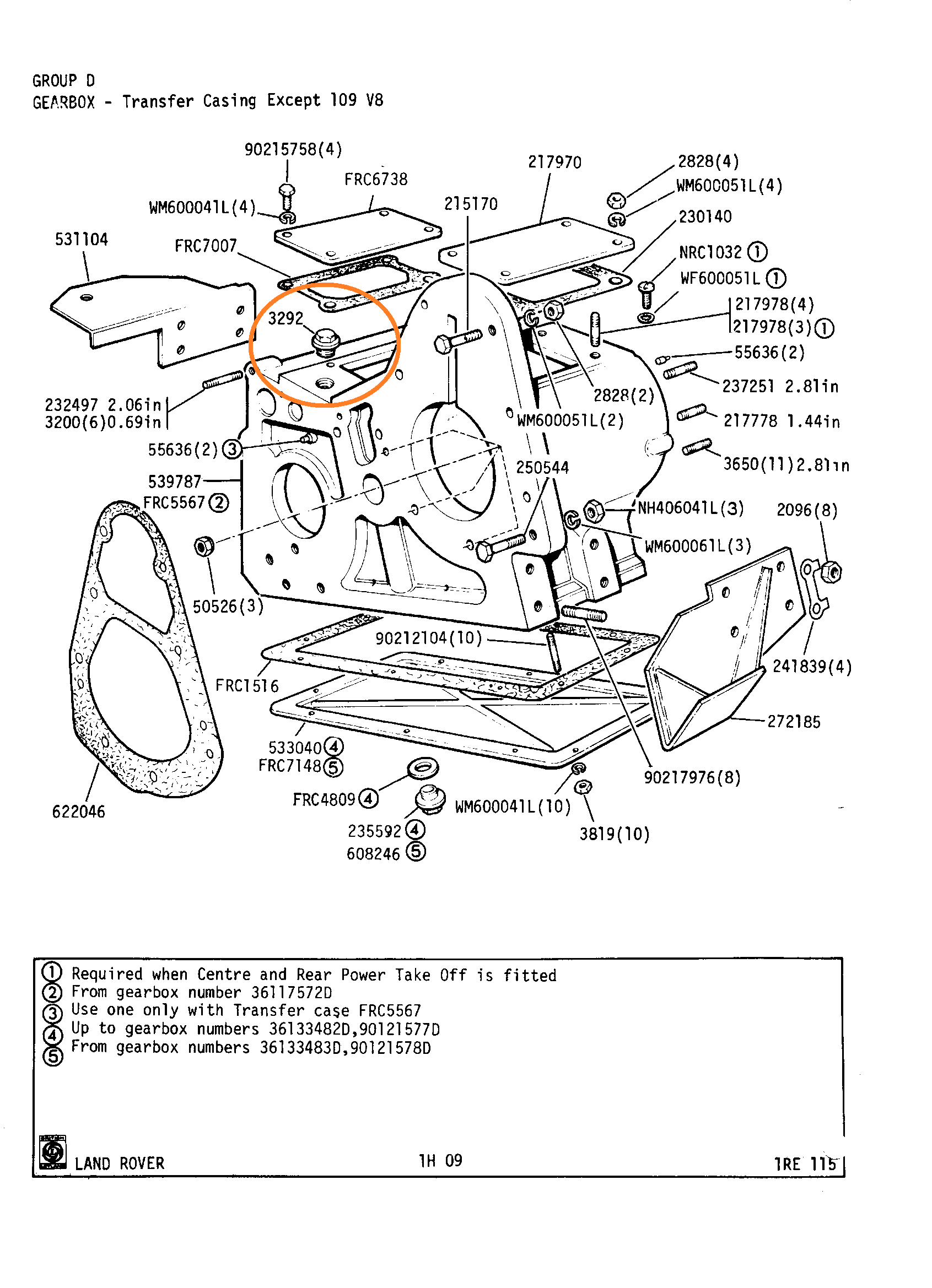

need help with the transfer box breather location, from what i've read on it the gearbox and transfer have there own breathers, done the gearbox but havent the slightest where the transfer breath is meant to go, im hinting on the part number circled in the attachment (3292). but this is coming back as the oil level filler plug.
as a last resort i was going to go down the gearbox method and dril and tap a hole for the breather in one of the gearbox's inspection covers.
can any one help before i dive into it and f**k the cover up.

papae44 · Oct 9, 2012

forgot the picture here it is

dominicbeesley · Oct 10, 2012

That should do, that's not the actual filler which is on the back adjacent to the transmission brake about half way up

papae44 · Oct 10, 2012

thanks for the reply, ive seen that filler half way up i removed the bolt i circled, in pictre, the other day and its got a spring and what looks look a ball bearing under it. so must be for a pressure release or something. i myt just play it safe and go the way the gearbox is and drill and tap a hole for a breather cant be having any more set backs on this restoration.

jamesmartin · Oct 10, 2012

that plug with spring is the detent for high/low ,t/box breathes through top tin plate on gear box top why would you want to fit another

papae44 · Oct 11, 2012

read somewhere that the gearbox and transfer need there own breathers if wading so just assumed this. happy days if the transfer releases pressure from the gearbox breather, saves me some pennies in buying an extra breather.

jamesmartin · Oct 11, 2012

they both breathe through top plate on g/box top ,even with a pipe on there wont stop watering entering either
