Series 2 Vent flaps
- Thread starter Shippers
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
A 59 S2 your pics look like S3...

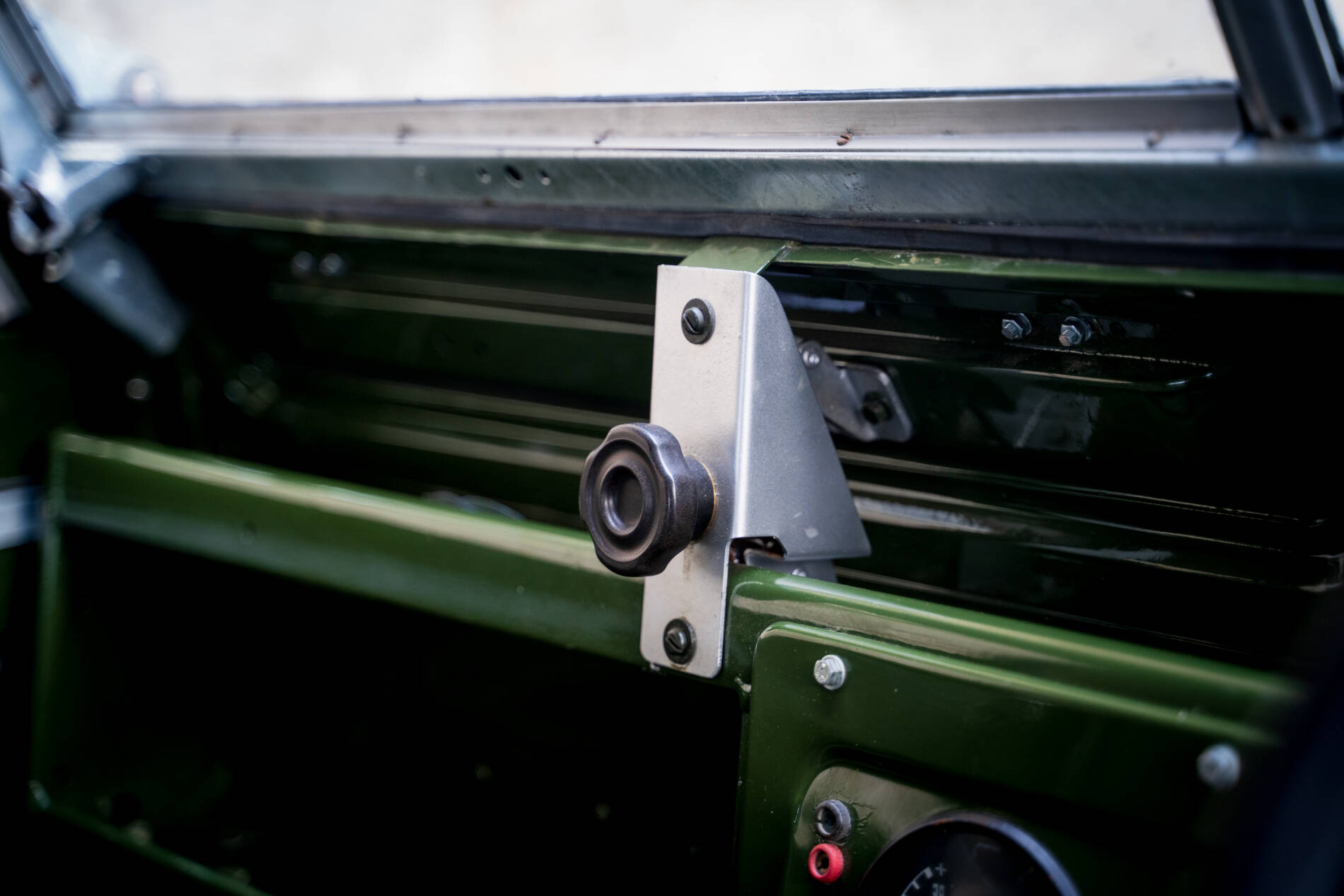

They may well be. A quick Google showed the only difference between 2/2a/3 was the handle shape. But that it does like to mislead so maybe 2a/3 are the same. Is this the style you have, again pic from Google?
They may well be. A quick Google showed the only difference between 2/2a/3 was the handle shape. But that it does like to mislead so maybe 2a/3 are the same. Is this the style you have, again pic from Google?

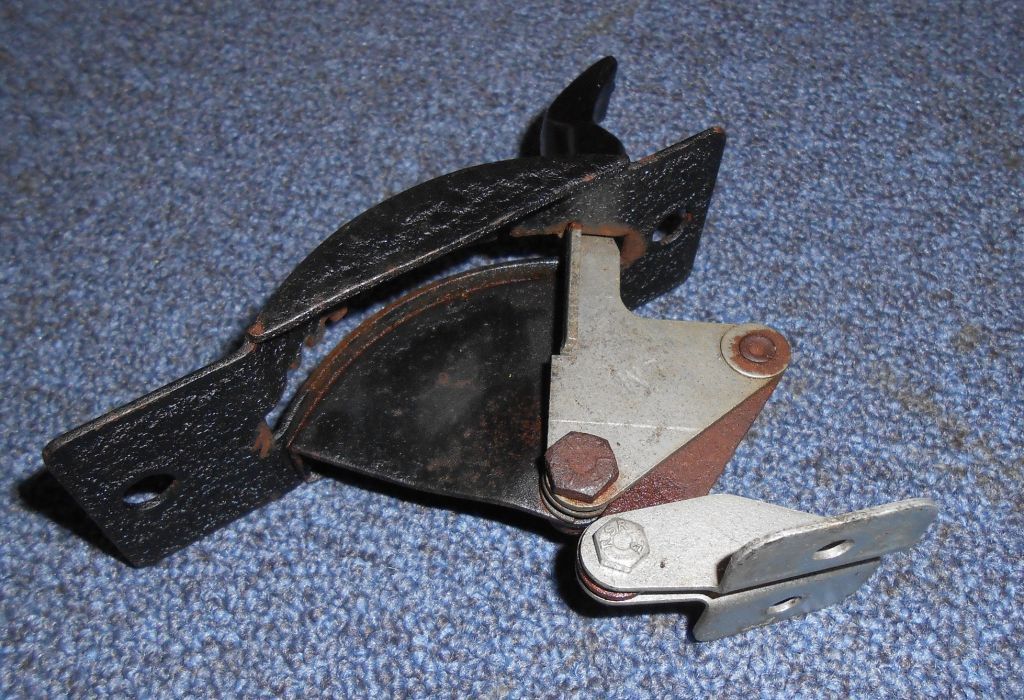

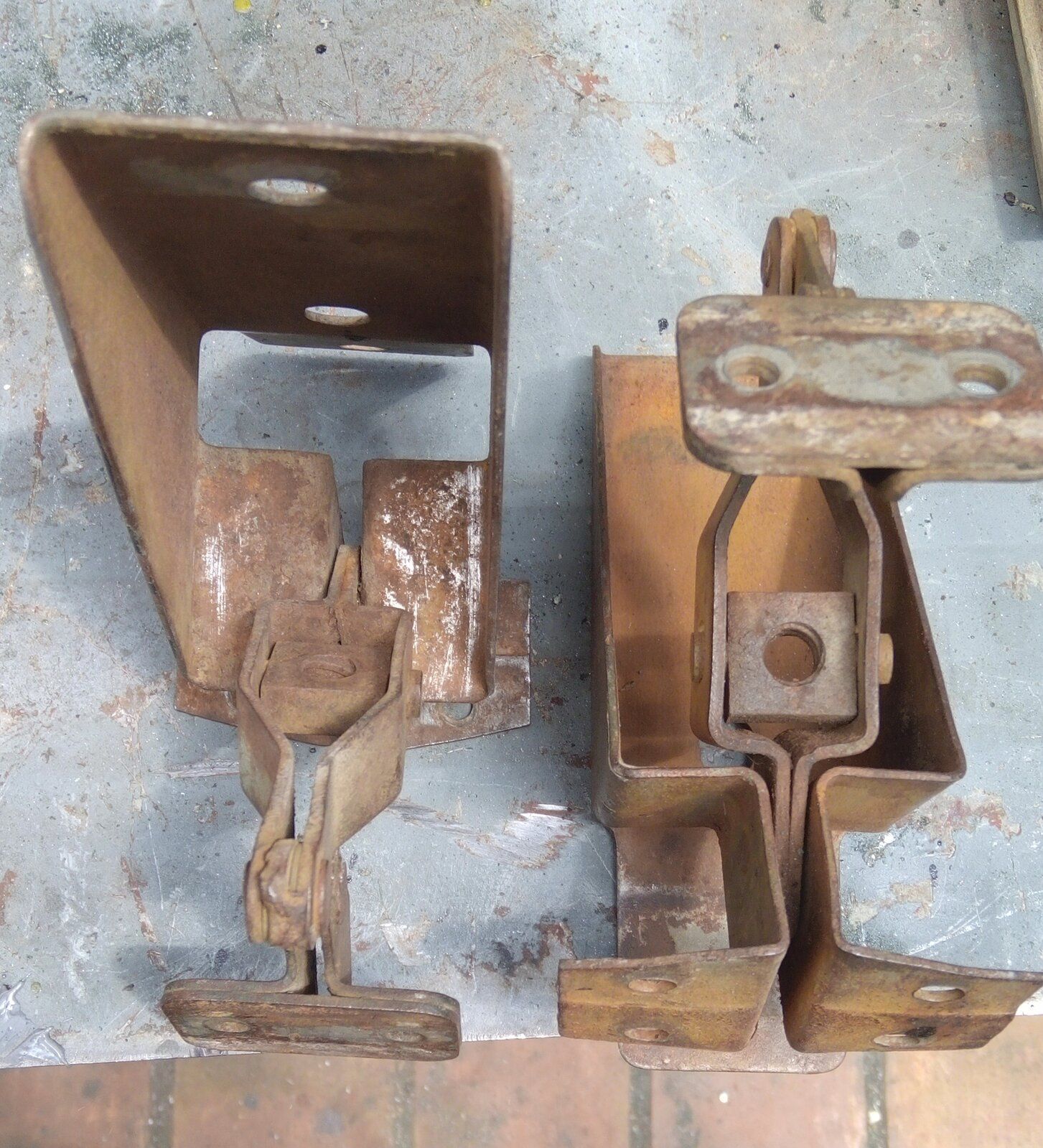

Yes just dont have the knob and rod...if you look at my pic you can see a captive nut that swivels in the bracket so there must be a threaded rod but dont know how it attatches to the face plate behind the knob...
Does it work by turning the nob and screwing the mechanism out along the captive nut or does it work by pulling the rod in/out of the dash?
I think it works by the captive which is not solid it has 2 lugs on it that allows it swivel...I think I can knock something up with threaded rod and a look alike knob...but would like original if possible..
If that is the case and it slides through the faceplate you might be better with some round bar and cut threads into for the captive nut and handle. That would allow a smoother movement?
Also looking at the price I think original might be nice but not sure it worth it imo. Looks a bit like the yellow logo rear mudflap situation to me!
https://www.ebay.co.uk/itm/25564038...G_HGXRCwZNnXm3pf0VoajdMFhVVq3ETkaAt7nEALw_wcB
https://www.ebay.co.uk/itm/25564038...G_HGXRCwZNnXm3pf0VoajdMFhVVq3ETkaAt7nEALw_wcB
Yes saw that one was hoping someone might do a retro knob and rod...
tottot
Well-Known Member
- Posts
- 7,994
- Location
- west wales coast
Those series two openers are rotary, just a threaded rod into the bracket swivel nut as in thread above. A washer and circlip behind the mounting bracket prevent the knob from moving out when turned I think.
Something like this, some threaded road, two nuts locked together behind faceplate to allow some wiggle room?
https://www.ebay.co.uk/itm/374206888837?hash=item572077fb85:g:Yc0AAOSwLHpi8WEs
https://www.ebay.co.uk/itm/374206888837?hash=item572077fb85:g:Yc0AAOSwLHpi8WEs
Thats what I was thinking...tried it with a bit of rod and the handle has to be on to stop the rod moving and a nut welded to the original pivot nut should do the job...
