So I think its a 300 tdi axle, I need to rebuild the hubs, just seals really and one CV joint, I know the CV will need to come out before I can order a new one, what about seals, are they the same across the board? Bearings should be the same and the seals on the CV housing as far as I know. From memory there are two different types of lock washer?
Unknown front axle rebuild, part list?
- Thread starter nobber
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
all the 300s are thin drive member is yours
Nope, rear axle is but front isn't, both came on a rolling 300 chassis.

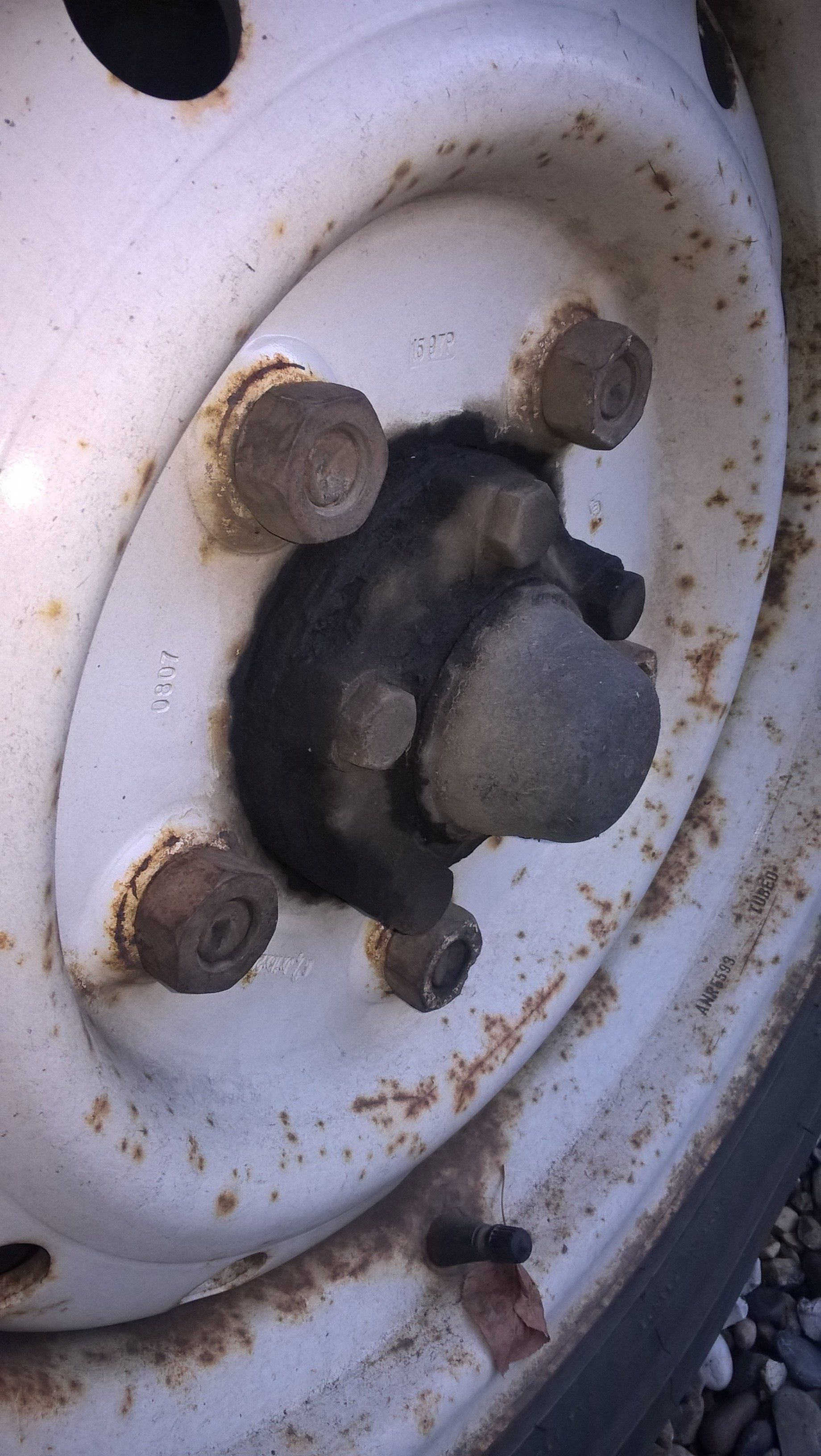

Front,

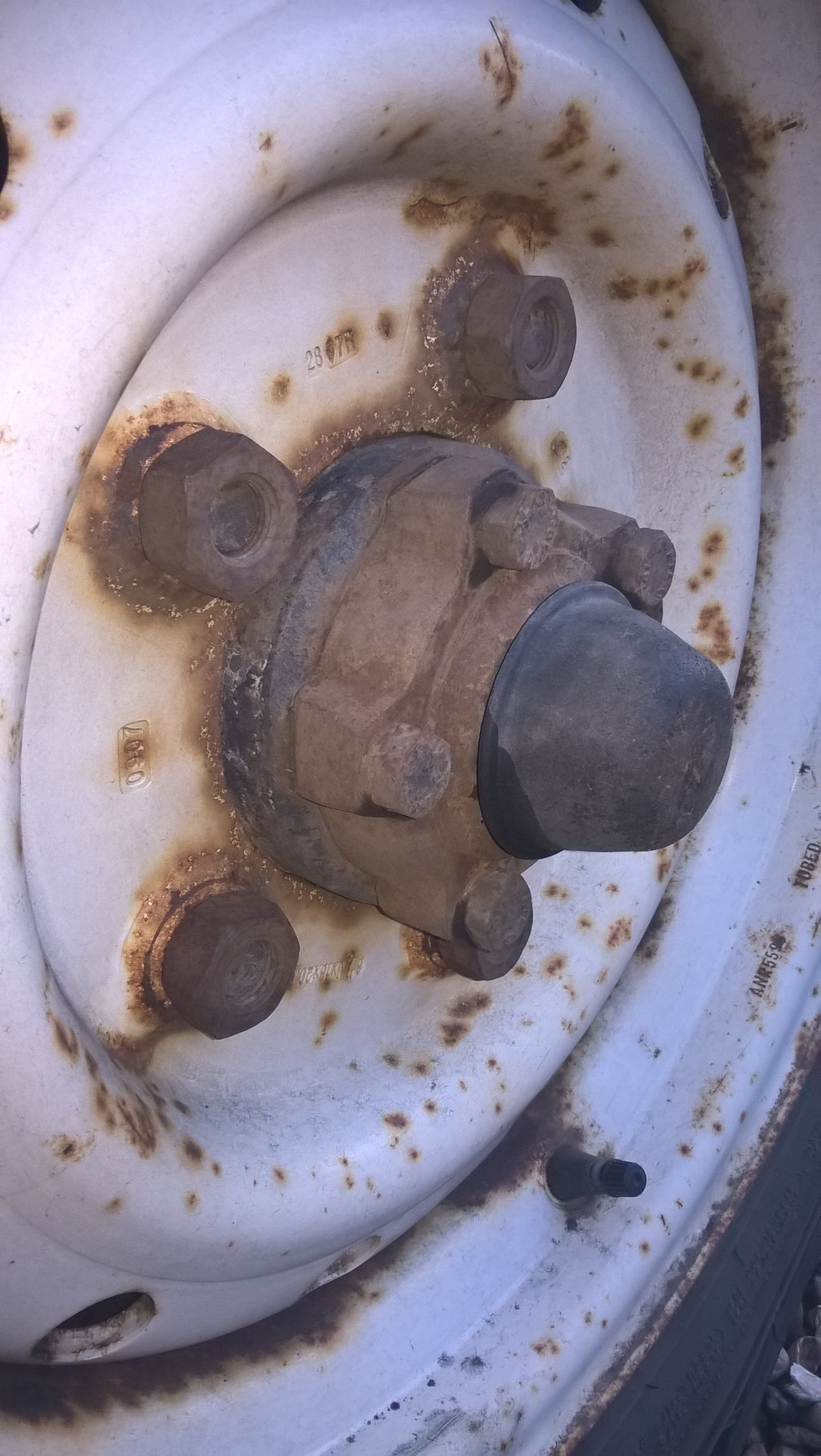

Rear,
This is probably going to be a ball ache but I'm sure most bits are the same.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
front isnt a 300 tdi axle, bearings are obviously rtc3429 pull drive member off and take a pic
I will do, should be stripping it down this week hopefully, It might not even need bearings but I am assuming it will and probably worth the few quid while I am in there, I shall see whats what when I'm in there, it does need seals though, ep90 leaking right the way through from diff to drive member.
bluedog333
Well-Known Member
- Posts
- 5,442
- Location
- Henley on Thames, Oxfordshire
Oil is meant to reach the drive members on pre ‘93 axles. I’m sure JM will confirm dates/types of axle.
Not oil from the diff.
bluedog333
Well-Known Member
- Posts
- 5,442
- Location
- Henley on Thames, Oxfordshire
Yes, from the diff. The rubber hub cap keeps it in and needs replacing periodically - on older ‘qualifying’ axles only.
Not saying these are your axles, but worth bearing in mind until you identify them.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
depends has it got an outer seal in the hub
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
to start with all parts were lubed with oil, then they fitted an outer seal and all parts but bearings were lubed with oil then they stopped oil reaching the hub which is when drive member wear started
IamRobbie
Well-Known Member
- Posts
- 2,800
- Location
- Derbyshire, j28 M1
On my disco 300tdi I removed the seal in the end of the hub. I think from memory it sits in the back of the stub axle, this should allow Ep90 to lube the bearings and swivels (I think).
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
you can but its adviseable to replace the inner hub grease seal ftc4785 with rtc3511 oil seal
IamRobbie
Well-Known Member
- Posts
- 2,800
- Location
- Derbyshire, j28 M1
I've just googled the parts diagram and it's the seal in the back of the swivel ball I removed. It was my understanding oil then travels down past the shaft in the stub axle and into the bearings and swivels the seal on the back of the hub and the cap then hold it in. Seems to me like they tool a step back when they used one shot. Anyway ill stop filling jobber thread with rammel now lol
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
you wheel bearing hub seal as std isnt an oil seal
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
You’ll definitely need to establish which axle it is before ordering parts. I have an ’88 110 and the parts are different to the LA onwards vehicles.
Also check the swivel balls - mine were pitted and have therefore ordered new ones.
Also check the swivel balls - mine were pitted and have therefore ordered new ones.
