Twisted quill under injection pump

Dan333

Member

Posts

31

• Tuesday at 16:32

• #1

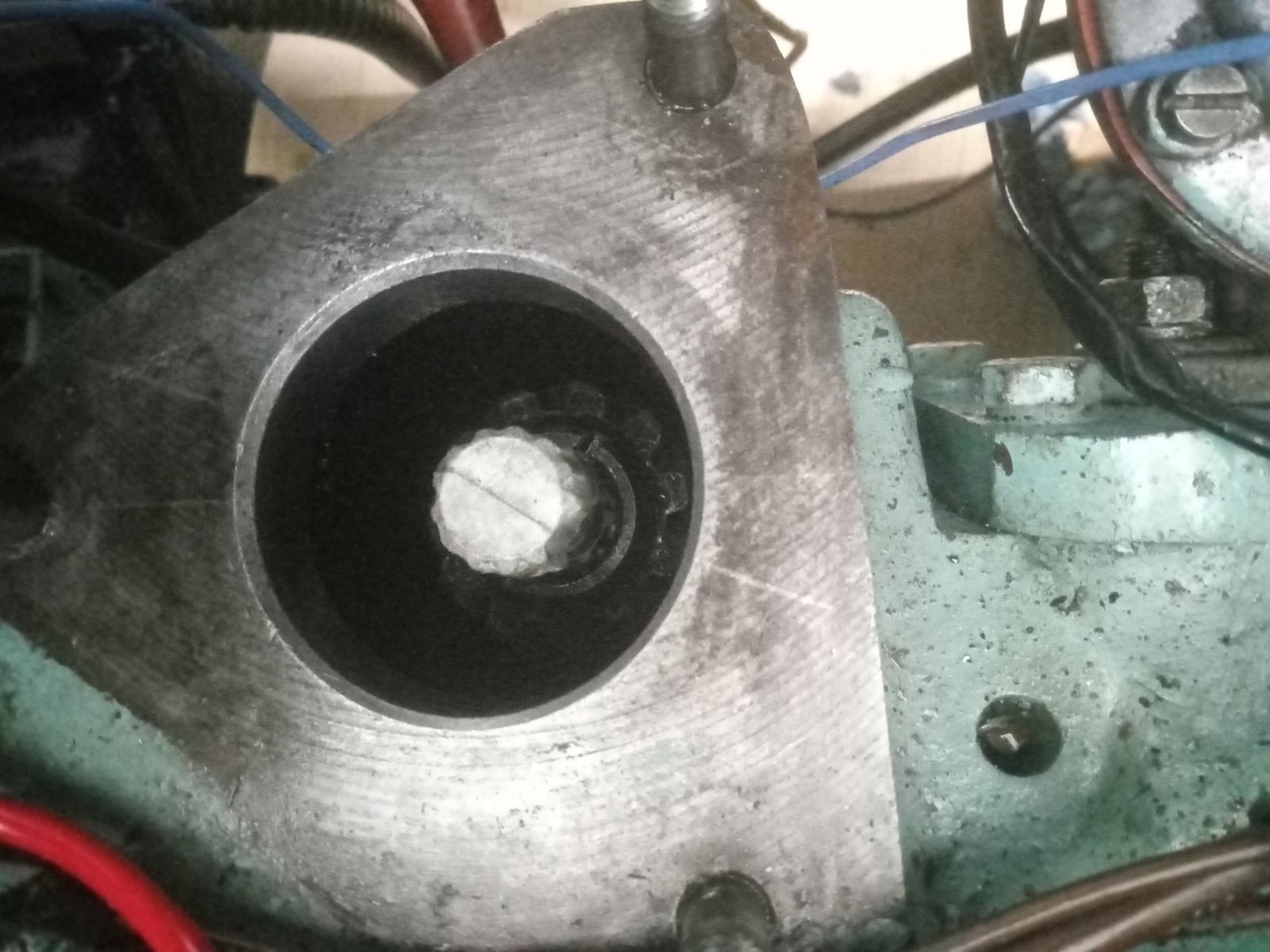

Hi I have just noticed that the quill has a twist in it it's off a bit,does anyone know how this could have happened, been trying to set the skew timing series 3 diesel and thought this is the problem but put an old one in and it is still out but not so much see picture that seams to be the nearest I can get it, now I'm wondering if the cam could be out a bit any ideas and thanks for your kind replies and taking your time to answer



Attachments

•

  241.6 KB · Views: 30

steve2286w

Well-Known Member

Posts

4,715

Location

monkeyangerland

• Tuesday at 20:54

• #2

Injector pump drive gear

I'm trying to get my injector pump timing set up correctly but I can't seem to get the master spline on the drive gear to sit at 20 degrees. It either sits at 10ish degrees (pic) or if I rotate a one tooth it sits at 30ish degrees. The flywheel is set on the 13degree mark after passing TDC on...

www.landyzone.co.uk

Did you get the EP mark checked against the max valve lift using dti as manual says when fitted new chain
As above can take a bit tinkering



Dan333

Member

Posts

31

• Tuesday at 22:59

• #3

Hi Steve I'm going to check that tomorrow, thanks for your reply



T

Tall Ratbag

Active Member

Posts

169

Location

Midlands

• Tuesday at 23:11

• #4

Going back a long time, we used to run some AEC trucks with DPA pumps. When the pump was about to seize up, the quill shaft would snap. The quill shaft was the deliberate weak point in the drive to the pump. A new quill shaft would get the engine running, and the truck off the side of the road, but, it wasn't a long term fix - getting the pump rebuilt AND fitting a new quill shaft fixed them properly.



Dan333

Member

Posts

31

• Wednesday at 07:51

• #5

That's really interesting thanks for your reply, I think I'm going to get the pump checked
