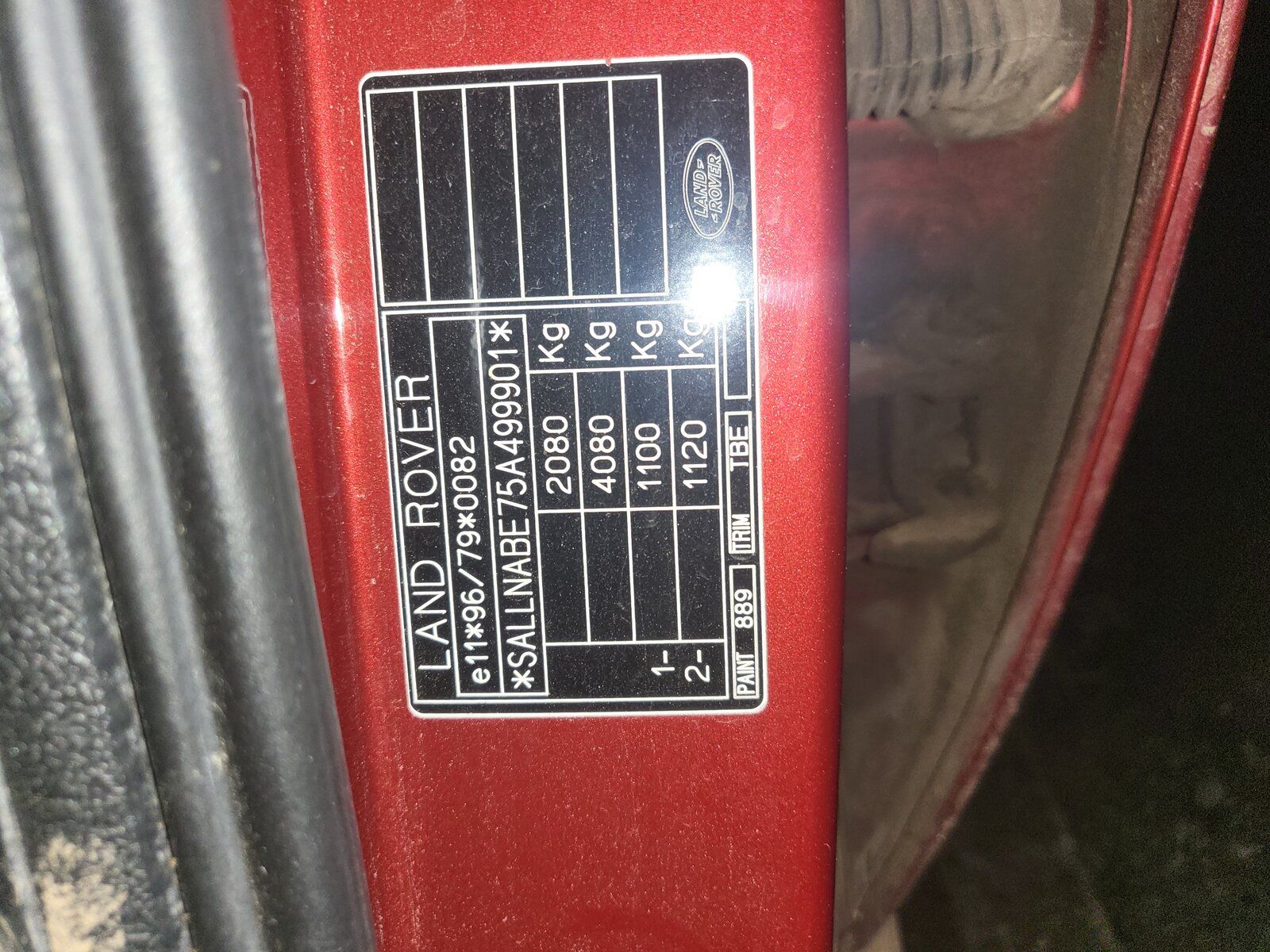

Looking through here and doing the Google rounds I'm getting more and more confused. I have a td4 (plate in pictures) can someone please tell me what weight braked trailer I can tow. Please don't tell me MAM or GTW or ABCD or ACAB it's frying my brain. Please just fill in the blanks from, Your landy weighs (.....) your trailer can weigh up to (......) and the tow bar has a max down weight of (...). Then if we can all join together and get all manufacturers to just write in black and white instead of all the maths inducing codes that would be great xx.
Towing
- Thread starter Rovergin
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
andyfreelandy
Well-Known Member
- Posts
- 5,543
- Location
- Devon
Vehicle unladen is 1600kg.
Gross vehicle weight is 2080kg.
Max braked trailer with vehicle unladen is 2000kg.
Max braked trailer is 1800kg with vehicle laden to gross vehicle weight.
Max unbraked trailer is 750kg.
Don't know down weight.
Gross vehicle weight is 2080kg.
Max braked trailer with vehicle unladen is 2000kg.
Max braked trailer is 1800kg with vehicle laden to gross vehicle weight.
Max unbraked trailer is 750kg.
Don't know down weight.
So empty hippo can pull 2t
Full hippo can pull 1.8t?
Sorry numbers don't wok I my head.
andyfreelandy
Well-Known Member
- Posts
- 5,543
- Location
- Devon
Yes that's how I read it - I've easily pulled another Freelander on a car trailer without problem.
I think that is where GTW came from. A combined figure.I know you don't want to know it, but the GTW is 3800kg.
GTW is 'the maximum allowable combined mass of a road vehicle, the passengers and cargo in the tow vehicle, plus the mass of the trailer and cargo in the trailer.'
I think that is where GTW came from. A combined figure.I know you don't want to know it, but the GTW is 3800kg.
GTW is 'the maximum allowable combined mass of a road vehicle, the passengers and cargo in the tow vehicle, plus the mass of the trailer and cargo in the trailer.'
- Posts
- 33,422
- Location
- North Shropshire
I thought the first value was the max gross weight of the vehicle, the second value was the max train weight (car plus trailer)
Thus you can pull 2000kg with a fully laden vehicle
Where does 3800kg come from? I don't see how you can tow a freelander on a trailer with another frelander it would be over 2000kg
Thus you can pull 2000kg with a fully laden vehicle
Where does 3800kg come from? I don't see how you can tow a freelander on a trailer with another frelander it would be over 2000kg
andyfreelandy
Well-Known Member
- Posts
- 5,543
- Location
- Devon
The 3800kg is the combined maximum of vehicle plus trailer.
If the trailer only weighs 400 KG and it's a 1.8 petrol Freelander on it, it's legal , but in reality, the Freelander is much more capable than the plated weight allows.
andyfreelandy
Well-Known Member
- Posts
- 5,543
- Location
- Devon
Interestingly my figures were from the Freelander catalogue specs.
Tows another hippo easily, including out of Paignton and up hills!!
Tows another hippo easily, including out of Paignton and up hills!!
- Posts
- 33,422
- Location
- North Shropshire
What is capable of and what the dvla say it's capable of are 2 different thingsInterestingly my figures were from the Freelander catalogue specs.
Tows another hippo easily, including out of Paignton and up hills!!
300bhp/ton
Well-Known Member
- Posts
- 5,007
- Location
- Near MK
Probably not so good though if you are in an RTI and found to be overweight….Interestingly my figures were from the Freelander catalogue specs.
Tows another hippo easily, including out of Paignton and up hills!!
kernowsvenski
Well-Known Member
- Posts
- 1,611
- Location
- Truro
I have to say that I towed my friend's comparitively light triumph stag on a 500kg trailer. With a total towing weight of around 1,200ish kg I didn't find it overly comfortable.
