towing electrics

RangeRoller dt said:

Not sure. On P38 it’s in panel on drivers side boot at the back. The plug is there even if you haven’t got tow hitch fitted. Your model will endoubtedly differ but many principles are same.

Have you checked RAVE?

Click to expand...

RRnewguy said:

Hi, I am new to this forum and to the world of Landrover, I now have a RR sport HSE 2013.

would like some help with towing electrics. I have purchased a wiring kit from LR but don't see anywhere to plug these into, as they describe in the instructions and also as seen on the youtube videos,

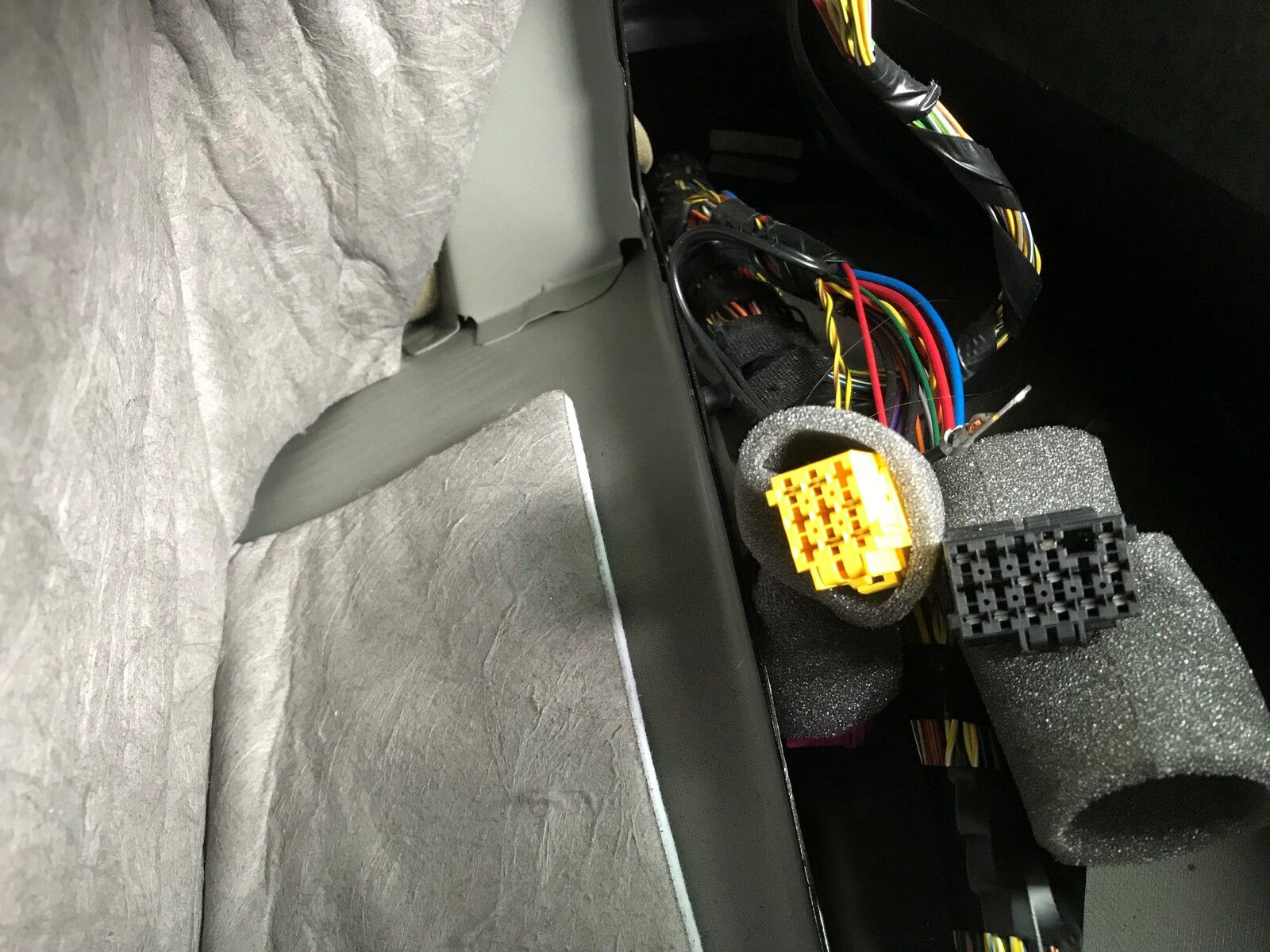

The only plugs I can see is the ones shown in my photo, but the plugs on the harness supplied do not match these.

was wondering if anyone knew if I have the wrong kit or am I on the wrong track. Thankyou

Click to expand...

RRnewguy said:

Hi thanks for replying:View attachment 186239 View attachment 186240 View attachment 186241 View attachment 186242 View attachment 186243

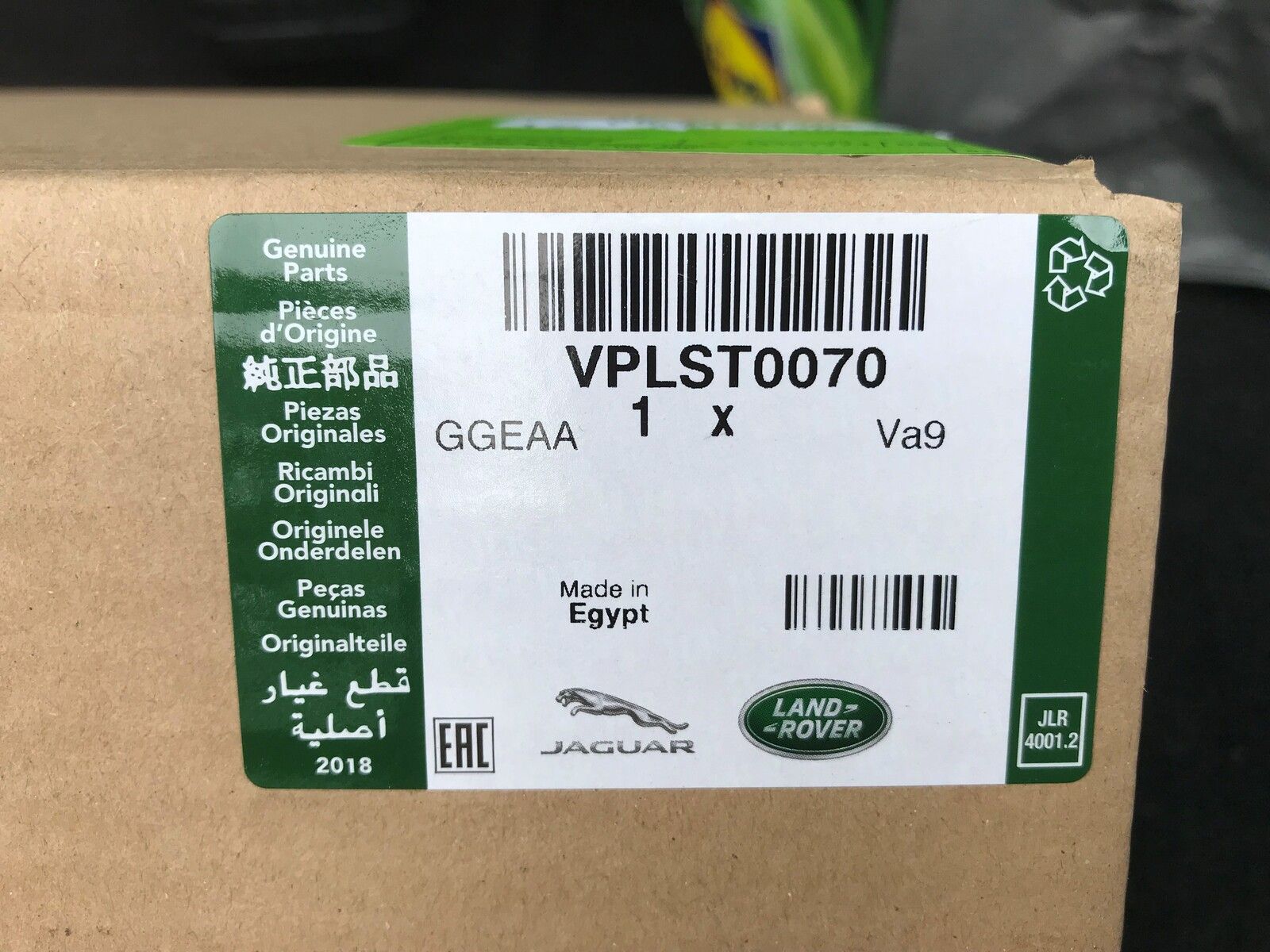

Hi not sure which model it is, or how I tell re: (L320 or L494) have included some pics which may help with this, and a pic of the part number of the wiring I bought.
its a 3.0D TDV6 auto, and the wiring I bought has two harnesses one with a white cap and the other black 7 pin as I only intend towing a trailer.

Click to expand...

freelance said:

‘‘Tis an L320

Click to expand...

brianp38dse said:

@RRnewguy you can edit out some of the bits on your post, might be advisable .

Click to expand...

Wazzajnr said:

Probably need to go to topix for that which is a paid subscription for the manuals.

Click to expand...

gstuart said:

Hi

Checked and that loom is fitted behind ur rear bumper and bumper has to be removed

https://topix.landrover.jlrext.com/topix/content/document/view?id=164028&groupId=1671

Have u also checked in the passengers side boot side locker , behind the small panel

It may be a good idea to ring ur local dealer as there’s a change in 2013 and u don’t want to remove ur bumper and find it’s not there

Where did u get ur loom from plse, thks

Click to expand...

RRnewguy said:

in the boot side locker there is only one larger connector with lots of cables coming from it and then splitting, the two plugs I showed in the picture sit a little bit back from this, coming of a large loom.
the wiring kit was purchased from Morrisons the local Land Rover dealer.

Click to expand...

gstuart said:

Many thks

Sounds like then the connectors are behind the bumper , as per the pdf link

Just thought there’s the RRS forum , would just hate u to remove the bumper and it’s not there

Also I would have thought ur local dealer could confirm that for u of where the connectors are

By the way What connector is hidden inside that foam plse , they haven’t got blanks on them have they , where a blank connector needs to comes off

Also as you’ve got a HSE what towing sockets are already there please , thks

Plus ur more than likely need diagnostics to turn it on

Click to expand...

Grrrrrr said:

Diagnostics to turn on towing electrics? Utter madness.

Click to expand...

gstuart said:

Ps, just looking at that tyre inflation system in the new defender , think that’s going to be an electrics nightmare

Click to expand...

Grrrrrr said:

Got one in my P38. It plugs in the cigarette lighter socket.

Click to expand...
