Tomcat 300tdi Build

Loz123

Active Member

Posts

107

Location

Pembrokeshire

• Oct 18, 2014

• #1

Righto,

Done a few searches on here to see if anyone has done a Tomcat build thread and found none...

Would this be the section to start one?? I'd like to put my progress on here and would welcome tips/advice as I go along!!??

Cheers

Loz



accywingy

Large Member!

Administrator

Posts

2,884

Location

Jetting around the world or Sunny Accrington

• Oct 18, 2014

• #2

Yep sure would



Loz123

Active Member

Posts

107

Location

Pembrokeshire

• Oct 18, 2014

• #3

I bought the frame welded on to a really good chassis, most of the body panels i need, a couple of axles, a running 300tdi engine outve a disco and a few other electrical bits, gauges, looms etc.

so my main aim is to rebuild as much as i can myself, so I know where i stand!

First thing was to check the engine, as i said in a previous thread, had some trouble idling after standing for some years, that turned out to be the fuel pin struck in the diesel pump, free'd that off and away she went, idled like a beaut!

Right, tried putting a photo on, and failed, will have a look on the forum how to do photos first....



Loz123

Active Member

Posts

107

Location

Pembrokeshire

• Oct 18, 2014

• #4

Ok, that was alot simpler than I thought....

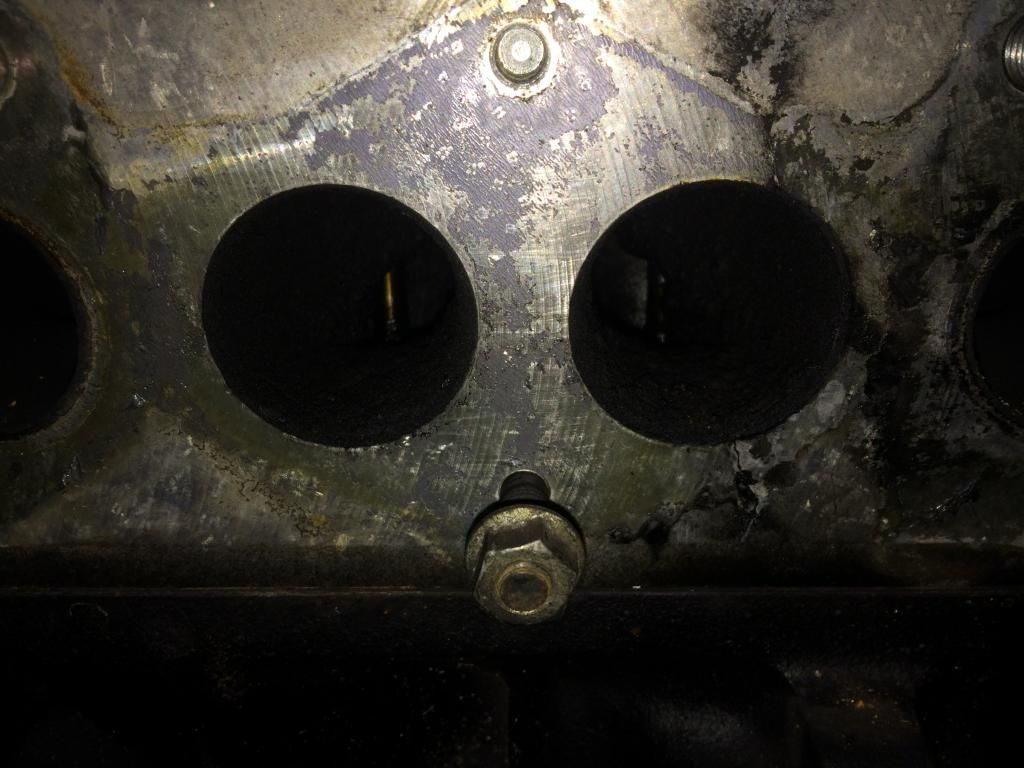

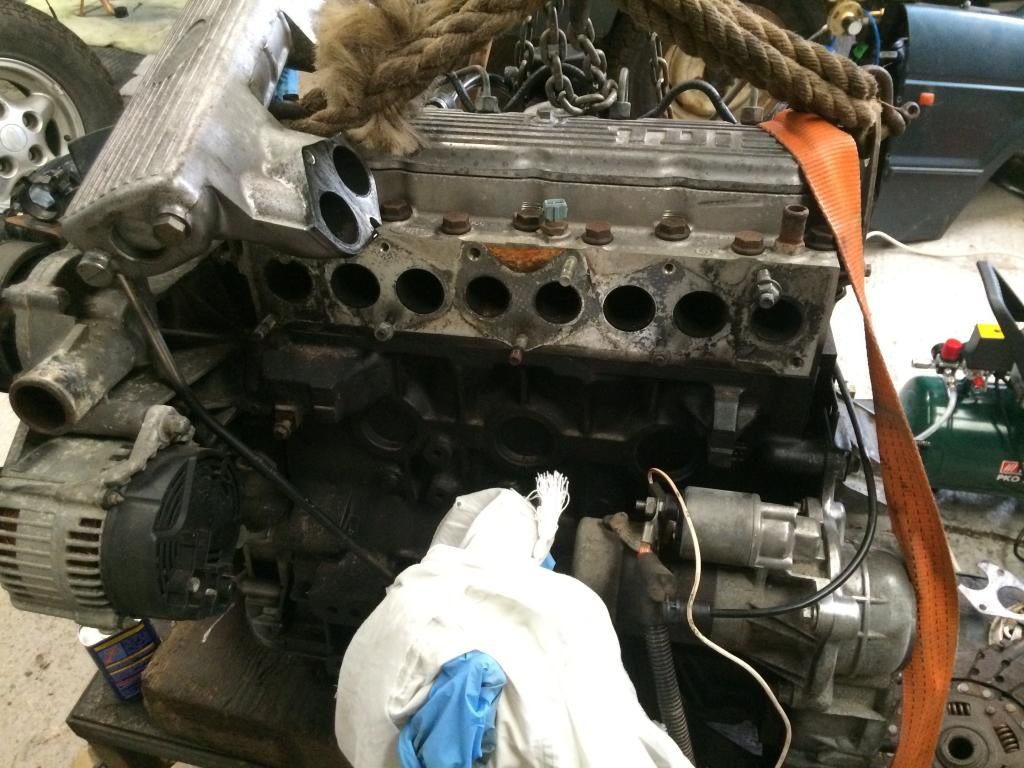

As you can see, stripped the manifolds off, as there was alot of thick EGR black stuff in the intake manifold, and still alot in the head... What's your thoughts on this? head off, clean and replace with new head gasket, or whilst it's off get it overhauled, ie. valve stem seals, re-seat the valves and pressure test...?

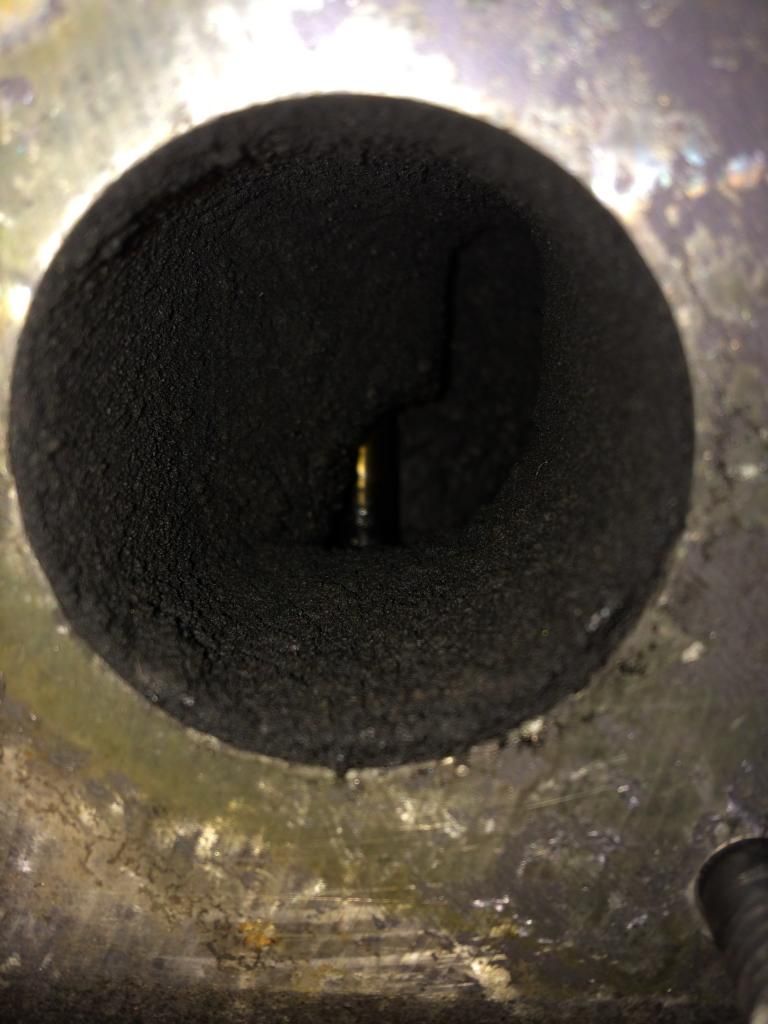

Loads of soot etc in the head ports...



Last edited: Oct 18, 2014

Loz123

Active Member

Posts

107

Location

Pembrokeshire

• Oct 18, 2014

• #5

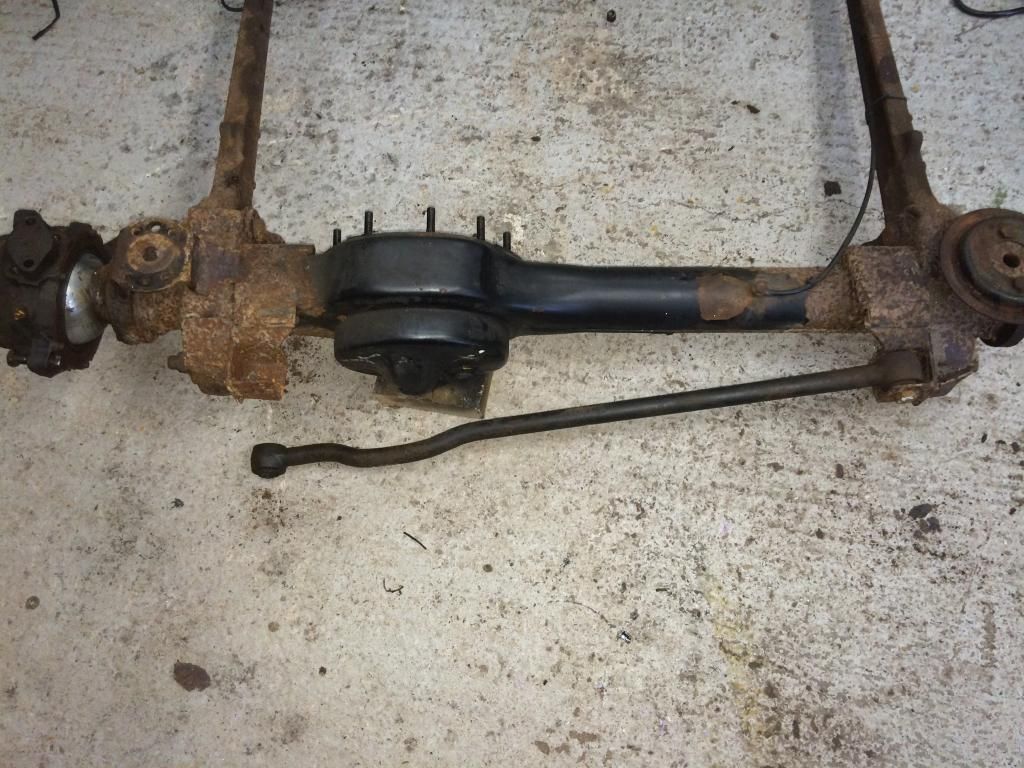

Started on the axles the other day, making good progress...

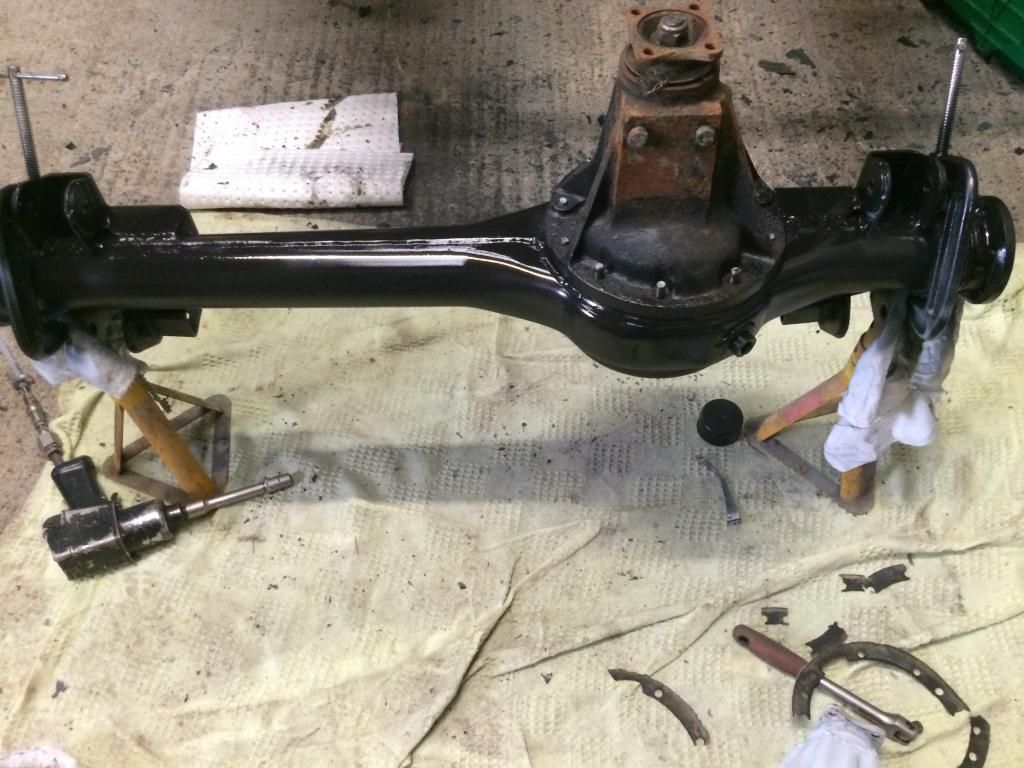

Sandblasted, primed and on it's 3rd coat of black. Havent done the diff yet mind!!



L

lynall

Well-Known Member

Full Member

Posts

25,738

Location

Kent

• Oct 19, 2014

• #6

Well worth pulling the cyl head for a look see, that way you can have a good looks at the bores and tappet followers etc.
I would just give it a good clean, new valve seals and check valve seats when you fit the seals and go from there, decent head gasket is about 15 quid, head bolts can be used up to 5 times IIrc?
