TD5 rear fuel filter head

S

satchmolips

Active Member

Posts

422

Location

Worcestershire

• Oct 24, 2021

• #1

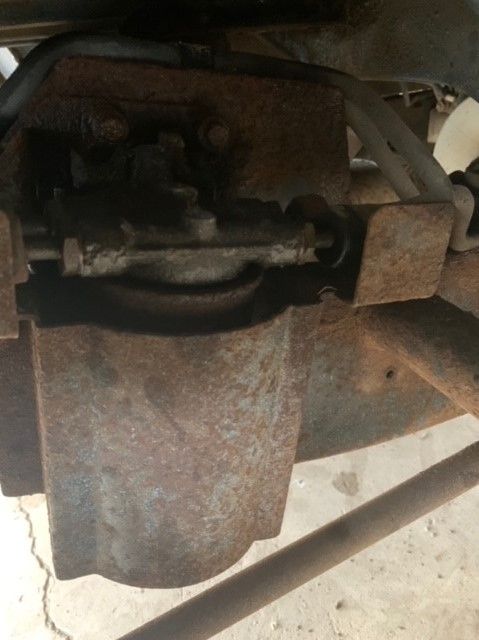

Not had a TD5 before so was a bit shocked to see the state of the rear fuel filter mounted on offside chassis. Looks like the head has corroded away and that the two bolts will be hard to budge which hold it on. Any suggestions and what part number do I need please?



miktdish

Guns n Chainsaws

Full Member

Posts

4,521

Location

Near Lanark, South of Glasgow. Scotland

• Oct 24, 2021

• #2

It is a silly place to put the filter.

here's one on eBay https://www.ebay.co.uk/itm/Land-Rov...caRKNIIUZbA8a_oRZSS75WfpRazby9q0aAlpOEALw_wcB
It needs a clean up (wire brush/wheel) and will probably be in a similar condition to yours....

Heres a new one https://rimmerbros.com/Item--i-WJN5...tt41lw3Vg5I_ERk19-8Qu1vp2zDUopJoaAvfIEALw_wcB

Regards removing ... a bit of heat on the bolts after you have tried with a correctly sized 6 point socket and an impact gun.



A

Azzymodo

Member

Posts

32

Location

Hull

• Oct 24, 2021

• #3

I had exactly the same issue and replaced it with this https://goreproducts.com/products/td5-fuel-filter-housing
Superb piece of engineering and so easy to fit



S

satchmolips

Active Member

Posts

422

Location

Worcestershire

• Oct 24, 2021

• #4

Thanks both, Great advice, bolts free! Do the fuel lines just pull off the brass pipes? Don't want to mess until i have the replacement to hand!



A

Azzymodo

Member

Posts

32

Location

Hull

• Oct 24, 2021

• #5

Yes there are clips or the clip is integral and needs pulling back away from the body iirc then the pipes can be released with a pull and a wiggle, when you undo the brass pipe assemblies watch out for the reed filter and internal bits on a couple of the outlet pipes, check out the configuration on LR Workshop site or tech manual



Last edited: Oct 24, 2021
