TD5 PULLEYS.......

KISSMYAURA · Oct 29, 2021

I am trying to find part numbers for two TD5 Pulleys.

ERR6658 Idler
ERR6493 Idler

I want GATES / DAYCO / SKF NEVER had an issue with them

Gen LR I think are made by LITENS, some have a INA bearing (INA are not too bad) made in canada but others are made in china , on the whole LITENS don't have great reviews etc, proved by my gen LR on rattling after 12 months.
belts and pulleys are all aligned and tensioned correctly, no water fouling etc, no excuse for bearing failure here.

Cant seem to find cooresponding / cross ref parts numbers any ideas?

mystery · Oct 30, 2021

can you not replace the bearing normally a press fit and a circlip with a reliable branded bearing assuming the pulley is ok .the plastic idler bearing normally have serrated edge to lock onto the plastic any image of the said parts

lightning · Oct 30, 2021

lf the pulleys are failing within 12 months there's surely got to be another issue, such as alignment, l've never had a pulley failure on any of my TD5's.

mystery · Oct 30, 2021

JUST FOR REFERENCE I had what i thought was a belt tensioner problem on my Freelander 1 ,high pitched screaming from tensioner replaced but still there turned out to be play in the crappy BMW water pump and i mean you could move the shaft up and down when the belt was removed yet it did not throw the belt

KISSMYAURA · Oct 31, 2021

Cheers all, but its not:-

tensioner or tension
alignment
PSP
WP
Alternator
Crank

All others run free and silent, no movement, the ones i used were Gen LR, Litens- INA with new bolts,
Geometary of the serpentine means that if all others are free and quiet, if out of alignment then I would expect play or noise on PSP,or fan bearing first or Alternator pulley.
I think i just got pants parts,
and I dont think Gates make them, so looking for SKF or DAYCO part numbers....search continues

KISSMYAURA · Oct 31, 2021

mystery said:
can you not replace the bearing......

Its looking that way!

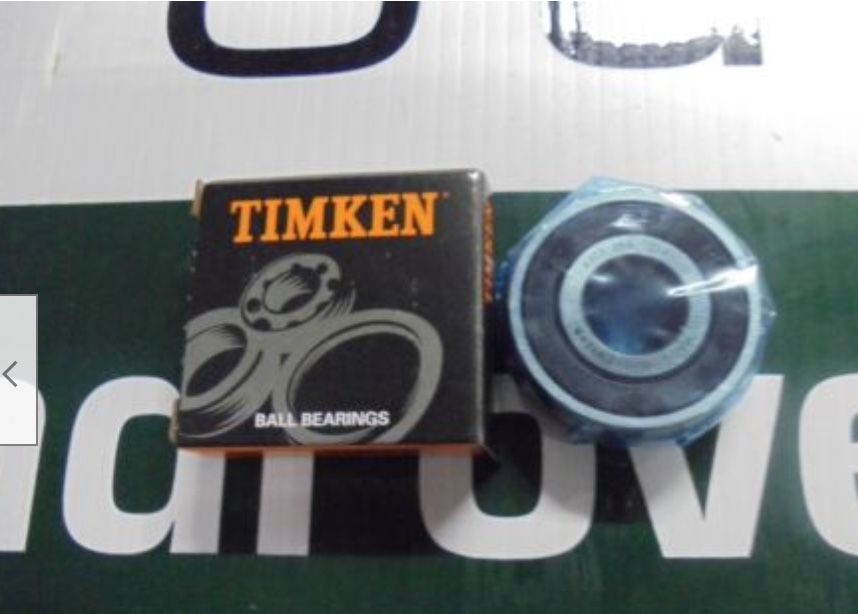

I managed to find a TIMKEN for the 6658 ( which is the one thats gone )
Also found SKF & Dunlop thus far ......

mystery · Oct 31, 2021

https://www.ebay.co.uk/itm/132837206558 do you know the other bearing number on the 6493

KISSMYAURA · Oct 31, 2021

mystery said:
https://www.ebay.co.uk/itm/132837206558 do you know the other bearing number on the 6493

HA!! same one as i found lol, dont know the other one yet....

mystery · Oct 31, 2021

also https://www.bearings-online.co.uk/
