TD5 oil leak head gasket

D

DavidMIng

New Member

Posts

5

• Tuesday at 12:58

• #1

Hello,

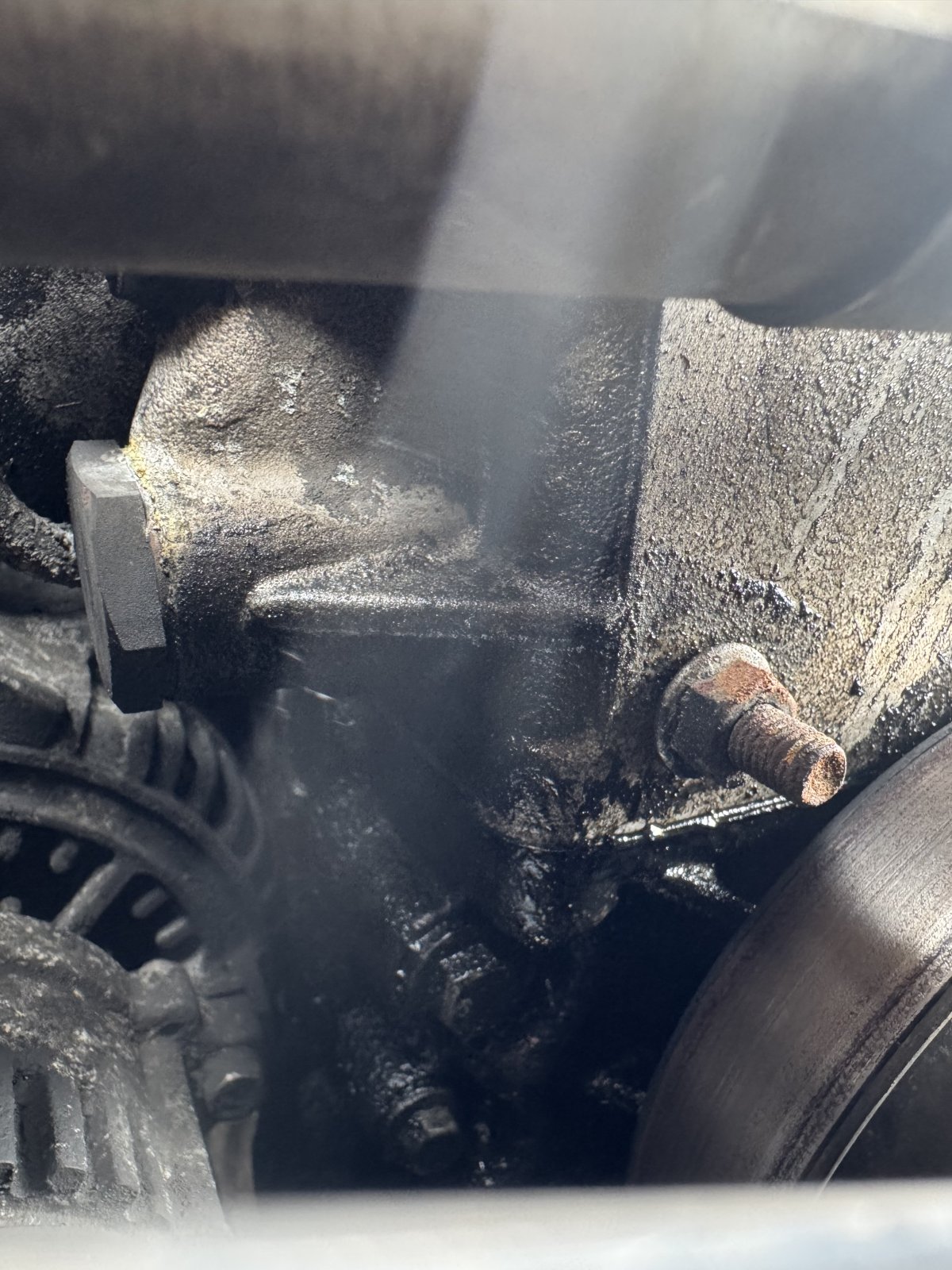

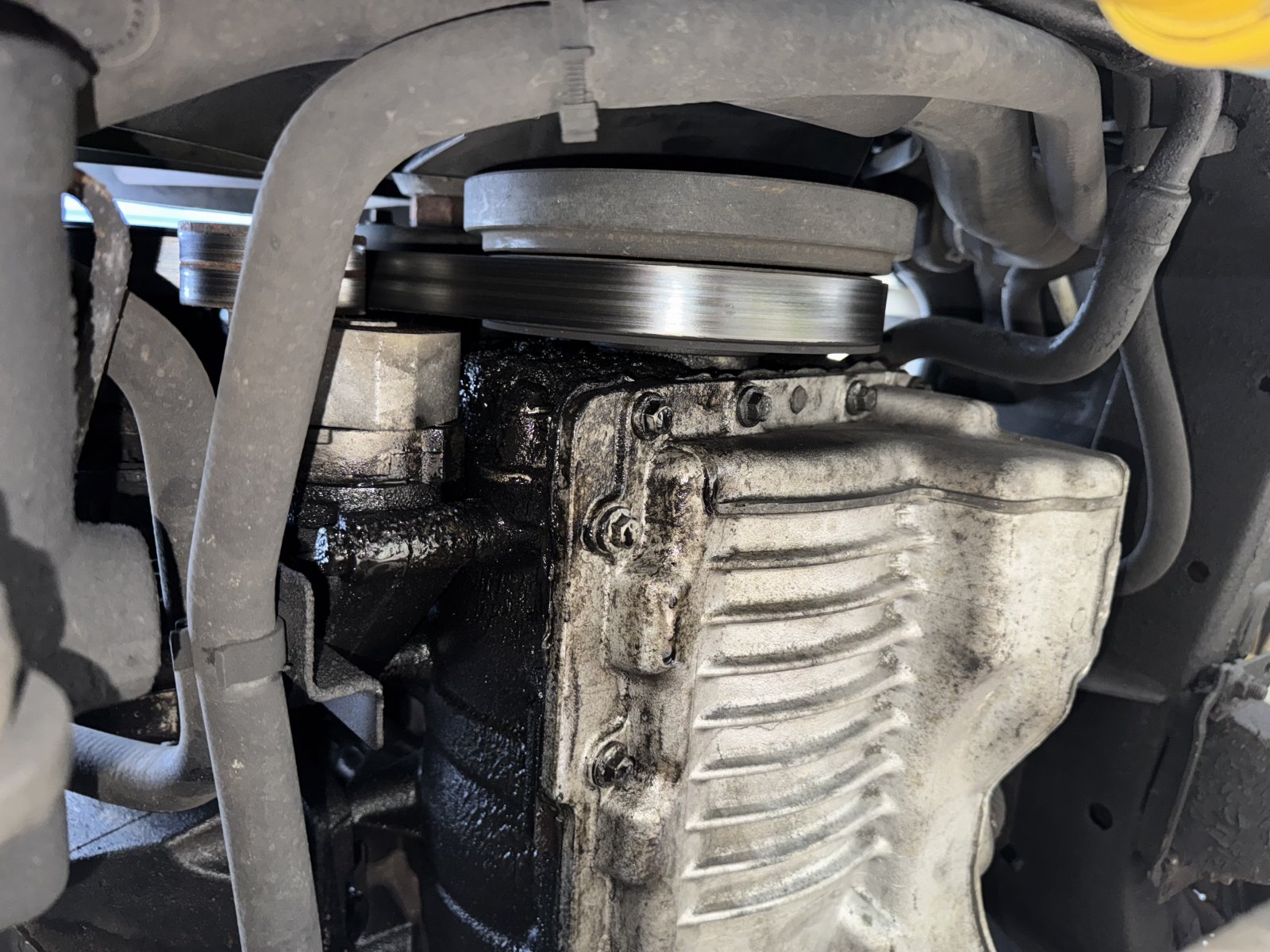

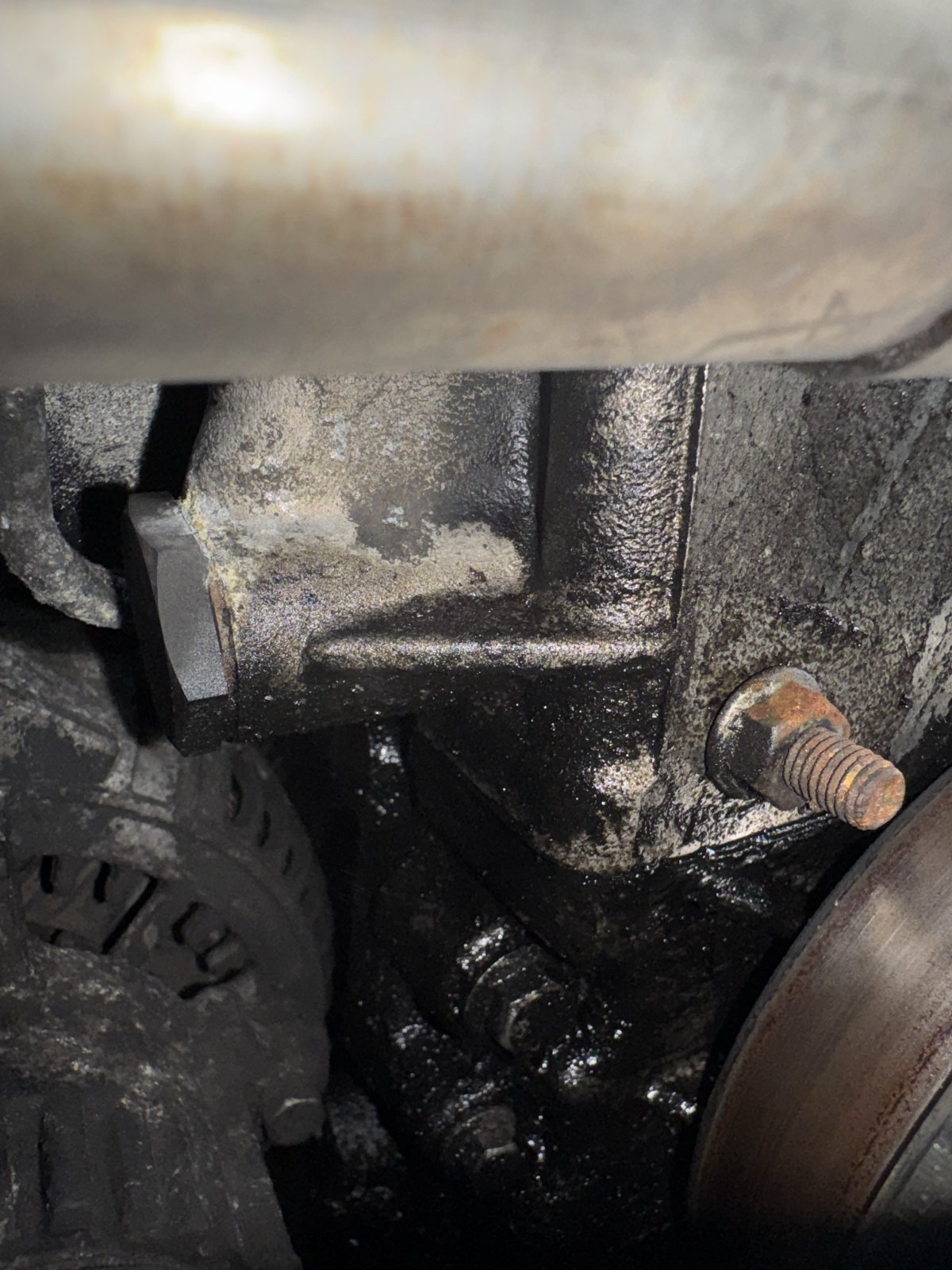

I have notice I tad of a oil leak, on front of the engine, my first idea was the front cam shaft cover, however after another look I’m now unsure, does anyone have a idea what the source could be?

I’m just praying it’s not coming from the head!

Thanks in advance.



Attachments

•

  337.9 KB · Views: 22
•

  335.2 KB · Views: 20
•

  288.4 KB · Views: 21

A

Anaconda

Well-Known Member

Posts

4,571

Location

Thames Valley

• Tuesday at 13:04

• #2

I would clean all the oil off, pop the camshaft cover out and seal it back up, costs nothing almost.
Then you can watch to see where the oil reappears.



D

DavidMIng

New Member

Posts

5

• Tuesday at 13:20

• #3

Anaconda said:

I would clean all the oil off, pop the camshaft cover out and seal it back up, costs nothing almost.
Then you can watch to see where the oil reappears.

Click to expand...

Could the cam cover cause all of that oil?

Thanks David



A

Anaconda

Well-Known Member

Posts

4,571

Location

Thames Valley

• Tuesday at 13:33

• #4

DavidMIng said:

Could the cam cover cause all of that oil?

Thanks David

Click to expand...

Don't know but you will need to clean it all off first anyway so might aswell seal up the camshaft cover.
Mine produced quite a bit of oil when it leaked, depends on how long it's been leaking.



Stanleysteamer

Well-Known Member

Full Member

Posts

46,758

Location

East Dorset

• Tuesday at 14:21

• #5

Camshaft front cover
Very common.
Black circular plastic thing.

https://www.aulro.com/afvb/technical-chatter/34704-td5-end-cap-oil-leak.html
