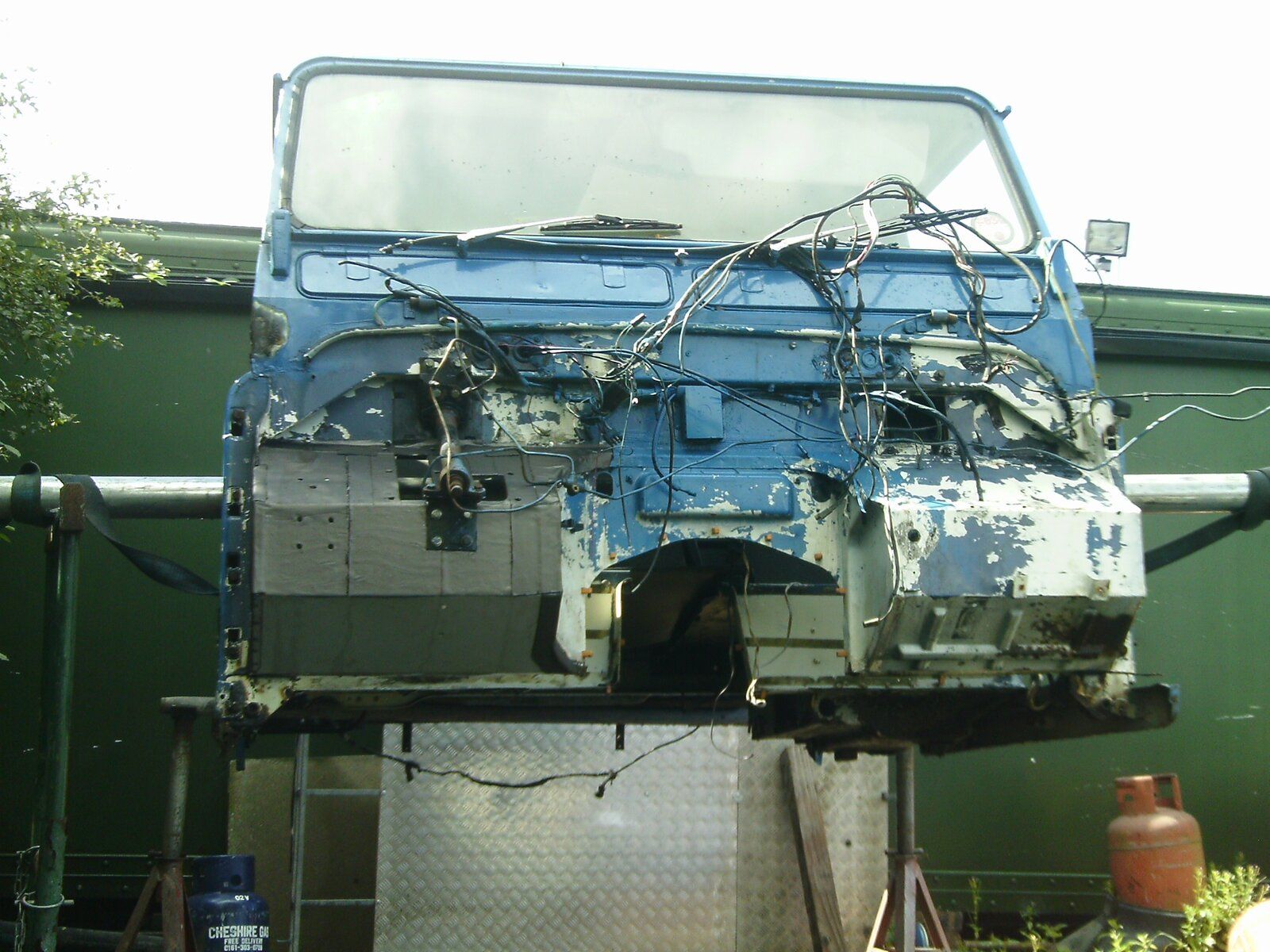

Td5 bulkhead repair/chassis change
- Thread starter 5555
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 6,390
- Location
- North Perthshire
Better chance of things fitting if you do the chassis change first.
- Posts
- 11,023
- Location
- North of the Wall
I agree. Strip it all off and repair bulkhead when it off. Unfettered access for clamping and welding, treating and painting afterwards. If you’re doing a fully chassis swap I’d get my bulkhead galvanised once I’d repaired it.
You mean fit bulkhead to new chassis before it’s repaired.???Better chance of things fitting if you do the chassis change first.
I would lift body off complete and then repair footwells etc without dismantling the body, it's easy to work on with the body lifted and you won't have to line everything up again, lift landy up a couple of feet, support body then drop chassis down and wheel it out.
Hicap phill
Well-Known Member
- Posts
- 16,192
- Location
- Wiltshire
Repair the bulkhead off the motor. As said easier to weld/grid/cut
Also You may have to do the top of the bulkhead where the windscreen fits onto
Also You may have to do the top of the bulkhead where the windscreen fits onto
Gmacz
Well-Known Member
- Posts
- 968
- Location
- Forfar/Dundee
Measure the bulkhead width gap and then bolt a plate or bar across at that width. This will keep it at the correct distance for refitting after welding.
Is that what was worrying you.
Is that what was worrying you.
