Freelander 1 TD4 - recognise this connector?

Kerlaan

Active Member

Posts

100

Location

Bretagne, France

• Dec 21, 2021

• #1

Hello

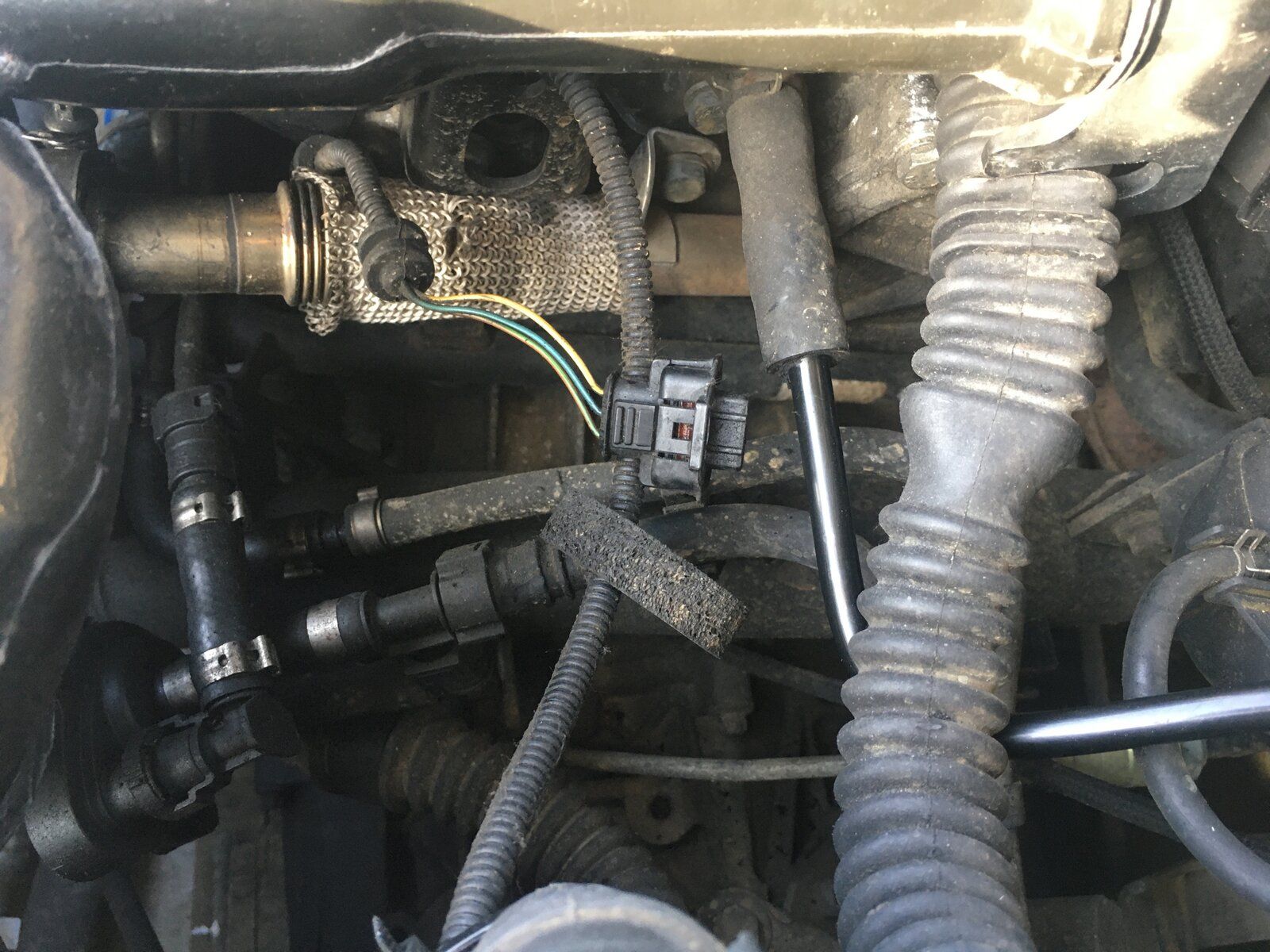

Slowly working my way through my 2005 manual transmission TD4 and I spotted this connector above the EGR feed tube,
Anyone recognise this and whether it is supposed to be connected to something. Or is a blanking cap missing? It looks like its been hanging in the oily mists of time for a while.

Wiring colours for those of you watching in black and white (Ray Reardon era TV), we have yellow, blue, green/red. I've consulted RAVE and electrical circuits...

Thanks in advance!



Attachments

•

  298 KB · Views: 162

Last edited: Dec 21, 2021

Arctic2

Well-Known Member

Posts

2,709

Location

Westmidlands

• Dec 21, 2021

• #2

Fuel rail sensor connector, you must now have the new one which replaces the old one if it starts breaking down.

1



Kerlaan

Active Member

Posts

100

Location

Bretagne, France

• Dec 21, 2021

• #3

Arctic2 said:

Fuel rail sensor connector, you must now have the new one which replaces the old one if it starts breaking down.1

Click to expand...

Thanks @Arctic2 - I appreciate it. It makes sense too, because this car was (until 2 years ago) dealer maintained irrespective of cost.



Arctic2

Well-Known Member

Posts

2,709

Location

Westmidlands

• Dec 21, 2021

• #4

Kerlaan said:

Thanks @Arctic2 - I appreciate it. It makes sense too, because this car was (until 2 years ago) dealer maintained irrespective of cost.

Click to expand...

You most likely have this one now, below other wise the car would not run correctly.
Land Rover Freelander 1 TD4 Fuel Rail Pressure Sensor Repair Loom Kit GENUINE 3863349465186 | eBay



Nodge68

Well-Known Member

Posts

32,750

Location

Cornwall

• Dec 21, 2021

• #5

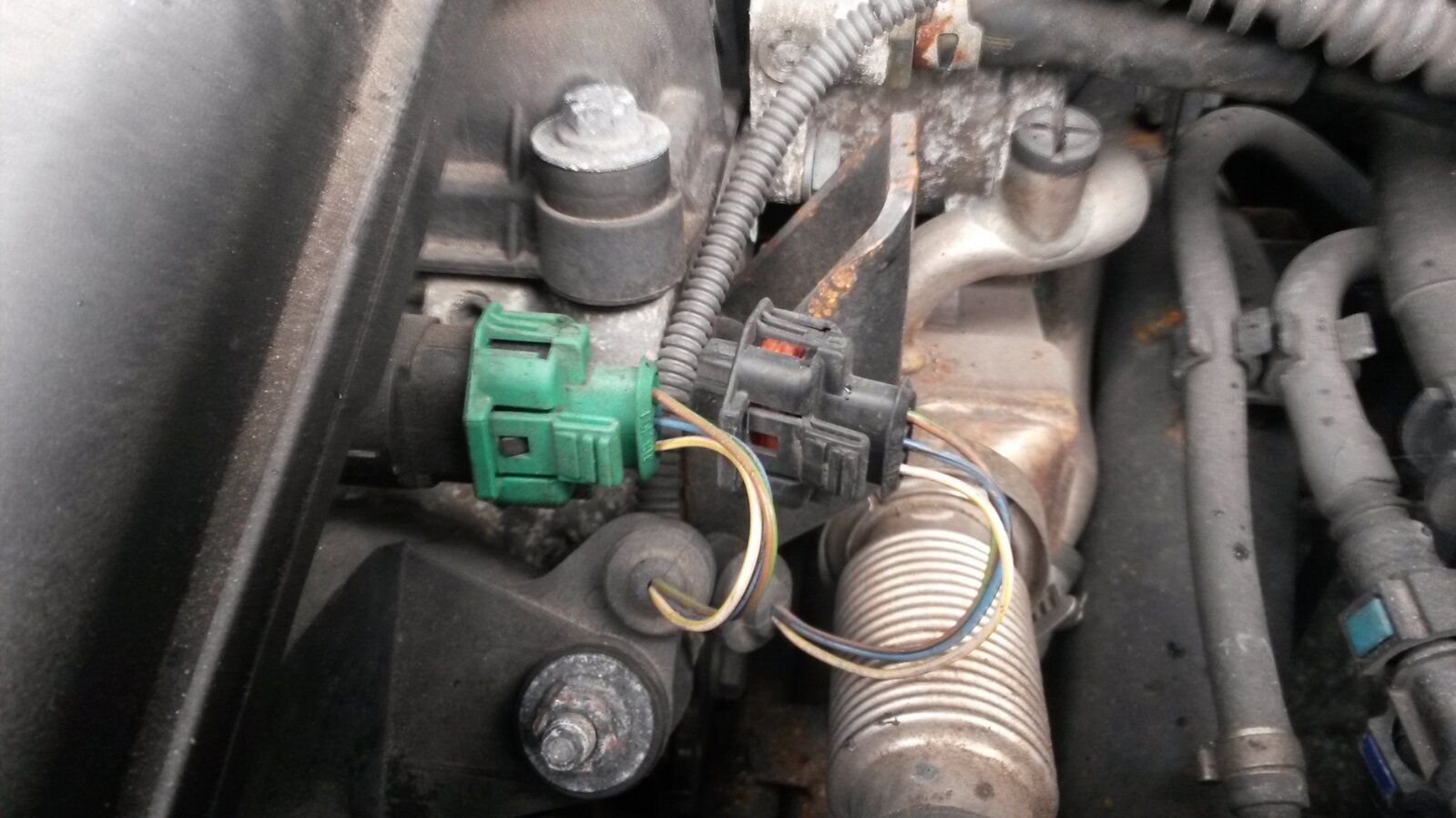

This is what you should have fitted.

The green plug is the latest spec, fitted to the replacement overlay harness .



Kerlaan

Active Member

Posts

100

Location

Bretagne, France

• Dec 21, 2021

• #6

Nodge68 said:

This is what you should have fitted. View attachment 255041
The green plug is the latest spec, fitted to the replacement overlay harness .

Click to expand...

Yes @Nodge68 exactly like that! Just not routed nicely as yours, I'll tidy it up tomorrow. Thank you!



Kerlaan

Active Member

Posts

100

Location

Bretagne, France

• Dec 22, 2021

• #7

Nodge68 said:

This is what you should have fitted. View attachment 255041
The green plug is the latest spec, fitted to the replacement overlay harness .

Click to expand...

This is for LTB00052/2007 (23 April 2007) @Nodge68, right?
Are there other TSB's that I should know about? I just did a check and got the result per the attached screen grab; no outstanding TSB's. Only 1 ever, or my VIN/vehicle has been fully updated? What's your take please?
