Freelander 1 TD4 rear drive shaft seal replacement

Andy Warren

Well-Known Member

Full Member

Posts

2,061

Location

Hertfordshire

• Nov 14, 2021

• #1

Hi all, do the rear drive shafts just pull out of the diff or do they need a bit of persuasion & can I leave the d/shaft in the hub so I don't have to touch the hub bearing nut ? I started over 3 weeks ago replacing the rear dampers,springs & brake pipes but have had no time to continue with it until this afternoon. Everything is still off except the links to the hub, thanks in advance. (On my D2 the shafts just pull out easily)



andyfreelandy

Well-Known Member

Posts

5,523

Location

Devon

• Nov 14, 2021

• #2

Andy Warren said:

do the rear drive shafts just pull out of the diff or do they need a bit of persuasion

Click to expand...

Yes. Sharp smack and the shaft pulls out of the diff. Held by a C clip. I put a small block of wood on the joint and sharp smack does the job. Levering also works but can damage the diff case.

Andy Warren said:

can I leave the d/shaft in the hub so I don't have to touch the hub bearing nut ?

Click to expand...

Yes you can.
Might be worth replacing the bearing though while it is all to bits??



Andy Warren

Well-Known Member

Full Member

Posts

2,061

Location

Hertfordshire

• Nov 14, 2021

• #3

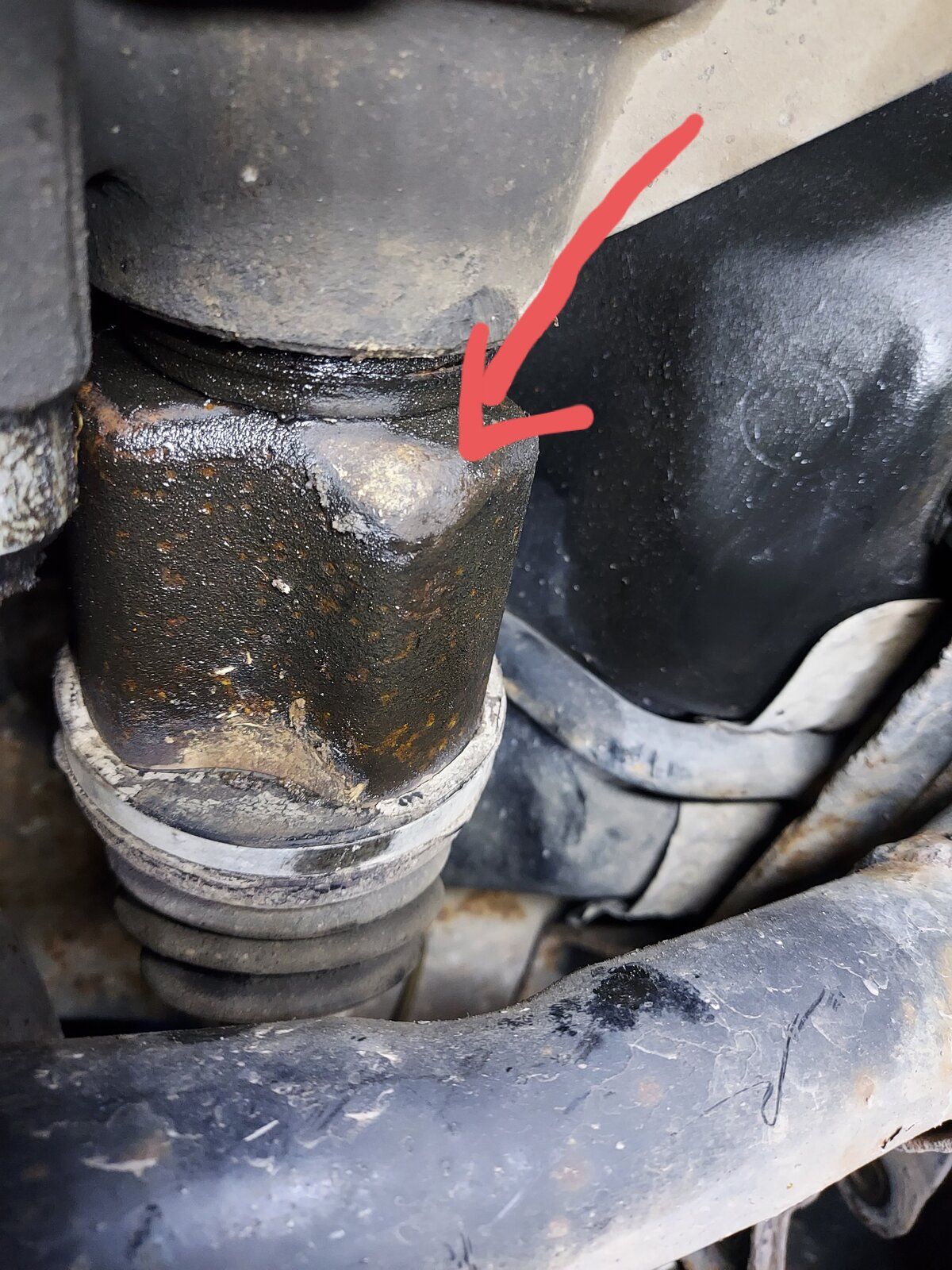

Do you mean here ? I have given it a light tap with a soft mallet but didn't want to go too mad.



andyfreelandy

Well-Known Member

Posts

5,523

Location

Devon

• Nov 14, 2021

• #4

Yes, block of wood, sharp smack. Tapping won't do it !!
Get it as square on the the axis of the shaft as you can. i.e. force in line of axis of shaft. I'll see if I have a photo of one removed.



andyfreelandy

Well-Known Member

Posts

5,523

Location

Devon

• Nov 14, 2021

• #5

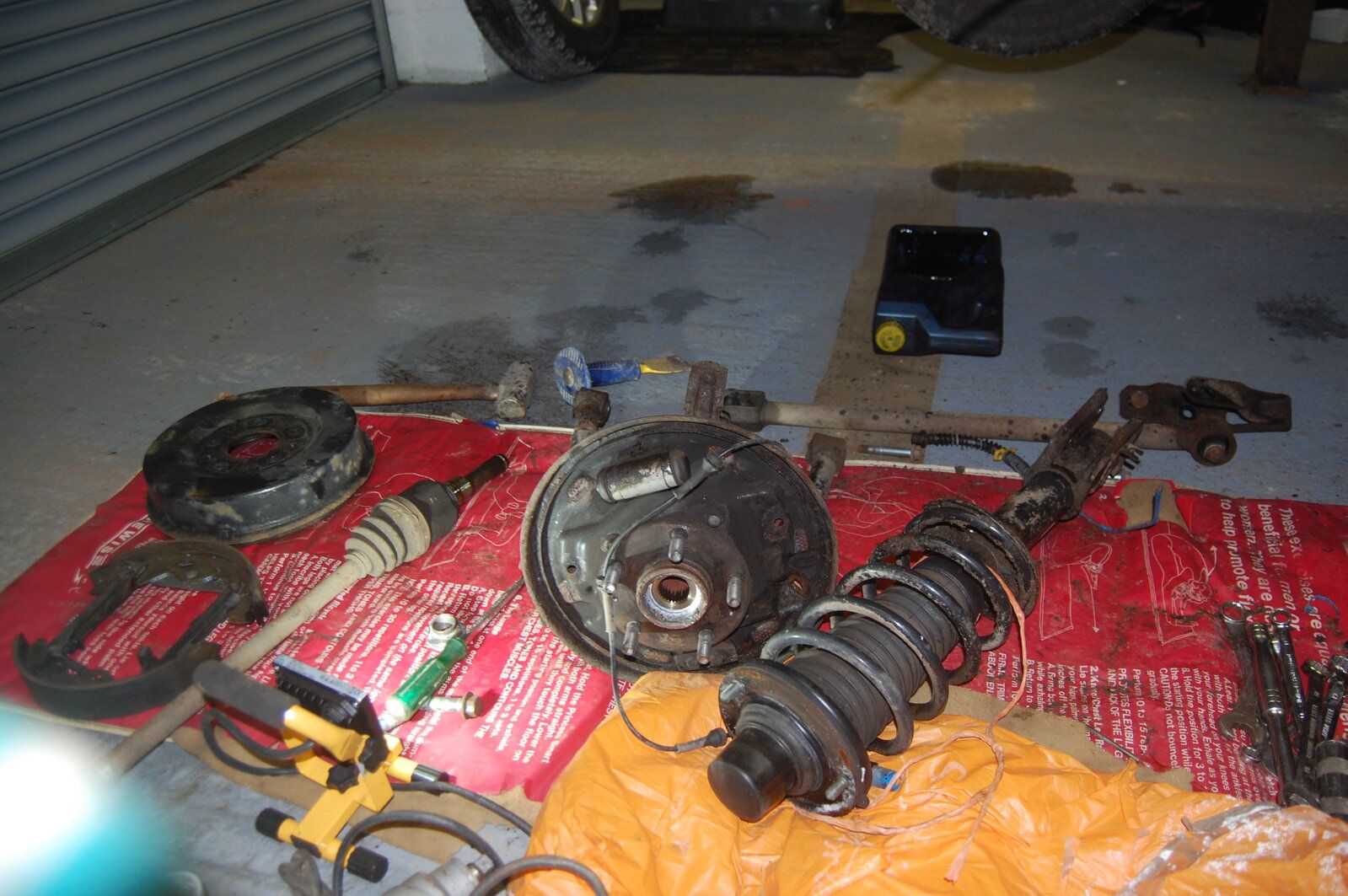

Best I got !!



Andy Warren

Well-Known Member

Full Member

Posts

2,061

Location

Hertfordshire

• Nov 14, 2021

• #6

andyfreelandy said:

View attachment 252699 Best I got !!

Click to expand...

Brilliant, I'll have another 'harder' bash tomorrow it's just a bit awkward getting a decent swing on the mallet when working on the ground.



andyfreelandy

Well-Known Member

Posts

5,523

Location

Devon

• Nov 14, 2021

• #7

Looks like your diff oil seal has gone on holiday too, these prise out and the new one comes with a bonding gunge around the edges.



Andy Warren

Well-Known Member

Full Member

Posts

2,061

Location

Hertfordshire

• Nov 14, 2021

• #8

andyfreelandy said:

Looks like your diff oil seal has gone on holiday too, these prise out and the new one comes with a bonding gunge around the edges.

Click to expand...

I got one when I ordered the shocks etc, I'll have to take it out the packet & see if it has gunge round it. I know it wasn't genuine.



Andy Warren

Well-Known Member

Full Member

Posts

2,061

Location

Hertfordshire

• Nov 15, 2021

• #9

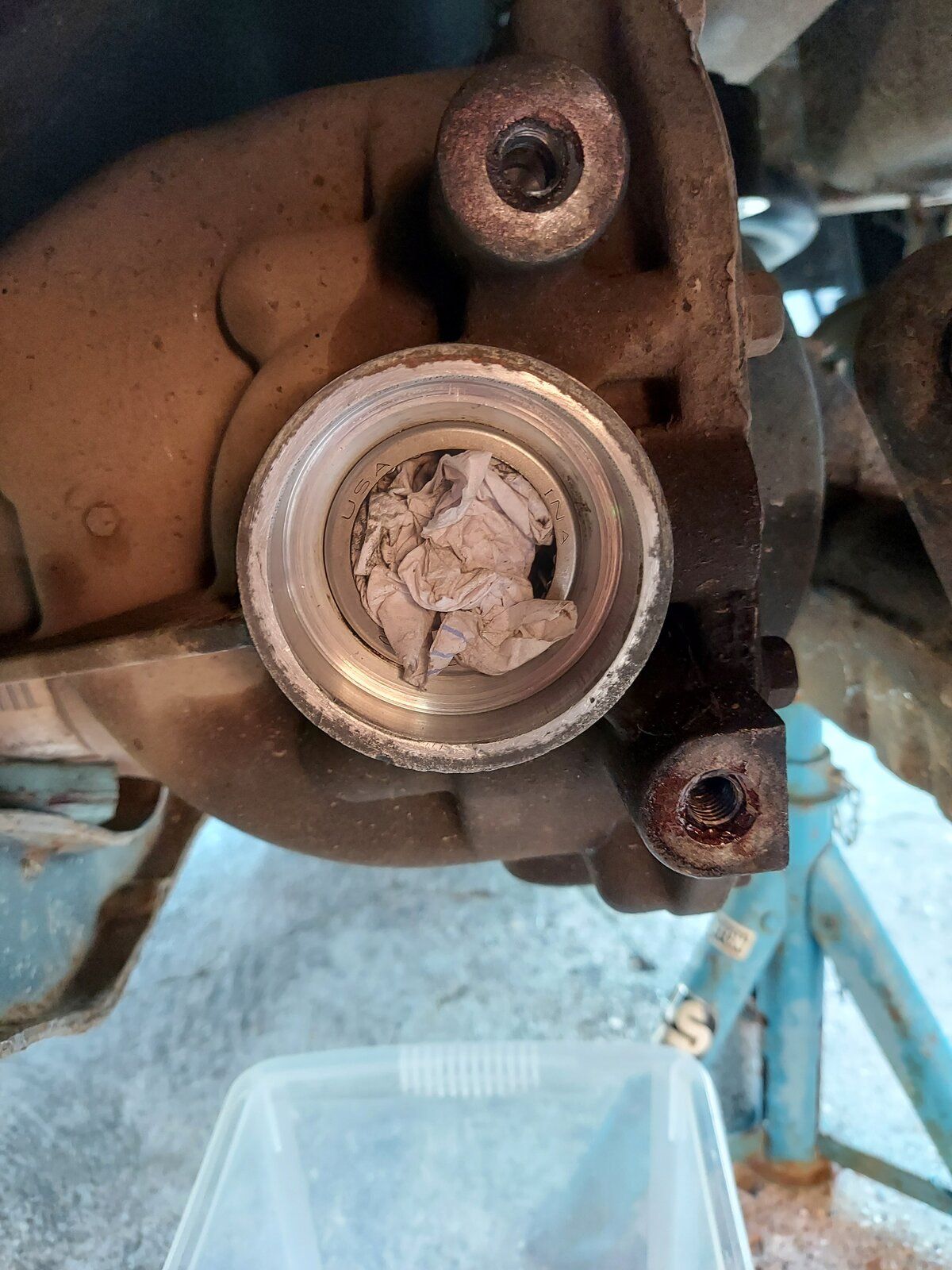

I got the drive shaft out today, came out easier than I thought & then had a bit of a fight with the seal. The new seal has got that brown gunge round it so I'll get that fitted tomorrow as I've run out of time today. Many thanks for the advice Andy,all the best.
