TD4 Auto Valeo Starter Motor Repair

kernowsvenski · Sep 26, 2017

The starter motor solenoid on my TD4 auto is on it's way out. Now there is lots of info about replacement contacts and plungers for the Denso motor but mine has a Valeo motor. Does anyone know if I can carry out a similarly effective strip down of the Valeo unit and replace or repair the solenoid? If so, any links to a supplier of the necessary bits would be gratefully appreciated. Google is not giving me much joy!

pardec · Sep 26, 2017

i'm not 100% but iwould have thought the internals are the same

Arctic2 · Sep 26, 2017

Valeo Starter motor 458379 on your car still looks to me as the same as the denso ? but give this guy a call and he will answer all your questions (Carl)
http://www.ebay.co.uk/itm/ROVER-75-...e=STRK:MEBIDX:IT&_trksid=p2055119.m1438.l2649

kernowsvenski · Oct 8, 2017

So, I've managed to get the motor off and it does appear to be the same as the Denso unit. I've emailed the ebay supplier to see if they have repair kits that fit. Fingers crossed. Just as a tip to anyone doing the same job, make sure you get the correct bolt at the rear of the motor, As you can't really see the bolt and need to find it by feel, it's not the 15mm head one in the general area. It's the 13mm bolt just forward of that one. Don't bother trying to get the motor off without the battery box removed (unless you've removed one before and you're a pro). It's so much easier to get in with the box out of the way.

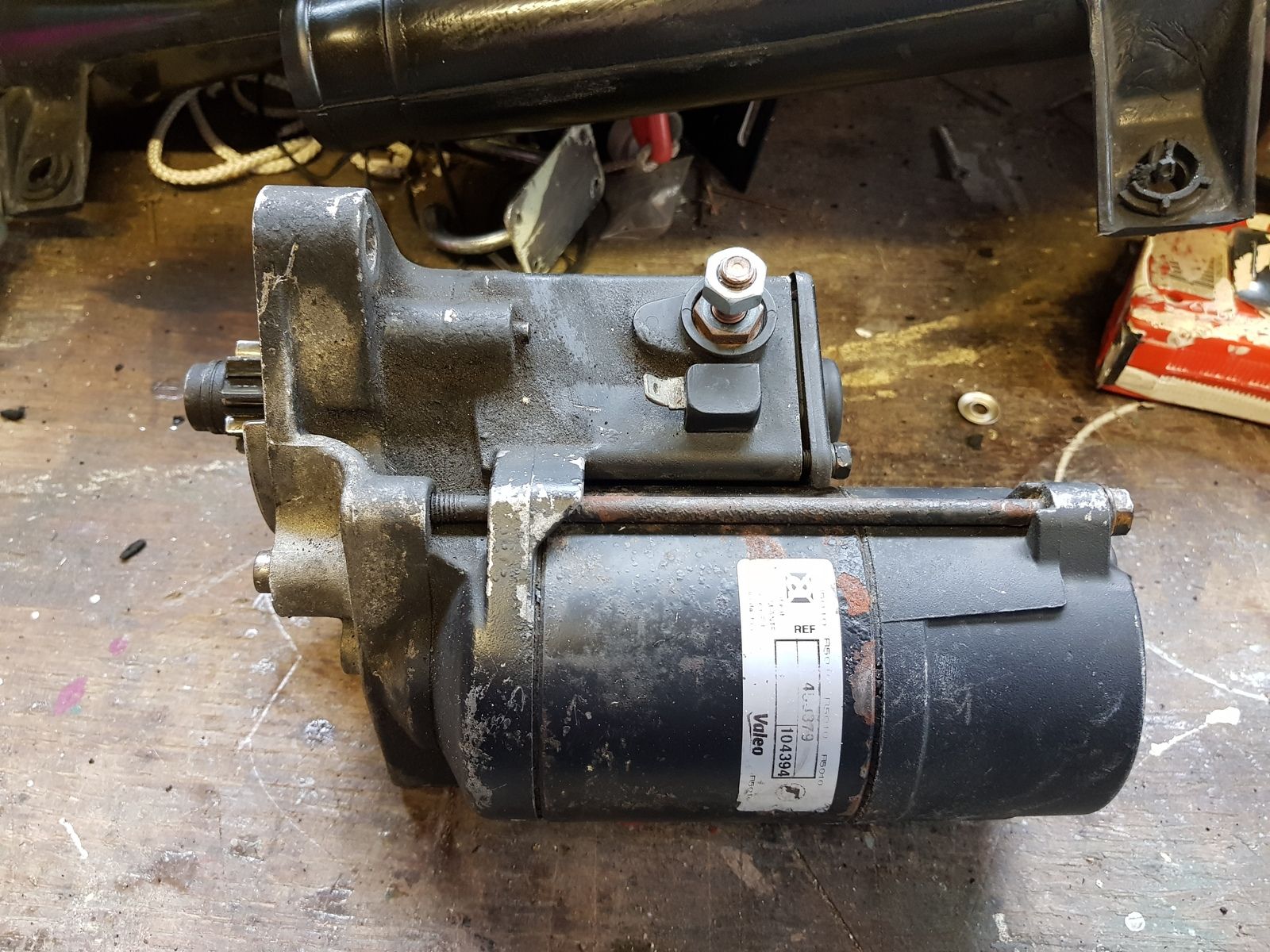

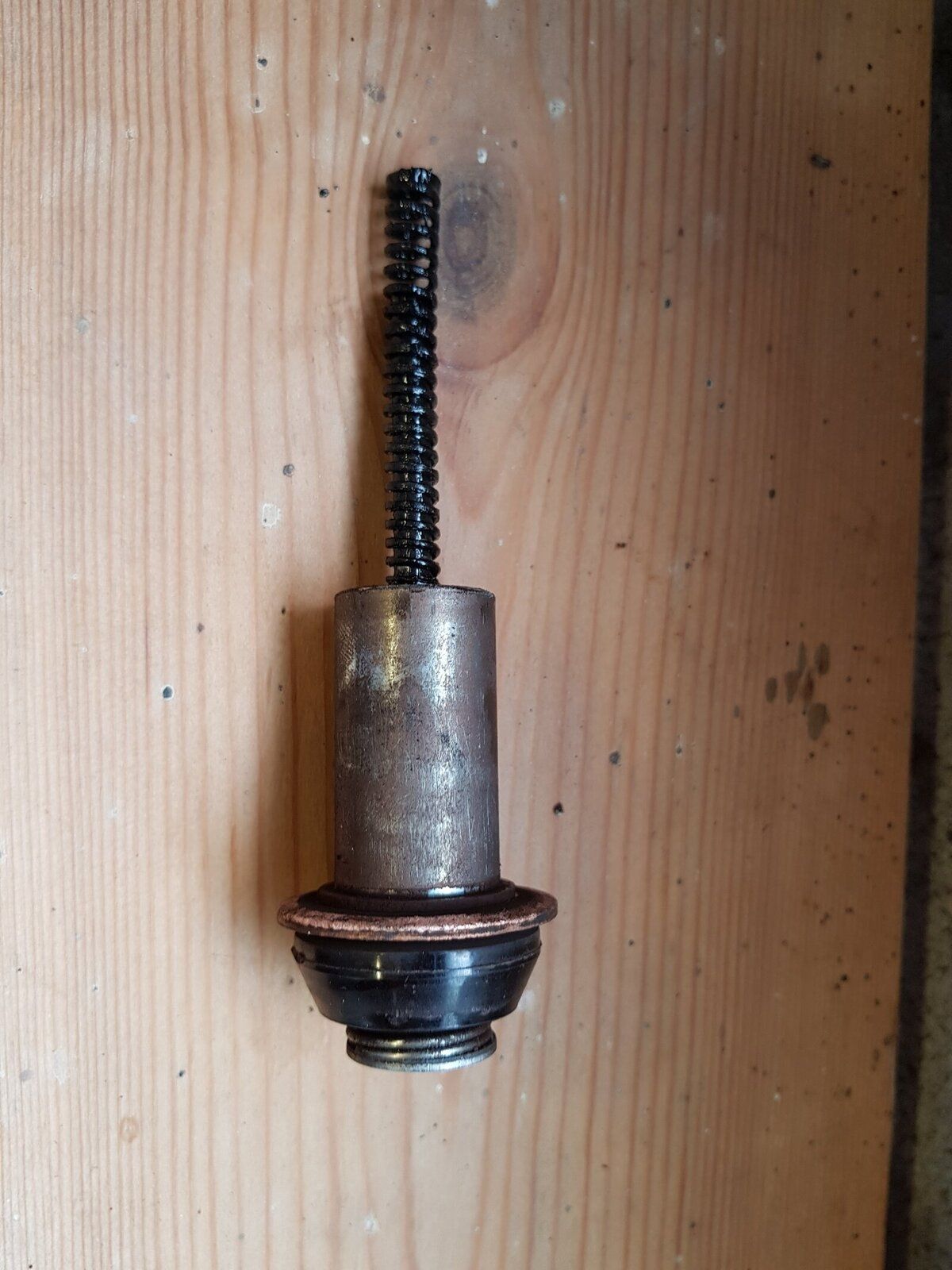

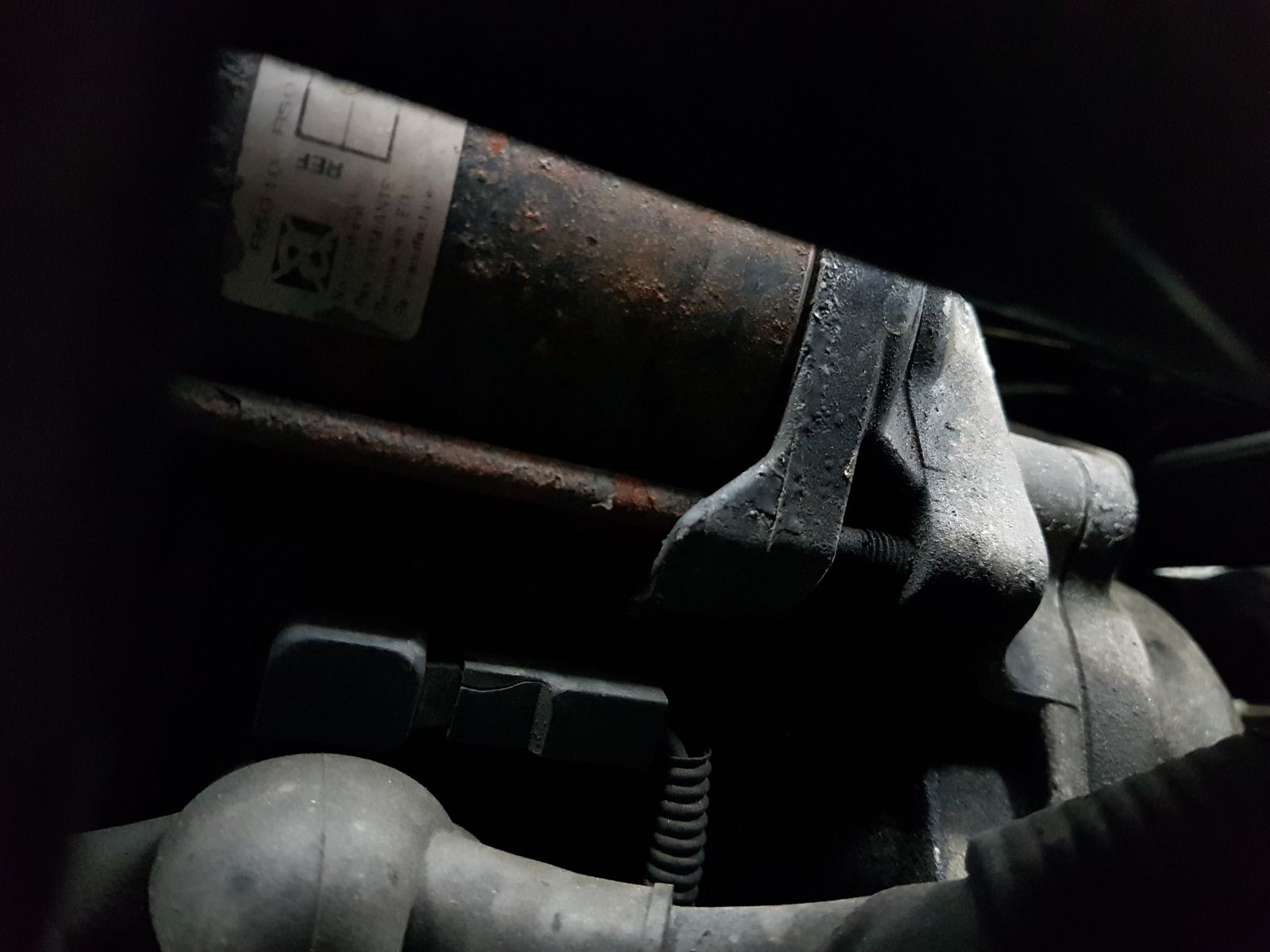

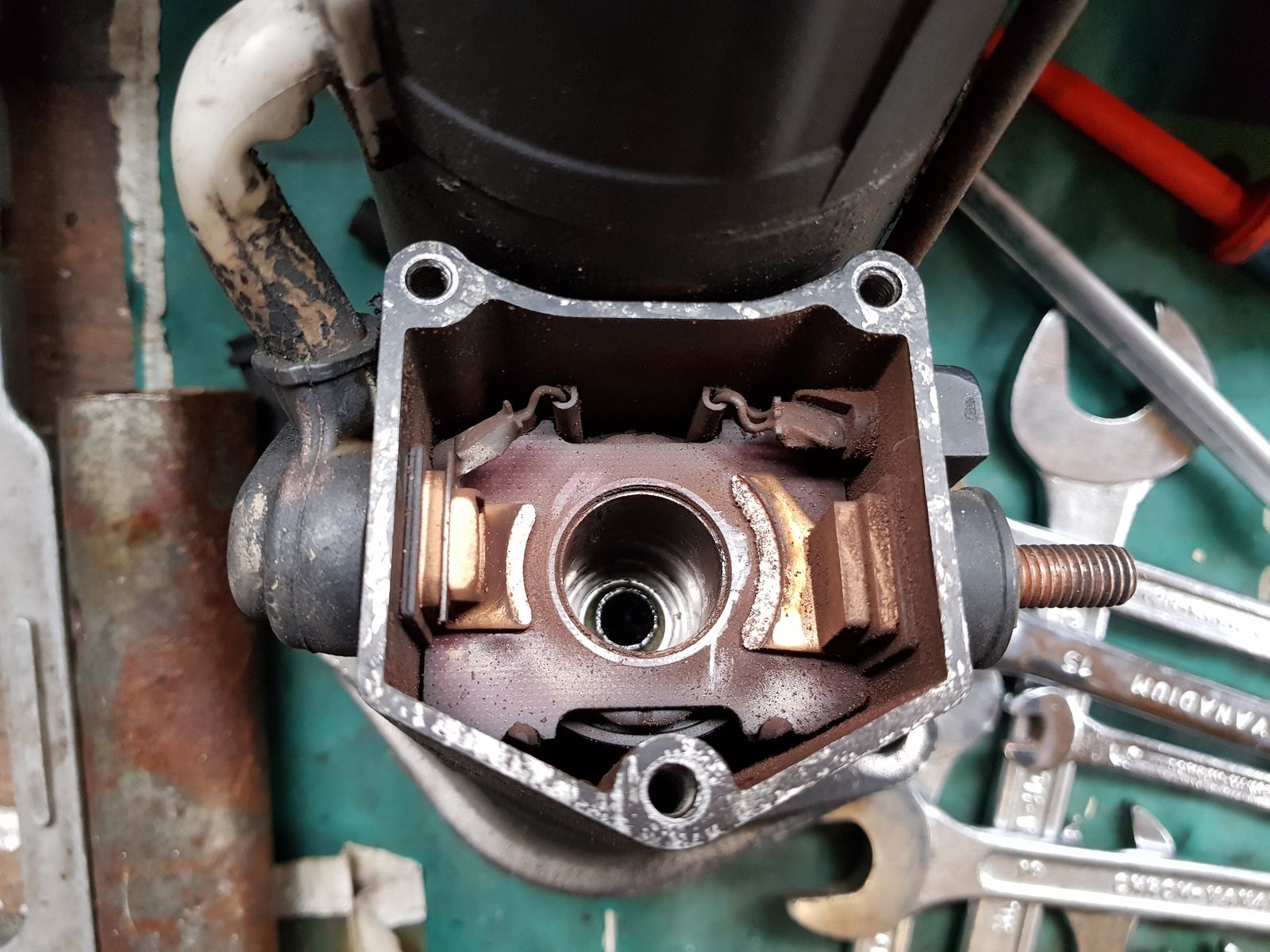

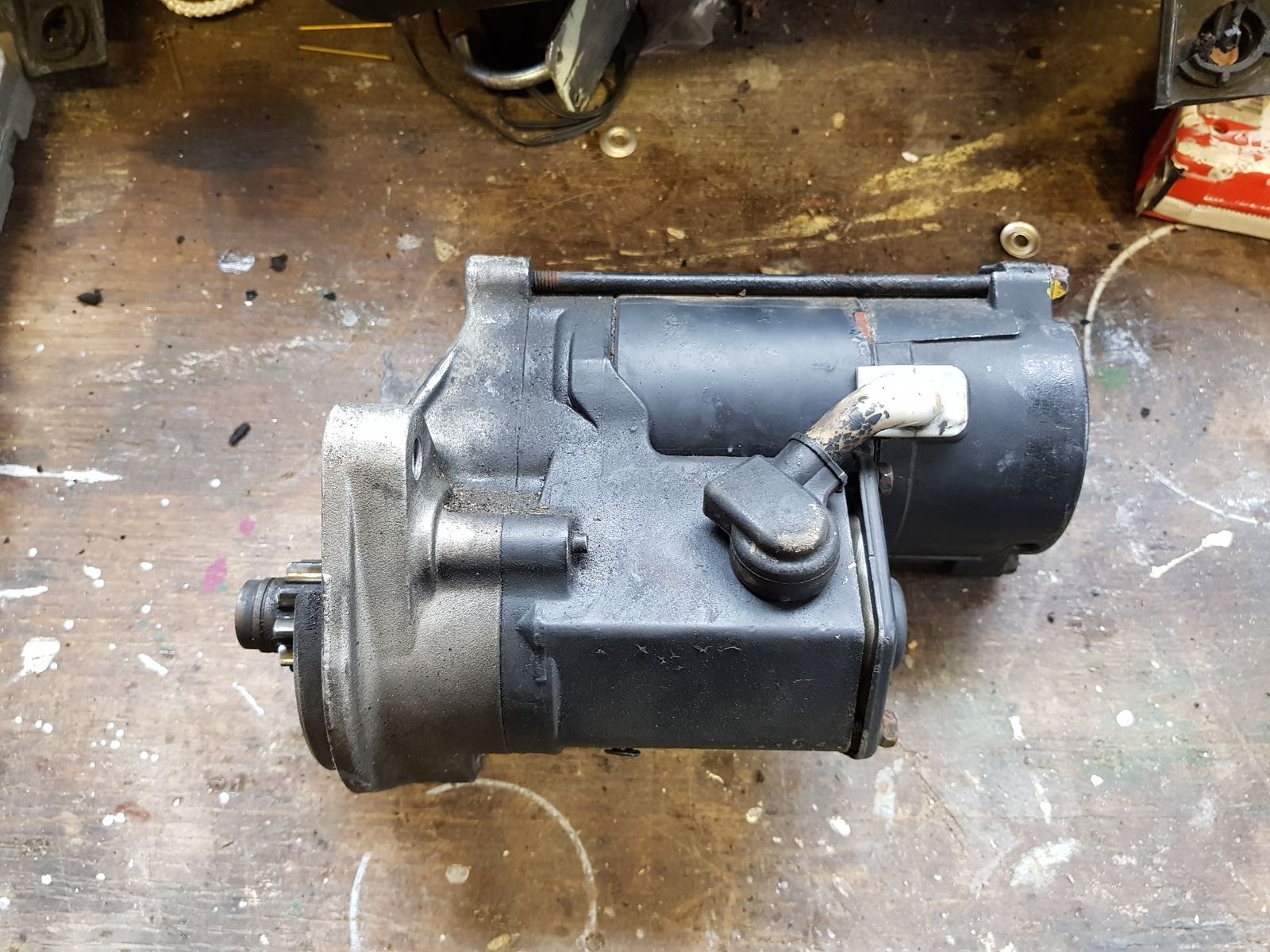

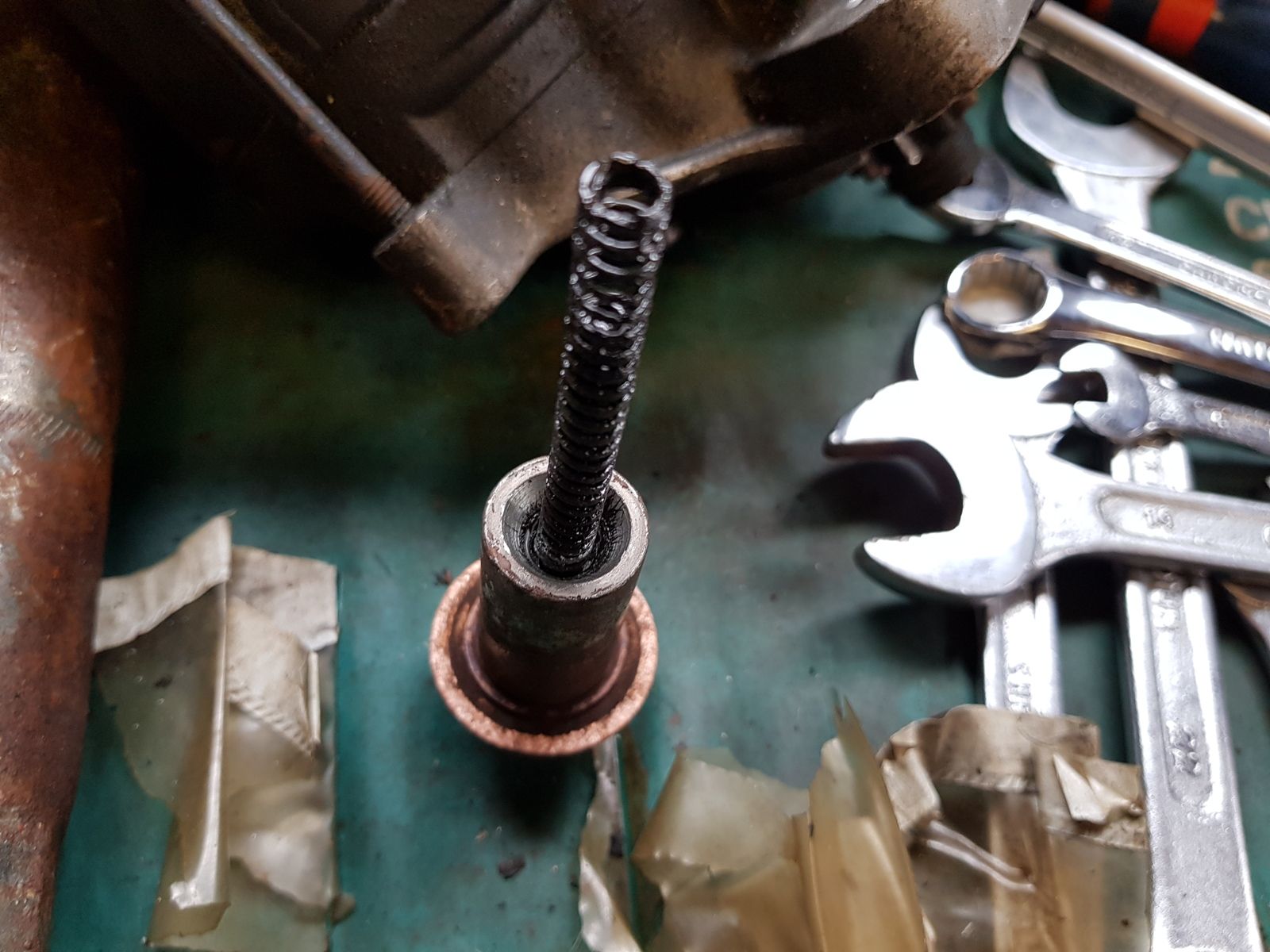

A few pics showing my Valeo branded motor for reference...

Arctic2 · Oct 9, 2017

kernowsvenski said:
So, I've managed to get the motor off and it does appear to be the same as the Denso unit. I've emailed the ebay supplier to see if they have repair kits that fit. Fingers crossed. Just as a tip to anyone doing the same job, make sure you get the correct bolt at the rear of the motor, As you can't really see the bolt and need to find it by feel, it's not the 15mm head one in the general area. It's the 13mm bolt just forward of that one. Don't bother trying to get the motor off without the battery box removed (unless you've removed one before and you're a pro). It's so much easier to get in with the box out of the way.

A few pics showing my Valeo branded motor for reference...
View attachment 133133 View attachment 133136 View attachment 133134 View attachment 133135

I thought they would be the same, I have changed quite a few on the R40 and a couple on the TD4 no need to remove battery box really but I suppose it would give you more room, link below albeit on the R40
https://www.the75andztclub.co.uk/forum/showthread.php?t=227316

http://www.ebay.co.uk/itm/ROVER-75-...e=STRK:MEBIDX:IT&_trksid=p2055119.m1438.l2649
