swivel housing seal is loose???

landy-lee

Well-Known Member

Posts

706

Location

derby

• Jul 10, 2021

• #1

Hi

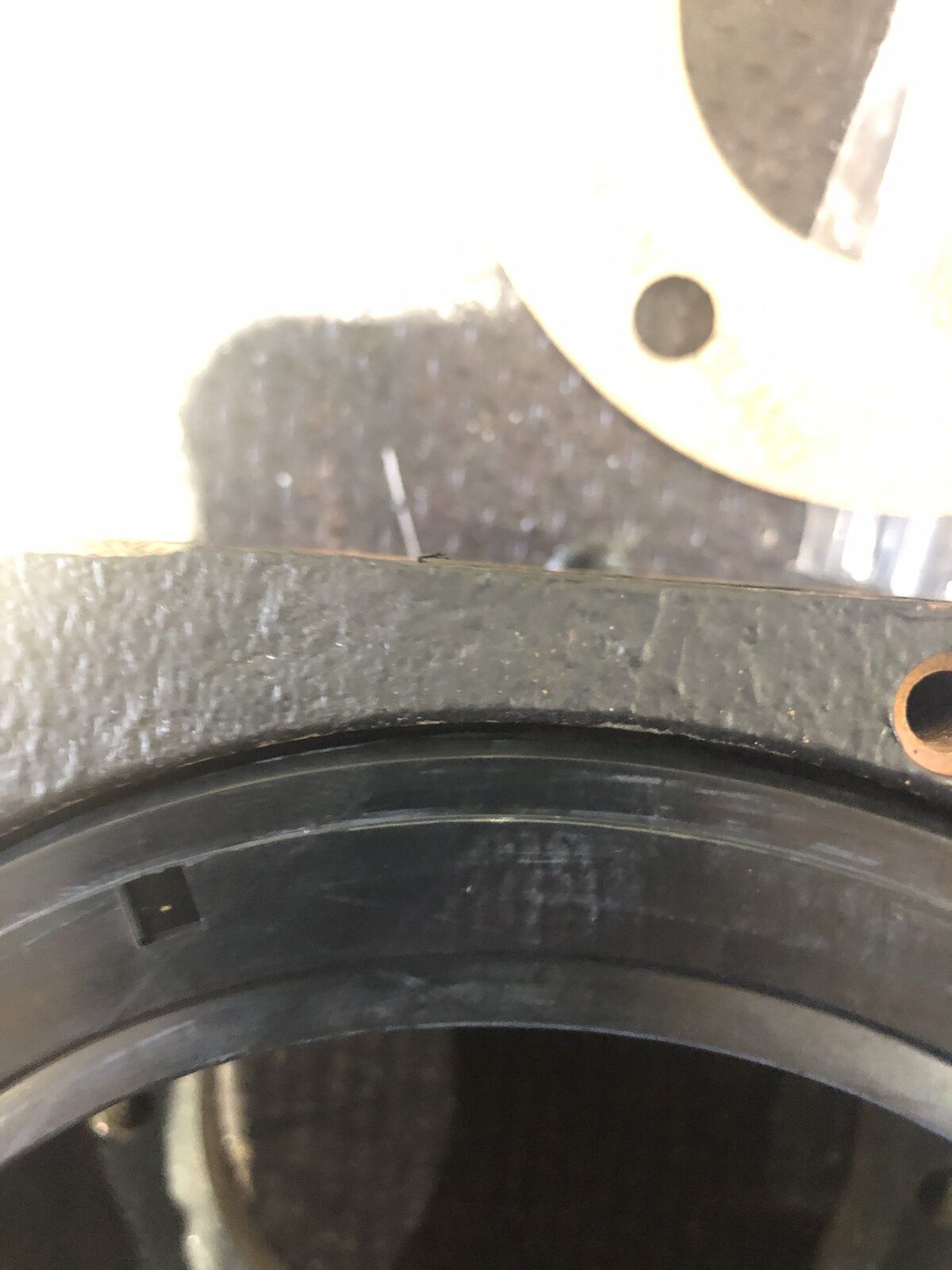

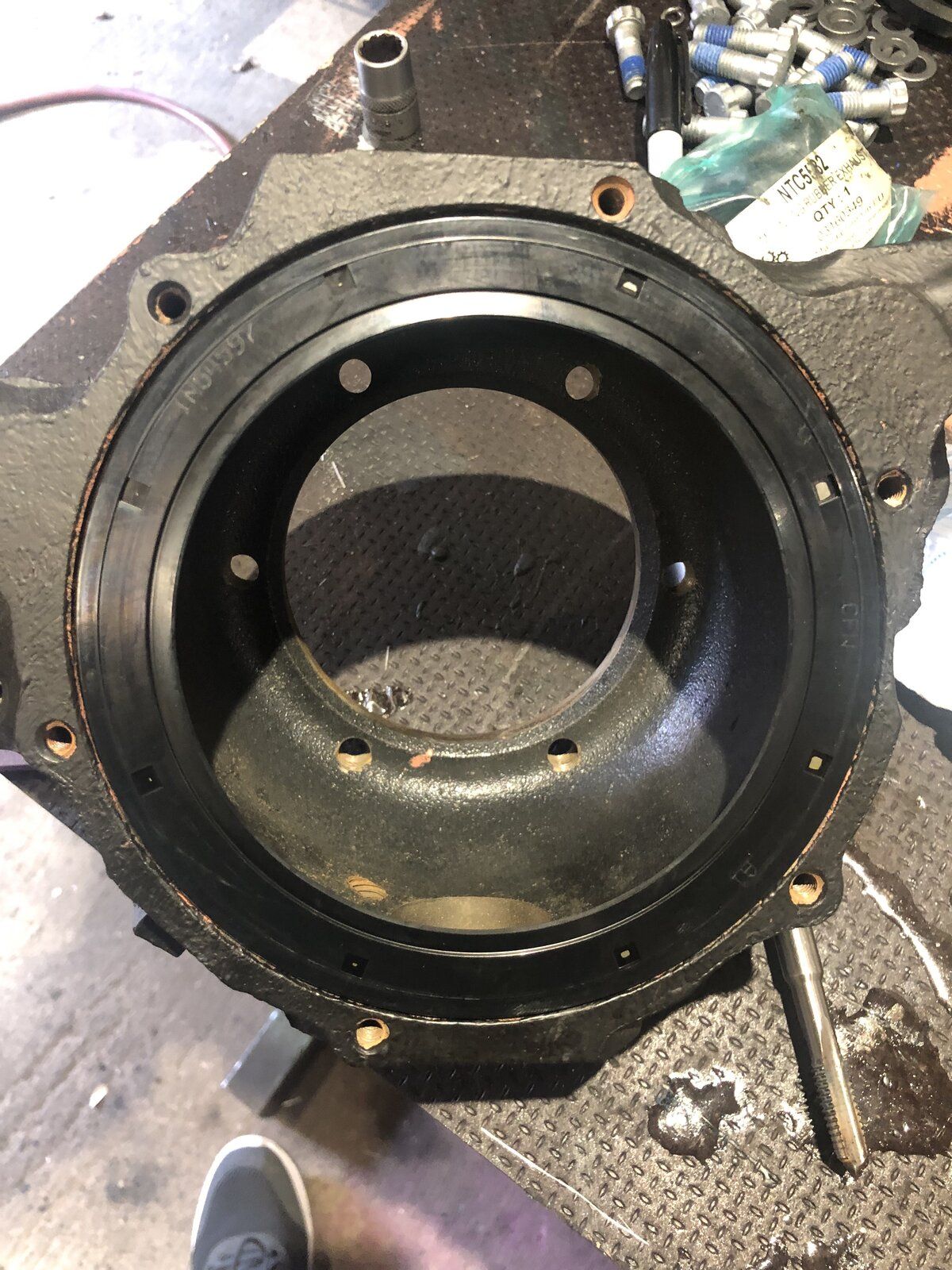

The seal in the photo is 1mm or so smaller than the lip it goes into

the seal is OEM corteco

is the correct and the clamping ring holds it nice and tight??



N

neilp1

Active Member

Posts

140

Location

Newcastle

• Jul 10, 2021

• #2

That's the seal I used and it was tight, but pushed in by hand



landy-lee

Well-Known Member

Posts

706

Location

derby

• Jul 10, 2021

• #3

neilp1 said:

That's the seal I used and it was tight, but pushed in by hand

Click to expand...

Have watched a few videos and they all seem to drop in so i think im all good



Def90man

Percy the Pedant

Full Member

Posts

12,075

Location

Far out West

• Jul 10, 2021

• #4

It’s the inner edge of the seal that does the sealing so should be fine



raywin

Well-Known Member

Posts

3,808

Location

North Yorkshire

• Jul 10, 2021

• #5

The inner edge seals on the ball, but if it's loose in the housing then the grease will migrate around the outside of the seal and run down.
Mine pushed in they weren't super tight, and I wiped them with silicone (after cleaning them with brake cleaner) I also swapped the retaing set screws for stainless flanged ones.



tottot

Well-Known Member

Posts

8,007

Location

west wales coast

• Jul 11, 2021

• #6

As above, seal them in.
