Freelander 1 Sump guard

Bife · Tuesday at 11:16

Hi!

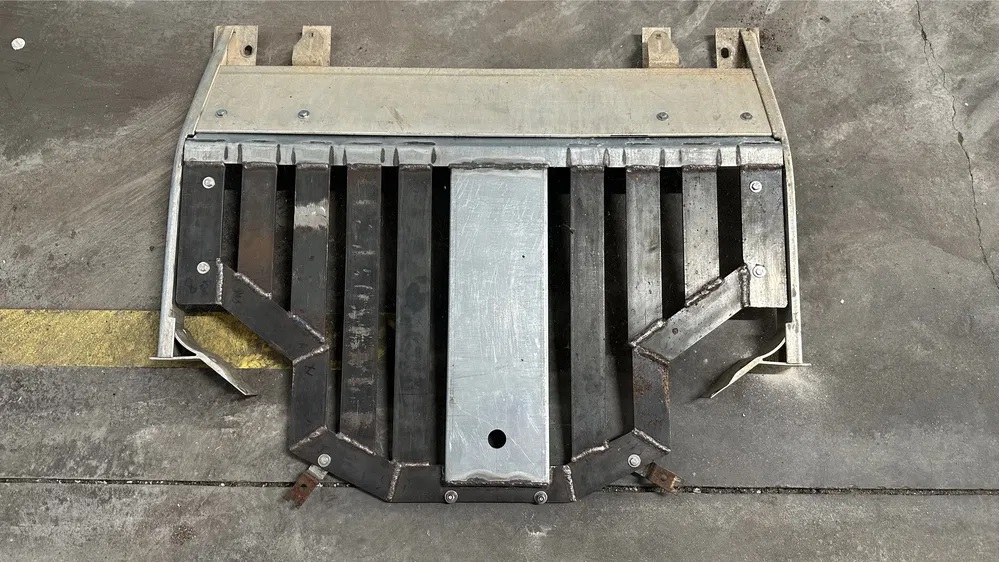

What do you guys think about this?
He is asking €150 (£125) but I could probably knock him down a bit
Its here in Portugal so good for me
Looks like steel replaces plastic bit - Too heavy? - Rust?
Very difficult to get hold of one down here so I am ninterested
What do the Gentlemen think?

Arctic2 · Tuesday at 11:38

Wow that is a right Frankenstein job, what use will it be because it will not keep any water grime mud etc from getting to the underside of the engine., even be a mud trap to be honest, most people modify the under tray so just the plastic part is removable instead of the whole frame, i bet that is heavy, good for off road but only in a dry climate, even the the dust that will get between those slats would be unreal.

2006 LAND ROVER FREELANDER 1 FACELIFT TD4 L314. ENGINE UNDER TRAY FRAME | eBay

ENGINE / GEARBOX: 2.0 DIESEL MANUAL TD4. VEHICLE DETAILS: 2006 LAND ROVER FREELANDER 1 FACELIFT. ENGINE CODE: M47. LVR - Vehicle Recycle. The part pictured is the part you will receive.

www.ebay.co.uk

Land Rover Freelander 1 pre-facelift TD4 1.8i 2.5V6 1997-2003 under engine cover | eBay

Whenever possible, we provide the part number. If in doubt, ask.

www.ebay.co.uk

Bife · Tuesday at 13:13

Arctic2 said:
Wow that is a right Frankenstein job, what use will it be because it will not keep any water grime mud etc from getting to the underside of the engine., even be a mud trap to be honest, most people modify the under tray so just the plastic part is removable instead of the whole frame, i bet that is heavy, good for off road but only in a dry climate, even the the dust that will get between those slats would be unreal.

2006 LAND ROVER FREELANDER 1 FACELIFT TD4 L314. ENGINE UNDER TRAY FRAME | eBay

ENGINE / GEARBOX: 2.0 DIESEL MANUAL TD4. VEHICLE DETAILS: 2006 LAND ROVER FREELANDER 1 FACELIFT. ENGINE CODE: M47. LVR - Vehicle Recycle. The part pictured is the part you will receive.

www.ebay.co.uk

Land Rover Freelander 1 pre-facelift TD4 1.8i 2.5V6 1997-2003 under engine cover | eBay

Whenever possible, we provide the part number. If in doubt, ask.

www.ebay.co.uk

Thanks!
I'll leave that then
Are they different between different engined FL1 pre-face lift?
And are the pre and post face lifts the same?
Everything is so cheap in the UK

Freddie17 · Tuesday at 14:59

Just modify your own?

GrumpyGel · Tuesday at 17:00

Bife said:
Hi!

What do you guys think about this?
He is asking €150 (£125) but I could probably knock him down a bit
Its here in Portugal so good for me
Looks like steel replaces plastic bit - Too heavy? - Rust?
Very difficult to get hold of one down here so I am ninterested
What do the Gentlemen think?

View attachment 331901

That is rather abstract.

Which is a posh word for a right dog's dinner.

Bife · Tuesday at 18:20

Freddie17 said:
Just modify your own?

I would, if there was one on mine

actually I'm going back to plan A - I know someone with the Ally bits and I will most probly laminate something up or get a bit of plate and make the missing placcy bit

Freddie17 · Tuesday at 18:28

Bife said:
I would, if there was one on mine

actually I'm going back to plan A - I know someone with the Ally bits and I will most probly laminate something up or get a bit of plate and make the missing placcy bit

Yep - it’s the ally bits you need really - the ‘frame’.

Hippo · Friday at 08:48

Years sgo peeps would get 2 sheets of 4mm steel and cover their own guard. 4mm is workable and benderble, ish, at home.

Bife · Friday at 17:41

He replied with the weight, it was 18 kg
But if people are using sheets of 4 mm steel, I guess weight isnt an option
Tbh I only thought of the extra stress on the mountings, as its not much compared to the car weight

I'd like to have a go at a GRP version, onto the Ally frame bit (when I get one) got stuff for that at work and its my thing
Easy to mould in corrugations or even 'top hat' stiffeners too so doesnt have to be too thick despite lower stiffness than steel
Kevlar is well overrated and carbon no advantage and way more expensive in this application

If I can mange to borrow one, I could use and original plastic one as a mould
