Hi folks, my Dads got a 2012 Freelander 2 td4 GS, which needs a new subframe. It’s a later VIN model and I’ve managed to acquire the sub frame ok, now I need to source the arms. My question is, are the arms specific to the later sub frame or are they common across the model years. VIN a attached for info


Attachments

  • IMG_1041.jpeg
    398.8 KB · Views: 87
Fatrover said:
Hi folks, my Dads got a 2012 Freelander 2 td4 GS, which needs a new subframe. It’s a later VIN model and I’ve managed to acquire the sub frame ok, now I need to source the arms. My question is, are the arms specific to the later sub frame or are they common across the model years. VIN a attached for info
Click to expand...
What do you mean by arms? Are you talking about the suspension links?
I believe the subframe is common across all years, the only differences being an AWD subframe and a 2WD subframe. The suspension links are likely the same, as the only differences between AWD and 2WD are the diff mounts on the subframe, and it's shape to accommodate the diff.

There are kits available, which come with subframe, links and bolts, so everything can be renewed at once. These kits are pretty good value, when compared to buying the links and all important bolts separately. You have to take into consideration that all the bolts used are TTY (stretch bolts) so they must be replaced when removed, even if the suspension links themselves might not need replacing.

Yes, suspension links. I can find kits for earlier VIN but not for later ones like ours, so I need to source the sub frame and arms separately, ….it seems that there are two different sub frames depending upon the VIN, ours is the later one apparently. The link below explains….

eurosubframes.com

New Land Rover Freelander 2 L359 Rear Subframe Crossmember Complete With Bushings

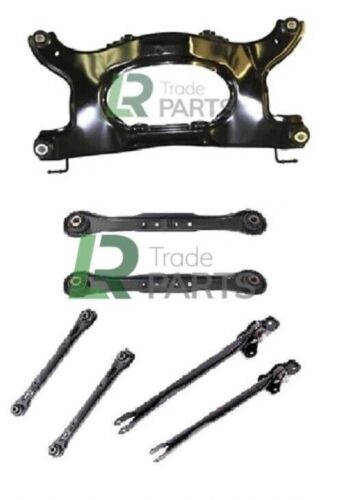

NEW LANDROVER FREELANDER 2 L359 4x4 REAR SUBFRAME CROSSMEMBER MAKE: LANDROVER MODEL: FREELANDER 2 L359 MAIN PART NUMBERS FOR SUBFRAME:LR010245, LR047254 SUSPENSION ARMS PART NUMBER: LR002575 X2 AND LR002576 X2 BOLTS: LR002577 (M14X105MM) X4, LR00126 (M14X85MM ADJUSTABLE) X2, LROO4591 (TORX...
eurosubframes.com

I can't work out why the later Freelander would be any different to the earlier one. The body didn't change, the suspension links didn't change, so everything from the early and late should fit. I've come across owners fitting the subframe from a Evoque to an early FL2, which is slightly different due to wheel track, however it works. As far as I know, the only differences was AWD or 2WD, everything else should fit no problem.
That seller is suggesting that the kit they sell doesn't fit a vehicle with a DPF, which is daft because the DPF is at front of the exhaust, not the back near the subframe. I see they also don't supply the subframe to body bolts, which are also TTY bolts so much be replaced.
