steering column joint

KISSMYAURA said:

what truck?

Click to expand...

RustyDefender said:

300tdi (90 def) 4 bolt power steering box

Click to expand...

Dragonwalker said:

Then the TD5 one WON'T fit, use the first one as it's for a 300TDi, failing that take your old one off and compare

Change UJ's just for funzies

Click to expand...

Steering Column Shaft UJ Joint Defender 300TDi, Td5 & Tdci Puma 1997 to 2016 | eBay

300TDi models 1997-1998 from chassis number VA133509. ALL TD5 Models. ALL 2.2 & 2.4 TDCi Models.

www.ebay.co.uk

RustyDefender said:

So from what I have found... QME500031

QME500031 - Land Rover Kit - Steering Column Repair

Genuine QME500031 - Land Rover Kit - Steering Column Repair available from Jaguar Land Rover Classic Parts. We supply authentic parts for classic Jaguars and Land Rovers.

parts.jaguarlandroverclassic.com

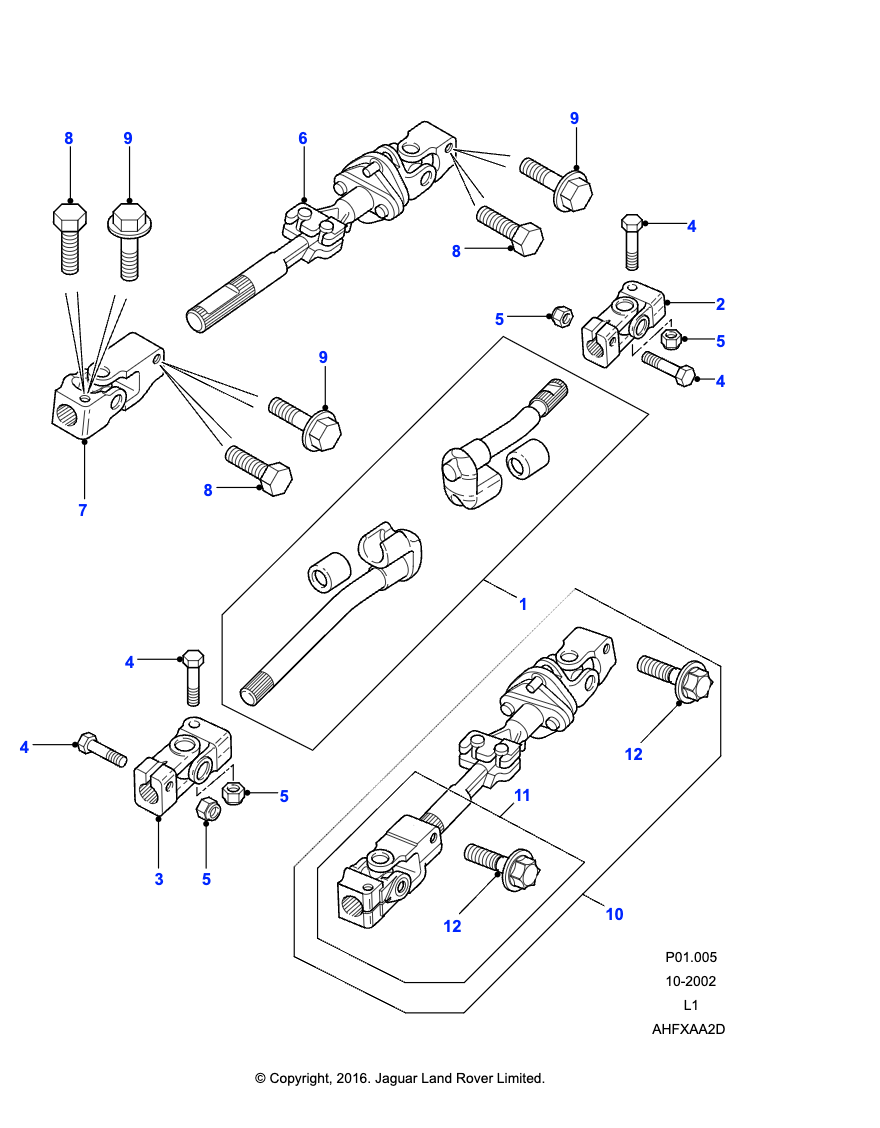

View attachment 322946

looks like the one I have.. but https://www.ebay.co.uk/itm/234744829658

has the same part no of QME500031, which looks like these ones now work for them all up to TD5 ??

Click to expand...

Dragonwalker said:

Will you just replace the joints or the whole caboodle ?

Click to expand...

RustyDefender said:

well the one i have now is f*cked so i want to just replace it all

Click to expand...

Hicap phill said:

The slider on the landrover 1 allows for bulkhead movement. The other (Ali) one is designed for disco/Range Rover classic. And don’t slide.

What’s wrong with the 1 you have? You can change the UJs, knock the whole shaft apart & clean it up. Just don’t paint the splines

Click to expand...

Dragonwalker said:

Answer @Hicap phill s question please, what is wrong with yours, fooked is not a diagnosis

Click to expand...

Hicap phill said:

See sitting in traffic jogs my memory…
Now was that earlier defender shaft made to miss the turbo on early left hand drive LRs?
(That’s also why there are 2 flats in the turbo intake hose for the shaft to miss)

New versions have bigger/longer UJ.will need to remove all bolts to allow shafts to slide on splines if you do swap over.
Splines on boxes & columns are the same for all years

Click to expand...

RustyDefender said:

Just got confirmation that QME500031 will direct replace RTC4738

Click to expand...

RustyDefender said:

fooked is the diagnosis i can provide, joints are fine but lets just say it refused to budge so it might have been grinded off in half .. and i couldn't apply heat in the area due to the braided brake and clutch lines lol

Click to expand...
