L322 Steering Angle sensor

landygirl87 · May 27, 2021

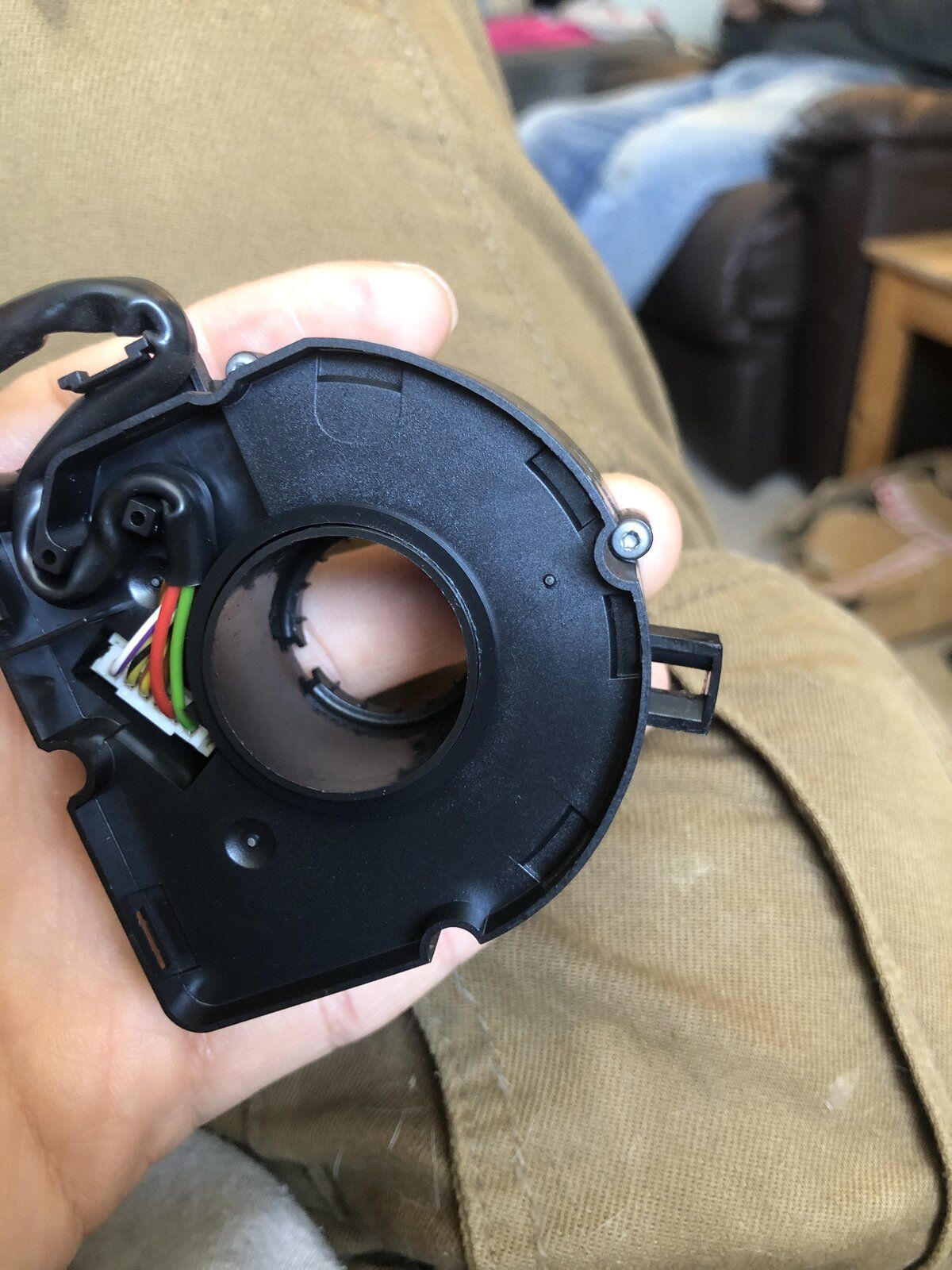

Hi, I have a V8 HSE, which had ABS problems, and three amigos lights up, got no reading on drivers front and back wheels, so I replace ABS sensors for both and had to replace the cv joint on front drivers, went to reset the lights, but I get a grinding noise as if the traction control was holding me back, the lights come back up, plugged it in, and couldn’t get a reading from my steering angle sensor and a CAN BUS fault, took the whole dash off to get at the sucker, but can’t open the box to inspect the inside, does anyone know what size torx bit I need to open the thing? It’s a matter of urgency as my second car is running out of MOT at end of month and I need this car to be up and running again.

Nodge68 · May 27, 2021

There's no user serviceable parts inside the steering angle sensor, so you're best bet is to simply replace it if faulty.

kds · May 27, 2021

No need to remove whole dash to get sas out, you can lift coloum up enough to get sas off end of shaft. If you do a search on here there was a guy mentioned a while ago showing how to repair them, cant remember is name though, trom some thing or other.

brianp38dse · May 27, 2021

this maybe of helphttps://www.landyzone.co.uk/land-rover/steering-angle-sensor-replacement-guide-with-pictures.312092/#post-4788367

kds · May 27, 2021

brianp38dse said:
this maybe of helphttps://www.landyzone.co.uk/land-rover/steering-angle-sensor-replacement-guide-with-pictures.312092/#post-4788367

Thanks @brianp38dse thats what I was thinking of and I even posted on it.

landygirl87 · May 28, 2021

kds said:
No need to remove whole dash to get sas out, you can lift coloum up enough to get sas off end of shaft. If you do a search on here there was a guy mentioned a while ago showing how to repair them, cant remember is name though, trom some thing or other.

Yes, I had found the post, sent to the husband, but he took the whole dash out anyway, don’t know what his reasoning was. I’ve been under a lot of stress lately due to issues at my workplace and cause of the car, but mostly the workplace, I don’t have energy to ask him.

tomcat59alan · May 28, 2021

landygirl87 said:
Yes, I had found the post, sent to the husband, but he took the whole dash out anyway, don’t know what his reasoning was. I’ve been under a lot of stress lately due to issues at my workplace and cause of the car, but mostly the workplace, I don’t have energy to ask him.

You probably wouldn't get a sensible answer.
