Spaghetti and multiplugs

Trying to sort out the mess on the 110

So today's job was trying to find the reverse light switch and diff lock switch and wiring.
I managed to ID the reverse switch on the auto box. Found loads of random plugs that I could do with a bit of help with.

So, looks like I have some disco td5 wiring and tdci bulkhead combo

So here goes, 2x funny round 2 pin male plugs? Have 2 under the bonnet that match at the wing tops at b/h

A single female bullet type connector with single white wire


A two pin white plug, blue and black wires

A two pin black plug, black and white/black wire
Any help appreciated

Punto443 said:

Trying to sort out the mess on the 110

So today's job was trying to find the reverse light switch and diff lock switch and wiring.
I managed to ID the reverse switch on the auto box. Found loads of random plugs that I could do with a bit of help with.

So, looks like I have some disco td5 wiring and tdci bulkhead combo

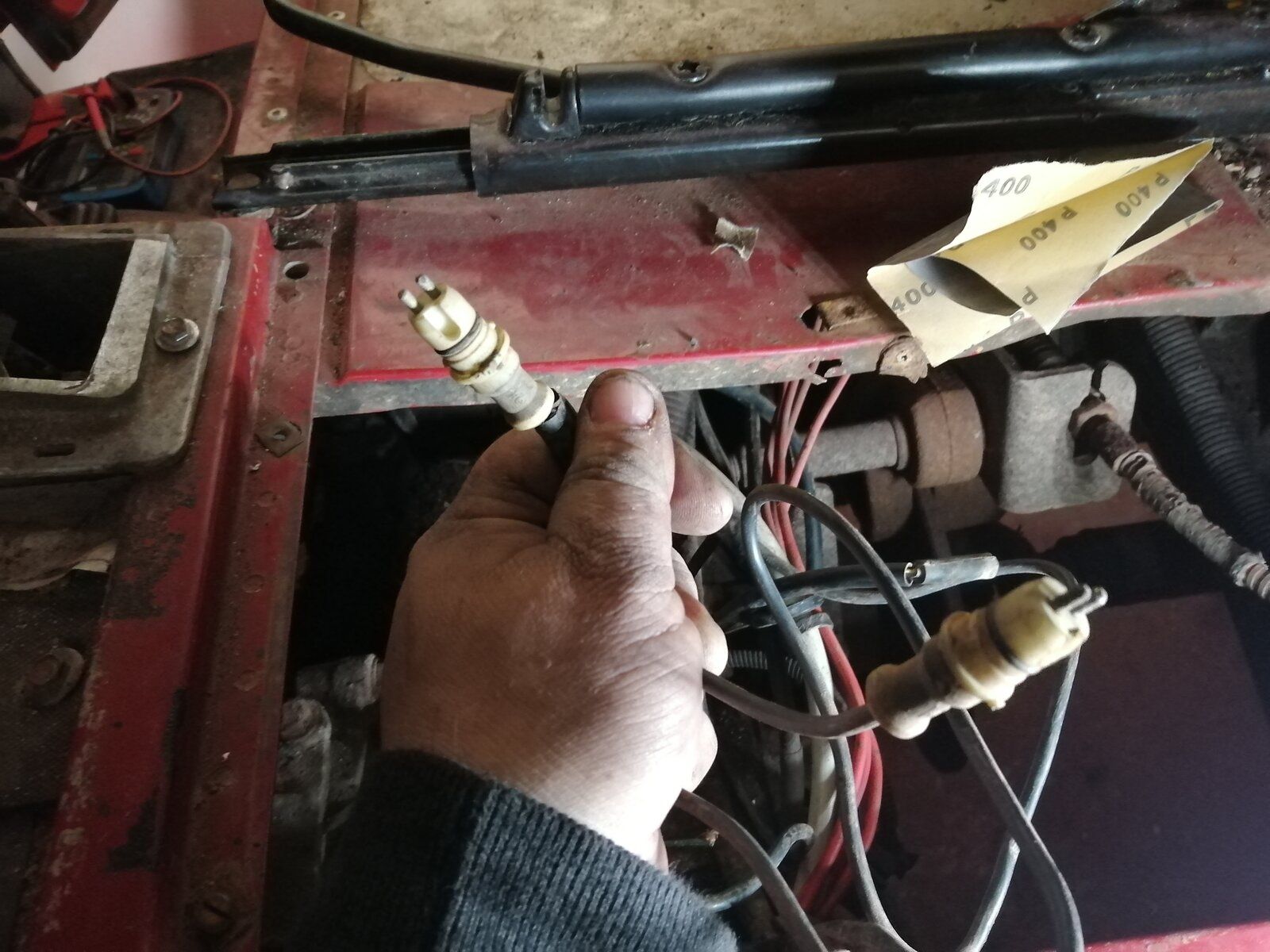

So here goes, 2x funny round 2 pin male plugs? Have 2 under the bonnet that match at the wing tops at b/hView attachment 222840

A single female bullet type connector with single white wire

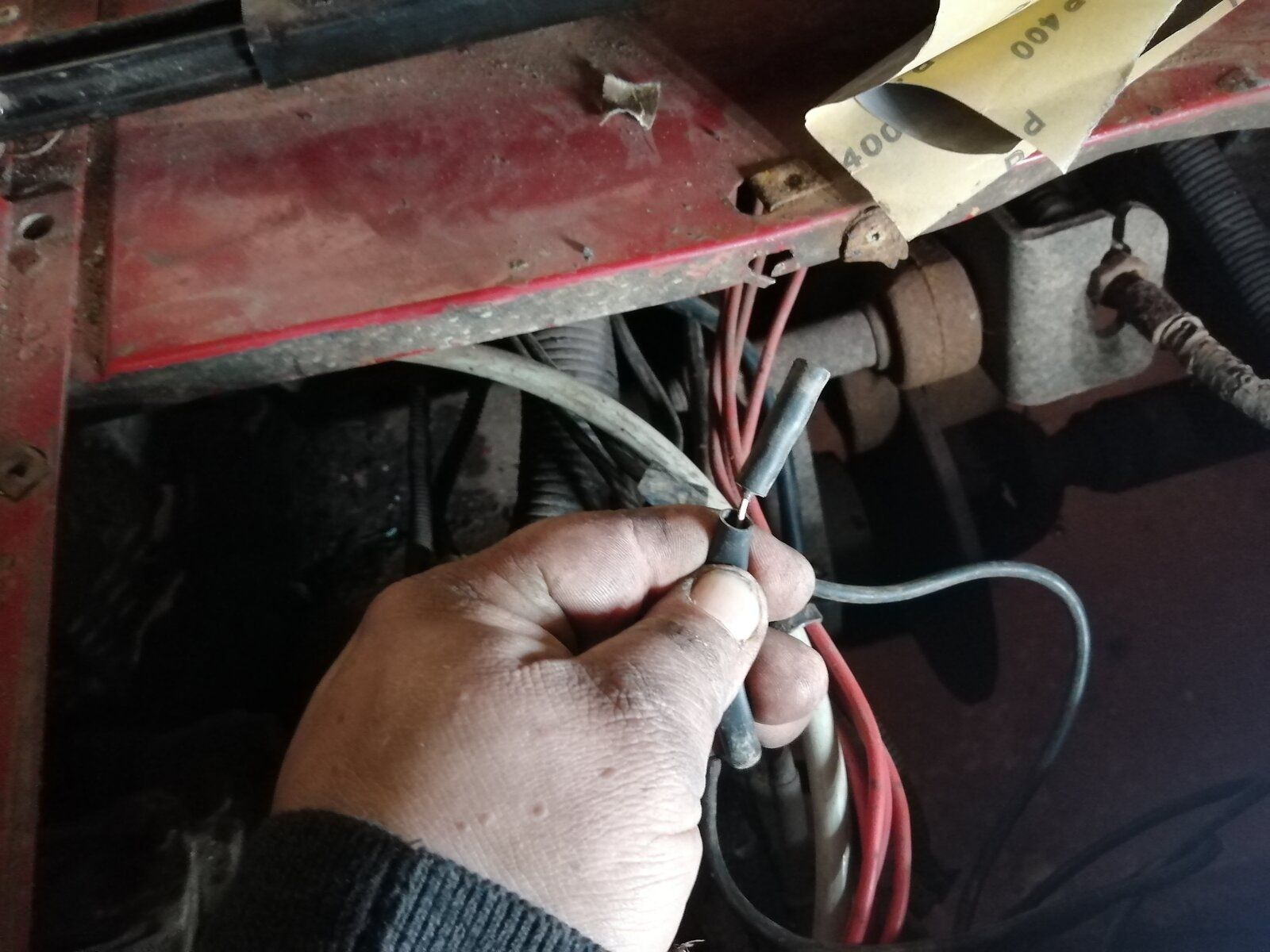

View attachment 222841

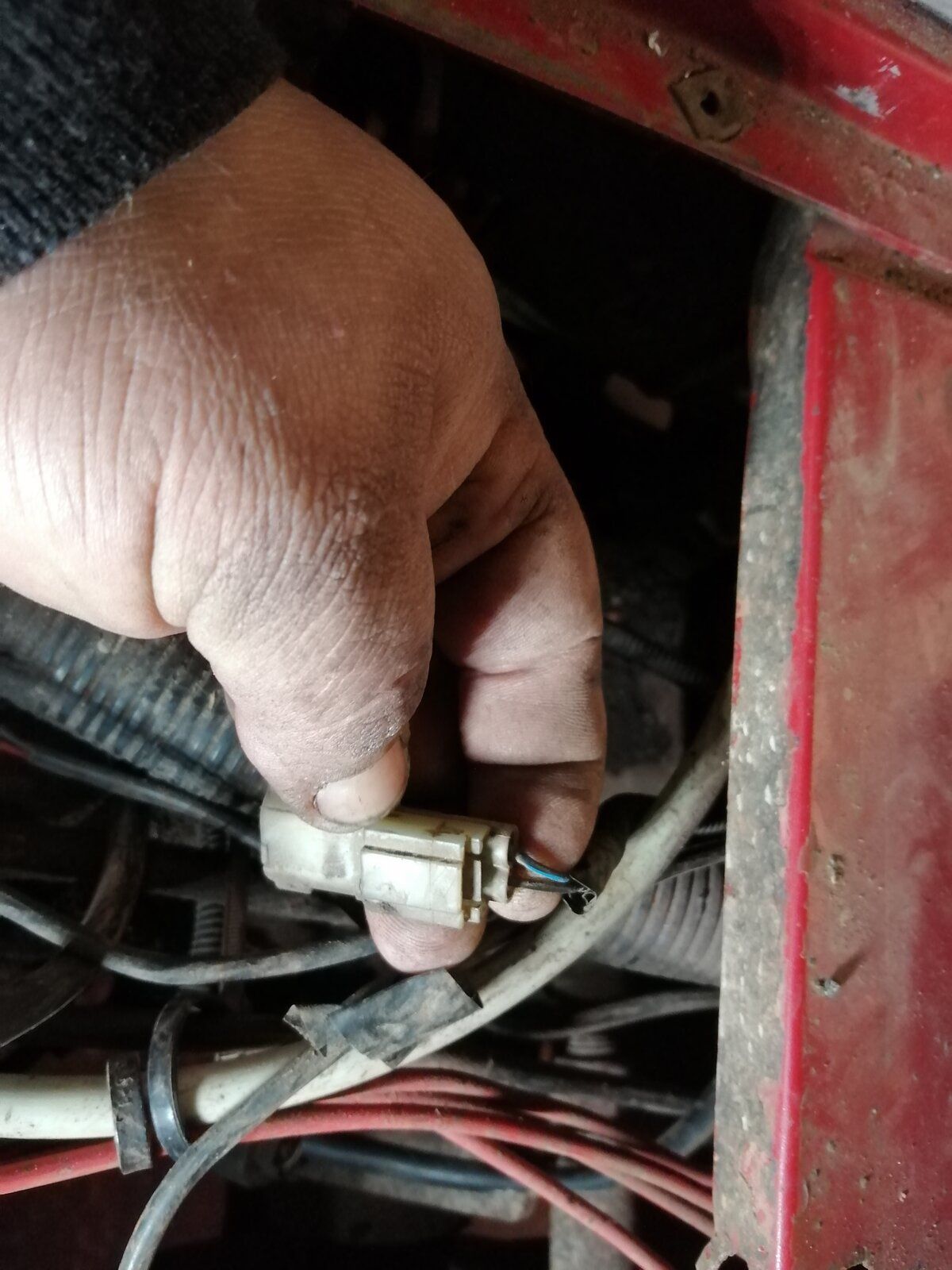

A two pin white plug, blue and black wires View attachment 222842

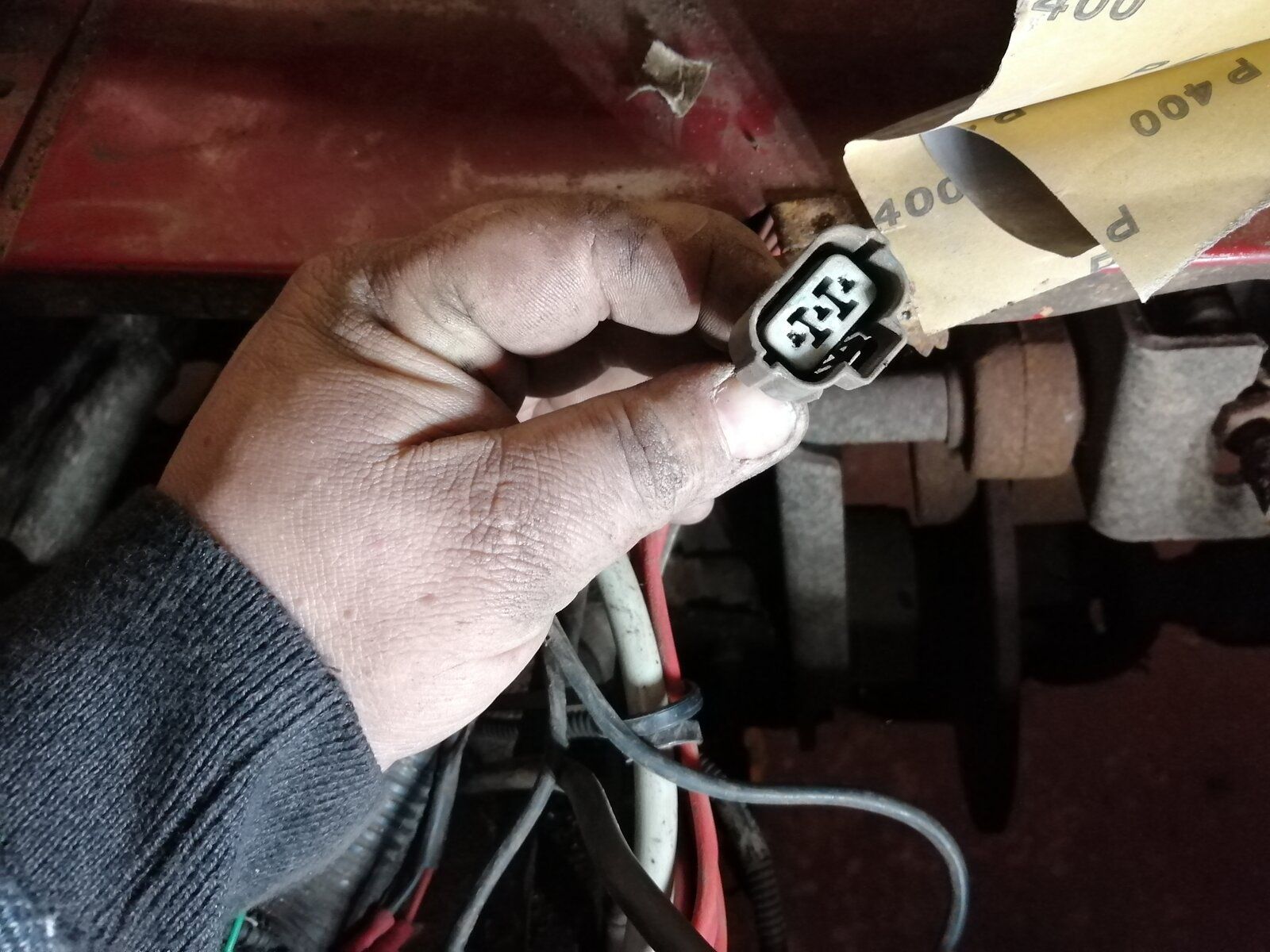

A two pin black plug, black and white/black wireView attachment 222843
Any help appreciated

Click to expand...

I think the first photo are ABS plugs. Not sure about the rest.

I would agree with Mick re the abs plugs, the ones I see are black but otherwise identical.

Cheers, I think the white one is the diff lock, looking at some of the various switches online? Looks like I'll have to keep persevering

Wee update,

So you's were correct regarding the abs plugs, these are now gone.

The white 2 pin is the diff lock light and the single bullet appears to be the handbrake switch wire, when I grounded them the lights on the cluster lit up so that's saved me running some new wiring.

As for the last one? Still a mystery, both pins appear to be earthed, so I'll just tape it up the now.
