side step mounting brackets 1998 disco 300 tdi

ant.7

Active Member

Posts

213

Location

gatley, cheshire

• Aug 11, 2011

• #1

hi all

my first post so be gentle!!

ive just bought a set of side steps for my disco 1998 300tdi, but as with many of the posts on here there are no brackets with them!

im an engineer and have loads of stainless plate to choose from, i just need a drawing of both the front and rear brackets so i can fabricate my own.

anyone know of where i can find a drawing?

any help really would be appreciated.

cheers

tony



discool

Well-Known Member

Posts

13,657

Location

Sector 12 in Kent, The Garden of England

• Aug 11, 2011

• #2

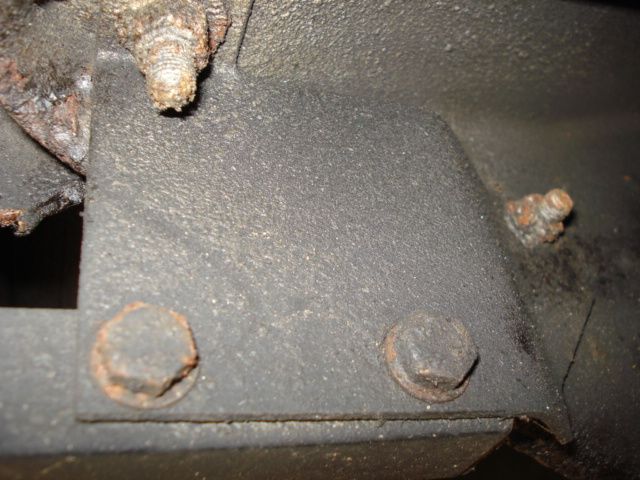

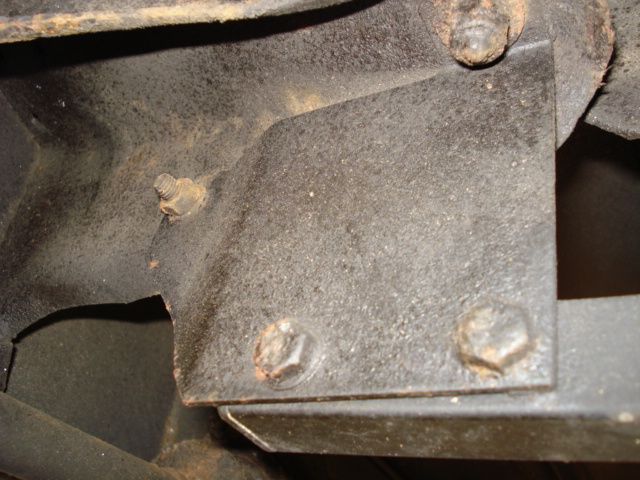

For genuine LR steps thay look like these.



Attachments

•

  56.9 KB · Views: 445
•

  56.4 KB · Views: 423

ant.7

Active Member

Posts

213

Location

gatley, cheshire

• Aug 11, 2011

• #3

cheers discool

any measurements for these? like where the bends are and holes?

thanks

tony



discool

Well-Known Member

Posts

13,657

Location

Sector 12 in Kent, The Garden of England

• Aug 11, 2011

• #4

No probs I'll take some tomorrow if not raining and post then in the evening.



ant.7

Active Member

Posts

213

Location

gatley, cheshire

• Aug 11, 2011

• #5

thanks discool

much appreciated

tony



discool

Well-Known Member

Posts

13,657

Location

Sector 12 in Kent, The Garden of England

• Aug 12, 2011

• #6

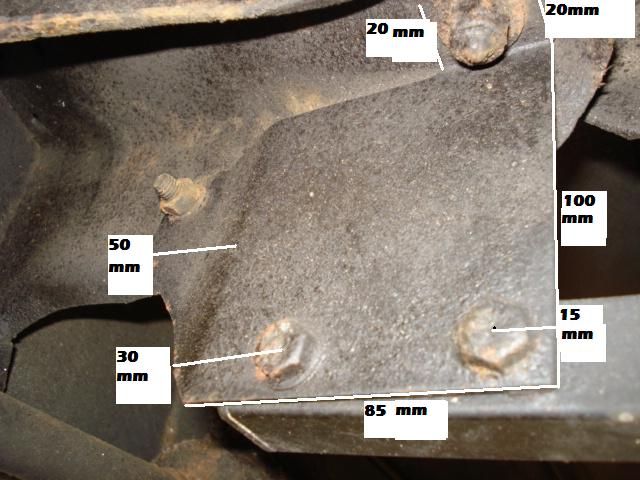

A bit awkward to get a tape in to take measurements , i hope these help.



Attachments

•
  005 - Copy.JPG

  54.8 KB · Views: 509

S

spencer1885

Active Member

Posts

402

• Aug 12, 2011

• #7

Some s/h brackets on ebay right now.
I think the listing is in the RR classic spare section.



matthew2riches

New Member

Posts

3,025

Location

Suffolk

• Aug 12, 2011

• #8

Just grab an old one as a template and make up some nice rust free stainless ones



discool

Well-Known Member

Posts

13,657

Location

Sector 12 in Kent, The Garden of England

• Aug 12, 2011

• #9

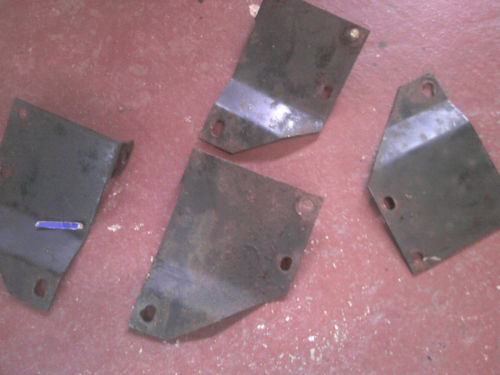

This is them, Item number: 230654950619



Attachments

•
  Side step brackets.jpg

  30.3 KB · Views: 571

J

janderson41

Active Member

Posts

442

Location

Howwood Renfrewshire

• Aug 12, 2011

• #10

Depending on type of sidesteps,fitting brackets could be different.
On my Disco the brackets are made from square tube, one end with a welded on plate with boltholes to fit the steps and two welded on vertical U tubes with a lock plate and bolts at the disco end..
If i could figure out how to load photos i would but if photos needed PM me with an email address and I will forward.

Jim A
1996 300Tdi auto (Jap reimport)



ant.7

Active Member

Posts

213

Location

gatley, cheshire

• Aug 13, 2011

• #11

thanks guys, ive found the ones on ebay, and discool those measurements will be grand.

cheers all

tony



K2tnt

Well-Known Member

Posts

188

• Apr 14, 2020

• #12

Zombie thread alert! Got some side steps but no brackets on them- does anyone know if they’re still available, or even better have some lying around?

Don’t think I have the skill to knock up my own!

Cheers.



K2tnt

Well-Known Member

Posts

188

• Apr 14, 2020

• #13

Zombie thread alert!

Got some steps but no brackets on them- does anyone know if the brackets are still available, or even better have some lying around?
Don’t think I have the skill to knock up my own sadly.

Cheers!



Shimsteriom

Master Procrastinator

Posts

41,905

Location

Over Here

• Apr 14, 2020

• #14

Why post the same thing twice on a 9year old thread?



K2tnt

Well-Known Member

Posts

188

• Apr 14, 2020

• #15

Whoops- only meant to post once, didn’t think it posted properly first time round, now can’t find delete post option.
