servo into 1975 series 3

L

Landyfella

Active Member

Posts

162

Location

Cambridge

• Feb 18, 2024

• #1

Hey I wonder if you good folks could help me please.

I got a servo brake box off a later defender (i'm told) It looks like I have to cut away the top part of the bulkhead to allow it to fit is this the norm, or do I have a servo which will not fit/work?

Many thanks



Attachments

•
  brake upgrade.jpg

  1 MB · Views: 102

W

Wildefalcon

Well-Known Member

Posts

1,664

• Feb 18, 2024

• #2

Yep. Theres a slightly smaller version from a later series, but that's the plan.



W

Wildefalcon

Well-Known Member

Posts

1,664

• Feb 18, 2024

• #3

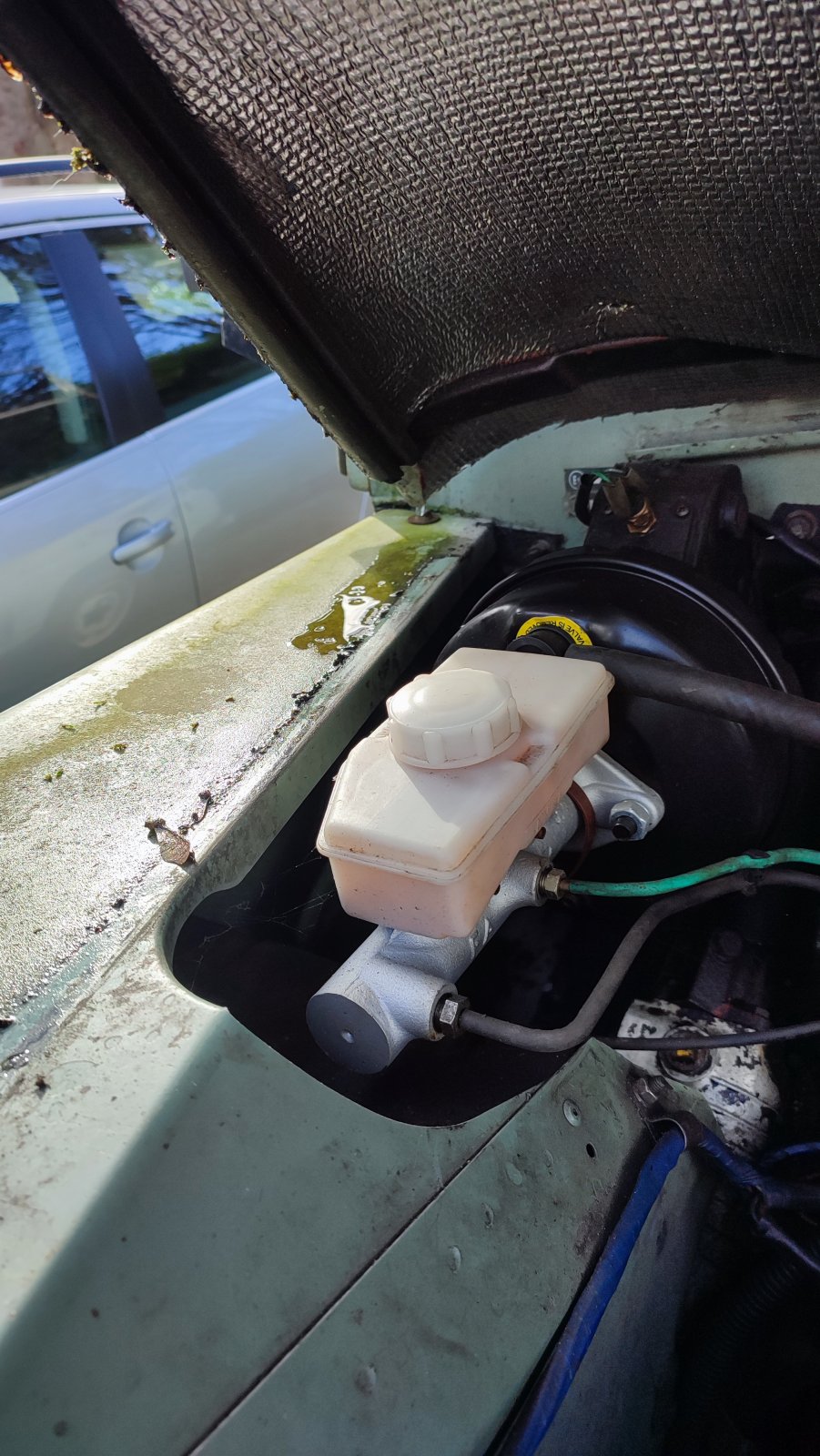

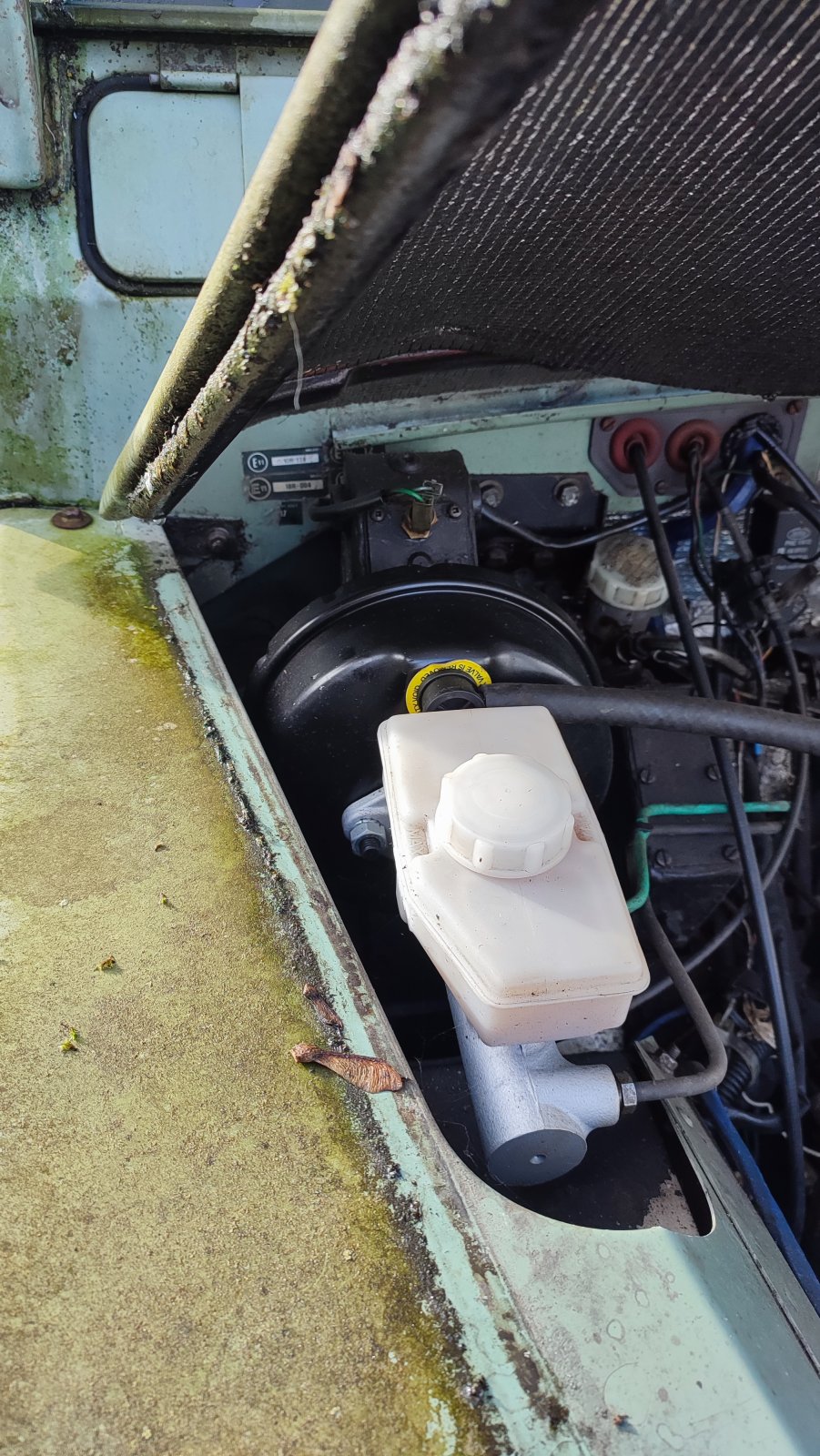

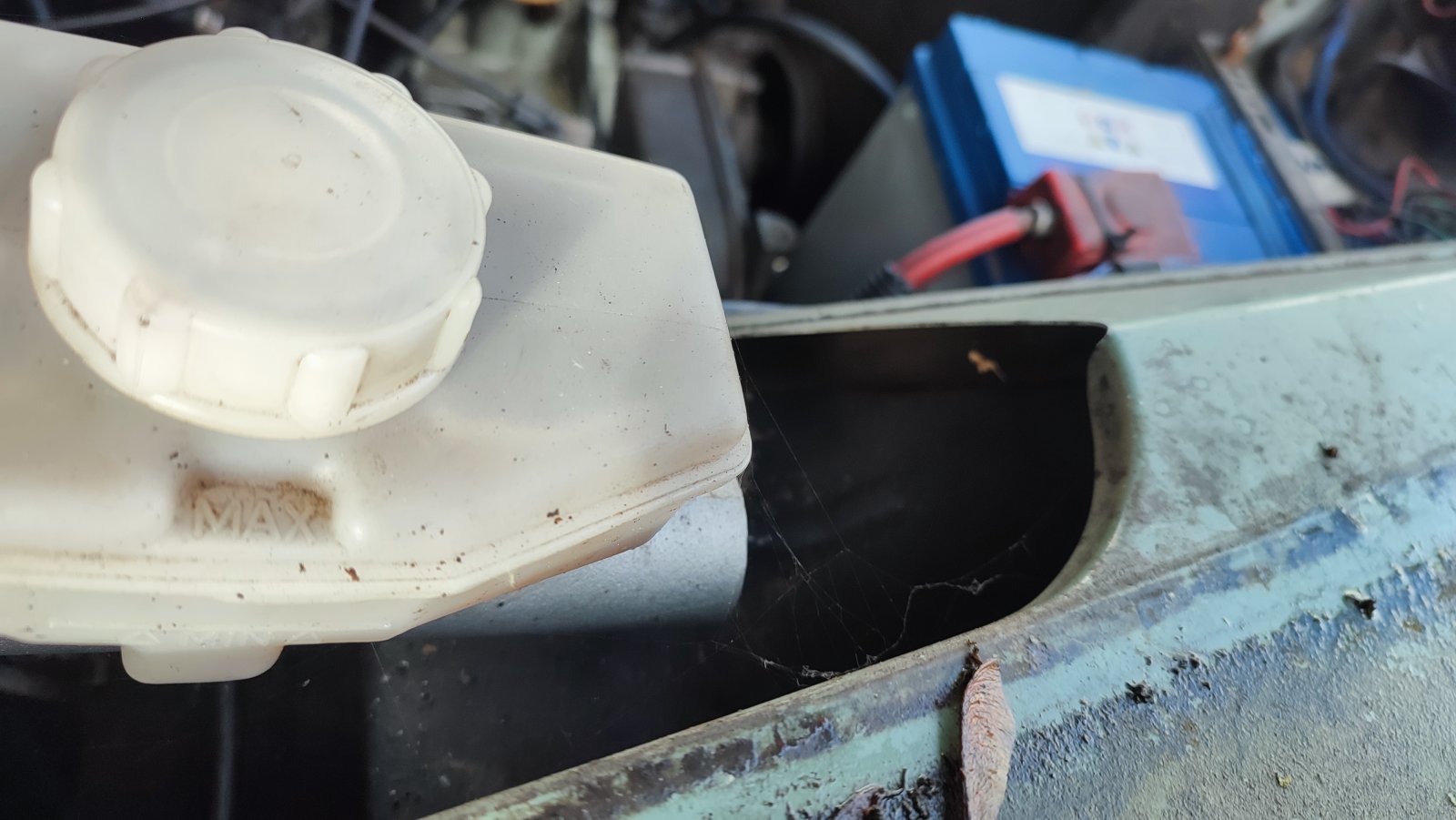

Pics '81.



Attachments

•

  344.4 KB · Views: 87
•

  276.7 KB · Views: 79
•

  159.6 KB · Views: 87

L

Landyfella

Active Member

Posts

162

Location

Cambridge

• Feb 18, 2024

• #4

Okay thanks. Any photos of the size of hole you can get away with?



L

Landyfella

Active Member

Posts

162

Location

Cambridge

• Feb 20, 2024

• #5

Wildefalcon said:

Pics '81.

Click to expand...

where does the servo pipe connect pls? somewhere on cam cover I assume? thanks



W

Wildefalcon

Well-Known Member

Posts

1,664

• Feb 20, 2024

• #6

Which engine?

Makes a difference. Mines a TDI, so dedicated vacuum pump. 2286 petrol has a take off from the carb. Read the parts book for details
