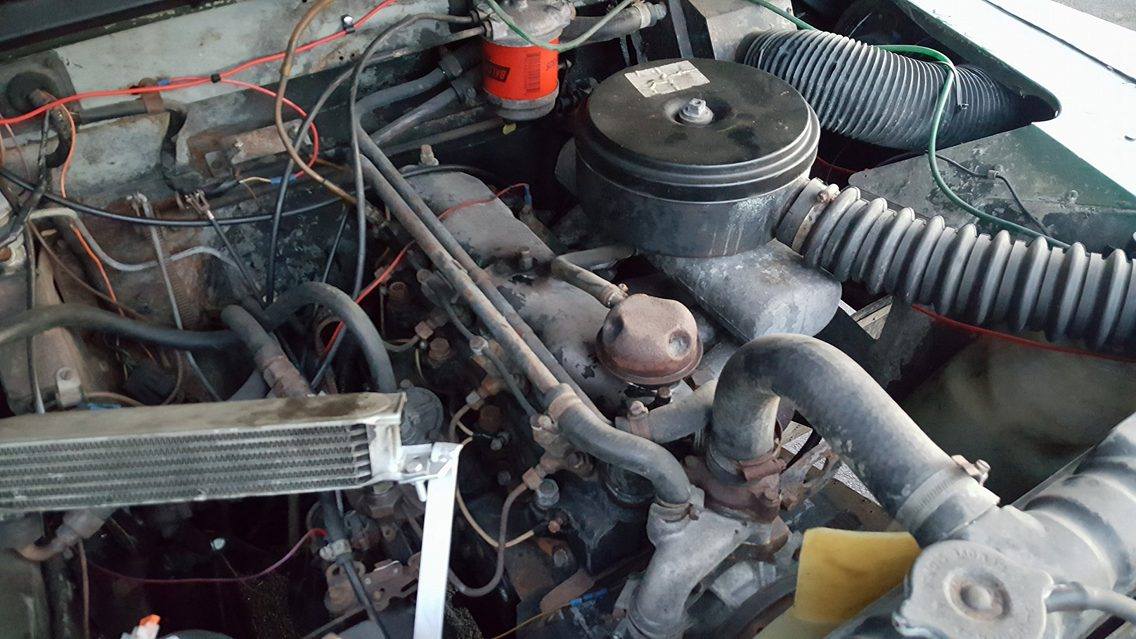

Hi all, so ive recently acquired a diesel series III (registered as a 2a but all the bits are III) and want to change oils and such ASAP since I don't know when its been last done etc. However, when looking into the bay the filler for the oil isn't there. Where it's meant to be there is a plate with a badly installed seal. So i'm wondering first, what the name of the filler is, and second could this have been done for a reason? Ill post images below. Cheers.
Series III changing engine oil
- Thread starter Dylan353
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
pete1987RRC
Well-Known Member
- Posts
- 5,136
- Location
- East Midlands
Take the round think out of the rocker cover...
Would that not just be putting oil on the rockers rather than into the engine or am I getting something wrong?
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Oil runs down through the pushrod galleries into the crankcase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
it will then run down into the sump,you will need a 7/16 or 11mm spanner or socket to undo the securing screw on manifold side
- Posts
- 68,756
- Location
- The Wooly Witch
Nope, buy your self a small funnel, cut it down so that it'll sit happily and flat in the hole in the rocker cover ... pour oil into that, not too fast or it'll spill ...
blue beasty
Leaks an prone to bits dropping off
- Posts
- 63,463
- Location
- Gloucestercotshirewolds
Yes there is normally a separate filler but into the rocker cover is fine, it's how most engines are filled after all
pete1987RRC
Well-Known Member
- Posts
- 5,136
- Location
- East Midlands
yes I guess it got stolen , there was a big trade in them in the 90s and many were exported.
Lots of owners replaced them with round things.
If you ever see a real one they are worth about the same as a penny black stamp.
Lots of owners replaced them with round things.
If you ever see a real one they are worth about the same as a penny black stamp.
- Posts
- 68,756
- Location
- The Wooly Witch
Ours got lost moons ago, as have most ...
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
its a 2.5 so it doesnt have the screw cap just pulls off and thats how they are, its got a sherpa inlet manifold and and filter, if the front timing cover is tin its a sherpa 2.5, if ali an lr 2.5
WTF! I've never seen anything like this. Looks like you've got some kind of oil cooler fitted above the place where the air filter oil bath normally goes. It seems to be suspended with the input output pipes. The other oddity is the air filter thingy sitting on top
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
was a very popular 2.5 in to series conversion ,air filter sit directly on to inlet manifold,they were a slighly better fit than lr 2.5 due to air filter and front timing case /injection pump position
Your telling me things I didn't even know! There again I'm new to the game. How come people were putting these engines in? I'll have to peek about for the number at the weekend. Thanks for the updates Lads! I'm afraid I'll be asking a fair few questions over the next while!
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
slightly more power ,its the same block fly wheel and flywheel housing etc as the series 2.25 so an easy fit engine number should begin 15j
LordOWar
Well-Known Member
- Posts
- 460
- Location
- North West
It looks like it has the Sherpa engine, you can see the front cover is tin in the first pic. I spent 5 mins wondering what you were going on about because I have the LR 2.5 and like yours that doesn't have the filler spout.
cornish rattler
Well-Known Member
- Posts
- 6,432
- Location
- Manc chester
Filler spouts were designed to get oil in quicker as if you used the rocker cover filler the oil would take ages to drain through the engine, think it also had a breather cap aswell as one on the rocker cover to help it breath better but the 2.5 engine did away with all that and just used a breather cap on the rocker cover
