Hi folks,

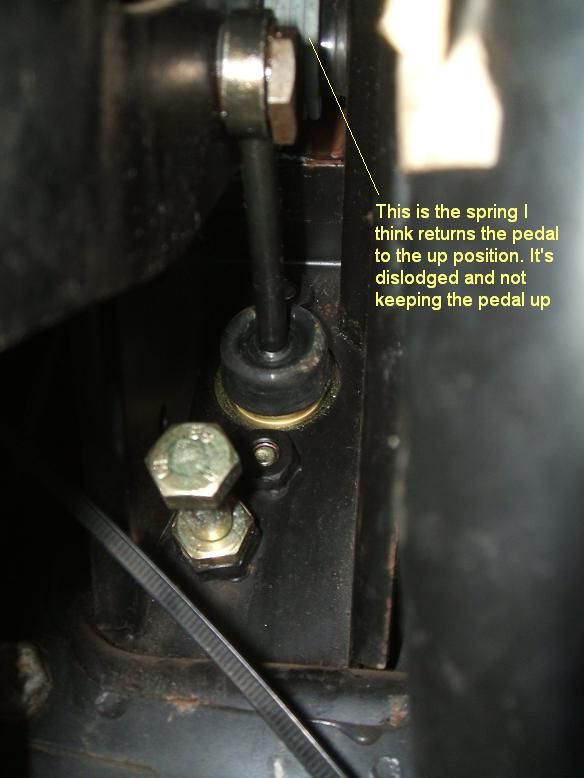

I replaced both master and slave clutch cylinders on my 1989 RR Classic as both cylinders were leaking badly. Whilst fiddling about refitting the master cylinder pushrod onto the clutch pedal arm I noticed there's a return spring on this arm. It's not fixed to anything so the pedal arm is not returning on this spring.

Question: how do I get this spring to return the clutch pedal to the 'up' position?

Thanks
teddykan

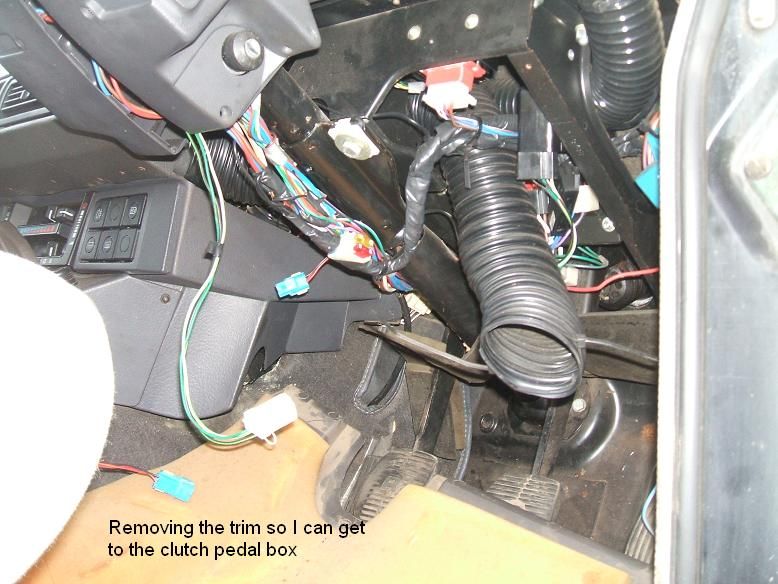

I tried to get at the clutch pedal box, but it wouldn't budge. It got too fiddly and I decided to give up on it. The clutch does return to the full up position but only does so because of the spring in the clutch master cylinder.

Shame. Does anyone know how to get the pedal box out?

Terra


Attachments

  • (1).JPG
    80.5 KB · Views: 1,548
  • (2).JPG
    64.5 KB · Views: 1,052
  • (3).JPG
    44 KB · Views: 587
Had same thing on my 89 classic (might have had on 75 classic before it as well but cant remember) did fit new spring but havent a clue how did it now but do know never took pedal box out, think had to take pedal mounting bolt out somehow.
