Rear end knock.......

_Stingrey_ · Jan 31, 2016

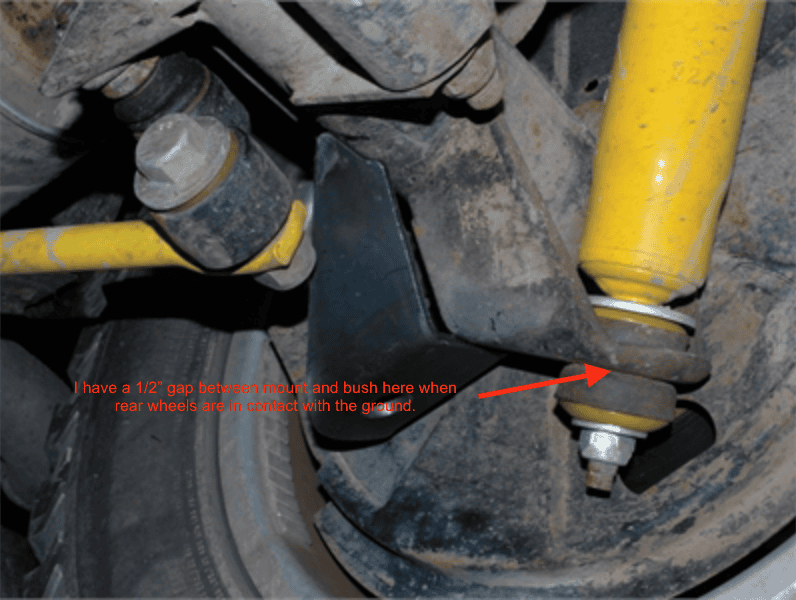

I've been trying to identify a rear end knock on my 110 that occurs when mounting/dismounting kerbs for example. Everything would appear nice and tight apart from the lower shock mount. There is about a 1/2 gap between the mount and the bush. Is this correct as I would have thought the bush should t least be touching the mount. I will get some pictures later today to show you all.
This seems to be the only possibility to me but I may be wrong.

Marmaduke · Jan 31, 2016

1/2 what gap? Inch, foot or centimetre. There should be not gap at all but also look at the A frame joint

_Stingrey_ · Jan 31, 2016

Marmaduke said:
1/2 what gap? Inch, foot or centimetre. There should be not gap at all but also look at the A frame joint

1/2 inch.

Marmaduke · Jan 31, 2016

That'll be it then. New rubbers or a pair of new shocks if it won't tighten up

LeftFoot · Jan 31, 2016

I had this identical issue with the "knocking". After both tightening the nuts and washers on the damper and replacing the bushes the improvement was minor.
The solution? As recommended by some suppliers of aftermarket suspension, I undid the damper bottom screws, removed the lower bushes, pulled the damper up and out of the way and knocked the upper and lower bush retaining cups off.
I then reinstalled the dampers with the bottom bushes making full contact with the axle brackets where the cups were. The dampers are now secured firmly in place at their bottom ends as opposed to just floating around.

_Stingrey_ · Feb 5, 2016

LeftFoot said:
I had this identical issue with the "knocking". After both tightening the nuts and washers on the damper and replacing the bushes the improvement was minor.
The solution? As recommended by some suppliers of aftermarket suspension, I undid the damper bottom screws, removed the lower bushes, pulled the damper up and out of the way and knocked the upper and lower bush retaining cups off.
I then reinstalled the dampers with the bottom bushes making full contact with the axle brackets where the cups were. The dampers are now secured firmly in place at their bottom ends as opposed to just floating around.

Do you have any pictures please?
