Freelander 1 Rear cam
- Thread starter Funguy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
andyfreelandy
Well-Known Member
- Posts
- 5,545
- Location
- Devon
Tailgate cover screws on bottom edge, look up from underneath and you will see them. Then carefully prise off at clips which pull out, or snap if unlucky.

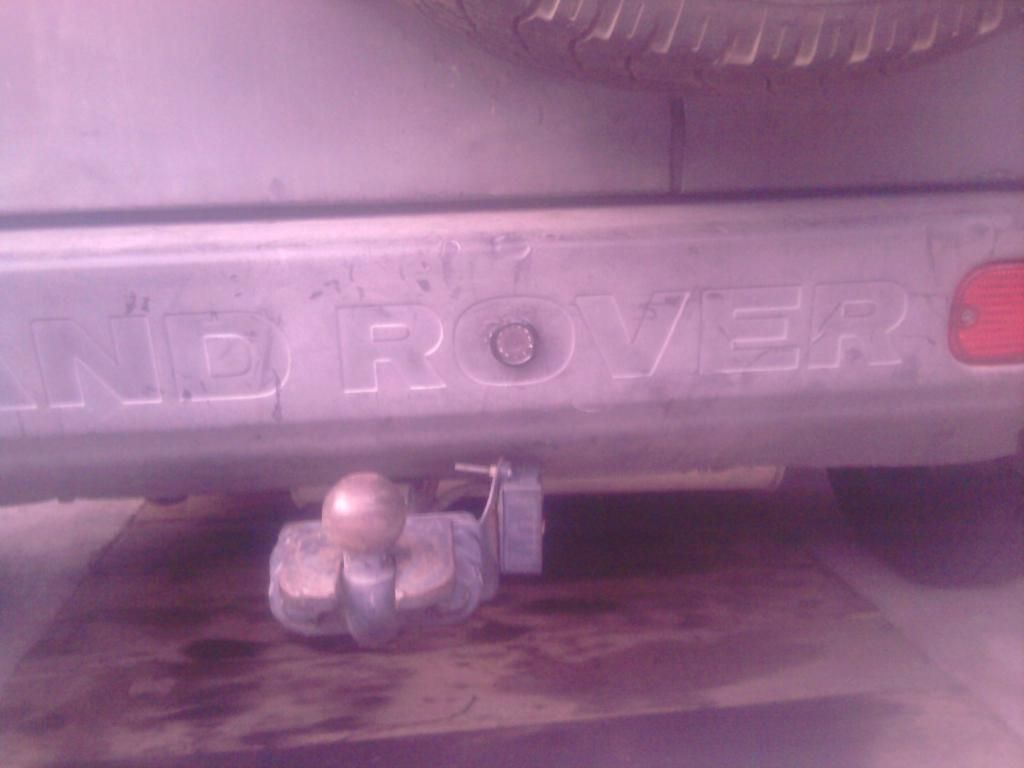

I put my reverse camera in the rear bumper and cables in through the tow bar grommet in the rear wing floor, behind rear side panel rhs., right at the back of the car.
I put my reverse camera in the rear bumper and cables in through the tow bar grommet in the rear wing floor, behind rear side panel rhs., right at the back of the car.
Just tap into the reverse light positive wire inside the boot side cover.
There's nothing in the fuse box with does just the reverse lights. You can tap into the front power socket for an accessory live.
Does the rhs rear panel just pull off, sorry to be so thick, it all seems so solidly connected
GrumpyGel
Well-Known Member
- Posts
- 26,350
- Location
- Christchurch, New Zealand
The lower seat belt anchor needs to be undone, the 4 twisty things need to come off, the socket for the parcel shelf needs it screw removed and taken out and the 2 screws on the trim under the door.
Think that's it, might have forgotten summat.
GrumpyGel
Well-Known Member
- Posts
- 26,350
- Location
- Christchurch, New Zealand
Oh and the light needs prizing out and the wires removed.
andyfreelandy
Well-Known Member
- Posts
- 5,545
- Location
- Devon
Only additional is that it is easier to take the whole tailgate trim strip off which have torx screws in, about 6 or 8. The trim that sits across the entrance to the boot.
GG is referring to the bag hooks, which may or may not be present, as they're pretty good at falling out on their own.
If they're still there, then they turn ¼ turn for them to come out.
GrumpyGel
Well-Known Member
- Posts
- 26,350
- Location
- Christchurch, New Zealand
J_D
Well-Known Member
- Posts
- 634
- Location
- Worcestershire
If easier then poke the cable under the side trim, push further under with plastic card (don't break your only bank card), rear side to side trim, as mentioned, is useful to remove though.
i mounted my camera below the bumper but would like it higher for parking, looking down at the bumper.
i mounted my camera below the bumper but would like it higher for parking, looking down at the bumper.
htr
Well-Known Member
- Posts
- 1,555
- Location
- Central Otago, Southern New Zealand

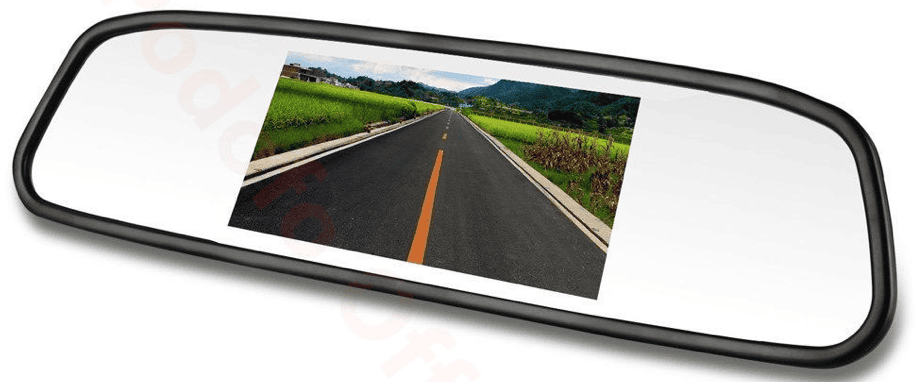

I ran the wiring across to the drivers side and came up through a rubber grommet in the floor being the corner plastic trim panel. The power source is the reverse lamp cable to the rear light cluster. If yours is a wifi then that's prob' about it. Mine isn't and I then ran the cables to the front along side the tunnel housing and then up behind the centre console across to the passenger A pillar, up inside that and across to the rear view mirror which has a screen in it [ bought off Aliexpress].
