Radio ignition live

Does anyone know where the ignition feed / switched live for the radio comes from as I have no radio the constant power feed is live, but nothing on the switched feed.

Thanks Llewellyn

Maybe if you say what modell and year of Disco you have

sierrafery said:

Maybe if you say what modell and year of Disco you have

Click to expand...

It’s a 2003 facelift TD5 Series 2 Disco

Fuse F16 interior fusebox getting feed from the aux circuits relay

sierrafery said:

Fuse F16 interior fusebox getting feed from the aux circuits relay

Click to expand...

Which relay is the aux relay?

R7 but this one feeds many circuits not just the radio... why? you dont have power on F16?

Don’t have power to either of the radio fuses and there seems to be other systems not working like the wipers, I’ve been through every fuse and they are intact and had a meter across half of them and no power at all

WelshKangarooDisco said:

Don’t have power to either of the radio fuses and there seems to be other systems not working like the wipers,

Click to expand...

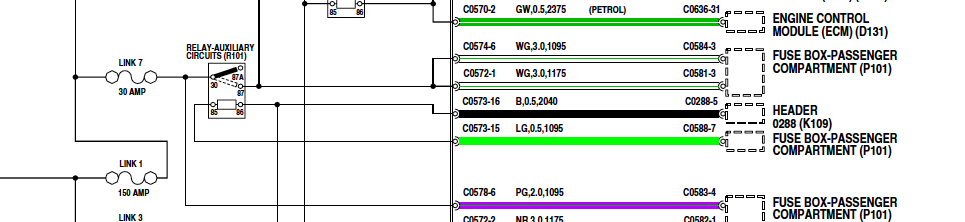

You should have said the complete story from the beginning, the wipers are also through the aux relay and the relay gets feed from fusible link FL7 so check these

FL7 is intact but can’t get a power reading from it not sure if I’ve checked it wrong or just no power to it, double checked if it was the fuse with another 30a one there and still nothing

sierrafery said:

You should have said the complete story from the beginning, the wipers are also through the aux relay and the relay gets feed from fusible link FL7 so check these

Click to expand...

If no power on FL7 but the vehicle is running you should replace that fusebox cos it's very suspect unless maxi FL1 is not shot or has bad contact but then many important things would not work on that vehicle

Ah okay, is there a way to feed power to FL7 without replacing the fuse box?

sierrafery said:

If no power on FL7 but the vehicle is running you should replace that fusebox cos it's very suspect unless maxi FL1 is not shot or has bad contact but then many important things would not work on that vehicle

Click to expand...

WelshKangarooDisco said:

Ah okay, is there a way to feed power to FL7 without replacing the fuse box?

Click to expand...

Depends how much you know about the D2's electrics but based on how you approached this issue i have the feeling that it's above your skills, no offence ... you can piggiback F7 for troubeshooting purpuse but this kind of bodge doesnt solve the problem
