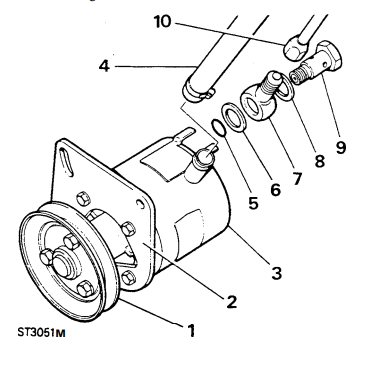

I wonder if anyone can help? I have had the power steering pump off my 1993 200tdi 90 and I am trying to refit it but when I try to fit the hose(10) to the rear of the pump with the the banjo bolt(9) the hose connector is tight against the rear of the pump housing and wont allow the hose connection to seal properly all the fittings are original as far as I can see in the manual. The hose isnt long enough to turn the banjo fitting downwards it has to go up to the rear of the pump.
Power steering
- Thread starter tango90
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Interceptorxj
Well-Known Member
- Posts
- 1,715
- Location
- Bolton, Greater Manchester.
That's the wrong pump for a 93 200tdi.
The pump in your picture is a NTC8287 or FF000604 (89-92), your's should be NTC9070 or FF003810 (92-on) should it not?
The pump in your picture is a NTC8287 or FF000604 (89-92), your's should be NTC9070 or FF003810 (92-on) should it not?
Last edited:
Interceptorxj
Well-Known Member
- Posts
- 1,715
- Location
- Bolton, Greater Manchester.
- Posts
- 7,877
- Location
- East Midlands
can you turn nut no 10 so a flat face is against the pump rather than a point? Are you sure washers no 5 and 6 are in place to space it out from the pump body? I don't suppose it would do any harm to put another no 6 washer in if you're desperate!
Gmacz
Well-Known Member
- Posts
- 968
- Location
- Forfar/Dundee
Tighten 10 when banjo is loose and then tighten banjo.
