Passenger side headlight

creaker · Jan 8, 2022

Hi need some help please ,when turning on headlights passenger side doesn't come on also the indicator comes on but faint,and it doesn't blink ,but when lights are off indicators work okay ...any ideas please

mystery · Jan 8, 2022

year, model, engine ,

Scooby22 · Jan 8, 2022

Earth fault, its always an earth fault

Brown · Jan 8, 2022

Sounds like an earth problem to me. As if there's current trying to get through the headlight but not enough to actually illuminate it, and it's creeping back to base through the indicator circuit. I'd be having a look with a meter to see whether there's any resistance between the earth terminal on the headlight bulb fitting and the negative terminal on the battery for starters.

Brown · Jan 8, 2022

I see everybody else has beaten me to it

creaker · Jan 8, 2022

Brown said:
Sounds like an earth problem to me. As if there's current trying to get through the headlight but not enough to actually illuminate it, and it's creeping back to base through the indicator circuit. I'd be having a look with a meter to see whether there's any resistance between the earth terminal on the headlight bulb fitting and the negative terminal on the battery for starters.

Thanks will do

creaker · Jan 8, 2022

mystery said:
year, model, engine ,

93,200 TDI, defender cheers

miktdish · Jan 8, 2022

As everyone says, the most likely culprit is an earth.

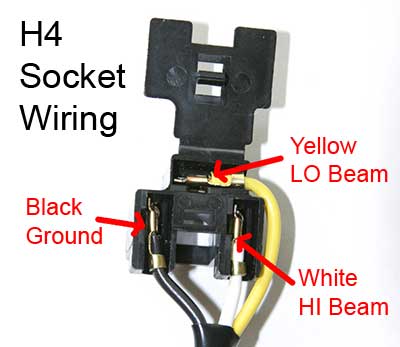

To check, remove the headlamp and using a piece of wire clamp one end to the engine and turn on the lights.
Connect this wire to the earth terminal on the back of the headlamp .....

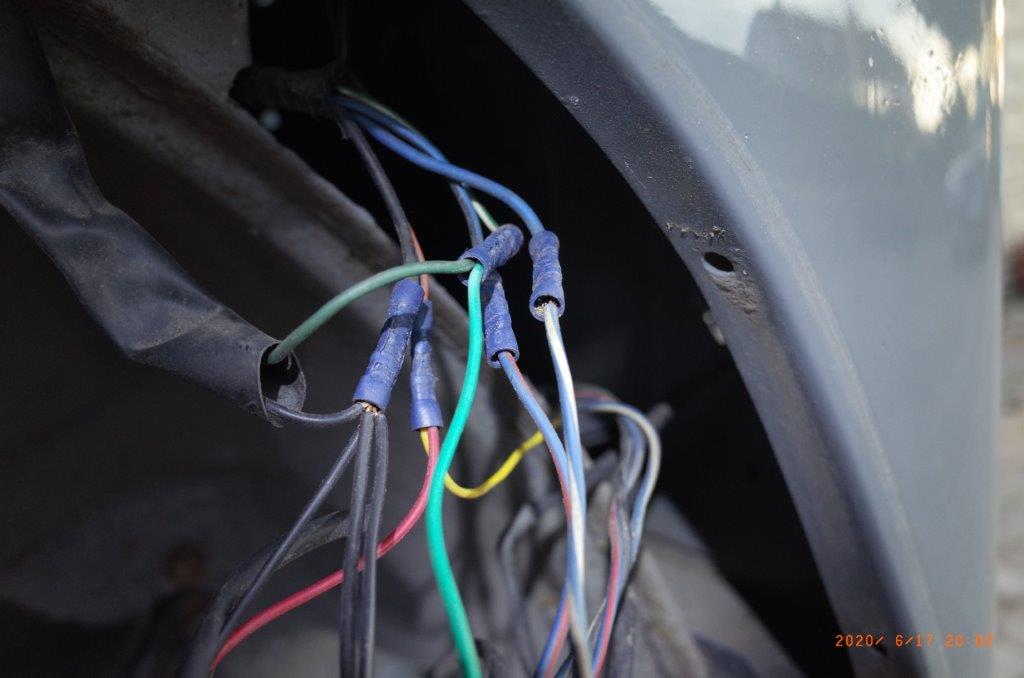

The wiring dissapears up under the wing and can be accessed by removing the 'eyebrow' ..
Here's a pic of mine befire I remade everything ... that bunch of black wires is the earth which I think (can't remember) is terminated back up on the bulkhead.

Zed. · Jan 8, 2022

Scooby22 said:
Earth fault, its always an earth fault

or...

Scooby22 said:
Landrover fault, its always a Landrover fault

I always find the 'bullet' wiring connectors to be problematic - worth cleaning them or just wiggling / twisting to break through the corrosion?

and sometimes worth checking if the Lucas wiring smoke is topped up...

Rich.

creaker · Jan 8, 2022

miktdish said:
As everyone says, the most likely culprit is an earth.
To check, remove the headlamp and using a piece of wire clamp one end to the engine and turn on the lights.
Connect this wire to the earth terminal on the back of the headlamp .....

View attachment 256164

The wiring dissapears up under the wing and can be accessed by removing the 'eyebrow' ..
Here's a pic of mine befire I remade everything ... that bunch of black wires is the earth which I think (can't remember) is terminated back up on the bulkhead.

View attachment 256165

Thanks for the info brilliant

miktdish · Jan 8, 2022

Zed. said:
sometimes worth checking if the Lucas wiring smoke is topped up...

Rich.

I let some out once, thats a really usefull jar to have in the toolbox.
