Passenger side engine bracket dimensions

Webley1991 · Jun 17, 2014

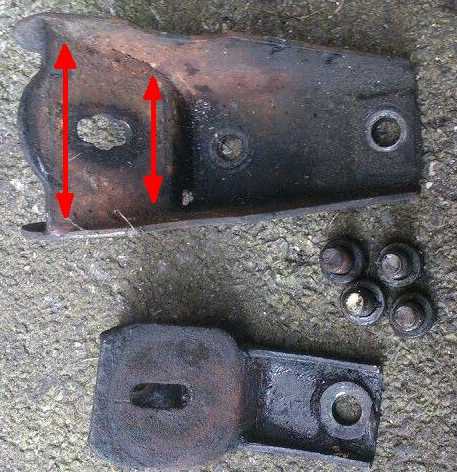

Can anyone give me the two dimensions indicated by the red arrows in the photo? It's the bracket which bolts to the engine block underneath the alternator.

My engine is currently being rebuilt elsewhere. I am not able to get to it to measure it myself.

I borrowed the photo from someone's ebay listing.

Thanks for any info.

Webley1991 · Jun 19, 2014

Anyone?

divie · Jun 20, 2014

Tall order unless someone has got one in bits.

Webley1991 · Jun 20, 2014

Someone on here must have an engine out at the moment.

Webley1991 · Jul 11, 2014

I managed to locate one of these, so can answer my own question. I thought I'd post it here in case it's any use to any anyone else.

The small end in approx 55mm, while the large end is approx 75mm.
