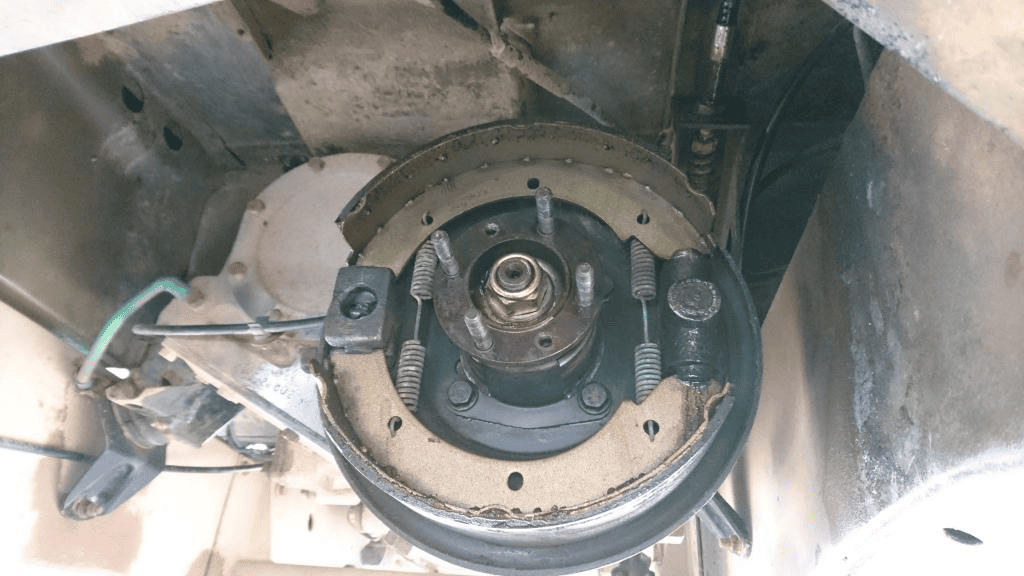

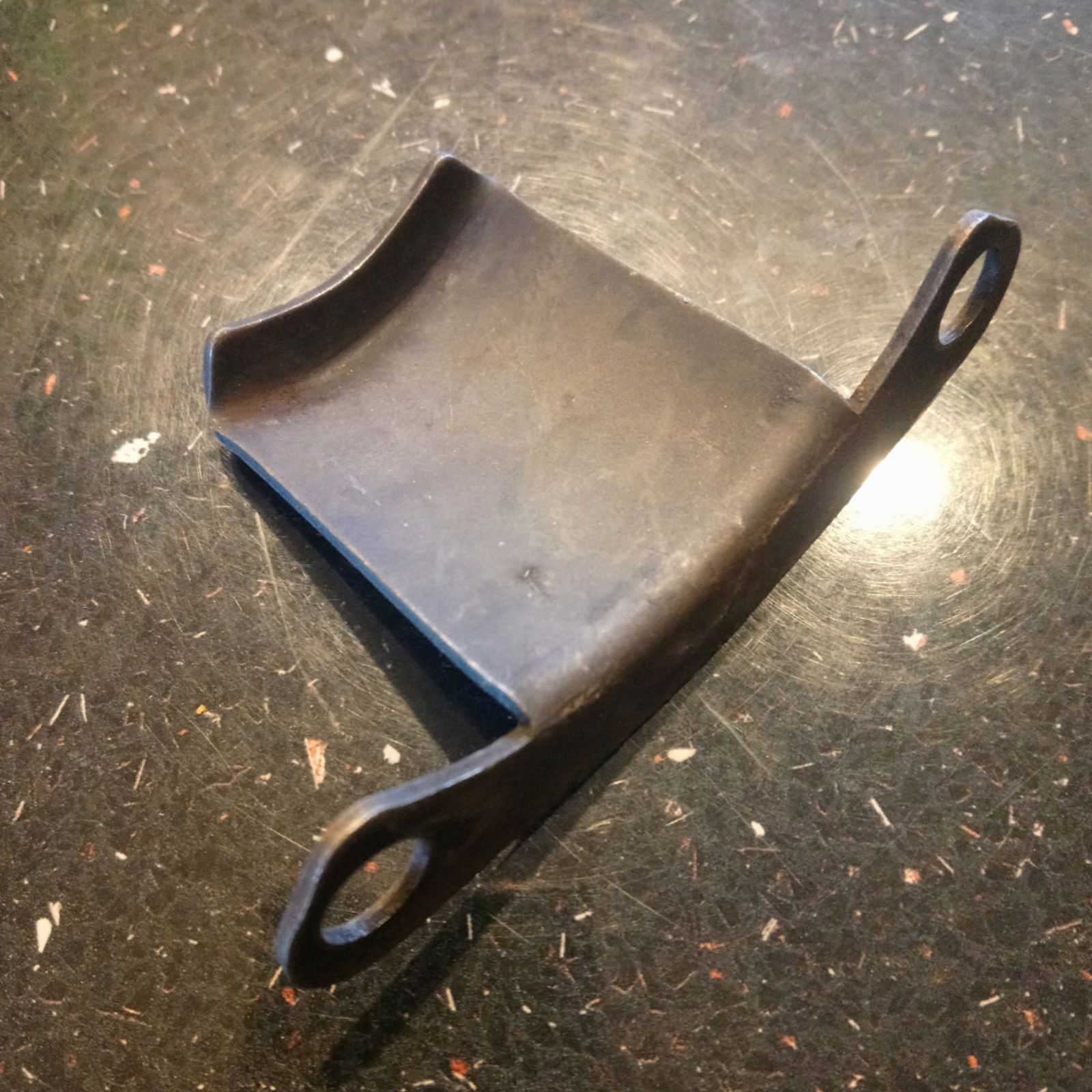

Hi everyone, I've just finished cleaning my handbrake drum / replacing shoes. However, I'm left with a bracket which doesn't seem to fit anywhere. I can remember taking it off with the drum but not exactly where. I've included a picture - if anyone can tell me where it goes I'd really appreciate it!



Flossie

Well-Known Member

Posts

10,977

Location

Shropshire

• Oct 12, 2021

• #2

I recognize it but also can't remember where. I think it's held on by 2 of the 4 bolts holding the backplate on. You should see witness marks in the dirt.



mudmut

Active Member

Posts

327

Location

Essex

• Oct 12, 2021

• #3

There you go



flat

Well-Known Member

Posts

9,075

Location

Far away from you!!

• Oct 12, 2021

• #4

That is the bit that stops oil, that will weep out the rear gearbox seal, from contaminating the hand brake shoes



flat

Well-Known Member

Posts

9,075

Location

Far away from you!!

• Oct 12, 2021

• #5

That is the bit that stops oil, that will weep out the rear gearbox seal, from contaminating the hand brake shoes



tottot

Well-Known Member

Posts

8,007

Location

west wales coast

• Oct 12, 2021

• #6

There is a little hole in the back plate that allows any oil in the catch plate to exit to the outside world. Check it is clear now and then. Land Rover engineering, don't you love it instead of making sure it does not leak in the first place arrange so when it does leak is causes no further issues. [ at least for a while ]



N

NewbieWithA90

Member

Posts

33

Location

Derbyshire

• Oct 12, 2021

• #7

Thanks everyone, it's back where it belongs now!
