p38 eas valve wear info

Enuff · Feb 25, 2015

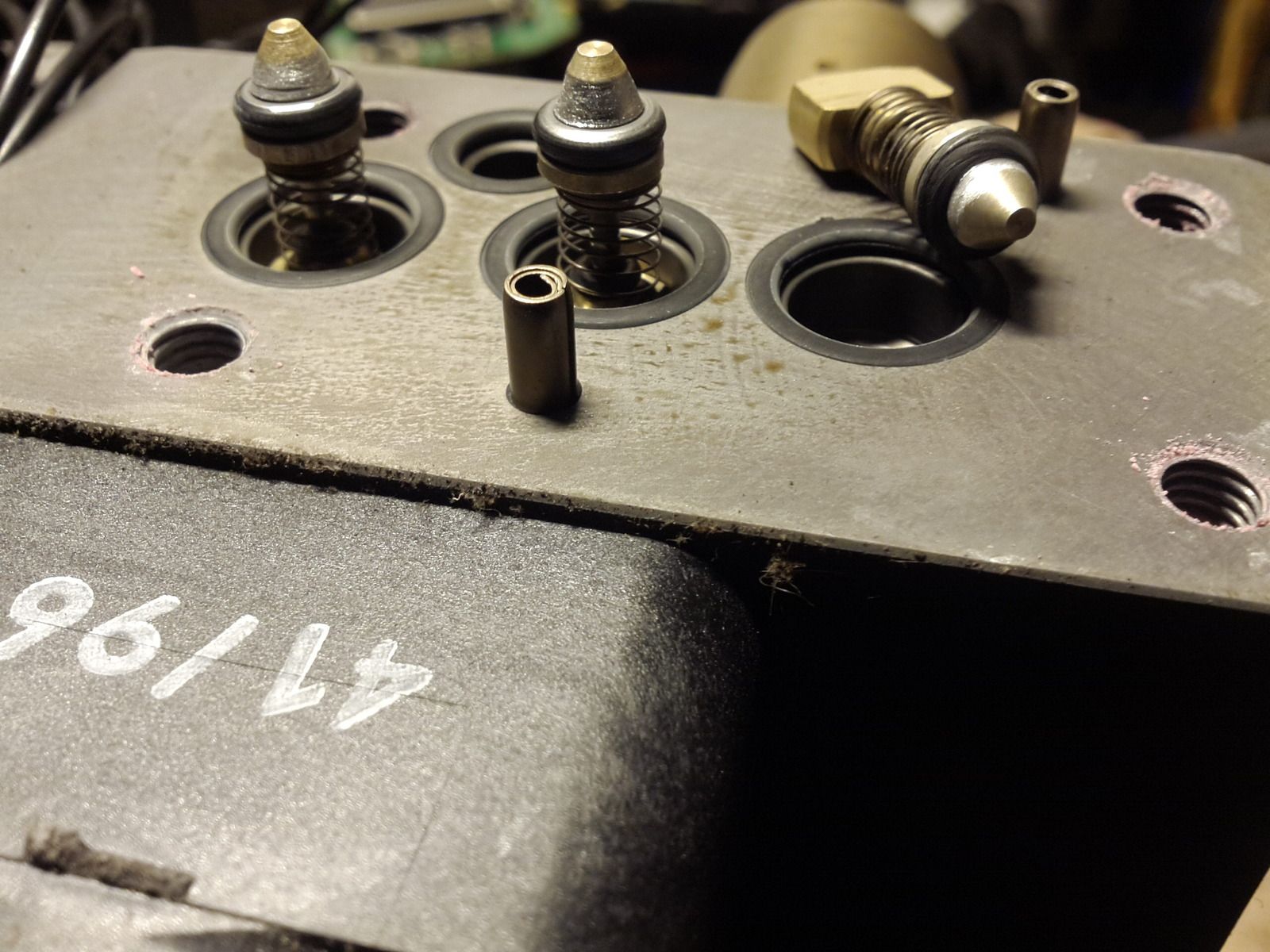

Hi, I thought I would post two pictures of the cone valves in the eas system...
One is from my 83k 4.6 and the other is my 186k 4.0.
Im refurbing them both at the same time and you can see how they wear out.
Is anybody making new ones yet ???

wammers · Feb 25, 2015

Easy enough to knock some up out of Dural if you have or know someone with a lathe. A CNC shop could knock them out for pennies. Surprised nobodies done it.

Castor · Feb 25, 2015

Wow. Just wow.
I shall refrain from further comment; I've shot my mouth off enough today already.

wammers · Feb 25, 2015

Castor said:
Wow. Just wow.
I shall refrain from further comment; I've shot my mouth off enough today already.

Have you been a naughty boy?

Castor · Feb 25, 2015

I've not dismantled one of these things - but correct me if I'm wrong here.
It looks to me like the conical element is just a leader that aligns the O ring in the receptacle - is that correct?

Castor · Feb 25, 2015

wammers said:
Have you been a naughty boy?

It would seems so sometimes..

Rant! mumble mumble mumble........

wammers · Feb 25, 2015

Castor said:
It would seems so sometimes..

Rant! mumble mumble mumble........

Have you really been a naughty boy or does someone just think you have?

Castor · Feb 25, 2015

Datatek · Feb 25, 2015

the cone is just a lead in. If they are not too bad they can be skimmed in a lath, but as Wammers said, new would be better.

Castor · Feb 25, 2015

Quelle faff!

Datatek · Feb 25, 2015

Castor said:
Quelle faff!

Takes 5 minutes pas de probleme

Enuff · Feb 25, 2015

So, worn cone, possible bad seating in receptacle then, slow leaks, head scratching , !?

wammers · Feb 26, 2015

Enuff said:
So, worn cone, possible bad seating in receptacle then, slow leaks, head scratching , !?

That's about the size of it. Do you never read the "How to" section?

Castor · Feb 26, 2015

So if the cones are worn, they must have worn against something, yes?
Does that take damage too - I assume it must?

wammers · Feb 26, 2015

Castor said:
So if the cones are worn, they must have worn against something, yes?
Does that take damage too - I assume it must?

Yes the hole they locate in can become oval. That is why with worn locating cones and an oval seat, soft red O'rings supplied by some vendors tend to fail quicker than their harder black counterparts. Ok everywhere else just not on the NRVs.

Castor · Feb 26, 2015

wammers said:
worn locating cones and an oval seat

My wife has this.

I can feel a refurb in this area coming on (not the wife, the valve block & drivers) when Datatek has finished his driver thingy.

wammers · Feb 26, 2015

Castor said:
My wife has this.

I can feel a refurb in this area coming on (not the wife, the valve block & drivers) when Datatek has finished his driver thingy.

Try an ham shank and pull the bone out. That may solve one of your problems.
