over excessive leak with pics

chrisyleigh · Aug 12, 2013

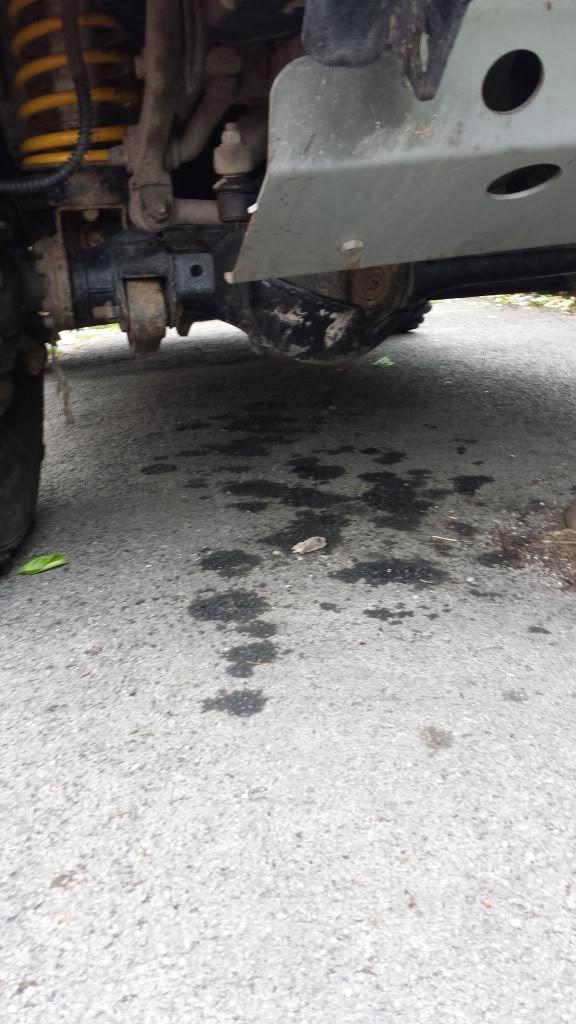

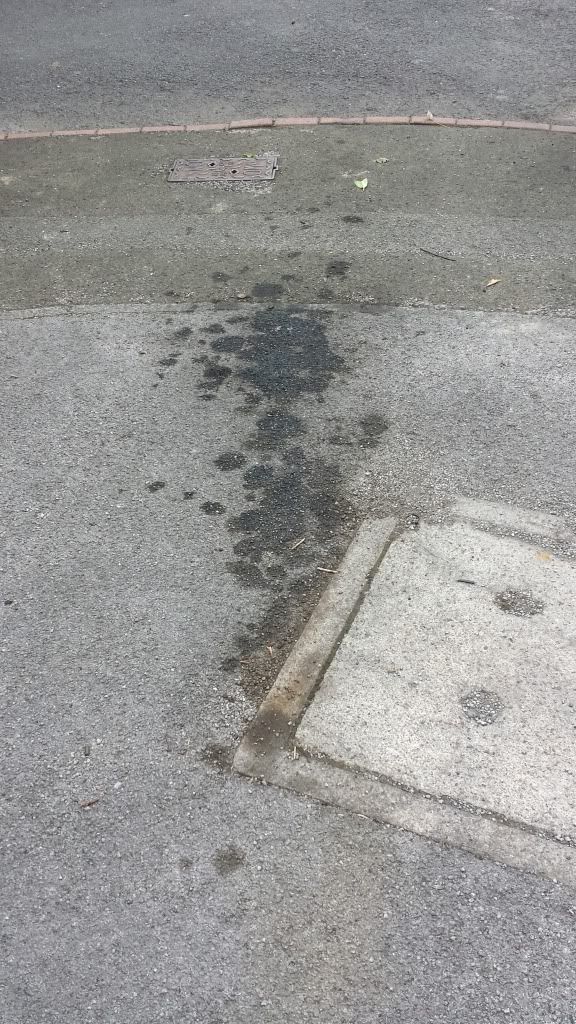

Now i know almost all discos leak haha but this is a bit excessive and havnt a clue where from

2 patchs and 1 in works car park now im new to landys but this is a bit much for my liking havent had it long ive changed the rocker cover gasket as ano that was leaking a little , changes transfer oil as thought it would solve another problem

but carnt seem or shall i say dont know where this lot is coming from seems wet under neaththe gearbox to engine area , anyone shed some light ?

jamesmartin · Aug 12, 2013

oil cooler pipes often leak ,but so can rear main oil seal, vac pump etc

haigy · Aug 12, 2013

Get underneath or above and have a gd look around and you may find it.oil filter sometimes leak or pipes.

Paulmitchell1984 · Aug 12, 2013

one option if theres too much oikl in the bay to find out is jetwash/steam clean the engine bay and keep a close eye for fresh oil..

chrisyleigh · Aug 12, 2013

Will see what i can do , was thinking degreaser spray or sumet , jet wash , go round block then check

lilman · Aug 12, 2013

Mine leaks fluid from the steering box. Could it be that maybe?

horse62 · Aug 12, 2013

Mine had 2 leaks, both fixed now and they both made a mess just like yours.

Main leak was from the vacuum pump, it was leaking from the back of it and oil was everywhere, only found out where it was when the pump failed, replaced that and cured the leak.

The other one was through the center of the oil pressure switch.

At the moment I am leak free but my block paving shows the scars from before!

ruffday · Aug 12, 2013

Could be any of the following.
Rocker cover.
Vac pump.
Front crank seal.
Sump.
Rear crank seal.
Transfer box seal.
Gearbox input and output seals.
Diff seals.

major truma 2 · Aug 12, 2013

i would say ,and its only my opion
it looks like vac pump as its dropping off bottom of box ,if were rear main there would be a lot mlre oil than that mate ,

Mr Noisy · Aug 13, 2013

Oil cooler pipes are the favourite.

chrisyleigh · Aug 14, 2013

Ok seems a few have said vac pump or sumet so ill have a look and see what i can do or see

J.P.S · Aug 24, 2013

if it leaks its good it shows she is alive and has oil

im worried when it doesnt leak!!
